Высококачественный кран-паук 3 тонны 5 тонн мини-гусеничный кран небольшой гидравлический с дистанционным управлением
654 472,25 ₽ - 865 234,50 ₽
Двойной мощный 3 тонный 1 тонный мини электрический дизельный гусеничный кран кран паук телескопическая стрела 10 м 15 используется для узкого пространства
- Категория: >>>
- Поставщик: Jining Tonlita Machinery Co. Ltd.
Сохранить в закладки 1601045474834:
Описание и отзывы
Характеристики

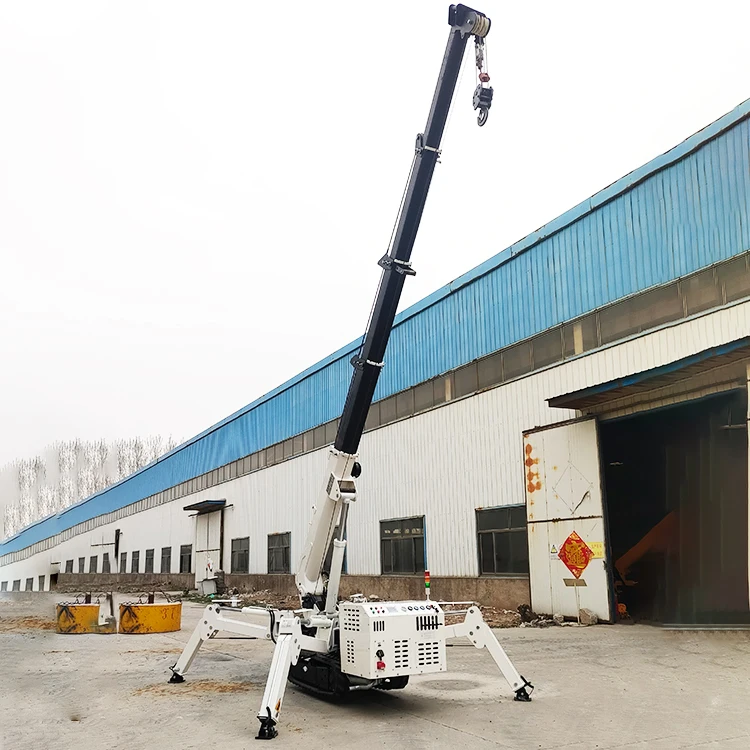

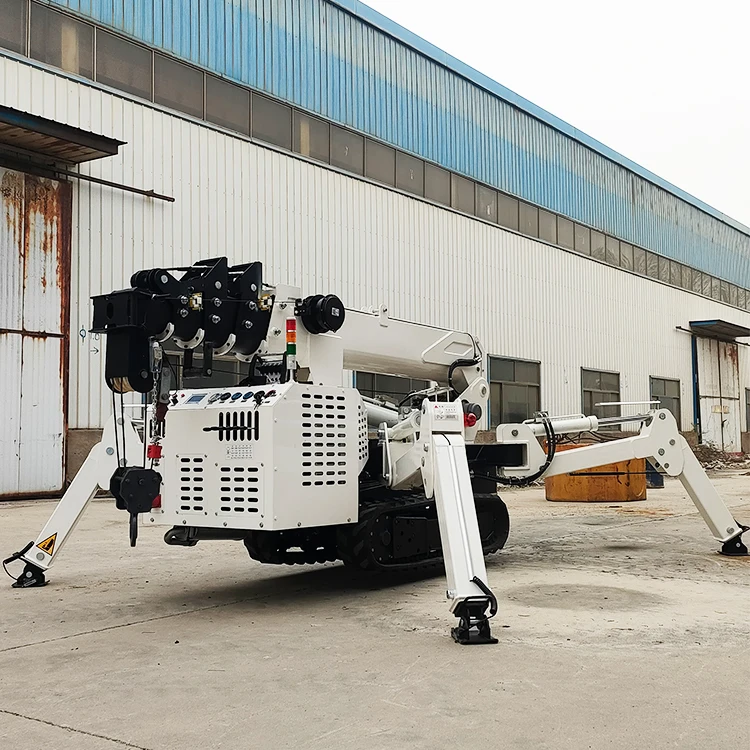

Product Show

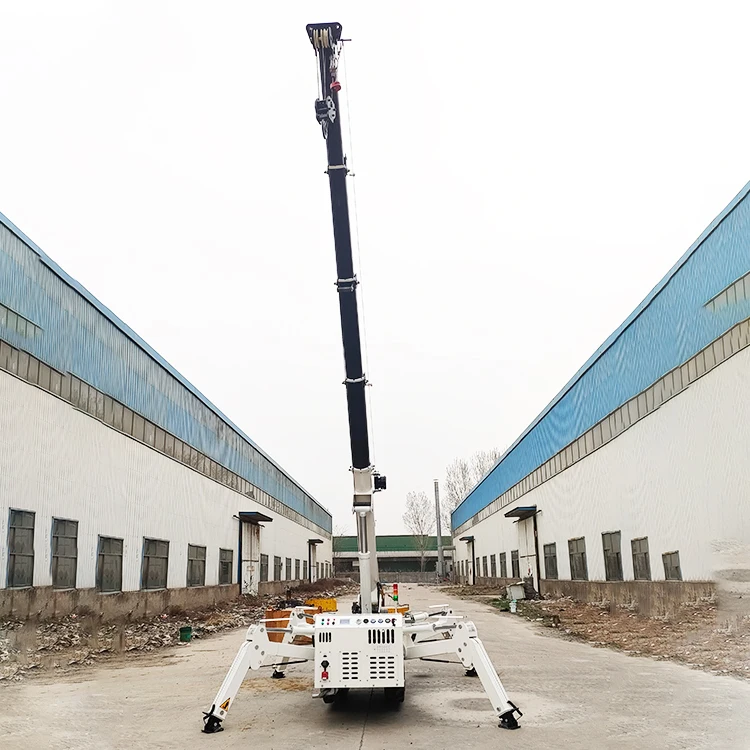

spider crane
Hydraulic outriggers take up less space when working, and the outriggers can also be adjusted . Crawler chassis, more stable,suitable for difficult and complex working environment.
Product Details
Every detail is customized for you, colors, logo, engine...
safe load indicator, remote control can be optional
Engine is optional
Yanmar 3TNV88F EPA Tier4
Changchai 3M78 Euro5
optional
Vacuum glass lifter and hanging basket can be optional
details
We will do every detail for you
customized for you
fly jib
one key outriggerElectric proportional control valve
The fly jib can be added
(1.5m*3 sections, full extension length 3m)

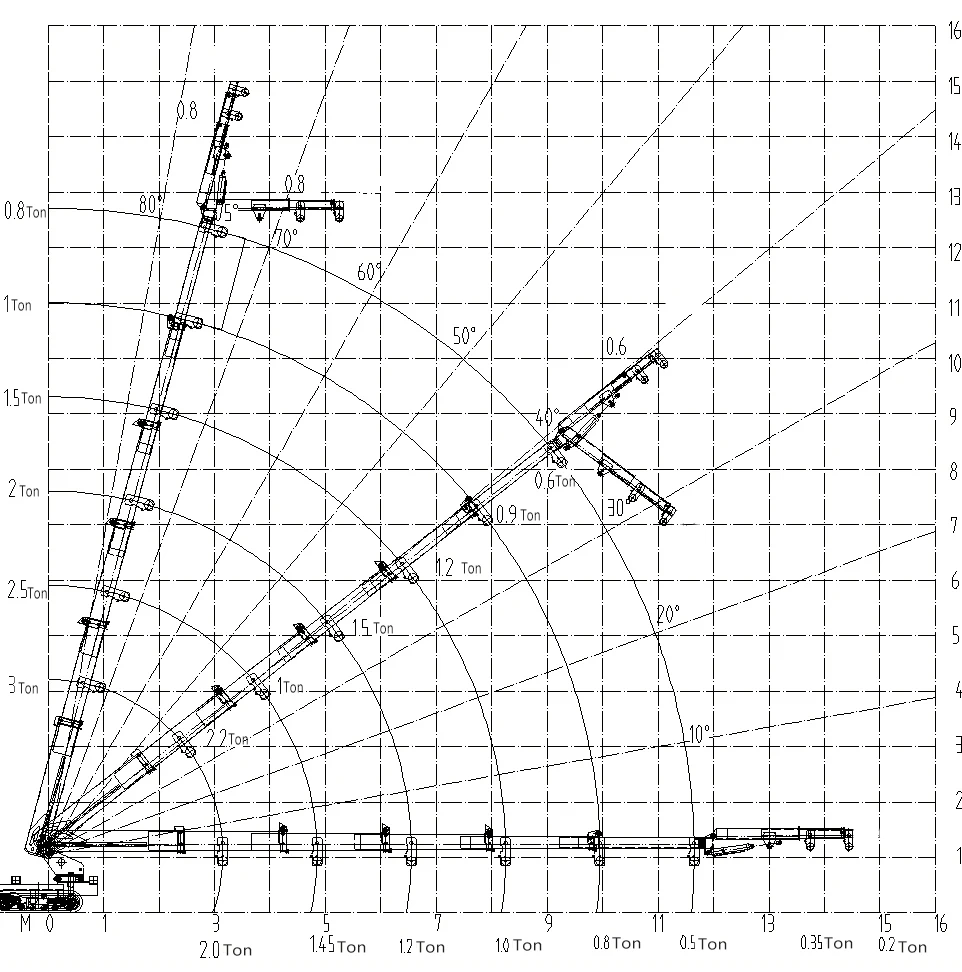

Max working radius
12.5m*0.2Ton
Max Ground Lifting Height
14m

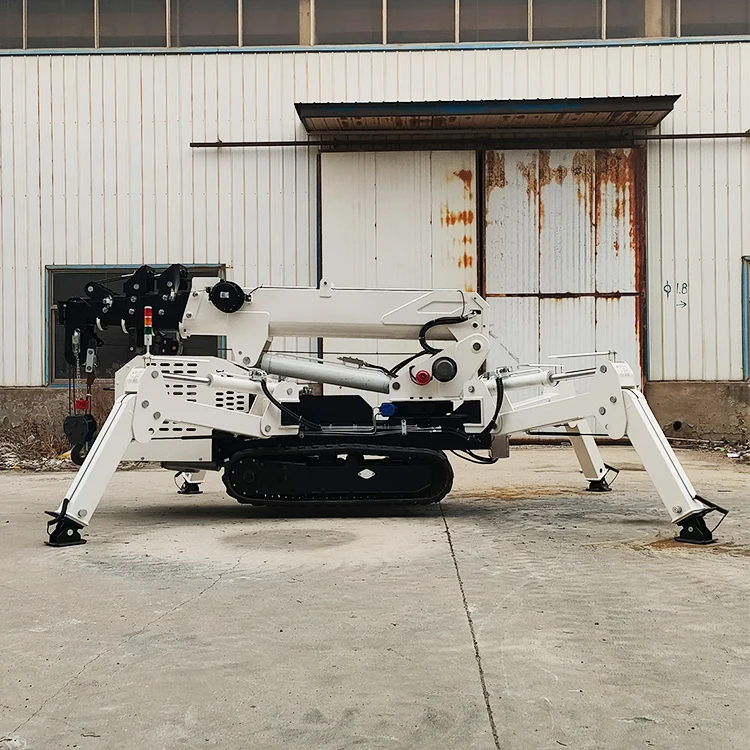

Outrigger Max extended dimensions
4470mm 3940mm
Product Paramenters
Specification | 2.95 Ton |
Maximum working radius | 7.8m×0.2Ton |
Maximum ground lift | 9.2mX0.8Ton |
Engine Producer | YARMAR |
Type/displacement | EV80/F195 |
Start method | Electric start |
Startup performance | -5°C~40°C |
Fuel volume | Diesel/8L |
Battery capacity | 12v 45AH |
Fuel consumption | 274g/kW-h |
Noise level | Rated speed≤81.5dBA (1m) |
Emission Standards | CE/EPA/Ero5 |
Winch Hook up speed | 0-8m/min |
Winch Wire Rope Specifications | Φ8mm×45m |
Telescopic device Boom form | 5-section boom, U-shaped high-strength manganese |
Boom length/time | 2.8m-8.2m/22sec |
Boom angle/time | 0-75°/13sec |
Rotation angle/speed | 0-360°（continuous）/60sec |
Outrigger Action Form | Manual unscrewing + hydraulic automatic support (two legs) |
Maximum extension (mm) | 4010 (long) X3260 (rear), (front) |
Way of traveling | Hydraulic motor drive, two-speed |
Traveling speed | 0-2.5km/h |
Traveling Gradeability | 20°(36%) |
Voltage of motor | AC380V |
Type of operation (jib/outrigger), manual travel | Manual operation, manual walking + remote control (optional) |
The standard configuration | Diesel engine and electric motor (dual power) |
Vehicle size | Length 2830*width 800*height 1650 |
Craftsmanship | Paint assembly process |
Packing and shipping
wooden boxes packing for 3-ton and 1.2-ton models
5 ton/8ton models in a 20GP
10ton/12ton /14ton in a 40GP
Our Company
Are you a manufacturer or Trader?
We are a professional manufacturer, we have our own R&D team and sales team, and we provide a one-stop service.
What is your payment term?
We accept T/T, L/C at sight, etc.
How long is the validity of the quotation?
Generally, our price is valid within 15 days from the date of quotation. The price will be adjusted appropriately according to the price fluctuation of raw materials and changes in the market.
What is your delivery time?
Usually, we make merchandise inventory, if we have the products in stock, the delivery time is 5-10 days after receiving the deposit. If we don't have the products in stock, we will arrange the production right now, the delivery time will be 20-30 days, It depends on the order quantity.
Do you provide OEM/ODM Service?
Yes, offer us the necessary information, we provide custom-made services to meet the different needs of global clients with different budgets.
Do you have a CE certificate?
Yes, most of our products have the CE certificate
How can we ensure quality?
The final inspection is always carried out before shipment.
How to install the equipment after purchasing it?
We will provide a professional installation video to illustrate. Also, provide it manually.
Do you offer a guarantee?
Yes, we guarantee our product for one year. Provide after-sales service support and agricultural technical support.
We are a professional manufacturer, we have our own R&D team and sales team, and we provide a one-stop service.
What is your payment term?
We accept T/T, L/C at sight, etc.
How long is the validity of the quotation?
Generally, our price is valid within 15 days from the date of quotation. The price will be adjusted appropriately according to the price fluctuation of raw materials and changes in the market.
What is your delivery time?
Usually, we make merchandise inventory, if we have the products in stock, the delivery time is 5-10 days after receiving the deposit. If we don't have the products in stock, we will arrange the production right now, the delivery time will be 20-30 days, It depends on the order quantity.
Do you provide OEM/ODM Service?
Yes, offer us the necessary information, we provide custom-made services to meet the different needs of global clients with different budgets.
Do you have a CE certificate?
Yes, most of our products have the CE certificate
How can we ensure quality?
The final inspection is always carried out before shipment.
How to install the equipment after purchasing it?
We will provide a professional installation video to illustrate. Also, provide it manually.
Do you offer a guarantee?
Yes, we guarantee our product for one year. Provide after-sales service support and agricultural technical support.
Похожие товары

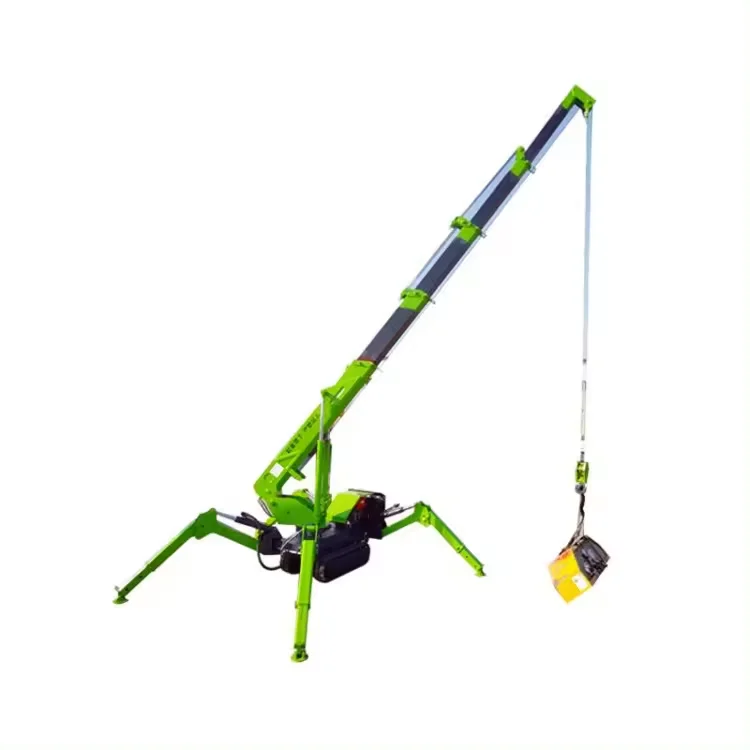

Лучшая цена 3-тонный кран-паук Электрический и дизельный мини-строительный резиновый гусеничный кран 2 тонны насадка для корзины мух
776 381,58 ₽ - 809 659,83 ₽
Кран-паук 12 тонн 10 8
2 262 921,00 ₽ - 2 373 848,50 ₽
Электрический ковшовый подъемник в форме лестницы для строительной площадки
66 556,50 ₽ - 77 649,25 ₽
3-тонный пульт дистанционного управления маленький кран гидравлический телескопическая стрела крана машина
653 362,98 ₽ - 664 455,73 ₽

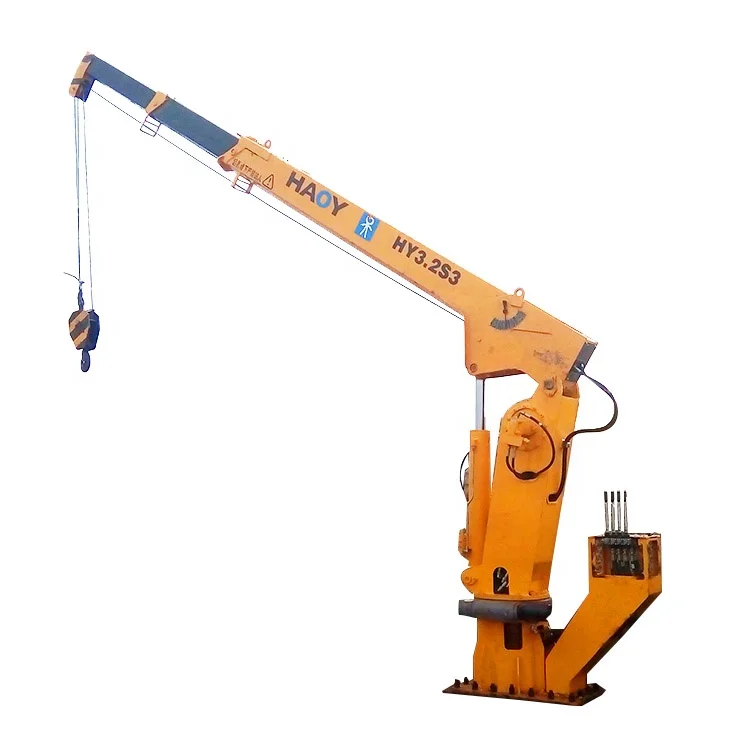

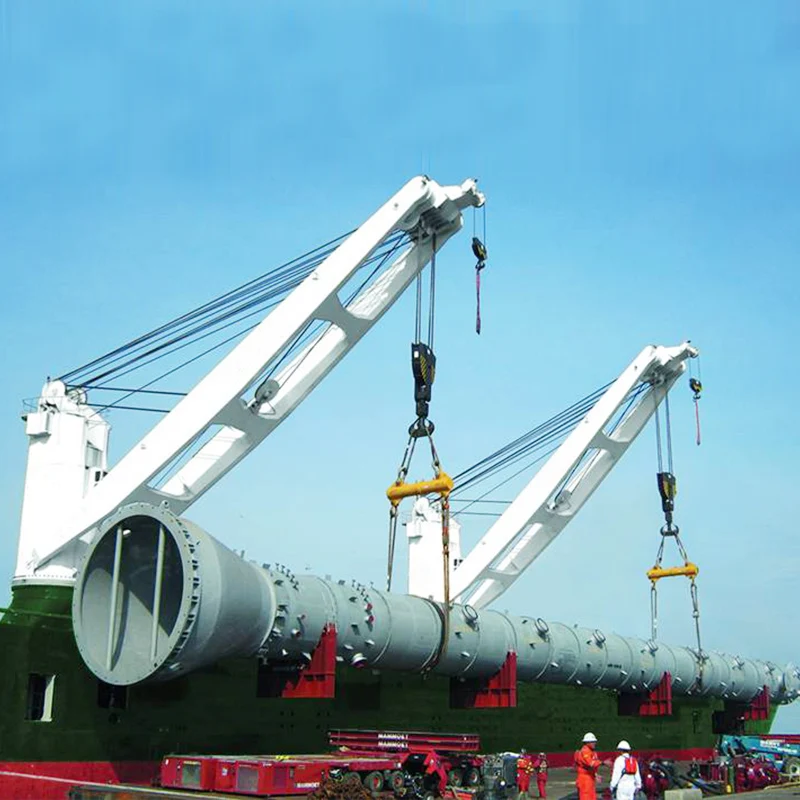

60-тонный судовой кран гидравлический рычаг 8-тонный
