Светодиодный пиксельный контроллер K 8000C оригинальный SPI 1024 пикселей программируемый DMX512 ws2811 SD карта светодиодный
- Категория: >>>
- Поставщик: Shenzhen Chicoyo Technology Co. Ltd.Shenzhen Ltd.
Сохранить в закладки 1601045570067:
Описание и отзывы
Характеристики

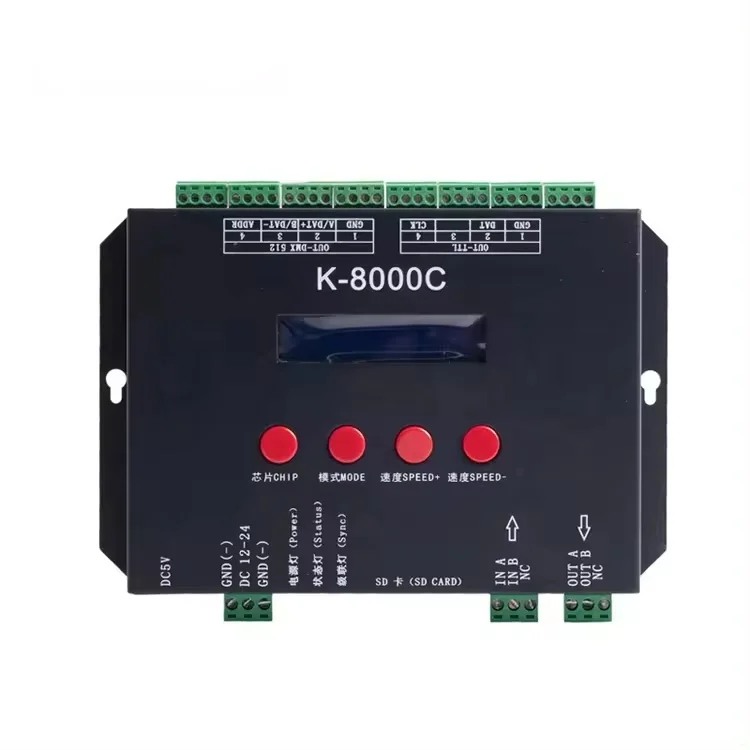

LED Pixel Controller K-8000C Original SPI 1024 Pixels Programmable DMX512 ws2811 SD Card Pixel LED Controller
1)32 to 65536 degree Gray control, Gamma correction procession handle.
2)Support various point, line light source, and all kinds of rules and specific shaped handle.
3)The controller has eight ports output, each port can support up to 512/1024 lights(DMX lights can support up to 512 pixels).
4)The playback content stored in SD card, the SD card can store up to 32 files, SD cared capacity supports 128MB-32GB.
5)The controller can single set use,also multiple controllers cascade, cascade optical isolation mode: interference, better
stability, cascade distance between two controllers can reach up to 150 meters, need to use 0.5M² pure copper power cord.

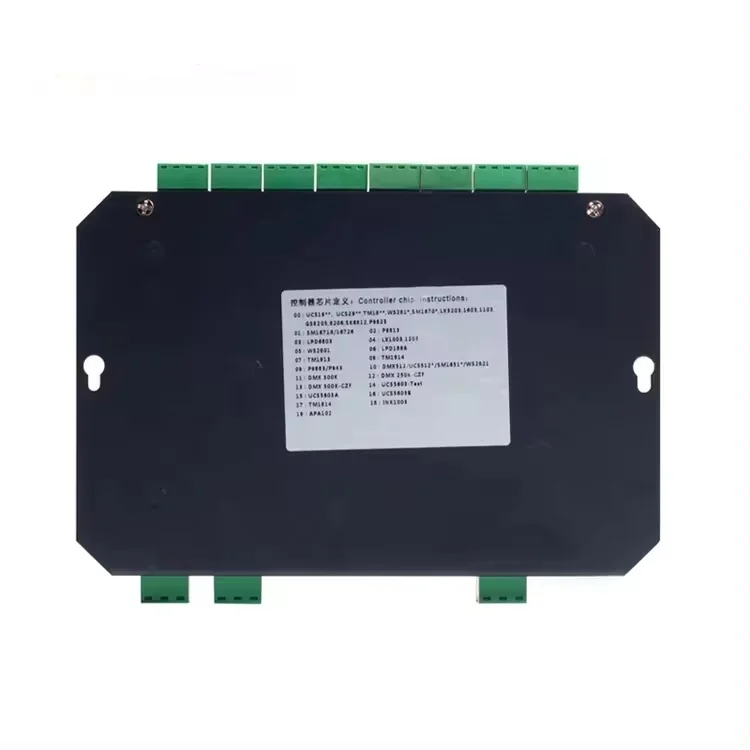

6)The controller support chip can lock the support IC in software, or not lock the support IC in the software, select the support IC through the controller CHIP button, this scheme is more flexible and convenient.
7)For the DMX lighting IC, the controller comes with write address function; In addition, with use of our 2016 LedEdit-K V3.26 or later edition can make one key write address function setting.
8)Support load lamp is 4 channels (RGBW) pixels, or split into single channel point pixels.
9)Enhanced 485 TTL and 485 differential (DMX) signal output.
10)The controller comes with the test effects were as follows: 1 red, green, blue and black jump; 2 red, green, blue and black gradient; 3 red, green, blue and goes.
Notes:
1)The controller load lamps 512 points pixel, speed can reach up to 30 frames / sec, 768 point pixel speed can reach up to 25 frames / sec, 1024 point pixel speed is about 22 frames / sec (the above parameter is an example of 1903 agreement IC, different IC have difference)
2)International standard DMX512 (1990 agreement) maximum support 512 pixels. When the load is international standard 170 pixels,the speed can reach up to 30 frames / sec, 340 pixels speed is about 20 frames / sec, when 512 pixels speed is about 12 frames /sec.
3)Timing (holidays) Play Global Wireless GPS synchronization, control station channel distributor, please contact the salesman or technical support staff for more information.
NOTES:
1.If support RGBW four channels’ lights should select K-8000-RGBW.
2.If support single channel light should choose K-8000-W, at this time, one channel means one pixel, the software effect make as white lighting.
Storage card: SD card
Capacity: 128MB-32GB
Memory card format: FAT/FAT32
Number of stored files: up to 32 effect files
Storage files: *. led
Ports: 8
Working power supply: DC 5V or DC 12-24V input
Working temperature: -30 ℃ -85 ℃
Power consumption: 5W
Weight: 1.1kg
Size: 180 * 120 * 35
Capacity: 128MB-32GB
Memory card format: FAT/FAT32
Number of stored files: up to 32 effect files
Storage files: *. led
Ports: 8
Working power supply: DC 5V or DC 12-24V input
Working temperature: -30 ℃ -85 ℃
Power consumption: 5W
Weight: 1.1kg
Size: 180 * 120 * 35
SD card precautions:
1. Before copying files to the SD card, it is necessary to format the SD card first, making sure to format it before each copy.
2. The SD card must be formatted in FAT/FAT32 format.
3. The SD card on the controller cannot be hot swapped, and the power to the controller must be disconnected each time the SD card is swapped.
1. Before copying files to the SD card, it is necessary to format the SD card first, making sure to format it before each copy.
2. The SD card must be formatted in FAT/FAT32 format.
3. The SD card on the controller cannot be hot swapped, and the power to the controller must be disconnected each time the SD card is swapped.

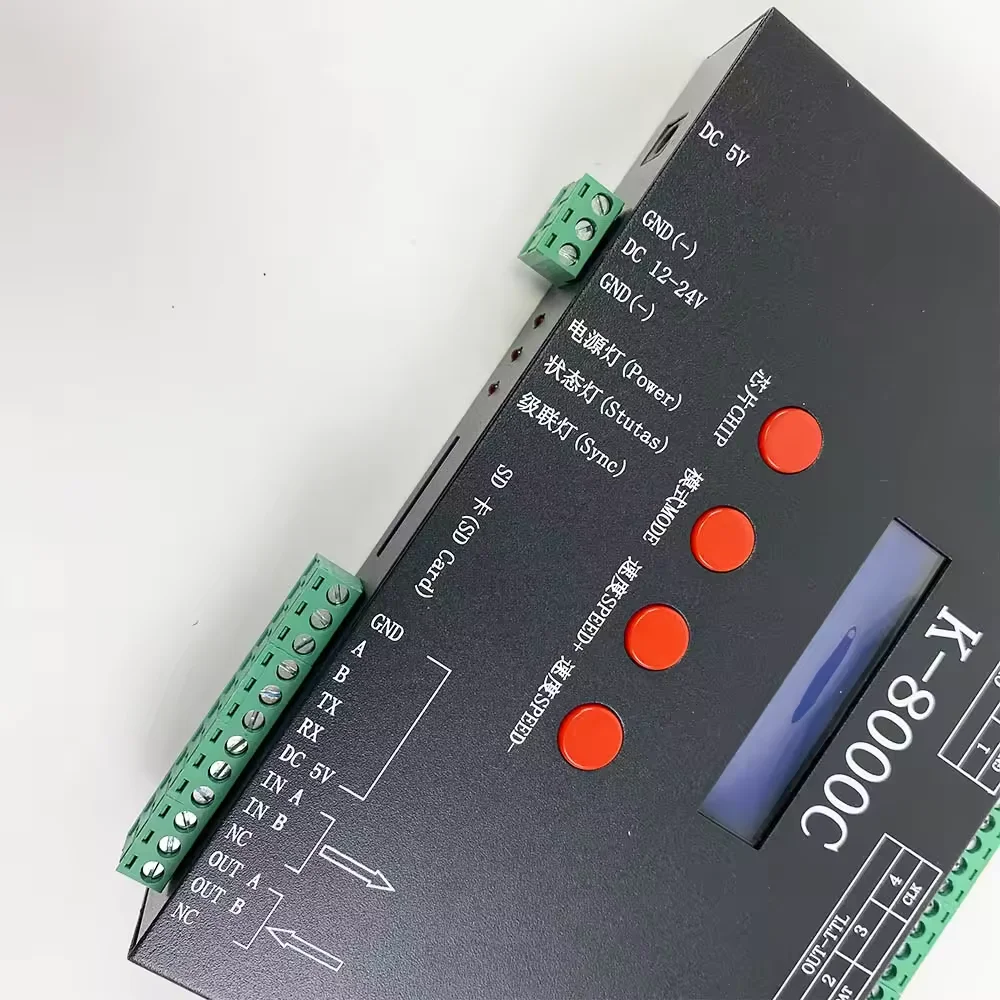

Key Meaning | ||||
Key identification | Meaning | |||
Chip CHIP | Select chip model | Press the "Chip" key first, then the "Mode" key to enter the code writing mode, complete the code writing, press the "Chip" key, and then press the "Mode" key to exit the code writing mode | ||
Mode | Switch files | |||
SPEED+ | Speed up | Press both SPEED+and SPDDE - simultaneously to enter file looping mode. At this time, the mode flashes, indicating that the file looping mode is entered | ||
SPEED- | Slow down | |||
DC 5V | Power input | Either DC 5V or 12V-24V can be selected for power supply. 5V uses DC plugs for power supply, and 12-24V uses wiring terminals | ||
GND | Negative pole of power supply | |||
POWER | Power indicator light | |||
ERROR | Error indicator light | |||
SD CARD | SD card slot | |||

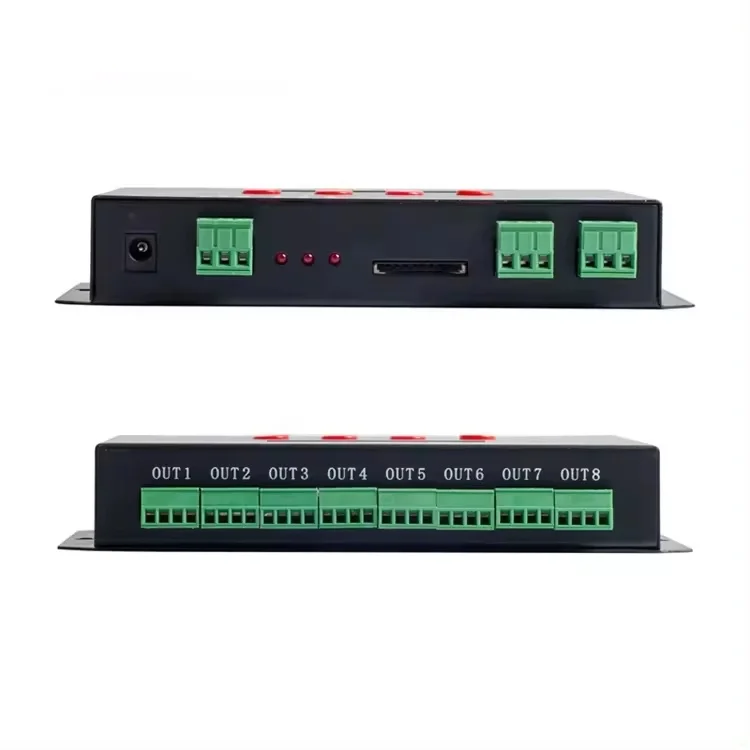

Indicator lights and ports | ||||
POWER | Power indicator light | Chang Liang | ||
SYNC | Cascading indicator lights | Cascade time controlled flicker | ||
STATUS | Status indicator light | Normal off/error on | ||
Power supply | DC5V power input/DC12-24 input | |||
SD CARD | SD card slot | |||
IN A/B | Cascading input ports | |||
OUT A/B | Cascaded output port | |||

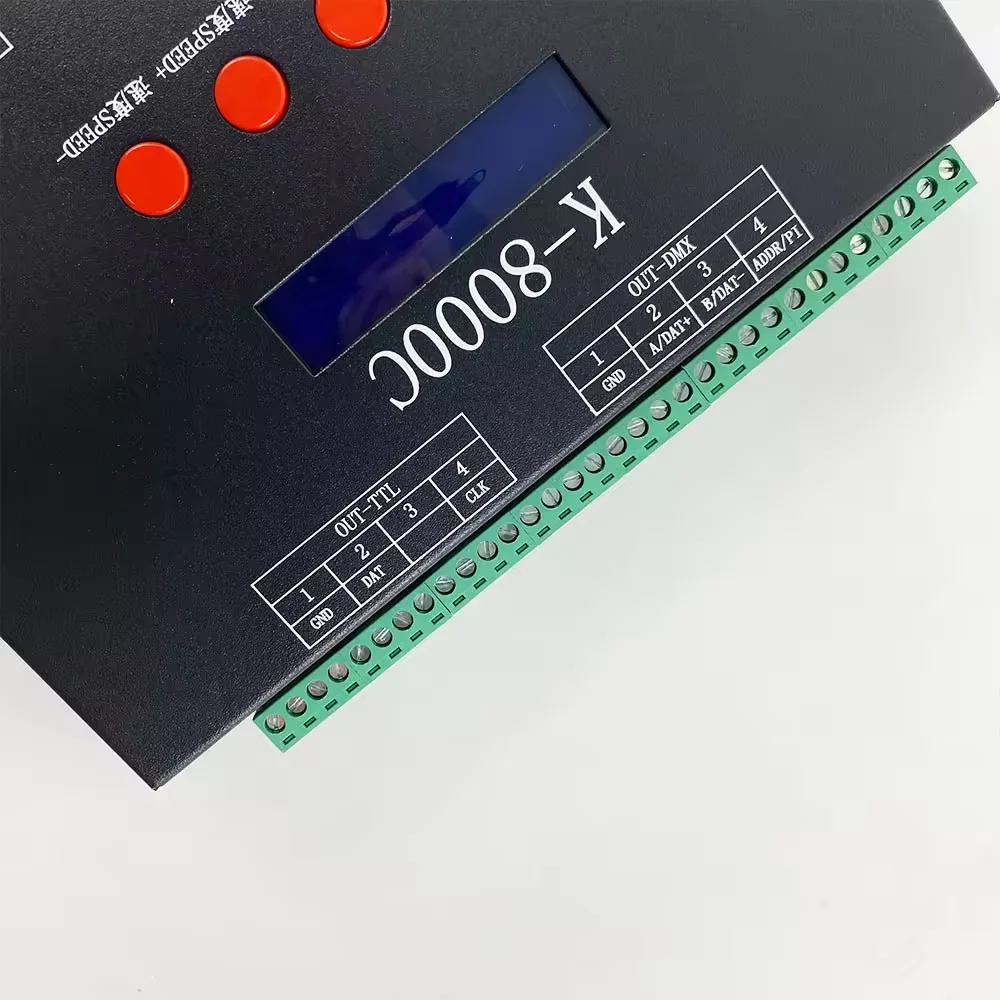

Signal output (1-8) | ||||||
TTL output | DMX512 output | |||||
GND | negative electrode | GND | negative electrode | |||
DAT | Data cable | A/DAT+ | Signal positive | |||
/ | / | B/DAT- | Signal negative | |||
CLK | Clock line | ADDR | Addressing line | |||
Frame rate corresponding to speed level | ||||||
Speed level | Frame rate/second | Speed level | Frame rate/second | |||
1 | 4 frames | 9 | 14 frames | |||
2 | 5 frames | 10 | 16 frames | |||
3 | 6 frames | 11 | 18 frames | |||
4 | 7 frames | 12 | 20 frames | |||
5 | 8 frames | 13 | 23 frames | |||
6 | 9 frames | 14 | 25 frames | |||
7 | 10 frames | 15 | 27 frames | |||
8 | 11 frames | 16 | 30 frames | |||
Product Description
Company Profile
Chicoyo has more controller products to choose from, and supports customized products to be sold on platforms such as Amazon
WIFI RGB Led Controller LED controller (low voltage high voltage)
Monochrome controller (wifi bluetooth IR RF)
Dual color temperature controller (wifi bluetooth IR RF)
Monochrome controller (wifi bluetooth IR RF)
Dual color temperature controller (wifi bluetooth IR RF)
Our Company
Shenzhen Chicoyo Technology Co., Ltd. is one of the leading suppliers from China mainland in the field of smart control systems. Our R&D team is strong with 12 years' experience of smart control technology.
CHICOYO focuses on the good customer experience and developed a variety of related products such as LED remote and controllers, LED drivers and power supplies, smart LED lights and smart sockets to meet their needs. All of our products meet the international standards. OEM and ODM requirements are acceptable and welcomed. We can also provide the fast and flexible services based on our simple organizational structure. Besides, our low management cost and continuous improvement brings you cost-effective products. Short delivery time is always available because of our inventory sales.
CHICOYO insists on developing high-tech innovation, committing to providing first-class products and best solutions, and creating more values for customers. At the moment, we win the worldwide trust and support based on the customer-orientation and advanced technology.
CHICOYO focuses on the good customer experience and developed a variety of related products such as LED remote and controllers, LED drivers and power supplies, smart LED lights and smart sockets to meet their needs. All of our products meet the international standards. OEM and ODM requirements are acceptable and welcomed. We can also provide the fast and flexible services based on our simple organizational structure. Besides, our low management cost and continuous improvement brings you cost-effective products. Short delivery time is always available because of our inventory sales.
CHICOYO insists on developing high-tech innovation, committing to providing first-class products and best solutions, and creating more values for customers. At the moment, we win the worldwide trust and support based on the customer-orientation and advanced technology.
Contact Us
Packing & Delivery
Packing
Packaging Details:100pcs/ctn /23KG
Product size:85*45*23mm
Weight:50g
Delivery
Lead Time: Sample order in 3-5 days, mass order in 15-25 workdays after payment.
Packaging Details:100pcs/ctn /23KG
Product size:85*45*23mm
Weight:50g
Delivery
Lead Time: Sample order in 3-5 days, mass order in 15-25 workdays after payment.
FAQ
Q1. What are the advantages of CHICOYO and its items ?
A: a. CHICOYO is one of the Chinese largest professional LED controller manufacturers.
b. CHICOYO has more than 10 years' research and development experience.
c. CHICOYO is an innovation in LED controller industry, providing 2-5 years warranty service.
d. CHICOYO provides a variety of smart LED lights, which could satisfy different customers' demands. Also we could meet the
requirements of high –quality and high cost –effective.
Q2. What about the lead time?
A:Sample needs 2-5 days, bulk order needs 2-4 weeks based on different items and qty.
Q3. Can I have a sample order for led controllers? And what is your MOQ?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Low MOQ requirement. 1pc for sample checking is available. But prices are different based on different qty.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 2-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order?
A: Firstly let us know your requirements or application.
ondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Lastly We arrange the production and shipment when ready.
Q6. Is it OK to print my logo on the product?
A: Yes. Please inform of us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.5%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
ncluding re-call according to real situation.
A: a. CHICOYO is one of the Chinese largest professional LED controller manufacturers.
b. CHICOYO has more than 10 years' research and development experience.
c. CHICOYO is an innovation in LED controller industry, providing 2-5 years warranty service.
d. CHICOYO provides a variety of smart LED lights, which could satisfy different customers' demands. Also we could meet the
requirements of high –quality and high cost –effective.
Q2. What about the lead time?
A:Sample needs 2-5 days, bulk order needs 2-4 weeks based on different items and qty.
Q3. Can I have a sample order for led controllers? And what is your MOQ?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Low MOQ requirement. 1pc for sample checking is available. But prices are different based on different qty.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 2-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order?
A: Firstly let us know your requirements or application.
ondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Lastly We arrange the production and shipment when ready.
Q6. Is it OK to print my logo on the product?
A: Yes. Please inform of us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.5%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
ncluding re-call according to real situation.
Похожие товары
Контроллер H802RA с 4 выходами портов RGB RGBW Pixel Ethernet DMX поддержка DMX512 UCS512 UCS1903 WS2811 SK6812 APA102
55,00-90,00 $
Улучшенный беспроводной пиксельный светодиодный дистанционный контроллер SP108E с Wi-Fi и приложением для цифровой адресной светодиодной ленты WS2811 WS2812 SK3812
15,17-16,38 $
768 Вт 24 клавиши RF PWM RJ45 сетевой кабель проводной синхронизации rgbw светодиодный контроллер
8,50-10,00 $
Новые продукты PWM 0 10 вольт светодиодный настенный небольшой диммер переключатель
20,95-22,00 $

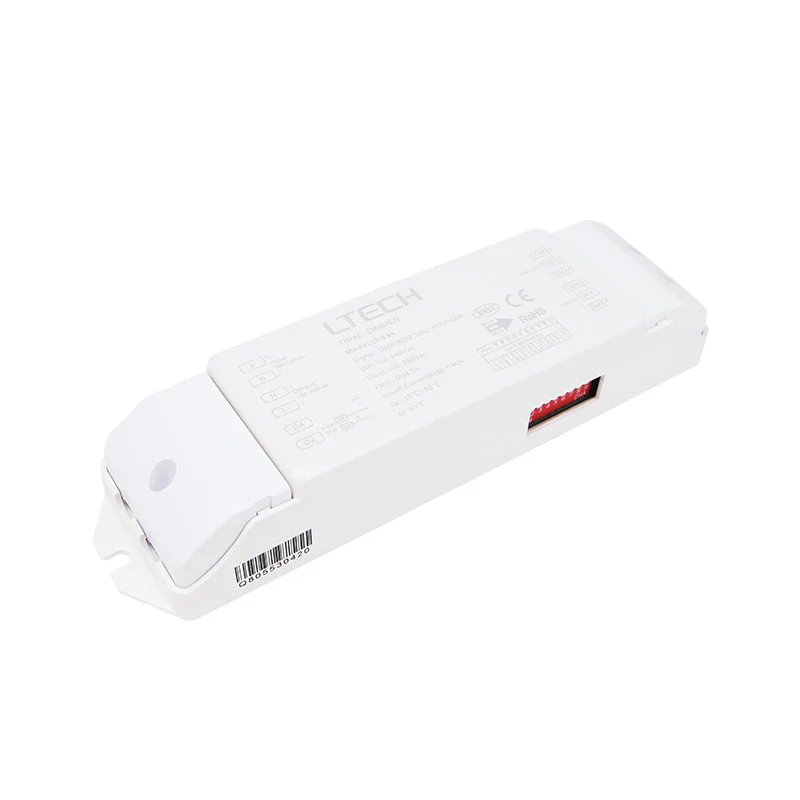

Ltech LT-834 Полностью Защитный пластиковый корпус Push DIM DALI/DMX-фазовый модуль затемнения
18,00-20,00 $

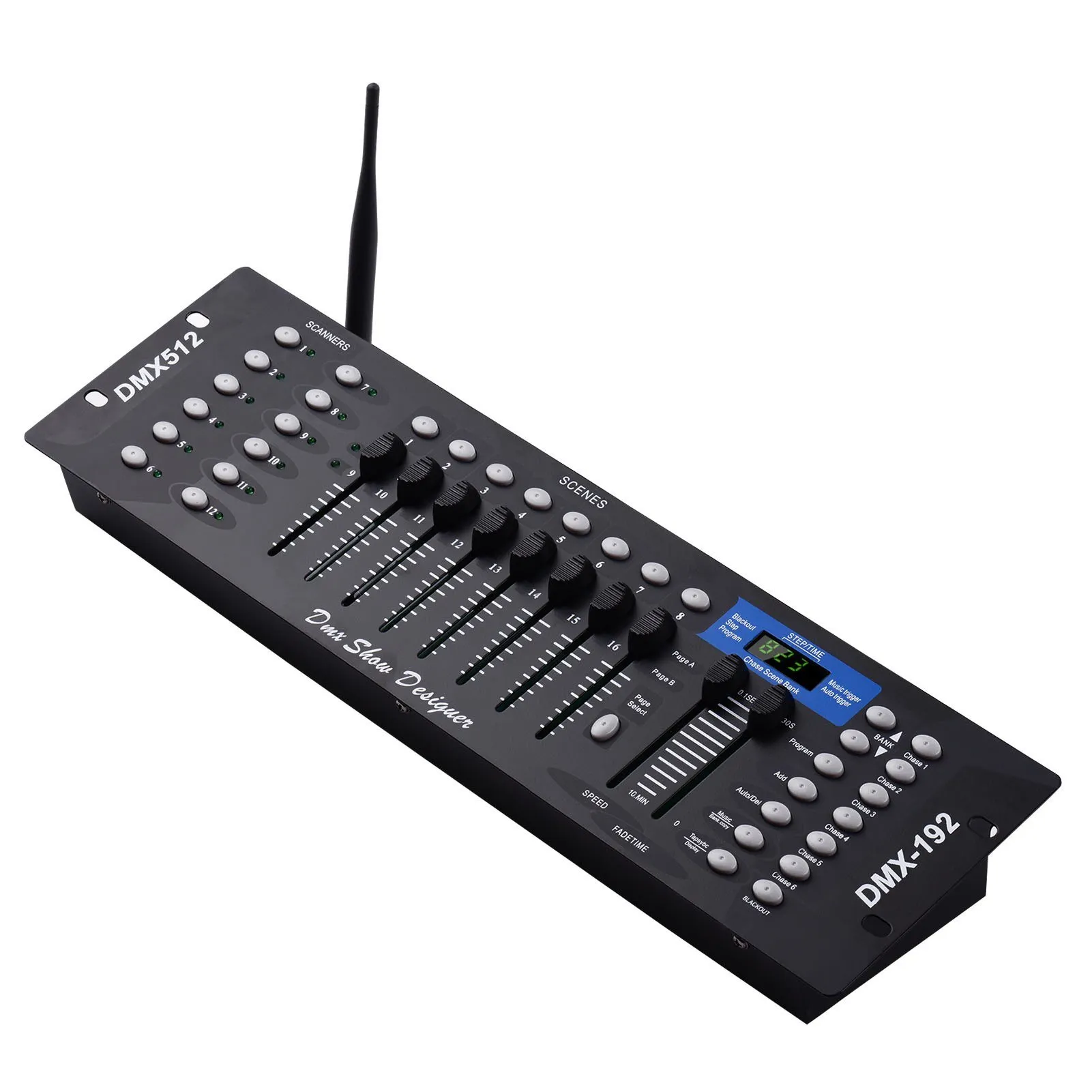

Беспроводной контроллер освещения DMX512, панель консоли 2,4G ISM 192CH, функция программирования, активация звуком со светодиодной экранной антенной
3 277,84-3 746,11 ₽

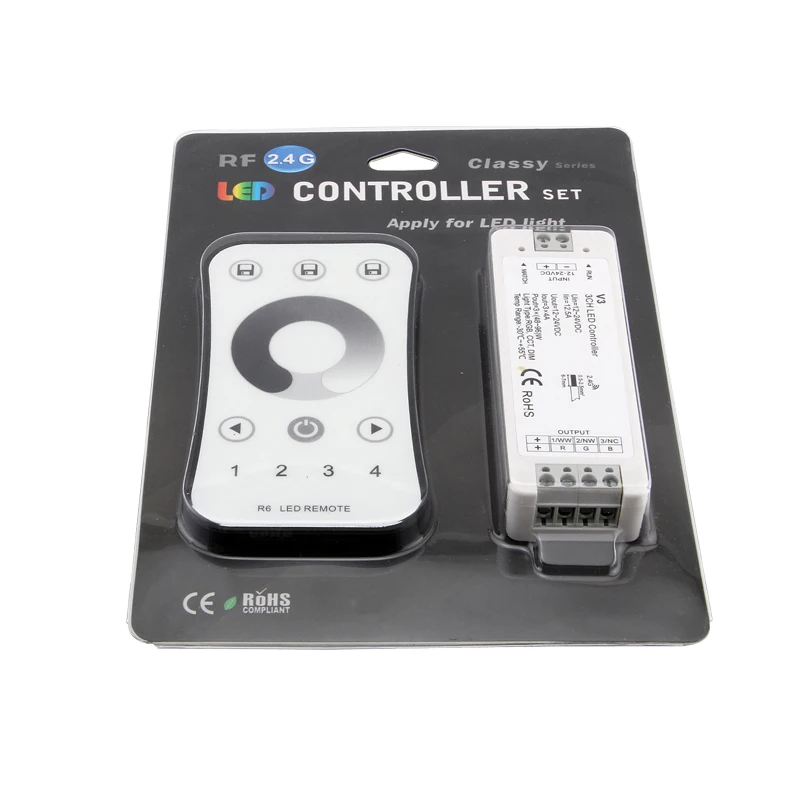

Светодиодный пульт дистанционного управления CE Rohs 2 4G R6 Одноцветный светодиодной лентой с регулировкой яркости
