Лист лист сверхмощный Автоматический штамповочный станок для резки бумаги и пластика ПВХ PP PET
- Категория: >>>
- Поставщик: Wenzhou Longhua Machinery Co. Ltd.
Сохранить в закладки 1601045845998:
Описание и отзывы
Характеристики

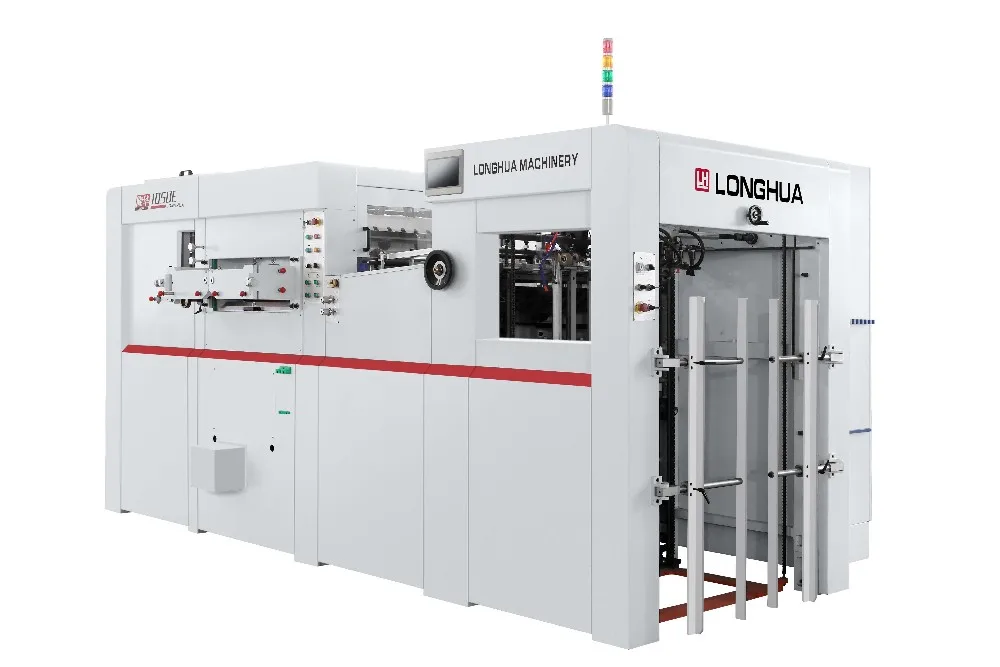

1050 Automatic die cutting machine
1. Automatic Die Cutting Machine is designed for die cutting specially. It suits for more than 80g/m2 paper, cardboard, corrugated paper below 4mm, pasting paper, laminating paper and so on.
2. The machine includes 4 parts: Feeder, paper feed section, main motor and delivery section. And it can finish feeding, die cutting, and collecting work cycle automatically.
3. The feeder is made inTaiwan, it has excellent flexibility, that realize to make a change in the breadth frequently, last and easily.
4. The machine is equipped with automatic lubrication system. And the swing rod and copper tile are all reworked by hand. We scrap the surface and make it full of criss-cross scrath. The groove hold more oil that can ensure smooth going of the operation, and the precision of the pattern.
2. The machine includes 4 parts: Feeder, paper feed section, main motor and delivery section. And it can finish feeding, die cutting, and collecting work cycle automatically.
3. The feeder is made inTaiwan, it has excellent flexibility, that realize to make a change in the breadth frequently, last and easily.
4. The machine is equipped with automatic lubrication system. And the swing rod and copper tile are all reworked by hand. We scrap the surface and make it full of criss-cross scrath. The groove hold more oil that can ensure smooth going of the operation, and the precision of the pattern.
Model | 1050E |
Name | Automatic Platen Die Cutting Machine |
Max. Sheet Size | 1050×750mm |
Min. Sheet Size | 400×360mm |
Max. Cutting Range | 1040×720mm |
Inner Chase Size | 1080×745mm |
Die Cutting Steel Plate Size | 1080×736mm |
Paper Thickness | 80-2000 g/m2 Cardboard Corrugated paper≤4mm |
Plastic Range | 0.1-2.0mm |
Min. Grabbing-sheet Width | 9mm |
Max. Mechanical Speed | 7500 sheets/h |
Max. Die Cutting Pressure | 300T |
Max. Feeding Pile Height | 1350mm |
Max. Delivery Pile Height | 1200mm |
Total Weight | 16T |
Dimensions | 6300×4200×2100mm |
Total Power | 40kw |
Heating System | 12 heating areas, 40°C-180°C adjustable |
Full Load Power | 42kw |
Voltage Requirements | 380V 50Hz |
Air compressor | 0.8Mpa, 0.36m3/min, 3kw |
Machine features
1.Feeder/Feeding Section
* Taiwan imported high precision Feeder
* Four suction nozzles, four sending nozzles,
ensure feed smoothly.
* Suction angle and height is adjustable
* Non-stop paper feeding device
* Four suction nozzles, four sending nozzles,
ensure feed smoothly.
* Suction angle and height is adjustable
* Non-stop paper feeding device
* Import screw air-blowing device, it could
make the sheet send smoothly.2.Feeding Positioning Section
The incline-type paper moving table top is more suitable to high-speed thin paper and location. Side location adopt dual purpose
side device with pull guide and push guide, accounting to paper choose, it makes switch easier. It could switch front rise position arriving reduction of speed device, it is benefit of thin paper’s location.
side device with pull guide and push guide, accounting to paper choose, it makes switch easier. It could switch front rise position arriving reduction of speed device, it is benefit of thin paper’s location.

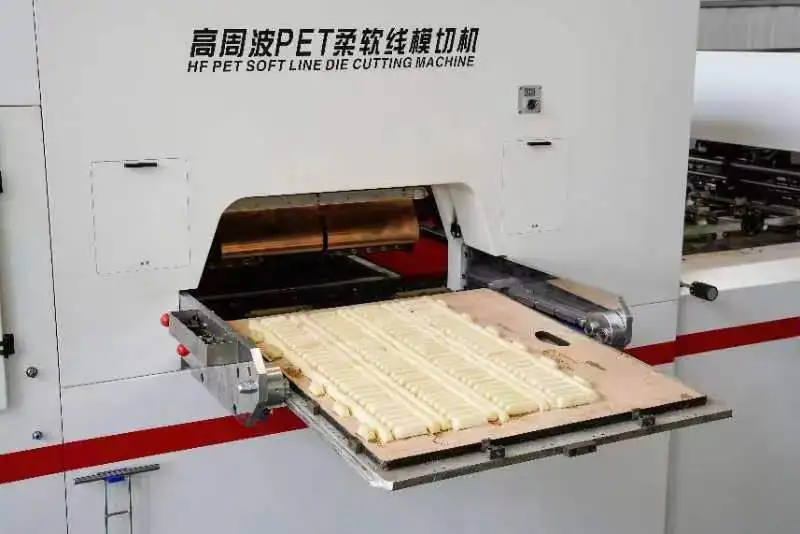

3. Die Cutting Section
Title goes here.
The driving gear ensures high speed of die cutting together.
The pneumatic locking mechanism and air clutch are fast and stable.
The die cutting frame can prevent the die cutting plate from drooping or separating effectively.
4.Delivery Section
Delivery section add tester into security system. It is equipped with inset counter. Using subsection could adjust brush and sheet air-blowing device, so the finished product of delivery section could product stably. Gripper drive train expanded buffer device. NON-STOP PAPER
Certifications
FAQ
1. Q:Whether your company are manufacturer ?
A:Yes ,We are the factory for automatic die cutting machine , Hot stamping machine ,embossing machine
A:Yes ,We are the factory for automatic die cutting machine , Hot stamping machine ,embossing machine
2. Q:Whether you have export licence ?
A:Yes ,we have export licence and we already have many experience export to other countries to service the abroad clients also.
A:Yes ,we have export licence and we already have many experience export to other countries to service the abroad clients also.
3.Q:Can you customize the equipment according to my needs?
A:Yes,the specification,configuration,function and appearance can be customized.
A:Yes,the specification,configuration,function and appearance can be customized.
4. Q:Where you are located ?
A:We located in Pingyang ,Wenzhou city ,Zhejiang pronvice , china ,
5. Q:How to travel to your city ?
A:Our nearest airport Wenzhou Longwan international airport , our nearest high speed train station , Ruian / Wenzhou station; Our company can arrange car to pick you up if you need.
6. Q:About quality control and delivery?
A .We have inspection department for every process. Every machine must be debugging before delivery by our experienced engineer to make sure the machine are best condition, The third party inspection are acceptable ,our delivery time is 20-30 days normally, But details need confirm before place order.
7. Q:The samples whether acceptable before place the order ?
A:Yes. We can offer the samples before your company place the order .
8. what services can we provide?
We offer 12 month warranty, long term technical support. Any time your company need help, Just contact with our sales. We will make the solution as soonest.
9. Whether offer engineer to client company to installation.train,and guide your production
Yes , We can arrange clients to your company if you need.
Accepted Terms: FOB,CFR,CIF,EXW;
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,Cash
A:We located in Pingyang ,Wenzhou city ,Zhejiang pronvice , china ,
5. Q:How to travel to your city ?
A:Our nearest airport Wenzhou Longwan international airport , our nearest high speed train station , Ruian / Wenzhou station; Our company can arrange car to pick you up if you need.
6. Q:About quality control and delivery?
A .We have inspection department for every process. Every machine must be debugging before delivery by our experienced engineer to make sure the machine are best condition, The third party inspection are acceptable ,our delivery time is 20-30 days normally, But details need confirm before place order.
7. Q:The samples whether acceptable before place the order ?
A:Yes. We can offer the samples before your company place the order .
8. what services can we provide?
We offer 12 month warranty, long term technical support. Any time your company need help, Just contact with our sales. We will make the solution as soonest.
9. Whether offer engineer to client company to installation.train,and guide your production
Yes , We can arrange clients to your company if you need.
Accepted Terms: FOB,CFR,CIF,EXW;
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,Cash
Language Spoken:English,Chinese.
Похожие товары
Новое состояние 220 В полуавтоматическая переплетная машина для переплета книг в твердом переплете простота эксплуатации с пластинчатой пластиной и зубчатой коробкой
451 854,44 ₽ - 462 875,28 ₽
Автоматическая высокоскоростная машина для ламинирования флейты Складная складывания салфеток лица линия производства
7 273 754,40 ₽
Полуавтоматическая машина для переплета книг в твердом переплете 220 В
451 854,44 ₽ - 462 875,28 ₽
Новое состояние полуавтоматическая машина для переплета книг в твердом переплете режущий пластмассовый двигатель с подшипниковым стержнем домашнего использования
451 854,44 ₽ - 462 875,28 ₽
Машина для перемотки с веб-руководством
1 212 292,40 ₽ - 1 234 334,08 ₽
Автоматическая бумажная Складная машина A3 3 бумага для брохур автоматическая C параллельная и перекрестная листовка
881 667,20 ₽

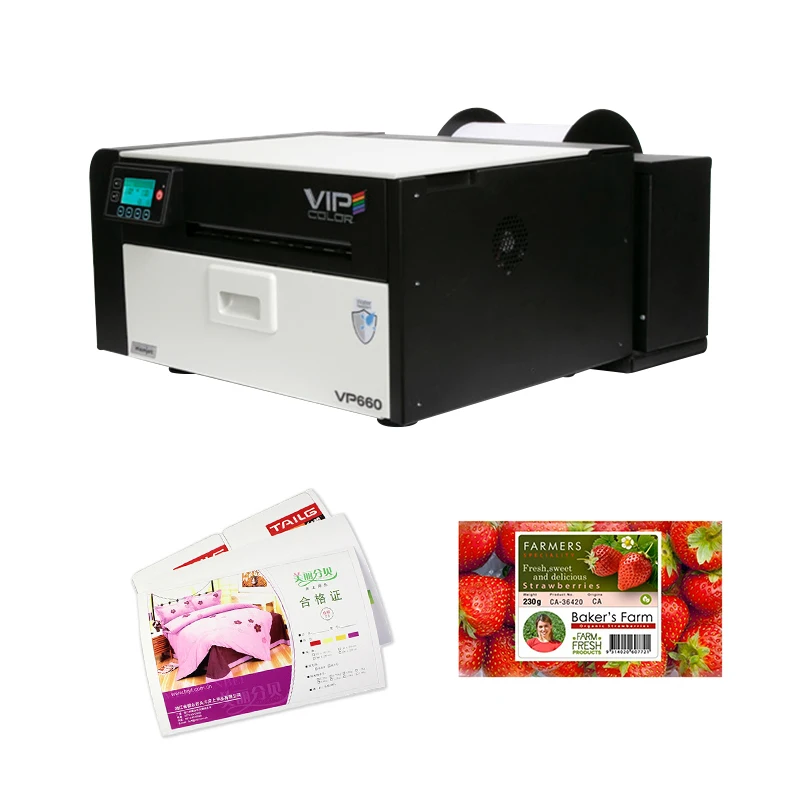

Автоматическая струйная цветная печатная машина портативная цифровая самоклеящаяся для этикеток
