Product Description

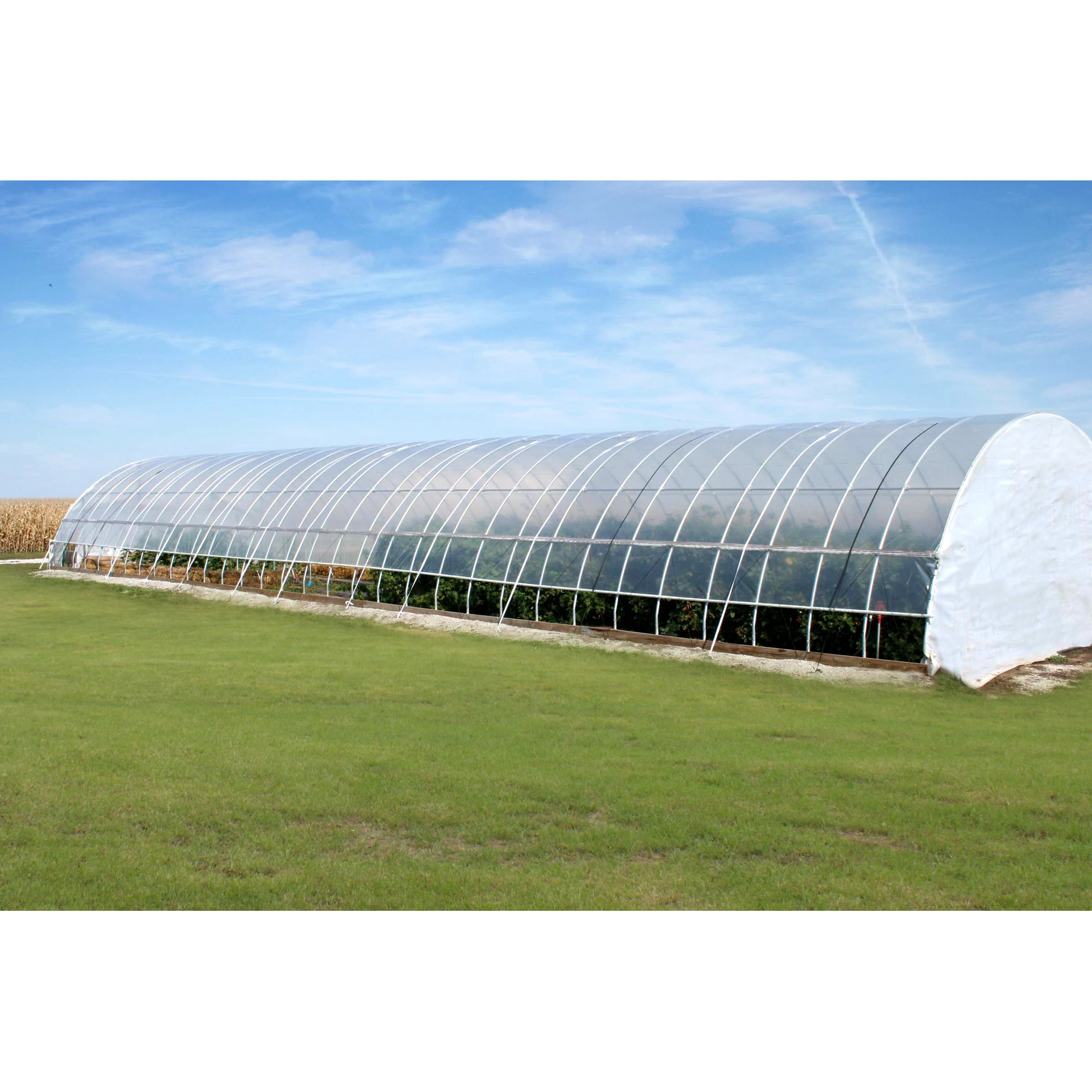

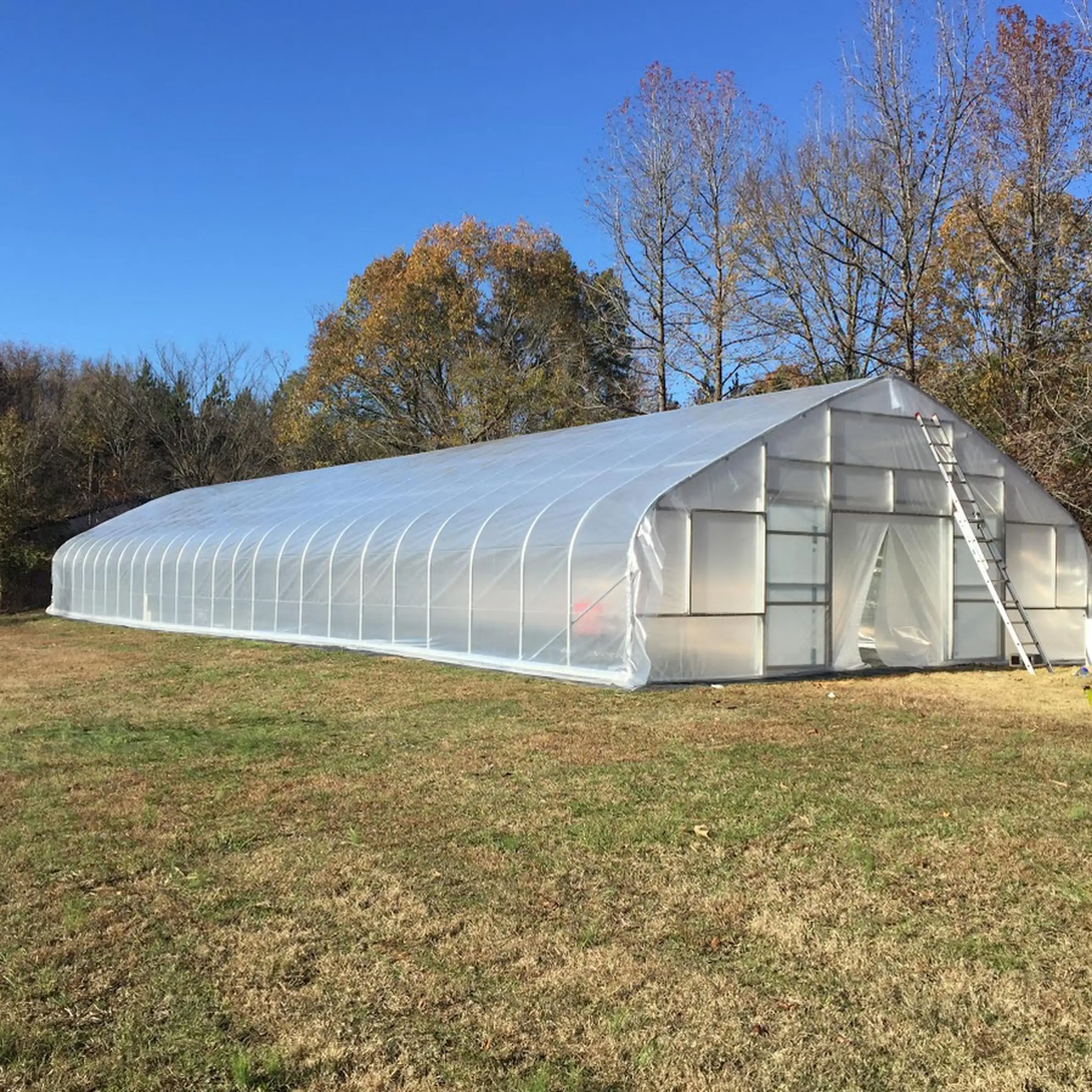

Large Size High Tunnel Agricultural Greenhouse for Tomato growing Green House
Plastic Film Tunel greenhouse is a simple and practical protective cultivation facility, widely be used all over the world because of its easy construction, low investment and high output.
Detailed Images
Product Name | Low cost commercial tunnel greenhouse for tomato |
Frame | Hot Drip Galvanized Steel Structure |
Covering | 100 micron, 120micron,150micon,200micron,customize |
Fixing materail | Lock channel and spring wire |
Width | 8m~12m |
Length | 10-120m,customize |
Roof height | 3~5m,customize |
Wind load | 80-130km/h |
Snow load | 0.5KN/M2 |
Optional system | Side ventilation, roof ventilation, shading net, drip irrigation system, fogging system, cooling system, etc. |
Hot Drip Galvanized Steel Structure
The steel structure is made of high quality carbon steel with inside and outside hot galvanized layer which will be not less than 60um.
Most connections of greenhouse structure are installed directly by screws or Self tapping screws.
The warranty period of standard skeleton is 15 years, but the actual service life will be more than 20 years.
Cover Material: Plastic PE Film
Thickness: 120/150/200 microns UV PE Film with life 3-5 years
Light transmission:>89%
UV treated polyethylene film has function of anti-UV, anti-aging and anti-drip, will be fixed by special film lock channel and wriggle wire.
Ventilation System
Side ventilation: Both sides have roll up device. we have two types of film roller, manual roller and electric motor.
There are anti-Insect net at the ventilation parts, no need worry about insects, flyings, birds going into the greenhouse.
Outer Sunshade System
Material: Round-Wire Black Sunshade Net, different shade rate is 50%~99% as for your choice
Introduction:Installed and fixed above the frame of greenhouse
Cooling Fan
Introduction:The pads and fans are used together to realize the functions of cooling and ventilation.
Size:Exhaust Hammer Fans in 1380*1380*400mm with wind volume 44000m3/h
Advantage:In hot weather, using cool water circulation could reduce temperature and increase humidity inside the greenhouse at same time.
Cooling Pad
Introduction:The pads and fans are used together to realize the functions of cooling and ventilation.
Size: Aluminum frame, height is 1.5m with thickness 100~150mm
Advantage:In hot weather, using cool water circulation could reduce temperature and increase humidity inside the greenhouse at same time.
Drip Irrigation System
drip irrigation system is mainly used for Cucumber, Tomato, watermelon, peppr, etc.
It consists of water pump, PVC / PE pipes, valves, connectors, filters, and emitters.
Electric Control System
The electric control system is used for control all the electric equipment in the greenhouse.
The system includes one set of control cabinet, cablesand accessories and tools.
The system includes one set of control cabinet, cablesand accessories and tools.
It can realize the automatical control of water heaters and cooling system to save energy..
Projects
Our Company
Shandong Hualiang Heavy Industry Machinery Co., Ltd
We have focused on designing, manufacturing and building greenhouse used for agricultural & horticultural. Hualiang Greenhouse helps our customers from China and overseas markets build hundreds of different types of greenhouses for vegetable planting, flower planting and many other uses.
We can manufacture Glass Greenhouse, PC Sheet Greenhouse, Film Greenhouse, Steel Structure and supply corresponding greenhouse system, having good cooperation with our clients in many countries such as Thailand, Qatar, UAE, Uzbekistan, North America, Turkmenistan, Chile, etc.
Packing & Delivery
Customer Photos
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 10-30days after order.
Q: How to install the greenhouse? Do you provide installation service?
A:we will send detailed desgin drawing , picture and video. If possile, we can also send engineer to do installation guidance after negitiation with the buyer.
Q: What preparations I should be before installation?
A:Firstly, prepare the tools and equipment as per the tool list we send to you.
secondly, prepare enought local workers and translator.
thirdly, prepare electricity, water source, and make the land flat etc.
Forthly, prepare one place that can store the greenhouse materials after arrival to protect it from rain if needed.
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 10-30days after order.
Q: How to install the greenhouse? Do you provide installation service?
A:we will send detailed desgin drawing , picture and video. If possile, we can also send engineer to do installation guidance after negitiation with the buyer.
Q: What preparations I should be before installation?
A:Firstly, prepare the tools and equipment as per the tool list we send to you.
secondly, prepare enought local workers and translator.
thirdly, prepare electricity, water source, and make the land flat etc.
Forthly, prepare one place that can store the greenhouse materials after arrival to protect it from rain if needed.
Contact us
Похожие товары

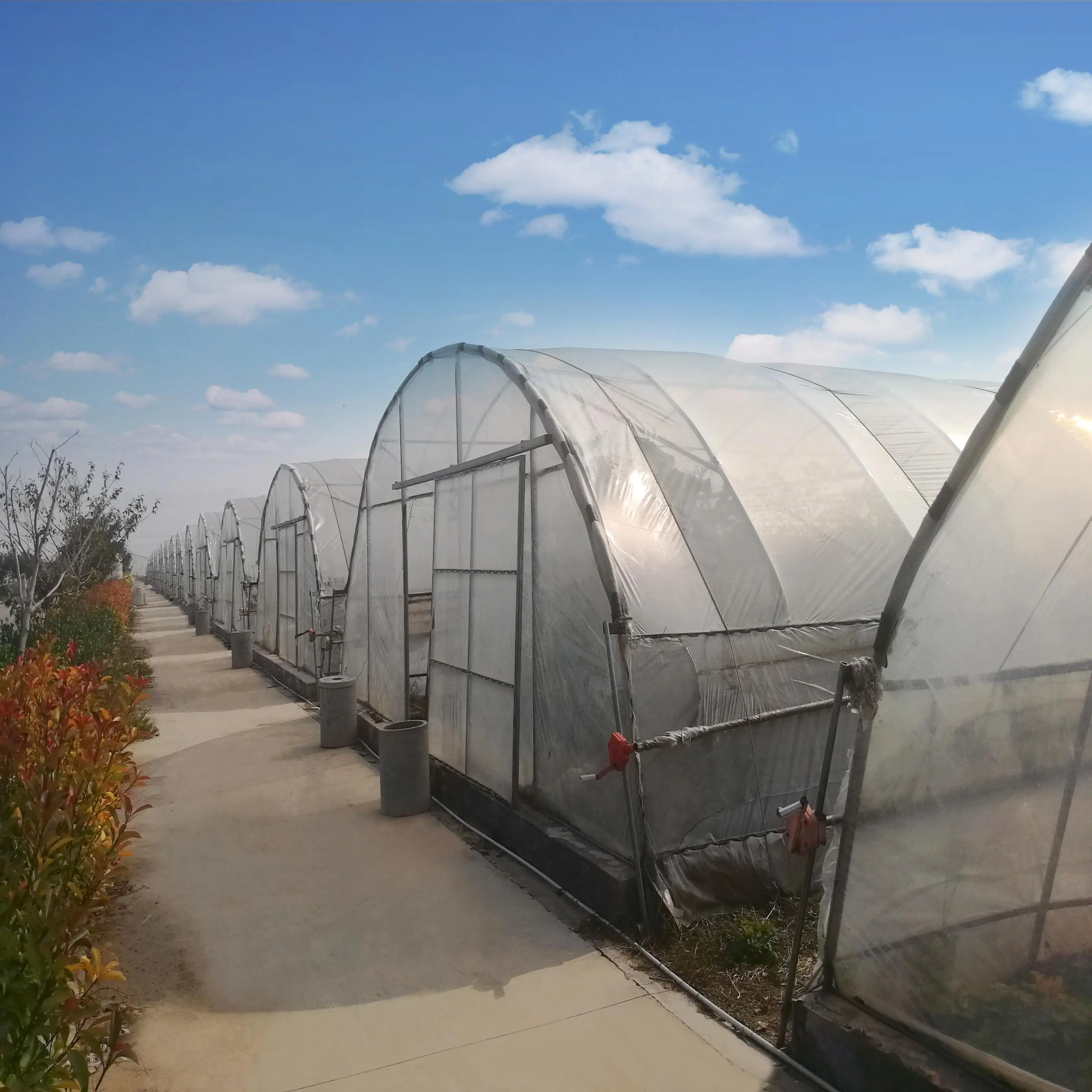

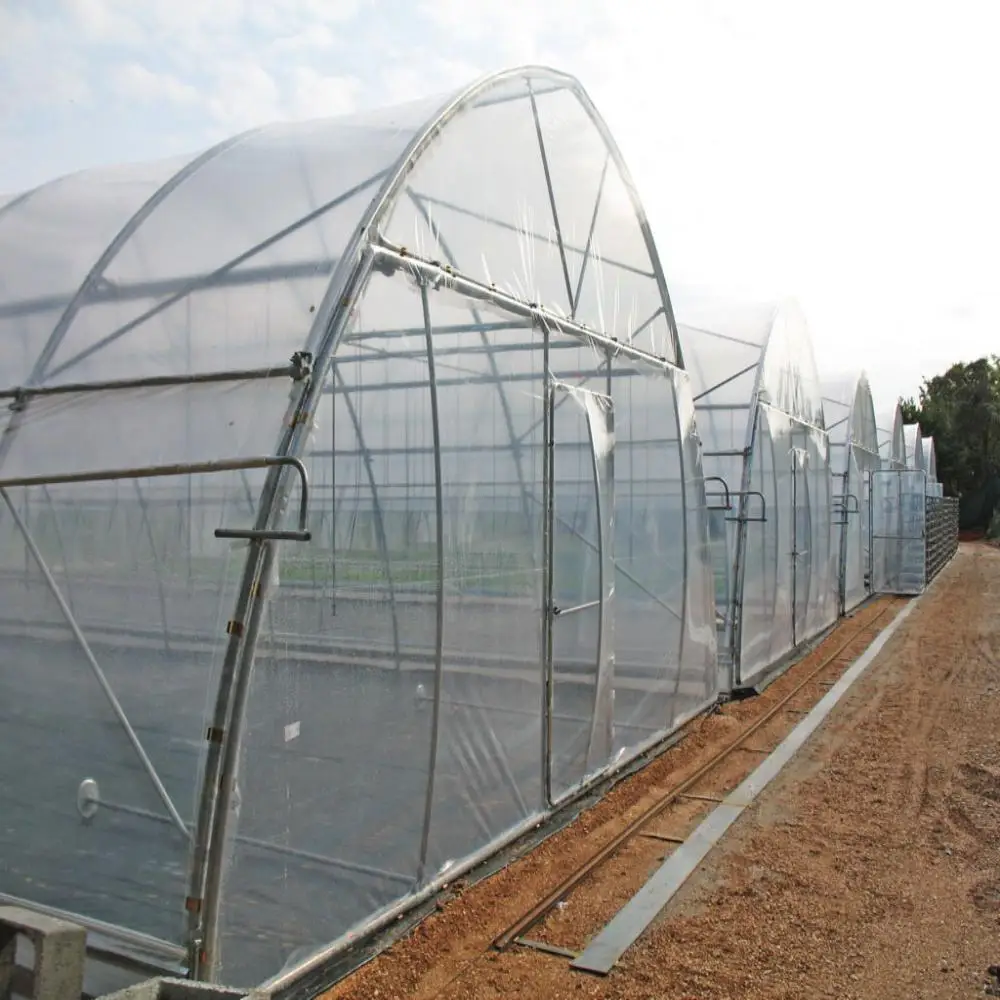

Производитель, Полиэтиленовая политоннель, томатный зеленый дом, многопролетная пленка для сельского хозяйства, недорогая туннельная теплица для продажи
Вентиляции парника электрическая лебедка намотки пленки роликовой прокатки вверх мотор для крыши теплиц/боковая система вентиляции

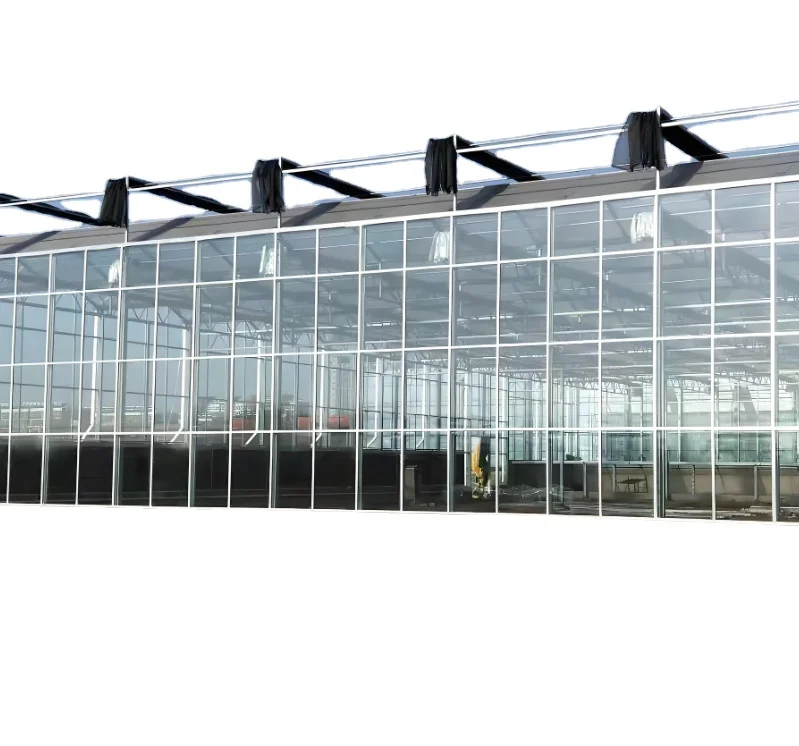

Оптовая продажа, крупная многопрофильная сельскохозяйственная промышленная теплица, заводская цена, квадратная сталь и стекло для использования на заводе
3 144,65 ₽ - 4 229,01 ₽

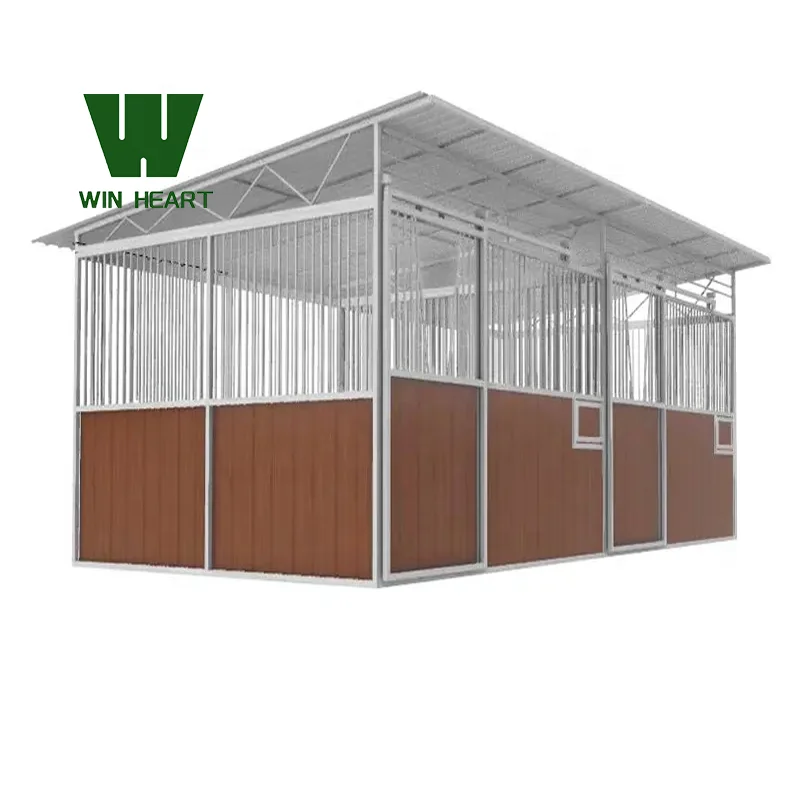

Конюшни для лошадей, полный набор, конные ящики
Портативный Датчик электропроводности почвы в реальном времени, измеритель температуры и влажности для сельского хозяйства
25 482,44 ₽ - 27 000,54 ₽

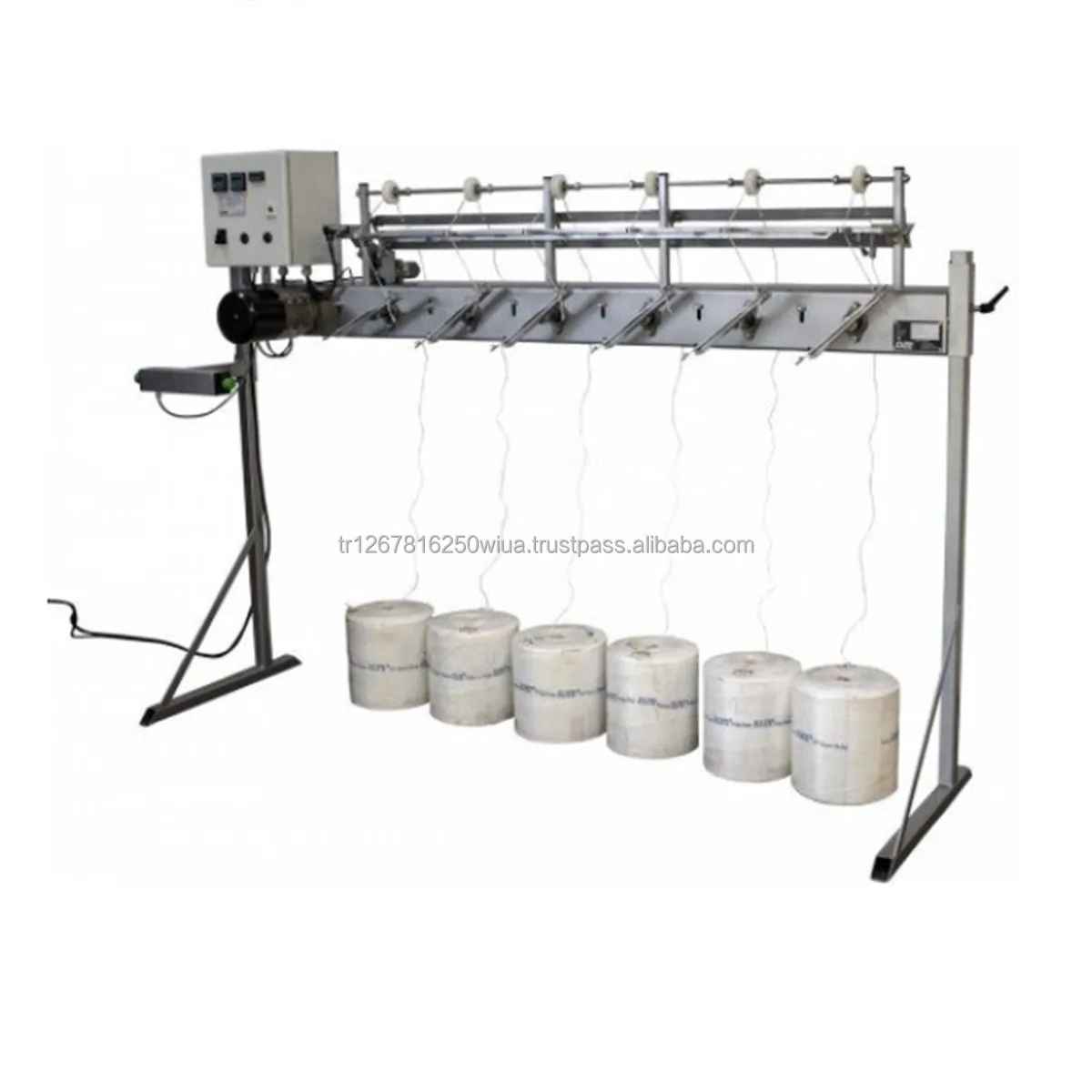

Высокопроизводительная гидропонная машина для намотки томатных крючков, Лучшая цена для тепличных растений
487 961,55 ₽

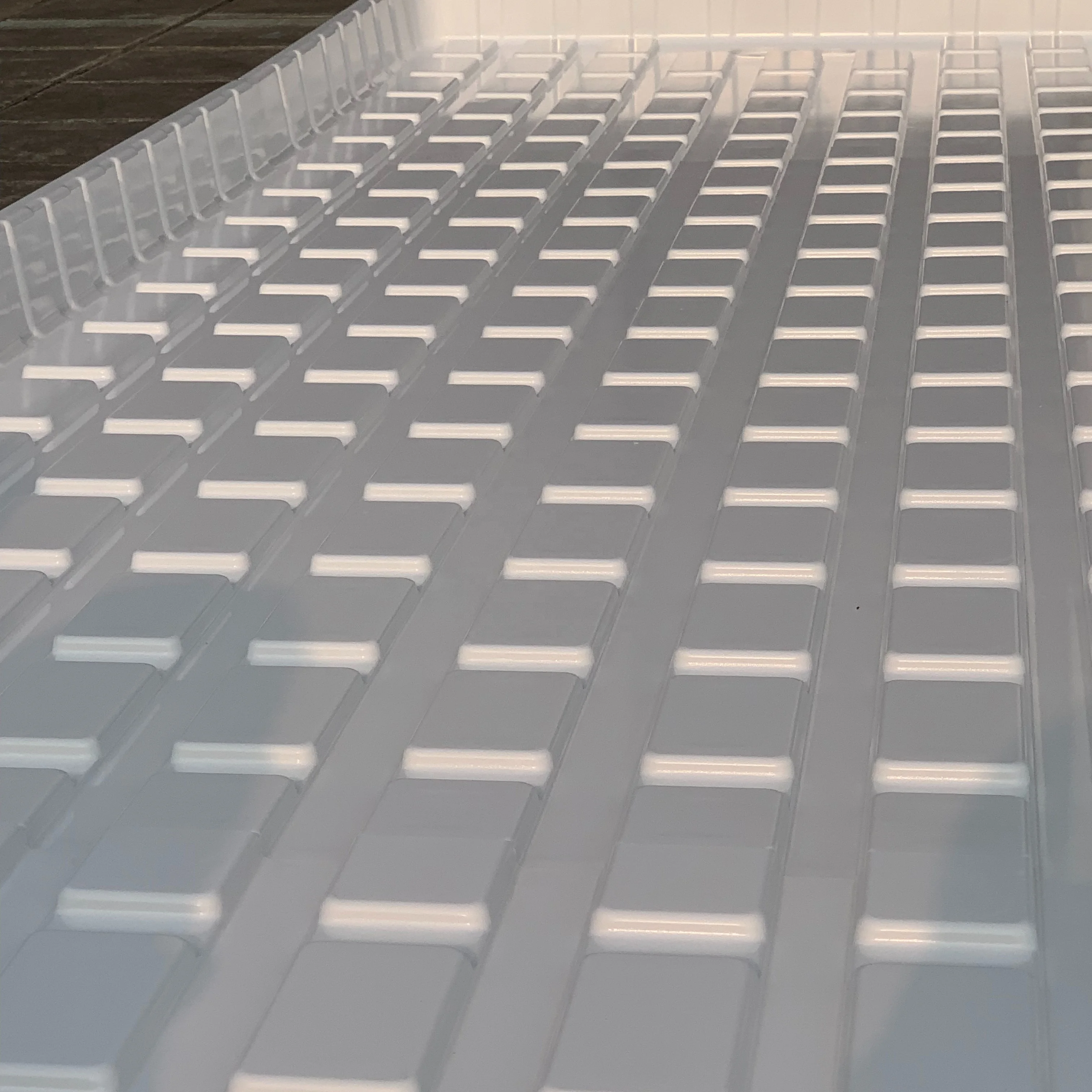

Белый черный 3x6 4x6 4x8 большие пластиковые комнатные Гидропонные подносы для вертикального земледелия
