Прямоугольный прицеп 6 4x16 футов сетчатые боковые лестничные стойки (2) 3 500 фунтов оси
219 296,80 ₽
Двухэтажные автомобильные прицепы 2 оси 3
- Категория: >>>
- Поставщик: Shandong Jinma Automobile Holding Co. Ltd.
Сохранить в закладки 1601046077451:
Описание и отзывы
Характеристики
Overview

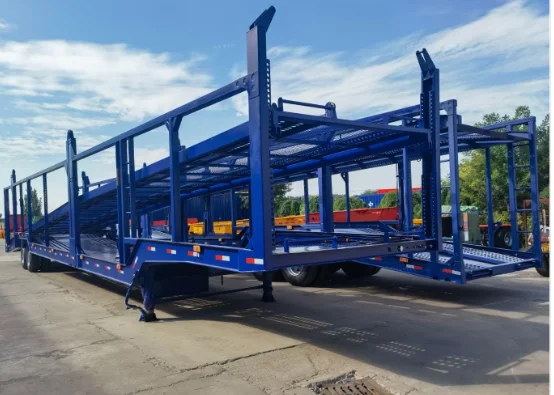

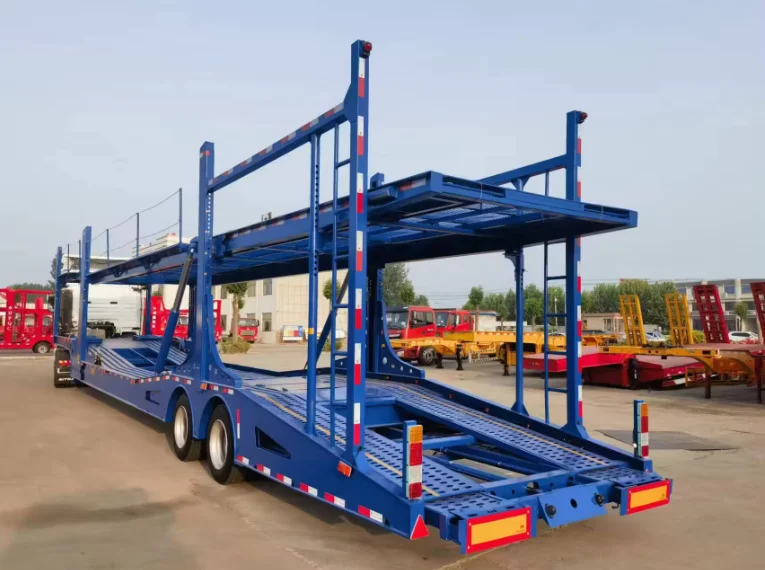

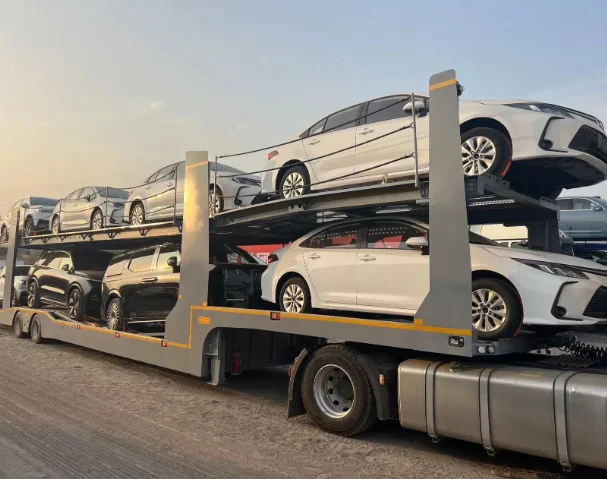

3 axles 6-8 cars vehicle transport semi trailer car carrier truck trailer for sale
The car transporter can be made into different lengths according to customer requirements, the frame is a welded I-beam, and the entire body adopts automatic submerged arc welding and carbon dioxide gas shielded welding. After the welding is completed, shot blasting is carried out to eliminate welding stress and improve the adhesion of the paint surface, so that the quality is stable and the appearance is beautiful. The vehicle is equipped with a tool box, a spare tire rack, and a drip brake system to improve the safety of vehicle transportation.
Product Paramenters
Trailer Model | car carry trailer |
Overall Dimension(L x W x H)(mm) | 20000×2600×4200mm |
capacity | 10 - 12 units vehicles |
Axle Brand | 13T×3pcs |
Axle Number | Three |
Axle load | 13000kg X 3 |
Suspension system | Standard Mechanical suspension |
The material of Main beam | The height of the beam is 500 mm, top 10mm,middle 6mm,bottom 12mm;T700 high strength steel |
Tire Type and quantity | Chinese brand Tire 12R22.5 |
6 pcs. | |
rim | 9.0×22.5 |
Traction Pin | 2”,diameter 50.8 mm ,loading 16 ton |
Tool Box | 1 Standard |
Landing Gear | standard 28 ton |
Electrical system | 1. Voltage: 24v |
2. Receptacle: 7 ways (7 wire harness) | |
Tail lamp with turn signal, brake light & reflector, side lamp etc. | |
One set 6-core standard Cable. | |
Color | According to customer’s requirement |
Packing | Polish with wax before shipping |
Noted | 1.Top platform can be adjusted up and down by hydro-cylinder and chain block, totally 4 pcs of cylinder in each trailer |
2. The roof of trailer can be down about 20cm.We can control by hand when go through limited high place as bridge or some thing. |
Details Images
Company Profile
Well-equipped facilities and excellent production process quality control ensure customer satisfaction. With good quality and reputation, JM has established a quality management system and obtained Australian ADR certification, CE certification and ISO,CCC, B&V certificates issued by the government. Adhering to the principle of "providing customers with the best automotive solutions", we offer a wide range of customized services to meet your special requirements. Our products have been exported to more than 80 countries, especially South Asia, the Middle East, Africa and South America.
Production Process
Our Advantages
1. Our trailer adopts hydraulic lifting system, which saves time and labor and has high working efficiency
2. A pair of ladders are provided at the rear end for loading and unloading of commercial vehicles (the ladder is light and
durable, and made of high-strength square tube)
3. The trailer is designed to be loaded in two layers, and the height of the two layers can be adjusted (the space for loading
commercial vehicles is more reasonable)
4. Rear tail part - if the vehicle is not loaded with enough data, the rear tail can be pulled and lengthened by about 1 meter
2. A pair of ladders are provided at the rear end for loading and unloading of commercial vehicles (the ladder is light and
durable, and made of high-strength square tube)
3. The trailer is designed to be loaded in two layers, and the height of the two layers can be adjusted (the space for loading
commercial vehicles is more reasonable)
4. Rear tail part - if the vehicle is not loaded with enough data, the rear tail can be pulled and lengthened by about 1 meter
Why Choose Us
Certifications
FAQ
Q: Does your company has your own factory?
A: Yes, we have a factory ourself, which is in this business nearly 40 years in China.Our factory is very famous where is
manufacturing various trailers in Shandong, China.
Q: Could you special design and produce for me?
A: Definitely! We have all kinds of professional engineers, could design and produce special product according to customer requested. Such as: special Size, special control, or OEM, etc.
Q: Do you looking for Agent?
A: Yes, we're looking for the agent all over the world, please contact us for further discussion.
Q: How about your price?
A: Although we are brand name products,but our prices are very favorable and competitive. Customer from all over the world to purchase our products, because our best price.
Q: What's your payment term?
A: We accpet both T/T and L/C T/T: 30% deposit by T/T, 70% balance should be paid before shipment. L/C: 100% irrevocable Credit of Letter.
A: Yes, we have a factory ourself, which is in this business nearly 40 years in China.Our factory is very famous where is
manufacturing various trailers in Shandong, China.
Q: Could you special design and produce for me?
A: Definitely! We have all kinds of professional engineers, could design and produce special product according to customer requested. Such as: special Size, special control, or OEM, etc.
Q: Do you looking for Agent?
A: Yes, we're looking for the agent all over the world, please contact us for further discussion.
Q: How about your price?
A: Although we are brand name products,but our prices are very favorable and competitive. Customer from all over the world to purchase our products, because our best price.
Q: What's your payment term?
A: We accpet both T/T and L/C T/T: 30% deposit by T/T, 70% balance should be paid before shipment. L/C: 100% irrevocable Credit of Letter.
