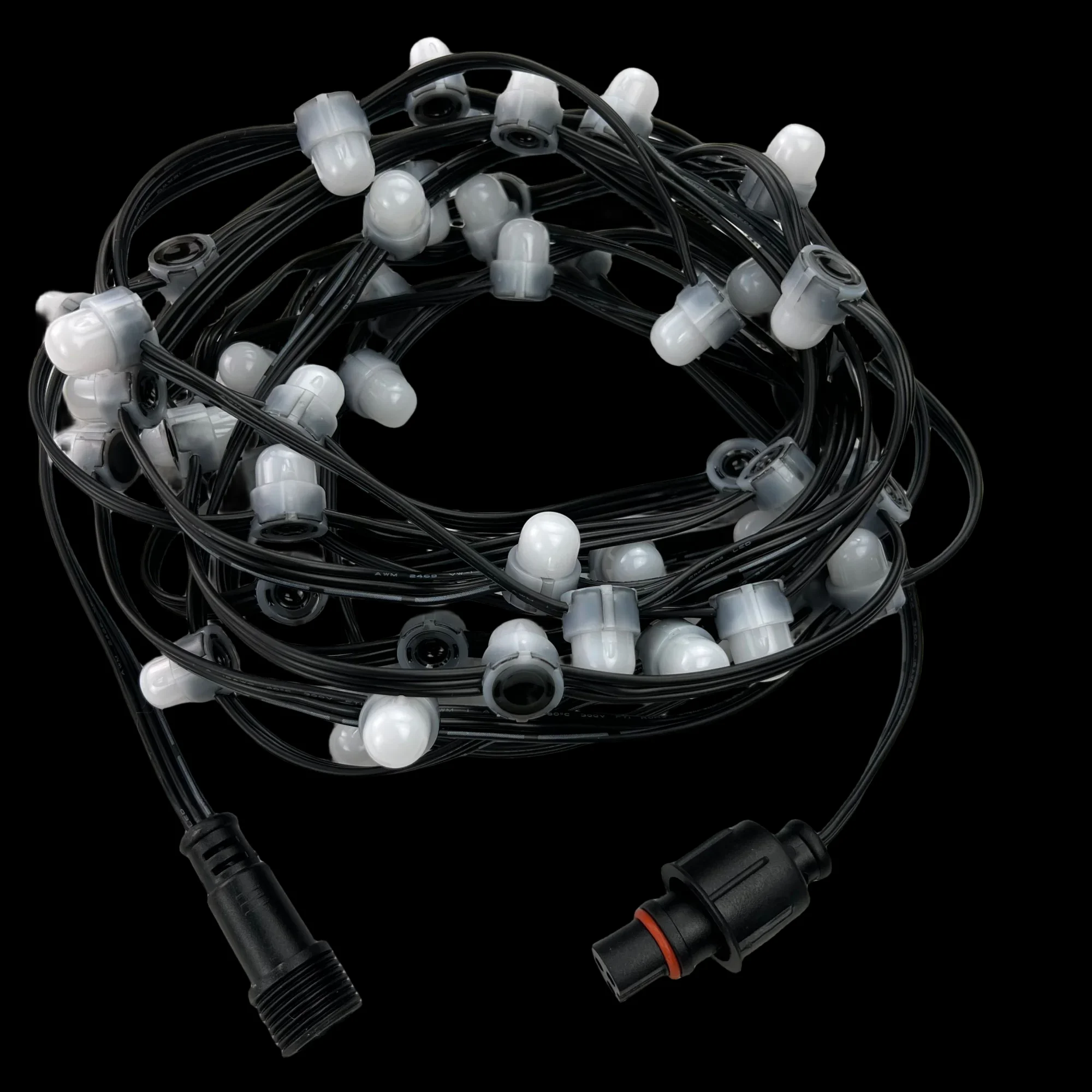

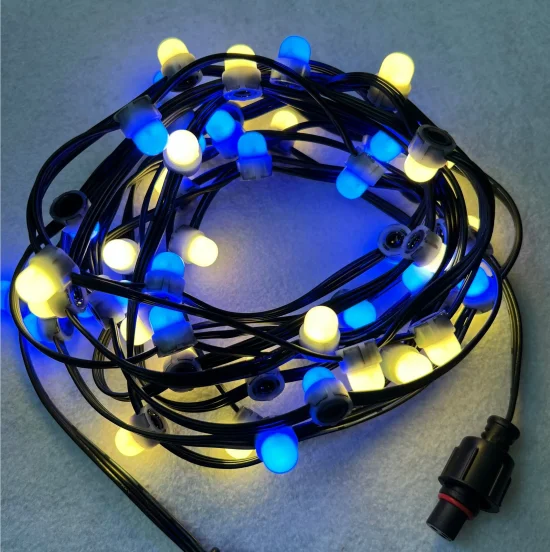

50 шт./набор адресуемых DC12V 5050 SMD RGB WS2811 пиксельный узел 12 мм открытое отверстие IP68 матовое покрытие черный провод 13 5 мм/xConnect

Сохранить в закладки 1601046242874:


Цена:*

Количество:

  • В избранное

Описание и отзывы

Характеристики




Description









50 Pixels/set Addressable DC12V 5050 SMD RGB WS2811 IC Pixel Node 12mm Open Hole IP68 Frosted Cover Black Wire 13.5mm/xConnect







Specification:


















































































Part No



LD-12mm-5050 SMD-RGB-WS2811-12V-IP68-B



Color



full rgb color,24bit,256 gray scale



LED Qty



1 piece of 5050 SMD RGB LED with external WS2811 IC



Input Voltage



DC12V



Max current



20mA



Max Power



0.24W



Chip



WS2811 IC; TTL/SPI signal,Addressable RGB full color

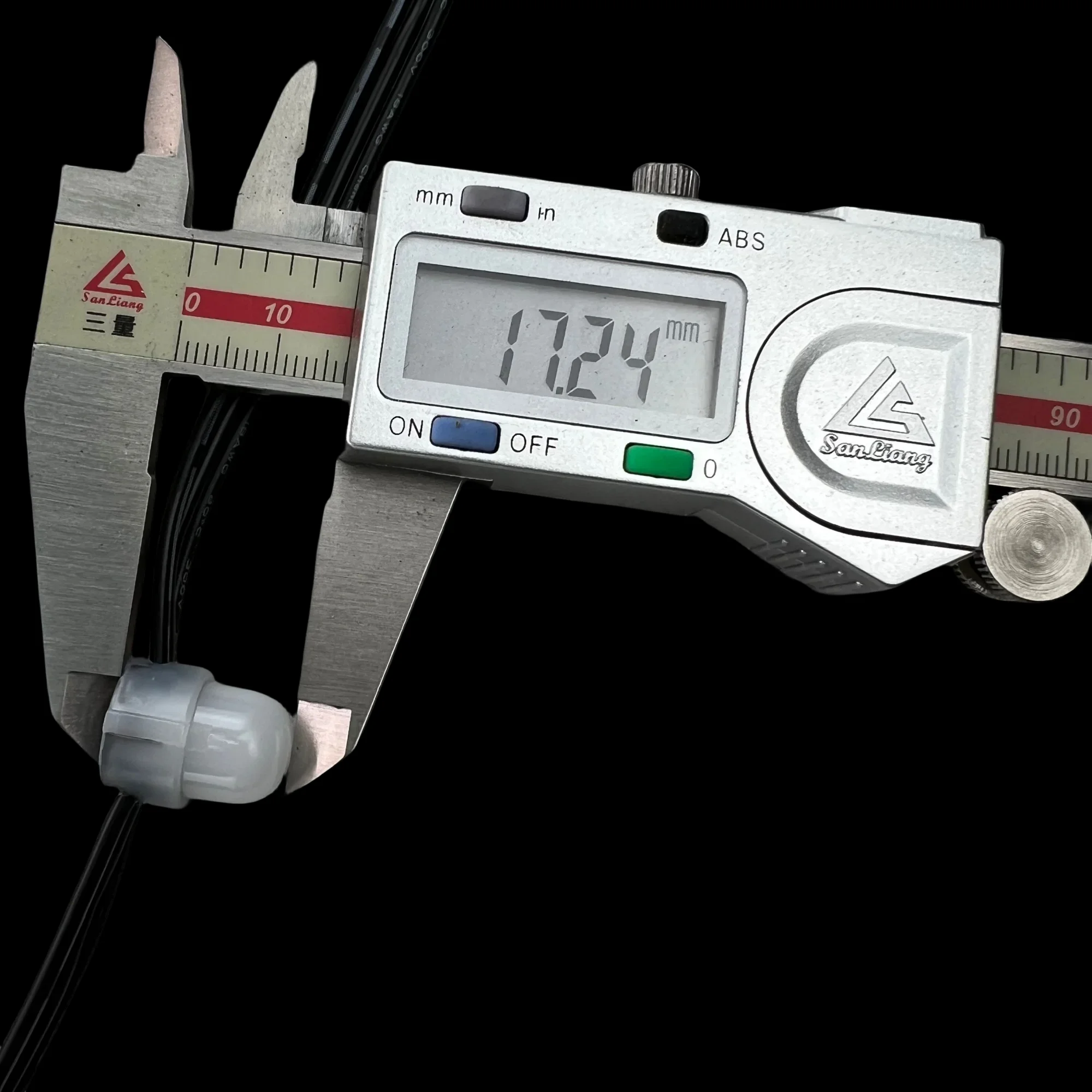

Dimension



12mm diameter(open hole)


bottom: 14mm


height: 17mm



Viewing angle



100-120degree



Protection Level



IP68 epoxy resin filled inside



Certification



CE and RoHS



Standard connection



50pcs node per string



Standard wire length



100mm;3pin 18AWG Black wire



Housing



PC Material, Frosted cover

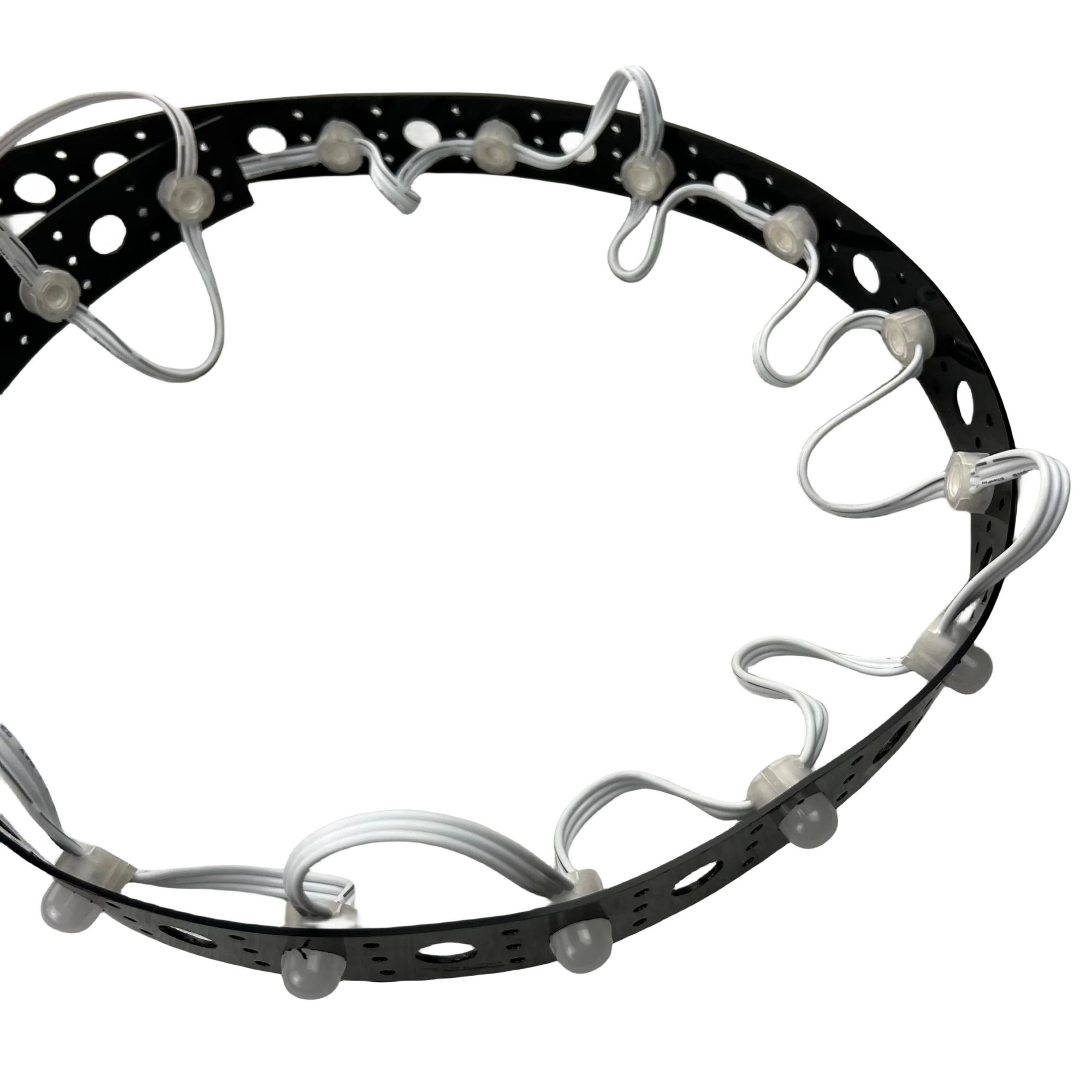

Fixed way



12mm diameter open hole



Wiring



12VCC+ / Data / GND



Warranty



3 years



Operation temperature



-40-50



Store temperature



-50-60

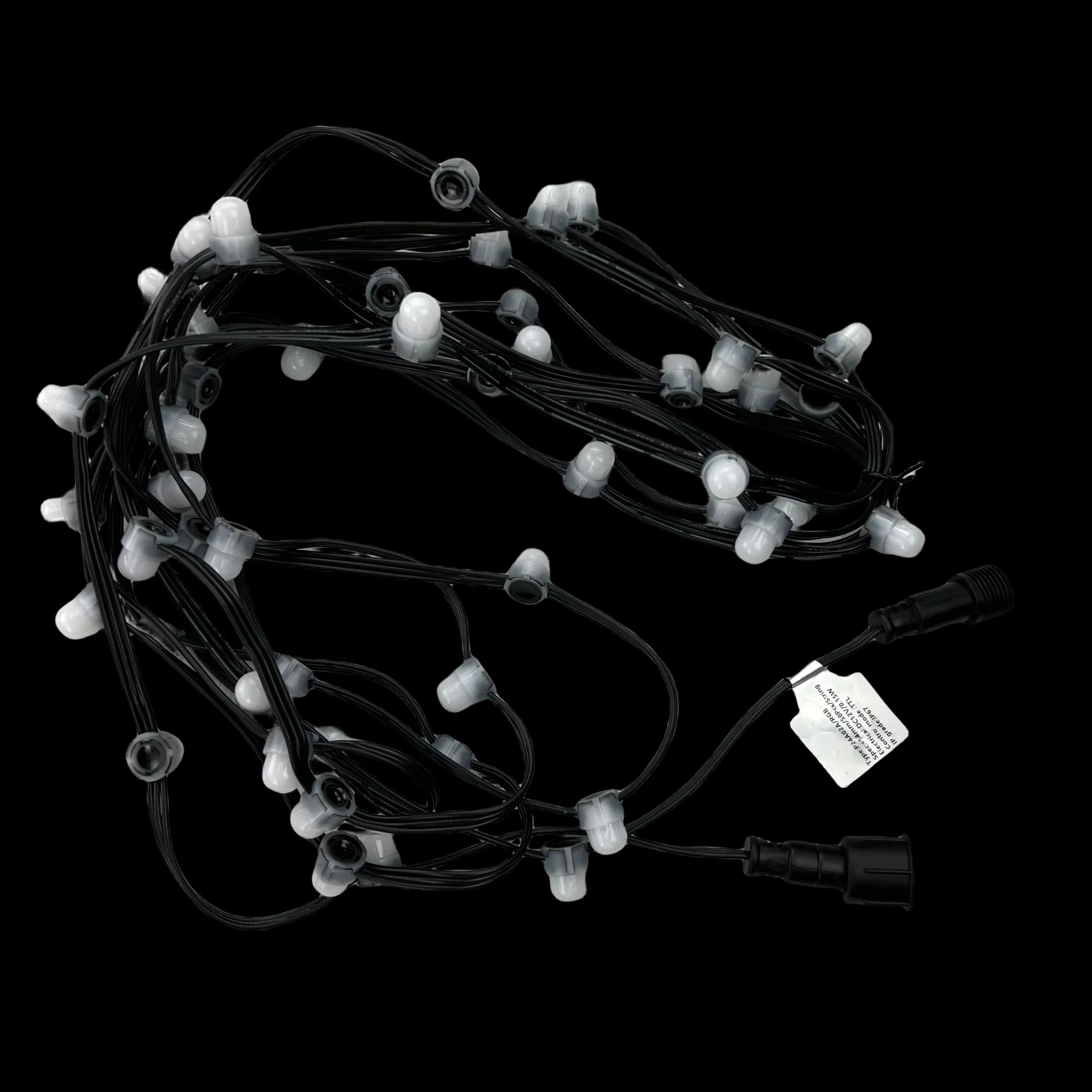

waterproof connector at the ends:


3 core xConnect pigtails 20cm long:


https://www.aliexpress.us/item/2251832869744835.html





3 core 13.5mm Raywu connector 20cm long:


https://www.aliexpress.us/item/2251832609894926.html



standard pinout diagram for our pixel lights:


for pigtails:


Brown:                  12V +
Yellow:                  data
Blue:                    GND


Input end:                male connector(screw end with bare pin)


Output end:             female connector(with hole)








Recommended Controllers:


APP bluetooth & WIFI/SD card/Artent SPI etc


431277QQ20240102215404_QQ20240102213729_
