GMKJ 6868 ультрафиолетовая UVA 365 нм 370 14 Вт светодиодная лампа для струйной печати и обнаружения валюты
- Категория: >>>
- Поставщик: Shenzhen Guangmai Electronics Co. Ltd.
Сохранить в закладки 1601046774549:
Описание и отзывы
Характеристики
Specification

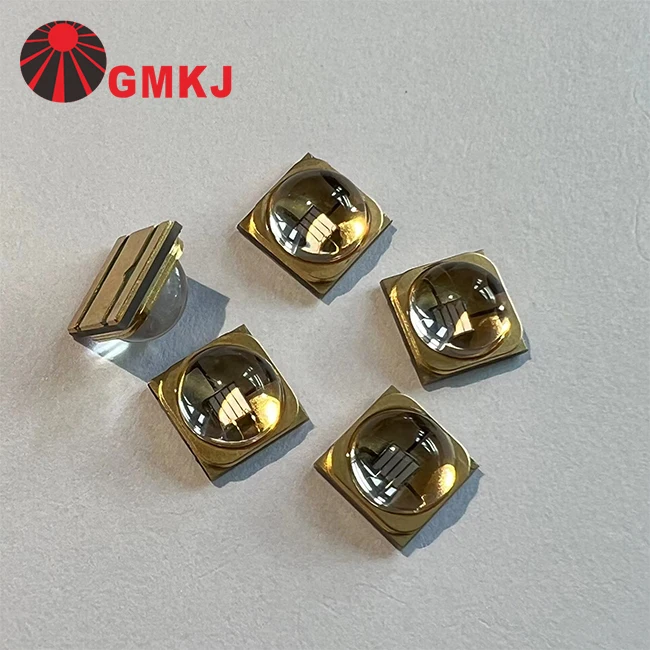

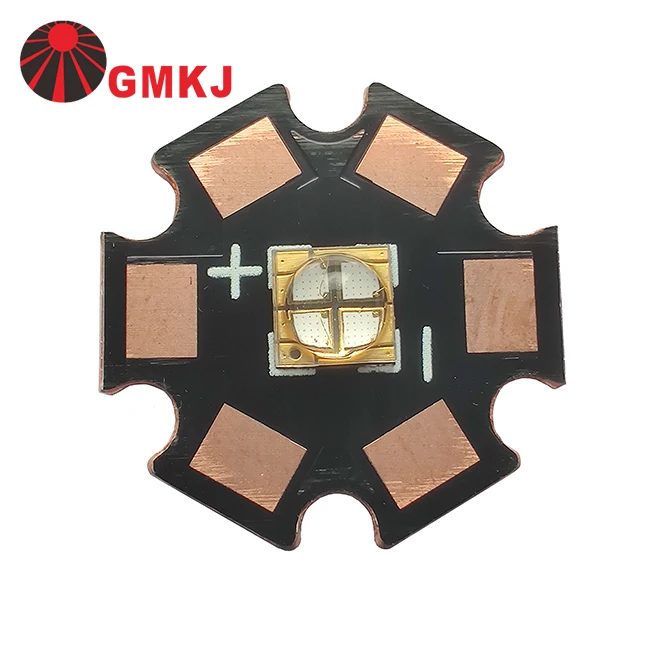

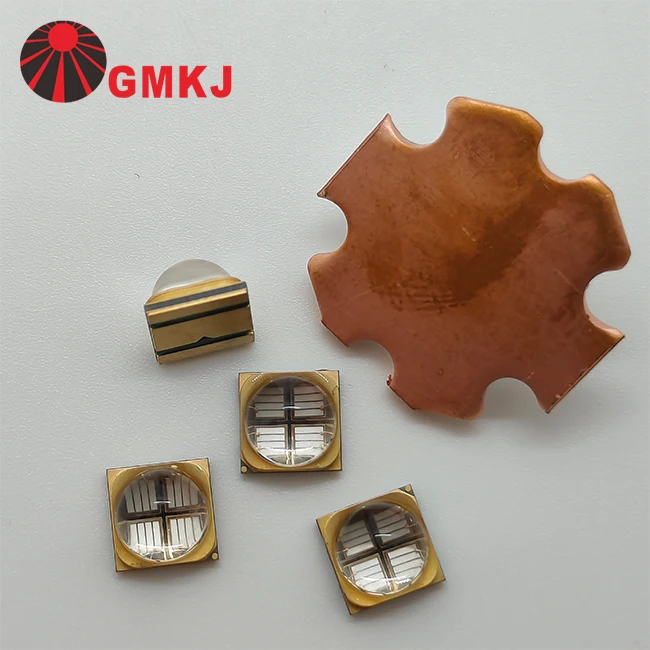

GMKJ 6868 ultraviolet UVA 365nm 370nm 14W epileds led chips module lamp for ink printing and currency detecting
LED 14W 6868 7V 2000mA Taiwan Chips inside
Color Temperature: 365-370K
Chips inside: Epileds chips
Power:14Watt
Warranty: 4 Years
Input : 7VDC 2000mA
Price: very good price!
Please consult with us for more details!
We have also other color temperature and other package available.
Here is the form for it:
For more details, please send us the inquiry directly.
Product | EMC Package 3030 SMD LED |
Input 1 | 6VDC 150mA |
Input 2 | 3VDC 300mA |
Chips inside | USA Bridgelux 22*40mil*2 Chips |
Brightness | 160-180LM |
Color available | WW, NW, CW, RED, BLUE, GREEN, YELLOW/AMBER, UV, IR |
Product | Ceramic package 3535 SMD LED |
1-5W Input | 3VDC 350mA, 700mA and 1500mA |
Chips inside | Flip chip 33*33mil, 43*43mil, 55*55mil |
Brightness | 1W 350mA: 150-160LM, 3W 700mA: 240-300LM, 5W 1500mA: 500-700LM |
CRI | 70, 80, 90, 95 available |
Color | WW, NW, CW, RED, BLUE, GREEN, YELLOW/AMBER, UV, IR |
Product | EMC package 5050 SMD LED |
Power | 1-5W |
Voltage input | 6VDC 180mA, 12VDC 90mA, 24VDC 45mA |
Brightness | 200-220 LM/W |
Chips inside | USA Bridgelux 22*40mil*8 chips |
CRI | 70, 80, 90, 95 available |
Product | 2835 SMD LED |
Power | 0.2W / 0.5W |
Input | 3VDC 60mA/ 3VDC 150mA |
Brightness | 22-34LM / 65-75LM |
CRI | 70, 80, 90, 95 available |
CCT | 3000K, 4000K, 5000K and 6000K |
Product | 0.5W 5730 SMD LED |
Input | 3-3.4VDC 150mA |
Brghtness | 65-70LM/ 70-75LM |
Chips inside | China Sanan chips inside |
CRI | 70, 80, 90, 95 available |
CCT | 3000K, 4000K, 5000K and 6000K |
Application
Company Information
Guangmai Electronics Co., Ltd. Specialize in LED Production From 2009.
Main products are 1w 3w 5w-300w LED and SMD 5630 LED, SMD 2835 LED, SMD 5054 LED (Flip Chip).
And now ,we have New Products ,The Flip Chip .From 30w-300w, And SMD 0.5 2835 LED, SMD 5054 LED, . Based on Our High Quality and Excellent Service, We Now Become Top 10 LED in Shenzhen, Top 100 Manufacture in China.
We Offer 4 Years Warranty for all of Our Products.
You can Rely On Us About The Quality .
Packing & Delivery
Our Service
1. Best raw materials from domestic and foreign well-known brand manufactures.
2. Strict 100% testing before shipping.
3. Best logistics services for all shipments.
4. 3 years warranty for all LED chips products
kEY WORDS:smd led 3030 pcb board
FAQ
Q: What’s your product range?
A:Our main products include:
·COB LED 2-400W
·Compact SMD LED 0.06W-5W
·Integrated Flip Chip LED Module 3-500W
·Power LED 1-5W
·R.G.B LED or RGB/RGBW LED 1-100W
Q: Would you offer free samples?
A:Yes, We would offer free samples for P02 LED (1W high power LED, 6 pins 3W RGB LED), 3030 SMD LED, 5050 SMD LED, 3535 RGB LED,
3535 RGBW LED, etc.
Q:Are you manufacturer or trade company?
A:We are an experienced and professional LED manufacturer since 2005.
Q:What payment method do you accept?
A:We accept T/T, Paypal, Western Union and others more as clients’ requirement.
Q: What about the lead time?
A:It depends on the order quantity. In general, lead time is about 5-7 working days. For samples, the delivery could be as fast as
same day.
Q: How can I get a quotation from you?
A:Please kindly leave us messages about your needs,including products and quantity,our professional team will reply you very soon
(mostly within few hours).
Q: What technical support can I get after purchase?
A:Data sheet and operation manual will be provided to dear you. Our sales engineer will be answering your questions any time.
Q: If there is LED failure, how can you support?
A:Customers provide pictures of the failed products or the samples rejected, the engineer will analyze the failure and find out
the reasons. If the failure was caused by the product quality, we will compensate with qualified replacement!
A:Our main products include:
·COB LED 2-400W
·Compact SMD LED 0.06W-5W
·Integrated Flip Chip LED Module 3-500W
·Power LED 1-5W
·R.G.B LED or RGB/RGBW LED 1-100W
Q: Would you offer free samples?
A:Yes, We would offer free samples for P02 LED (1W high power LED, 6 pins 3W RGB LED), 3030 SMD LED, 5050 SMD LED, 3535 RGB LED,
3535 RGBW LED, etc.
Q:Are you manufacturer or trade company?
A:We are an experienced and professional LED manufacturer since 2005.
Q:What payment method do you accept?
A:We accept T/T, Paypal, Western Union and others more as clients’ requirement.
Q: What about the lead time?
A:It depends on the order quantity. In general, lead time is about 5-7 working days. For samples, the delivery could be as fast as
same day.
Q: How can I get a quotation from you?
A:Please kindly leave us messages about your needs,including products and quantity,our professional team will reply you very soon
(mostly within few hours).
Q: What technical support can I get after purchase?
A:Data sheet and operation manual will be provided to dear you. Our sales engineer will be answering your questions any time.
Q: If there is LED failure, how can you support?
A:Customers provide pictures of the failed products or the samples rejected, the engineer will analyze the failure and find out
the reasons. If the failure was caused by the product quality, we will compensate with qualified replacement!
