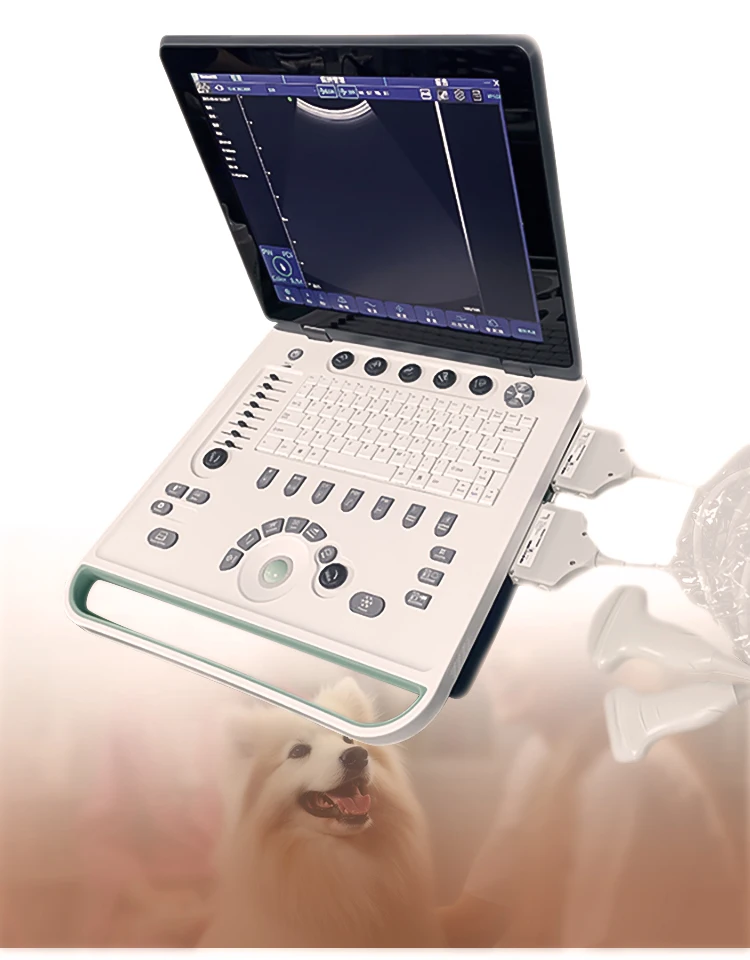

Цветной доплеровский выпуклый зонд Портативный ультразвуковой диагностический сканер
297 979,32 ₽ - 386 412,60 ₽

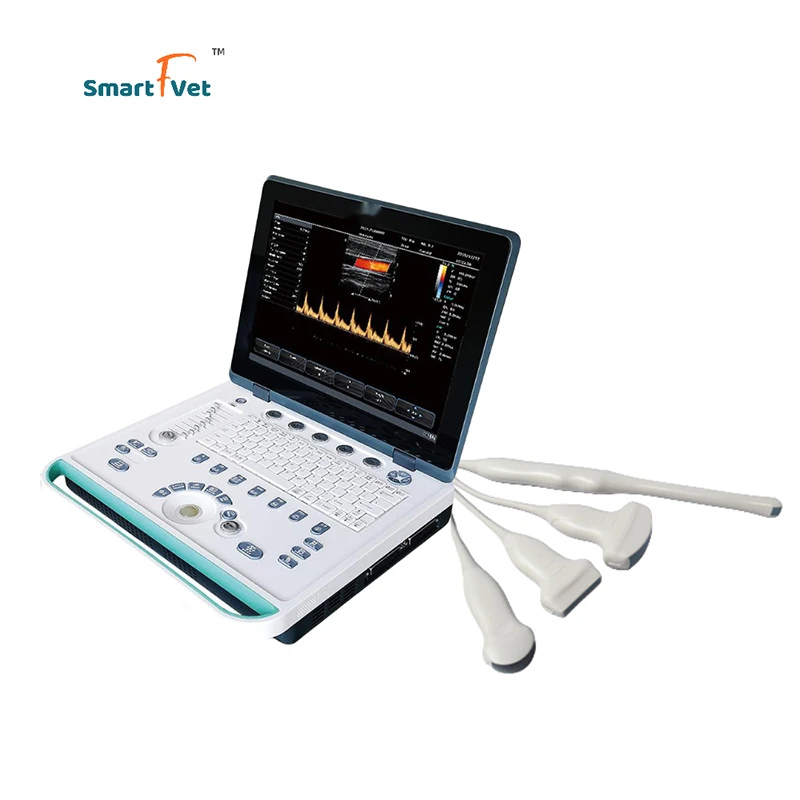

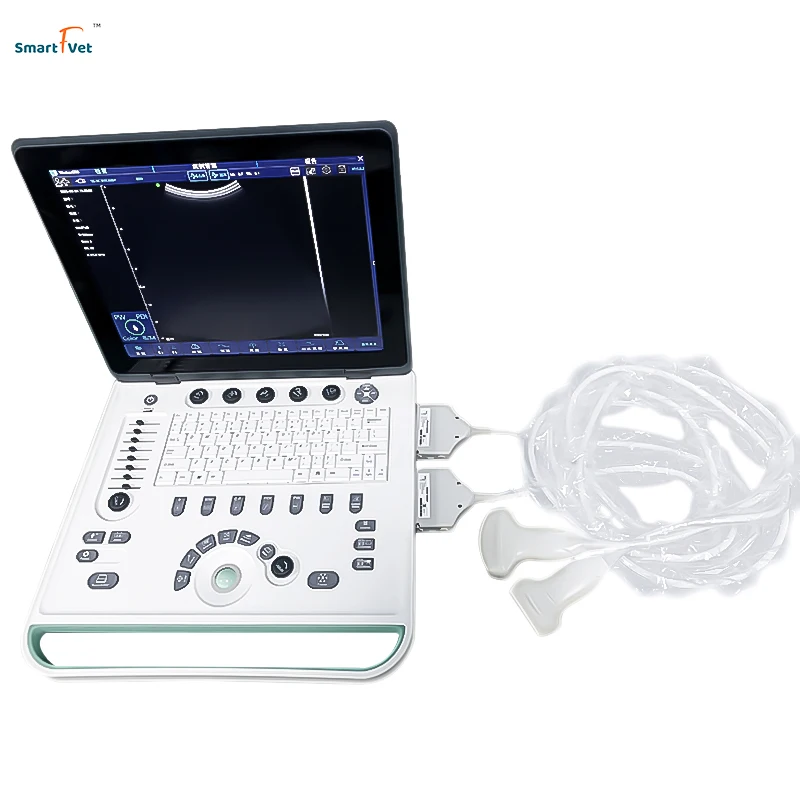

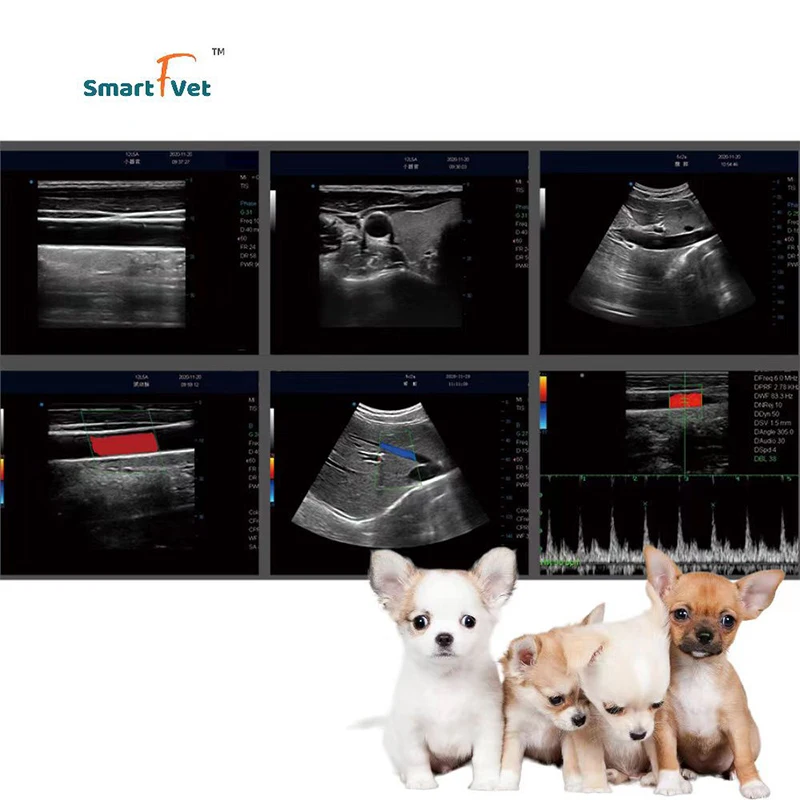

Маленький Ветеринарный ультразвуковой сканер для животных портативный ветеринарный
- Категория: >>>
- Поставщик: Beijing Intelligent Technology Co. Ltd.
Сохранить в закладки 1601046939733:
Описание и отзывы
Характеристики
Product Description
Specification
- Screen: 15inch LCD | - Cineplay: auto and manual, frames can set as 100/200/500/1000 |
- Image mode: B、B/M、Color、PW、PDI | |
- Channel of Ultrasound: 64 | - Puncture Auxiliary Function: In-Plane puncture guide line,Out-Plane puncture guide line,automatic blood vessel measurement. |
- Gain :30db-105db | Out-Plane puncture guide line,automatic blood vessel |
- Denoice:0-1-2-3-4 | measurement. |
- Dynamic Range:40-50- 60-70-80-90-100-110 | - Measure: Length, Area, Angle, Heart Rate, Obstetrics |
- Probe type: Convex, Linear, Phase Array, Micro-Convex,Transvaginal, Transrectal | - Image Frame Rate: 18f/s |
- Operating System : Windows | |
- Probe Connection Port: 2 | - image Saved: jpg, avi and DICOM format, storage volume 120G |
- Frequency, Scanning Depth, Angle/Width: | |
Convex:3.5MHZ/5MHz,90/160/220/305mm,60° | - Image and Report Printing: compatible with most printers |
Linear:7.5MHz/10MHz,20/40/60/100mm,40mm | - lmage and report print: can work with most model ink/laser printer |
High Frequency Linear: 10MHz/14MHz, | |
20/30/40/55mm,25mm | - Remote transmission: The device can be wired/wire |
Phase Array: 6.5MHz/8MHz,40-100mm,80° | less Internet access, images and information can be |
Micro-Convex:3.5MHz/5MHz,90/130/160/200mm,88° | transmitted through the software's built-in DICOM and |
Transvaginal: 6.5MHz/8MHz,40/60/80/100mm,149° | WorkList transmission function or other software |
Biplane Transrectal: Convex 6.5MHz/8MHz, | - Remote Diagnosis: can install any remote diagnosis |
40/60/80/100mm，149°; Linear 7.5MHz/10MHz, | software and work |
20/40/60/100mm,40mm | - Battery Duration Time: built-in battery, 2 hours |
Image Adjust: BGain, TGC,DYN, Focus, Depth, | - Device Dimension : L360 x W340x H50mm |
Harmonic,Denoise, Color Gain, Steer,PRF | - Weight : 4KG |
item | value |
Brand Name | Smart F Vet |
Model Number | SV-C5Pro |
Properties | Diagnosis & Injection |
Product name | Portable Veterinary Ultrasound Scanner |
Brand | Smart F Vet |
Model Number | SV-C5Pro |
Place of Origin | Beijing, China |
Warranty | 2 Years |
Screen | 15 Inch LCD |
Connector | 2 probe connector |
System | Windows |
Dimension | 360mm * 340 mm * 50mm |
Weight | 4kg |
Company Profile
VR
Certifications
Packing & Delivery
FAQ
1. who are we?
Established in 2012, Beijing Intelligent Technology Co., Ltd. is a professional exporter that is concerned with the design, R&D,assembly, and sales of veterinary medical equipment. We are located in Beijing, with the most convenient transportation access.All of our products comply with international quality standards and are greatly appreciated in a variety of veterinary marketsthroughout the world.
2.what can you buy from us?
One division of Beijing Intelligent Technology Co., Ltd, Smart F Vet is a leader in veterinary and research equipment for more than 10 years. We are “one Source for veterinary medical equipment” supplier. Including:ANESTHESIA, AUTOCLAVES AND ULTRASONIC CLEANERS,DENTAL EQUIPMENT,DIAGNOSTICS PRODUCTS, GROOMING, IMAGING AND X-RAY, LAB DIAGNOSTICS, LIGHTING, MONITORS, ORTHOPEDICS, PATIENT WARMING AND RECOVERY, PHYSICAL THERAPY, PUMPS, POLES AND WARMERS, VETERINARY STAINLESS-STEEL PRODUCTS, STORAGE, SURGICAL EQUIPMENT, AND VETERINARY DISPOSABLE etc.Our goal is excellent service at competitive rates! You can experience the different from us.
3, Can you offer OEM & ODM service?
Yes, OEM and ODM are available for us. We have an experienced R&D team to develop and design for you.
4. what express services can we provide and delivery time?
Accepted delivery terms: FOB, CIF, EXW.we can make delivery in 15 days for Less- Container orders, and 25days for Container orders.
5. Will you help me register the products in my country?
Sure, if you need, we will provide all you document that you need for register.
6. Accept payment via trade assurance? And Payment terms?
Yes, we welcome customers pay Via Alibaba trade assurance which can guarantee secure payment.
7. Training？
We provide video for training, installation and regular product knowledge training courses.
8. How to visit you?
We are in Beijing city, 30-50 mins driving from Beijing Daxing International Airport. we will go to pick up customers.
9. After sale service?
We usually go to our big customers for training and installation. We promise feedback to customer after sale service request in 24 hours. Online technical support always available for you.
Established in 2012, Beijing Intelligent Technology Co., Ltd. is a professional exporter that is concerned with the design, R&D,assembly, and sales of veterinary medical equipment. We are located in Beijing, with the most convenient transportation access.All of our products comply with international quality standards and are greatly appreciated in a variety of veterinary marketsthroughout the world.
2.what can you buy from us?
One division of Beijing Intelligent Technology Co., Ltd, Smart F Vet is a leader in veterinary and research equipment for more than 10 years. We are “one Source for veterinary medical equipment” supplier. Including:ANESTHESIA, AUTOCLAVES AND ULTRASONIC CLEANERS,DENTAL EQUIPMENT,DIAGNOSTICS PRODUCTS, GROOMING, IMAGING AND X-RAY, LAB DIAGNOSTICS, LIGHTING, MONITORS, ORTHOPEDICS, PATIENT WARMING AND RECOVERY, PHYSICAL THERAPY, PUMPS, POLES AND WARMERS, VETERINARY STAINLESS-STEEL PRODUCTS, STORAGE, SURGICAL EQUIPMENT, AND VETERINARY DISPOSABLE etc.Our goal is excellent service at competitive rates! You can experience the different from us.
3, Can you offer OEM & ODM service?
Yes, OEM and ODM are available for us. We have an experienced R&D team to develop and design for you.
4. what express services can we provide and delivery time?
Accepted delivery terms: FOB, CIF, EXW.we can make delivery in 15 days for Less- Container orders, and 25days for Container orders.
5. Will you help me register the products in my country?
Sure, if you need, we will provide all you document that you need for register.
6. Accept payment via trade assurance? And Payment terms?
Yes, we welcome customers pay Via Alibaba trade assurance which can guarantee secure payment.
T/T, L/C, West Union and are both ok for us. We will start production when we receive 30% deposit and make delivery when receive full payment.And Accepted Payment Currency: USD, EUR, CNY.
7. Training？
We provide video for training, installation and regular product knowledge training courses.
8. How to visit you?
We are in Beijing city, 30-50 mins driving from Beijing Daxing International Airport. we will go to pick up customers.
9. After sale service?
We usually go to our big customers for training and installation. We promise feedback to customer after sale service request in 24 hours. Online technical support always available for you.
