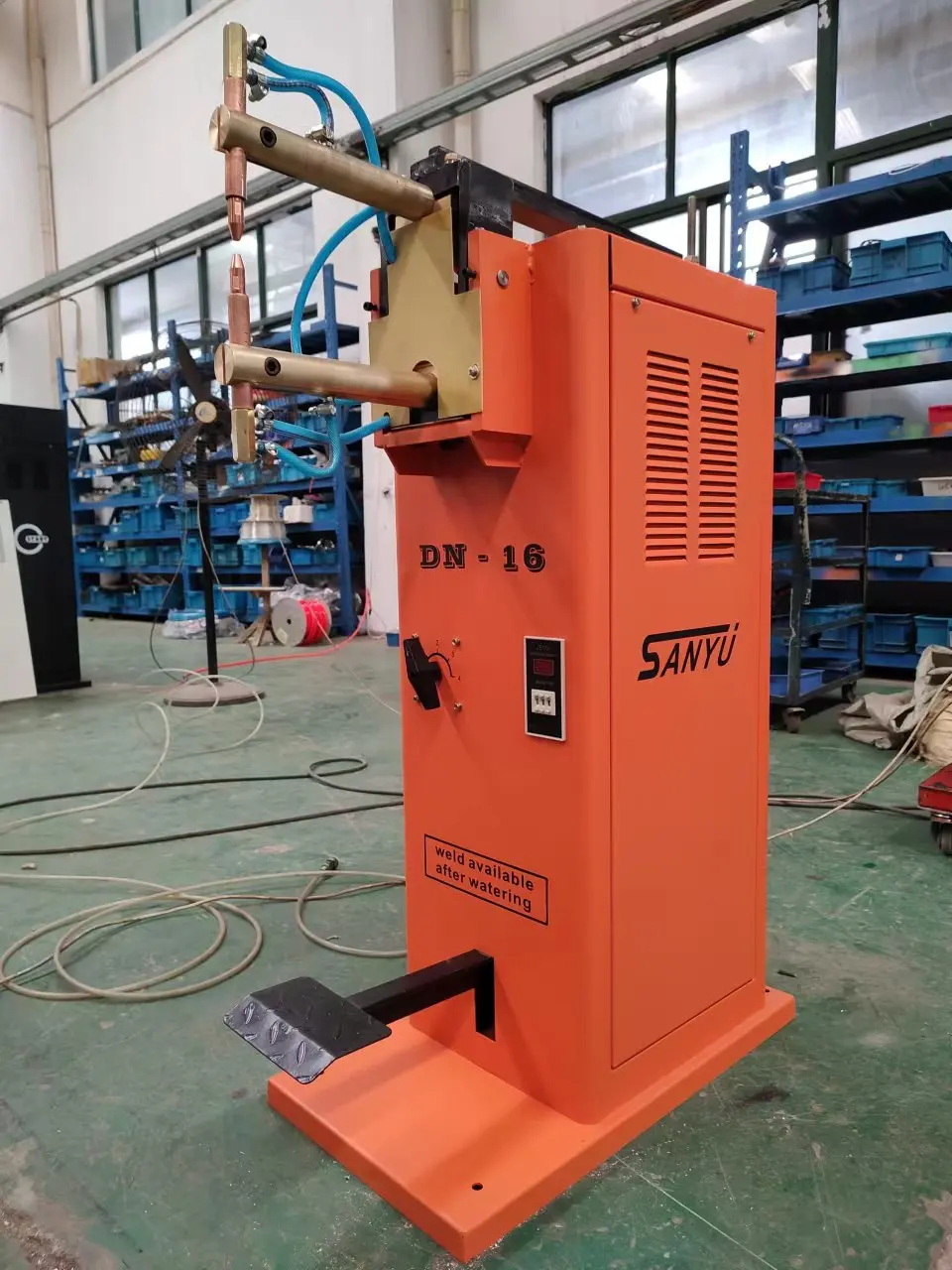

DN 16 точечная сварочная машина SANYU 16 кВА высокого качества для стального железа
- Категория: >>>
- Поставщик: Shanghai Sanyu Industry Co. Ltd.
Сохранить в закладки 1601047721653:
Описание и отзывы
Характеристики
Product Overview
DN Series Spot Welding Machine Resistance Welder
PRODUCT SPECIFICATIONS
Model | DN-10 | DN-16 | DN-25 | DN-35 |
Rated Voltage | 380V | 380V | 380V | 380V |
Frequency | 50Hz | 50Hz | 50Hz | 50Hz |
Phase Number | 1 | 1 | 1 | 1 |
Rated Capacity | 10KVA | 16KVA | 25KVA | 35KVA |
Rated Current | 26.3A | 42.1A | 66A | 92A |
Rated Duty Cycle | 10% | 10% | 10% | 10% |
Arm Extension | 260MM | 280MM | 260MM | 260MM |
Welding Thickness | 1.5+1.5MM | 2.0+2.0MM | 2.5+2.5MM | 3.5+3.5MM |
FEATURES AT A GLANCE
DN series spot welders are new developed products of Shanghai Sanyu Industry Co., Ltd . They are necessary equipment for sheet welding of case, cabinet, guard door/ window against theft, steel furniture, stainless
steel products, kitchen equipment and air condition equipment.
steel products, kitchen equipment and air condition equipment.
1.The main transformer of DN series spot welder is made of imported cold rolled silicon steel, thus the transformer is less
power loss and low no-load current.
power loss and low no-load current.
2.DN series spot welder adopts pivoting arm, pedal, spring press structure, easy to operate and maintain. The appearance of series welder adopts box structure in graceful form, durable and cheap.
3.In main circuit of DN series spot welder adopts thyristors as non-contactor switch, quick switch off and reliable. Welding time can be controlled and adjusted precisely, good welding repeatability, easy to maintenance, can realize high quality weld.
4.DN series spot welders are widely used for welding structure instead of rivet and bolt connections, make the simple punching press pieces form a complex part by spot welding, used in a great quantity for welding medium, low carbon steel sheet, wire, stainless steel sheet. If fine regulate the welding time and current, the welder also can be used for spot welding some non-ferrous metal.
DN-10

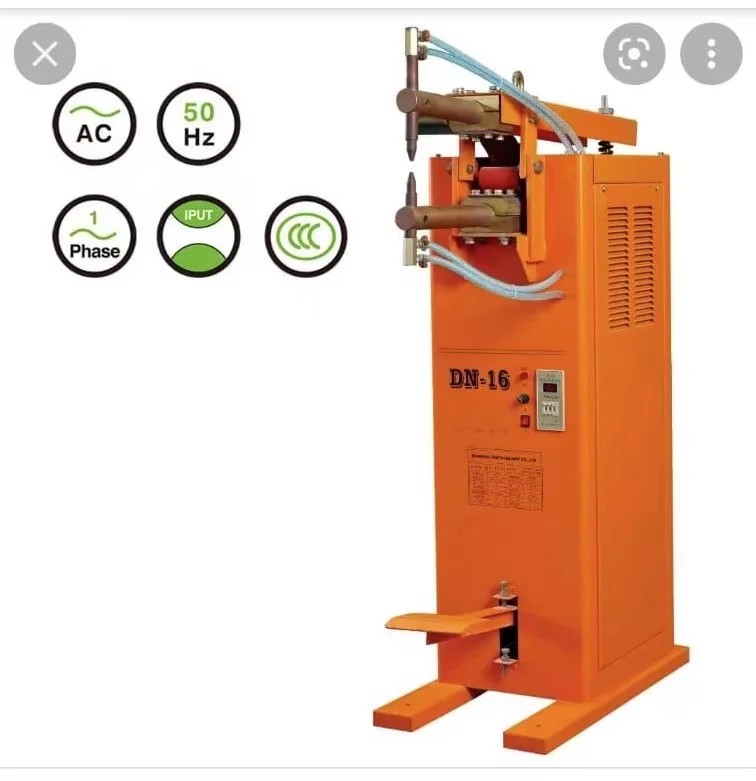

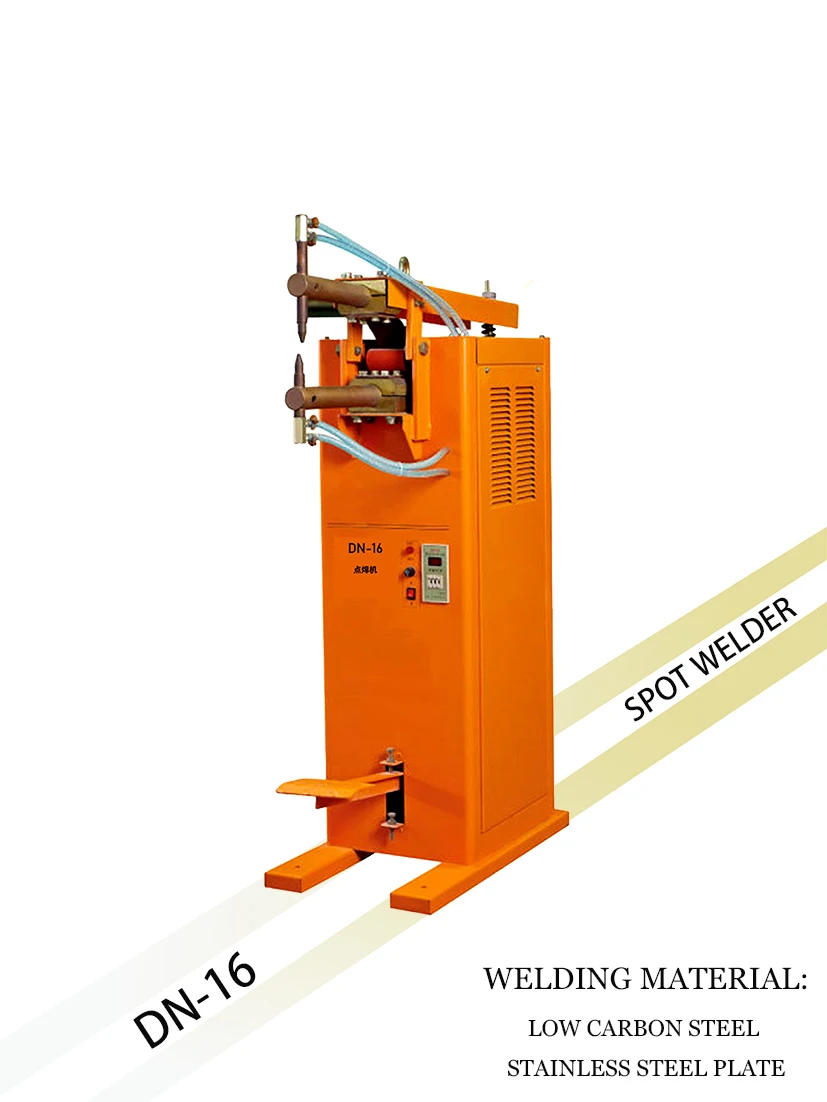

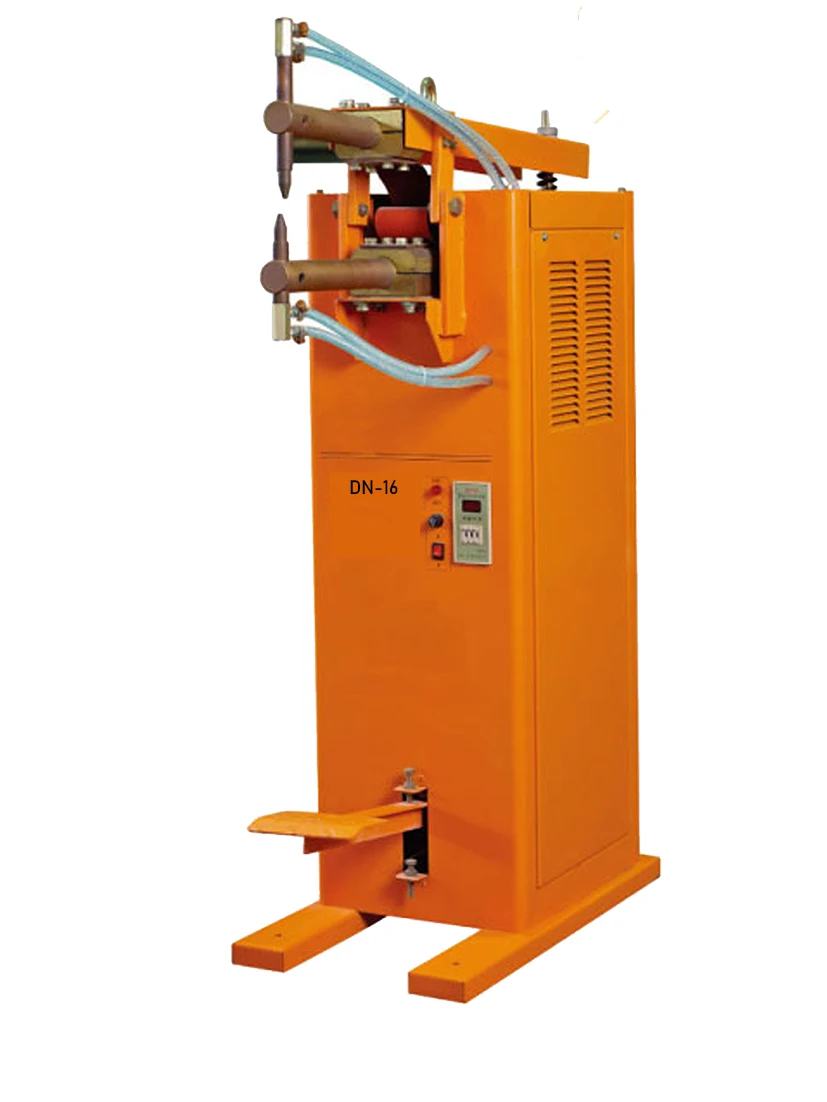

DN-16
DN-25
Till now we already exported our productsed our products to more than 40 countries all over the world .We have 20 years history in welding machien manufacturing field.
The types of welding machines we produce are MIG gas shielded welding machine, TIG gas shielded welding machine, spot welding machine, manual welding machine, stud welding machine, multi-function welding machine and other welding machine types. We have an advanced and complete production line, which can provide customized services, and we have strong supply capacity and perfect after-sales service.
The types of welding machines we produce are MIG gas shielded welding machine, TIG gas shielded welding machine, spot welding machine, manual welding machine, stud welding machine, multi-function welding machine and other welding machine types. We have an advanced and complete production line, which can provide customized services, and we have strong supply capacity and perfect after-sales service.
SIMILAR PRODUCTS
FAQ
Q1. Factory or trade company only? What certifications do you get?
A: We are factory absolutely. And we have CE, ISO9001, SGS, CCC.
Q2. Can I be your sale agent in our market?
A: Why not, welcome. Email me now if you are interested.
Q3. What is your MOQ?
A: The Minimum Order Quantity is 1 set.
Q4. What will your company do for the warranty?
A: All the goods are 100% quality testing before shipping. We’ll offer 12 or 18 month warranty.During the
warranty period,if goods have any quality problem without any human factors, we’ll send parts for your repair and replace.
Q5. Can you accept OEM orders?
A: Yes, OEM/ODM orders are highly welcome.
Q6. what's the payment term?
A: We accept T/T, L/C, West Union, Cash, etc.
Usually, T/T 30% deposit and 70% balance before shipment or against copy of B/L. 100% for at sight LC.
Q7. What package standard?
A: For small capacity,we packed with carton,but for big capacity,we can make the pallet or use strong
wooden case to distinguish and protect the goods.
Q8. why choose us ?
A: 1. Famous brand in china for 10 more years ---- Sanyu
2.Easy operating system ---- Easy but effective software, gentle touch achieves
3. Stable performance ---- best famous compenents ensure the quality all the time
4. Excellent aftersales service ---- 24*7 hours online serive, never leave you alone
5. Fast delivery ---- cheap & safe delivery, we look after it all the time
A: We are factory absolutely. And we have CE, ISO9001, SGS, CCC.
Q2. Can I be your sale agent in our market?
A: Why not, welcome. Email me now if you are interested.
Q3. What is your MOQ?
A: The Minimum Order Quantity is 1 set.
Q4. What will your company do for the warranty?
A: All the goods are 100% quality testing before shipping. We’ll offer 12 or 18 month warranty.During the
warranty period,if goods have any quality problem without any human factors, we’ll send parts for your repair and replace.
Q5. Can you accept OEM orders?
A: Yes, OEM/ODM orders are highly welcome.
Q6. what's the payment term?
A: We accept T/T, L/C, West Union, Cash, etc.
Usually, T/T 30% deposit and 70% balance before shipment or against copy of B/L. 100% for at sight LC.
Q7. What package standard?
A: For small capacity,we packed with carton,but for big capacity,we can make the pallet or use strong
wooden case to distinguish and protect the goods.
Q8. why choose us ?
A: 1. Famous brand in china for 10 more years ---- Sanyu
2.Easy operating system ---- Easy but effective software, gentle touch achieves
3. Stable performance ---- best famous compenents ensure the quality all the time
4. Excellent aftersales service ---- 24*7 hours online serive, never leave you alone
5. Fast delivery ---- cheap & safe delivery, we look after it all the time
Похожие товары

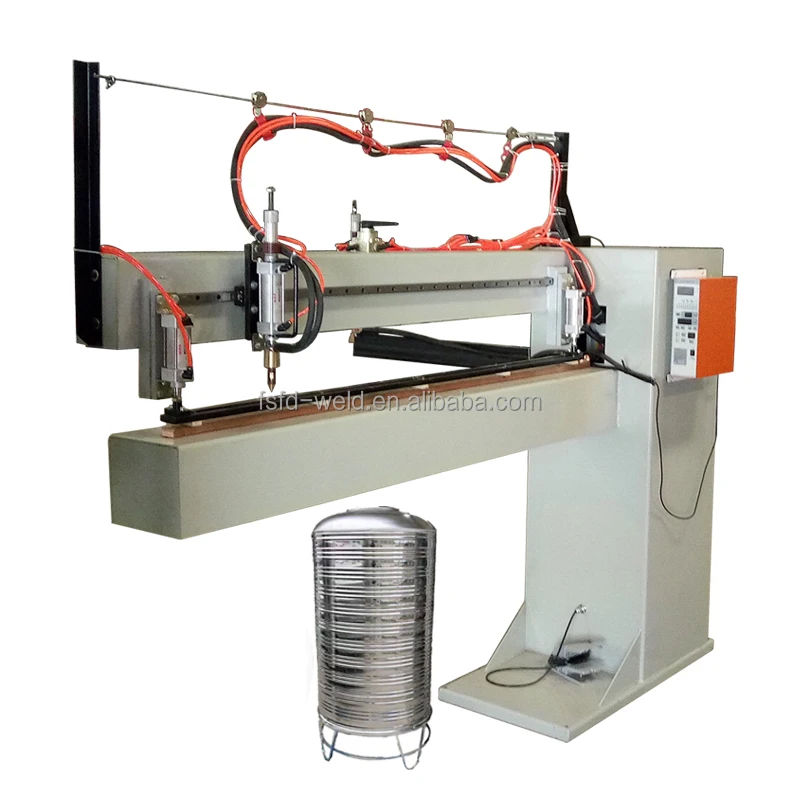

Машина для точечной сварки резервуара хранения воды
242 458,48 ₽
Мини сварочный аппарат точечная сварочная машина с воздушным охлаждением лазерный для алюминия
Точечный сварочный аппарат промышленное сварочное оборудование водное охлаждение оригинальная гарантия 1 год от производителя
Одна сторона одиночная головка точечная сварочная машина
242 458,48 ₽

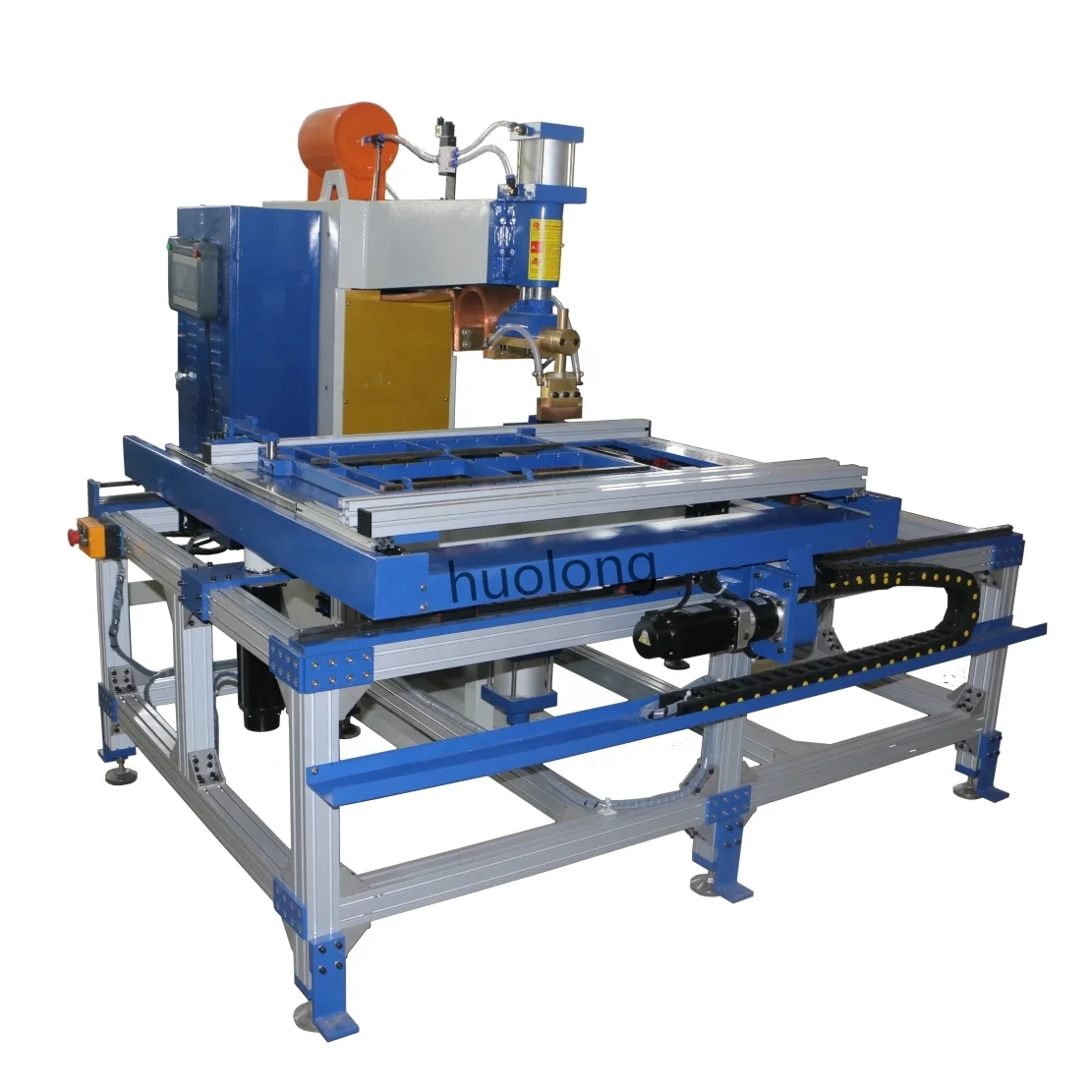

Заводская установка для точечной сварки с несколькими точечными арматурными сетками
881 667,20 ₽

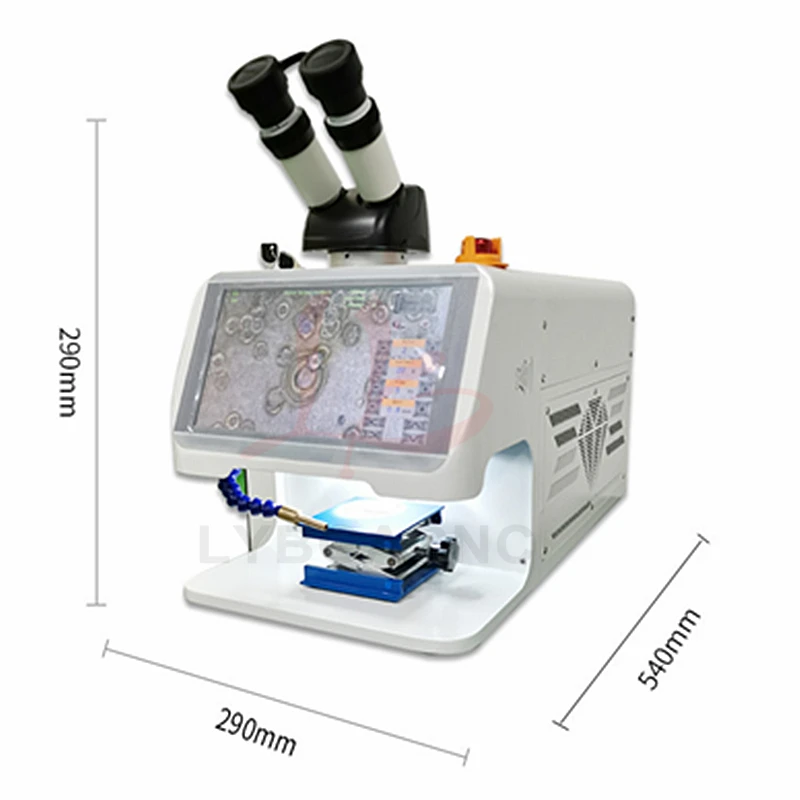

Аппарат для точечной сварки ювелирных изделий ND YAG лазер с сенсорным экраном 60 Вт 100 150 200 мини-Лазерная пайка системой управления CCD
