Модель S/S4 с тремя лопастями портативный ветрогенератор горизонтальной осью 12 В 24 ветровая турбина
9 257,75 ₽ - 10 910,92 ₽
Склад Poland альтернативная экономия энергии для домашнего использования с шестью лопастями 800 Вт 12 В 24 горизонтальный ветрогенератор
- Категория: >>>
- Поставщик: Wuxi Smaraad New Energy Technology Co. Ltd.
Сохранить в закладки 1601047998615:
Описание и отзывы
Характеристики
\t\t\t Item \t\t\t | \t\t\t S-400 \t\t\t | \t\t\t S-600 \t\t\t | \t\t\t S-800 \t\t\t | \t\t\t S-1000 \t\t\t | |||
\t\t\t Rated Power \t\t\t | \t\t\t 400w \t\t\t | \t\t\t 600W \t\t\t | \t\t\t 800W \t\t\t | \t\t\t 1000W \t\t\t | |||
\t\t\t Maximum Power \t\t\t | \t\t\t 410w \t\t\t | \t\t\t 650W \t\t\t | \t\t\t 850W \t\t\t | \t\t\t 1100W \t\t\t | |||
\t\t\t Rated Voltage \t\t\t | \t\t\t 12V/24V \t\t\t | \t\t\t 12V/24V \t\t\t | \t\t\t 12V/24V \t\t\t | \t\t\t 12V/24V \t\t\t | |||
\t\t\t Start-up Wind Speed \t\t\t | \t\t\t 2.0m/s \t\t\t | \t\t\t 2.0m/s \t\t\t | \t\t\t 2.0m/s \t\t\t | \t\t\t 2.0m/s \t\t\t | |||
\t\t\t Rated Wind Speed \t\t\t | \t\t\t 13m/s \t\t\t | \t\t\t 13m/s \t\t\t | \t\t\t 13m/s \t\t\t | \t\t\t 13m/s \t\t\t | |||
\t\t\t Blade Length \t\t\t | \t\t\t 580mm \t\t\t | \t\t\t 530mm \t\t\t | \t\t\t 580mm \t\t\t | \t\t\t 370mm \t\t\t | |||
\t\t\t Rotor diameter \t\t\t | \t\t\t 1.2m \t\t\t | \t\t\t 1.1m \t\t\t | \t\t\t 1.2m \t\t\t | \t\t\t 0.9m \t\t\t | |||
\t\t\t Quantity of Blades \t\t\t | \t\t\t 3 \t\t\t | \t\t\t 5 \t\t\t | \t\t\t 6 \t\t\t | \t\t\t 8 \t\t\t | |||
\t\t\t Product Assembly Weight \t\t\t | \t\t\t 9kg \t\t\t | \t\t\t 9kg \t\t\t | \t\t\t 9.5kg \t\t\t | \t\t\t 9.5kg \t\t\t | |||
\t\t\t Blades Material \t\t\t | \t\t\t Nylon Fiber \t\t\t | \t\t\t \t\t\t | \t\t\t \t\t\t | \t\t\t \t\t\t | |||
\t\t\t Generator Type \t\t\t | \t\t\t Three phase permanent magnet synchronous generator \t\t\t | \t\t\t \t\t\t | \t\t\t \t\t\t | \t\t\t \t\t\t | |||
\t\t\t Magnet Material \t\t\t | \t\t\t Rare Earth NdFeB \t\t\t | \t\t\t \t\t\t | \t\t\t \t\t\t | \t\t\t \t\t\t | |||
\t\t\t Generator Case \t\t\t | \t\t\t Nylon \t\t\t | \t\t\t \t\t\t | \t\t\t Aluminum alloy \t\t\t | \t\t\t \t\t\t | |||
\t\t\t Control System \t\t\t | \t\t\t Electromagnet \t\t\t | \t\t\t \t\t\t | \t\t\t \t\t\t | \t\t\t \t\t\t | |||
\t\t\t Overspeed Protection \t\t\t | \t\t\t Electromagnetic brake \t\t\t | \t\t\t \t\t\t | \t\t\t \t\t\t | \t\t\t \t\t\t | |||
\t\t\t Working Temperature \t\t\t | \t\t\t *-40°C - 80°C \t\t\t | \t\t\t \t\t\t | \t\t\t \t\t\t | \t\t\t \t\t\t | |||
\t\t\t Overload Protection \t\t\t | \t\t\t Electromagnetic Brake And The Unloading Unit \t\t\t | \t\t\t \t\t\t | \t\t\t \t\t\t | \t\t\t \t\t\t | |||

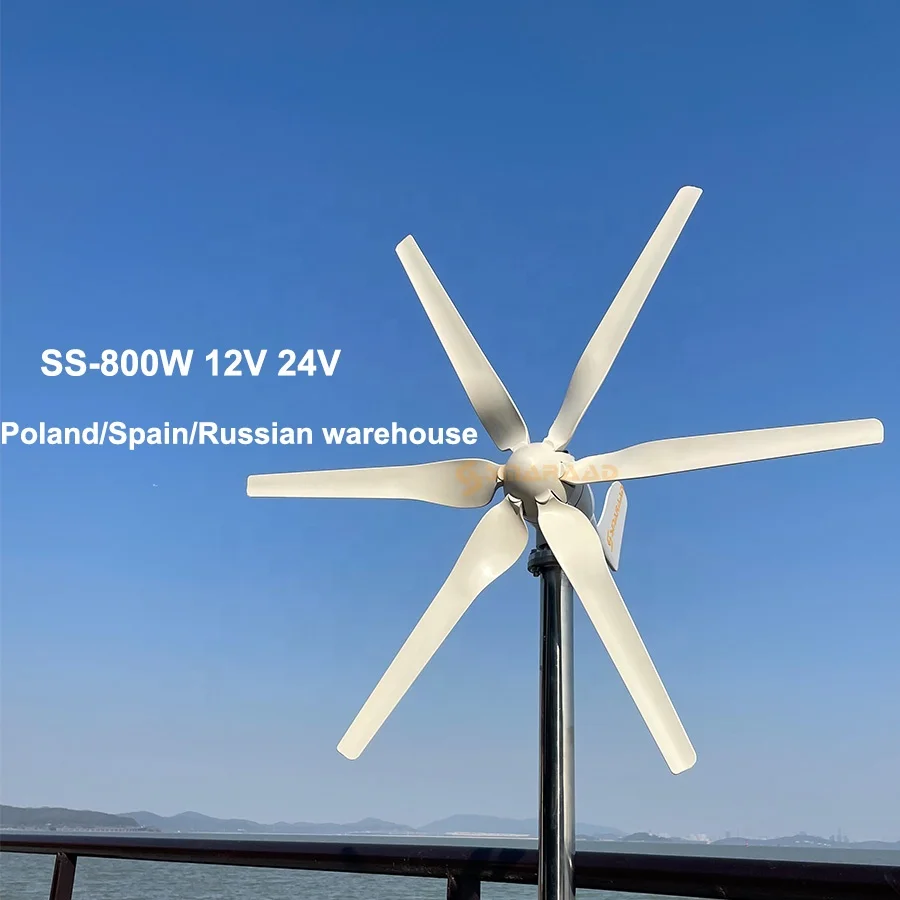

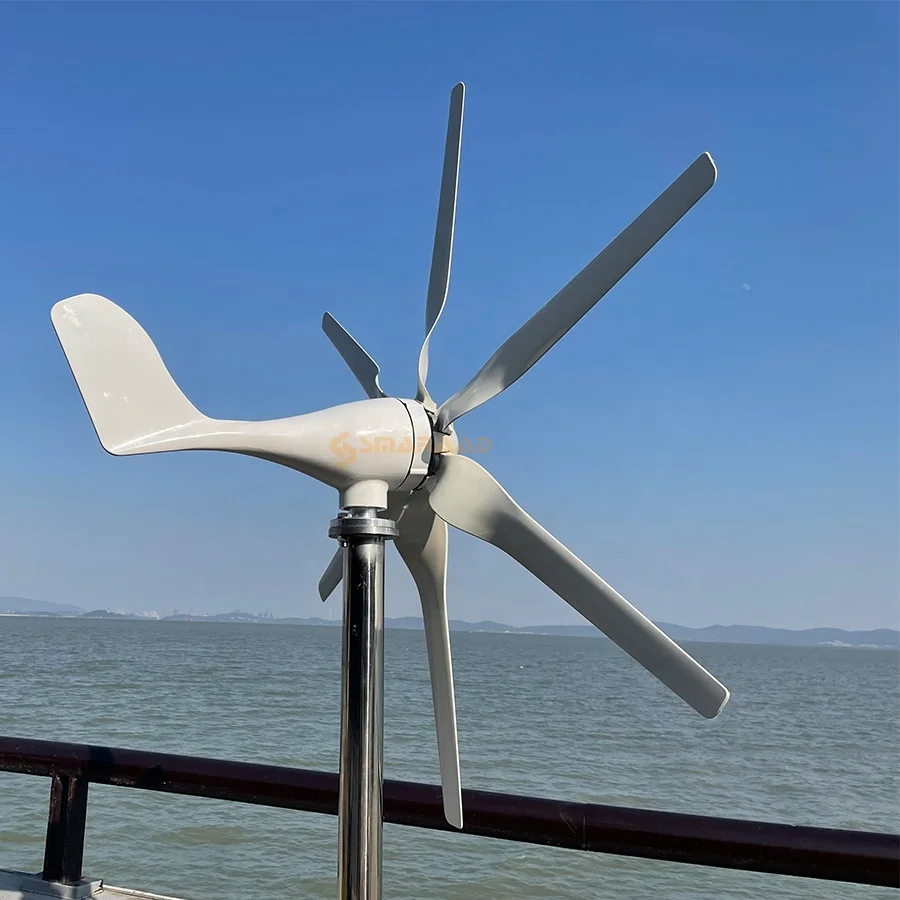

800W horizontal wind turbine
1.Using high-power tracking intelligent microprocessor control, effective regulation of current and voltage.
2.Start the wind speed is low, high wind energy utilization; small size, good looks, low operating vibration.
3.The installation of user-friendly design, convenient equipment installation, maintenance and repair.
4.The shell is made of aluminum alloy die-casting, with double bearing carrier, anti-typhoon capacity is stronger, safe and reliable operation.
5.The wind wheel blades are made of nylon fiber, coupled with the optimization of the aerodynamic shape design and structural design, high wind energy utilization factor, an increase of annual power generation.
6.The generator using patented magnetic bearing alternator, coupled with a special stator design, effectively reduce the resistance torque of the generator, while the wind wheel and the generator has a more good matching characteristics, the unit running reliability.
7.It is ideally suited for the leisure sector and is known for charging batteries for boats, gazebos, cabins or mobile homes, as well as for green windmills, home, corporate and industrial energy supplements!
2.Start the wind speed is low, high wind energy utilization; small size, good looks, low operating vibration.
3.The installation of user-friendly design, convenient equipment installation, maintenance and repair.
4.The shell is made of aluminum alloy die-casting, with double bearing carrier, anti-typhoon capacity is stronger, safe and reliable operation.
5.The wind wheel blades are made of nylon fiber, coupled with the optimization of the aerodynamic shape design and structural design, high wind energy utilization factor, an increase of annual power generation.
6.The generator using patented magnetic bearing alternator, coupled with a special stator design, effectively reduce the resistance torque of the generator, while the wind wheel and the generator has a more good matching characteristics, the unit running reliability.
7.It is ideally suited for the leisure sector and is known for charging batteries for boats, gazebos, cabins or mobile homes, as well as for green windmills, home, corporate and industrial energy supplements!
High Quality
Application Scenario
Generator Core

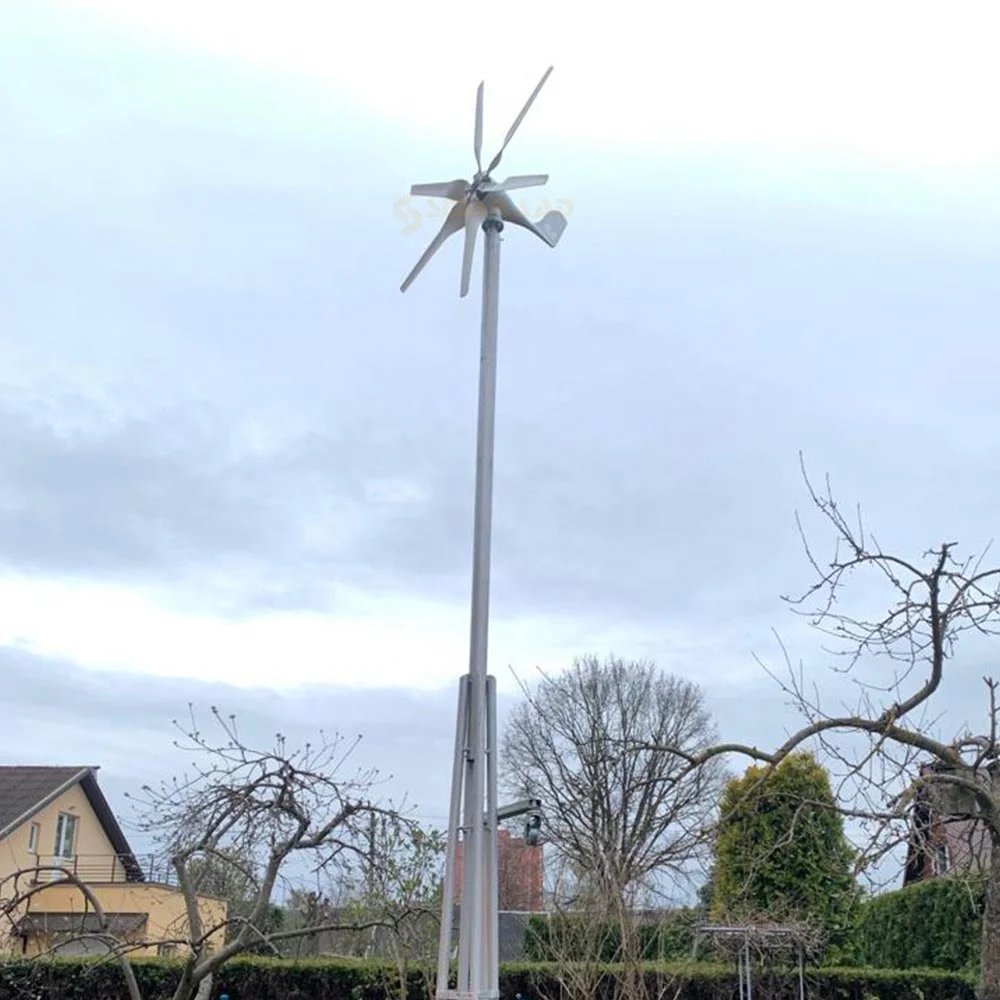

Project in Poland
Project in Australia
Project in India
FAQ
1. Q: Does the System Installation Easy?
A:Very easy, every customer can do it by themselves, we will supply all the components for installation and very detailed manual for you. If you still have confusion, our technician could support you all the time by video to make sure there is no mistake of connection.
2.Q: Distance between wind turbine, controller and battery?
A: Normally better within 10m from wind turbine to controller, and controller to batteries, Batteries and inverter to load within 20-50m.
3.Q: For horizontal axis wind turbines VS vertical axis wind turbines, which kind of efficiency is better?
A:For same watts at same wind speed, the output of horizontal axis wind turbines is more efficient than that of vertical axis wind turbines. But if your wind speed is very low, we suggest you to use our vertical SS type.If your wind speed is over 8m/s, our vertical wind turbine are also with around 80-90% efficiency. No noise is the most popular points.
4. Q:Does our wind is enough for a wind generator ?
A: Please contact our sales with following points :
1. What appliance do you want to running by the system? How many watts are they and their working time .
2. Your annual average wind speed .you could check on google with your exact site
3. What kinds of system do you want ? On-grid or off-grid?
5. Q:Can i buy full wind and solar system from you?
A: Sure, Smaraad is a one stop energy solution provider, we have qualified technician team to design for your system, including wind turbine,solar panel system and storage system, we will provide clear installation instruction and you only need to ask a echnician to install it for you. And most of parts, we have warehouse in Poland, Russian, Spain and USA.
6. Q: If your products have CE certificated?
A: Sure, our products have sold to more than 40 countries and our products have been approved by local rules and test very good function.
7. Q: The delivery date for each type?
A:Normally for wind turbine below 1kw, we have stock in China or in Our warehouse in EU, Russian, so it could delivery within 1-3days after payment received
8. Q: If we could be your agent or distributor?
A: Please talk with our sales for this, our company are warmly welcome more partner to join us, but you have to double check for some area we have agents already.
