Product Description

Product Description

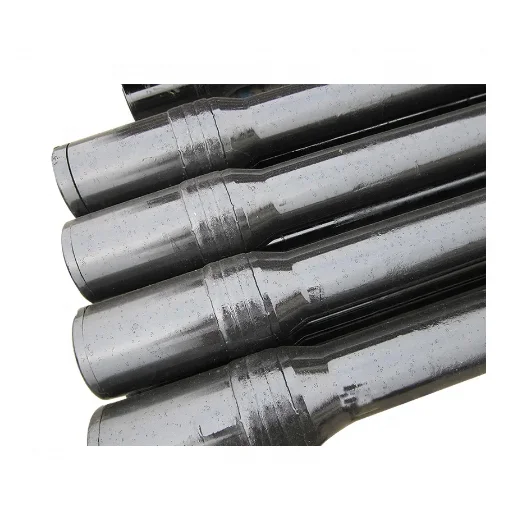

Drill pipes that are used in applications such as DTH/ DTHR/ DR basically comprise of a steel pipe with a pin at one end and a box on the other. The job of the drill pipe is to transmit rotational torque and thrust from the drill rig rotary head to down hole drilling tools.

According to different application, different diameters of drill tubes are needed, basically, smaller DTH hammers need smaller DTH drill tubes, vice versa. Usually we are offering 50mm, 60mm, 76mm, 89mm, 95mm, 102mm, 114mm, 127mm, 140mm, 159mm.

Usually the threads are standard API connections, like 2 3/8" API REG thread, 3 1/2" API REG thread or API IF thread, etc. According to customers request, from 1000mm to 6000mm length of pipe are available.

Specification :

1.Reliable working performance

2.Outside Size:60mm,76mm,89mm,114mm,140mm

3.Thread:API Reg

4.Wall Thickness: 5.5/6.5mm/7.5/8.5mm/10mm




Normal Specifications:












































Code


PA50


PA60


PA73


PA89


Outer Diameter (mm)


50


60


73


89


Inner Dameter (mm)


48


58


57


69


Length


1.5m/3m/4.5m


1.5m/3m/4.5m


1.5m/3m/4.5m/6m


1.5/3m/4.5m/6m


Unit Weight (KG)


6.5kg/m


8.6kg/m


12.8kg/m


19.4kg/m

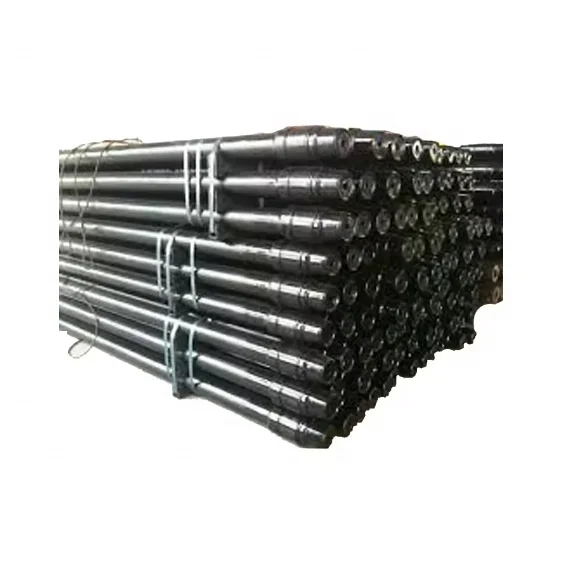

Detailed Images

Detailed Images












Packing & Delivery

Packing & Delivery












Certifications

Certifications




















Our Company

Our Company












 Zhaoxin Industry & Trade Company, Ltd. of Dongying City is located in the hinterland of beautiful Yellow River Delta --- Dongying City normally called “ Petroleum City”. The company, which conducts scientific research, development, manufacture, sale and after sale service, is one enterprise for oilfield tool and equipment manufacture.
At Shengli Industry Area, the company was established in 1999. It has owned more than 3000 square meters of workshops which manufacture different oilfield down hole tools and accessories such as fracture packer series, sand blast, fracture hydraulic anchor. The products of company have been widely applied in oilfields in China and entered markets abroad.
The company conducts management mode of combination between regulation and humanity, develops perfect management system and inspiring system, has achieved ISO9000 international quality system certification and has got first order market entry qualification. The company has owned practical, specialized, experienced and powerful research and development team, applied and got more than 40 national patents awarded by National Intellectual Property Bureau, widened the markets in Neimeng, Xinjiang, and Liaohe,etc, and established approved reputation.
For many years, the company has followed the management idea of existence by means of quality and development by means of innovation, maintained the service aim of quality first and reputation first, faced competition with the new products, explored development with the new idea and widened market with the new technology. In the future of more severe competition market, Zhaoxin Company , with perfect attitude, product and service, is going to make further development together with customers at home and abroad .








FAQ

FAQ



1. Are you manufacturer or trader company?

We are manufacturer and we could supply more professional technical services and goods.
The goods are new or used, if you will make technical drawing and production plans for us?
All our goods are new ones, the production schedule will offer to you once getting your purchase order.

2. Do you have related inspection equipments?

Yes, our factory is equipment all test equipments, and I could send their pictures and test documents to you.

3. Could you tell me if your price includs the third party inspection charges?

No, our price do not include the third party inspection charge, and we will notice on our Quotation.

4. Where did your products sell out?

United States, Canada, Mexico, Venezuela, Colubia, and other South American Region Russica, Azerbaijan and Central Asia Countires, UAE, Saudi Arabia and Mddle East Counties.


we are a professional manufacturer of oil downhole tools , high quality and reasonable price .
Any problem about our products , welcome here .
