Настенная аккумуляторная батарея lifepo4 мощностью 10000 Вт 20 кВт 15 2 3 5 10 гибридная солнечная энергетическая система для дома

Сохранить в закладки 1601048816799:


Цена:49 773,01-74 547,51 ₽*

Количество:

  • В избранное

Описание и отзывы

Характеристики



Product Description












5KW Off Grid Solar Power System Components List
Item
Model
Description
Quantity
1
Solar Panel
Mono 390w solar panel
10 pcs
2
PV combiner box
5 input 1 output
1 pc
3
Hybrid inverter(Charge controller & Inverter)
MPPT :48V 60A
Rate power: 5KW
1 pc
4
Battery with cable
12V 200Ah
4 pc
5
PV Cable
4mm² PV cable
100 m
6
Connector
Solar connector
10 pairs
7
Ground/Roof mounting system
Customize for 18pcs of 390w solar panel
1 set
10KW Off Grid Solar Power System Components List
Item
Model
Description
Quantity
1
Solar Panel
Mono 390w solar panel
18 pcs
2
PV combiner box
6 input 2 output
1pc
3
Hybrid inverter(Charge controller & Inverter)
MPPT :48V 120A
Rate power: 10KW
1 pc
4
Battery with cable
12V 220Ah
8 pcs
5
PV Cable
4mm² PV cable
200m
6
Connector
Solar connector
15 pairs
7
Ground/Roof mounting system
Customize for 18pcs of 390w solar panel
1 set


Configuration Details

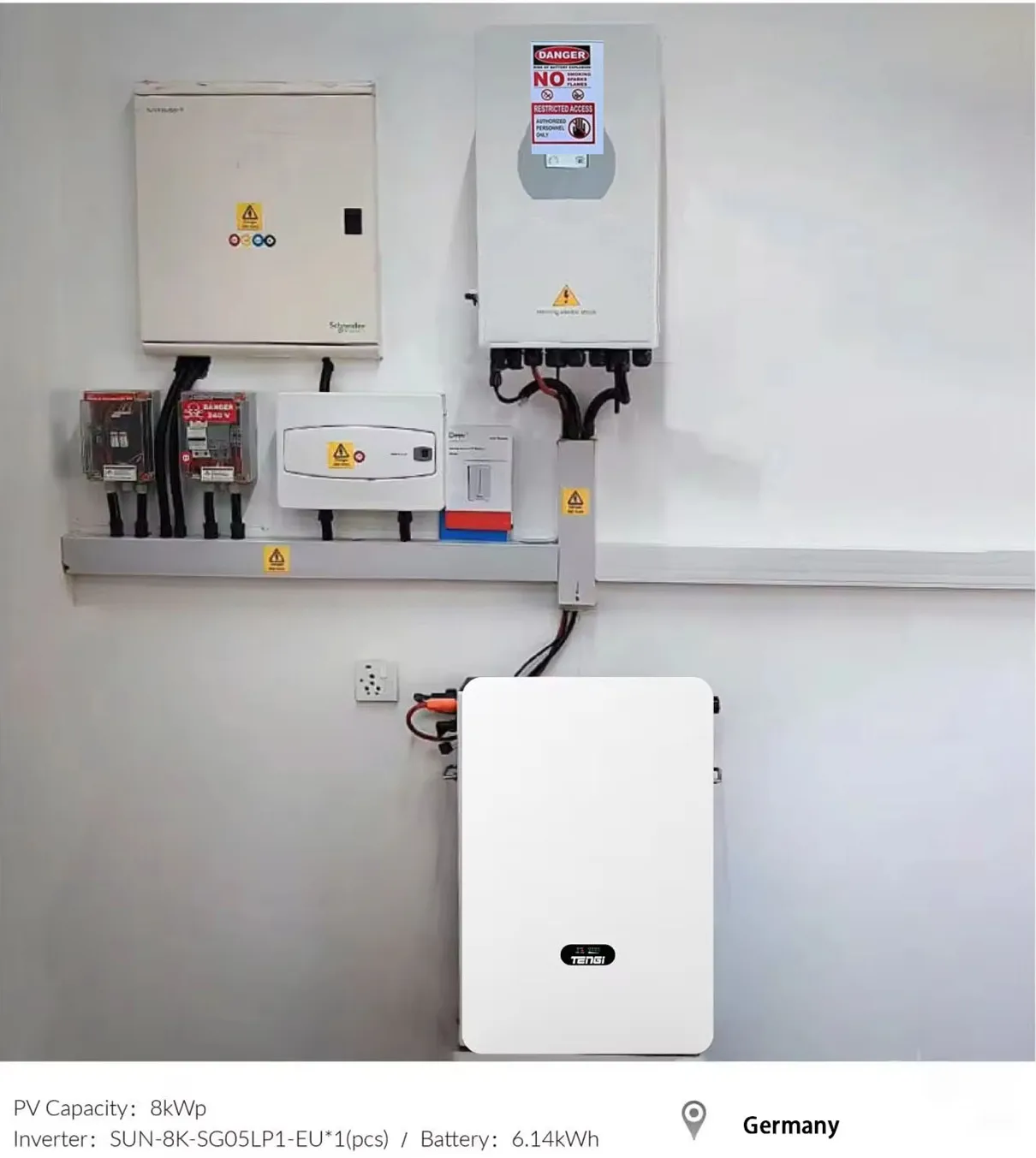

Customer case






Product Features


Safety First: Ready for Fully-covered Protection
Energy storage safety weighs more than anything. With 3-layer protection from cell level to electrical level, structural level and emergency protection level, We redefines energy storage system safety.




USE Deye or SmartGen(Listed company) BMS
1.Alarm and protection functions of over/under voltage, over current, over temperature, reverse connection, etc.;
2.The stable and reliable AFE chip is adopted to realize the voltage detection of the cell
USE CATL Battery Cells(Grade A+)
Thanks to features such as the high reliability, long service life and high energy efficiency of CATL's battery systems,
"renewable energy + energy storage" has more advantages in cost per kWh in the whole life cycle.






Exhibition




Specification


Model
ZXJC-LV02-5
ZXJC-LV02-10
Battery Type
Lithium Battery
Lithium Battery
Rated Voltage
51.2V
51.2V
Rated Capacity(kWh)
5.12
10.24
Operating Voltage
Range(Vdc)
40~58.4
40~58.4
Rated Charging &
Discharging Current(A)
50
100
Max. Charging &
Discharging Current(A)
100
200
Peak Current(A)
300
600
Number of parallel
≤6
≤6
Cycle Life(time)
>6000@80%DOD,25℃/0.5C
>6000@80%DOD,25℃/0.5C
Protection Degree
IP65
IP65
Operating Temperature
Range
0~55℃ Charging & -20~60℃ Discharging
0~55℃ Charging & -20~60℃ Discharging
Communication Method
RS485 / CAN
RS485 / CAN
Display
SOC, LED
SOC, LED
Installation Method
Wall mounting
Floor mount

Wall mounting
Floor mount
Dimension (WxHxD)
470mm*620mm*150mm
590mm*850mm*150mm
Weight
40kg
76kg
Qualification
UN38.3, IEC62619, IEC/EN62477, EN61000




Company Profile




About Us
Tengi Power, founded in 2007, Chinese high-tech enterprise, our main business is Residential Energy Storage System,Industrial&Commercial Energy Storage System, Inverters, Photovoltaic modules research and development, production and sales.






Certifications
