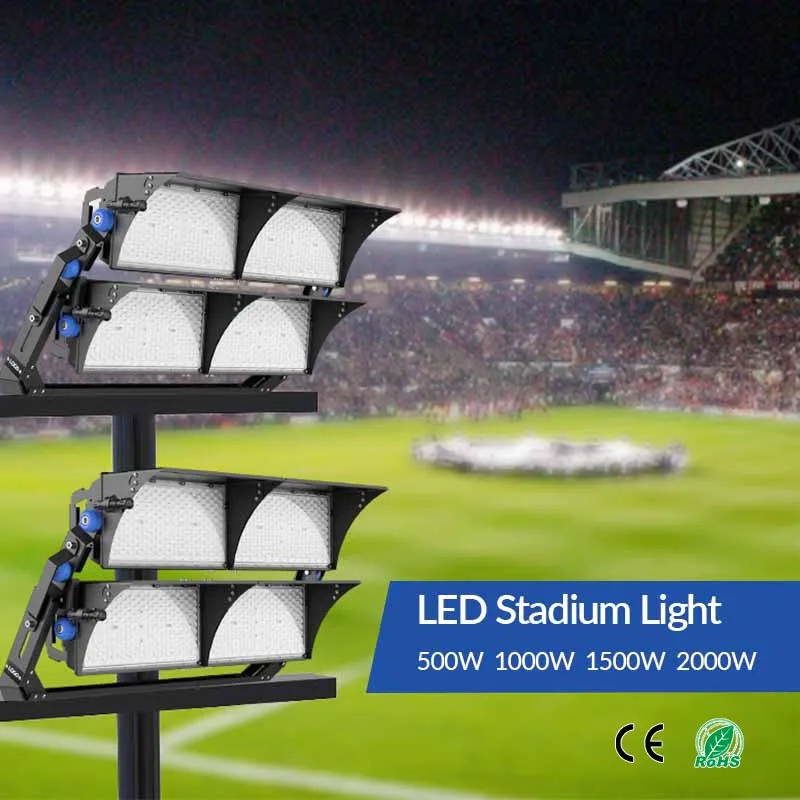

2024 новый дизайн высокая мачта освещение теннисный корт футбольное поле стадион 500 Вт ~ 2000 ватт светодиодный прожектор
- Категория: >>>
- Поставщик: Shenzhen Yongxinrui Lighting Technology Co. Limited
Сохранить в закладки 1601049256529:
Описание и отзывы
Характеристики
Products Description
Features:
1. The external IP67 driver is placed on the special iron shell, without touching the lamp body, electro-thermal separation, longer life span.
2. Single lamp module can be precisely adjusted to the point, improving the site lighting parameter index.
3. The surface of the lamp housing is anti-corrosion and electro-phoresis processed.
4. Dust-proof,moisture-proof and waterproof, IP66 rated.
5. Excellent optics lens design, uniform light spot, high light efficacy 160lm/W, low glare, and far projection.
6. Various intelligent control methods such as DALI, DMX, etc. are available, which can flexibly control lighting fixtures.
2. Single lamp module can be precisely adjusted to the point, improving the site lighting parameter index.
3. The surface of the lamp housing is anti-corrosion and electro-phoresis processed.
4. Dust-proof,moisture-proof and waterproof, IP66 rated.
5. Excellent optics lens design, uniform light spot, high light efficacy 160lm/W, low glare, and far projection.
6. Various intelligent control methods such as DALI, DMX, etc. are available, which can flexibly control lighting fixtures.

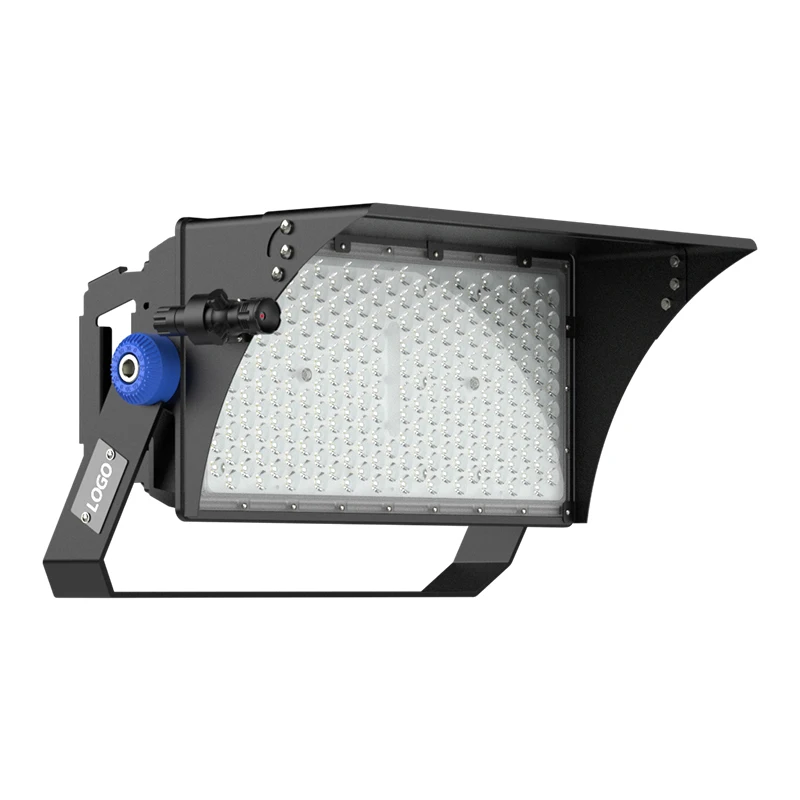

Product Paramenters
Model | YXR-QC-500W-K |
Power | 500W |
Replacement | HPS 2000W |
Input Voltage | AC100-277V(Brand); AC100-305V(Meanwell) |
Efficacy | 160lm/W |
Lumen | 80000lm |
Beam Angle | 15°/ 30° / 45° / 60° |
LED | San'an/Lumileds SMD 3030, 920pcs per module |
CCT | 2800-3000K; 3000-3200K; 4000-4500K; 5000-5500K; 6000-6500K |
CRI | ≥80Ra |
PF | >0.97 |
THD | 15%＜THD＜20% |
Weight(kg) | 15.1 |
Sizes(mm) | 563*313*413 |
Work Temp | 35~55℃ |
Humidity | 15%~90% RH, no condensing |
IP Grade | IP66 |
IK Grade | IK08 |
Life Span | ≥50,000 Hrs (LM70 @ 35℃ ) |
Finish | Sprayed with outdoor special powder |
Product Material | PC lens + Aluminum housing |
Electronic Safety Grade | Class I |
Power Wire | Rubber cable(3*1mm²) L=0.5m |
Details Images
Package

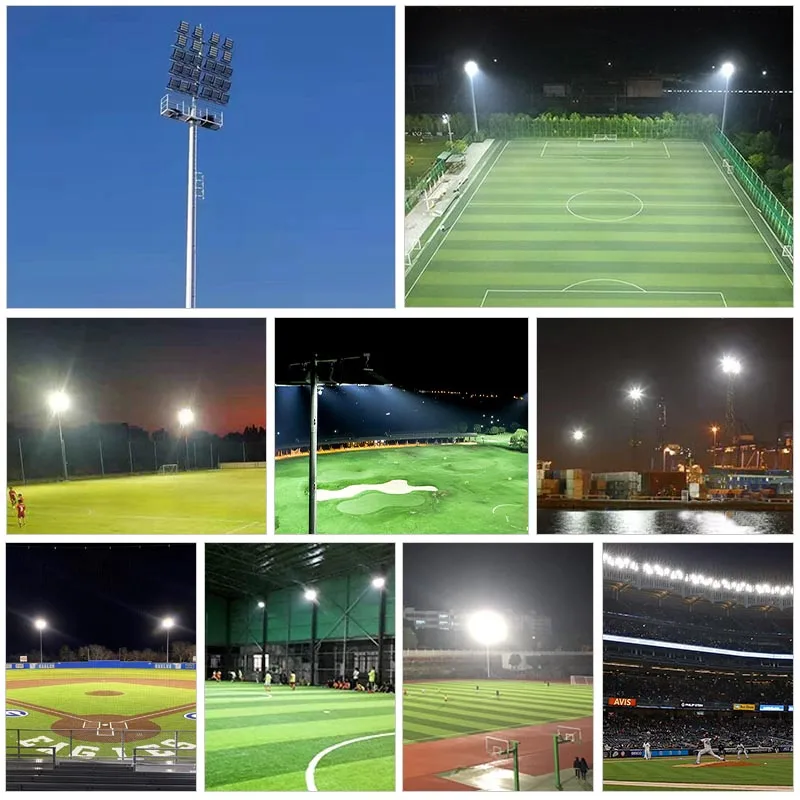

Applications
Soccer field, Tennis court, Golf courses, Badminton court, Sportfootball Stadium, Driving Range, Hockey Rink, Hockey Field, Cricket Stadium, Natatorium, Horse Arena, Racetrack, Pickleball Court, Skate Park, Baseball Field, Softball Field, Rugby Field, Sports field construction, Industrial Bridge, Crane, Container Port, Airport, Billboard, Mining, Public Park etc.

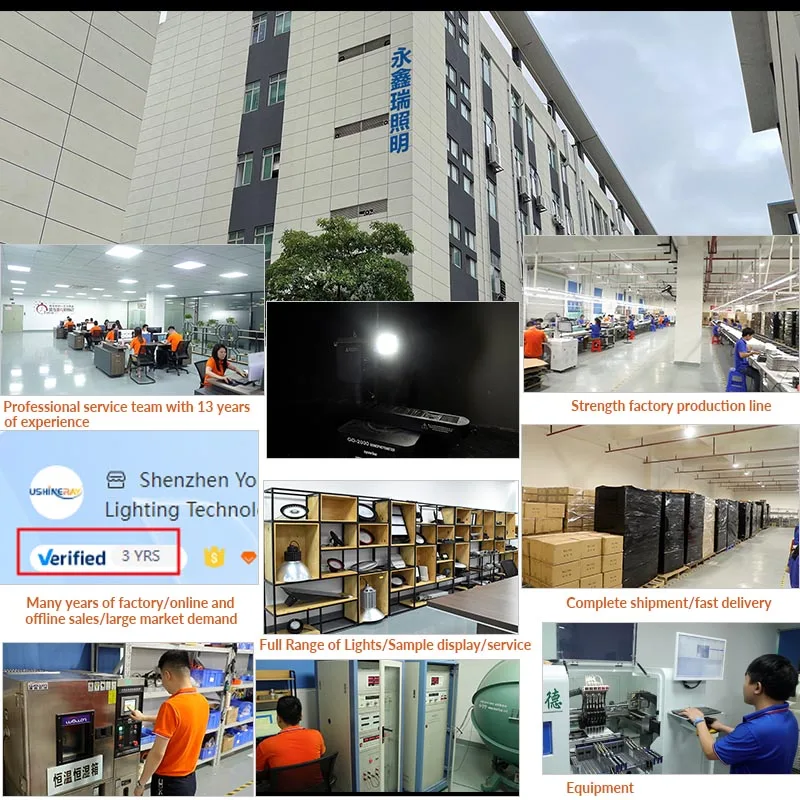

Company Profile
Shenzhen YongXinRui Lighting Technology Co., Ltd, estalished in 2010, we are a manufacturing and trading combo, specialized in Outdoor LED Lighting: LED Stadium Lights, LED Flood Lights, LED Street Lights and Tunnel Lights etc.
Our main markets are in Europe, South America, Southeast Asia, Oceania, and also we exported to North America and some Middle East countries; all of our LED lights are with CE, RoHS, and some of them are with ETL, DLC, TUV etc.
YongXinRui Lighting is committed to R&D and promoting of semiconductor lighting products and has accumulated a wealth of experience. We provide high-quality products, excellent pre-sales and after-sales service to customers.
Mutual benefit and common development is our aim. We sincerely look forward to cooperate with more customers in the world.
Provided service from Yongxinrui:
OEM/ODM(Lighting product design)
Providing LED energy saving program
Free lighting consultation
Lighting and circuitry design
DIALux caculation and visualization
Auto CAD layout
Our main markets are in Europe, South America, Southeast Asia, Oceania, and also we exported to North America and some Middle East countries; all of our LED lights are with CE, RoHS, and some of them are with ETL, DLC, TUV etc.
YongXinRui Lighting is committed to R&D and promoting of semiconductor lighting products and has accumulated a wealth of experience. We provide high-quality products, excellent pre-sales and after-sales service to customers.
Mutual benefit and common development is our aim. We sincerely look forward to cooperate with more customers in the world.
Provided service from Yongxinrui:
OEM/ODM(Lighting product design)
Providing LED energy saving program
Free lighting consultation
Lighting and circuitry design
DIALux caculation and visualization
Auto CAD layout
Combined with your on-site project needs, we will wholeheartedly provide you with professional and detailed light distribution advice and light simulation solutions.
FAQ
Q1. Are you a manufacturer?
Yes, we have our own factory with over 10 years of R&D and manufacturing experience based on ISO quality management since 2011.
Q2. Do you have any MOQ limit for led light orders?
No MOQ, 1pc for sample checking is available.
Q3. Can I get a lower price for large quantity order?
Yes, please check with our sales staff for the details.
Q4. How about the lead time of the LED Stadium Lights?
Our standard lead time for samples is 3-5 days, and the normal bulk order lead time is 7-10 days, for the large bulk order lead time, please check with our sales team.
Q5. Can you provide OEM and ODM services?
OEM and ODM services can be provided, we can provide the services of customized design box and carton as well as laser print logo on the lamp fixture, besides, our engineer can design the lighting products according to your idea.
Q6. What are the payment terms of your formal order?
We accept payment via TT, Alibaba Trade Insurance payment, Paypal, and Western Union, and we offer Ex-works, FOB, CIF price terms.
Q7. How to deal with the defective?
All of our products are produced in a strict quality control system, the defective rate is less than 0.2% according to our
shipment records.
Yes, we have our own factory with over 10 years of R&D and manufacturing experience based on ISO quality management since 2011.
Q2. Do you have any MOQ limit for led light orders?
No MOQ, 1pc for sample checking is available.
Q3. Can I get a lower price for large quantity order?
Yes, please check with our sales staff for the details.
Q4. How about the lead time of the LED Stadium Lights?
Our standard lead time for samples is 3-5 days, and the normal bulk order lead time is 7-10 days, for the large bulk order lead time, please check with our sales team.
Q5. Can you provide OEM and ODM services?
OEM and ODM services can be provided, we can provide the services of customized design box and carton as well as laser print logo on the lamp fixture, besides, our engineer can design the lighting products according to your idea.
Q6. What are the payment terms of your formal order?
We accept payment via TT, Alibaba Trade Insurance payment, Paypal, and Western Union, and we offer Ex-works, FOB, CIF price terms.
Q7. How to deal with the defective?
All of our products are produced in a strict quality control system, the defective rate is less than 0.2% according to our
shipment records.
We offer 3- 5 years warranty for this product, if there is any defective during the warranty, please provide a picture or video of the working situation of the defective lights, we will ship the new lights to you within a few days or send them together with your next order.
