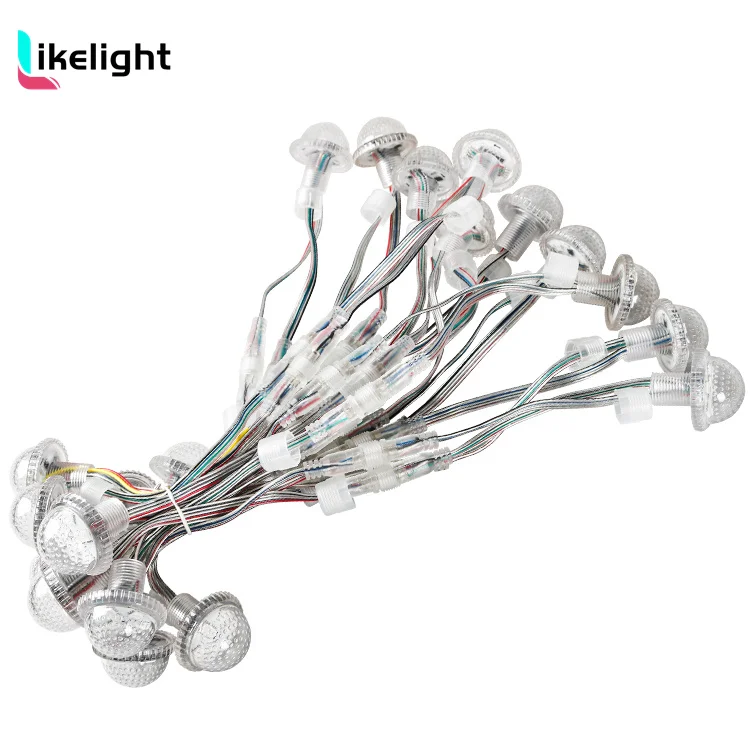

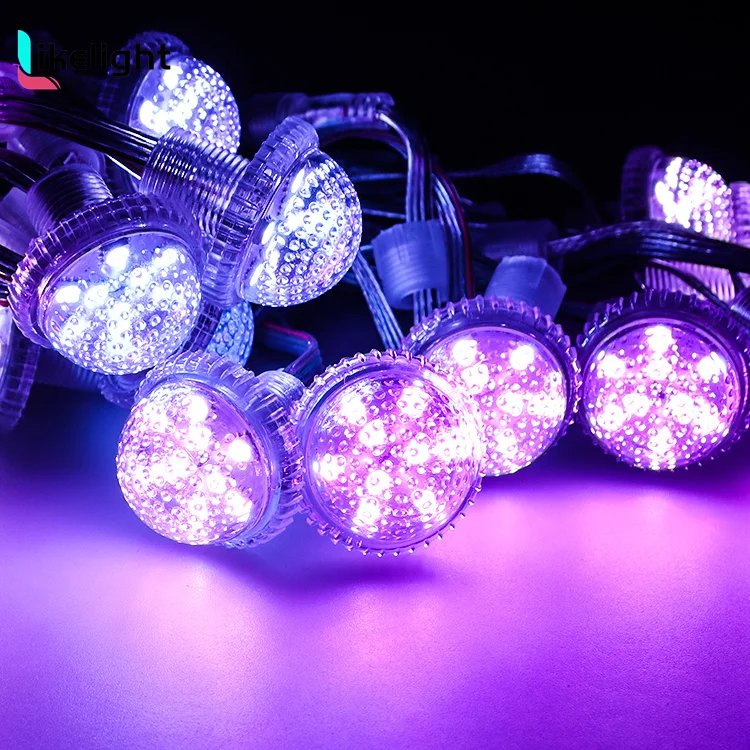

DC12V адресуемый 35 мм светодиодный пиксельный модуль света парк развлечений светодиодные фонари

Сохранить в закладки 1601049687192:


Цена:0,80-0,90 $*

Количество:

  • В избранное

Описание и отзывы

Характеристики



Products Description




Part NO:
L-D-359-N12V/24V
Diameter (mm) :
35 mm
drilling hole size:
35mm/19mm/14mm
Waterproof Grade:
IP67

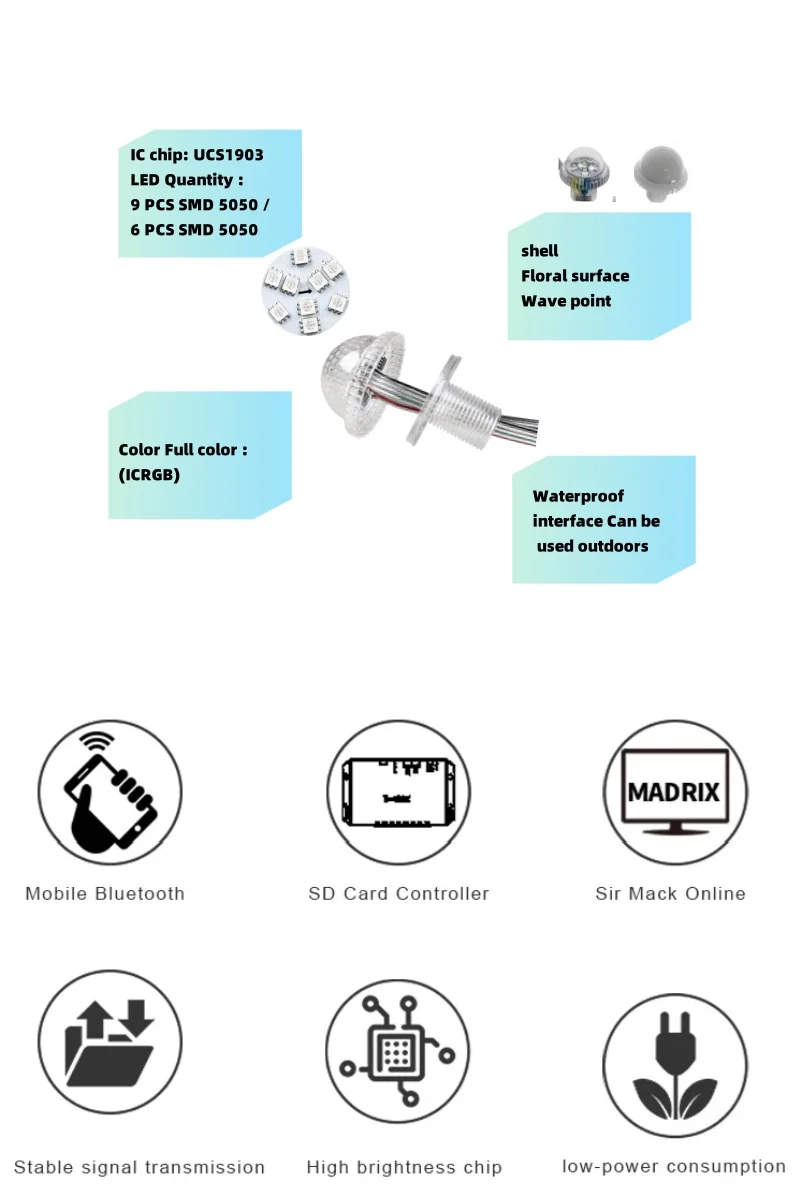

IC chip:
UCS1903
Lighting Source:
RGB SMD 5050 LED CHIP
Operate Voltage :
DC12V/24V
Wattage :
1.44W/2.16W/pcs
eam Angel :
180 degree


Features:
1) 35mm 9leds/6leds pixels for amusement park rides and funfair ground, 19mm/14mm/35mm install hole.

2) Low power and consume, DC24V/12v 1.44W/2.16W. Do not higher than DC24V or will burn the led.

3) Individually control: 6PCS / 9PCS LED pixle UCS1903 IC.

4) Color: magic color, dream color, rgb pixel leds, color chasing, multiple color. smd5050 rgb led inside, can program to any color or patterns.

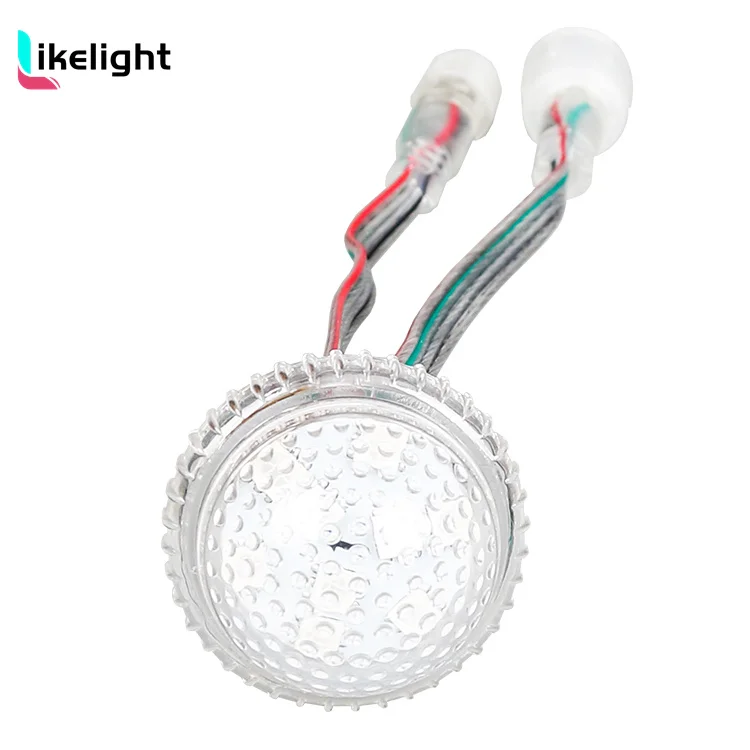

5) Each 35mm 9led/6led pixels amusement bulb UCS1903 IC have 3pin male and female JST connector. Male connector is signal input,
Female connector is signal output. So the bulb can chain to use together as many as possible. Every 20pcs need a power bulb tooffer enough voltage.

6) Cover, now available at Milky cover, fog cover, clear cover, transparent cover.

7) Waterproof, all the pixels are seal with glue, and we offer 3pin normal connector IP66 and waterproof connector IP68. IP68 canused for outdoor completely.

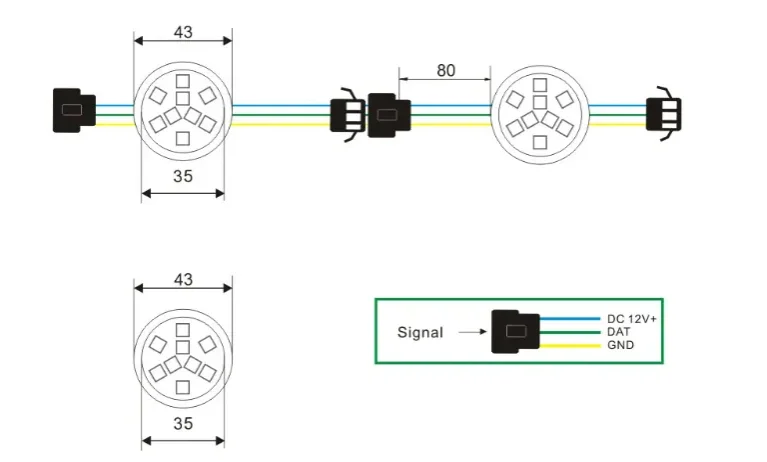

Dimensional drawing & installation

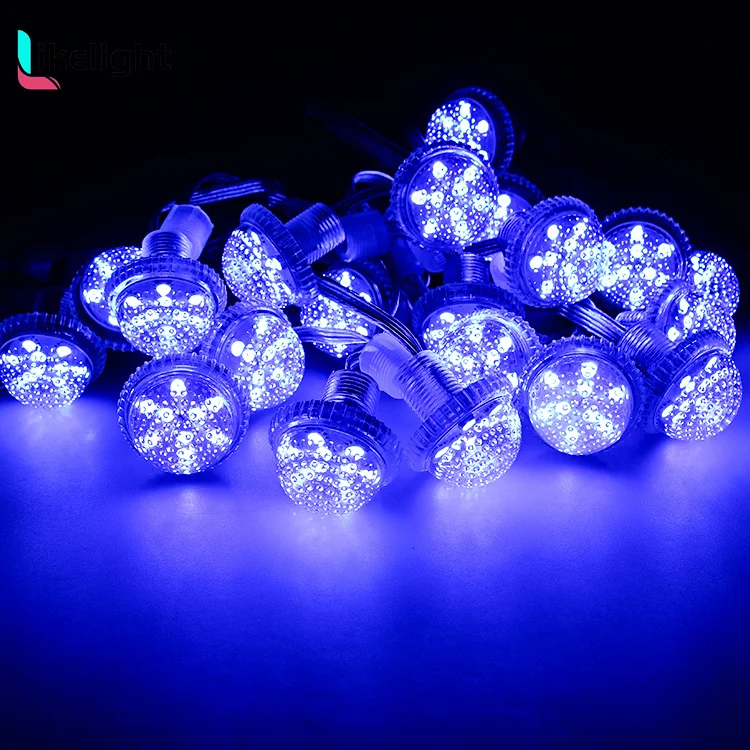

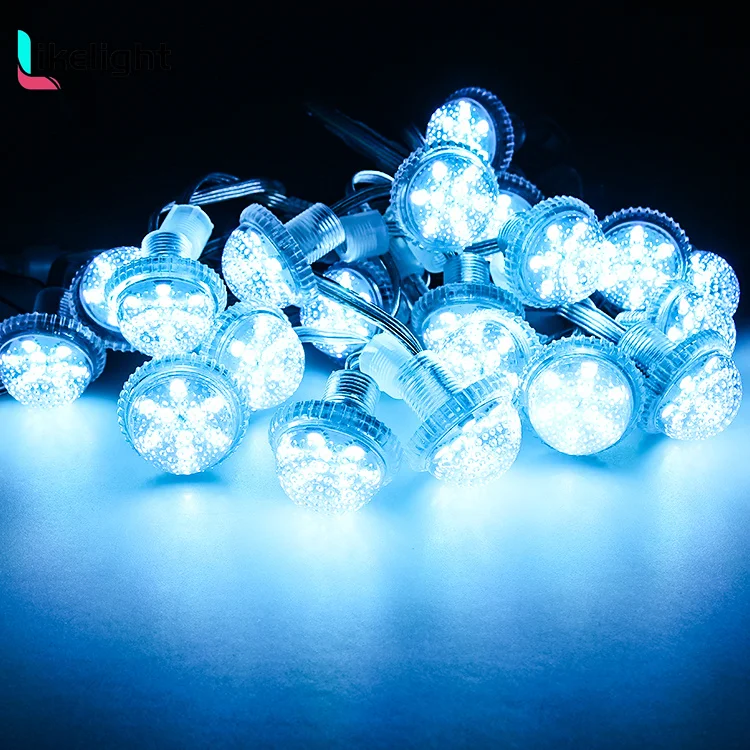

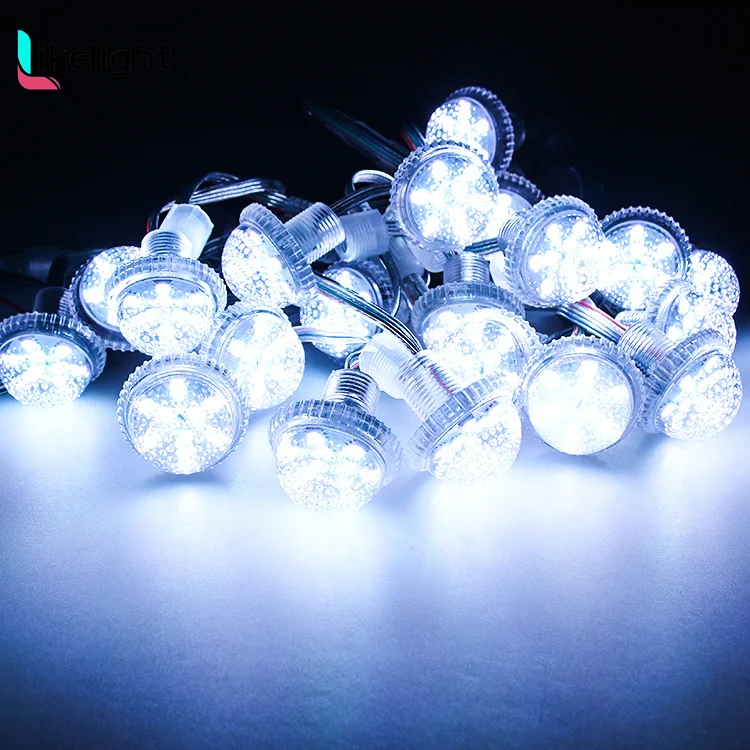

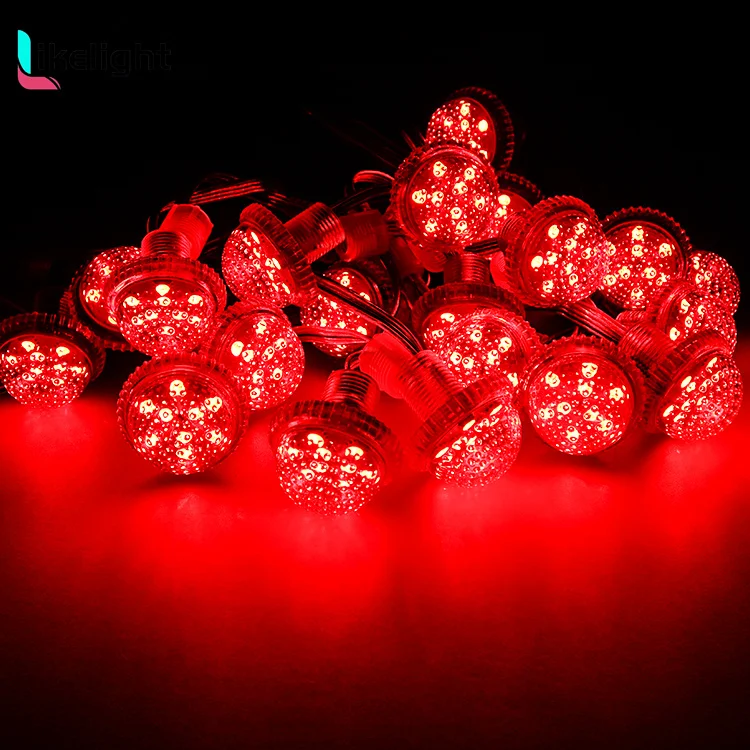

Lighting pattern

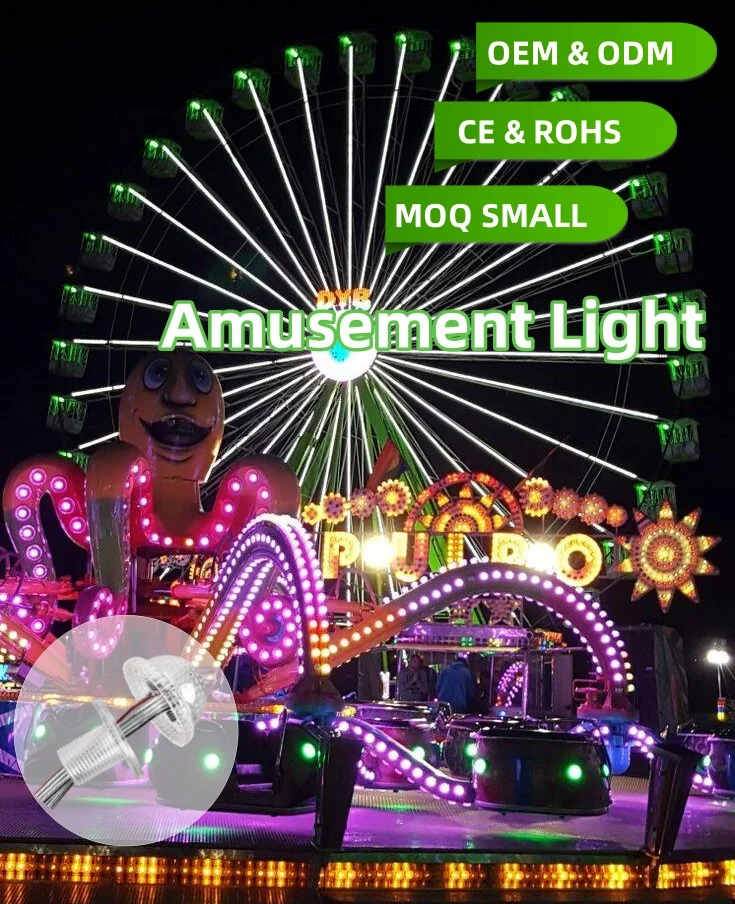

Applications


The 35mm 6led/9led pixel LED designed for
outdoor amusement park lighting,
Ferris wheels,
Outdoor signboard
Casino Sign
Amusement park rides
Playground fair lighting
Game machine, traveling funfair
Funfair playground, waltzer land
