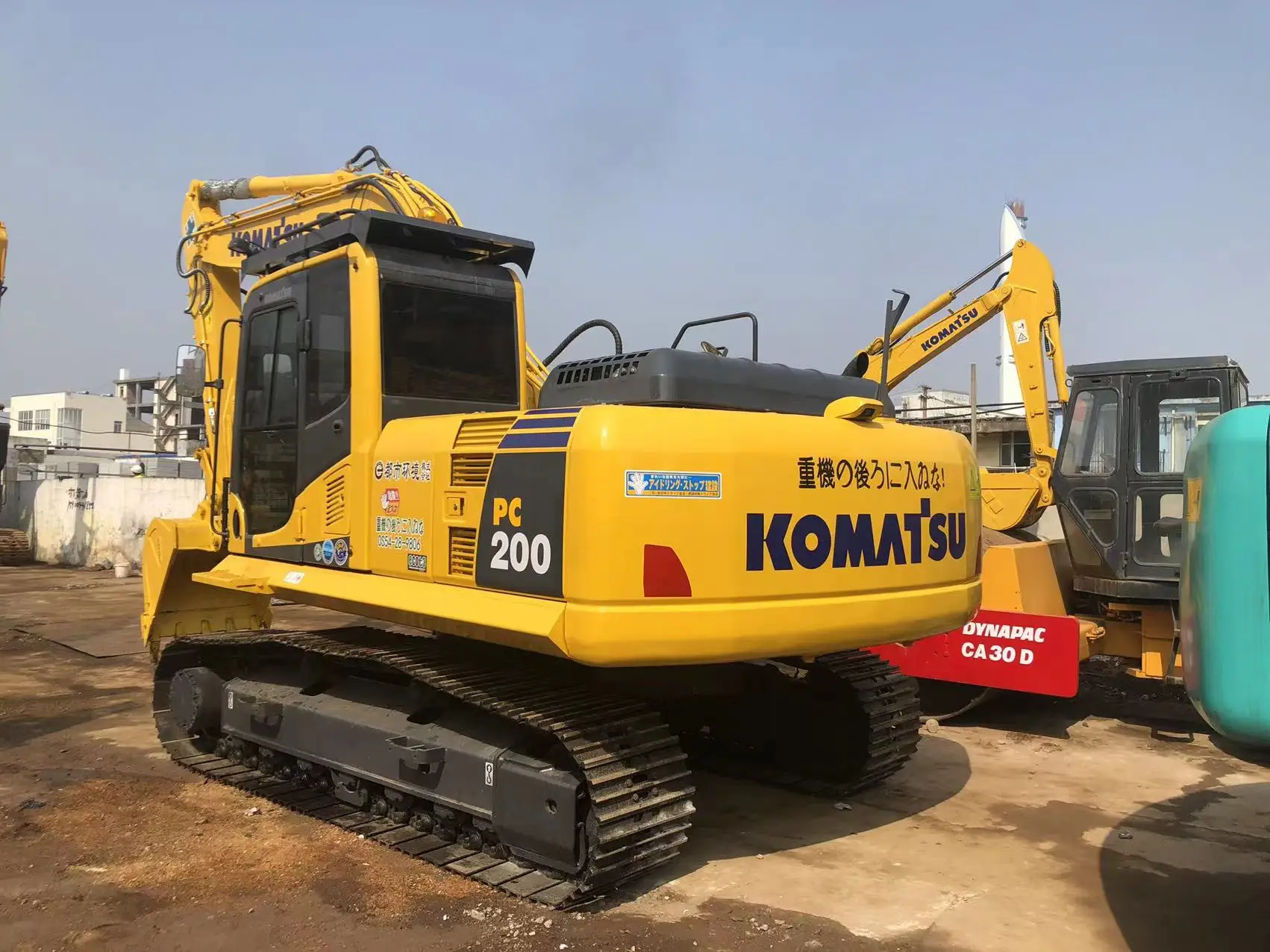

Оригинальный высококачественный Подержанный komatsuPC200 8 для продажи 20 тонн экскаватор гидравлический гусеничный pc200 8

Company’s Name:ShangHai Long shou machinery company Limited

Address: No 1688 South Lian Hua Road, MinHang district.ShangHai, P. R. China

Contact :Olivia.He

Whats app/ Mobile phone:+8618701954897

We chat number:18701954897

Parameter Configuration of Komatsu PC200-8 Excavator

specifications

Power Traditional Power

Manufacturer joint venture/import

Bucket Backhoe

Working weight of the whole machine (kg) 19900

Bucket capacity (m ³) zero point eight

Boom length (mm) 5700

Stick length (mm) 2925

Origin: Jining, Shandong

Tonnage (ton) 20

Bucket Backhoe

Manufacturer joint venture/import

Power Traditional Power

performance

Rotation speed (rpm) 12.4

Walking speed (km/h) 3.0/4.1/5.5

Climbing ability (%) 70/35 °

Ground specific voltage (Kpa) 44.1

Bucket excavation force (kN) 149

Dipper arm excavation force (kN) 108

dynamic system

Engine model Komatsu SAA6D107E-1

Rated power (kW/rpm) 110/2000

Displacement (L) 6.69

Working form: 6-cylinder, direct injection, turbocharged, post cooled engine; Meets the 2006 EPA/Tier3 and EUIIIA level standards.

hydraulic system

Traveling hydraulic motor type axial piston motor × 2 (with parking brake)

Rotary hydraulic motor type axial piston motor × 1 (with rotary holding valve)

Maximum flow rate of main pump (l/min) 439

Hydraulic circuit for walking (Mpa) 37.3

Rotary hydraulic circuit (Mpa) 28.9

Control hydraulic circuit (Mpa) 3.2 Pilot oil circuit

Boom oil cylinder - number x cylinder diameter x stroke (mm) 120 x 1334 x 85

Stick oil cylinder - number x cylinder diameter x stroke (mm) 135 x 1490 x 95

Bucket oil cylinder - number x cylinder diameter x stroke (mm) 115 x 1120 x 80

Is the hydraulic crushing pipeline standard? No

Oil capacity

Fuel tank (L) 400

Hydraulic oil tank (L) 135

Engine oil change quantity (L) 23.1

Cooling liquid (L) 20.4

Main body size

Total length of transportation (mm) 9480

Total transportation width (mm) 2800

Total transportation height (mm) 3040

Full height of cab (mm) 3040

Track grounding length (mm) 3275

Total length of track (mm) 4070

Track shoe width (mm) 600

Total width of track (mm) 2800

Track gauge (mm) 2200

Ground clearance of counterweight (mm) 1085

Minimum ground clearance (mm) 440

Rear end turning radius (mm) 2710

Scope of work

Maximum excavation radius (mm) 9875

Maximum excavation radius of the parking surface (mm) 9700

Maximum excavation depth (mm) 6620

Maximum excavation height (mm) 10000

Maximum unloading height (mm) 7110

Maximum vertical excavation depth (mm) 5980

Maximum effective excavation depth (mm) 6370

Bulldozer lifting or pushing depth (mm) without
