Новый дизайн новый материал из нержавеющей стали верхнее подвешенное окно телескопическая опора рычаг трения
- Категория: >>>
- Поставщик: Foshan Xuanqing Doors And Windows Accessories Co. Ltd.
Сохранить в закладки 1601051317732:
Описание и отзывы
Характеристики
Products Description

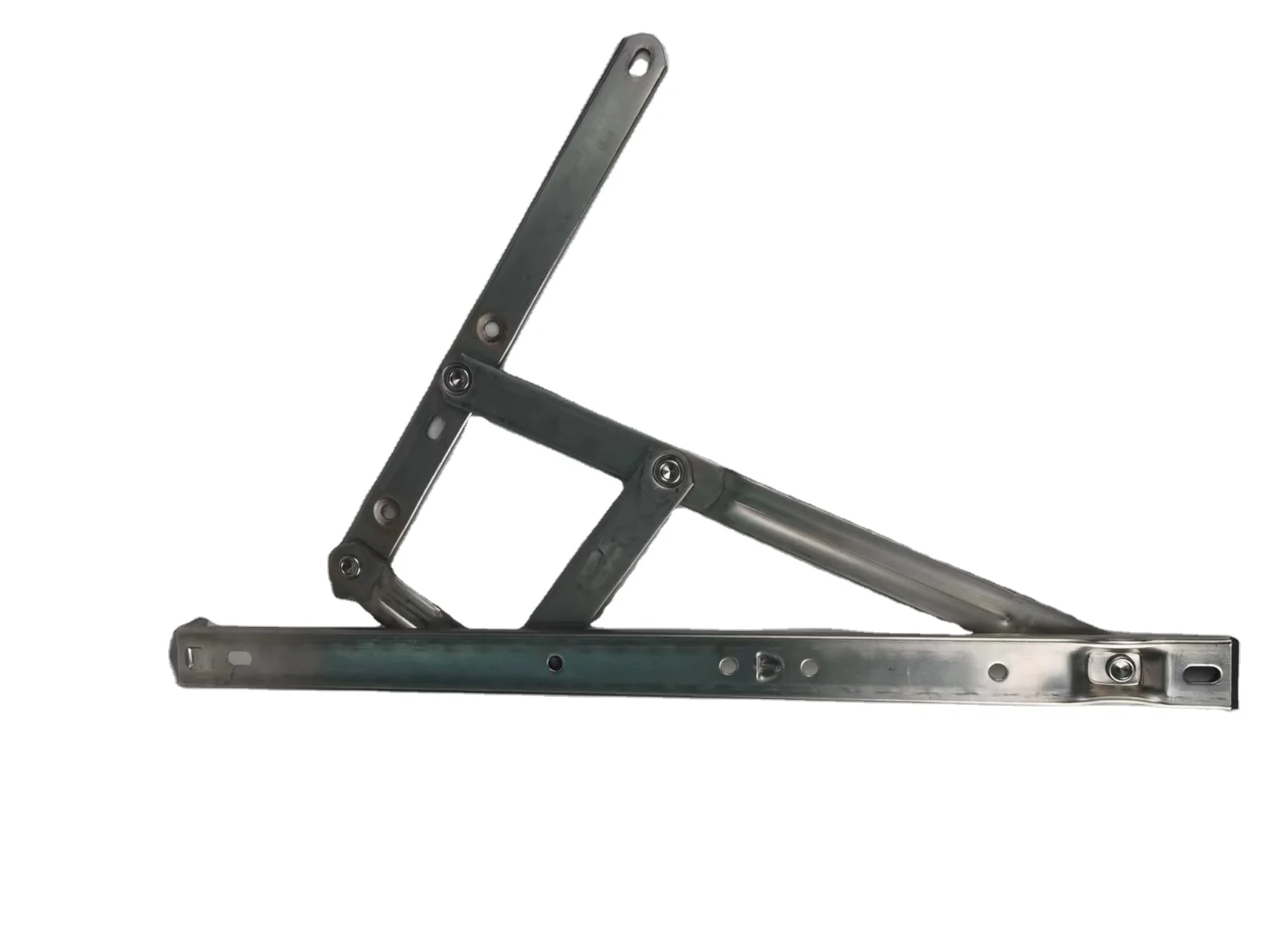

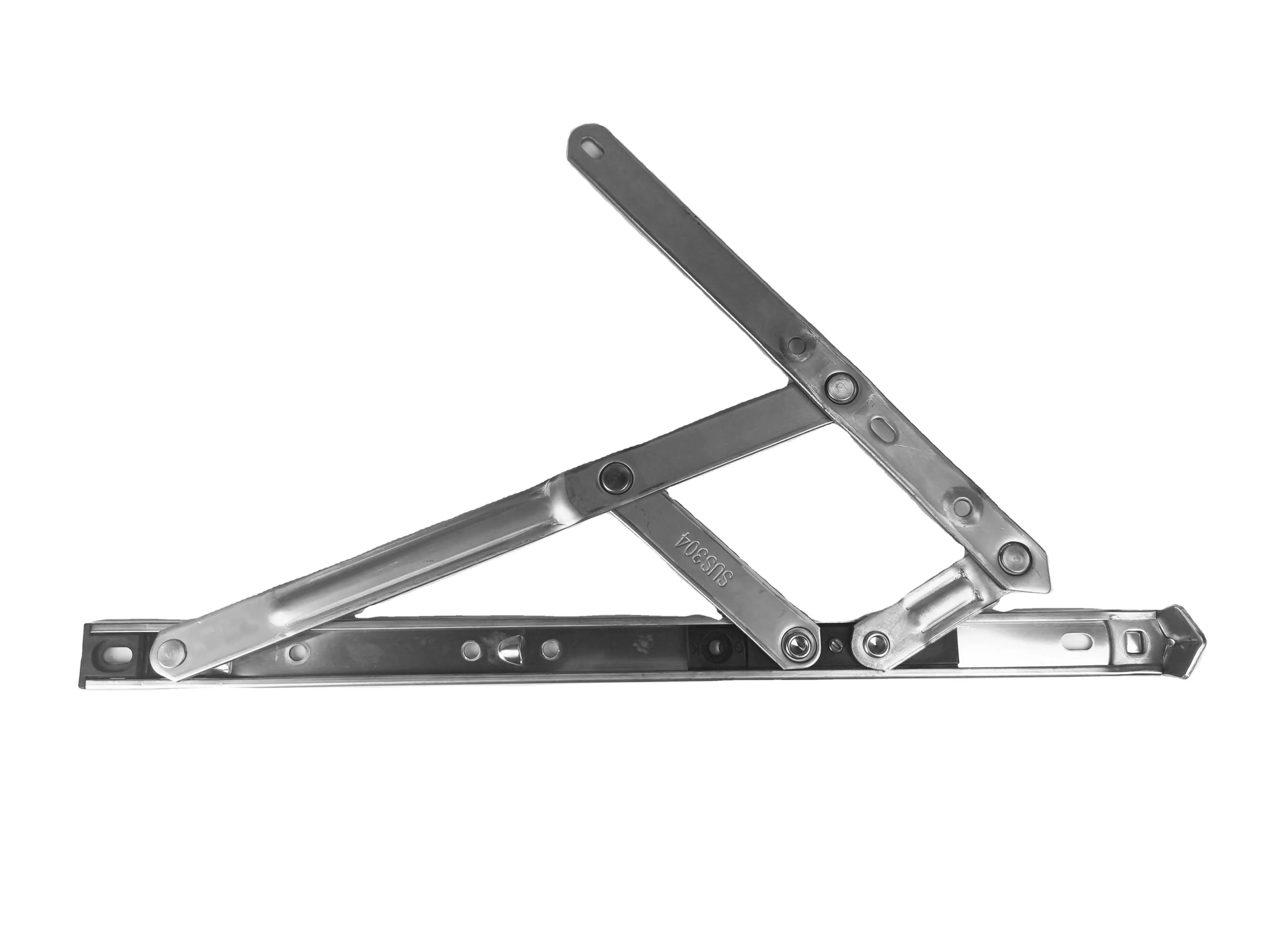

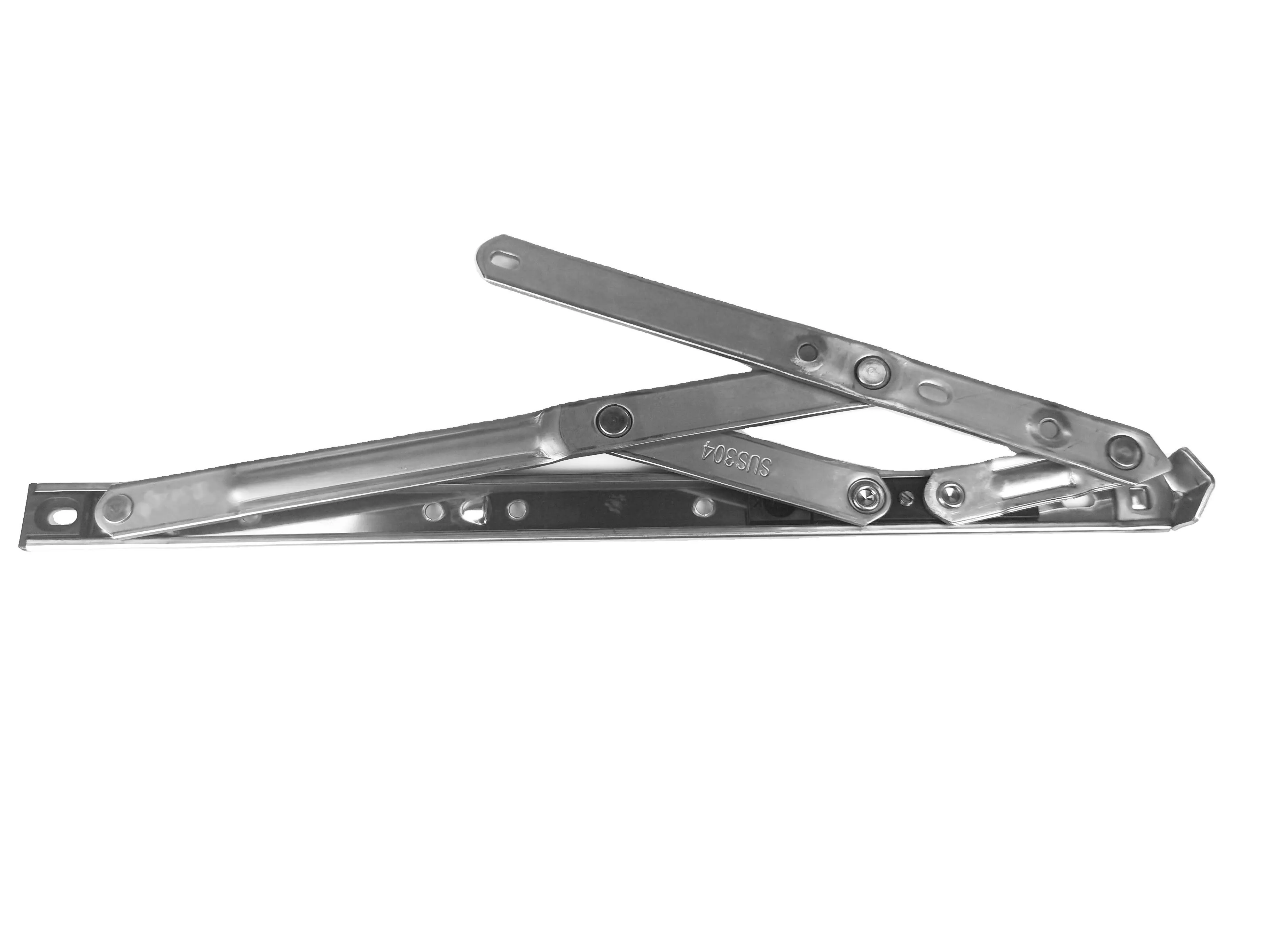

WINDOW STAYS
※ These high-quality stays are manufactured using the finest stainless steel and are compliant with the JG/T 127-2007 standard. They feature the ability to adjust the opening angles in sections, providing precise control and easy operation. After undergoing rigorous testing with over 50,000 cycles of heavy opening and closing, they maintain excellent functionality.
※ Support mold customization
Installation Instructions
Product Paramenters
13.5 Square slot raised four-link stainless steel upper suspension brace hinge series Installation dimension (unit :mm) | ||||||||||||||||||
specification | A | B | E | F | G | H | I | J | K L M N | |||||||||
10'' | 258 | 251 | 145 | 44 | 30 | 200 | 190 | 112 58 38 | ||||||||||
12'' | 301 | 293 | 210 | 181 | 44 | 30 | 175 | 135 | 58 38 | |||||||||
14'' | 348 | 339 | 222 | 193 | 44 | 30 | 202 | 160 | 58 38 | |||||||||
16'' | 402 | 394 | 227 | 198 | 44 | 30 | 236 | 195 | 60 42 | |||||||||
18'' | 454 | 445 | 222 | 193 | 44 | 30 | 256 | 216 | 58 38 | |||||||||
20'' | 499 | 490 | 260 | 231 | 44 | 30 | 298 | 246 | 58 38 | |||||||||
22'' | 551 | 542 | 268 | 239 | 44 | 30 | 329 | 287 | 216 93 58 38 | |||||||||
24'' | 598 | 589 | 274 | 245 | 44 | 30 | 373 | 331 | 249 135 60 42 | |||||||||
Window Stays | Aluminium window specification | ||||||
specification | Maximum window height (mm) | Maximum window width (mm) | Material weight (kg) | Opening Angle | |||
10'' | 900 | 400 | 20 | ±87° | |||
12'' | 900 | 500 | 25 | ±87° | |||
14'' | 1000 | 600 | 28 | ±87° | |||
16'' | 1200 | 700 | 30 | ±87° | |||
18'' | 1200 | 800 | 35 | ±87° | |||
20'' | 1200 | 900 | 38 | ±87° | |||
22'' | 1200 | 1000 | 42 | ±87° | |||
24'' | 1200 | 1200 | 45 | ±87° | |||
Company Profile
Foshan Xuanqing Door and Window Accessories Co., Ltd. is a manufacturer of door and window accessories aluminum corner code customization, research, development, manufacturing, sales as one of the innovative enterprises in science and technology, our products are: 1, one expansion injection corner code, 2, center column injection corner code, 3, pin injection corner code, 4, bump corner injection corner code, 5, very narrow corner code, 6, non-injection corner code, 7, movable corner code, universal corner code, 8, Anti-fall device, 9, elevator, 10, hinge, 11, curtain wall pendant and more than ten types of products.
With the development and innovation of the market, in order to meet the market system window and door profile structure, we provide support for mold customization, one-stop solutions, Xuanqing angle code for ten years as one day, has been in the door and window accessories industry deep plowing, professional, focused, dedicated.
The company has always taken "integrity management, win-win cooperation" as the development concept, the pursuit of quality, innovation, focus on investment, the company has more than twenty patented products, a number of products through the national standard aluminum and quality supervision and inspection. In addition to meet the domestic market demand, we also export to some European, American and other countries, are recognized.
Xuanqing doors and windows accessories ten years focus on engineering - system doors and windows aluminum angle code support mold customization to provide you with one-stop solution services
With the development and innovation of the market, in order to meet the market system window and door profile structure, we provide support for mold customization, one-stop solutions, Xuanqing angle code for ten years as one day, has been in the door and window accessories industry deep plowing, professional, focused, dedicated.
The company has always taken "integrity management, win-win cooperation" as the development concept, the pursuit of quality, innovation, focus on investment, the company has more than twenty patented products, a number of products through the national standard aluminum and quality supervision and inspection. In addition to meet the domestic market demand, we also export to some European, American and other countries, are recognized.
Xuanqing doors and windows accessories ten years focus on engineering - system doors and windows aluminum angle code support mold customization to provide you with one-stop solution services
Packing & Delivery
No special requirements for packaging, 500 pieces in a box.
If there are other requirements, packaging can be done according to customer requirements.
Delivery Method
※For small order volumes, we can send to you by courier, TNT, DHL, UPS or EMS etc.
※For large order volumes, we will recommend you to use air or sea freight, through your appointed freight forwarder or our long term partner agent.
※In case of large volume, theshipping cost will be paid by yourself.
FAQ
1. Is your company a factory or a trading company?
We are a factory. Our company was established in 2014.
2. How can I get samples to check your quality?
After the price is confirmed, you can ask for a sample to check our quality. If you just need a blank sample to check the design and paper quality, we will provide the sample to you for free, as long as you can afford the delivery fee.
3. How long does the whole process take?
For non-molded custom products, the production and processing time is about 3-10 days after you place your order. We need 1 day to prepare everything, and then 2-10 days to produce.
For open-molded custom products, the production processing time is about 15 days after you place your order.
4. When will I get a price?
We usually quote within 24 hours after we receive your inquiry. If you really want a price, please let us know, tell us in your email, or add us to your WeChat inquiry so that we can prioritize your inquiry.
5. What is the minimum order quantity?
MOQ = 500 pieces, better price and more quantity.
6. How does your factory do quality control?
Quality is a priority, our staff takes quality control very seriously from the beginning and each product is checked before it is packed.
We are a factory. Our company was established in 2014.
2. How can I get samples to check your quality?
After the price is confirmed, you can ask for a sample to check our quality. If you just need a blank sample to check the design and paper quality, we will provide the sample to you for free, as long as you can afford the delivery fee.
3. How long does the whole process take?
For non-molded custom products, the production and processing time is about 3-10 days after you place your order. We need 1 day to prepare everything, and then 2-10 days to produce.
For open-molded custom products, the production processing time is about 15 days after you place your order.
4. When will I get a price?
We usually quote within 24 hours after we receive your inquiry. If you really want a price, please let us know, tell us in your email, or add us to your WeChat inquiry so that we can prioritize your inquiry.
5. What is the minimum order quantity?
MOQ = 500 pieces, better price and more quantity.
6. How does your factory do quality control?
Quality is a priority, our staff takes quality control very seriously from the beginning and each product is checked before it is packed.
Title goes here.
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Похожие товары

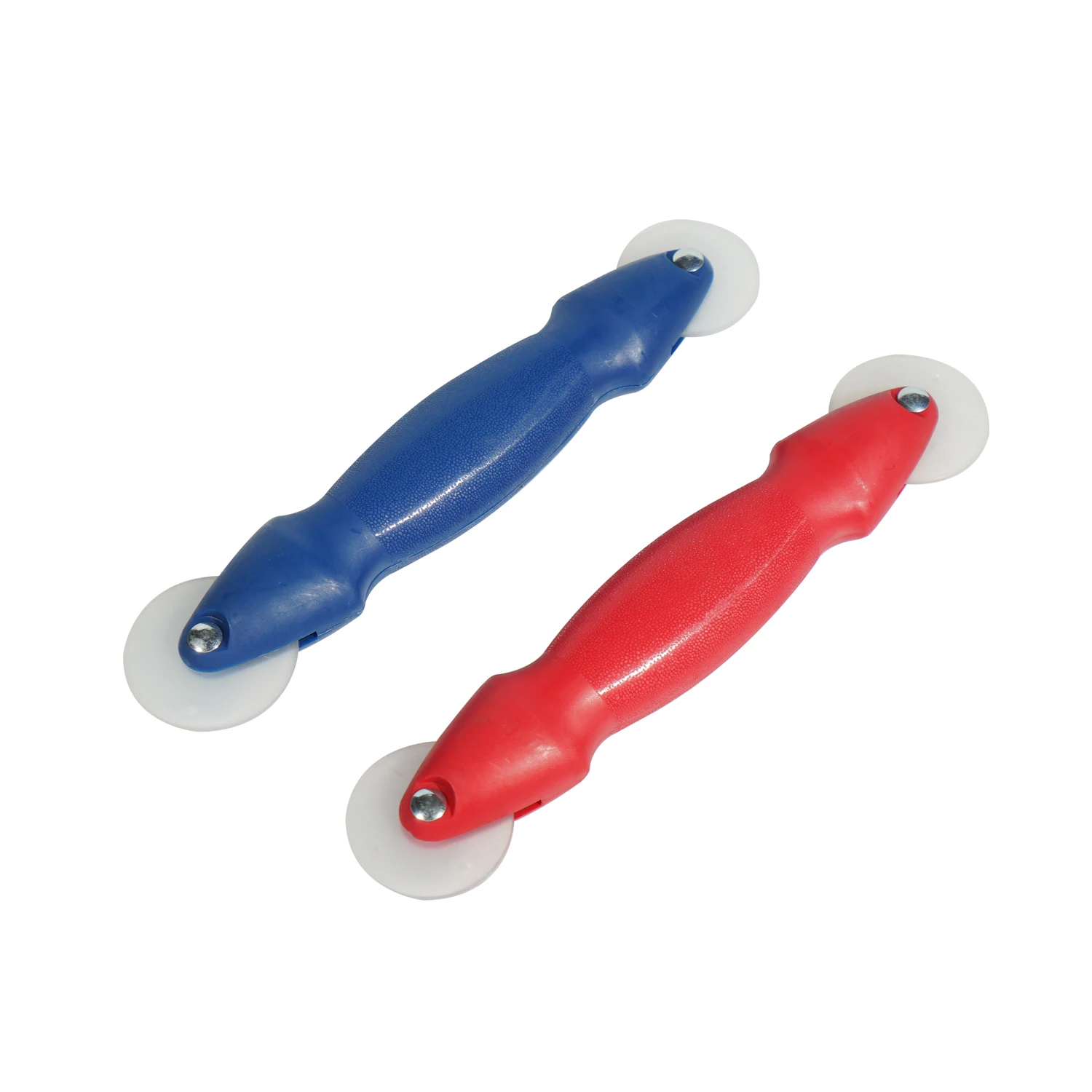

Профессиональный двухсторонний прижимной ролик для пряжи инструмент для насекомых
0,39 $

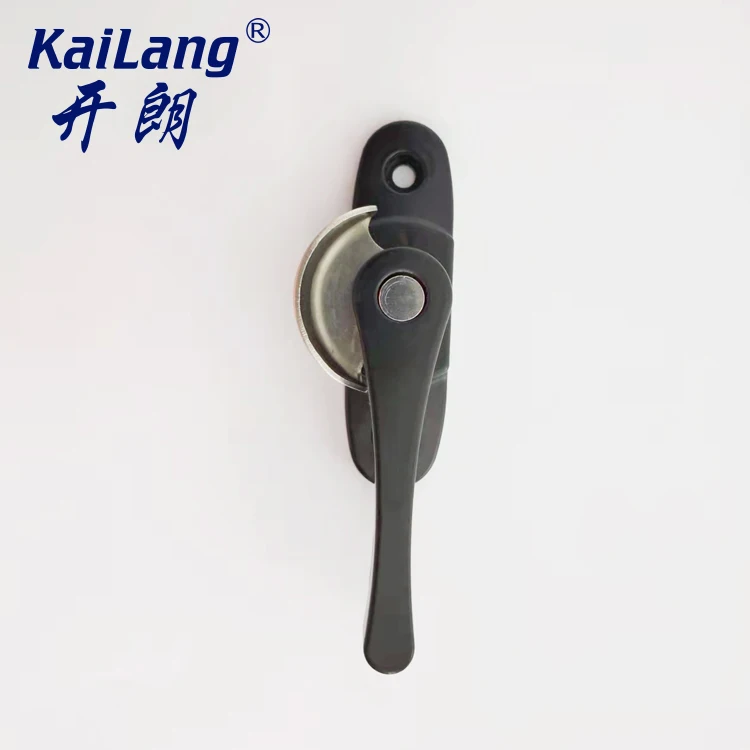

Лидер продаж, безопасный замок из полумесяца на заказ для алюминиевых раздвижных окон

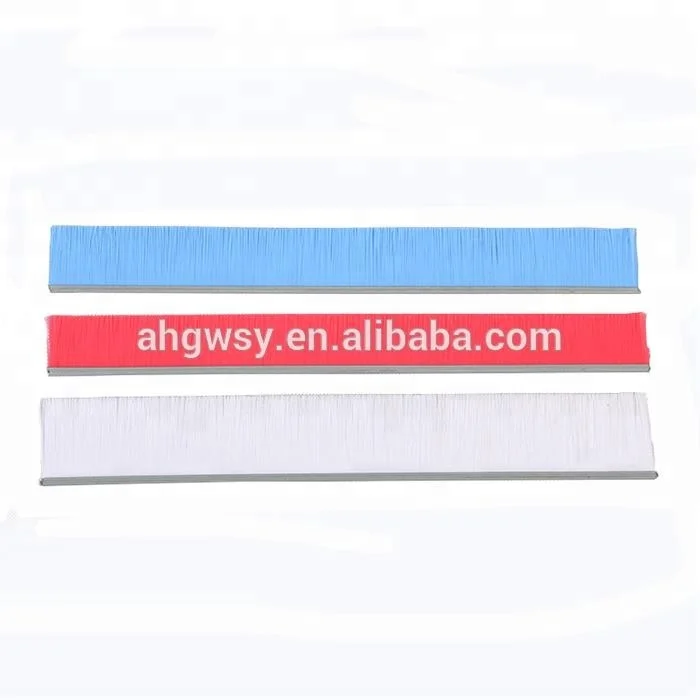

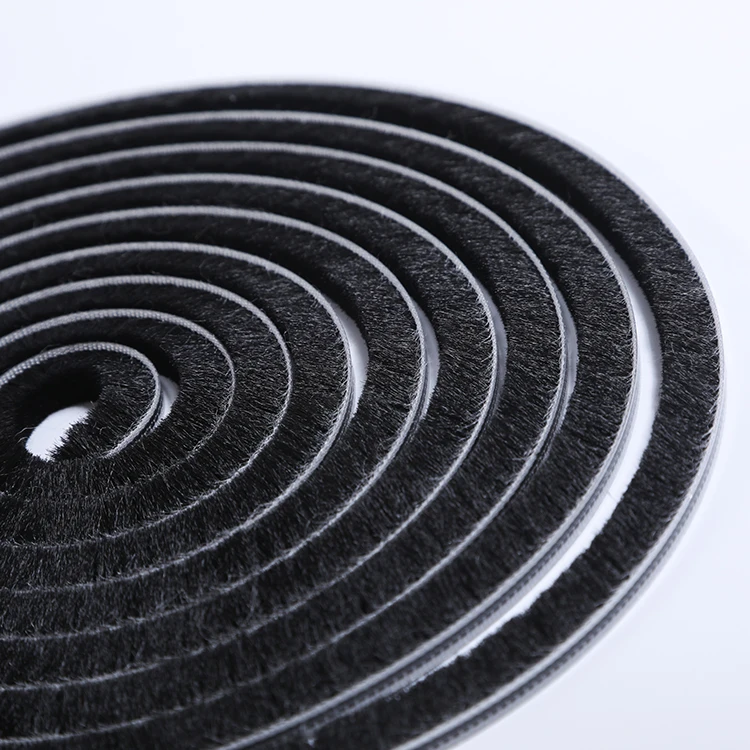

Метеорологическая полоса заводская цена шерстяная щетка

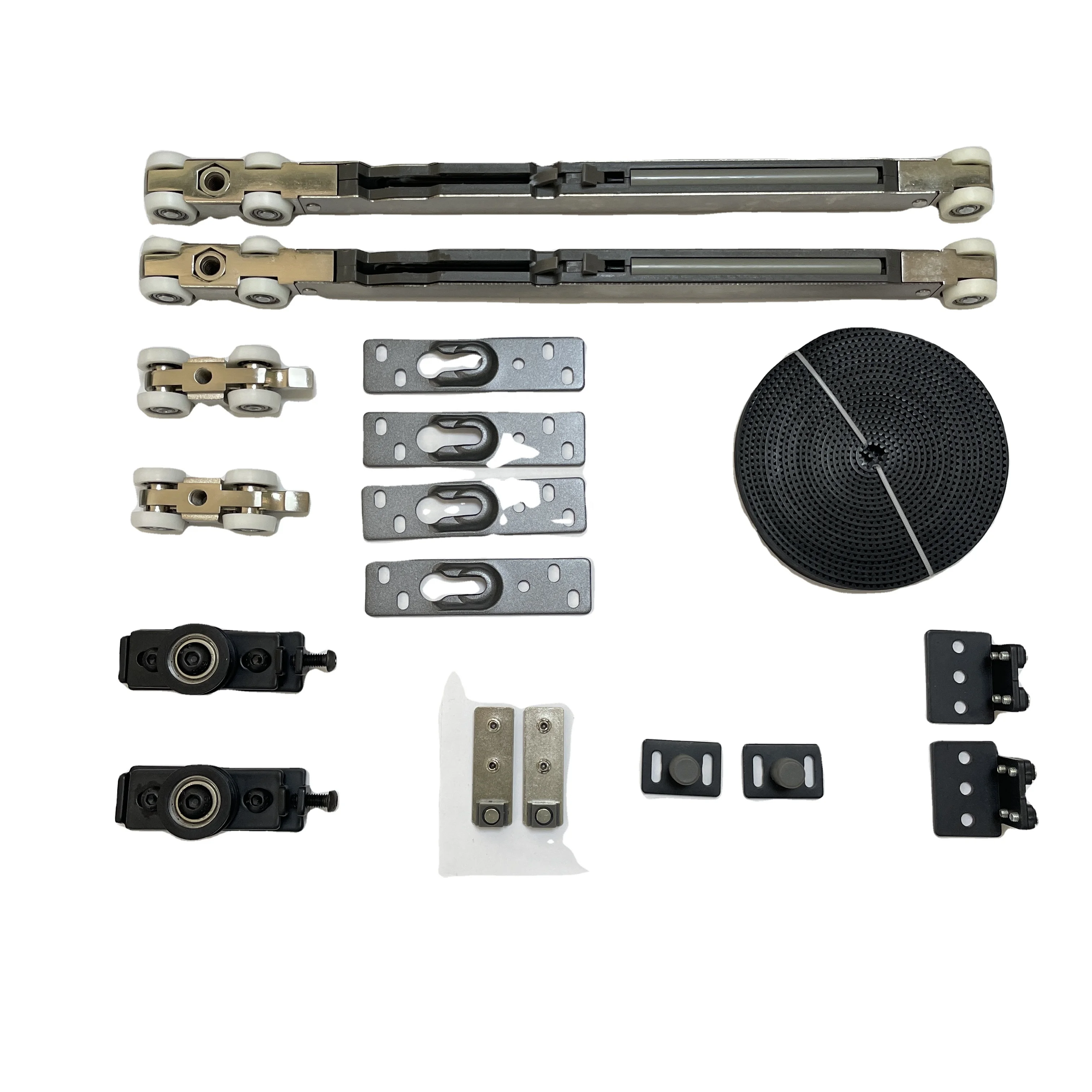

Hafele система раздвижных дверей, стеклянные фитинги, бесшумная система раздвижных стеклянных дверей, мягкое закрытие раздвижных дверей
5,00 $ - 9,00 $
Щетка из алюминиевой и нейлоновой

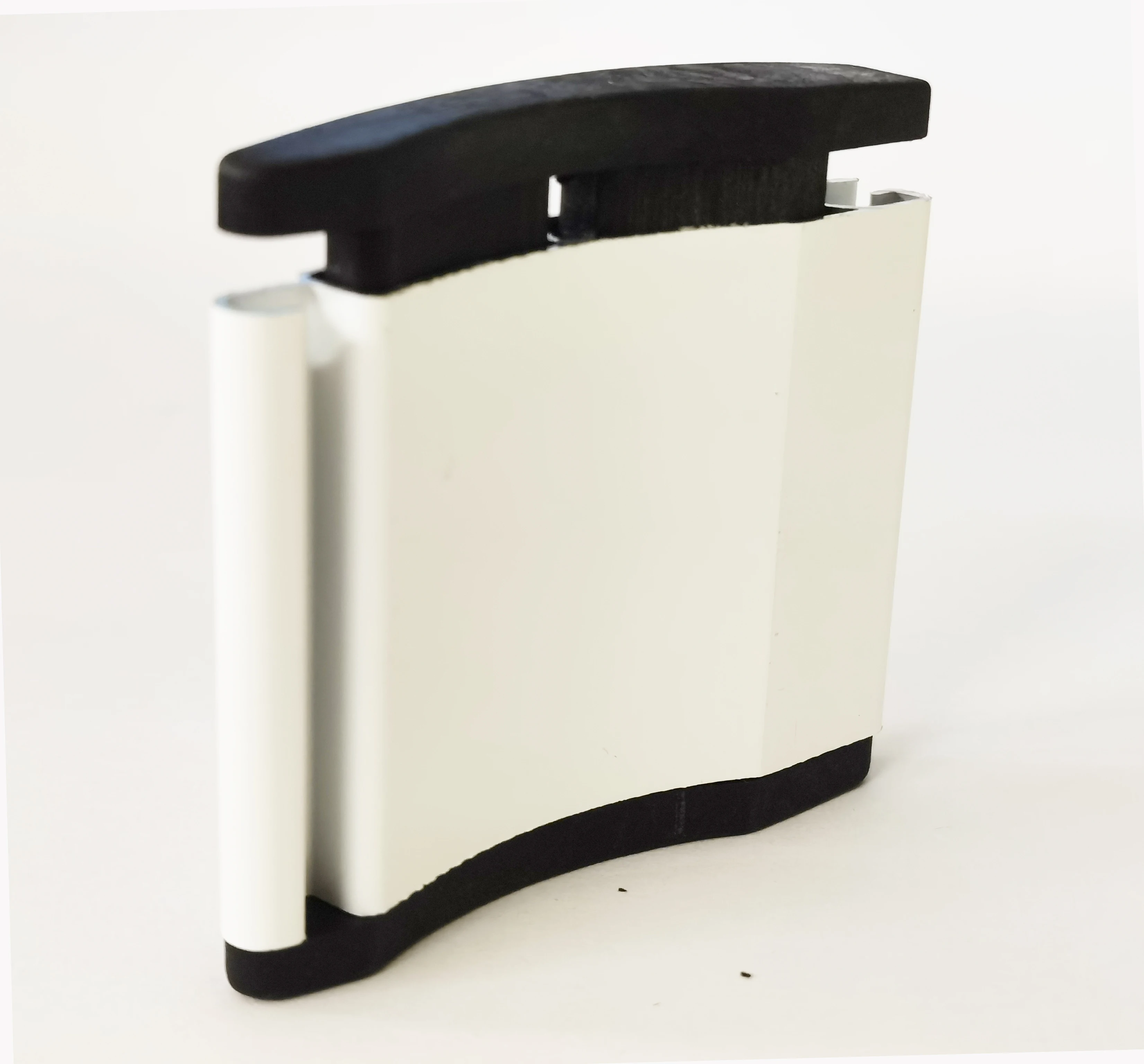

Алюминиевые роликовые жалюзи по заводской цене детали наконечник пластиковая пробка аксессуары для роликовых оконных
47,00 $ - 50,00 $

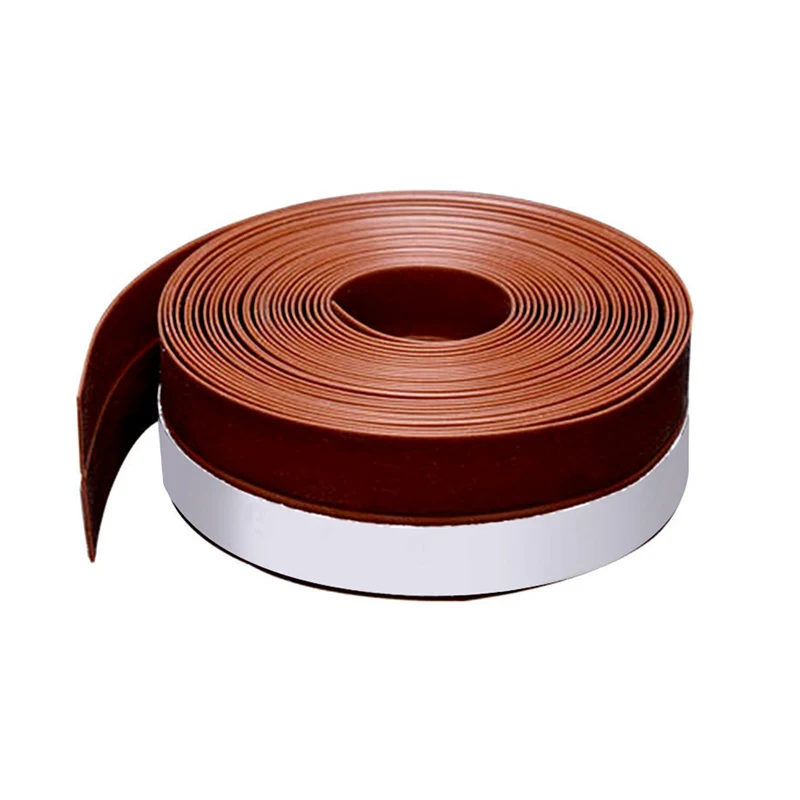

Лидер продаж самоклеящаяся многофункциональная уплотнительная лента для гаража по низкой
