TU-LSD10KB Full HD 1080p ENT эндоскопическая видеокамера для лапароскопии урологическая гистероскопия
169 559,77 ₽ - 206 753,53 ₽
Эндоскопическая камера Full HD эндоскопическая с видеозаписью
- Категория: >>>
- Поставщик: Shenzhen Tuyou Medical Imaging Co. Ltd.
Сохранить в закладки 1601052564965:
Описание и отзывы
Характеристики
Product Parameters
Product Item No. | TV-LSD10KB (1080P Carema) |
System Parameters | ||
Input Interface | SDI 1080P 60FPS | |
Output Interface | HDMI/DVI/VGA/LVDS/SDI/CVBS | |
Keypad Control | Control the mainboard menu and shortcut keys through RX/TX | |
Power | AC110V~240V | |
U Disk | Two USB2.0(up to 32GB) to record and take photos | |
Shortcut Key Function | Freeze/White Balance/Video/Photo/Digital Zoom | |
Noise | <45db | |
Working Environment | -10℃~60℃ | |
Product Size | L336*W330*H116mm | |
Net Weight | 4.3KG | |
Camera Parameters | ||
Image Sensor | 1/1.8” SONY CMOS | |
Effective Pixels | 1845(H) × 1097(V)Approx. 2.13M pixels | |
Resolution | SDI 1080P 60fps | |
FREEZE | Support | |
AWB | Support | |
Min-illumination | Color:DSS:0.017LUX BW DSS: 0.008 LUX | |
S/N Ratio (Signal to Noise Ratio) | More than 42Db(AGC off) | |
D-ZOOM | Image zoom 1-8X | |
Color | RED/GREEN/YELLOW/BLUE | |
Brightness | 1-30 steps | |
Sharpness | 1-40 steps | |
Lens Mode | ENT/Abdominal/Bladder/Uterine/Joint/Foramen/Fiber/Custom | |
Language | Chinese, English, Japanese, Korean and other languages | |
Working Environment | -30℃~70℃ | |
Power(Max.) Supply | DC12V ±10% <1.7W | |
Working Current | 140mA±10mA | |
Light Source Parameters | ||
Light Type | LED | |
Effective Optical Power | 100W | |
Illuminance | 400W LUX | |
Color Temperature | 5800-6500K | |
Brightness Adjustment | Support | |
Light Emitting Area (mm²) | 3.8 | |
Products Description

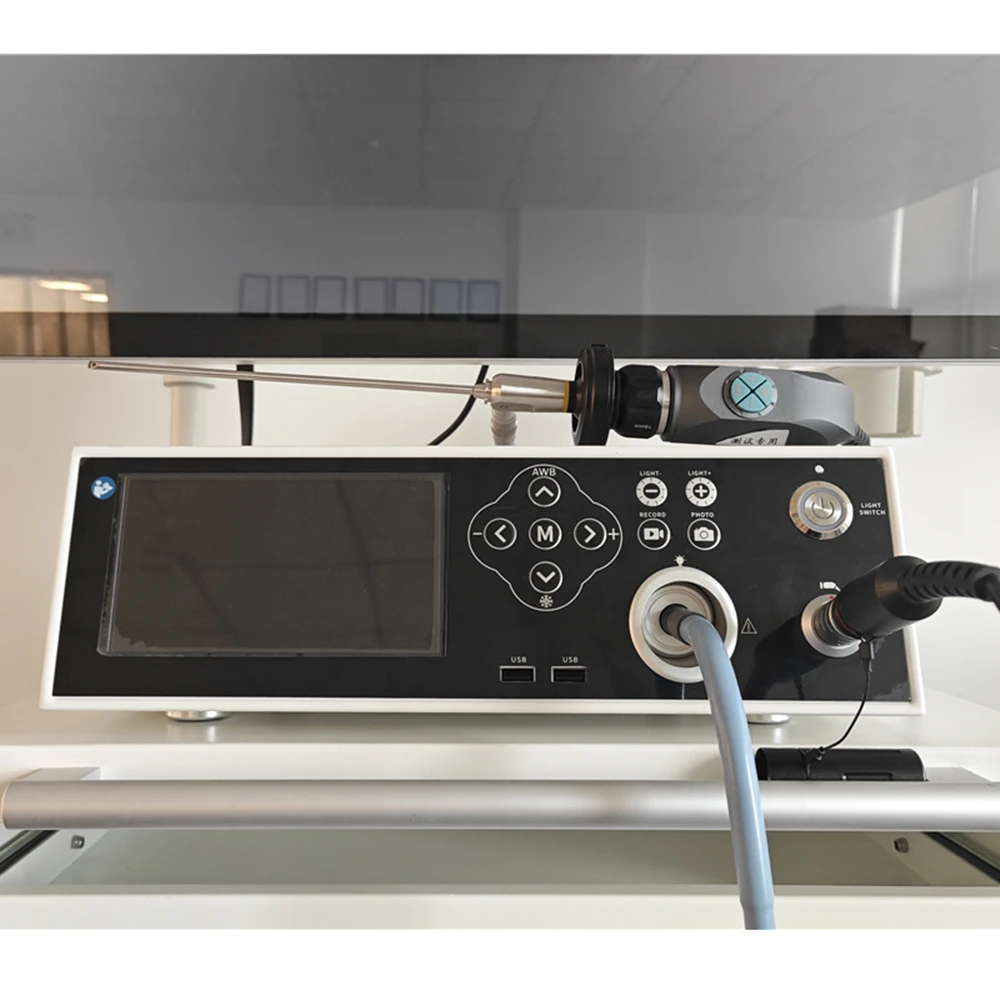

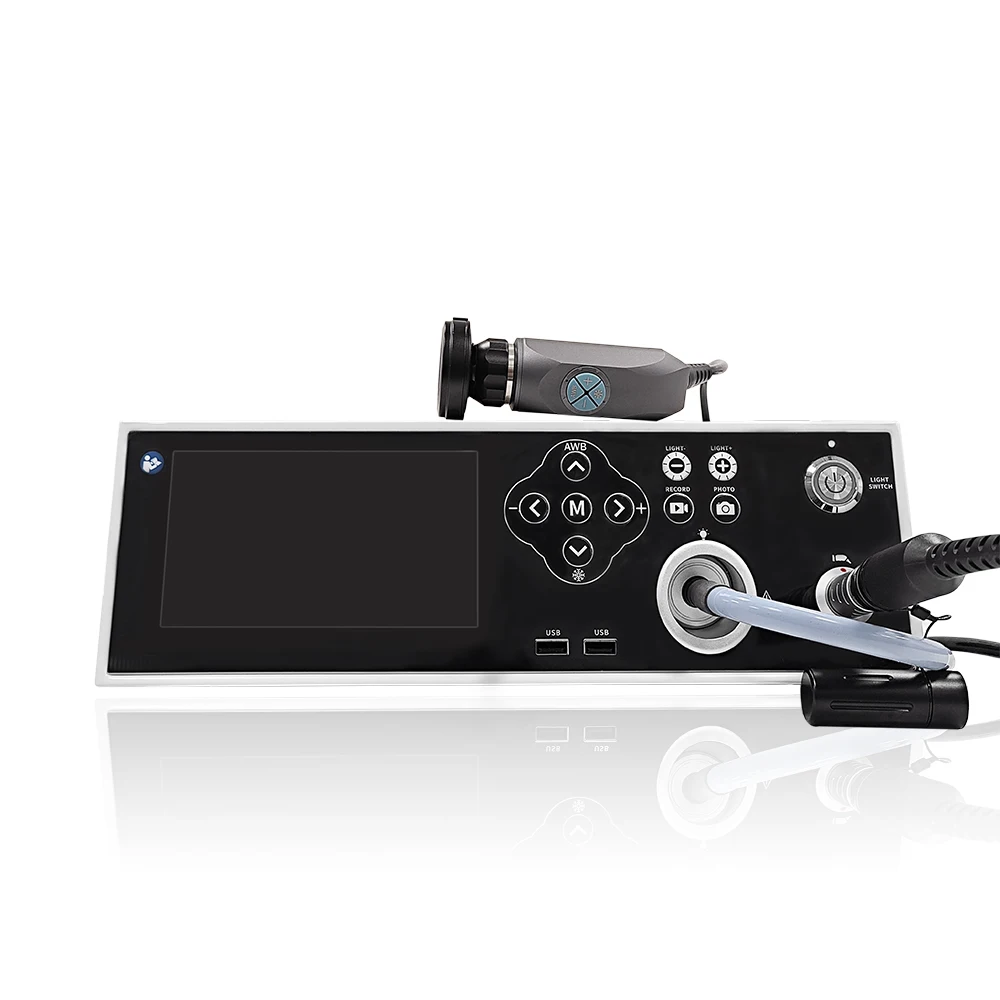

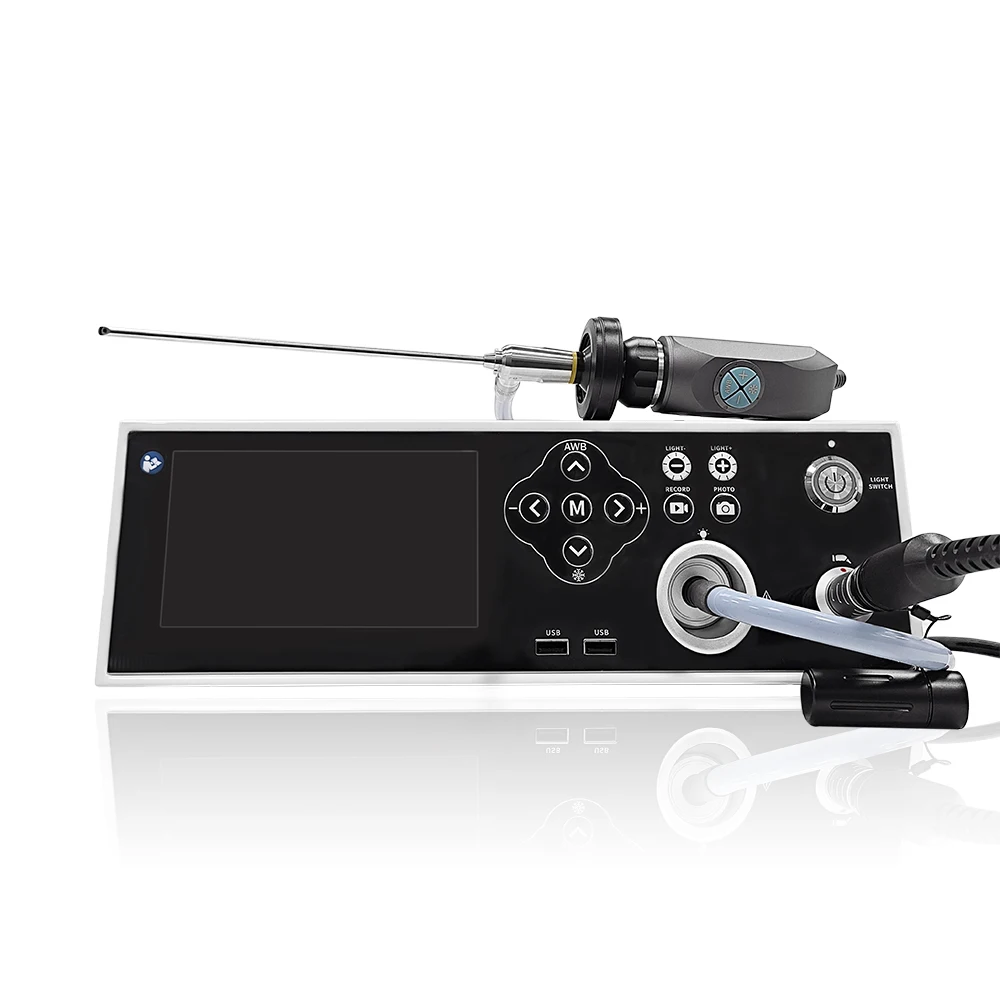

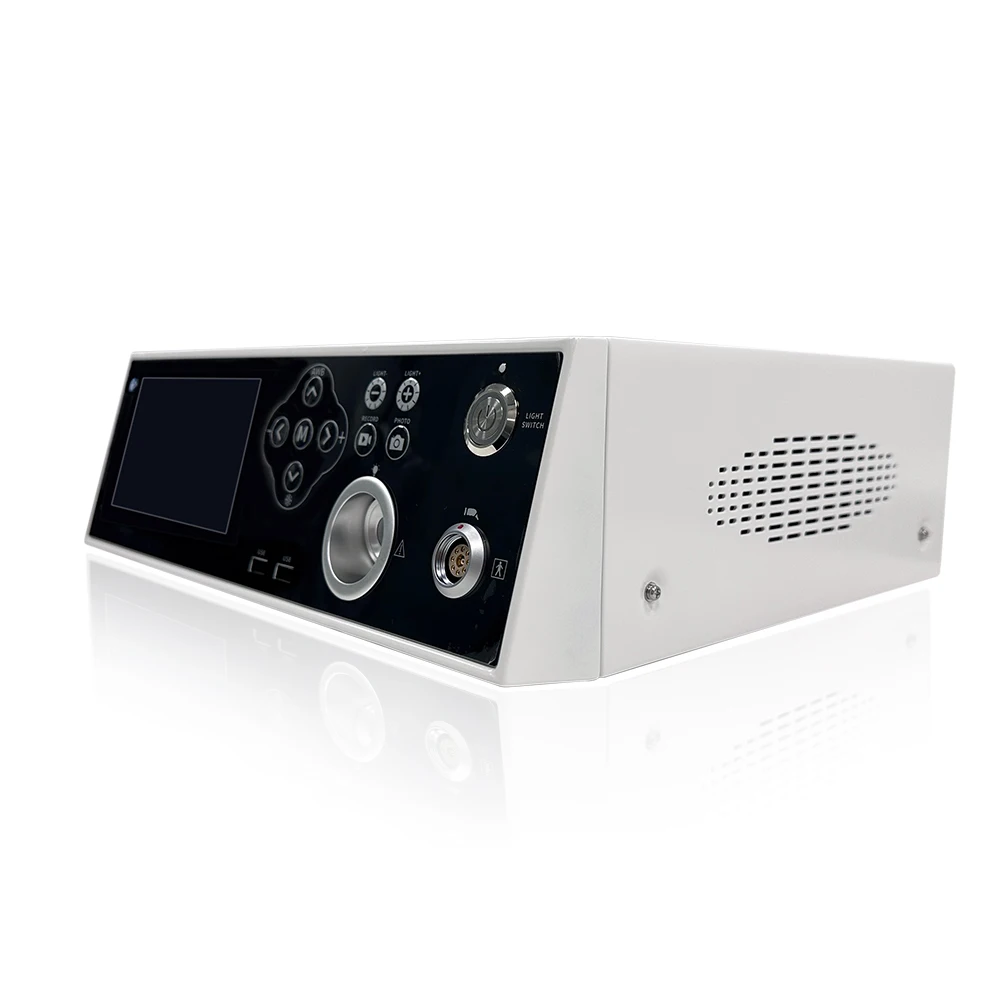

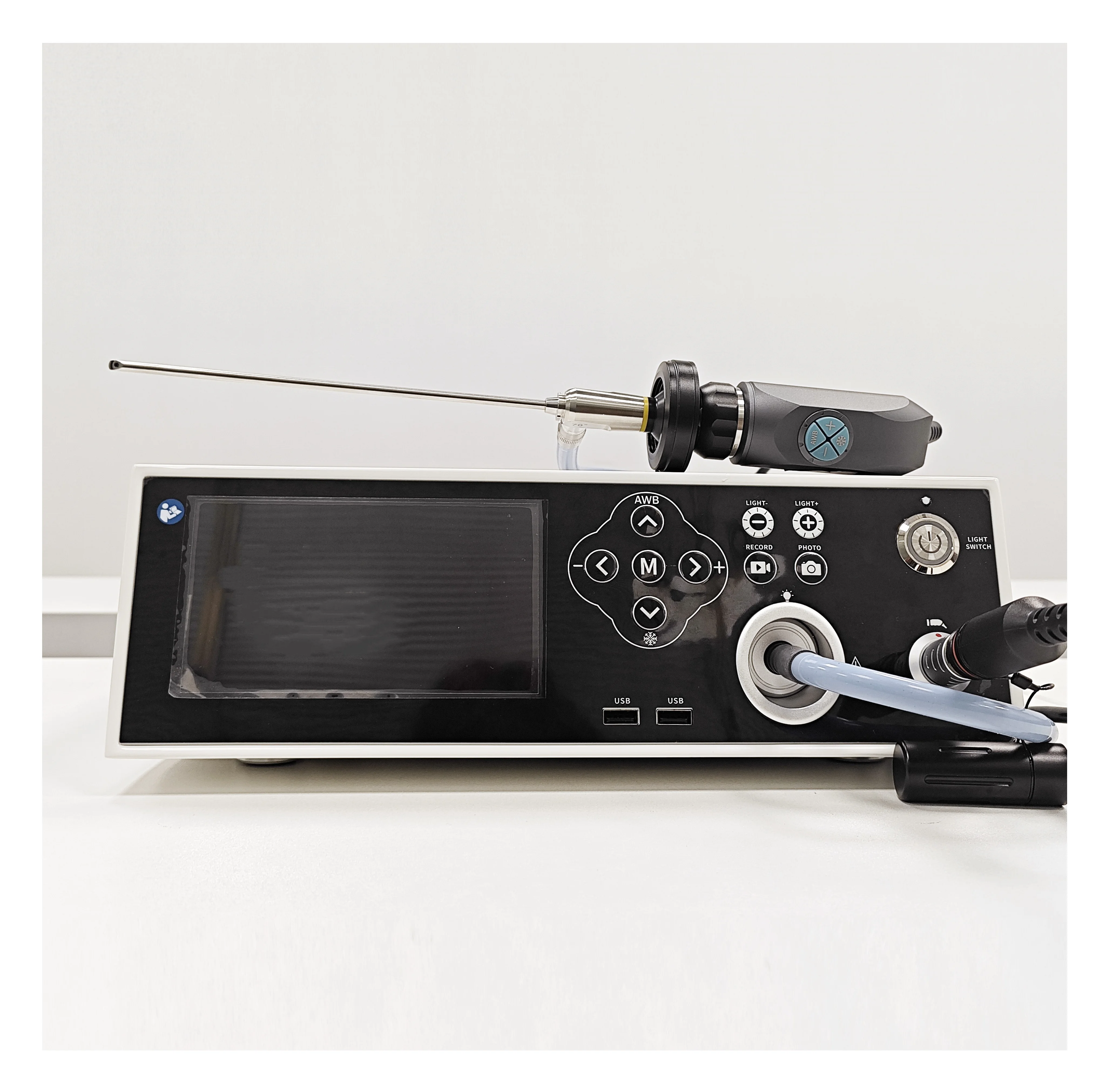

Full HD Endoscopy Unit Endoscope Camera System with Optic Light Source for ENT Urology Laparoscopic Surgery
Product Composition Introduction and features:
The endoscope light source imaging system consists of a camera control system, a handle camera, a light guide and an optical adapter (optical interface).
The endoscope light source imaging system consists of a camera control system, a handle camera, a light guide and an optical adapter (optical interface).
2. When AWB uses information from the scene and calibrates how white object should appear under different light sources and condition, doctors can achieve actual color rendition and accurate results;
3. Different color's settings, multilingual, freeze and zoom in/out etc., these multi-functions can always meet doctor's need.
4. Brightness memory function, the brightness of the light source is not initialized with the shutdown, and automatically
memorizes the brightness before shutdown after the startup
5. Built-in 60 Watts Cold Light Source works great with the high sensitivity of the camera sensor.
Camera head: Three types for your choice.
Customer Feedback
Company Profile
222
Shenzhen Tuyou Medical Imaging Co., Ltd. A high-tech manufacturing enterprise integrating R&D, production, sales and service of medical endoscope camera system products. The company has more than 20 years of experience in the independent production and R&D of video products, and has completed SD, HD, 2K, 4K, fluorescence and other endoscope image and video systems, as well as disposable flexible endoscope series products.
We are committed to provide global customers with advanced, high quality and cost-effective endoscopic medical holistic solutions. Adhering to the life first, pioneering and innovative, honest and trustworthy business philosophy, with better service, updated products, to protect life and health contribution with you!
Advanced medical grade environmental protection plant, more than 2000 square meters of office environment, has won a number of national product R&D patents, has passed the international quality system CE/FCC/ROSH and a series of product certifications, providing OEM/ODM services for a number of national well-known enterprises.
We are committed to provide global customers with advanced, high quality and cost-effective endoscopic medical holistic solutions. Adhering to the life first, pioneering and innovative, honest and trustworthy business philosophy, with better service, updated products, to protect life and health contribution with you!
Certifications
Packing & Delivery
FAQ
Q: Are you a factory or a trading company?
A: We are a Chinese medical imaging instruments manufacture. All the products are made of our workers.
Q: Where are you ?
A: Our adress is buliding 3,Yunchuang Valley Southern Pacific, Fenghuang District, Shenzhen City, Guangdong Province, China.You are welcomed to visit our factory.
Q: Can you accept OEM?
A: Yes, we offer "TUYOU" brand to you. But if you need, we can also offer OEM service.
Q: What's your deliver time?
A: It will be delivered within 7 working days upon your payment; Samples are ready-made.
Q: What is the warranty?
A: The free warranty is two years. If there is any fault for our products within the free warranty period, we will repair it and
change the fault assembly for free.
A: We are a Chinese medical imaging instruments manufacture. All the products are made of our workers.
Q: Where are you ?
A: Our adress is buliding 3,Yunchuang Valley Southern Pacific, Fenghuang District, Shenzhen City, Guangdong Province, China.You are welcomed to visit our factory.
Q: Can you accept OEM?
A: Yes, we offer "TUYOU" brand to you. But if you need, we can also offer OEM service.
Q: What's your deliver time?
A: It will be delivered within 7 working days upon your payment; Samples are ready-made.
Q: What is the warranty?
A: The free warranty is two years. If there is any fault for our products within the free warranty period, we will repair it and
change the fault assembly for free.
Q:What's the payment term?
A.We accept payment by T/T Bank Transfer, Alibaba Trade Assurance Service, Western Union, Money Gram, Paypal, L/C, Cash etc.
A.We accept payment by T/T Bank Transfer, Alibaba Trade Assurance Service, Western Union, Money Gram, Paypal, L/C, Cash etc.
