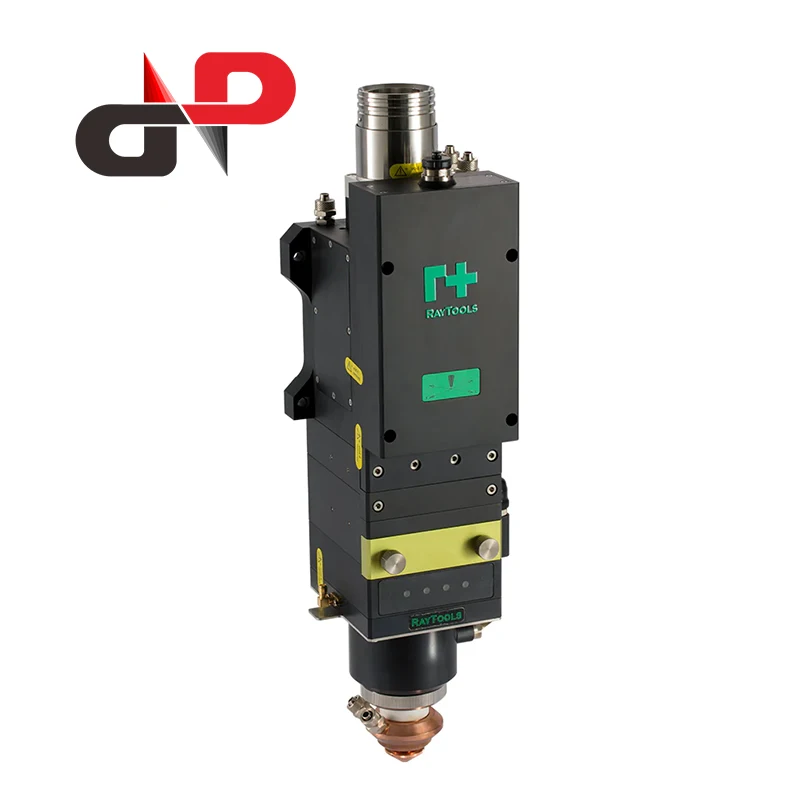

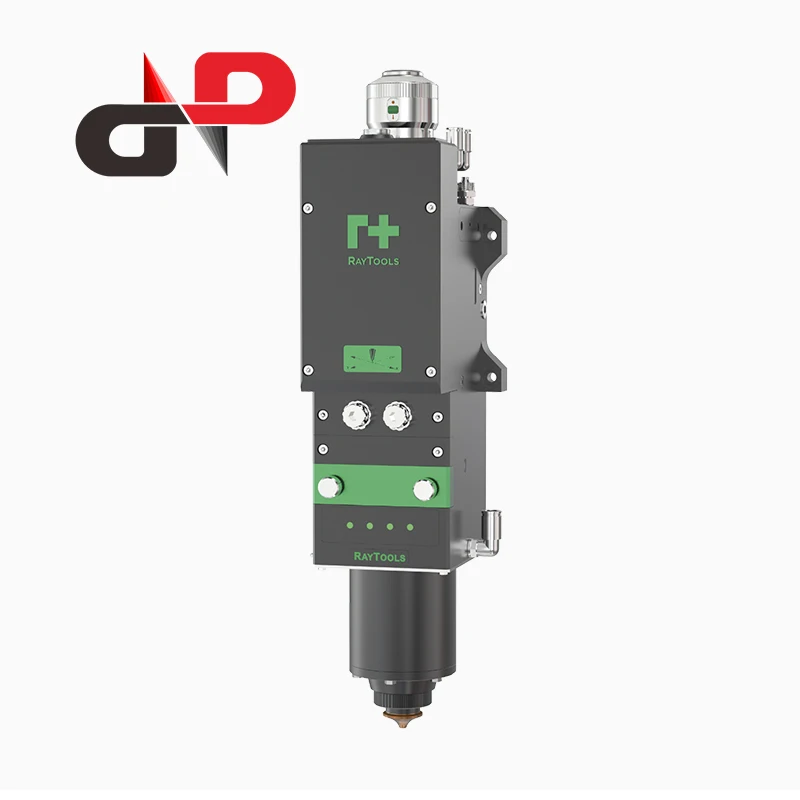

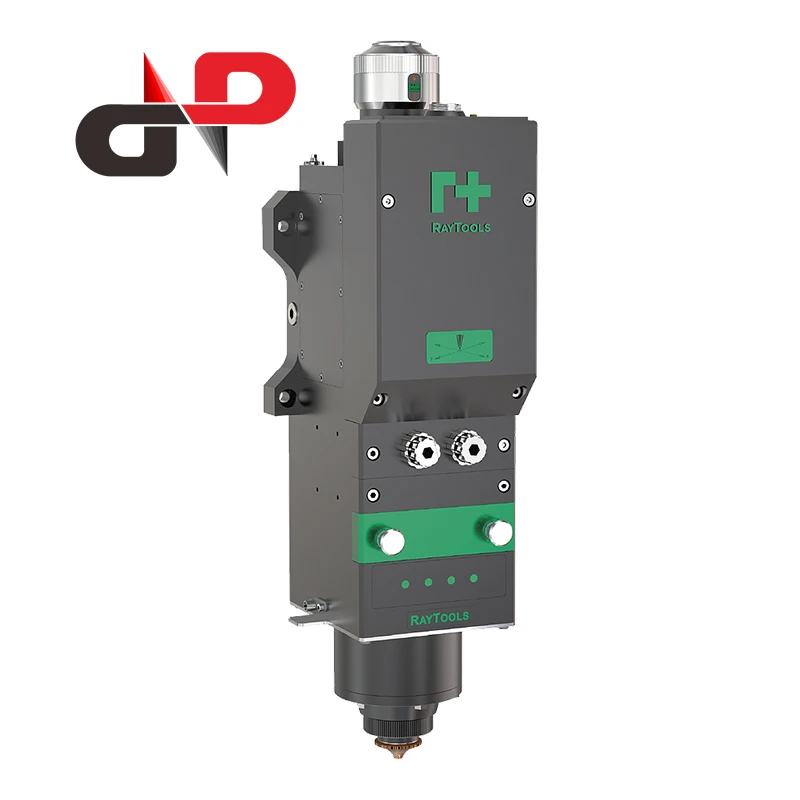

Высокомощная Лазерная режущая головка 12000 Вт Raytools BS12K для станка резки металла с автофокусом умная

Сохранить в закладки 1601052674061:


Цена:*

Количество:

  • В избранное

Описание и отзывы

Характеристики


High Power Laser Cutting Head 12000W Raytools BS12K for Metal Cutting Machine Auto Focus Smart Laser Cutting Head

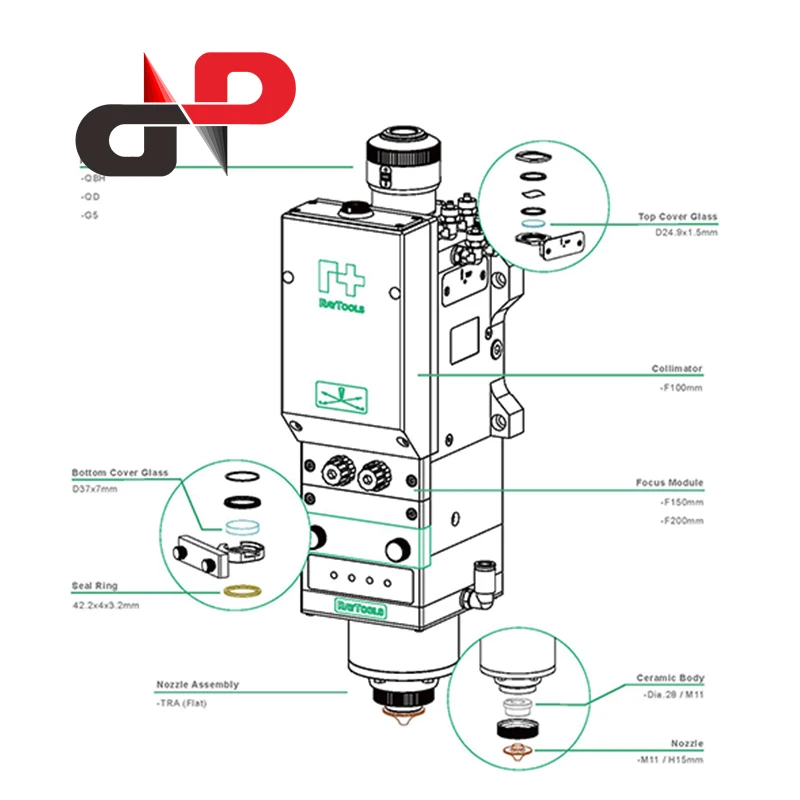

 raytools bs12k n-1




  • Zero focus scale recovery function to maintain accurate focus adjustment.






  • Integrated design and improved QBH fiber interface to prevent from stucking.






  • Dual-water cooling circuit to collimation lens and focus lens.






  • IP65 dustproof level with fully enclosed beam path to decrease contamination risk.








































Power level


12000W


Max Gas Pressure


30Bar


Nozzle Hole Specifications


single layer, double layer, Custom


Optical fiber interface


QBH, G5


Nozzle aperture


0.8mm, 1.0mm, 1.2mm, 1.5mm, 2.0mm, 2.5mm, 3.0mm, 3.5mm, 4.0mm, 4.5mm, 5.0mm


Collimation protection lens


φ24.9mm*1.5mm


Focus protection lens


φ37mm*7mm


Gross Weight


10kgs


6.7.
