4 цвета одежды трафаретная печатная машина шелкография оборудование
43 862,95 ₽ - 52 900,04 ₽
Автоматический Одноцветный Трафаретный принтер плоская шелкография печатная машина
- Категория: >>>
- Поставщик: Henan Allwin Machinery Equipment Co. Ltd.
Сохранить в закладки 1601053076282:
Описание и отзывы
Характеристики

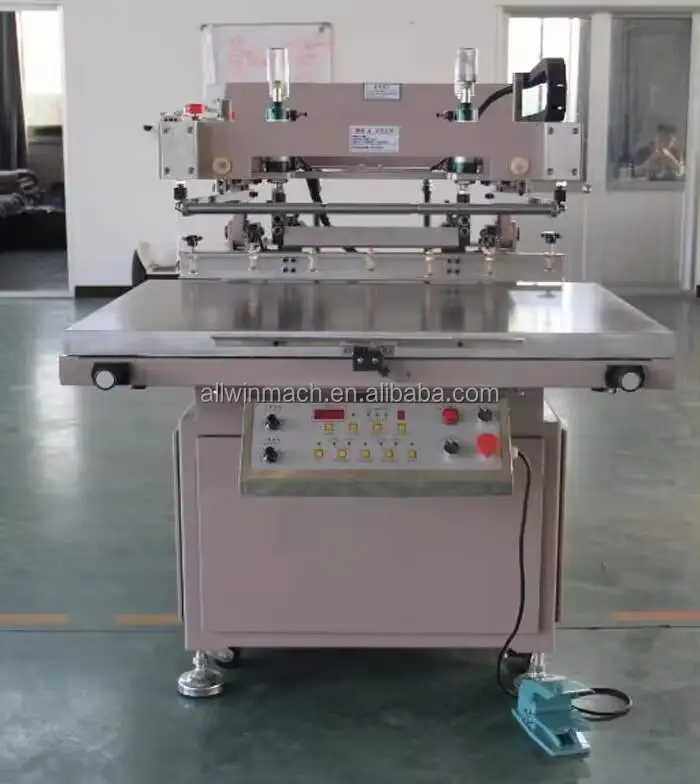

Automatic One Color Screen Printer Flat Silk Screen Serigraphy Printing Machine
Product Description
Application
This screen printing machine series are widely used in the electronics, advertising, package printing, sports equipment, toys, stationary gifts, metal processing industries.
Suitable for printing on all kinds of flat materials, print on metal, glass, wood, paper, plastics, membranes switch, PCB, DC card,nameplate ,also printing on bags,non-woven fabrics, ceramic decals, glazing plate glass, label and panel , refrigerator and air-conditioner decals,plastic sheet, and other products with the material of PVC, which have high requirement in overprinting.printing machine flat screen printing,printing machine screen,powder machine screen printing
Specifications
Model | AW-XF-6090 | AW-XF-70100 | AW-XF-90120 |
Work table area(mm) | 700*1000 | 800*1100 | 1000*1300 |
Max printing size(mm) | 600*900 | 700*1000 | 900*1200 |
Max frame size (mm) | 900*1200 | 1000*1300 | 1200*1500 |
Small freame size(mm) | 450*550 | 550*650 | 650*700 |
Thickness of printing(mm) | 0-20 | 0-20 | 0-20 |
Printing speed(pcs/h) | 500-1200 | 500-1200 | 400-1000 |
Power(kw) | 2.3 | 2.3 | 3.7 |
Voltage(v/hz) | 220/50 | 220/50 | 220/50 |
Operation air pressure(Mpa) | 0.3-0.5 | 0.3-0.5 | 0.3-0.5 |
Machine size(mm) | 1500*1200*1250 | 1600*1350*1280 | 1800*1400*1300 |
Weight(kg) | 410 | 480 | 550 |
Product Details
1).The platform is adjustable and moveable, which make it convenient to take the material.
2).vertical structure, printing plate moves up and down vertically, printing stroke is driven by imported electrical components.
3).The screen printing machine adopts Japanese Mitsubishi PLC control circuit, printing and plate moving up &down are driven by independent Current Source.
4).Screen Printing blade moving up and down is pneumatic controlled, printing stroke is controlled by photoelectric eyes, with independent adjustment.
5).Procedures set three-mode, manual / semi-automatic /automatic settings, the time interval during printing is digital controlled.
6).Independent designed machine head moves up and down, which makes it easy to unload and clean the printing plate, scraper / ink reclaiming blade.
7).Double guide column master the clamps arm, and install the adjusting device to adjust the distance between plates at the same time, which is convenient to tune.

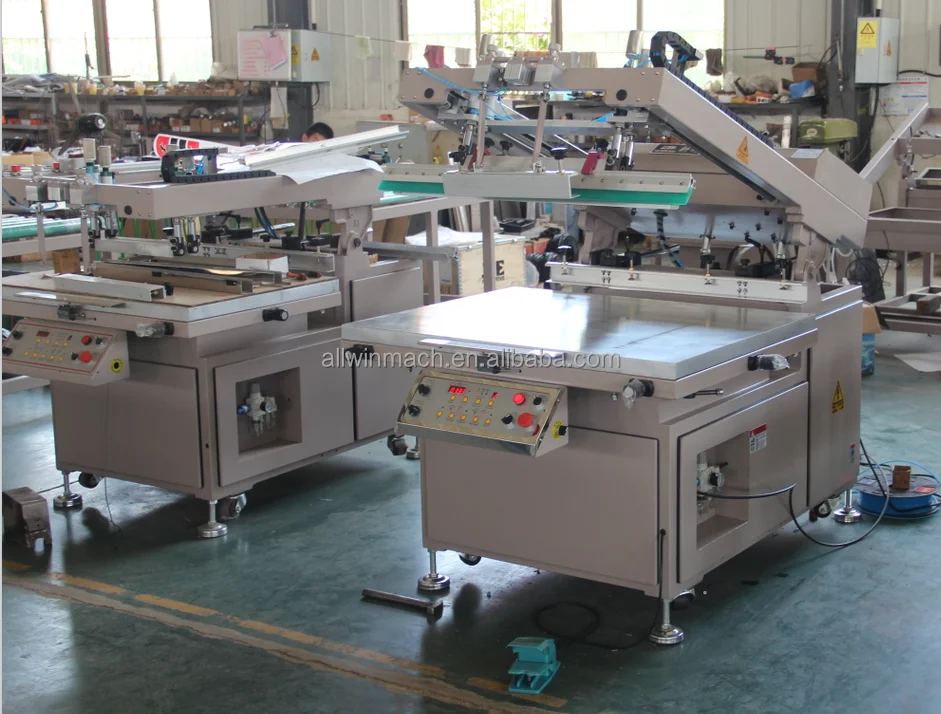

Factory
Packaging & Shipping
Packing&Delivery
Package details | By container or standard export packing per machine |
Delivery details | within 35 working days after receiving your prepayments |
Shipment details | sea,truck,airplane etc. |
Our Services
◊ 24 hours on-line services for you.
◊ Professional person reply your questions.
◊ 12 months warranty for you.
◊ Perfect and careful after-sale service.
Company Information
Company Profile
Henan ALLWIN Machinery Equipment Co, Ltd. was established in 2023,is a professional company integrating design,production and marketing. Have many years of industry experience. Our main products includes Paper Processing Machinery, Paper Product Making Machinery,Printing Machine,Packaging Machine and Office Equipment.Our high quality products,competitive price,and professional service,have enjoyed high reputation in the relative industry. All of these make our products have good selling over the world market. Our products range mainly covers Label Production Line, Paper Container Production Line,Paper Tube Production Line, Carton Box Production Line, Rigid Box Production Line, Book Production Line etc.
We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!
FAQ
FAQ
Don't worry your TT payment,we do make the shipment as T/C,B/L for your reference!
Q1: Why don't person reply to me?
A: Our person is 24 hours on-line. If nobody reply you , maybe he has other businesses temporarily. So please leave your requirements on e-mail or chat tool, we will reply you as soon as possible.
Q2: Can you guarantee your quality?
A:Of course. We are the manufacture factory. More important, we put a high value on our reputation. Best quality is our principle all the time. You can be assured on our production completely.
Q3: How do you make your price?
A: We make the price according to our comprehensive costing. And our price will lower than the trade company because we are manufacture. You will get lower.
Q1: Why don't person reply to me?
A: Our person is 24 hours on-line. If nobody reply you , maybe he has other businesses temporarily. So please leave your requirements on e-mail or chat tool, we will reply you as soon as possible.
Q2: Can you guarantee your quality?
A:Of course. We are the manufacture factory. More important, we put a high value on our reputation. Best quality is our principle all the time. You can be assured on our production completely.
Q3: How do you make your price?
A: We make the price according to our comprehensive costing. And our price will lower than the trade company because we are manufacture. You will get lower.
Q4 : When can the machine be shipped after order is placed?
A:It depends on machine model and quantity, some stock machines can be shipped within 3 working days after payment, other customized machines start production after deposit arrived, please contact our staff for detail info.
Q5: How about the warranty and after-sale service?
A: Our machines have one year warranty and lifetime technical support. Help is always just one call or email, and then we can provide a suitable solution within 8 hours after analyzing and estimating the problem. Remote training and door-to-door service is available.
