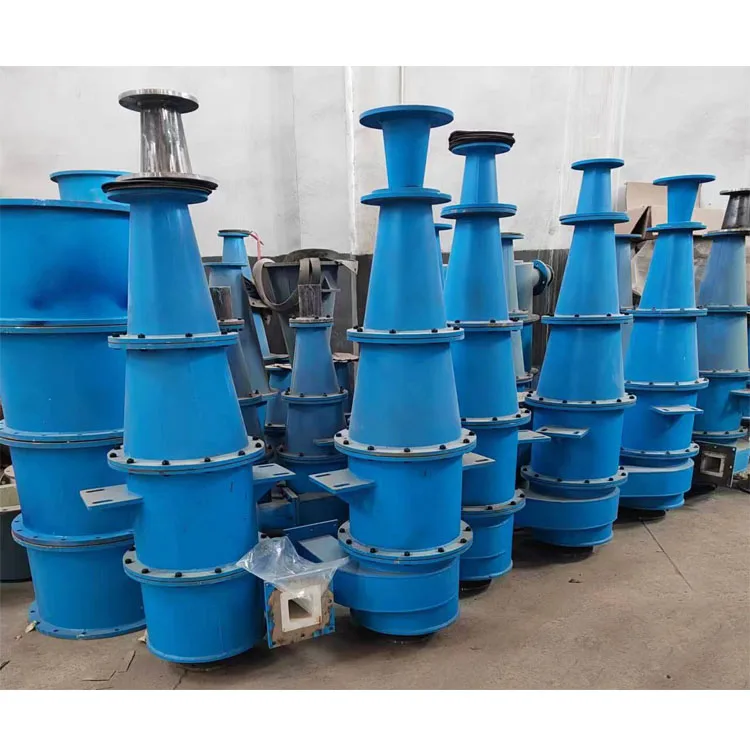

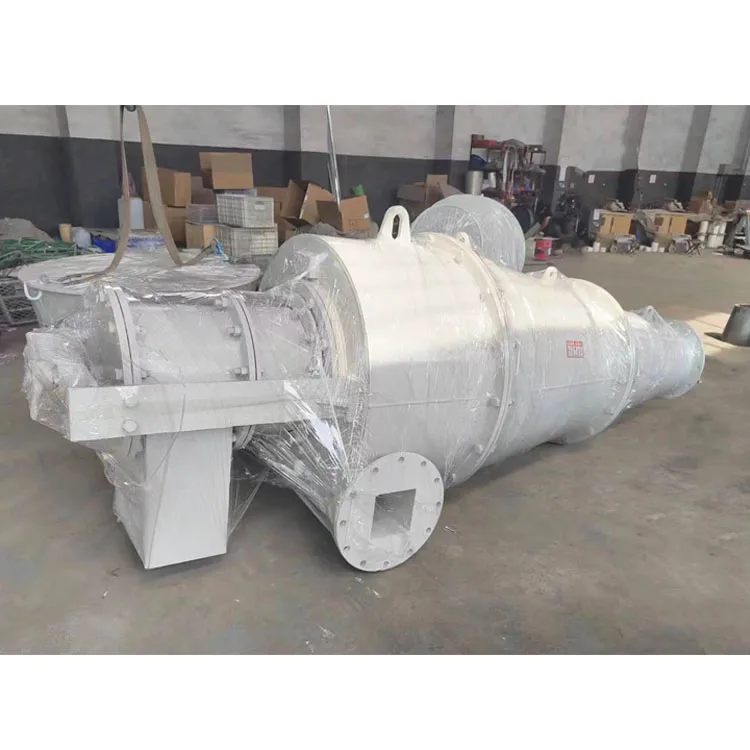

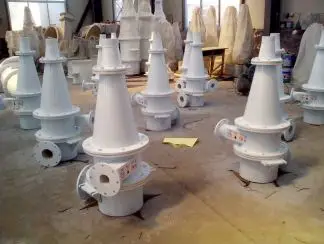

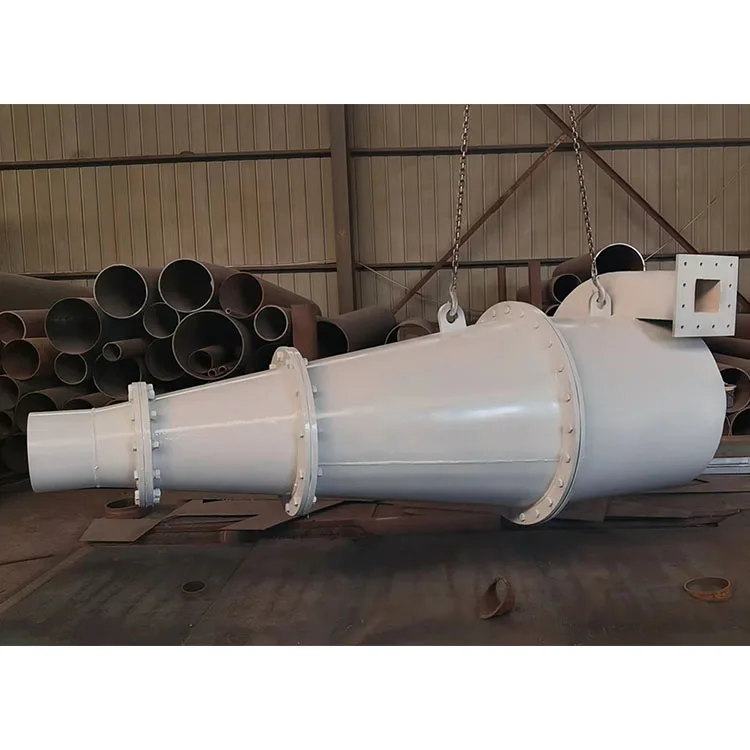

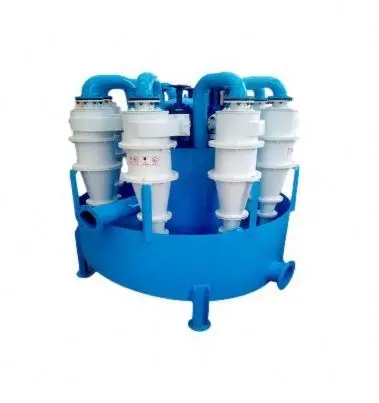

Huazhan FX Series Cyclone
Products Description
The basic principle of the FX series cyclone is to separate the liquid-liquid, liquid-solid, liquid-gas and other two-phase or multi-phase mixtures with a certain density difference under the action of centrifugal force, and the mixed liquid enters the cyclone tangentially under a certain pressure. The flow device produces a high-speed rotating flow field in the cylindrical cavity, and the components with high density in the mixture move downward in the axial direction and outward in the radial direction under the action. The segment of the vertebral body moves downward along the wall of the vessel and is discharged from the bottom flow port, thus forming an external vortex flow field, the components with low density move toward the central axis, and form an upward moving internal vortex at the center of the axis, and then It is discharged from the overflow port, so that the purpose of two-phase separation is achieved.
Specification | Diameter(mm) | Feed pressure(MPa) | Processing power(m³/h) | Separation size(μm) | ||||
FX710 | 710 | 0.04-0.15 | 350-500 | 74-250 | ||||
FX660 | 660 | 0.04-0.15 | 250-360 | 74-250 | ||||
FX610 | 610 | 0.04-0.15 | 200-300 | 74-200 | ||||
FX500 | 500 | 0.04-0.2 | 140-240 | 74-200 | ||||
FX400 | 400 | 0.06-0.2 | 100-170 | 74-150 | ||||
FX350 | 350 | 0.06-0.2 | 70-150 | 50-150 | ||||
FX300 | 300 | 0.06-0.2 | 45-90 | 50-150 | ||||
FX250 | 250 | 0.06-0.3 | 40-80 | 40-100 | ||||
FX200 | 200 | 0.06-0.3 | 25-40 | 40-100 | ||||
FX150 | 150 | 0.08-0.3 | 15-30 | 20-74 | ||||
FX100 | 100 | 0.1-0.3 | 8-15 | 20-50 | ||||
FX75 | 75 | 0.1-0.4 | 5-8 | 10-40 | ||||
Feature：
It can be used to increase the concentration of ore pulp and improve the recovery rate of concentrate. It is an ideal equipment for concentration and classification of ore pulp.
Application:
It is widely used in the recovery of coarse coal slime in various coal washing plants and the pre-concentration of pulp before flotation, the pre-graded concentration of coarse coal slime before separation, the pre-graded concentration of coarse coal slime before dehydration, and the separation and coarse treatment of flotation feed slime water. Large
concentration ratio, high underflow concentration, easy to combine with TBS, curved screen, high frequency screen and other dehydration equipment.
concentration ratio, high underflow concentration, easy to combine with TBS, curved screen, high frequency screen and other dehydration equipment.
Related Products
Introduction of microcrystalline wear-resistant ceramic linings
1. The microcrystalline alumina wear-resistant lining and lining are special wear-resistant ceramics formed by dry pressing and calcined at 1500-1700 ºC. Its Rockwell hardness is HRA80-90, which is only as hard as diamond;
2 The product has the characteristics of special wear resistance, impact resistance and convenient construction. Its theoretical wear resistance is equivalent to 260 times that of manganese steel and 170 times that of chrome steel. According to the actual application calculation, it can effectively extend the service life of the easily worn parts of the equipment by more than 10 times;
3 Application areas: It is mainly used on the inner and outer surfaces of material conveying pipelines and related wear-resistant equipment in coal washing, iron and steel plants, thermal power, chemical environmental protection, cement and other industries.
Microcrystalline wear-resistant ceramic lining, lining technical parameters
1. The microcrystalline alumina wear-resistant lining and lining are special wear-resistant ceramics formed by dry pressing and calcined at 1500-1700 ºC. Its Rockwell hardness is HRA80-90, which is only as hard as diamond;
2 The product has the characteristics of special wear resistance, impact resistance and convenient construction. Its theoretical wear resistance is equivalent to 260 times that of manganese steel and 170 times that of chrome steel. According to the actual application calculation, it can effectively extend the service life of the easily worn parts of the equipment by more than 10 times;
3 Application areas: It is mainly used on the inner and outer surfaces of material conveying pipelines and related wear-resistant equipment in coal washing, iron and steel plants, thermal power, chemical environmental protection, cement and other industries.
Microcrystalline wear-resistant ceramic lining, lining technical parameters
Model | Specifications (liner/porcelain) |
Alumina content | ≥95% |
Density | ≥3.6 g/cm3 |
Rockwell hardness | ≥85 HRA |
Compressive strength | ≥850 MPa |
Fracture toughness KIC | ≥4.8MPa m1/2 |
Bending strength | ≥290MPa |
Wear resistance | ≤0.0002g (p=76N n=800 rpm t=30 minutes) |
Ceramic sheet thickness | 1.5-25mm |
Product Packaging
Company Profile
Shanxi Huazhan Wear-resistant Material Technology Co., Ltd. is located in Gudan Industrial Park, Taiyuan City, Shanxi Province. Covering an area of 25,000 square meters, there are more than 80 engineering and technical personnel.
In the past 20 years, we have been committed to the customization, production and service of wear-resistant steel products, professionally providing solutions for wear-resistant products in industries such as electric power, metallurgy, mining, steel mills, petrochemicals, and new energy. A major breakthrough has been made; advanced production technology has been introduced, the monthly output of wear-resistant pipes is 1,300 tons, and advanced testing equipment is equipped. Our products involve more than 110 varieties in 12 categories, and we are currently the largest manufacturer of wear-resistant pipe fittings in China.
The company has an independent research and development design team, 70% of the front-line employees have 10 years of casting experience, the products have passed the ISO9001 quality system certification, and have a number of invention patents.
The company has an independent research and development design team, 70% of the front-line employees have 10 years of casting experience, the products have passed the ISO9001 quality system certification, and have a number of invention patents.
Huazhan has always pursued the enterprise management policy of "quality first, reputation first", strictly controlled quality, and formed a strict quality control mechanism and a reliable quality assurance operation system. Because of reliable product quality, honest business philosophy, and scientific technical effects, it has won the trust of users, and the scale of the enterprise is developing rapidly. The products are sold to engineering projects in 31 regions across the country, and are widely used in mines, power generation, chemicals, etc. project.
Certification:
Why Choose Us:
1.One-Stop EPR Contracting Service
From design to delivery, worry-free throughout the entire process.
2.Efficient Sorting System Design
With just an idea or a drawing, we can complete the system diagram and flowchart.
3.Free Technical Consultation
Providing cutting-edge industry technology, allowing customers to enjoy top-notch services for free.
4.Dedicated Technical Team
Each project is equipped with a dedicated team to ensure professional support.
5.Strict Quality Control and After-Sales Service
High-standard quality control with a 3-month product warranty for peace of mind.
From design to delivery, worry-free throughout the entire process.
2.Efficient Sorting System Design
With just an idea or a drawing, we can complete the system diagram and flowchart.
3.Free Technical Consultation
Providing cutting-edge industry technology, allowing customers to enjoy top-notch services for free.
4.Dedicated Technical Team
Each project is equipped with a dedicated team to ensure professional support.
5.Strict Quality Control and After-Sales Service
High-standard quality control with a 3-month product warranty for peace of mind.
Trust Huazhan For Excellence!
Похожие товары

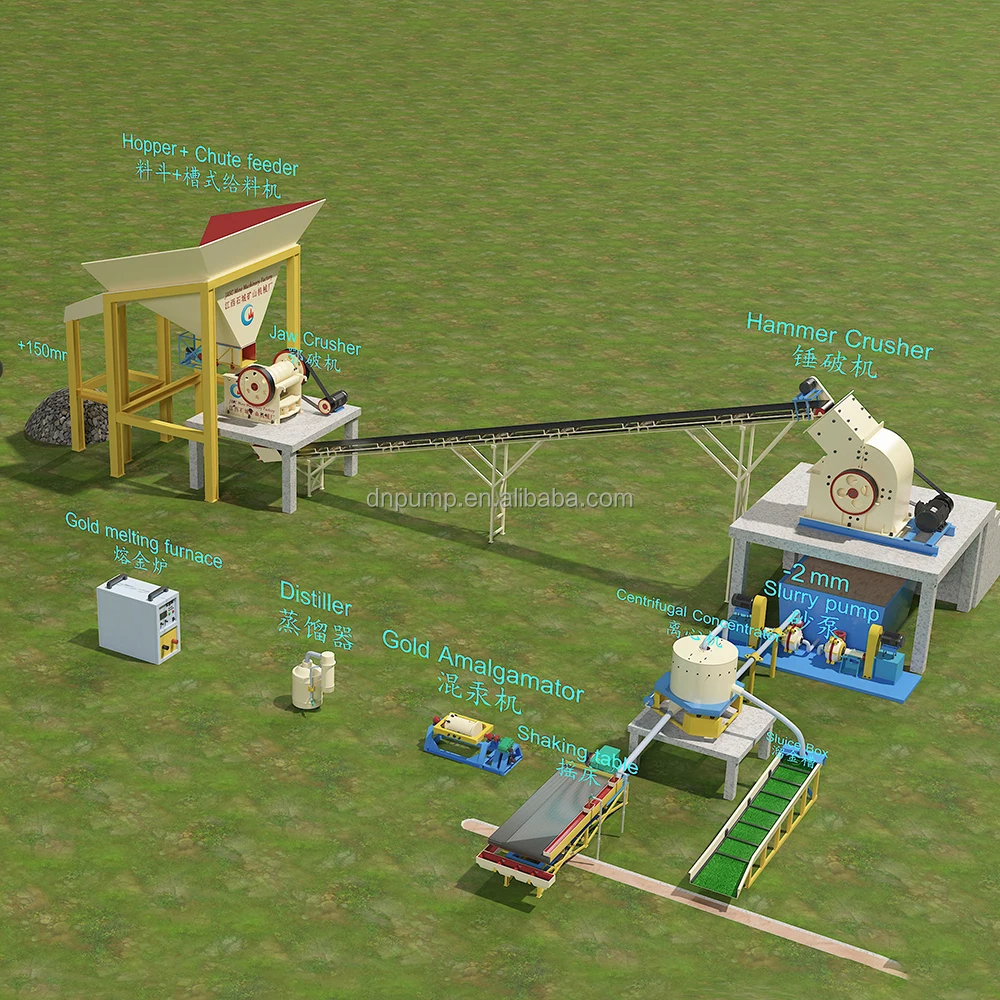

Танзания 2-3 тонны мелкомасштабный завод по обогащению добычи ртути для твердой золотой руды
10 000,00-18 000,00 $

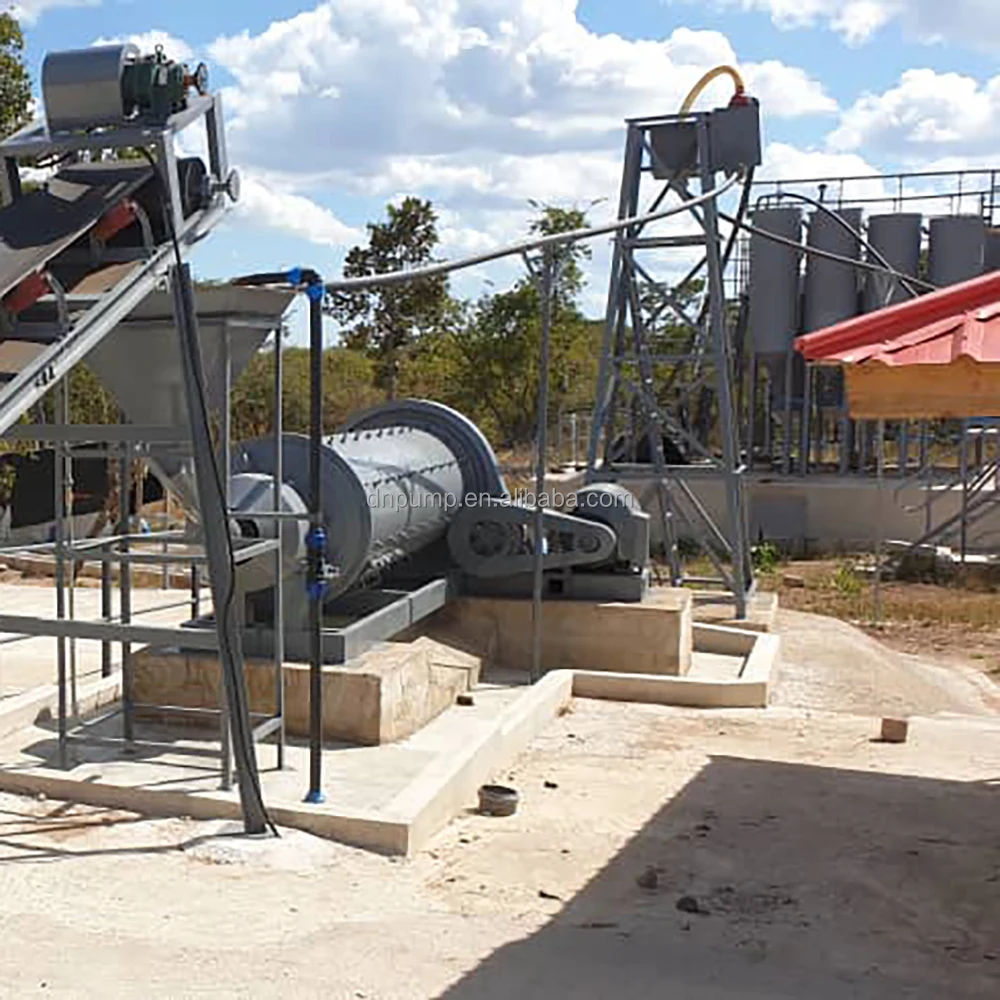

Метод гравитационной сепарации 10 тонн завод без ртути для твердой золотой руды
10 000,00-18 000,00 $

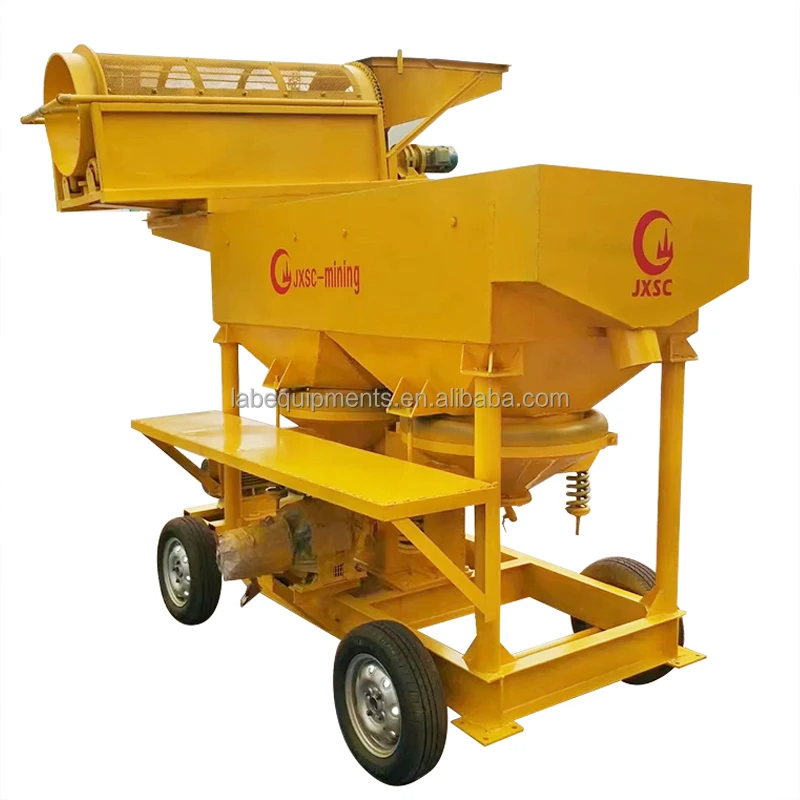

Полная установка для обогащения безртутной добычи 5-10 т/ч
10 000,00-18 000,00 $
Золотая рафинированная баррель золотой классификатор Меркурий Амальгама для продажи
1 520,00 $
Оборудование для выбора песчаного золотого рудника GT60 двойной шейкер драгоценных камней без ртути и агентов
2 900,00-3 100,00 $
Подвесной магнитный сепаратор-конвейер
1 000,00 $

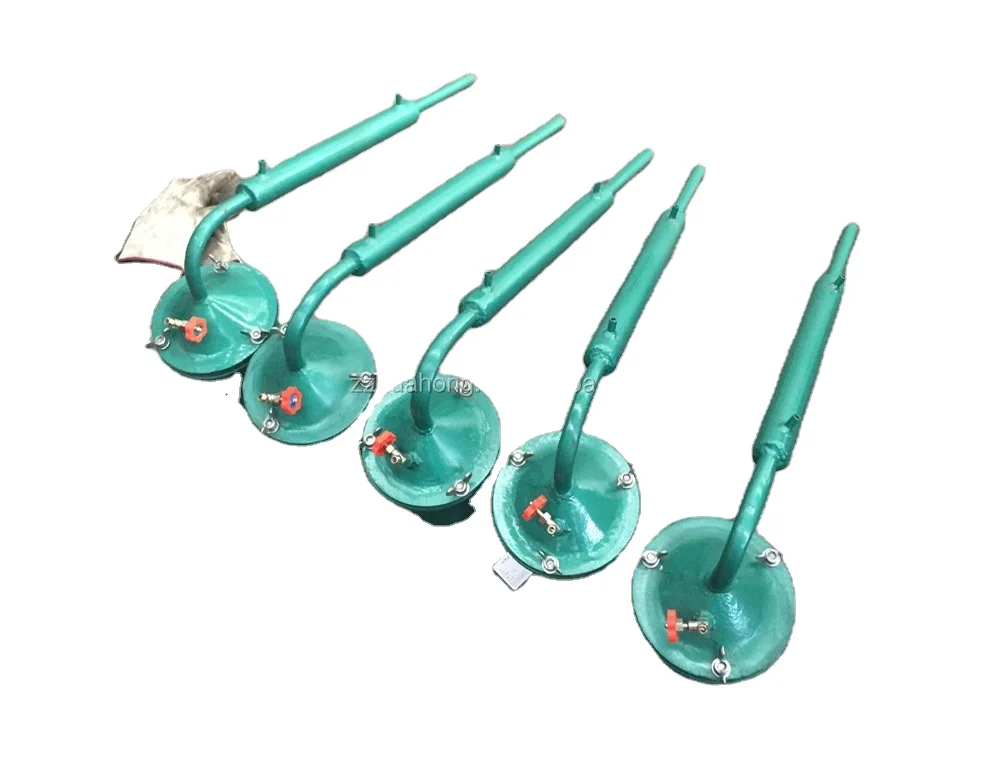

Реторт ртути для золотодобычи на продажу
