2 оси 40 футов быстрая разгрузка контейнер транспортировка Скелет терминал шасси порт прицепы
935 568,65 ₽ - 1 375 836,25 ₽
Скелет терминал порт контейнерный транспорт полуприцеп 40 футов контейнерные прицепы из Китая производства
- Категория: >>>
- Поставщик: Shandong Tiantong Automotive Technology Co. Ltd.
Сохранить в закладки 1601053829629:
Описание и отзывы
Характеристики
Products Description
High Strenth Steel Skeletal Semi Trailer For Sale
1. Specially used for the transportation of various containers. Can be reused for a long time and has sufficient strength.
2. By using containers to transport goods, they can be loaded directly at the shipper's warehouse and unloaded at the consignee's warehouse. When changing vehicles or ships midway, there is no need to remove the goods from the container for replacement.
3. It can be quickly loaded and unloaded, and can be easily transferred from one mode of transportation to another.
4. Facilitate the filling and unloading of goods to meet the personalized needs of customers. Ensure tooling according to customer needs, stable quality, and reliable performance
We can customize according to customer needs.You can contact us for more detail.
Product Paramenters
Below are specifications for the main parts of the trailer.contact us for more details.

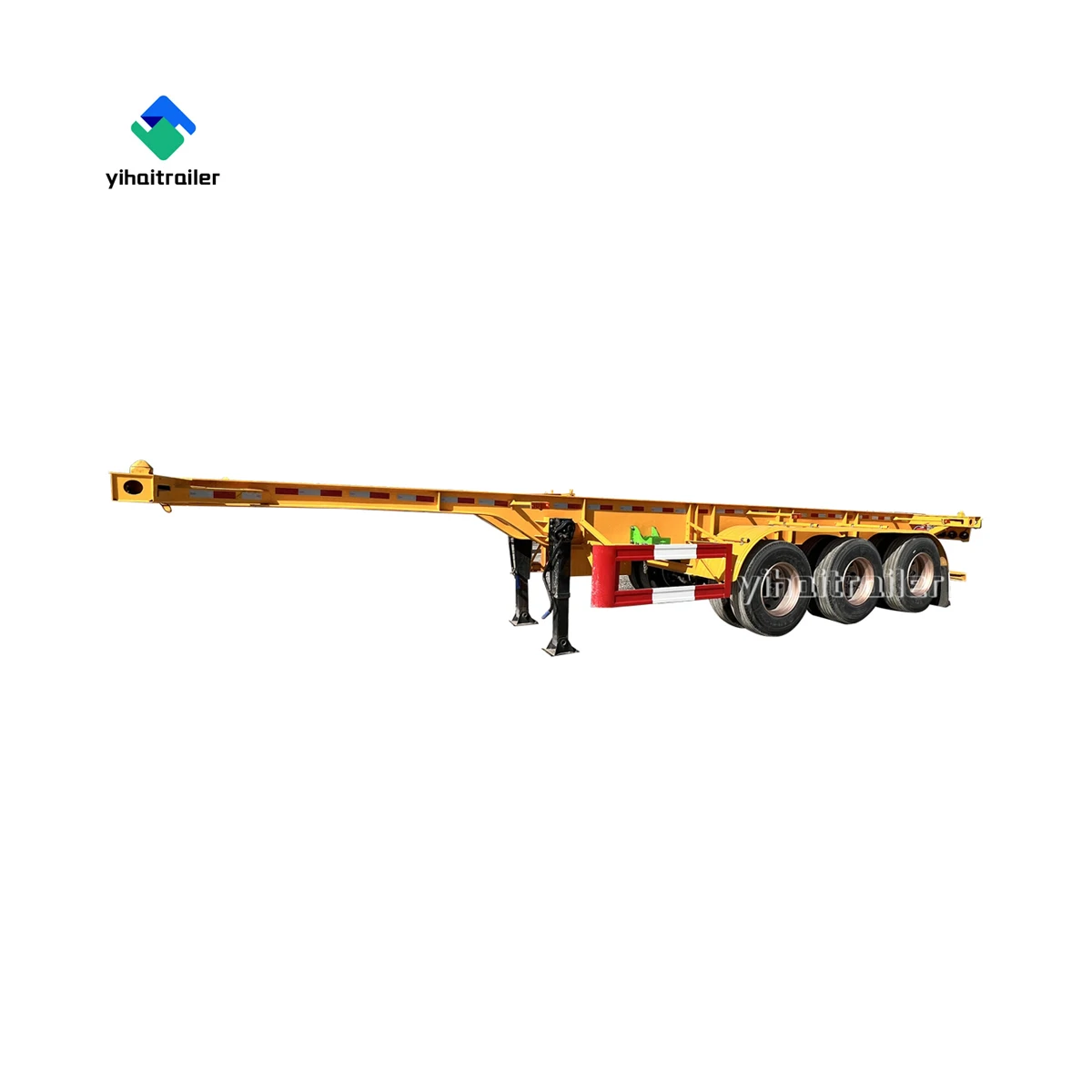

3 axle 40ft skeleton semi trailer | ||||||
Tare Weight | 5,500 KG, tolerance 0~-4% | |||||
Payload | 50,000 KG | |||||
G.V.W. | 55,500 KG | |||||
Dimensions | 12500mm(Length) × 2500mm(Width) × 1500mm(Height) | |||||
King Pin | JOST 3.5" bolted-in type | |||||
Landing Legs | JOST landing legs | |||||
Main Beams | Q345B steel, Top flange 14 mm thick， bottom 16 mm；web height 500 mm, 8 mm thick | |||||
Axles | 13 ton FUWA brand axles, 3 units | |||||
Suspensions | Standard mechanical suspensions | |||||
Springs | 10 lines of heavy duty leaf springs | |||||
Brake System | Dual air brake system, 4 air tanks, WABCO relay valve, no ABS | |||||
Tires | 12R22.5, Triangle brand, 8 units | |||||
Electrical | 24-Volt sealed wiring harness, 7-pin connector at front | |||||
Side Lights | Two side marker lamps per side, amber color | |||||
Rear Lights | Standard brake, turn, reverse lights,license and fog lamp | |||||
Twist Locks | 12 ISO twist locks per unit | |||||
Toolbox | One unit | |||||
Spare wheels carriers | One unit | |||||
Reflectors | Two triangular red reflectors at rear. Conspicuity reflective tapes on each side. | |||||
Painting | Sandblasting, one coat of primer, two coats of finish painting, and color as per customer's request. | |||||
Company Profile
Shandong Tiantong Automotive Technology Co., Ltd. was established on July 29,2008.It is a production enter-prise with proprietary rights in the production of road motor vehicles,research and development,manufacturing and sales of automotive parts,and sales of new energy vehicles.We provide product design based on customer needs,providing customers with convenient,safe,and environmentally friendly products.High quality provides customers with the greatest guarantee,allowing them to experience more efficient value.We sincerely look forward to working with you.
We are manufacturer and our company has long history experiences of industry for many years.Our factory is located in shandong province,China.It has large square and we have many special engineers to produce the good
goods according to the customers’ needs.By technology development more and more,we could produce many styles of semi-trailer equipments,such as flatbed semi-trailer,low bed semi-trailer,sidewall semi-trailer,tipper semi-trailer,rear dump semi-trailer,bulk cement semi-trailer,cargo fence semi-trailer,side lifter -semi-trailer,skeleton semi-trailer and car carriage semi-trailer etc.Our semi-trailerequipments have a wide variety with high quality,they have generous appearance and resonable structure.We use high-quality materials and advance production processes to ensure that producing stable system and good production.We can also allowed to customize according to customers’ requirements and needs. If you are interesting in our products,please contact us!Look forward to your inquiry!
goods according to the customers’ needs.By technology development more and more,we could produce many styles of semi-trailer equipments,such as flatbed semi-trailer,low bed semi-trailer,sidewall semi-trailer,tipper semi-trailer,rear dump semi-trailer,bulk cement semi-trailer,cargo fence semi-trailer,side lifter -semi-trailer,skeleton semi-trailer and car carriage semi-trailer etc.Our semi-trailerequipments have a wide variety with high quality,they have generous appearance and resonable structure.We use high-quality materials and advance production processes to ensure that producing stable system and good production.We can also allowed to customize according to customers’ requirements and needs. If you are interesting in our products,please contact us!Look forward to your inquiry!
Packing and delivery
Packing:product naking
Shipping:shipment by sea or land.
Service
1. We can provide consultation sevice online of products for 24-hours when you are interesting in our products before buy our products or after purchase our products.
2. We can provide the draw of semi-trailer equipment and make the good measure to meet our needs.
3. We can provide the the technical guidance and we will establish a comprehensive customers receive timely and professional service support after you purchase our produts.
4. We are manufacuturer of semi-trailer and we can give you the competitive price of semi-trailer.
5. We can accept the customization in order to meet the various custemers’
2. We can provide the draw of semi-trailer equipment and make the good measure to meet our needs.
3. We can provide the the technical guidance and we will establish a comprehensive customers receive timely and professional service support after you purchase our produts.
4. We are manufacuturer of semi-trailer and we can give you the competitive price of semi-trailer.
5. We can accept the customization in order to meet the various custemers’
FAQ
Q1. Can i paint my logo on trailer?
A:Sure,you can send us your company logo,and we will help you put onto the semi-trailer.
Q2. Which terms of delivery do you support?
A:EXW,FOB,CFR,CIF and we will have a negotiation with our cunstomers before signed the sales contract and according to the customers requirements choose the suitable method.
Q3. Which payment terms do you have ?
A:Normally,We are surpported 100% T/T before shipment ,L/C at sight,if you have other requirements of payment we hope that have a negotiation with us.
Q4. Are you manufacturer or trade company?
A:We are manufacture of semi-trailer and we have our own factory and many engineers .
A:Sure,you can send us your company logo,and we will help you put onto the semi-trailer.
Q2. Which terms of delivery do you support?
A:EXW,FOB,CFR,CIF and we will have a negotiation with our cunstomers before signed the sales contract and according to the customers requirements choose the suitable method.
Q3. Which payment terms do you have ?
A:Normally,We are surpported 100% T/T before shipment ,L/C at sight,if you have other requirements of payment we hope that have a negotiation with us.
Q4. Are you manufacturer or trade company?
A:We are manufacture of semi-trailer and we have our own factory and many engineers .
