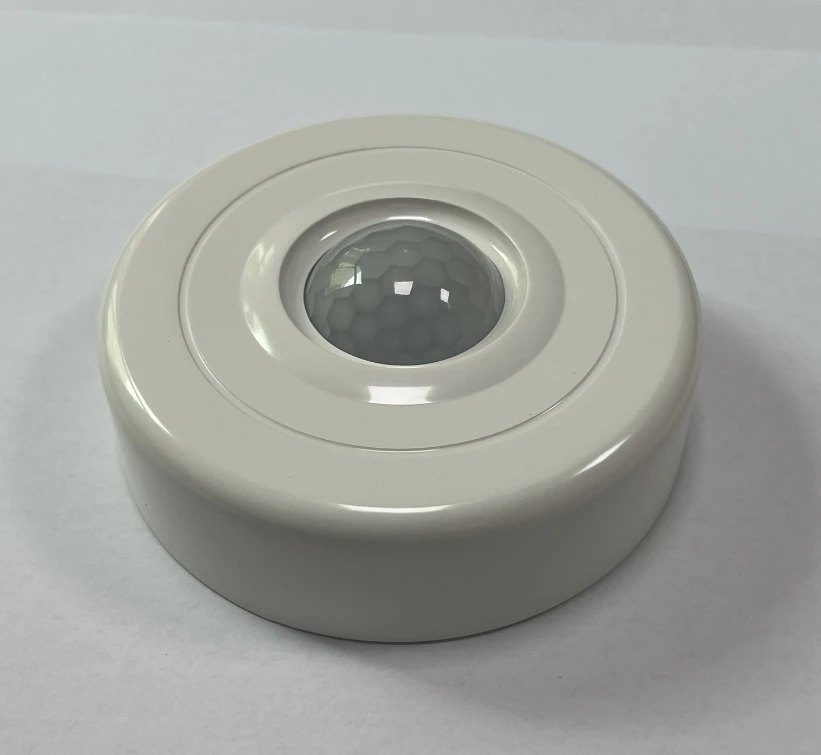

Умный высокомощный человеческий датчик инфракрасный детектор движения PIR выключатель света

Product Character

Based on infrared technology automatic control product, the special-purpose sensor surveys the human body infrared spectrum when people approach, the switch automaticly connect to supply, the switch continually works while people stay at the detection range. switches turn OFF after 60 seconds After people leave. PIR sensor switch Combined intelligent control and energy saving, wildly used in aisles, basements, restrooms, etc.

Features

Energy conservation, Long life, Security.
Product design using special sensors to detect infrared of human body spectrometer changes, Someone walked to the range, the lights will work,when people leave.after 60 seconds,the light will automatically turn off.

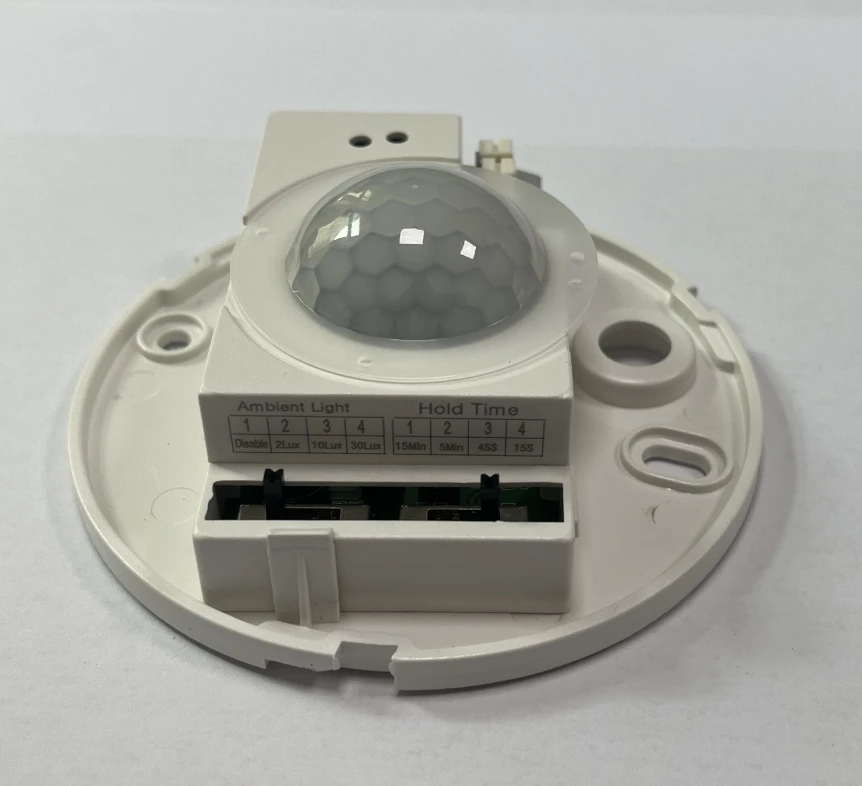

This product using the photosensitive control, have automatic metering function, only the light is dark will work
In temperature 20 degrees centigrade, induction distance is about 8 m,when temperature is higher,the induction distance is slightly closer, this is a normal phenomenon.

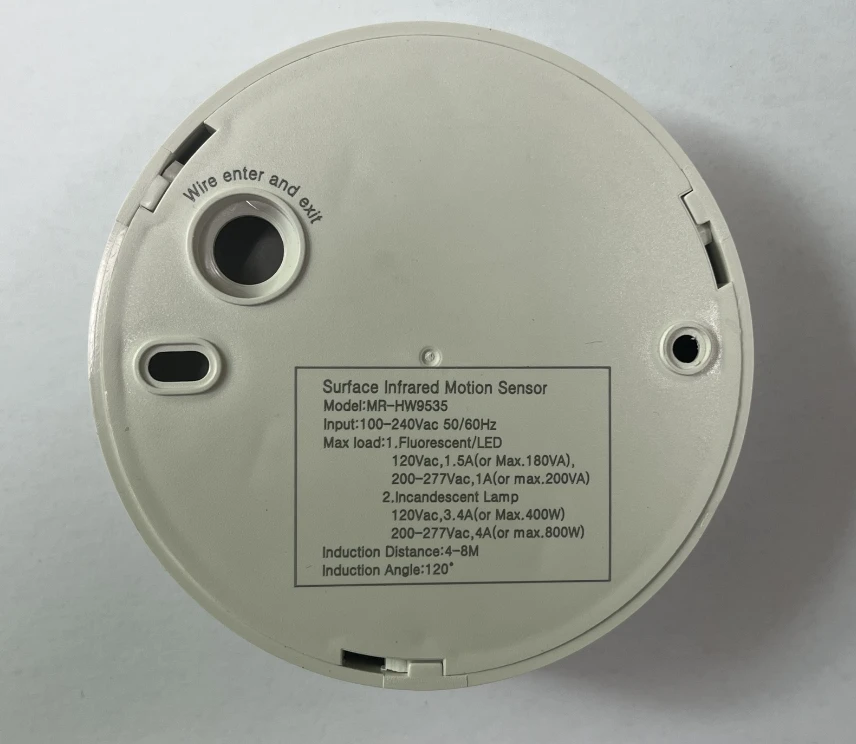

Parameters

Rated voltage:180-240 V
Sensitivity:≤5LUX
distance:≤8M
sensor Angle:120°
Load power:incandescent lamps ≤1000W Energy-saving lamps≤200W
Working temperature:-10°C~+40°C LED light ≤200W
Delay time::60S
Size:Φ89*52MM
Materials:PC
Approvals/Certificates:  CE RoHS
Ingress Protection:  IP50
Warranty: 2 years

Caution

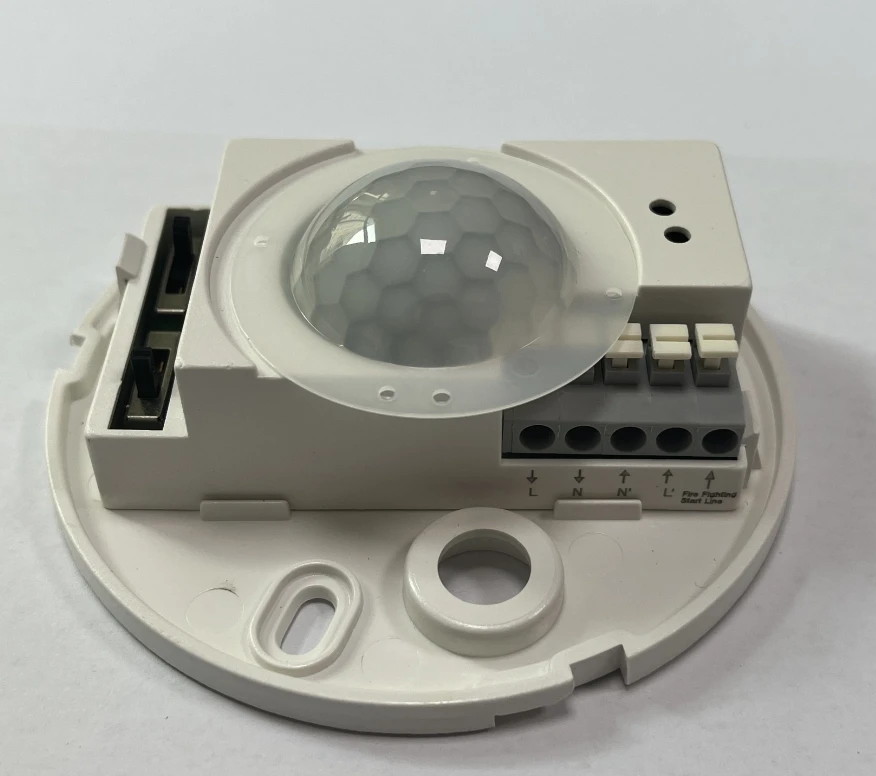

Movement Sensor Light Switches :light sensors for outdoor lights Installation strictly follow product wiring diagram, do not short circuit.
Recommend one switch control one load, when the load is too large or to small, please consult to manufacturers.
Keep distance between switch and load more than 0.3 meter, do not exposed to direct sun light or lighting ,don’t put it in rapid environmental changes(eg: big wind).
Don’t conduct the hot line job, please electrify only after sensor switch has been installed
The switches have starting time after connecting the electricity. About 1-2 minutes later it will work normally. If normally using, switches will always connect the electricity, so no need worry about this.

The infrared switches are based on detect the difference between the human body temperature and the environment temperature .The sensitivity will be affected by many factors such as the environment temperature, the walk speed and direction.( the induction distance is about 3~5 meters as the environment temperate higher in summer, and about 5~7M in winter as the environment temperate lower in winter, that is normal).

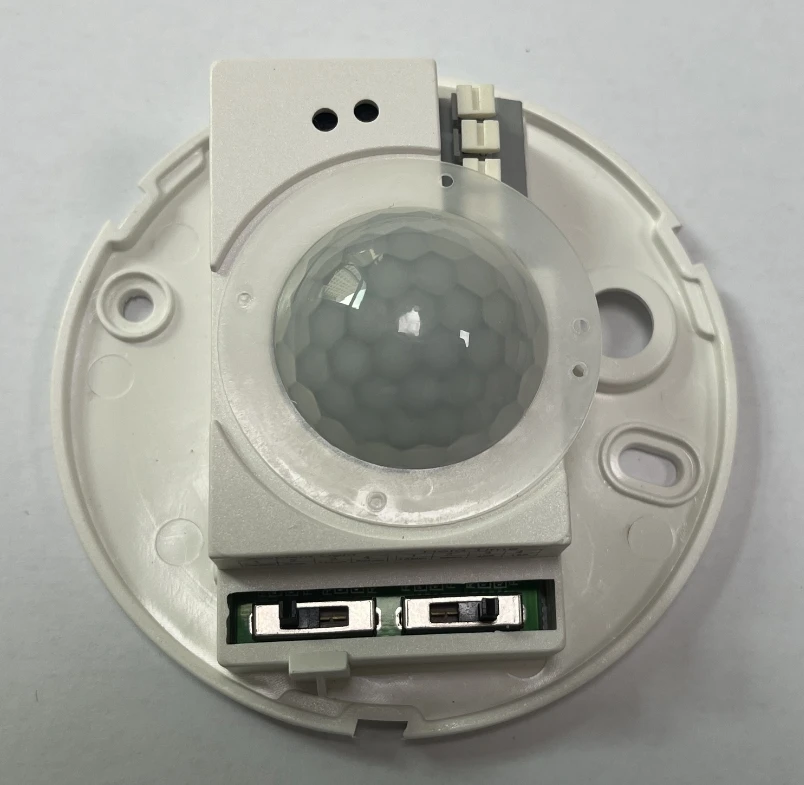

The switches use the unit doublet probes, so the sensitivity in right-left direction is a little difference from up-down direction, that is normal.
