Промышленная сушилка для трав с розмарином
- Категория: >>>
- Поставщик: Zhuhai Hello River Drying Technology Co. Ltd.
Сохранить в закладки 1601054103485:
Описание и отзывы
Характеристики

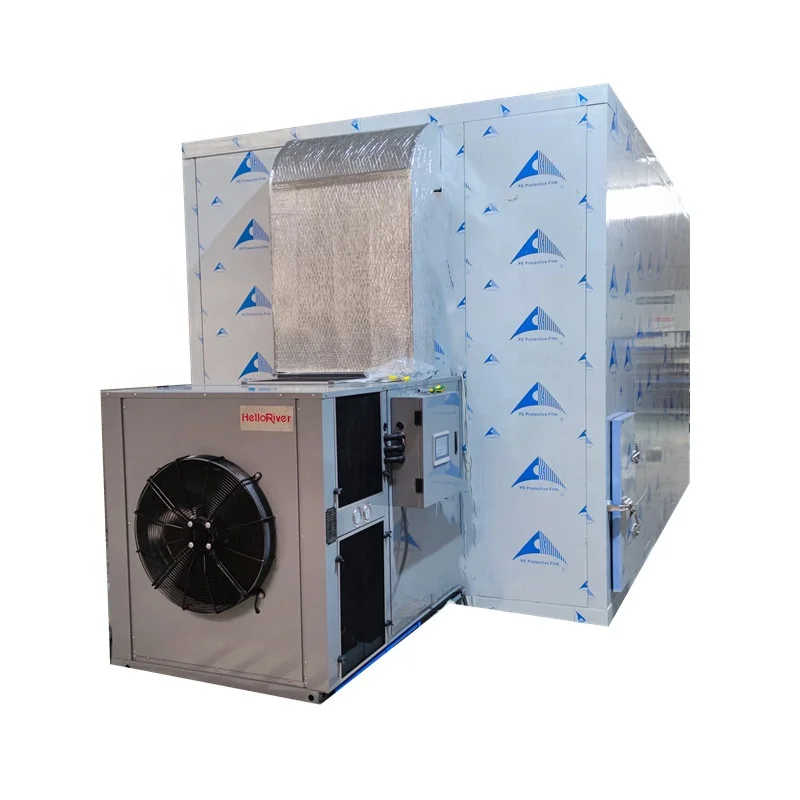

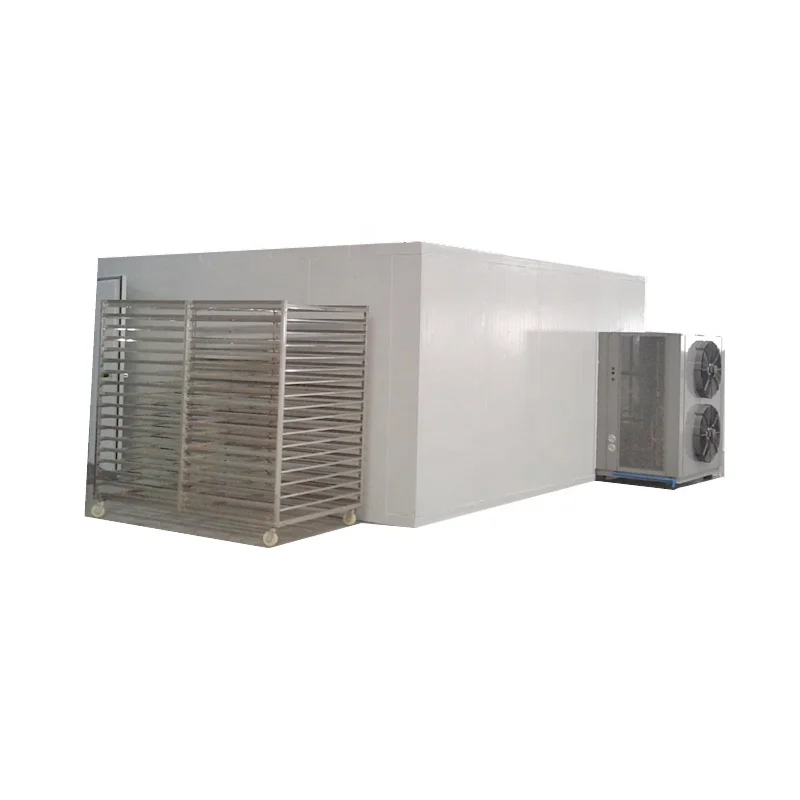

Hello River Brand Industrial Herb Dryer Rosemary Oven Heat Pump Dryer for Bay leaf and Mint Leaf Vegetable Drying Machine
Detailed Images
What are HELLORIVER Heat Pump Drying Machine ?
HELLORIVER Heat Pump Drying Machine is a kind of heating device. The high temperature heat pump dryer work basic on the inverse Kano principle to absorb heat from the surrounding environment and transfer it to drying chamber or drying area. It is mainly used in the drying and dehydration process of food, medicinal materials, wood, agricultural products, industrial products, etc.
Woking Principle
Hello River Brand Industrial Herb Dryer Rosemary Oven Heat Pump Dryer for Bay leaf and Mint Leaf Vegetable Drying Machine
No MOQ and Customized Design
Drying+Dehumidify+Cooling
PLC+Touch Screem Control
10-15Days Delivery Time
PLC+Touch Screem Control
10-15Days Delivery Time
Product Parameters
MODEL | HRD03S | HRD06S | HRD10S | HRD12S | HRD15S | |
DRYING CHAMBER SIZE | MM | 2.2M*3.5M*2.2M | 3M*6M*2.2M | 3M*7M*2.2M | 3M*7M*2.2M | 3M*8M*2.2M |
POWER INPUT | KW | 2.8 | 5.2 | 9.3 | 11.2 | 14.8 |
POWER SUPPLY | V/PH/HZ | 2200V/3PHRASE/50HZ | 380V/3PHRASE/50HZ | 380V/3PHRASE/50HZ | 380V/3PHRASE/50HZ | 380V/3PHRASE/50HZ |
RATED CURRENT | A | 5.5 | 10.8 | 18.5 | 22.5 | 29.6 |
HEATING CAPACITY | KW | 10.5 | 21 | 35 | 42 | 45 |
COOLING CAPACITY | KW | 7.8 | 18 | 25 | 32 | 35 |
DEHUMIDIFY | L/H | 12 | 25 | 42 | 50 | 60 |
MAX.TEMPERATURE | ℃ | 75 | 75 | 75 | 75 | 75 |
WORKING CONDITION | ℃ | 0-43 | 0-43 | 0-43 | 0-43 | 0-43 |
ELECTRIC SHOCK PROTECION GRADE | GRADE | Class I | Class I | Class I | Class I | Class I |
NOISE | dB(A) | ≦75db(A) | ≦75db(A) | ≦75db(A) | ≦75db(A) | ≦75 |
POWER CONSUPTION/H | KW | 2.8 | 5.2 | 9.3 | 11.2 | 14.8 |
ELECTRIC HEATER | KW | 6 | 9 | 12 | 12 | 12 |
BLOWING TYPE | \\ | HORIZONTAL BLOWING 360 | HORIZONTAL BLOWING 360 | HORIZONTAL BLOWING 360 | HORIZONTAL BLOWING 360 | HORIZONTAL BLOWING 360 |
DIMENSION OF DRYER | mm | 1675*860*1280 | 1760*1060*1280 | 2120*1356*1590 | 2120*1356*1590 | 2160*1500*1608 |
WEIGHT | KG | 180 | 285 | 300 | 500 | 550 |
DRYER SYSTEM DIAGRAM
Hello River Brand Industrial Herb Dryer Rosemary Oven Heat Pump Dryer for Bay leaf and Mint Leaf Vegetable Drying Machine
Moringa oleifera is a perennial deciduous tropical tree widely planted in tropical and subtropical regions of Asia and Africa. There are about 13 species of Moringa oleifera in the world, mainly distributed in India, China and Japan in Asia, Egypt, Kenya, Ethiopia, Angola, Namibia, Sudan, Mexico and the United States in Africa. Many tropical and subtropical countries and regions are very popular economic plants all over the world.
Development and processing of related products of Moringa oleifera: Harvesting of tender shoots of Moringa oleifera. When picking, usually when the tender shoots are 20-30 cm long, the leaves are fully unfolded and picked artificially at their non-ageing places. The young shoots after picking can be directly eaten or dried. Harvesting of mature leaves of Moringa oleifera: Generally when the leaves are dark green, they can be dried or dried in time after harvesting, which can be made into Moringa oleifera tea, etc. Moringa oleifera seed harvesting: After harvesting, the fruit can be eaten in shells or dried to facilitate preservation.
Moringa oleifera leaves have high moisture content, up to 70%, about 8-10 hours a batch. Air source heat pump dryer can be used to bake the leaves and seeds of Moringa oleifera. Its mineral elements, protein and crude fat content will not be affected.
The Moringa leaf plantations in Cambodia have begun to use heat pump dryers to dry the leaves and seeds of Moringa related product, and the results are very good. We have a Moringa leaf dryer system in Cambodia. The drying system uses two 12P dryer machine, equipped with a drying room 4 meters wide and 12.5 meters long, and can hold about 14 trolley with 14 trays per trolley.
The system uses a planar 360 degree circulating air structure, with 12*250W fans on each side, and the air volume is sufficient. With the waste heat recovery, evaporator condensation dehumidification dual-effect heat recovery device, the system can dehumidify up to 100 liters per hour! It is also equipped with strong exhaust fans and new valves to ensure the dehumidification effect. The Moringa Dryer system work very well now.
Development and processing of related products of Moringa oleifera: Harvesting of tender shoots of Moringa oleifera. When picking, usually when the tender shoots are 20-30 cm long, the leaves are fully unfolded and picked artificially at their non-ageing places. The young shoots after picking can be directly eaten or dried. Harvesting of mature leaves of Moringa oleifera: Generally when the leaves are dark green, they can be dried or dried in time after harvesting, which can be made into Moringa oleifera tea, etc. Moringa oleifera seed harvesting: After harvesting, the fruit can be eaten in shells or dried to facilitate preservation.
Moringa oleifera leaves have high moisture content, up to 70%, about 8-10 hours a batch. Air source heat pump dryer can be used to bake the leaves and seeds of Moringa oleifera. Its mineral elements, protein and crude fat content will not be affected.
The Moringa leaf plantations in Cambodia have begun to use heat pump dryers to dry the leaves and seeds of Moringa related product, and the results are very good. We have a Moringa leaf dryer system in Cambodia. The drying system uses two 12P dryer machine, equipped with a drying room 4 meters wide and 12.5 meters long, and can hold about 14 trolley with 14 trays per trolley.
The system uses a planar 360 degree circulating air structure, with 12*250W fans on each side, and the air volume is sufficient. With the waste heat recovery, evaporator condensation dehumidification dual-effect heat recovery device, the system can dehumidify up to 100 liters per hour! It is also equipped with strong exhaust fans and new valves to ensure the dehumidification effect. The Moringa Dryer system work very well now.
Buyer Guidelines Of Hello River Brand China Supplier Clove Drying Machine Industrial Vegetagle Dryer Commercial Fruit Dehydrator Better Hygeiene
Recommended type matching of drying machine &drying chamber size
250MODEL | DRYER QUANTITY | DRYING CHAMBER SIZE(METER) | FAN MODEL | FAN QUANTITY |
HRD03S | 1 | 2.2M*3.5M*2.2M | 250W | 9 |
HRD03S | 2 | 3M*7M*2.2M | 250W | 12 |
HRD06S | 1 | 3M*6M*2.2M | 250W | 12 |
HRD06S | 2 | 3M*8M*2.2M | 250W | 24 |
HRD12S | 1 | 3M*7M*2.2M | 550W | 9 |
HRD12S | 2 | 4M*11M*2.3M | 550W | 18 |
HRD15S | 1 | 4.6M*6.5M*2.3M | 750W | 9 |
HRD15S | 2 | 4.6M*11M*2.3M | 750W | 18 |
Main Features and Projects for Hello River Brand Industrial Herb Dryer Rosemary Oven Heat Pump Dryer for Bay leaf and Mint Leaf Vegetable Drying Machine
1, Energy savingAdopt heat pump technology, absorb heat from air and recovery waste heat at the same time
Adopt close dehumidify + circulating drying type, saving operating cost;
2, Exact control temperature and humidity
The drying temperature can be easily controlled by PLC +Touch Screen control system.
3, Uniform drying
By using the forced ventilation function, there are partition sheet and fan motors inside the drying chamber to make sure hot air cycle, so the raw materials can be dried evenly
4, The temperature: 10-75°C, Max 75°C, similar nature drying.
5, The baking plate dimensions and materials can customize as customer request.
6, Good drying quality.
During drying, the material does not craze, does not distortions, non-discoloring, never degenerate, non-oxidize, drying completely, with good rehydration, keep nutrient content;
7, Safe and reliable operation
Automatic intelligent control, 24-hour continuous drying; Without waste gas and waste heat pollution,low noise.
8. The seafood dryer system can stimulate cold air like winter weather to dry the oily and big fish to acheive a better taste and shape of dired fish. Some big fish which have many fat inside the fish body have to be dried by cold air to avoid the fat come ourt from the body to spoil the taste and shape.
Application range
Air-energy heat pump drying equipment has been applied in many fields.
Our Company
Trade Show
Packing & Delivery
FAQ
Pre-Sales Service
1, Inquiry and sonsulting support
2, Sample testing support
3, View our factory
After-Sales Service
1, Technical support for your installation, operation and maintenance.
2, One year's warranty, and you can pay for extended warranty
3, We supply the spare parts and technical support in & after the warranty time.
4, We supply the training course to your workers at our factory if you need
Похожие товары
Запечатывающий пенный клей RAMPF, двухкомпонентный клей для автоматической машины для запечатывания пены
5,00 $ - 10,00 $

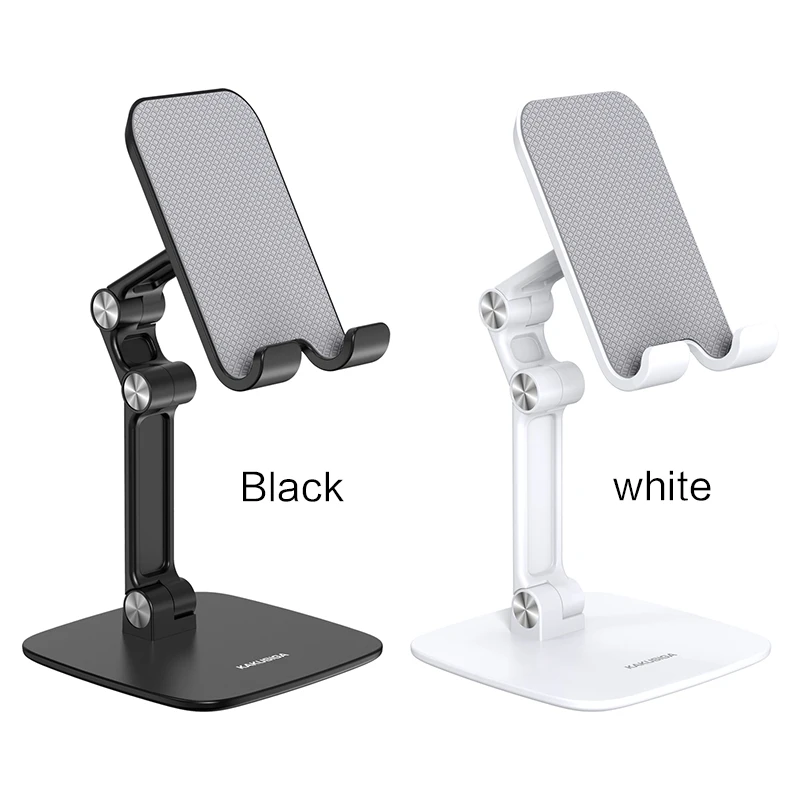

Подставка для мобильного телефона KAKUSIGA, Регулируемая Гибкая настольная подставка для мобильного телефона
0,50 $ - 3,40 $

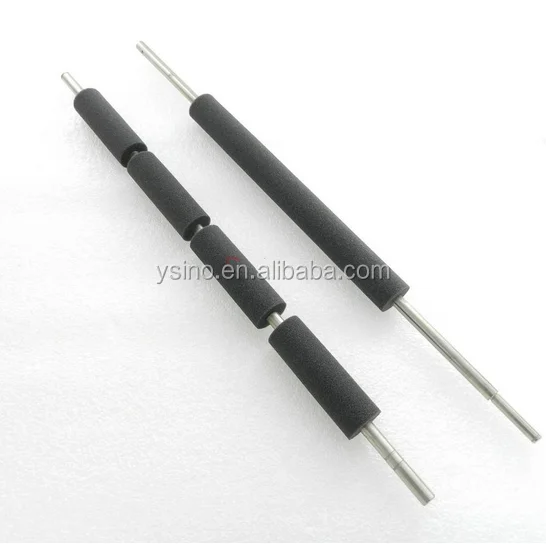

Классический стиль ролик спонж R8-G3011 R8-G3071 для Duplo DP S510 520 550 620 650 850 U520 550 620 650 850 Запчасти для копира

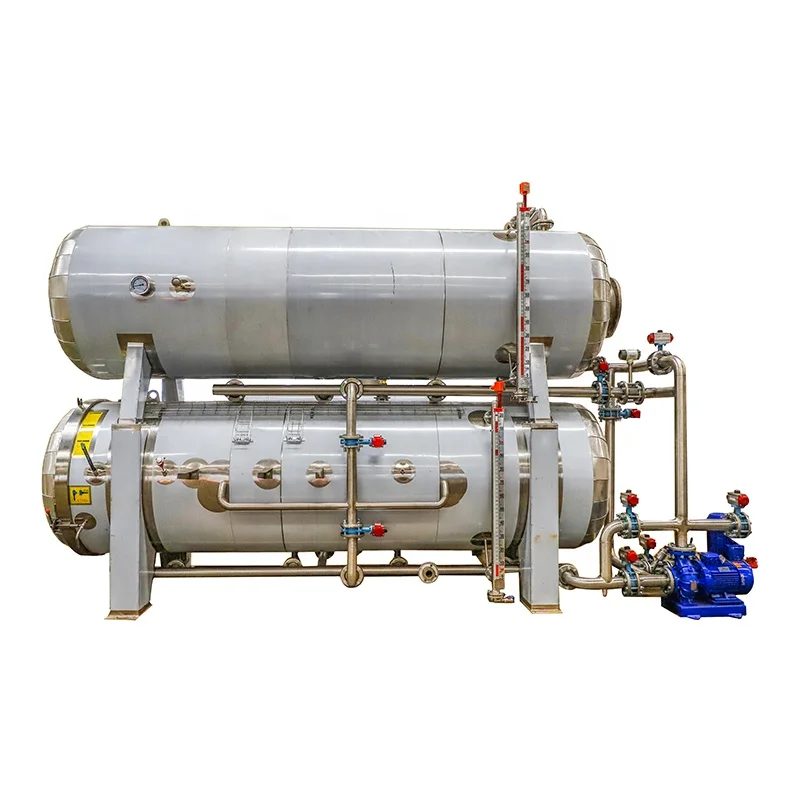

Промышленный 304 автоклав DTS из нержавеющей стали для стопорного мешка, стерилизатор для пищевой воды
51 187,00 $ - 56 875,00 $

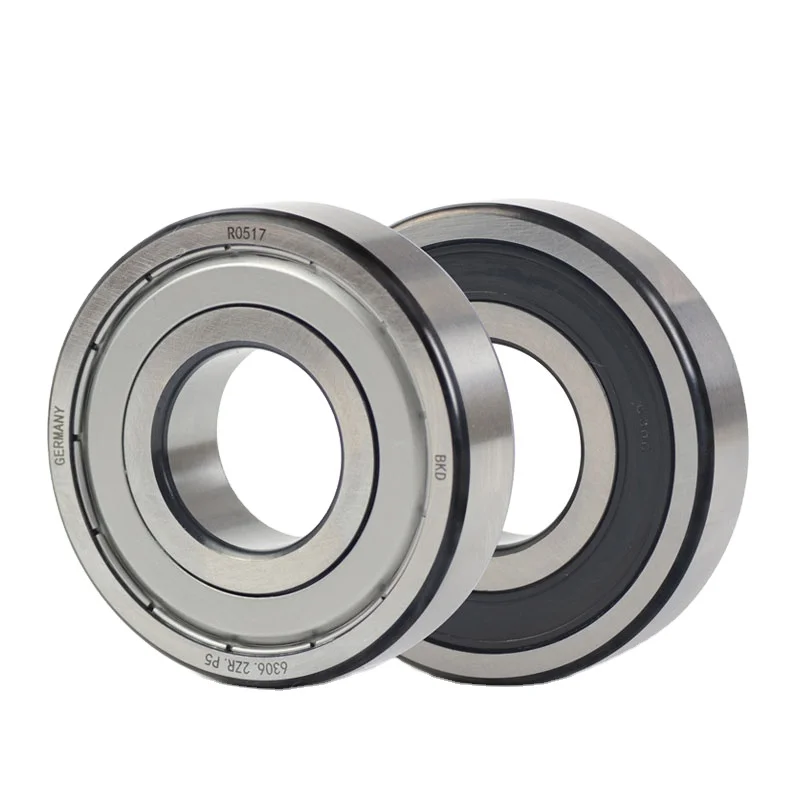

Стандартный подшипник 6300 6301 6302 6303 6304 6305 2rs 2zz металлический этиленового пропилен-каучука открытого типа Однорядный шариковый с глубоким
0,29 $ - 1,16 $

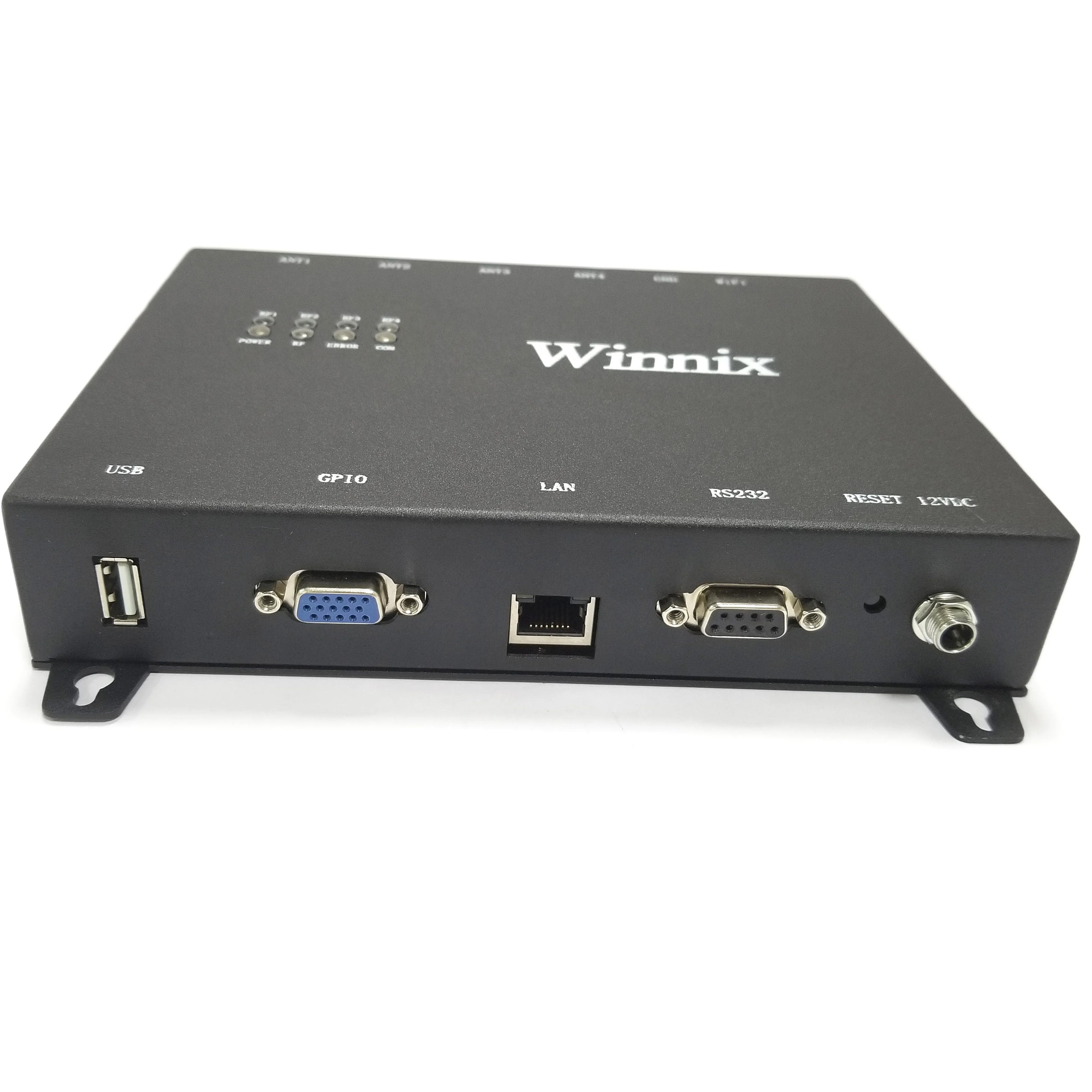

865-868 МГц winnix полный rfid система для запуска системы 4 порт RFID считыватель/антенны и кабель
