Large Processing Capacity Ore Washing Plant in Pakistan
1 200,00-54 000,00 $
Форуй Золотой скруббер барабан для хромированной промывки ротационный с экраном
- Категория: >>>
- Поставщик: Gongyi Forui Machinery FactoryGongyi Factory
Сохранить в закладки 1601054241360:
Описание и отзывы
Характеристики
Production Description

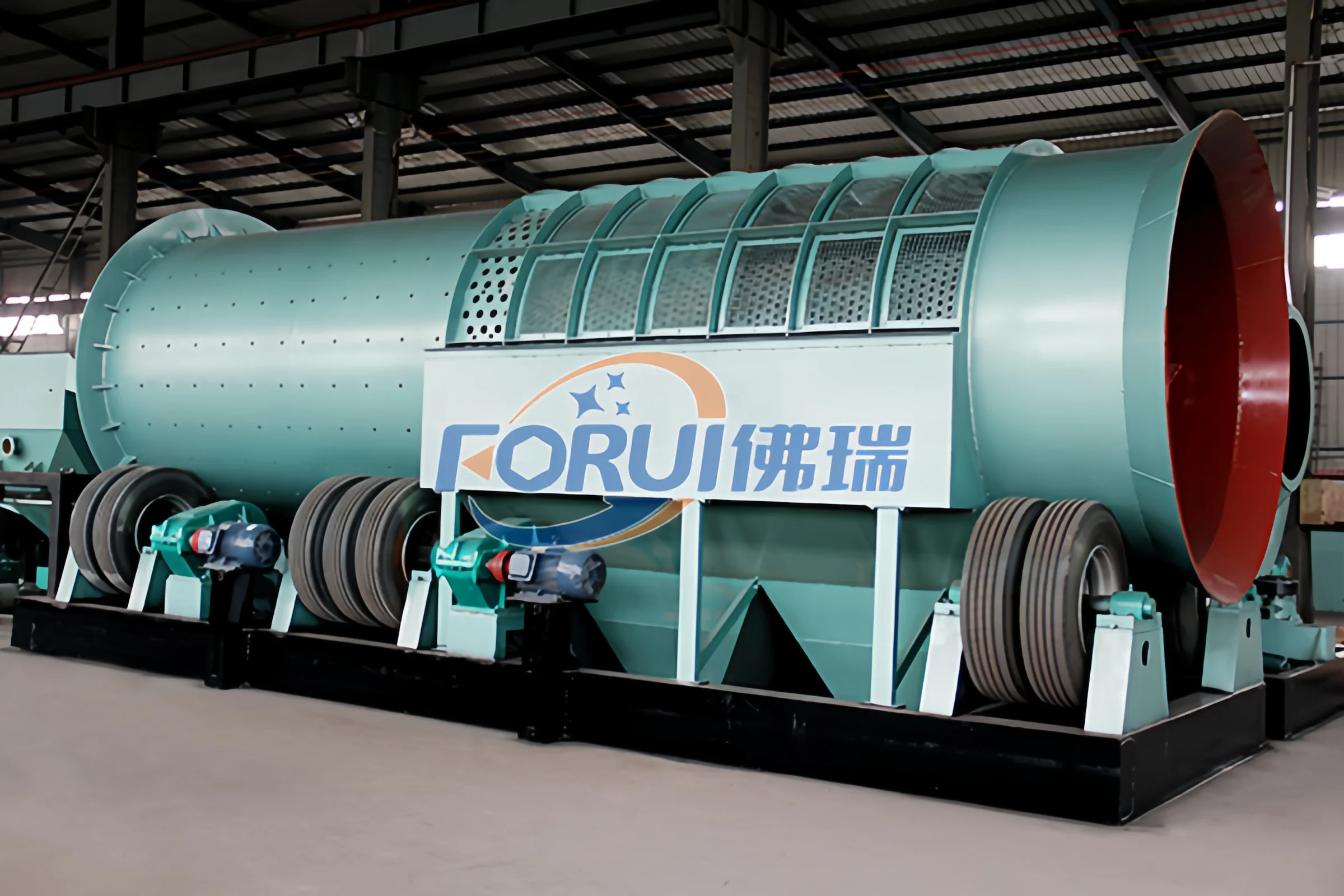

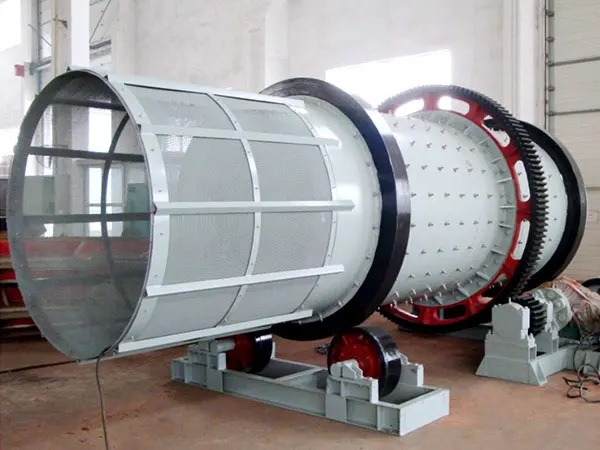

Forui Tommel Washing Machine for Ore /Rock
The Trommel Washing Machine is used in pre-processing ore with clay, including washing, desliming, and screening. It can pre-concentrate ores containing clay and sand to improve the beneficiation index in the later processes. It’s widely used for washing and selecting manganese, iron, limestone, tungsten, silica ores, and stones/rocks
Ore is feed into the trommel washing machine and undergoes desliming and cleaning through rotation and water action. A single or double-layer screen inside the cylinder sorts ore sizes; larger ore drops to the discharge, while smaller ore passes through to the next stage, including luice boxes, centrifuges, or shaking tables.
Details Images

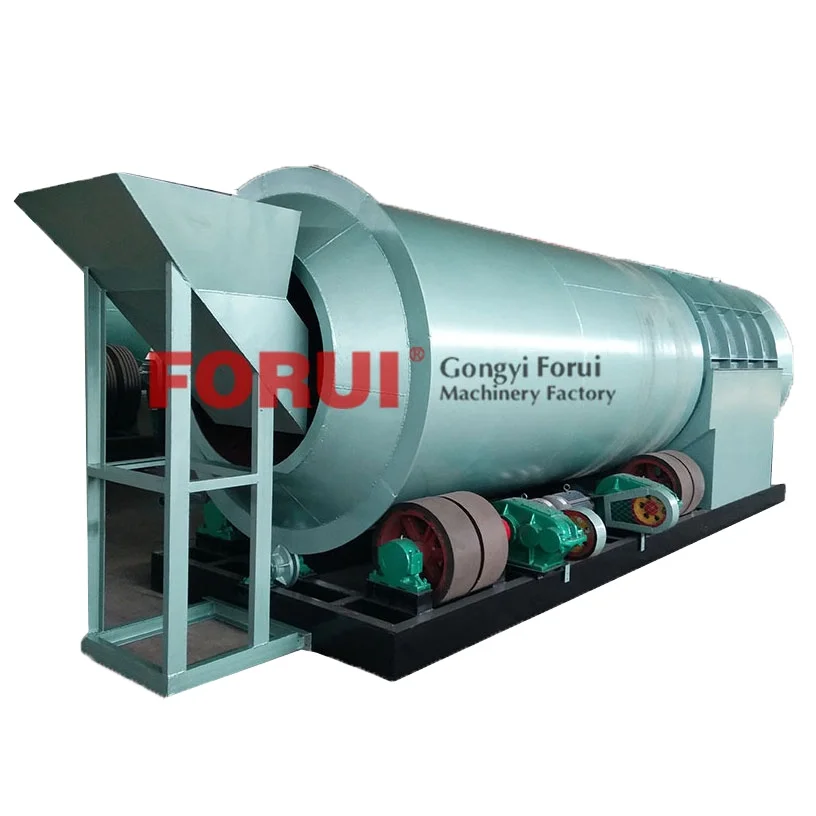

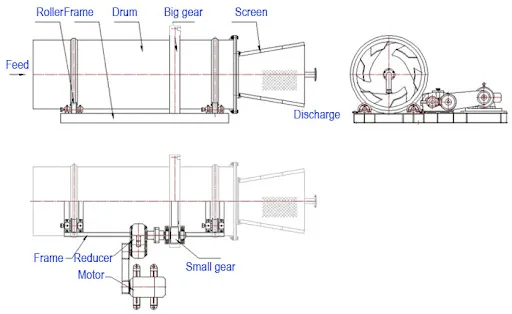

Main structure of Trommel Drum Washing Machine
1.Drum : For washing the clay.
2. Inner plate: Separating the clay and ores.3. Screen mesh: Sieving different sizes ores.
4. Motor: electric or diesel according to your needs.
5.Carrier rollers: For support the drum
6. Gear, Reduction Box, coupling.
7. Frame: Supporting the reduction box and motor.
Manganese Steel Inner Liner
Rubber Inner Liner

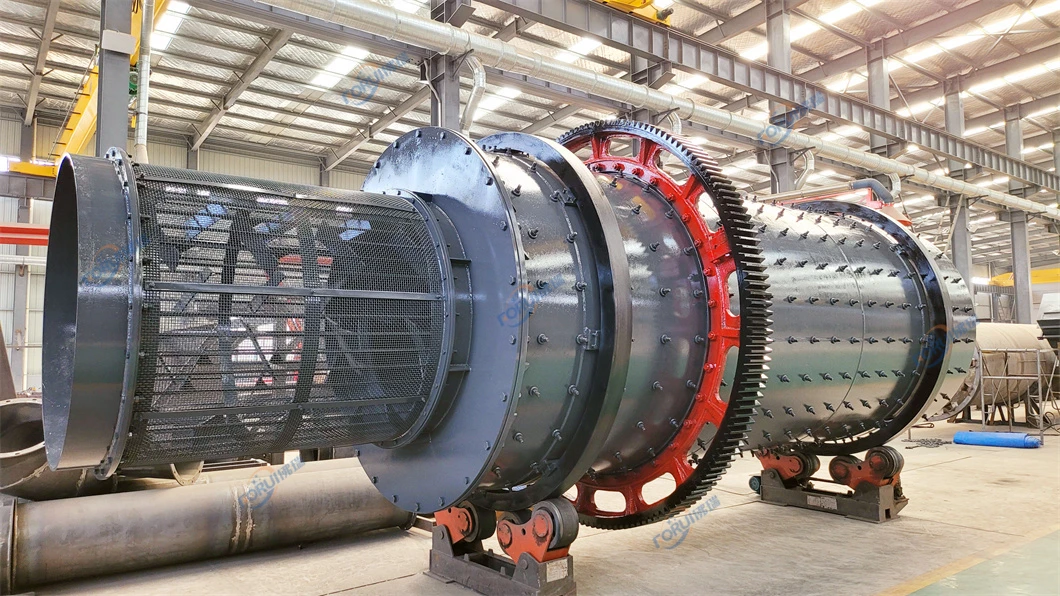

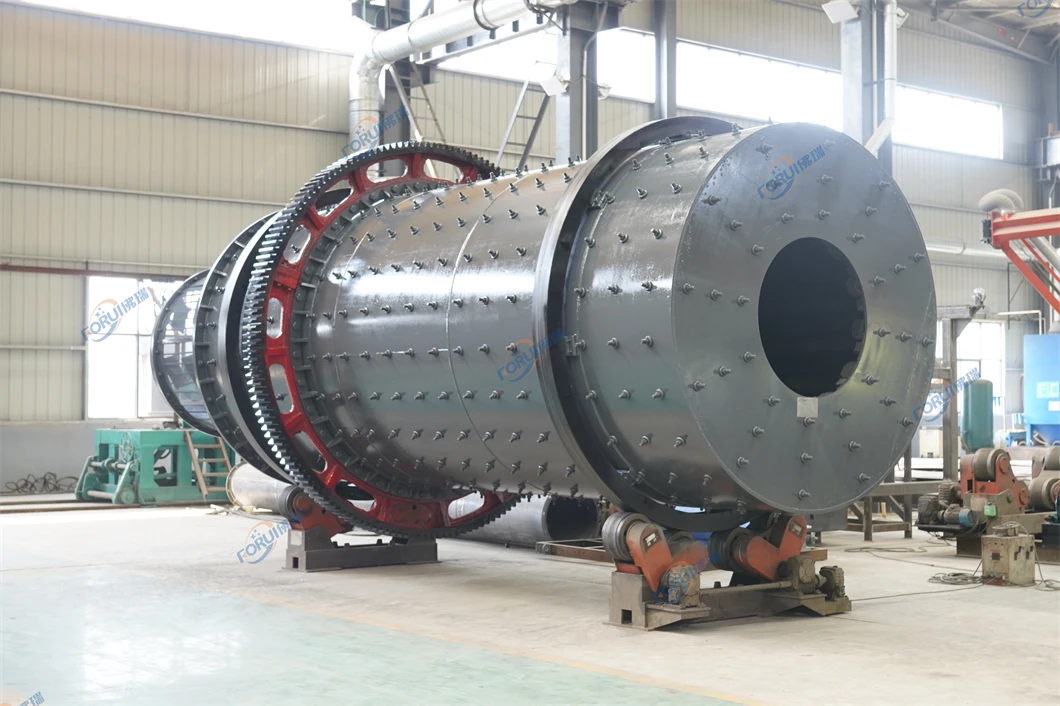

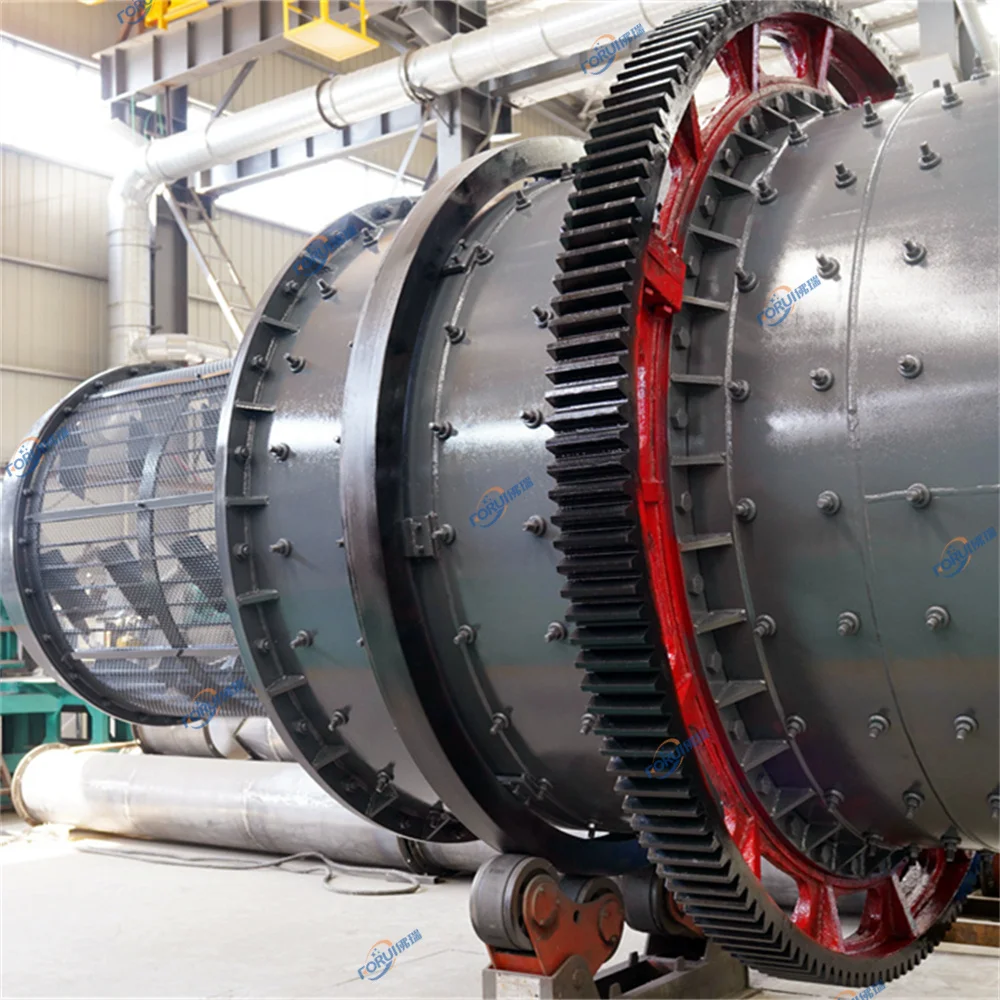

Gear Driven

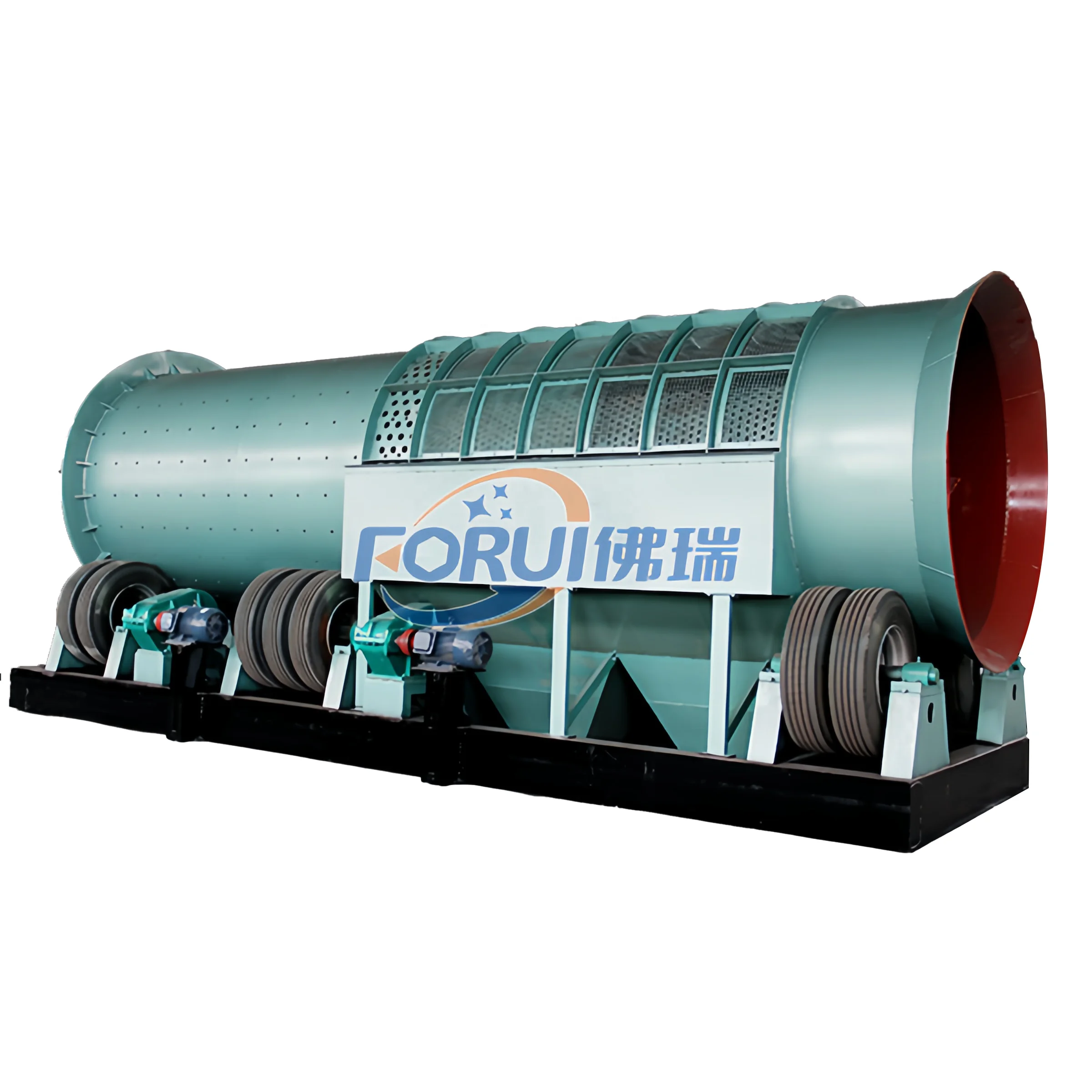

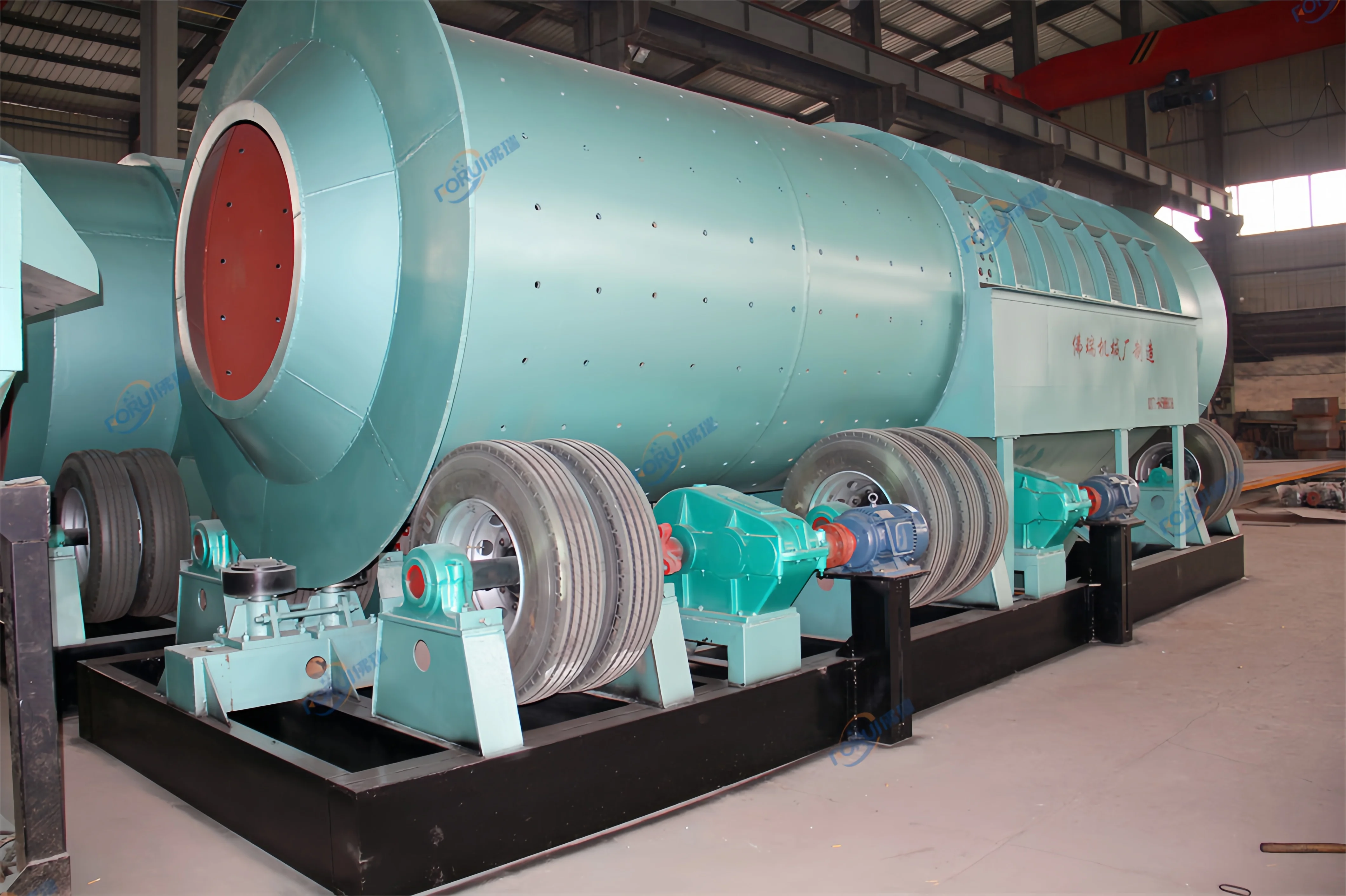

Weel Driven
Polyurethane Screen Mesh
Mn-steel Screen Mesh
Stainless Screen Mesh
*OEM is acceptable for us.
We can make the Trummel drum washing machine according to your requirements.( length, diameter of the drum, screen mesh aperture, screen mesh quality, liner plate, portable or stationary,voltage etc.)
Specification
Trommel Drum Washing Machine | ||||||||||
Model | Max Feed Size (mm) | Capacity (T/H) | Dimension (mm) | Power (Kw) | Weight (Ton) | |||||
YTXK1030 | 80 | 20-30 | Φ1000*3000 | 15 | 3.8 | |||||
YTXK1230 | 100 | 30-50 | Φ1200*3000 | 22 | 4.7 | |||||
YTXK1540 | 160 | 50-80 | Φ1500*4000 | 30 | 6.9 | |||||
YTXK1840 | 200 | 80-120 | Φ1800*4000 | 37 | 13.2 | |||||
YTXK2060 | 210 | 100-140 | Φ2000*6000 | 55 | 14.8 | |||||
YTXK2080 | 210 | 100-140 | Φ2000*8000 | 55 | 15.5 | |||||
YTXK2250 | 230 | 120-160 | Φ2200*5000 | 55 | 15.9 | |||||
YTXK2460 | 240 | 200-300 | Φ2400*6000 | 55 | 26 | |||||
What you should know when sizing a Trommel drum washing machine?
* The type of clay/silt contamination that needs removed
* The ore/rock feed size
* The tons per hour feed solids capacity
* The process flow and equipment location of required washer in your processing plant
* The ore/rock feed size
* The tons per hour feed solids capacity
* The process flow and equipment location of required washer in your processing plant
If you have needs for ore cleaning, please contact me.
We will provide you with an appropriate solution.

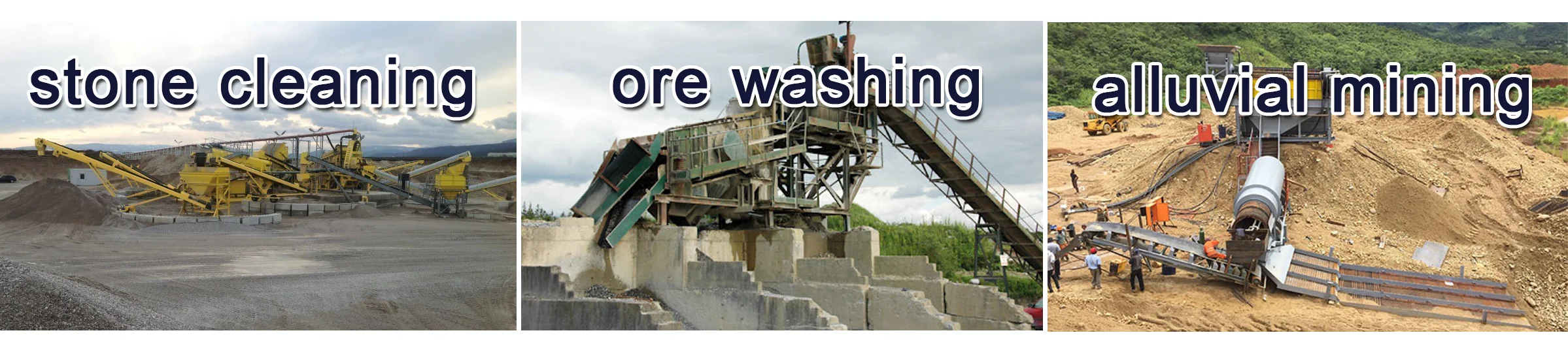

Application
The trommel drum mining wshing machine is widely used for stone cleaning, ore washing and allucial mining industry.

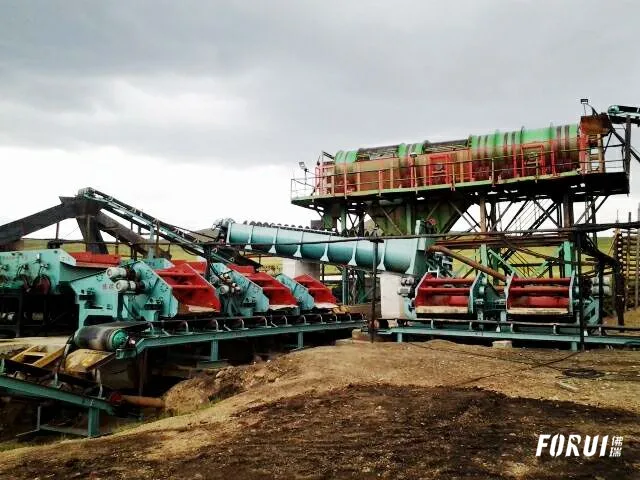

Our project of trommel drum washing machine

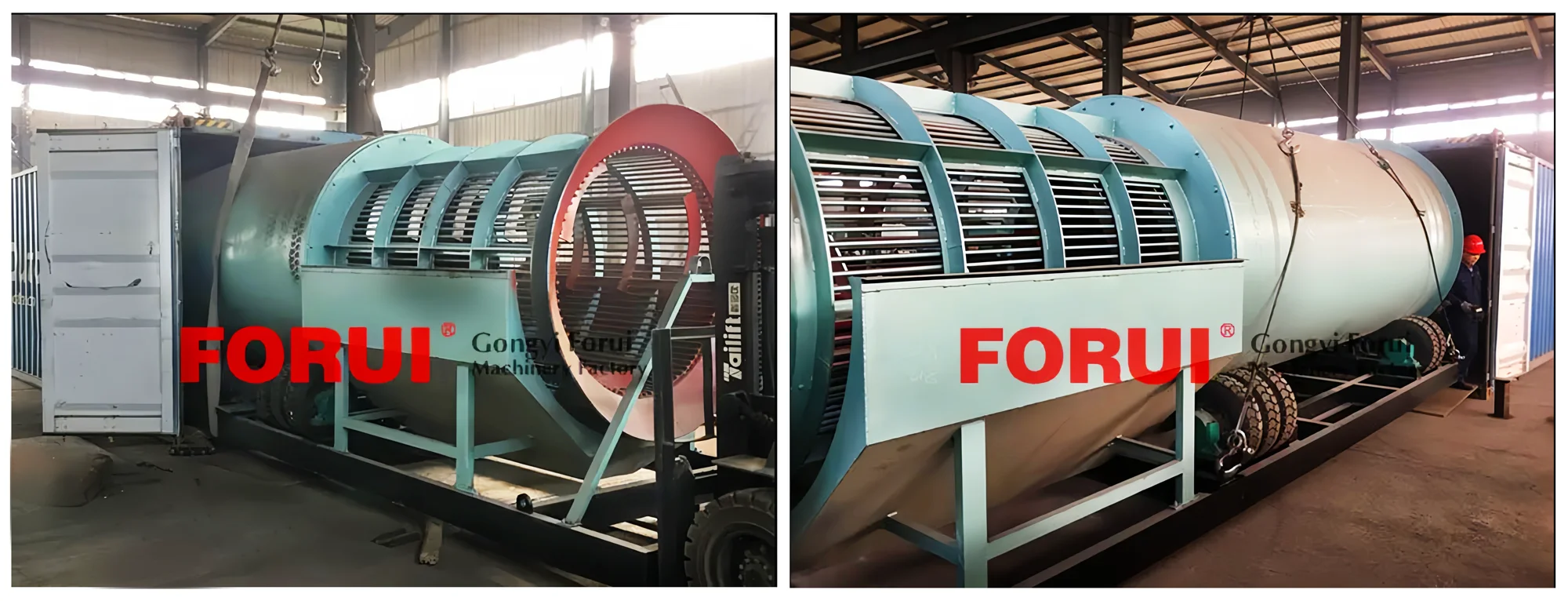

Package
Company Profile
Henan Forui Machinery Technology Co., Ltd
Gongyi Forui Machinery Factory is one of the leading suppliers of beneficiation process and equipments in Asia.Our mission is to become a world-class company leading the transformation of the mineral processing market.
Our main business is gravity mineral processing about placer/alluvial gold ore, metal, non-metal, smelting slags, and waste, etc.
Our Core advantages
**Comprehensive After-Sales Service:
Our team of professional engineers provides on-site support to ensure efficient operation of the equipment.
**One-Stop Processing Solution:
Woffer a complete production line from ore cleaning and crushing to finished minerals.
**Customer-Focused Testing:
**Comprehensive After-Sales Service:
Our team of professional engineers provides on-site support to ensure efficient operation of the equipment.
**One-Stop Processing Solution:
Woffer a complete production line from ore cleaning and crushing to finished minerals.
**Customer-Focused Testing:
By analyzing data from ore sample testing, we develop precise processing plans and provide equipment accordingly.
**Professional Consultation:
**Professional Consultation:
Our team provides professional mining solution consultation services, helping clients make informed decisions.
FAQ
1.How is your products quality?
Answer: Our products are manufactured strictly according to national and international standard, and we will do a test on every machine before delivery.
Answer: Our products are manufactured strictly according to national and international standard, and we will do a test on every machine before delivery.
2.Guaranteed?
Answer: All of our products are guaranteed for one year. If products quality is not consistent with the description or promise we made before you place order, we promise 100% refund.
Answer: All of our products are guaranteed for one year. If products quality is not consistent with the description or promise we made before you place order, we promise 100% refund.
3.How about price?
Answer: For the complete same machine, we can promise our quality is the best when the price same as other competitors, and our price can be lowest when the quality at standard level.
Answer: For the complete same machine, we can promise our quality is the best when the price same as other competitors, and our price can be lowest when the quality at standard level.
4.Trade and Payment Terms?
Answer: FOB, CIF, CFR, etc. are acceptable
Answer: FOB, CIF, CFR, etc. are acceptable
We can accept T/T and L/C; 30% deposit, 70% balance before factory delivery.
