Products Description
Products Description Of Mini Hydraulic Spider Crawler 5 ton 3 Ton Lifting Cranes Spider Crane For Sale
The spider crane adopts rubber crawler type hydraulic traveling device, and the hoisting, telescopic, heave and rotation devices are all driven by hydraulic pressure. The whole machine adopts the design and optimization concept of 3D modeling, finite element analysis and whole machine calculation. It has the advantages of good flexibility, convenient operation, compact structure, light and flexible operation, reliable use, and convenient maintenance. This machine is suitable for working in narrow places where large cranes cannot be deployed.
The spider crane is a supplement to the traditional crane, which solves some hoisting and construction problems in special environments and complex spaces. With excellent accessibility, the safety and efficiency of the operation are significantly improved. With the development and progress of society, hoisting and handling are becoming more and more mechanized, and more and more commercial plazas are rising. Spider crane rental can move and transform in a small space, and let the machinery help us to complete the hoisting and handling smoothly.zmwm19
Product Paramenters
Parameters Of Mini Hydraulic Spider Crawler 5 ton 3 Ton Lifting Cranes Spider Crane For Sale
Specification | 2.95t _ | ||
Maximum working radius | 7.8m × 0.2t _ | ||
Maximum ground lift | 9.2mX0.8t _ _ _ | ||
Max underground lift | --- | ||
winch | Hook up speed | 0-8m/min | |
Wire Rope Specifications | Φ8mm×45m | ||
Telescopic device | Boom form | 5 -section boom , U-shaped high-strength manganese | |
Boom length/time | 2.8 m- 8.2 m/2 2 sec | ||
undulating device | Boom angle/time | 0-7 5 °/13sec | |
gyratory device | Rotation angle/speed | 0-360° (continuous)/60sec | |
outrigger | Outrigger Action Form | Manual unscrewing + hydraulic automatic support (two legs) | |
Maximum extension (mm) | 4010 (long) X 3260 (rear) , (front) | ||
walking device | way of walking | Hydraulic motor drive, two-speed | |
Walking speed | 0-2.5km/h | ||
Gradeability | 20° (36%) | ||
motor | Voltage | AC380V | |
operating system | Type of operation (jib/outrigger), manual travel | Manual operation, manual walking + remote control (optional) | |
Operating characteristics | Comai hydraulic system (optional) | ||
The standard configuration | Diesel engine and electric motor (dual power) | ||
Vehicle size | Length 2830*width 800*height 1650 | ||
Craftsmanship | Paint assembly process | ||

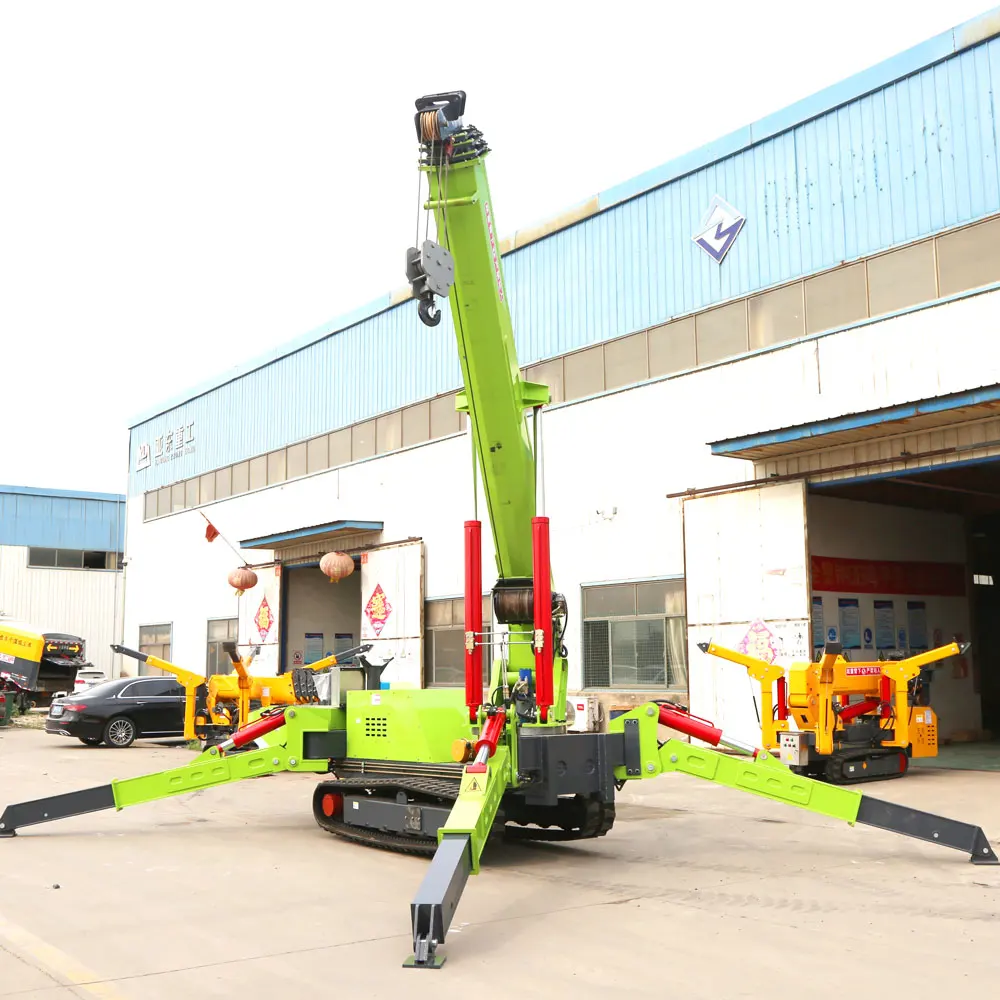

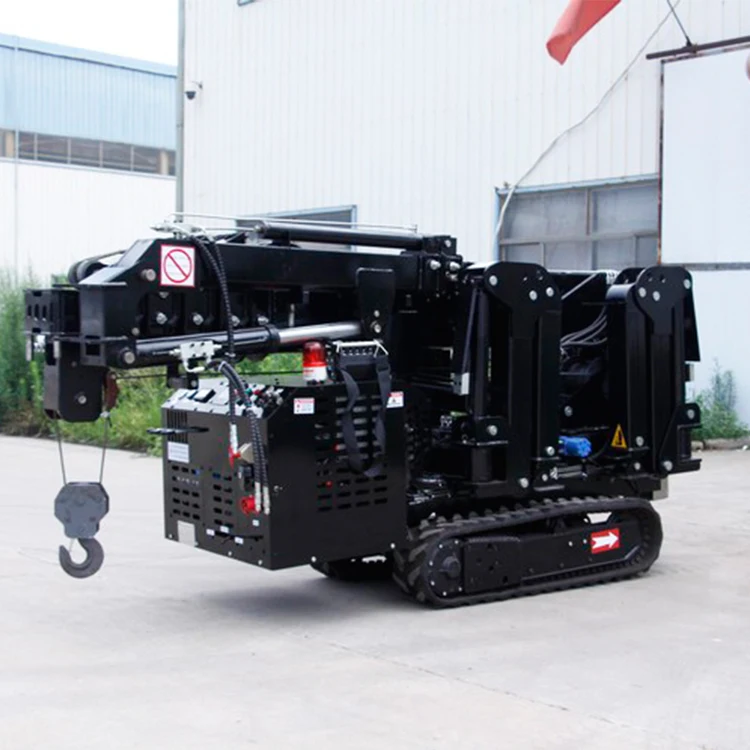

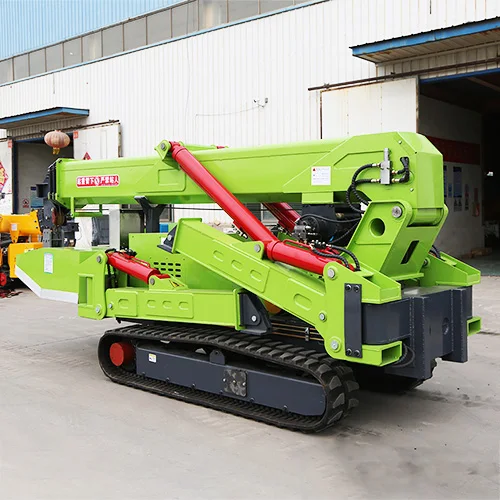

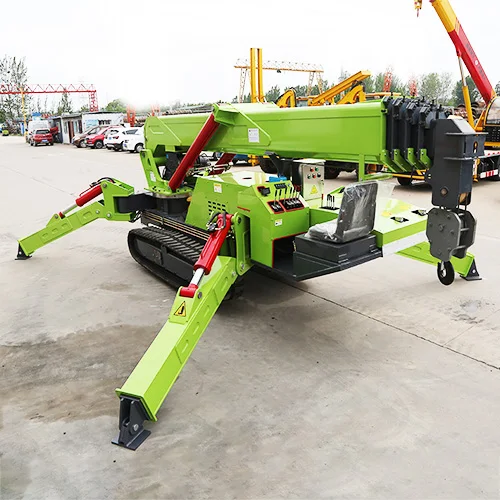

Details Images
Details Images Of Mini Hydraulic Spider Crawler 5 ton 3 Ton Lifting Cranes Spider Crane For Sale
Company Profile
FAQ
1. You are a manufacturing factory or trading company?
China Coal Group is a manufacturing factory base of mines support equipment, transport equipment, lifting equipment, spray equipment, drilling equipment, ventilation equipment and other products.
2. Where is your factory located?
Currently we have one factories in China. One located in Jining, Shandong Province, China . You are warmly welcome to visit us at any time.
3. What are your main products?
We mainly produce mining machinery, road machinery and railway equipment. We can provide you with any machinery you need!
4. How long is the production leadtime?
Generally it is 15-20 days for goods in stock. In the case of out of stock or large orders, it will take 20-30 days. QTY of the orders will be taken into consideration.
5. What payment terms do you accept?
Payment terms: TT in advance (30% of deposit before production and 70% balance before shipment), bank transfer, Paypal, L/C etc.
6. How do your quality control systems operate?
We have professional designer team, and employ experienced engineers to strictly guarantee the production. Meanwhile our factory owns ISO9001 and is CE and SGS certified.
China Coal Group is a manufacturing factory base of mines support equipment, transport equipment, lifting equipment, spray equipment, drilling equipment, ventilation equipment and other products.
2. Where is your factory located?
Currently we have one factories in China. One located in Jining, Shandong Province, China . You are warmly welcome to visit us at any time.
3. What are your main products?
We mainly produce mining machinery, road machinery and railway equipment. We can provide you with any machinery you need!
4. How long is the production leadtime?
Generally it is 15-20 days for goods in stock. In the case of out of stock or large orders, it will take 20-30 days. QTY of the orders will be taken into consideration.
5. What payment terms do you accept?
Payment terms: TT in advance (30% of deposit before production and 70% balance before shipment), bank transfer, Paypal, L/C etc.
6. How do your quality control systems operate?
We have professional designer team, and employ experienced engineers to strictly guarantee the production. Meanwhile our factory owns ISO9001 and is CE and SGS certified.
