Высокоскоростной Однопроходный цифровой струйный принтер гофрированный картон картонная коробка печатная машина Китай
- Категория: >>>
- Поставщик: Shandong Ruisheng Digital Printing Equipment Co. Ltd.
Сохранить в закладки 1601057107148:
Описание и отзывы
Характеристики
Products Description
High Speed Single Pass Digital Inkjet Printer Corrugated Cardboard Carton Box Printing
Machine China
Machine China
1. One piece printing, without plate, save printing cost
2. With original imported i3200 A1 head, support CMYK printing
3. Use environmentally friendly water-based ink, dye ink and pigment ink optional
4. With quality servo motor, high mute guide rail and drag chain, ensure stable movement
5. Full automatic leading edge feeding system, repeated positioning accuracy
6. With laser sensors, automatically distinguish multiple sheets, cardboard warping and cardboard errors
7. Humanized operating software, can provide remote after-sales, with intelligent ERP management
8. Can provide slitting, printing, molding, nailing, automatic storage., etc comprehensive solutions
2. With original imported i3200 A1 head, support CMYK printing
3. Use environmentally friendly water-based ink, dye ink and pigment ink optional
4. With quality servo motor, high mute guide rail and drag chain, ensure stable movement
5. Full automatic leading edge feeding system, repeated positioning accuracy
6. With laser sensors, automatically distinguish multiple sheets, cardboard warping and cardboard errors
7. Humanized operating software, can provide remote after-sales, with intelligent ERP management
8. Can provide slitting, printing, molding, nailing, automatic storage., etc comprehensive solutions
Product Specification
Product Name | Digital Single Pass Corrugated Cardboard Printing Machine |
Product Model | RS2500-S-E24 |
Printhead quantily | 24 units |
Printhead type | Micro piezoelectric high-precision print head |
Ink type | Special water-based dye ink, special water-based pigment ink |
Color model | CMYK |
Medium distance | 2mm-4mm |
Printing resolution | ≥360*600dpi |
Printing efficiency | Around 50-100m/minute |
Printing format | 800mm*unlimit |
Drying speed | Liner-board can be dry once print out |
Working environment | 20-25℃ Indoor,Humidity 50-70% |
Ink supply | Automatic ink supply |
Feeding mode | Automatic leading edge feeding,default pressure roller platform,solution platform can be customizes |
Material thickness | 1.5mm-40mm(max can be ordered to 50mm) |
Operate system | Professional RIP software, professional printing software, WIN10-64 bit operating system |
Power Supply | About 20KW power:AC380±10%,50-60HZ |
Machine Dimension | 5645×3750×2123(mm) |
Weight | 5000 KGS |
Warranty | 12 months exclude the consumables |
Apperance of Sngle Pass Carton Printer

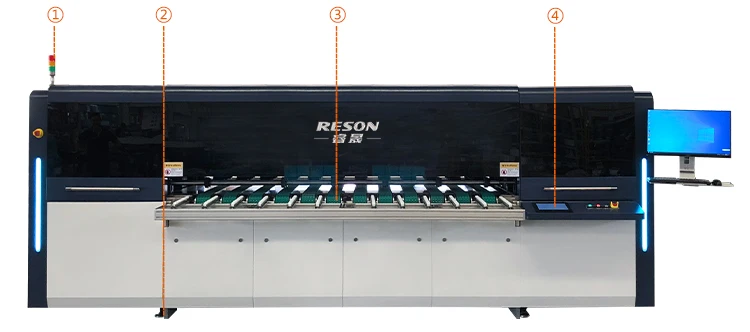

Part Name of Single Pass Corrugated Cardboard Printer
①Warning light ②Universal wheel ③Conveyor belt ④Touch control panel

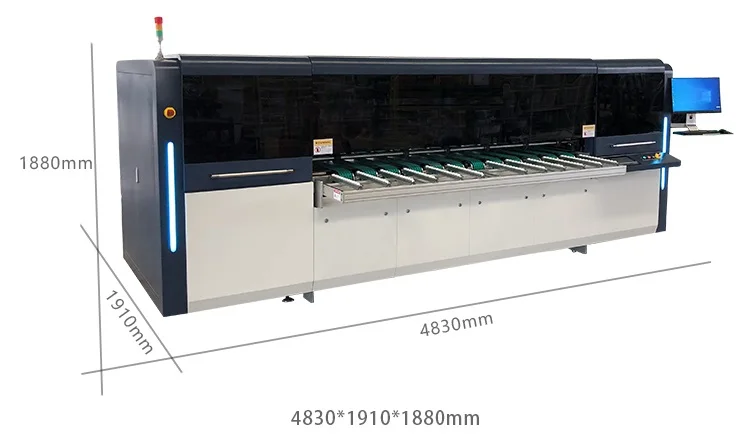

Size of Single Pass Carton Printing Machine

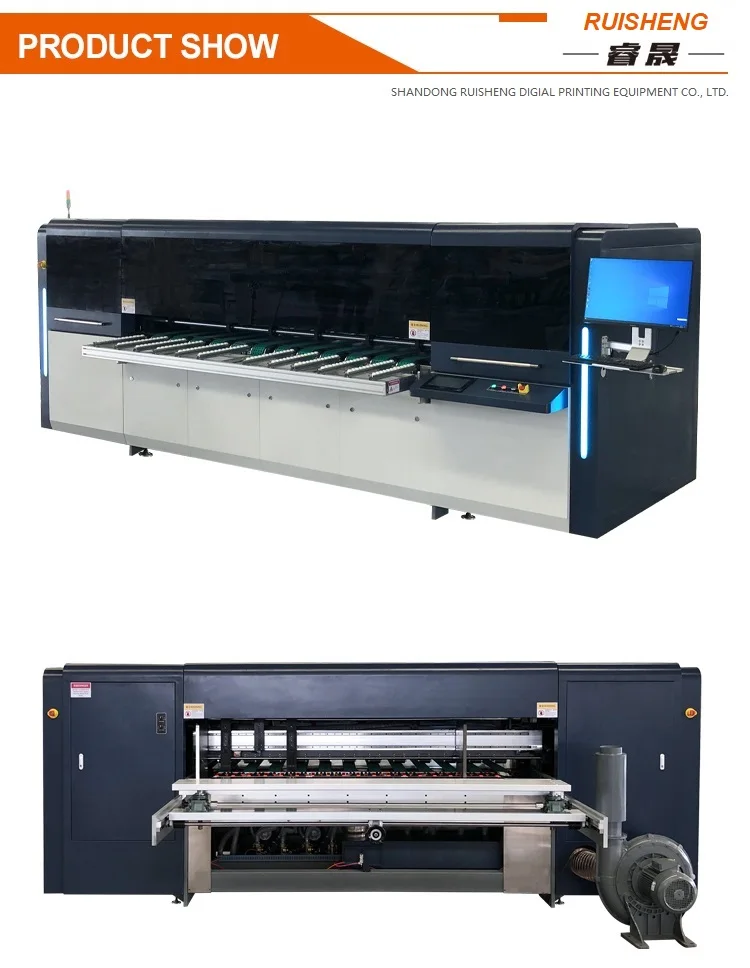

Product Details
Printing Samples

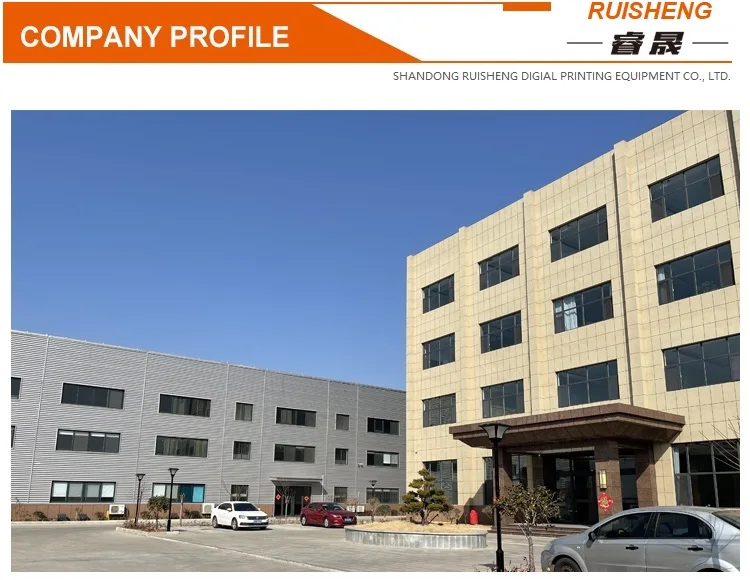

Company Profile
Shandong RuiSheng Digital Printing Equipment Co., LTD.
Shandong Ruisheng Digital Printing Equipment Co., LTD, a manufacturer of industrial corrugated cardboard printer in China, including Scannning corrugated cardboard printing machine and Single pass corrugated cardboard printing machine, established in 2009. lt is a comprehensive solution provider of industrial digital carton printing with digital inkjet printing technology as the core and integrating R&D, production, sales and after-sales service. Professional to provide customers with digital inkjet printing equipment, software, ink, accessories and professional services. Product applications cover advertising, packaging, printed circuit board and other industries, is committed to providing customers with environmental protection, energy saving, high efficiency, cost-effective corrugated box digital printing machine.
Ruisheng has launched Muti Pass series of scanning digital corrugated box printing machine for small batch printing of corrugated board, single pass high speed digital corrugated box printing machine for large, medium and small types of corrugated board orders, and Single Pass high speed digital printer for base paper pre-printing. From sheet printing to variable data seamless change,from single printing to ERP linkage, to provide customers with a full range of corrugated digital printing solutions.
Customer Photos
Packing & Delivery
FAQ
1. What kind of ink the corrugated cardboard printer can use?
Our carton printing machine can use water base ink, like dye ink or pigment ink
2. What is the cost of ink for corrugated box printer to print on the materials?
Depending on customer image effect, and in software can calculate
3. How about the stability and quality of the corrugated box printing machine printed images?
This Scanning digital inkjet press can used to print on most of corrugated board with best quality, durability, best result.
4. How about the maintenance and after sales service of your corrugated sheet printer?
5. Are you a manufacturer or trade agent for carton box printer?
We are the manufacturer of digital corrugated board printing machine.
6. Is there any guarantee for this carton case printing machine?
7. How can I install and start to use the corrugated cardboard printing machine?
8. Can I get supplies and wearing parts of corrugated box printing machine from you?
Yes, we provide all the wearing parts for our printers always and they are in stock.
9. How will you achieve the warranty of carton box printing machine?
10. What kinds of materials of corrugated cardboard box printer/carton box printing machine can print?
White cardborad, yellow cardboard or coated cardboard
2. What is the cost of ink for corrugated box printer to print on the materials?
Depending on customer image effect, and in software can calculate
3. How about the stability and quality of the corrugated box printing machine printed images?
This Scanning digital inkjet press can used to print on most of corrugated board with best quality, durability, best result.
4. How about the maintenance and after sales service of your corrugated sheet printer?
Our engineer available service overseas, and we can provide remote control service and online service for customers. But customer has to be responsible for the accommodation and transportation costs of the technical staff.
5. Are you a manufacturer or trade agent for carton box printer?
We are the manufacturer of digital corrugated board printing machine.
6. Is there any guarantee for this carton case printing machine?
Yes, we have guarantee for the printer.We provide 13 months warranty for all the electronic parts including the main board,driver board, control board, motor, etc,except the consumables, such as ink pump, print head, ink filter, and slide block etc.
7. How can I install and start to use the corrugated cardboard printing machine?
Normally we will arrange technican for installation and training in your factory. or you can read the users' manual to understand the machine. If you need any help, our technician can help you via Team viewer. Whenever you have questions to the machine, you can contact our technician or me directly.
8. Can I get supplies and wearing parts of corrugated box printing machine from you?
Yes, we provide all the wearing parts for our printers always and they are in stock.
9. How will you achieve the warranty of carton box printing machine?
If any electronics or a mechanical part is confirmed to be broken, Reson should send the new part within 48 hours by express like TNT, DHL, FEDEX .etc to the buyer. And the shipping cost should be born by the buyer.
10. What kinds of materials of corrugated cardboard box printer/carton box printing machine can print?
White cardborad, yellow cardboard or coated cardboard
