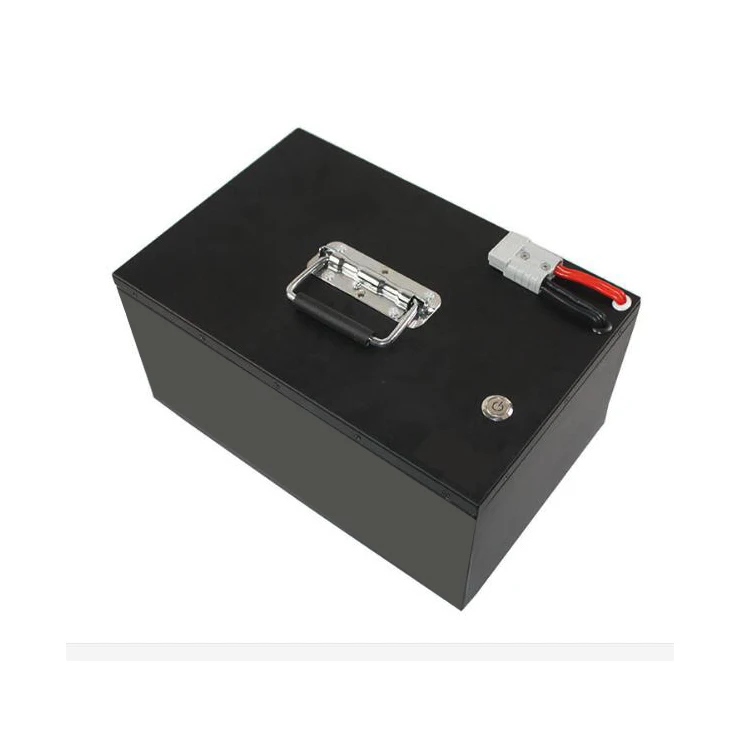

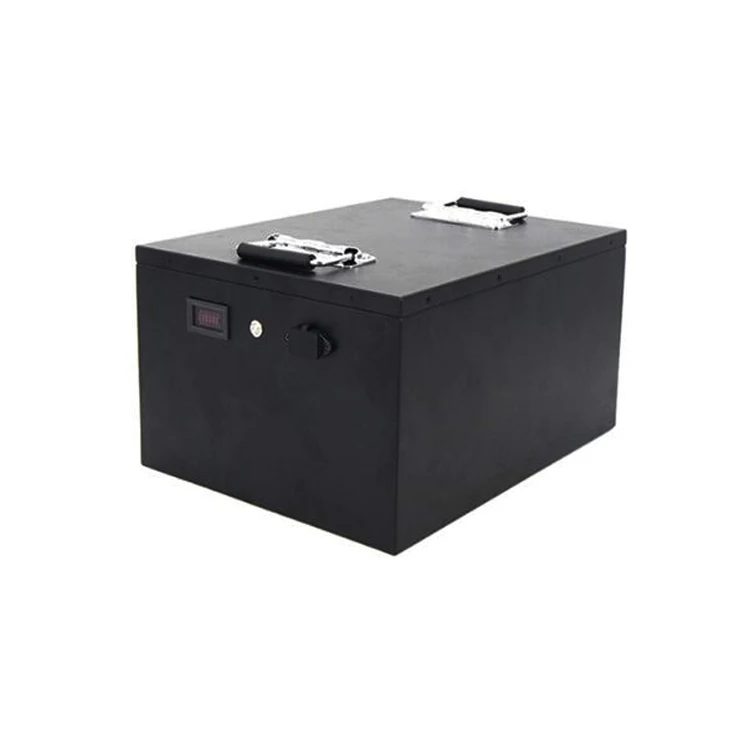

Литиевые Аккумуляторы для погрузчика

Сохранить в закладки 1601058924206:


Цена:*

Количество:

  • В избранное

Описание и отзывы

Характеристики



Product Description


These batteries was designed specifically to meet the power and energy needs in all types of  traction motors (Golf Cart , EV , Forklift , Boat  Etc). Not only does it fit like a glove , but the battery manage system hosts an intelligent software , providing precision balance between batteries , seamlessly manage regenerative currents and avoids unnecessary disconnect .





The ideal battery for your electric vehicle may be one you build exclusively for it .Sometimes , stock batteries don't fit or your vehicle may need more energy or power to run at top performance. Our engineers can build a custom solution just for you and will ensure your battery has the proper chemistry and system.


-1


4


Specification :









































































































































































Model48V/450Ah60V/50Ah60V/65Ah60V/75Ah72V/60Ah72V/100Ah
Nominal Voltage (V)48V60V60V60V72V72V
Nominal Capacity (Ah)450Ah50Ah65Ah75Ah60Ah100Ah
Energy21650Wh3145Wh4088Wh4718Wh4440Wh7400Wh
Battery Dimensions (MM)customizedcustomizedcustomizedcustomizedcustomizedcustomized
Layout/TerminalsAnderson Anderson Anderson Anderson Anderson Anderson
Case /PackingMetal CaseMetal CaseMetal CaseMetal CaseMetal CaseMetal Case
LED display OptionalOptionalOptionalOptionalOptionalOptional
Blue tooth OptionalOptionalOptionalOptionalOptionalOptional
Comms.NONONOOptionalOptionalOptional
Charging Voltage 54.6V71.4V71.4V71.4V84V84V
Optimum charge current10A~100A10A~20A10A~20A10A~20A10A~20A10A~30A
Max.Continuous discharge current50A80A80A100A100A100A
Peak discharge current100A100A100A150A150A150A
BMS Charge Voltage Cut-Off55.25V (4.25 ±0.025 vpc) (1.1 ±0.4 s)72.25V (4.25 ±0.025 vpc) (1.1 ±0.4 s)85.0V (4.25 ±0.025 vpc) (1.1 ±0.4 s)
BMS Discharge Voltage Cut-Off36.4V (2.8 ±0.08 vpc) (100ms)47.6V (2.8 ±0.08 vpc) (100ms)56V (2.8 ±0.08 vpc) (100ms)
ChemistryLithium-ion (NCM)
Cycle life>2000cycle at 100% Depth of Discharge (DoD), up to 5000 cycles at 80% DoD
Operating temperaturesStandard  0℃~60℃
Discharge -30℃~75℃
Storage   -20℃~45℃
Storage performanceCapacity can be kept ≥ 80% in storage for 12months
Warranty3 years




  Features :





Built-in Battery Management System (BMS)


High charge & discharge current


Wide working temperature


High/Low Voltage Protection


Automatic Cell Balancing


Short Circuit Protection


Bleetooth Function (Optional)


LED Display (Optional)


More Usable capacity


Long cycle life


Lighter weight


-2








Applications :


E-Bikes / Scooters / Wheelchairs / Tricycle / Golf Cart / Electric Vehicles/Boat








 application 02




Suolang Tech offer a full power solution of LiFePO4 battery pack + charger + BMS.


Our range covers from 12V / 24V / 48V / 72V / 96V to 388V.


With a capacity of 10 Ah / 20Ah / 30Ah / 50Ah / 100Ah / 200Ah / 600Ah.





If the standard batteries don’t fit for your application, then we can assembly a custom made Lithium battery based on your specifications .


Please send us your parameters as dimensions, voltage, capacity and required current and we will search together with you for a solution.





5





Packaging & Shipping


 packing





Company Information








Suolang Tec is one of the leading lithium battery manufacturer and high-tech company in China. We are specializing in the research, development, manufacturing and sales of the lithium iron phosphate(LiFeP04) batteries and lithium ion(NMC) batteries. Our standard workshops cover about 30000 square meters for battery cells and battery packs production. We have more than 1500 employees and 300 experienced R&D Engineers.


The core members of our team have many years of product R & D experience, master the industry-leading technologies such as battery standardized design, battery operation control, battery management system, battery cell and module testing, experiment, etc., and guaranteed the compatibility, stability and reliability of the battery system from the design phase.


Our goal is not only provide sustainable and economically power for customer but also help reducing carbon emissions and make the earth a better place .





Suolang Tec – A Global leading lithium battery and solar products manufacturer .


company 03
















FAQ





Q: Do you offer free samples?


A: We don't provide free sample, but the sample cost can return to you when you place bulk orders .





Q: What is your terms of payment?


A: We accepted most of payment terms, like T/T,L/C at sight, PayPal, Western Union, Cash etc.





Q: What is a minimum number (pieces) of order for this product?


A: Our MOQ is 1 piece, the more the quantity, the more preferential it is.





Q: How many time you need for production of one sample?


A: If customized according to customer requirements, production time needs 10-15 working days, if it’s our standardized products most of the time we can supply from stock .





Q: How do you ship the products?


A: For small orders or samples we can arrange door to door air freight delivery , for large quantity we normally arrange container or LCL ocean shipment .





Q: How much does shipping cost?


A:It depends on the quantity of goods, the shipping method, and the country . But we will always figure out the best choice for you .





Q: How can I get the best prices?


A: You get cheaper per-item price when you buy larger quantities. Use the website to check prices. Returning customers receive better discount levels.





Q: What if the product is broken?


A: If any product is faulty, you can send me the picture or video to us, and we will study it. And provide the spare parts for after sale service.
