Беспроводная игровая мышь PAW3395 оптический датчик 26000DPI 55 г

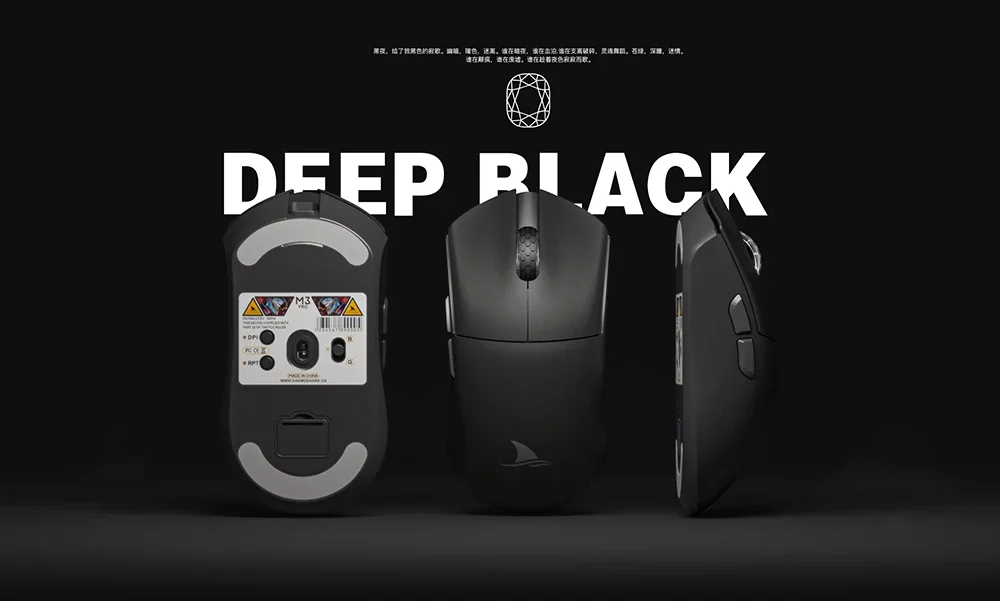

M3-PRO Triple-mode Game Mouse Specifications

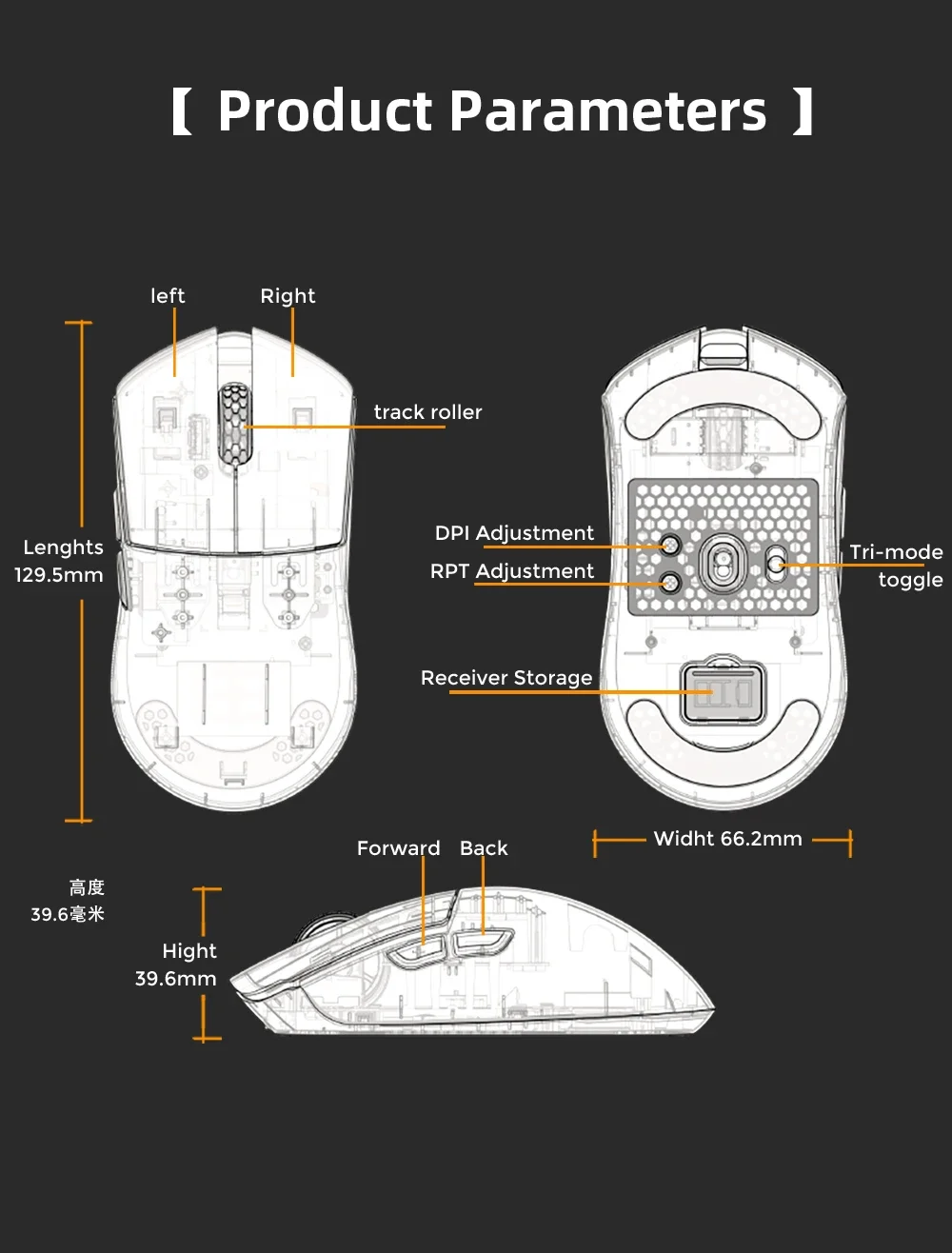

Size

129.5*66.2*39.6mm

Number Of Keys

7KEY

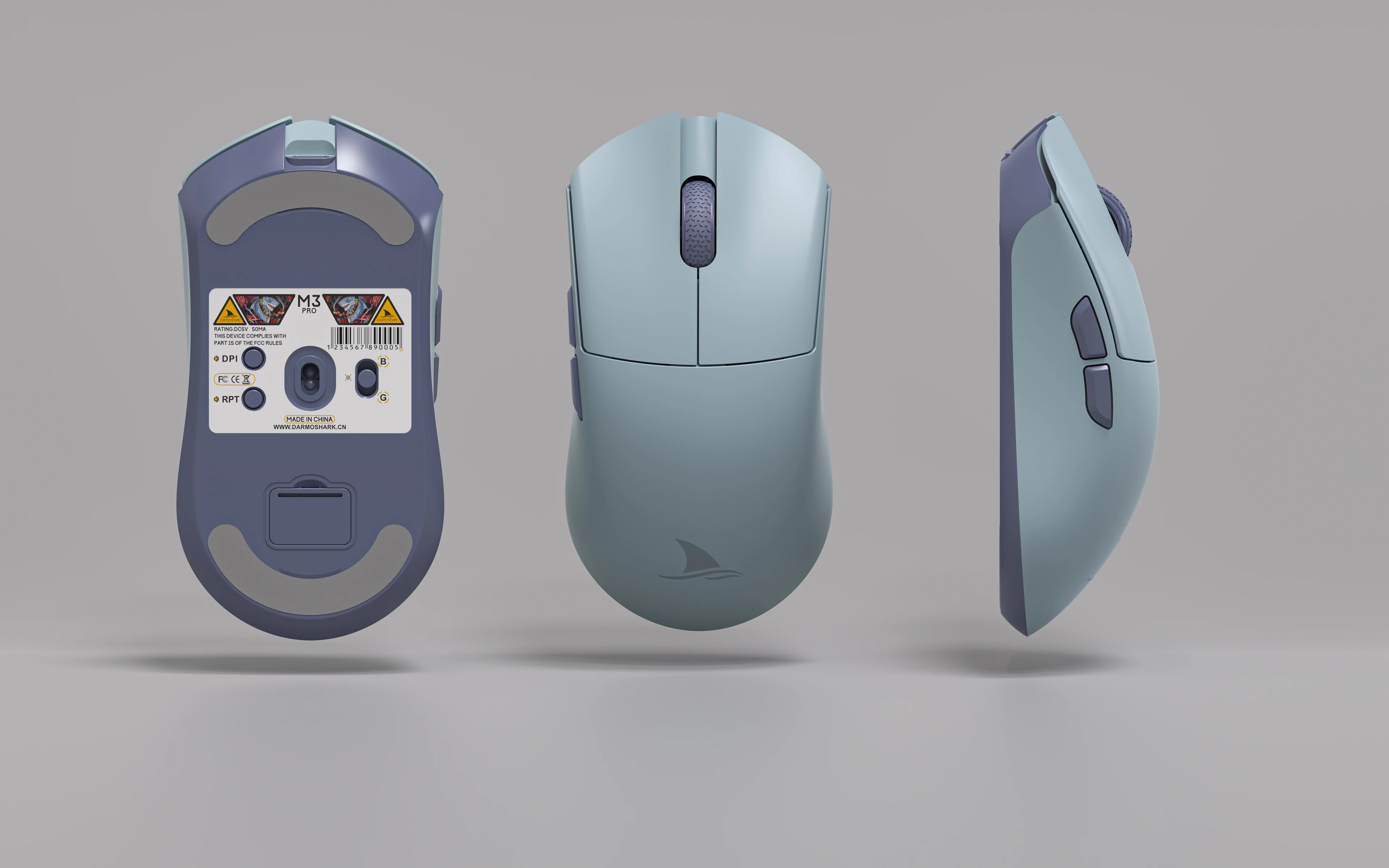

Color

Black / White / Hyacinth

Weight

Net weight 55±2G

Shell material

ABS

Apron

Black rubber

Foot Stickers

Teflon PTFE(black)

NANO Receiver

Built in Bottom

Lithium battery

500mAh

Maximum speed

650IPS

Control

Nordic N52840

Middle key switch life

500Ten thousand times

Side key switch operating force

Genuine TTC 70±10gf

Side key switch life

300Ten thousand times

3DKey operation force

100±20gf(vertical force at the center of the mouse button)

Encoder

Genuine TTC Golden Wheel

Encoder life

200Ten thousand circles

master control IC

Three-mode Telink micro-Telink solution,2.4G/Bluetooth 5.0/wired

Wire

Type-C Data cable five-core braided flash rope with magnetic ring

Wire length

Total wire length: 2M±1%

Interface

GildedUSB2.0 Type-C interface

Operating temperature

-10℃—50℃

Working Humidity

10-90%RH

Operating Voltage

USB Wired:DC5V±5% Wireless:DC3.7V

Working current

USB Wired:<50MA Wireless:lights are always on<15MA, dull<6MA

Lithium Battery

Capacity 500MAH;Endurance without light: About 280 hours between intervals of use (calculated for 8 hours of office work);About 140 hours of continuous use;

Operating System

Wired and 2.4G mode: WinXP/Win7/Win8/Win10/Win11/Macos
Bluetooth mode:Win8/Win10/Win11/Macos

Bottom sensor Light

Infrared light

DPI/Return Indicator

On for three seconds and off

Photoelectric IC

PAW3395

Highest Resolution

26000DPI(driver can be set)

DPI factory default

5partDPI cycle adjustment: 400 red, 800 blue (default), 1600 green, 3200 purple, 4800 orange

Wired/2.4G Return Rate

Adjustable buttons at the bottom: Red light 125HZ, blue light 500HZ (default), green light 1000HZ, purple 2000HZ

Wired/2.4G return rate

Adjustable buttons at the bottom: red light125HZ, blue light500HZ(default), green light1000HZ

Bluetooth rate of return

The default 125HZ is not adjustable

SPI sampling time

Changes in sync with the rate of return: 8ms/2ms(default)/1ms/0.5ms

FPS Image Processing

26000fps

Maximum speed

650ips

Acceleration

50g

1K and 4K receivers Interchangeable

 The prerequisite is that you need to buy the manufacturer's N-4K receiver, after pairing to support 4K, use 4k.

Wireless transmission distance

The measured distance in the office environment is about 10 m

computer connection

Plug and play in wireless mode, when wired and wireless are used at the same time, it is preferentially recognized as wired mode

Wake up from hibernation

charging indication

When the data cable is connected, the indicator light of the roller position is always red, indicating that it is charging, and it will turn off after it is fully charged. (Charging time is about 3-5 hours)
Note: This product supports up to DC5V charging voltage and 300MA charging current. We are not responsible for any problems caused by improper charging.

low battery indicator

When the wheel position indicator is blinking yellow,Indicates that the battery is low and needs to be charged,In order to ensure the normal use of the mouse(Slight deviation according to actual usage)

2.4G and Bluetooth mode indicators

When the three-position switch at the bottom is turned to the G icon, the green light at the position of the scroll wheel will be on for three seconds and turn off.
When the three-position switch at the bottom is turned to the B icon, the blue light at the position of the scroll wheel will be on for three seconds and then turn off (provided that the Bluetooth connection is successful).

Bluetooth pairing operation

When the three-position switch at the bottom is turned to the B icon, press the left, middle and right buttons at the same time, the blue light at the position of the wheel will flash, and enter the pairing state. At this time, you need to turn on the Bluetooth device and search for the M3 Mouse to pair. After the connection is successful, the indicator light goes out.

2.4G pairing operation

When the three-position switch at the bottom is turned to the G icon, press the left, middle and right buttons at the same time, the green light at the wheel position will flash, and enter the pairing state. At this time, you need to insert the receiver. After the connection is successful, the indicator light will go out. (Note: The pairing is OK at the factory. If the 2.4G has no function, you can follow this step)

wired mode

When plugging in the type-c data cable connection, the wired mode is preferred.
