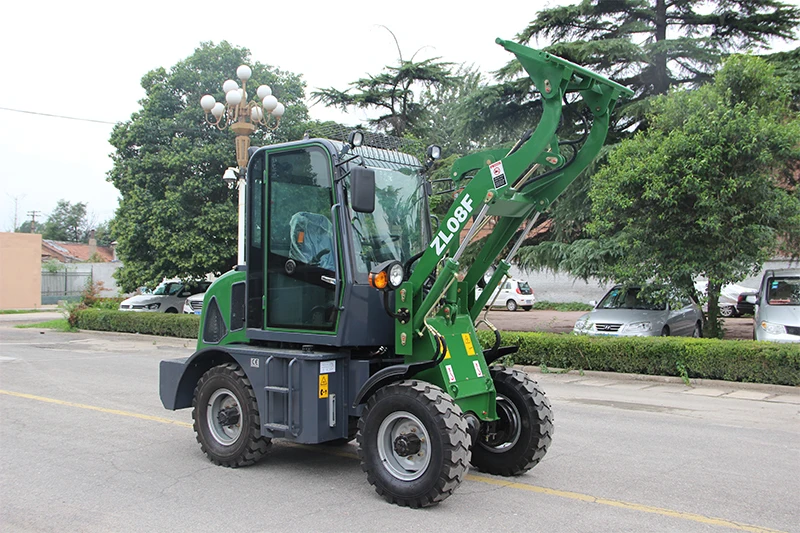

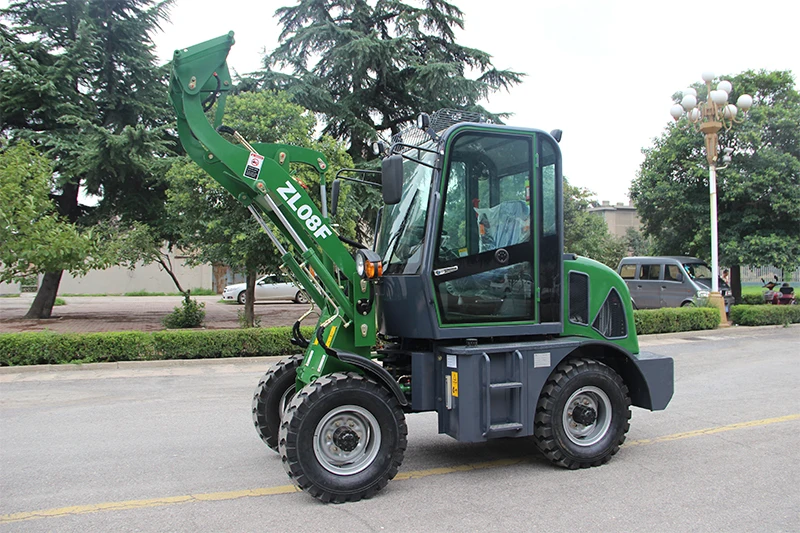

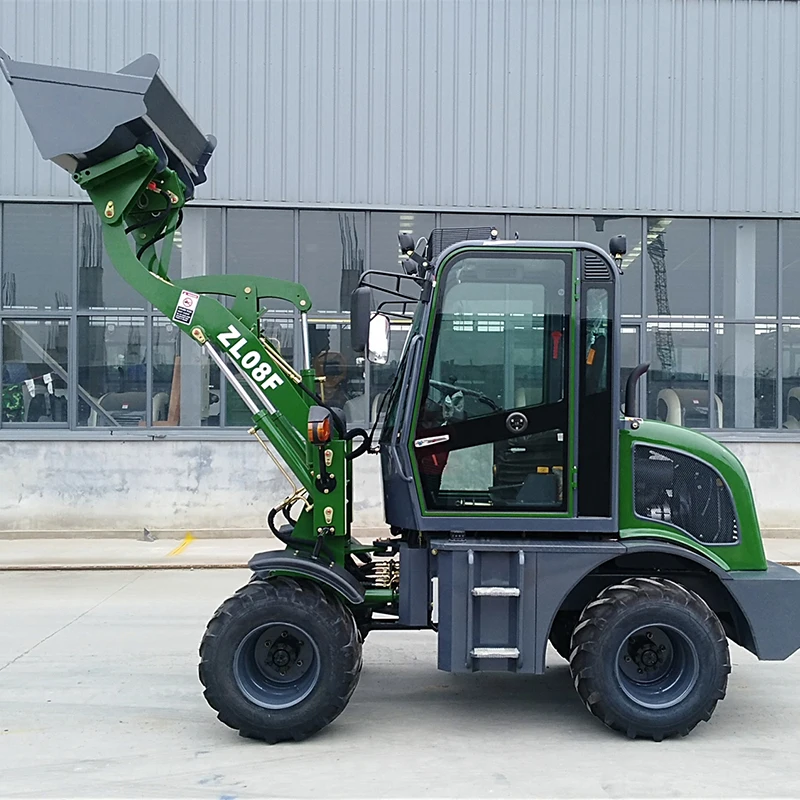

Китай погрузчик 0.8ton ZL08F колесный с дешевой ценой
721 028,75 ₽
Заводской ZL08F горячая Распродажа мини погрузчик 4x4 с преимуществом хорошего качества
- Категория: >>>
- Поставщик: Qingzhou Hongyuan Vehicles Co. Ltd.
Сохранить в закладки 1601059131632:
Описание и отзывы
Характеристики
Products Description
Rated loading weight | 800kg |
Rated bucket capacity | 0.4CBM |
Bucket width | 1,400mm |
Track base | 1,285mm |
Wheelbase | 2,170mm |
Minimum swerve diameter | 4,600mm |
Minimum ground clearance | 240mm |
Dump height fully raised | 2,300mm |
Reach fully raised | 750mm |
Lifting time | 4 seconds |
Hydraulic cycle time | 9 seconds |
Maximum tilt angle | 300 |
Maximum bucket breakout force, lift cylinder | 28kN |
Driving mode | four-wheel drive |
Operating weight | 2,850kg |
Dimensions (L x W x H) | 4,600x 1,600 x 2,550mm |
Engine model | Changchai 390 |
Engine type | in-line arrangement, water cooled, one-cycle diesel engine |
Engine starting mode | electric |
Rated speeds | 2,200rpm |
Rated power | 25kW |
Brake mode | four-wheel hydraulic spread-shoe brake |
Supply ability | 100 units per month |
1.Using direct injection diesel engine as power, with easy startup and low oil consumption
2.Using special drive axle, with strong ability to overcome obstacle
3.Chassis uses hinged structure, with small turning radius and flexible turning, which applies to the operation in narrow space
4.This machine uses hydraulic operation, with simple structure, convenient operation, good performance and reliable quality
5.Widely applying to the construction of agricultural engineering and small and medium building such as road, coal mine,
brickyard, urban construction, kiln factory, stone material factory, prefabricated cement parts factory, etc.
2.Using special drive axle, with strong ability to overcome obstacle
3.Chassis uses hinged structure, with small turning radius and flexible turning, which applies to the operation in narrow space
4.This machine uses hydraulic operation, with simple structure, convenient operation, good performance and reliable quality
5.Widely applying to the construction of agricultural engineering and small and medium building such as road, coal mine,
brickyard, urban construction, kiln factory, stone material factory, prefabricated cement parts factory, etc.
Details Images
Major Feature:
1.Front/Rear Axle
Planetary transmission is equipped with a compact structure and big torque.
Friction sheet and antiskid transmission ensure strong cross-country and climbing capacity.
2.Cab
With new steel frame, the cab features wider view field, reliable safety and low noise.
Spacious cab is provided with instruments and control devices in reasonable arrangement for convenient operation.
Planetary transmission is equipped with a compact structure and big torque.
Friction sheet and antiskid transmission ensure strong cross-country and climbing capacity.
2.Cab
With new steel frame, the cab features wider view field, reliable safety and low noise.
Spacious cab is provided with instruments and control devices in reasonable arrangement for convenient operation.
Noise-absorbing, thermal insulation, and high class decoration materials are used for internal decoration.
The low vibration suspending seat is designed specially for the operators and improves human feeling.
The air conditioner is optional.
3.Humper
Supporting device for lifting operation to prevent sudden falling and ensure safety and reliability.
4.Welding Structure
New-style articulated front/rear frames, small turning radius, good through and climbing capacity. Good carrying capacity and
stability.
5.Hydraulic System
The variable plug pump motor is adopted in the traveling system which leads to simple operation, stable traveling and reliable performance.
The high-pressure gear pump is adopted in the working system which leads to quick lifting speed and high efficiency.
All the hydraulic parts are well-known brands in China, with perfect and reliable performance.
6.Wide Thread Steel Radial Tyre
Excellent cutting proof and wearproof performance, wide antiskid groove, good heat dispersion and self-washing performance, big
adhesive to ground, and nice traction.
Widely applied for mining, earth-moving, loading and digging operation.
7.Electric System
The cable and jacket are made of anti-flaming material.
High-grade battery and electric parts are applied to ensure more reliable and stable system.
The low vibration suspending seat is designed specially for the operators and improves human feeling.
The air conditioner is optional.
3.Humper
Supporting device for lifting operation to prevent sudden falling and ensure safety and reliability.
4.Welding Structure
New-style articulated front/rear frames, small turning radius, good through and climbing capacity. Good carrying capacity and
stability.
5.Hydraulic System
The variable plug pump motor is adopted in the traveling system which leads to simple operation, stable traveling and reliable performance.
The high-pressure gear pump is adopted in the working system which leads to quick lifting speed and high efficiency.
All the hydraulic parts are well-known brands in China, with perfect and reliable performance.
6.Wide Thread Steel Radial Tyre
Excellent cutting proof and wearproof performance, wide antiskid groove, good heat dispersion and self-washing performance, big
adhesive to ground, and nice traction.
Widely applied for mining, earth-moving, loading and digging operation.
7.Electric System
The cable and jacket are made of anti-flaming material.
High-grade battery and electric parts are applied to ensure more reliable and stable system.
Application Introduction
Appurtenance
The general warranty for new products is one year from the customer reveived the machines, don't include the shipping periods. We will pack some Spare parts for free, we afford to the charges of new spare parts and the express within one year. Now, we are planning to build some spare parts warehouse in Europe. We also can send the repair worker to abroad for the after service if the customers need.
Company Profile
Certifications
FAQ
Q:All Of Hongyuan Wheel Loader Has CE Certification?
A:Yes.They all Have CE Certications.
Q:What Products Dose Hongyuan Machinery Company Has?
A:We Are Mainly Specializing In Producting and Exporting Of Wheel Loader From 0.6 Ton to 5 Ton.Also We Focus On Export Other Machine Like Offroad Forklift, Site Dumper, Backhoe Loader, Telescopic loader, Sugarcane machine etc. Agricultural and Enginnering Machinery.
Q:Dose the Hongyuan Machinery Has Their Own Factory?
A:Yes,We Have Our Own Production Workshop and Experienced Engineers In Qingzhou Hongyuan Factory. More Products Can Be Developed and Improved According to Our Customers' Requirements.
Q:Dose the Hongyuan Machinery Has Good Service?
A:Yes,of course. We Have a Professional Sale and After-Sales Service Team. We require all the personnel of the service must be within 24 back to all customer inquiries.
A:Yes.They all Have CE Certications.
Q:What Products Dose Hongyuan Machinery Company Has?
A:We Are Mainly Specializing In Producting and Exporting Of Wheel Loader From 0.6 Ton to 5 Ton.Also We Focus On Export Other Machine Like Offroad Forklift, Site Dumper, Backhoe Loader, Telescopic loader, Sugarcane machine etc. Agricultural and Enginnering Machinery.
Q:Dose the Hongyuan Machinery Has Their Own Factory?
A:Yes,We Have Our Own Production Workshop and Experienced Engineers In Qingzhou Hongyuan Factory. More Products Can Be Developed and Improved According to Our Customers' Requirements.
Q:Dose the Hongyuan Machinery Has Good Service?
A:Yes,of course. We Have a Professional Sale and After-Sales Service Team. We require all the personnel of the service must be within 24 back to all customer inquiries.
Похожие товары
0.8ton строительная техника ZL08F мини фронтальный погрузчик
721 028,75 ₽

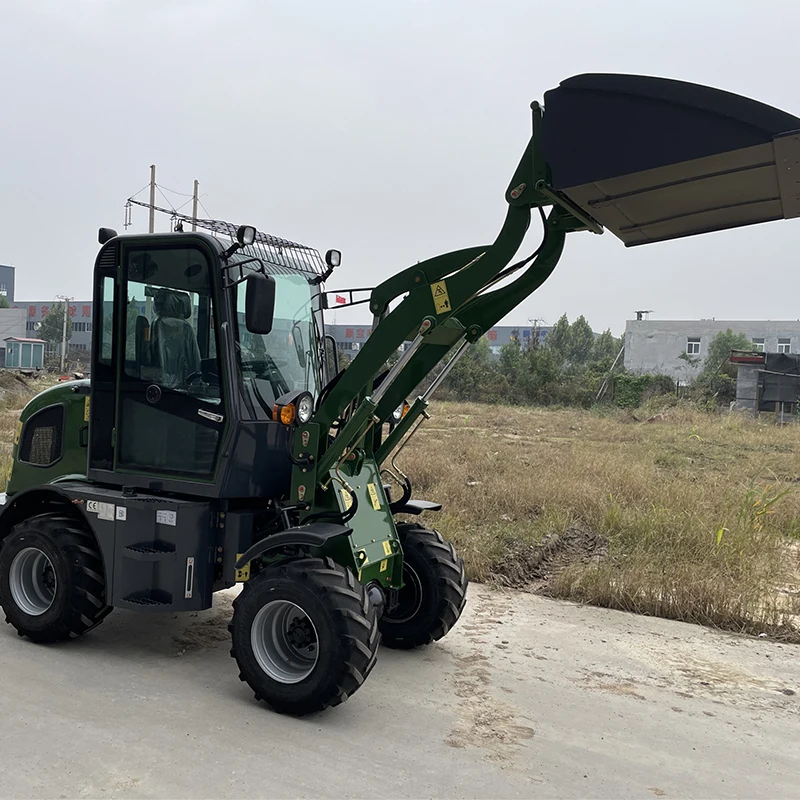

Zl-08 мини погрузчики с бортовым поворотом погрузчик для продажи

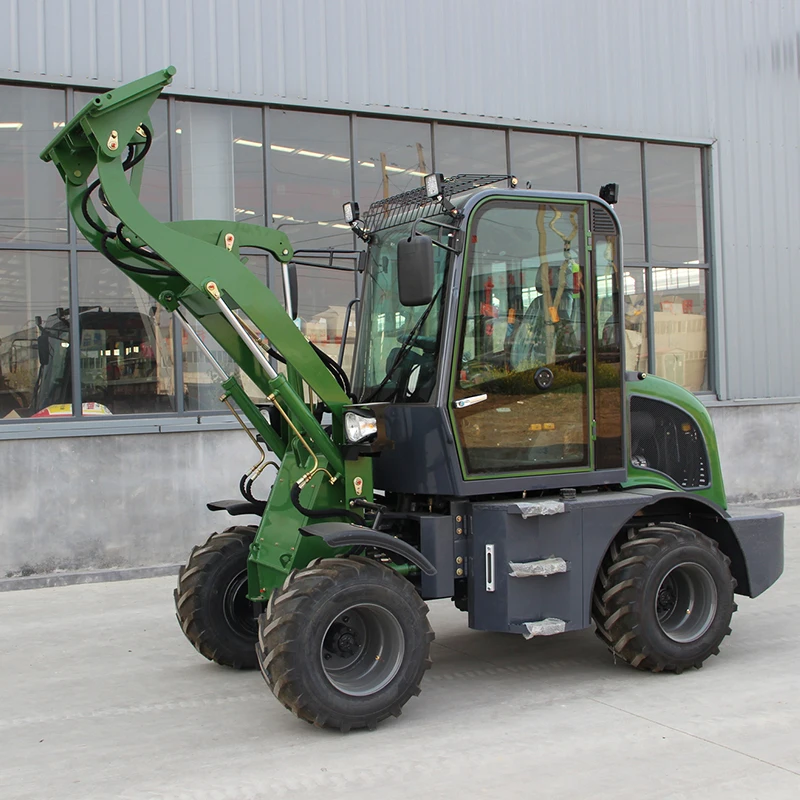

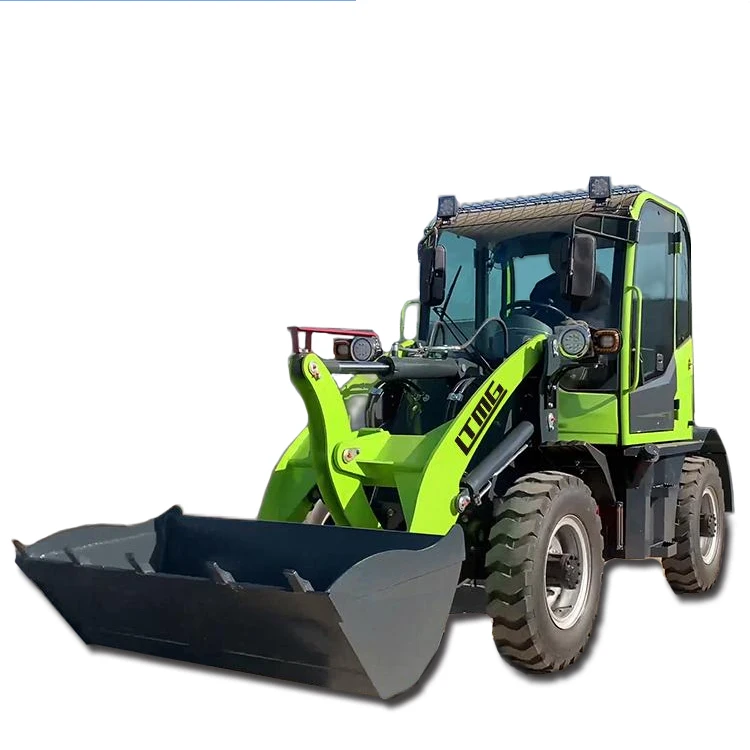

Фронтальный мини-погрузчик LTMG 800 кг 1000 колесный погрузчик с сертификатом ce
