Современная кухонная вытяжка для дымохода тип башни 600 мм Кнопочная плиты
4 298,25 ₽ - 5 069,72 ₽
Т образная круглая угловая Вытяжка с умным автоматическим теплом и энергосберегающими светодиодными лампами
- Категория: >>>
- Поставщик: Arcturus (zhongshan) Electric Appliance Co. Ltd.
Сохранить в закладки 1601059493832:
Описание и отзывы
Характеристики
Products Description

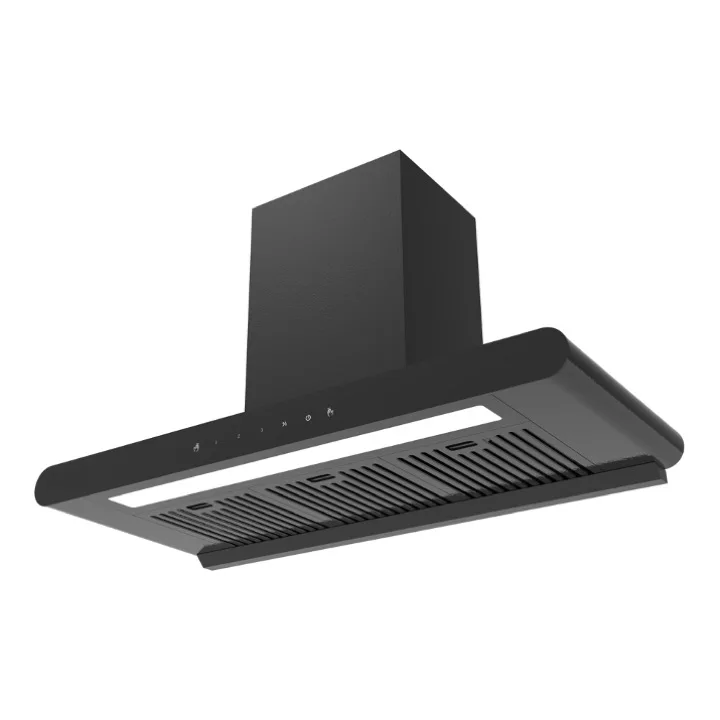

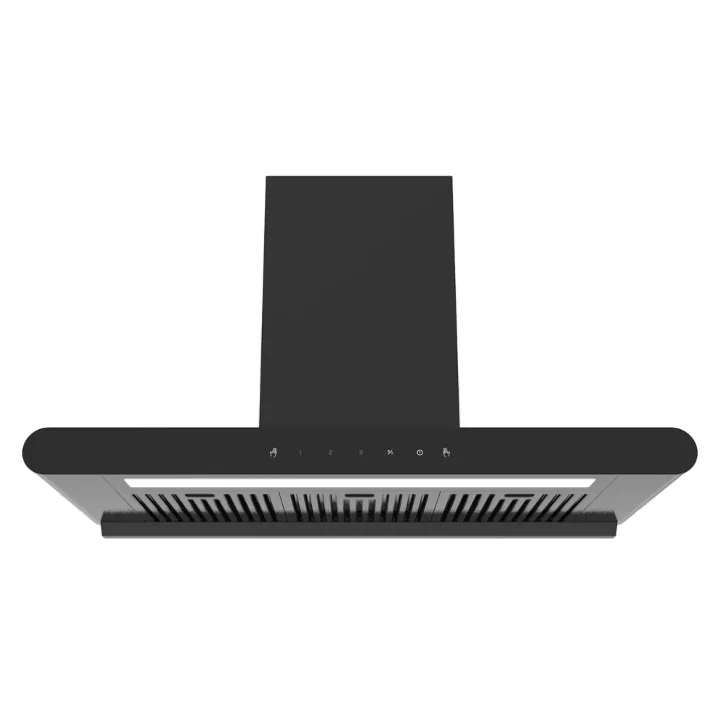

T SHAPE KITCHEN HOOD

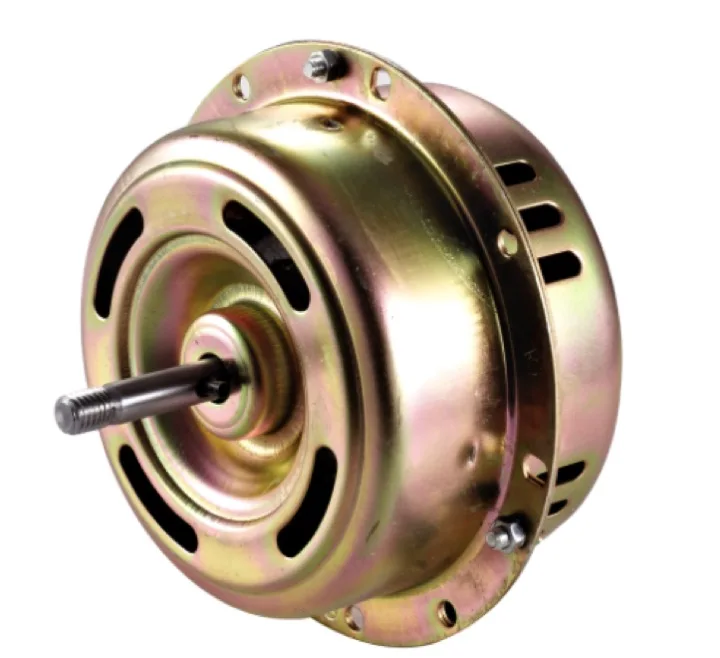

1,130W BLDC motor/180W AC motor
2.0.5MM cold rolled steel body
3.filterless and smart auto heat cleaning
4.9 speed gesture control/3 speed gesture control
5.210*90MM blower
6.210*110MM metal housing
7.LED light-5W
8.Heating film-60W
9.size available:60CM,75CM and 90CM
LOADING DETAILS-
60CM KITCHEN HOOD-
40HQ - 388 Pcs
75CM KITCHEN HOOD-
40HQ - 285 Pcs
90CM KITCHEN HOOD-
40HQ - 220 Pcs
Product name | Hot dry cleaning AC motor range hood/BLDC Motor |
Body material | cold rolled electrophoresis |
Body thickness | 0.5 mm |
Motor | BLDC 130watt (grade 4, insulation class B)/AC motor 180watt |
Switch | Gesture control display switch |
Power cable | 3*0.75mm2, 1.8 meters |
Rated voltage | 220VAC |
Rated frequency | 50Hz |
Lighting power | 5W |
Rated total power | 135 w/185w |
Air volume | 850-1000m3/h |
Wind pressure | ≥172Pa |
Noise label | ≤76dB(A) |
Maximum static pressure | ≥166.27Pa |
Motor RPM- | 1100rpm |
Filter size | 160*750mm |
Oil filter net | cold rolled, black coated |
Hot dry cleaning | 60W heating film |
Outlet seat/pipe | Φ150*1500mm aluminum foil pipe |
Oil Cup size and metrial | Cold rolled, black coated 752*54*30mm |
Hood size, material and finish | 480*332*275mm, cold rolled black coated |
Spigot Size | 150mm, |
front glass | 5mm GLASS THICKNESS |
Screw size and no | 5*50, 4 no |
net weight | 20.1kg |
Gross weight | 21.00 kg |
Dimensions | 600*380*520. 750*380*520. 900*380*520 |
Package dimensions | 810*560*420 810*560*420. 940*560*420 |
FEATURES | Hood & Top Glass |
1, switch : intelligent gesture controll , with hot dry cleaning function. | |
2, power : energy-efficient circuit board back and chip surface coated with moisture-proof paint. | |
3, wind wheel: 12-axis diameter 250*90, 43 fins, electropheresis. | |
4,smart auto heat cleaning function-chimney will start auto cleaning after being used for 30hr. |

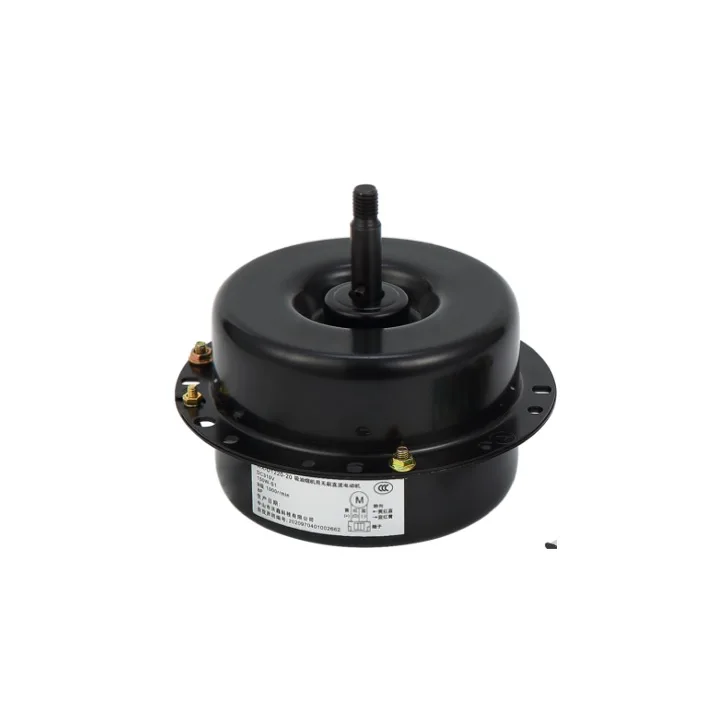

130W BLDC MOTOR
*130W Copper Clad Aluminium BLDC Motor.
METAL HOUSING
- Cold Steel Housing with Electrophoresis Black treatment.
- 260*110mm housing
- 260*110mm housing

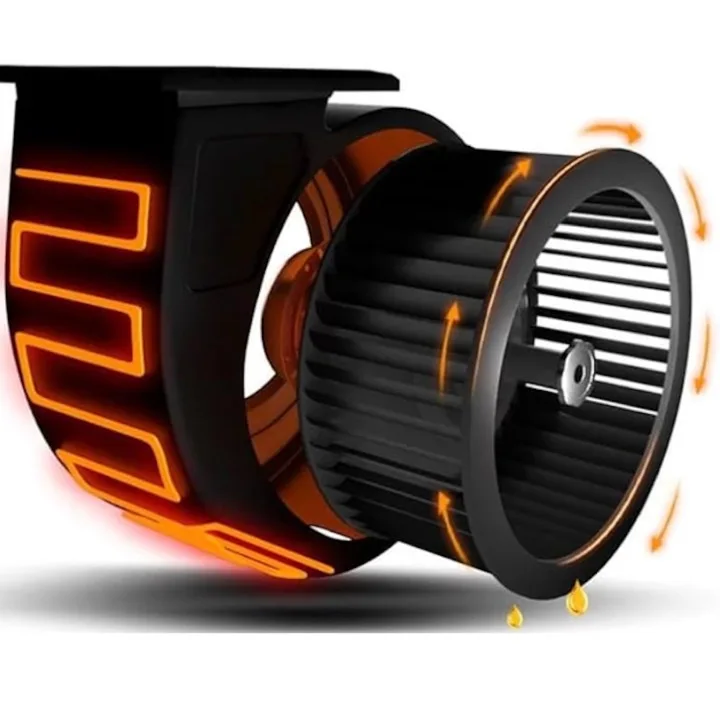

METAL BLOWER
- Cold steel blower with Electrophoresis Black treatment.
- 250*90mm metal blower which provides desired airflow.
Smart Auto clean function
*After being used for 30hr,the chimney will start auto cleaning.
*When required range Hood can be auto cleaned within minutes by one click. Cook with ease and cabinet will no longer be greasy.
High Air flow and air suction
Our chimney are designed in a way that it allows heavy air flow and air suction. Even the heavy smoke is exhausted in seconds
without backflow.
without backflow.
Company Profile
Our Advantages
Why choose us
* OEM & ODM
* 10-15 Days for sample customization .
* New Designs : The blend of technology and innovation to create the better and improved version of chimney and perfect
* OEM & ODM
* 10-15 Days for sample customization .
* New Designs : The blend of technology and innovation to create the better and improved version of chimney and perfect
solution for kitchen.
* 30 to 40 days delivery time for the mass production.
* Strong R&D team .
Multiple inspection team for every process in order to provide the best of the quality.
* Strong R&D team .
Multiple inspection team for every process in order to provide the best of the quality.
FAQ
1. Are you a manufacture or trading company?
We “ Zhongshan Arcturus appliances co ltd “ , are both manufacture located in Zhongshan Huangpu area and trading company.
2: What's the term of the delivery?
We normaly use the Nansha port , and terms that we use is FOB , EX FACTORY .
3: What's the lead time?
Normally is 30 days after deposit. Same as the sample. If there is the customization then it will be 45 days , the repeat orders
required 30 days
4: What is the MOQ?
1 Piece is available for charged sample. For mass production, the MOQ is 1*20'GP container of each model. Detailed QTY depends on
the packing dimension.
5 : Why choose us ?
We reluctantly work on the innovation technology and the quality of the product . choosing us gives you more wider range of
latest range of product and exclusivity in your market. also the current update about the changing scenario of the product and
market analysis .
6 : Whats the process to get the samples and if samples available for the testing ?
Yes The samples are available and can be developed, the samples lead time is 15 days on chargeable bases .
7 : do you accept the customization
Yes we do customization as per the customer requirement, also can be done a new development , be it opening a new mold or
customizing the existing product
8 : how do you test the samples and quality
We have inhouse testing facilities to test the airflow and noise level , also the multiple layer of quality inspection goes on
for each and every production and samples , to ensure the quality
We “ Zhongshan Arcturus appliances co ltd “ , are both manufacture located in Zhongshan Huangpu area and trading company.
2: What's the term of the delivery?
We normaly use the Nansha port , and terms that we use is FOB , EX FACTORY .
3: What's the lead time?
Normally is 30 days after deposit. Same as the sample. If there is the customization then it will be 45 days , the repeat orders
required 30 days
4: What is the MOQ?
1 Piece is available for charged sample. For mass production, the MOQ is 1*20'GP container of each model. Detailed QTY depends on
the packing dimension.
5 : Why choose us ?
We reluctantly work on the innovation technology and the quality of the product . choosing us gives you more wider range of
latest range of product and exclusivity in your market. also the current update about the changing scenario of the product and
market analysis .
6 : Whats the process to get the samples and if samples available for the testing ?
Yes The samples are available and can be developed, the samples lead time is 15 days on chargeable bases .
7 : do you accept the customization
Yes we do customization as per the customer requirement, also can be done a new development , be it opening a new mold or
customizing the existing product
8 : how do you test the samples and quality
We have inhouse testing facilities to test the airflow and noise level , also the multiple layer of quality inspection goes on
for each and every production and samples , to ensure the quality
Production Process
* RAW MATERIAL INSPECTION : All the incoming raw material go through the inspection stage to clear.
* Spare parts Inspection : All the electronic spare parts including Motor , heating film control , lifting motor , PCB goes
through with the inspection before to ensure the quality and hazzle free production.
* Product Asembly : Our QC team frequently observe the assembly line and if there is any flaw that will get corrected at
* Finished Product : fisnihed product goes though with another inspection
* Warehouse : after the finished goods inspection the goods go to the warehouse and ready to ship
* Shipping : Our logistic team help to load goods safely
* Spare parts Inspection : All the electronic spare parts including Motor , heating film control , lifting motor , PCB goes
through with the inspection before to ensure the quality and hazzle free production.
* Product Asembly : Our QC team frequently observe the assembly line and if there is any flaw that will get corrected at
the same time.
* Finished Product : fisnihed product goes though with another inspection
* Warehouse : after the finished goods inspection the goods go to the warehouse and ready to ship
* Shipping : Our logistic team help to load goods safely
Product packaging
Loading Container
Our Team
