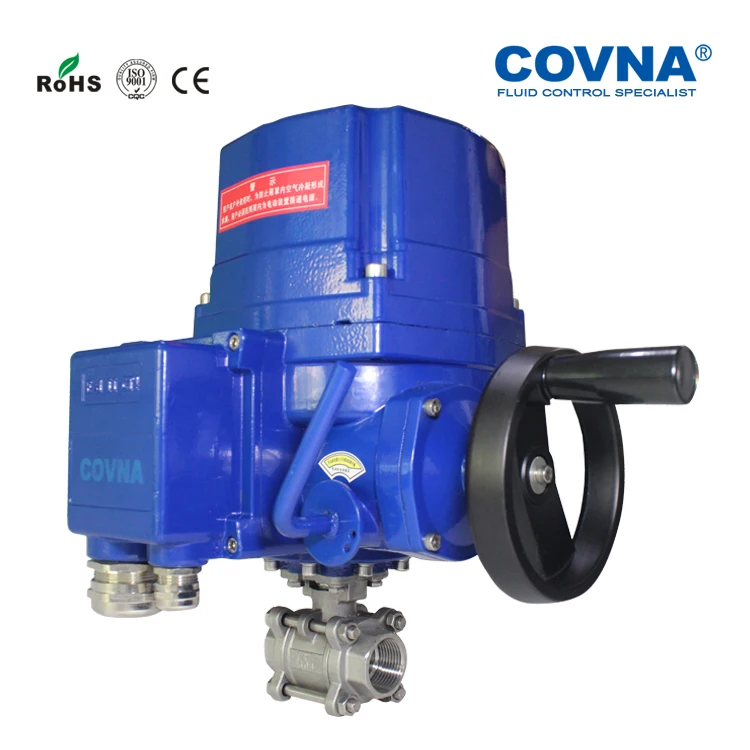

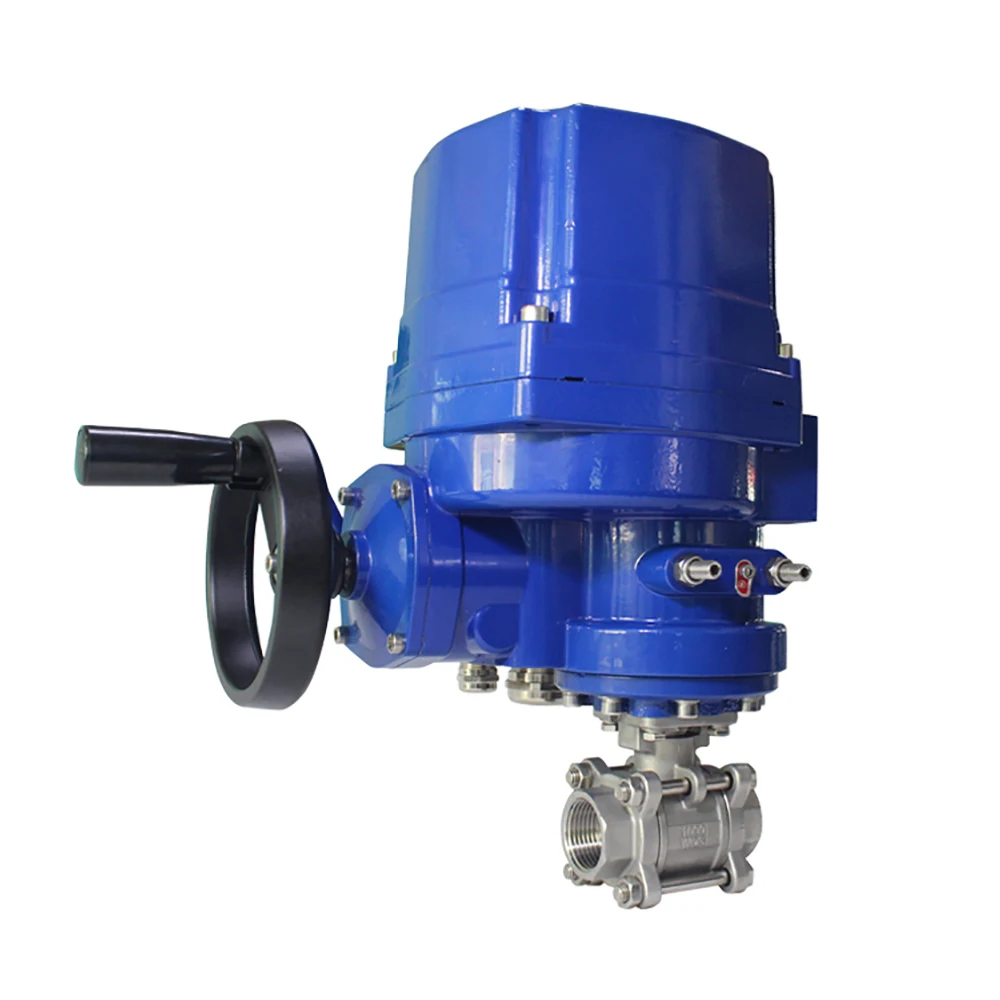

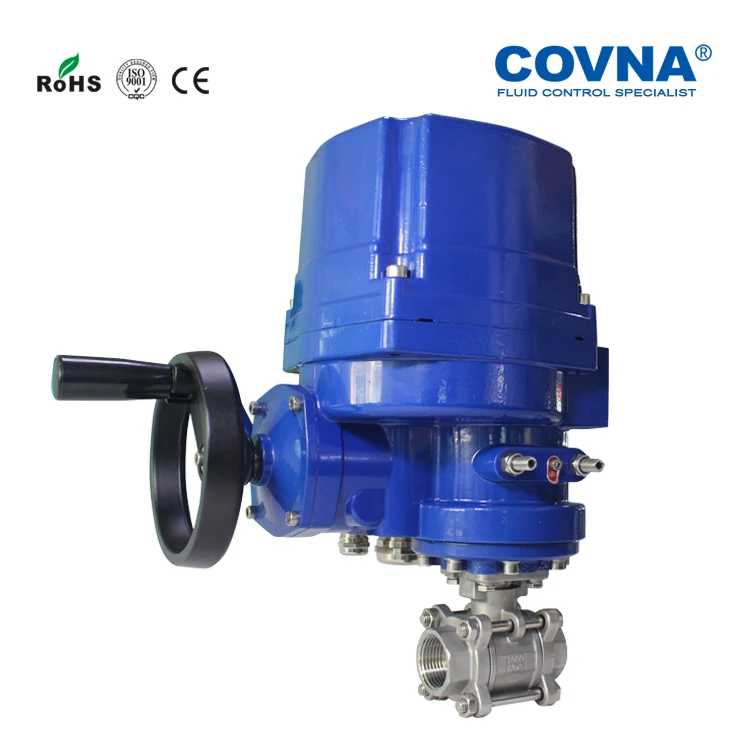

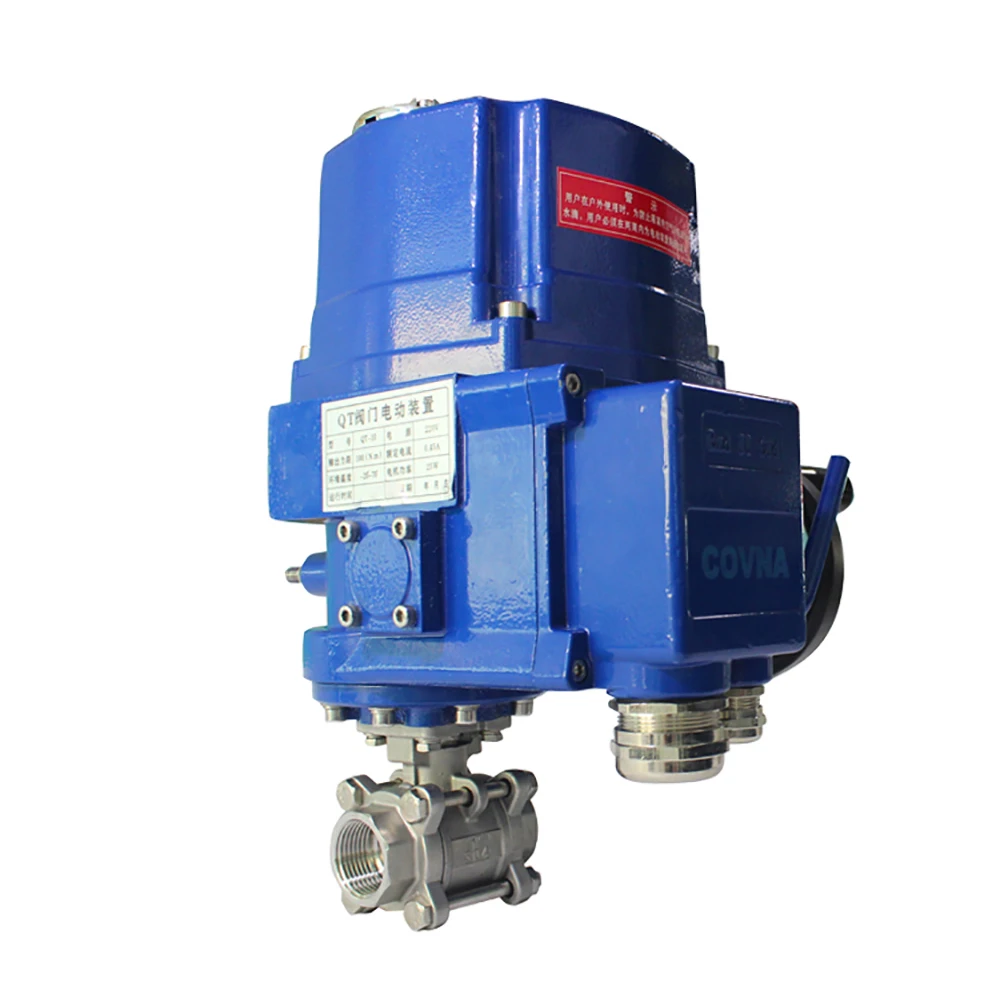

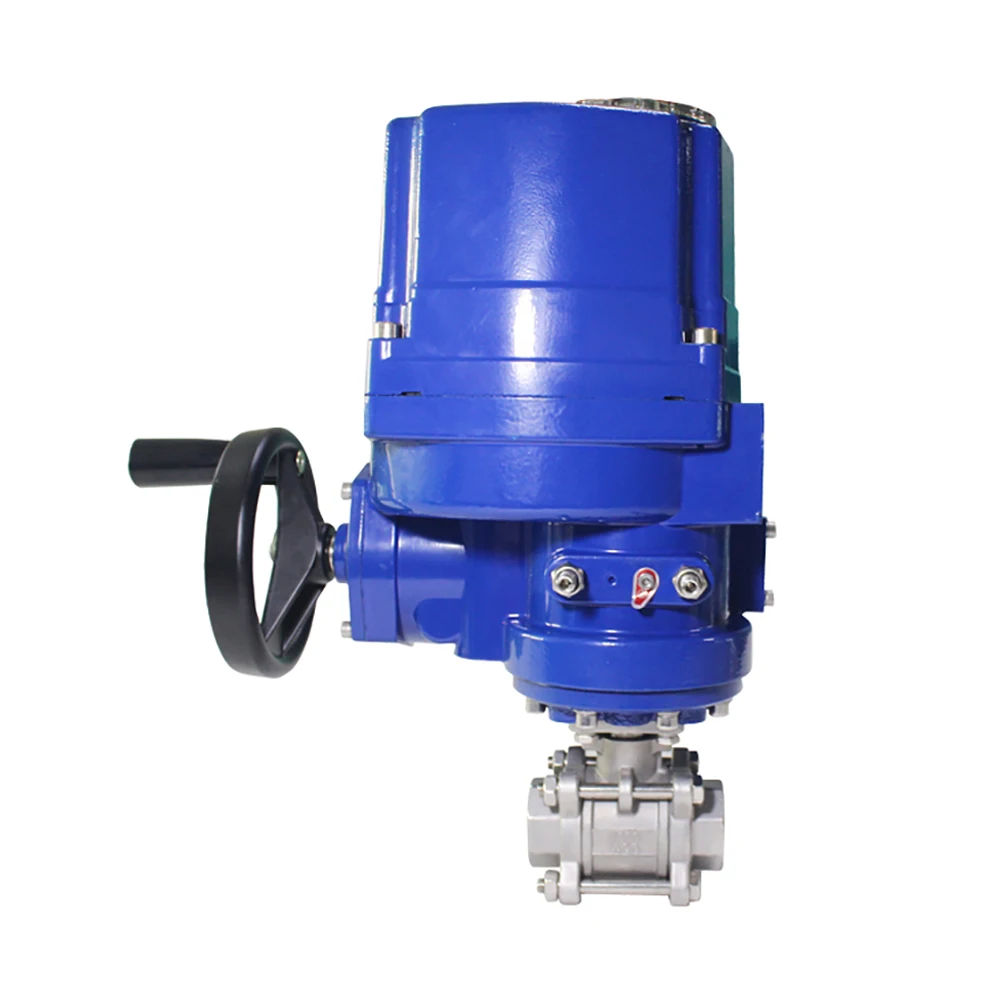

Covna DN50 сварные вставки взрывозащищенные электрические клапаны моторизованный привод регулирующего клапана шаровой клапан для воды
- Категория: >>>
- Поставщик: COVNA Industry Automation Co. Ltd.COVNA Ltd.
Сохранить в закладки 1601059616679:
Описание и отзывы
Характеристики
Specification
Item | DN50 3 PCS Welded On Off Type Motorized Flow Control Electric Water Ball Valve | ||||
Size Range | 1/2"~4", DN15~DN100 | ||||
Operating Pressure | 1.0~6.4MPa | ||||
Control Mode | On Off Type / Modulating Type | ||||
Optional Voltage | DC24V (±10%), AC110-220V, 50/60Hz | ||||
Body Material | SS304, SS316, SS316L | ||||
Core Material | SS304, SS316, SS316L | ||||
Sealing Material | PTFE: -30°C~180°C, PPL: -30°C~250°C | ||||
Structure | 2 Way | ||||
Threaded Connection | Welded, Tri Clamp, Threaded | ||||
Applicable Media | Control of Water, Air, Gas, Oil, Liquid, Steam | ||||
Optional Accessories | Over Torque Protectors, Dehumidify Heater, Stainless Steel Coupling & Yoke | ||||
Application | Food & Beverage, Water & Wastewater, Ultra Pure Water, Desalination, Chemical, Textile, Pharmaceutical, Pulp & Paper, Mining, Boiler and Power Industries | ||||
Dimension:
Production Flow
Products Description
Company Profile
Certification
Exhibition
Cooperation Customers
Finished Project
Packaging & Delivery
FAQ
Q:Which voltage of the electric actuator?
A: DC24V, AC24V, AC110V, AC220V
AC380V can be customized and DC12V is available for some smaller torque of actuator.
Q: What is the actuation time for electric actuator?
A: It depends on the torque of actuator.
The detailed timing would be as the following:
* COVNA-05(50Nm)-20 seconds
* COVNA-10(100Nm)/COVNA-16(160Nm)-25 seconds
* COVNA-30(300Nm)/COVNA-60(600Nm)-60 seconds
* COVNA-125(125Nm)/COVNA-250(2500Nm)/COVNA-400(4000Nm)-100 seconds.
Q: Can the actuation time be faster?
A: Electric actuator can be customized the quick actuation gear,
the soonest actuation time can be reach 10 seconds to open and close.
Q: What type of electric actuator you provide?
A: ON/OFF type, Regulation type and Intelligent type.
Q: What is the difference from ON/OFF type, Regulation type and Intelligent type?
A: 1)ON/OFF type
ON/OFF type is fully open and fully closed.
2)Regulation type
1.With input/output signal:4-20mA or 0-10V;
2.Opening position of valve can be adjusted by signal;
3.Available for PLC system.
3)Intelligent type
1.With input/output signal:4-20mA or 0-10V;
2.Opening position of valve can be adjusted by signal;
3.Available for PLC system.
4.With display screen to acheieve site control.
Q: Can this electric valve be resettable (normally open / closed) automatically when power is removed?
A: Our regular electric actuator can't be resettable automatically while power-off.
But it can go to the multiturn electric actuator model with the extra electrical storage device along,
which acheieve the valves can be automatic reset(normally closed) while power failure.
Q: Have the electric actuator had the presence of limit switches (contact about the position of the cut-off device)?
A: Yes, there is the position indicator on the top of actuator.
The open/closed status can be checked visually.
Q: Which type of protection class of this electric actuator?
A: IP65, IP68, Explosion proof.
Q. Is there any manual override of electric valve?
A: Yes, every electric valve includes the manual override.
You can open/close
Q:Have the electric valve had the limiting operating time?
A: Electric haven't had the limiting operating time.
It can be working for 99 hours continually without getting heating.
A: DC24V, AC24V, AC110V, AC220V
AC380V can be customized and DC12V is available for some smaller torque of actuator.
Q: What is the actuation time for electric actuator?
A: It depends on the torque of actuator.
The detailed timing would be as the following:
* COVNA-05(50Nm)-20 seconds
* COVNA-10(100Nm)/COVNA-16(160Nm)-25 seconds
* COVNA-30(300Nm)/COVNA-60(600Nm)-60 seconds
* COVNA-125(125Nm)/COVNA-250(2500Nm)/COVNA-400(4000Nm)-100 seconds.
Q: Can the actuation time be faster?
A: Electric actuator can be customized the quick actuation gear,
the soonest actuation time can be reach 10 seconds to open and close.
Q: What type of electric actuator you provide?
A: ON/OFF type, Regulation type and Intelligent type.
Q: What is the difference from ON/OFF type, Regulation type and Intelligent type?
A: 1)ON/OFF type
ON/OFF type is fully open and fully closed.
2)Regulation type
1.With input/output signal:4-20mA or 0-10V;
2.Opening position of valve can be adjusted by signal;
3.Available for PLC system.
3)Intelligent type
1.With input/output signal:4-20mA or 0-10V;
2.Opening position of valve can be adjusted by signal;
3.Available for PLC system.
4.With display screen to acheieve site control.
Q: Can this electric valve be resettable (normally open / closed) automatically when power is removed?
A: Our regular electric actuator can't be resettable automatically while power-off.
But it can go to the multiturn electric actuator model with the extra electrical storage device along,
which acheieve the valves can be automatic reset(normally closed) while power failure.
Q: Have the electric actuator had the presence of limit switches (contact about the position of the cut-off device)?
A: Yes, there is the position indicator on the top of actuator.
The open/closed status can be checked visually.
Q: Which type of protection class of this electric actuator?
A: IP65, IP68, Explosion proof.
Q. Is there any manual override of electric valve?
A: Yes, every electric valve includes the manual override.
You can open/close
Q:Have the electric valve had the limiting operating time?
A: Electric haven't had the limiting operating time.
It can be working for 99 hours continually without getting heating.
