Product Description

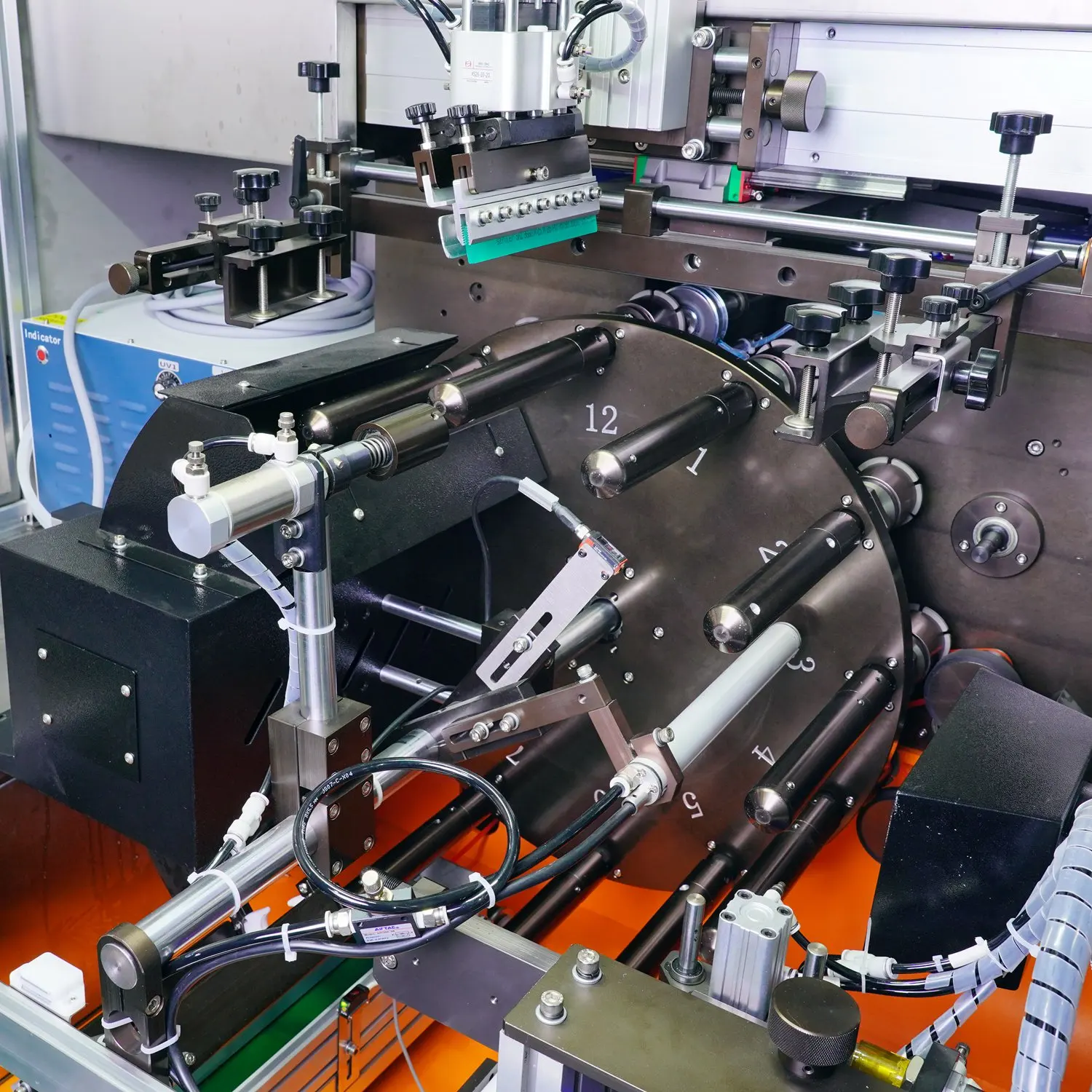

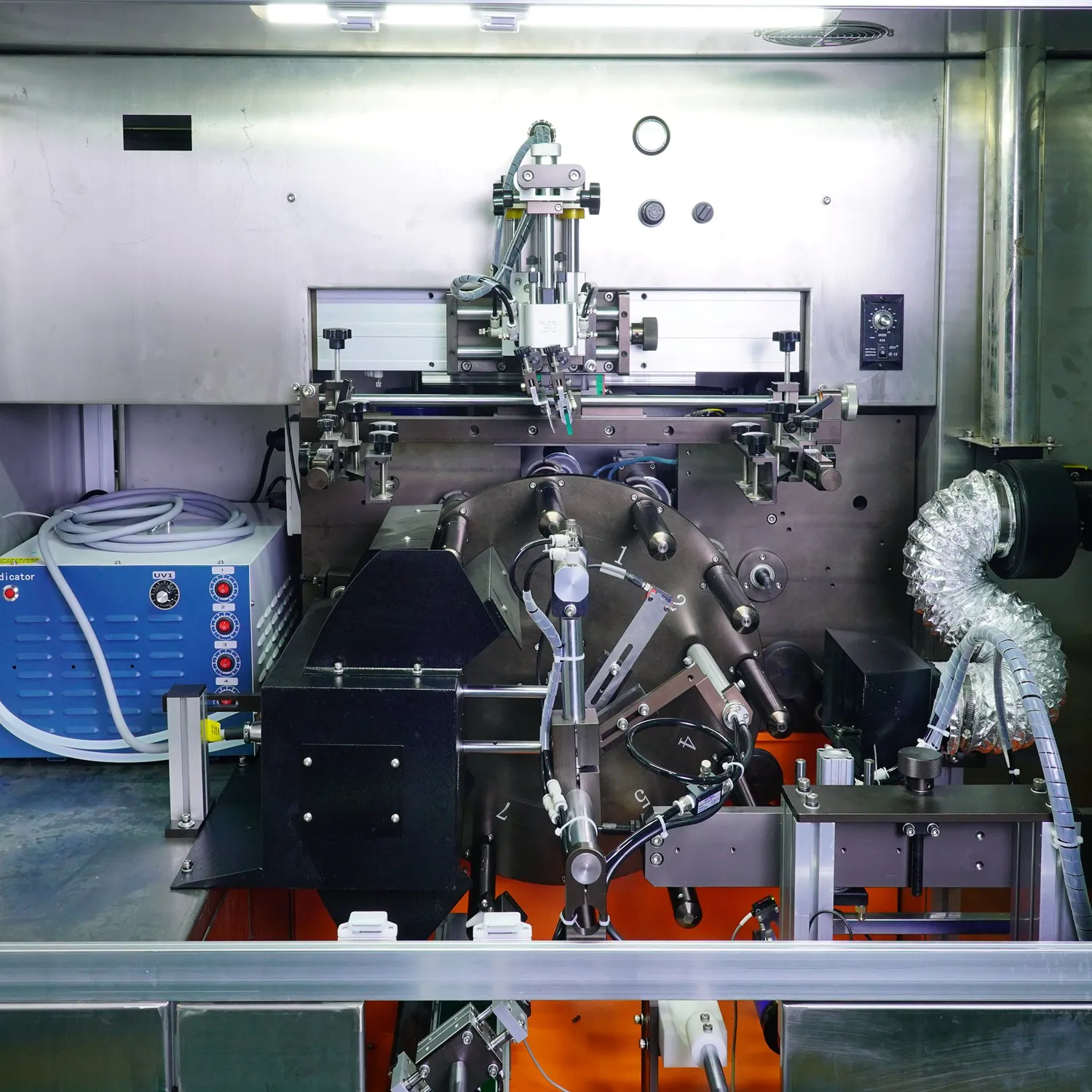

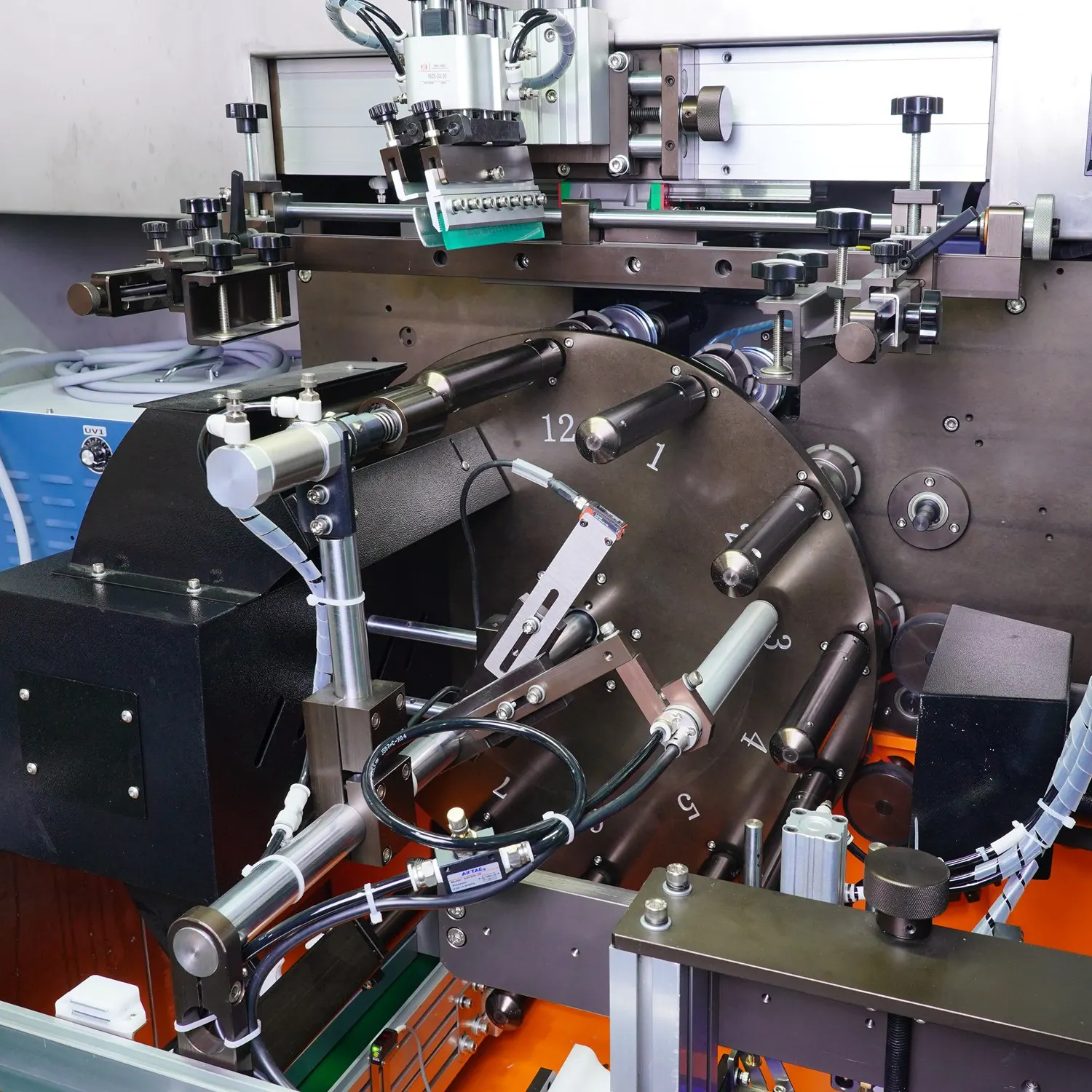

High Speed Automatic Two Print Heads Screen Printing and UV Curing Production Line for Tubes/Syringes/Pipes
Specifications | ||
Printed Object Dimension | φ:5mm~75mm,L:20mm~230mm | |
Power Supply | 380V,3Phase,50Hz | |
Air Supply | 6-8Bar | |
UV Lamp Power | 5Kw | |
Max.Printing Speed | 6000Pcs/hr | |
Machine Dimension | 3370(L)x 1400(W)x 2300(H)mm | |
Weight | 2650KG | |
Introduction:
●Main drive system uses transmission equipment of famous brand from Europe with precise high-speed indexer,so that it can make operations more stable and reliable.The maximum printing speed can reach up to 6000pcs/hr.

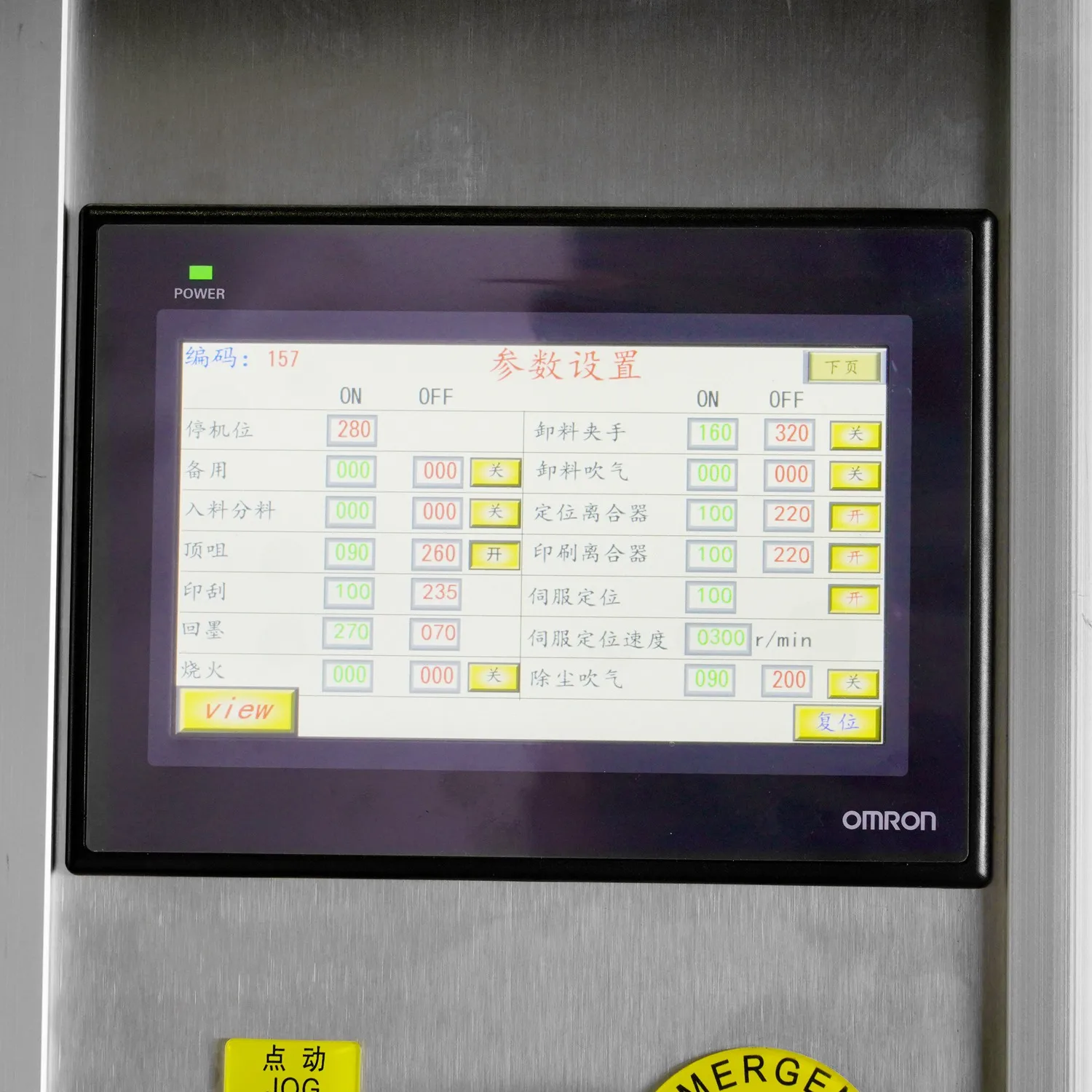

● Equipped with world famous PLC controller and convenient touch screen,therefore the whole operation becomes easy and simple.
●Printing ink can be solidified by UV curing,UV LED curing or infrared drying, and gain more ideal solidification effect on the base of ensuring stable performance and power saving.

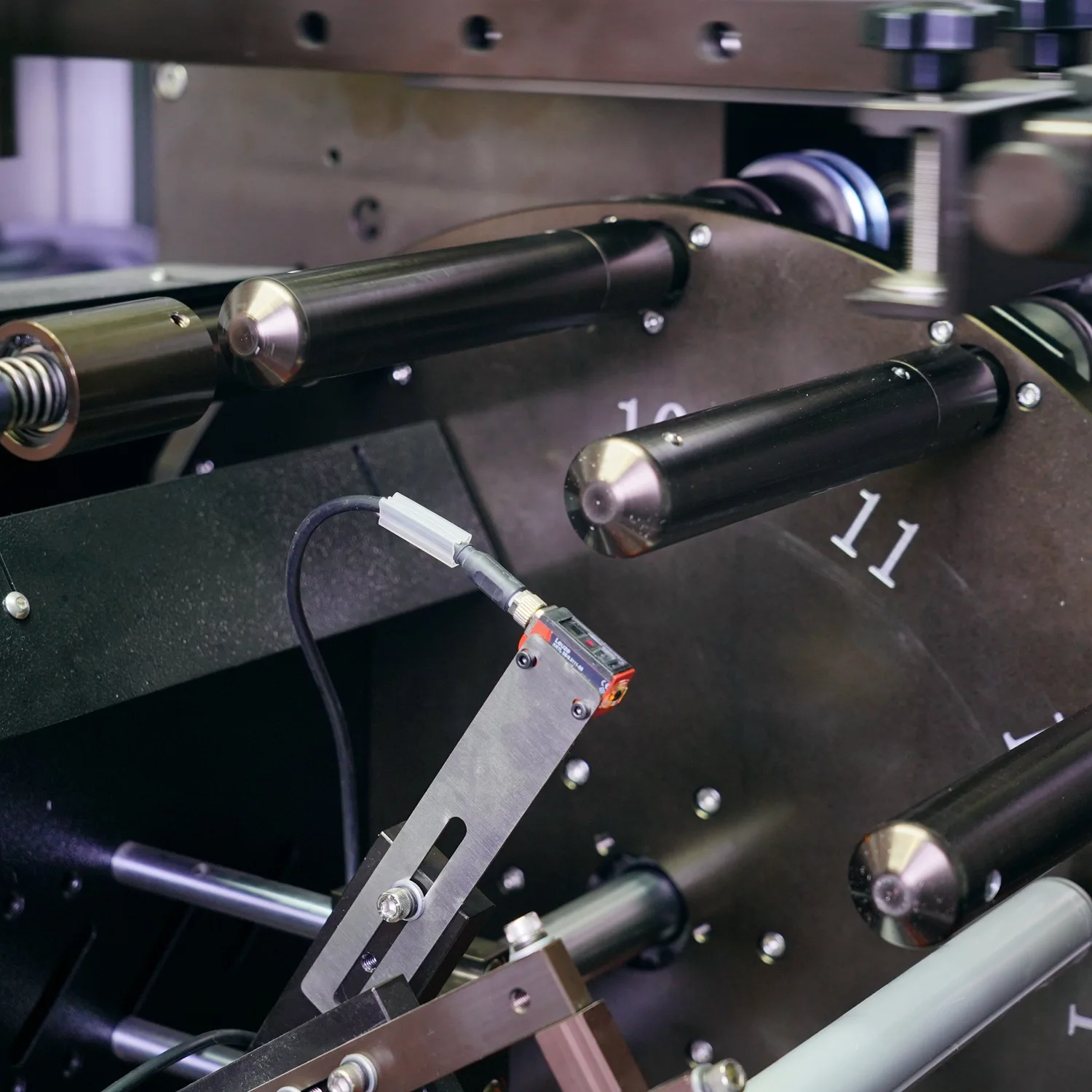

● Be provided with automatic monitoring function such as ionic wind dedusting, "no object,no printing",automatic alarm due to low air pressure and waste or wrong material,etc.
●With automatic loading and unloading systems,not only ensure continuous and stable printing operation, but also avoid scratching surface of printed object during printing process and guarantee operator's safe operation.
● Specially designed for fast speed screen printing on circular objects, such as tubes, bottle caps, centrifuge tubes, centrifugal pipes, condenser tubes, shake tubes, syringes, cosmetic jars and so on. And also can achieve multi-color printing and precise color register.
●Main drive system uses transmission equipment of famous brand from Europe with precise high-speed indexer,so that it can make operations more stable and reliable.The maximum printing speed can reach up to 6000pcs/hr.
● Equipped with world famous PLC controller and convenient touch screen,therefore the whole operation becomes easy and simple.
●Printing ink can be solidified by UV curing,UV LED curing or infrared drying, and gain more ideal solidification effect on the base of ensuring stable performance and power saving.
● Be provided with automatic monitoring function such as ionic wind dedusting, "no object,no printing",automatic alarm due to low air pressure and waste or wrong material,etc.
●With automatic loading and unloading systems,not only ensure continuous and stable printing operation, but also avoid scratching surface of printed object during printing process and guarantee operator's safe operation.
Application
Suitable for fast speed screen printing on circular objects, such as tubes, cosmetic tubes, bottle cps, lipstick tubes, glass pipettes, test tubes, jars, syringes etc.
Packing&Shipping
Packing: Wooden case suitable for export, carton box for small parts.
Lead Time: 25 Days or so
Lead Time: 25 Days or so
Shipping: By air, by sea, by express (DHL, TNT, UPS, FEDEX,etc).
After Sales Service
Professional after sales service
We provide one year warranty and life-long maintenance.
Free online training is available.
If necessary, we can also provide field maintenance, but travel charge will be on buyer's side.
If necessary, we can also provide field maintenance, but travel charge will be on buyer's side.
Online service time: 16 hours online services
8:00 am--12:00pm (Monday- Saturday)
24 hours phone call services (Monday- Sunday)
In order to benefit good rights and interests for our customers, we have done the testing strictly before the machine exports; try to provide the best after-sales service for our customers.
8:00 am--12:00pm (Monday- Saturday)
24 hours phone call services (Monday- Sunday)
In order to benefit good rights and interests for our customers, we have done the testing strictly before the machine exports; try to provide the best after-sales service for our customers.
Why Choose Us
1. Top quality electrical & Pneumatic parts, OMRON, Mitsubishi, FESTO and SMC brands.
2. Most parts are processed by ourselves, quality and cost are under control.
3. Professional engineers with more than 20 years’experience, can design the machine for your products.
4. One year warranty and life-long maintenance.
2. Most parts are processed by ourselves, quality and cost are under control.
3. Professional engineers with more than 20 years’experience, can design the machine for your products.
4. One year warranty and life-long maintenance.
Related Products
Company Introduction
Howell Print Technology Ltd. is a professional manufacturer of pad printing and screen printing machine since 1996, located in
Dongguan China.
Howell provides premium and extremely stable both semi-automatic and fully automatic equipment with world famous pneumatic parts,
and complying with CE safety standards.
Howell offers full manufacturing services to OEM and ODM customers.
FAQ
Q: I want to buy your machine, can you print my product as sample first?
A: Yes,we can. After you confirmed the order, we can print your sample for free.
Q: Can I get wearing parts from you?
A: Yes, we provide all the wearing parts for our printers.
Q: What modes of payment do you accept?
A: We accept T/T, WesternUnion, Paypal, L/C at sight.
A: Yes,we can. After you confirmed the order, we can print your sample for free.
Q: Can I get wearing parts from you?
A: Yes, we provide all the wearing parts for our printers.
Q: What modes of payment do you accept?
A: We accept T/T, WesternUnion, Paypal, L/C at sight.
