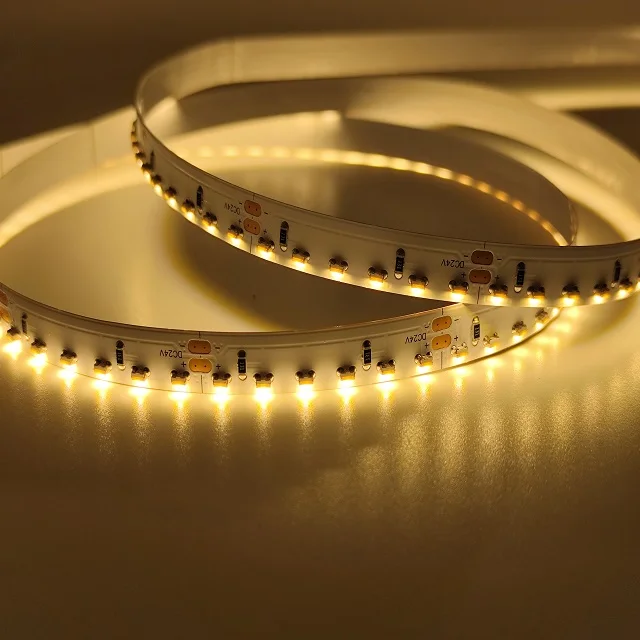

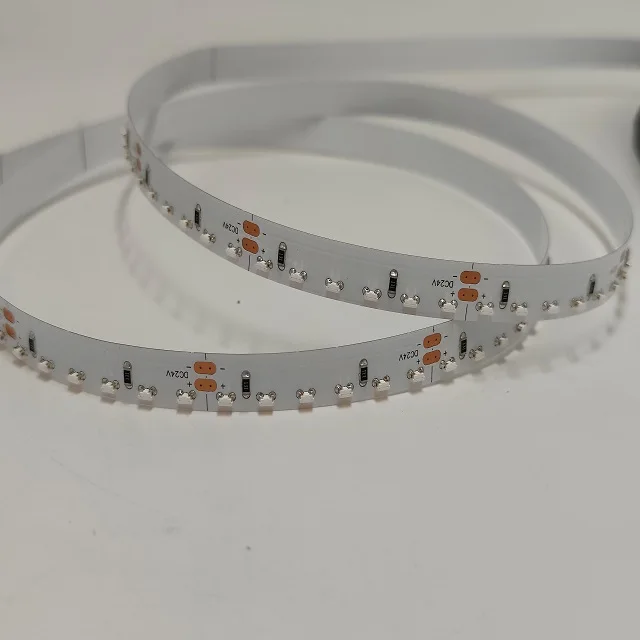

SMD3014 120 ламп/метр DC24V высокая световая эффективность постоянное напряжение цветопередача Гибкая лента

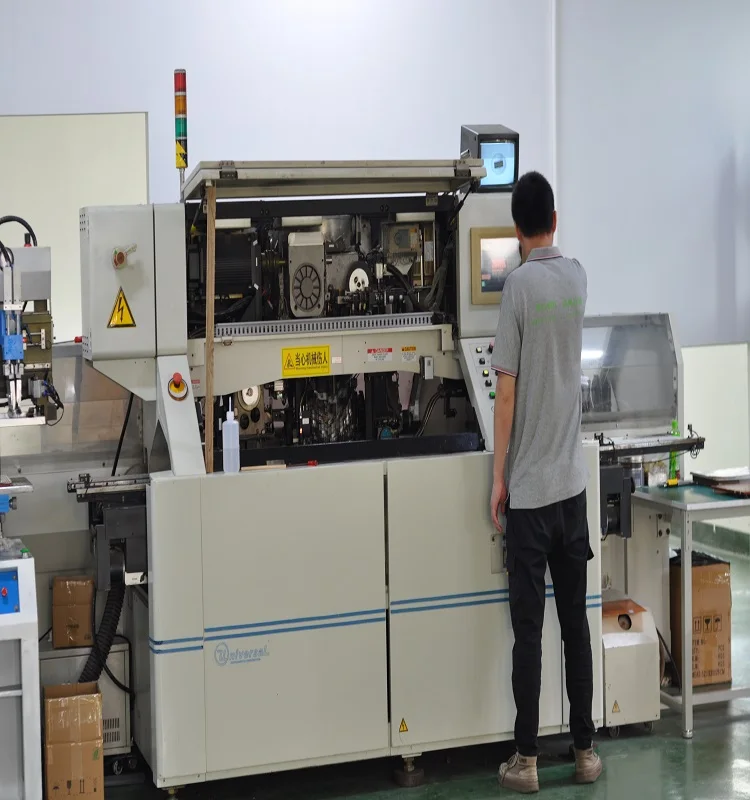

l Description:Combining price and performance, Glite SMD3014 side-illuminated offers an affordable lighting solution for developing customers. Fully automatic assembly line ensures reliable product quality. We offer the customization service for mass order quantity, and in the meantime, we recommend to take regular products.

l Specifications:

Quick Detail:

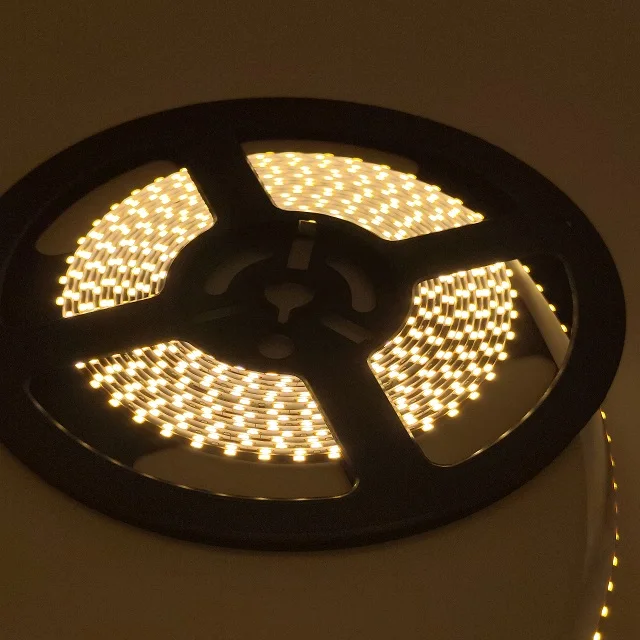

1.SMD3014 LED Strip Light, DC24V,120led/m, 1200leds/roll, color temperature 3000K;

2.Indoor lighting IP20 and outdoor lighting IP67

3. With standard 3M self-stick , easy for installation;

4. CE Certificated and RoHS compliant;

5.Side-illuminated, soft light without glare

6. Factory wholesale cost.OEM and ODM service.

Description:

GLC 3014  Side-illuminated Led Strip Features:

·Glite GLC 3014  Side-illuminated Led Strip  dramatically improve the appearance of objects.

·It brings us uniform and gentle light. With the features of good heat dispatch, long lifespan and low luminous decay.

·It supplys alternative color rendering solutions for commercial lighting, gallery lighting, advertising lighting , architectural decorative lighting and so on.

·2/3 OZ  FPC, original high quality 3M 9495LE tape, 3 or 6LEDS/cut, with special design strong package. LED with LM-80 Test approval.

·Customized service available, customized MOQ>500M, 2 Years Warranty.

Technical Parameters:

 Tips: color temperature 2700K 3000K 4000K 6000K Red Green Blue Pink Amber etc options.

 Competitive Advantage:

·Low price, good light performance.

·Fast deliver time ,production 10000 +meters per day.

·longer lifetime,low brightness decay.

·Door to door, airline,ocean deliver service.

 Applications:

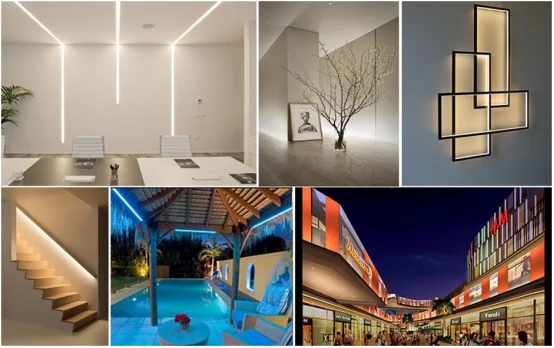

Showcase lighting, warehouse, bathroom, living room, meeting room, etc.

Installing:

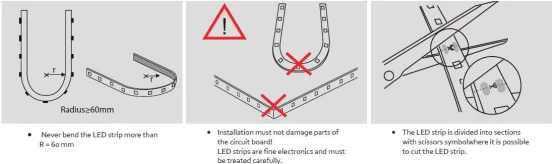

·Never bend the LED strip more than R = 60 mm.

·Installation must not damage parts of the circuit board!LED strips are fine electronics and must be treated carefully.

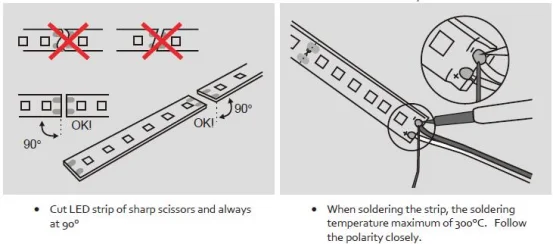

·The LED strip is divided into sections with scissors symbol where it is possible to cut the LED strip. Cut LED strip of sharp scissors and always at 90°.

·When soldering the strip, the soldering temperature maximum of 300°C. Follow the polarity closely.

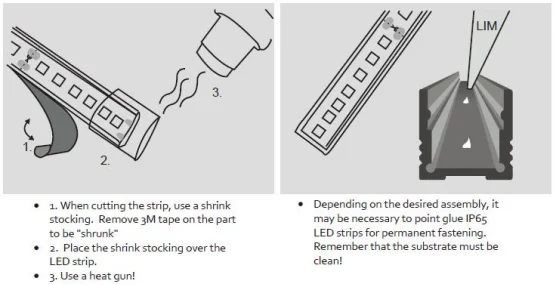

·1- When cutting the strip, use a shrink stocking.  Remove 3M tape on the part to be "shrunk"

2-Place the shrink stocking over the LED strip.

3-Use a heat gun!

·Depending on the desired assembly, it may be necessary to point glue IP65 LED strips for permanent fastening.  Remember that the substrate must be clean!

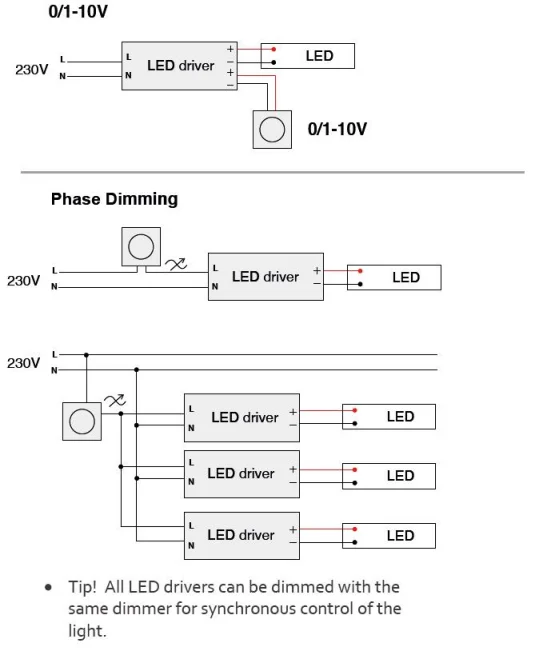

·All Glite Led Strips is dimmable by 0/1-10V,DALI,PWM,DMX controller.

·Connect Led 12v/24v to positive on driver, conenct Led - to negative on driver.

·LED must work under correct voltage,never work with incorrect driver voltages!

·Take the led strips from reels and open it before test the light with the driver!
