KHB3K-G3/4 бестселлера 3-ходовая углеродистая сталь/нержавеющая сталь 3-ходовой шаровой клапан высокого давления
5,00 $

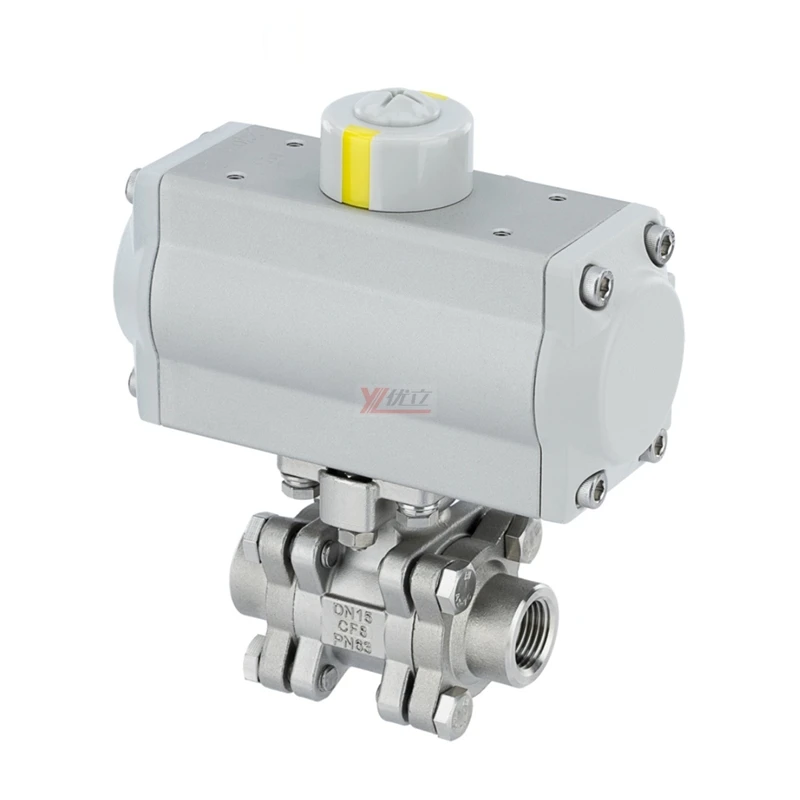

YOULI высокотемпературное металлическое уплотнение NPT BSP 2000wog PN130 нержавеющая сталь 304 316 Пневматический привод 3 шт. резьбовой шаровой клапан
- Категория: >>>
- Поставщик: Wenzhou Youli Machinery Co. Ltd.Wenzhou Ltd.
Сохранить в закладки 1601061104050:
Описание и отзывы
Характеристики
Product Description
Body material | SUS201,SUS304,SUS316,SUS 304L,SUS 316L(CF8,CF8M),WCB,etc. |
Full port | 1/4"-4"(DN8-DN100) |
Working pressure | PN16-64,1.6-6.4Mpa,16-64Bar,1000PSI,1000-2000WOG |
Medium temperature | - 20 ℃ ~ + 140°C,Optional(- 20℃ ~ + 250°C) |
Connection type | Weld, Thread,Socket,Clamped,Flanged |
Connection Standard | NPT,BSPT,BSP |
Sealing | PTFE,RPTFE,PPL ETC |
ISO 5211 Direct mounting pad | Yes |
Investment casting | Yes |
Blow-out proof stem | Yes |
Anti-static device | option |
Locking device handle | option |
Pneumatic actuator | option(Single acting and double acting) |
Solenoid valve | option(DC24V,AC220V) |
Filter | option |
Handwheel | option |
Limit switch | option(APL210,APL410 explosion-proof,APL510 explosion-proof) |
Positioner | option(TY-1000,4-20ma Signal feedback) |
Production process | Investment casting, CNC lathe, Test, Cleaning, Packing, Storage |
Capacity to produce | 10000PCS/Mouth |
Certification | CE, ISO, our factory has been inspected by leyon and TUV |
MOQ | 1PC |
HS Code | 8481804090 |
Trademark | YOULI |
Application | Suitable for water, oil, air and some corrosive liquid etc |
Buyer's drawings or designs are available | |
Package | Cartons without pallet |
Cartons with pallet | |
Or as buyer's requirements | |
Delivery details | According to the quantities and specifications of each order |
Normal delivery time is from 10 to 15 days after receiving the deposit |
Operating Principle.
A ball valve is a form of quarter-turn valve which uses a hollow, perforated, and pivoting ball to control flow through it. It is open when the ball's hole is in line with the flow and closed when it is pivoted 90-degrees by the valve handle. The handle lies flat in alignment with the flow when open, and is perpendicular to it when closed, making for easy visual confirmation of the valve's status. The shut position 1/4 turn could be in either CW or CCW direction.
Product Appliction
Suitable for water, oil, air and some corrosive liquid etc
Product Paramenters
Related Products
Details Images
Company Profile
Wenzhou YouLi Machinery Co., Ltd. is a modern enterprise that integrates design, manufacturing, sales, and services. The main products include ball valves,butterfly valves, gate valves, globe valves, filters, pressure reducing valves, safety valves,exhaust valves, angle seat valves, control valves, water control valves, knife gate valves, solenoid valves, discharge valves,steam traps,balance valves,breather valves, diaphragm valves, vacuum valves, needle valves, flame arresters,pumps, pipe fttings,sight glasses,manholes, pneumatic and electric accessories,fluorine-lined valves, and sanitary valves and fttings.
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Our Service
On Samples | Buyer bear the air fee, but this fee will be reduced from order directly |
On After Sales | Free replacement if there is any quality problem |
On Delivery | Never delay delivery time |
On Materials | Ensure material pure |
Ensure material pure | Welcome to order our products |
FAQ
Q: Why would I choose you?
Wenzhou Youli Machinery Co., Ltd. is a modern enterprise that integrates design, manufacturing, sales, and service.
With a people-oriented approach, technology as the core, market-oriented strategy, and quality assurance, the company is committedto providing better fluid system solutions.
Q: May I have free samples before ordering?
Yes, our company is very pleased to send you free samples for quality test as long as freight cost being paid by buyers
themselves.
Q: What’s the MOQ?
The majority of products are fully in stock, so we accept 1 piece as the minimum order quantity.
Q: Does your company have the export license?
Yes, we have more than 4 years export experience, we can do FOB, C&F, CIF, DDU and DDP (Russian Only).
Q: What’s the payment term?
For small testing orders, we accept Paypal, Western Union, T/T and Credit Card.For mass orders, we accept T/T and L/C.
Q: How would you minimize damages during delivery?
Standard: mass orders will be packed by many carbon boxes and filled in plywood cases.Available requirement: blister packing for every piece of product, plastic caps for clamp connected products.
Q: How would you choose the shipment way?
Basically, we will select shipment ways based on four factors (order quantity, delivery time, costs and customs policy), then listcouples of reasonable options with Pros and Cons to customers, letting them to decide.
Wenzhou Youli Machinery Co., Ltd. is a modern enterprise that integrates design, manufacturing, sales, and service.
With a people-oriented approach, technology as the core, market-oriented strategy, and quality assurance, the company is committedto providing better fluid system solutions.
Q: May I have free samples before ordering?
Yes, our company is very pleased to send you free samples for quality test as long as freight cost being paid by buyers
themselves.
Q: What’s the MOQ?
The majority of products are fully in stock, so we accept 1 piece as the minimum order quantity.
Q: Does your company have the export license?
Yes, we have more than 4 years export experience, we can do FOB, C&F, CIF, DDU and DDP (Russian Only).
Q: What’s the payment term?
For small testing orders, we accept Paypal, Western Union, T/T and Credit Card.For mass orders, we accept T/T and L/C.
Q: How would you minimize damages during delivery?
Standard: mass orders will be packed by many carbon boxes and filled in plywood cases.Available requirement: blister packing for every piece of product, plastic caps for clamp connected products.
Q: How would you choose the shipment way?
Basically, we will select shipment ways based on four factors (order quantity, delivery time, costs and customs policy), then listcouples of reasonable options with Pros and Cons to customers, letting them to decide.
