LCD-Bildschirm Dual Axis Solar Tracker Set Sun Tracking Solar System Controller for Solar Power System
Product Description
The unique deep hole-type internal and external dual inspection method generates different sunlight radiation voltage values in four directions, shielded by the central pheasant-shaped cap, transmitted to the main board through a 5-core cable with a length of 3 meters. The mounting method involves fixing with 2 pieces of M6 screws, positioned 40mm
apart, and configuring the transparent cover, providing a certain level of dust and waterproof functionality.

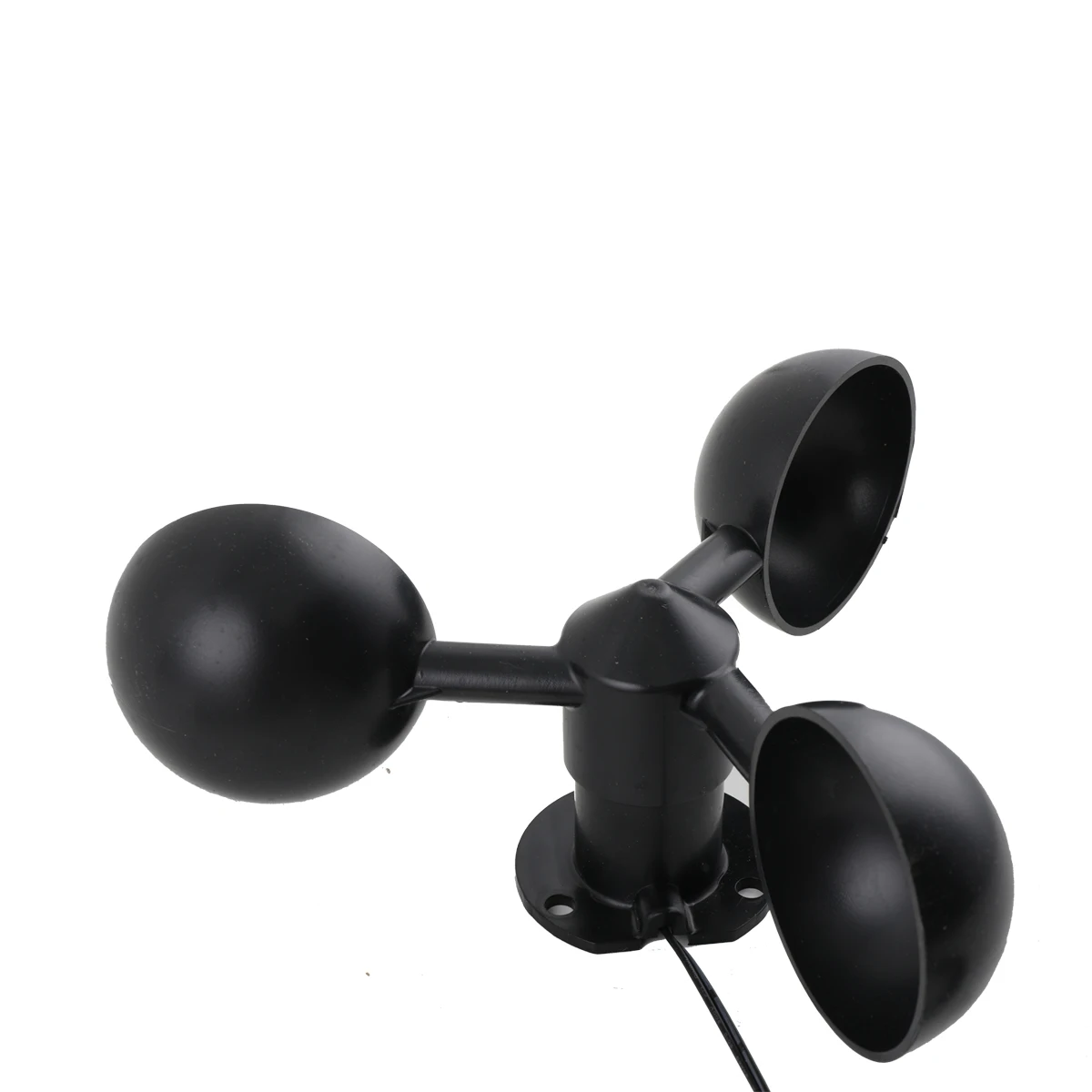

A wind speed sensor is used to measure the environmental wind speed, and the controller control platform drives to the position where it can avoid the wind, protecting the platform when the wind speed reaches the protection value set by the controller. The standard air speed sensor is configured with a cable length of 3 meters. (If the customer configures the wind speed sensor on their own, they must select and use the voltage signal type wind speed sensor.)

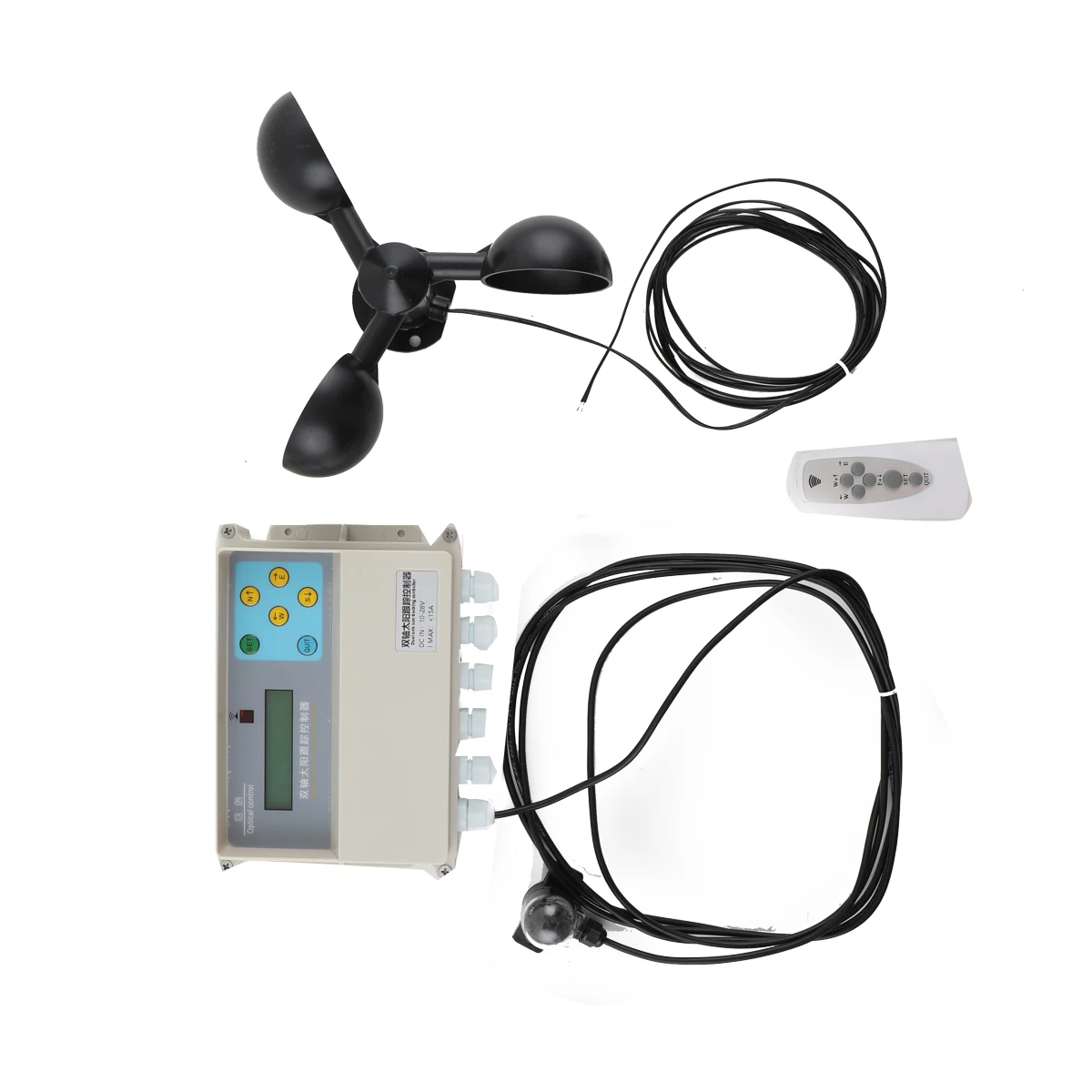

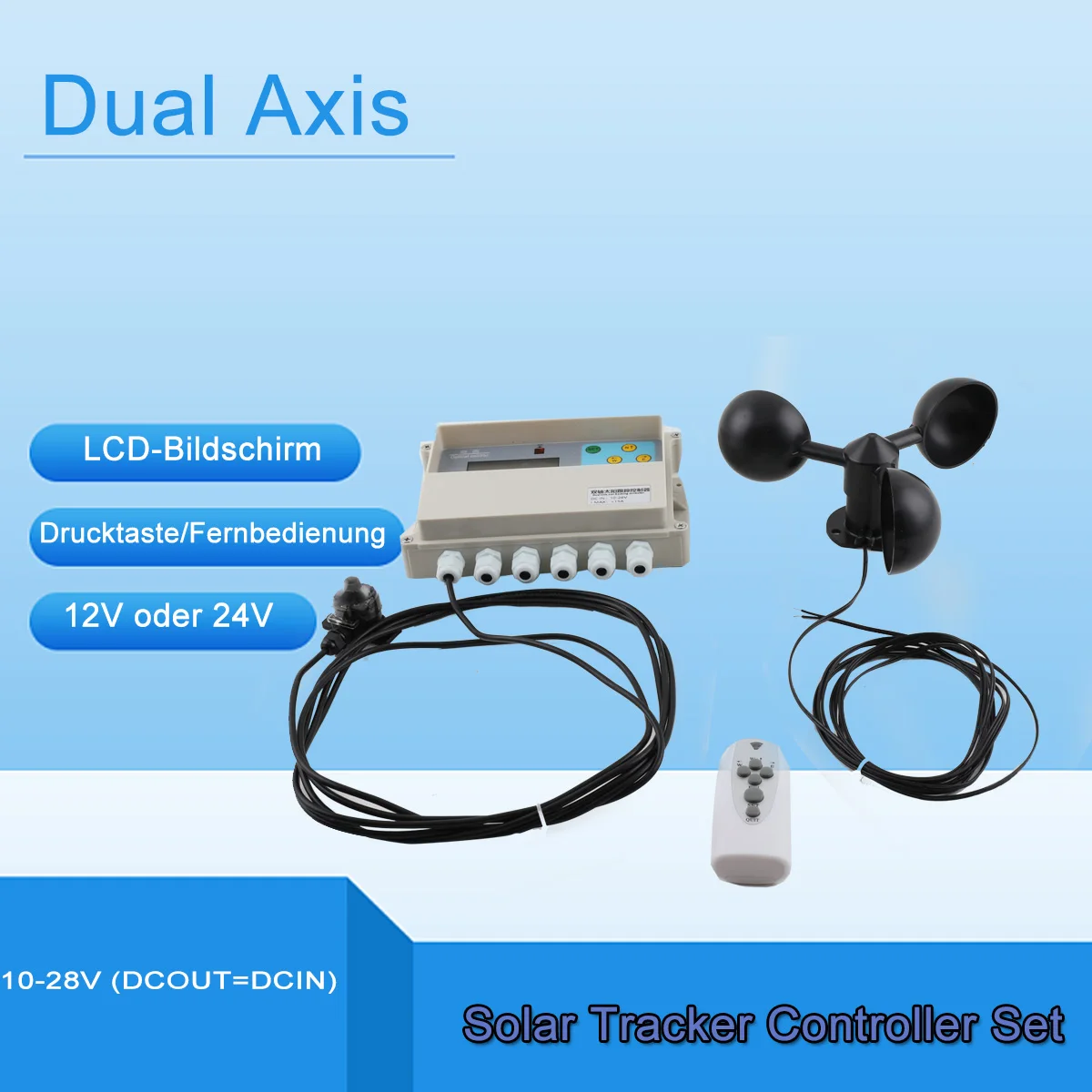

Product including:
1 * Solar Tracker Controller Set
1 * Wind Speed Sensor
1 * Infrared Remote Control
apart, and configuring the transparent cover, providing a certain level of dust and waterproof functionality.
A wind speed sensor is used to measure the environmental wind speed, and the controller control platform drives to the position where it can avoid the wind, protecting the platform when the wind speed reaches the protection value set by the controller. The standard air speed sensor is configured with a cable length of 3 meters. (If the customer configures the wind speed sensor on their own, they must select and use the voltage signal type wind speed sensor.)

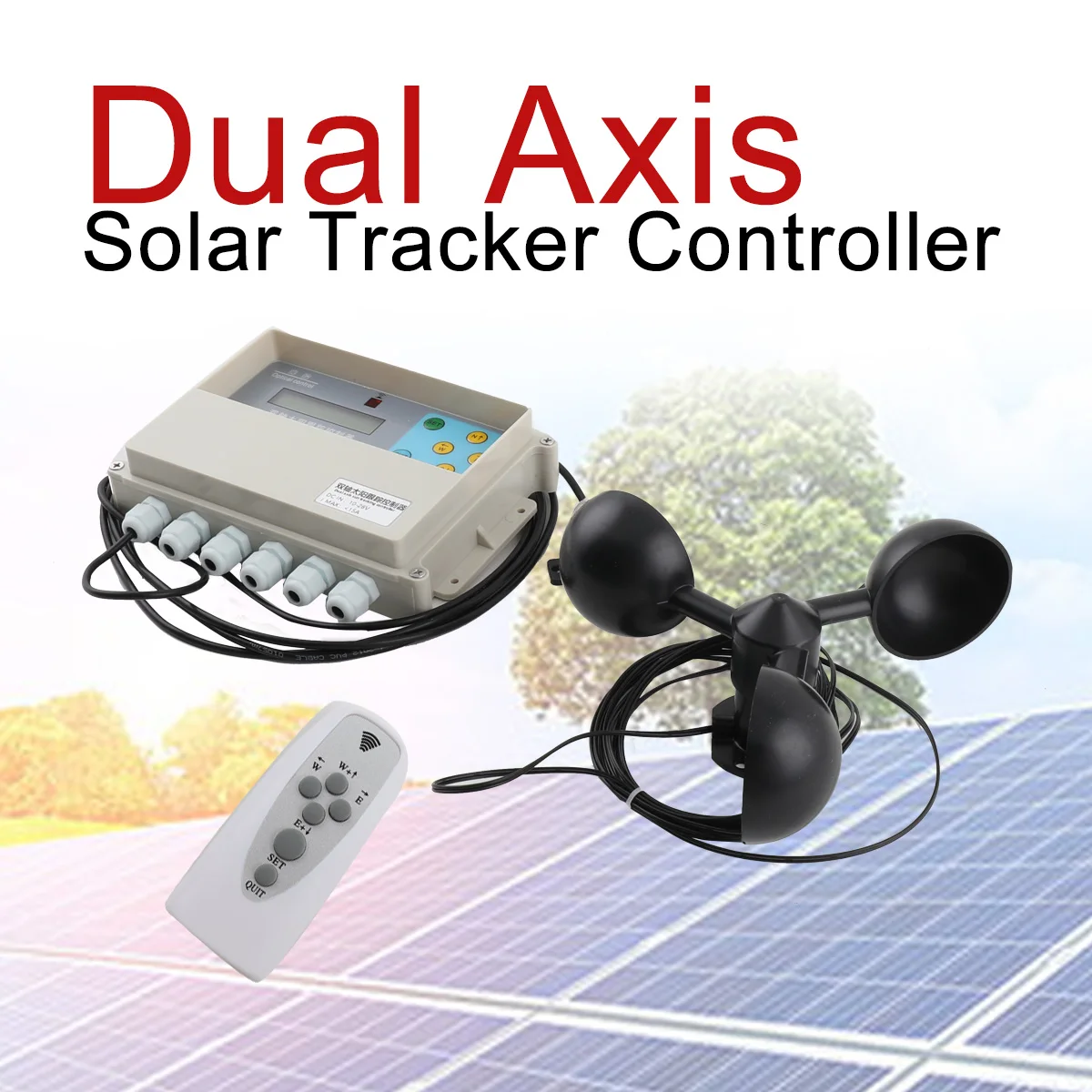

1. This controller is a dual-axis sunshine tracking controller that utilizes a high-precision internal and external ring-hole
type sensor to detect the direction of sunlight. The SCM (Single Chip Microcontroller) electric circuit on the controller
processes and analyzes the sensor signal, guiding the entire process of tracking sunlight through the corresponding motor and electric relay assembly on the control platform of the electric board.
2. At the same time, it still has functions such as leveling when the wind is detected (air speed sensor configuration optional), reset on cloudy days or at night. It features an English liquid crystal display to show the corresponding parameters, and it can use the buttons on the controller or the infrared controller buttons (remote control configuration optional) to adjust various parameters.
3. This controller requires a corresponding platform to be a dual-freedom platform, with the driving motor of the platform being a DC brushed motor. The motor voltage is 12V or 24V, and the current of each individual motor must be less than 15A (standard configuration with a 10A fuse for each shaft). The platform should have limit switches in all four directions.
type sensor to detect the direction of sunlight. The SCM (Single Chip Microcontroller) electric circuit on the controller
processes and analyzes the sensor signal, guiding the entire process of tracking sunlight through the corresponding motor and electric relay assembly on the control platform of the electric board.
2. At the same time, it still has functions such as leveling when the wind is detected (air speed sensor configuration optional), reset on cloudy days or at night. It features an English liquid crystal display to show the corresponding parameters, and it can use the buttons on the controller or the infrared controller buttons (remote control configuration optional) to adjust various parameters.
3. This controller requires a corresponding platform to be a dual-freedom platform, with the driving motor of the platform being a DC brushed motor. The motor voltage is 12V or 24V, and the current of each individual motor must be less than 15A (standard configuration with a 10A fuse for each shaft). The platform should have limit switches in all four directions.

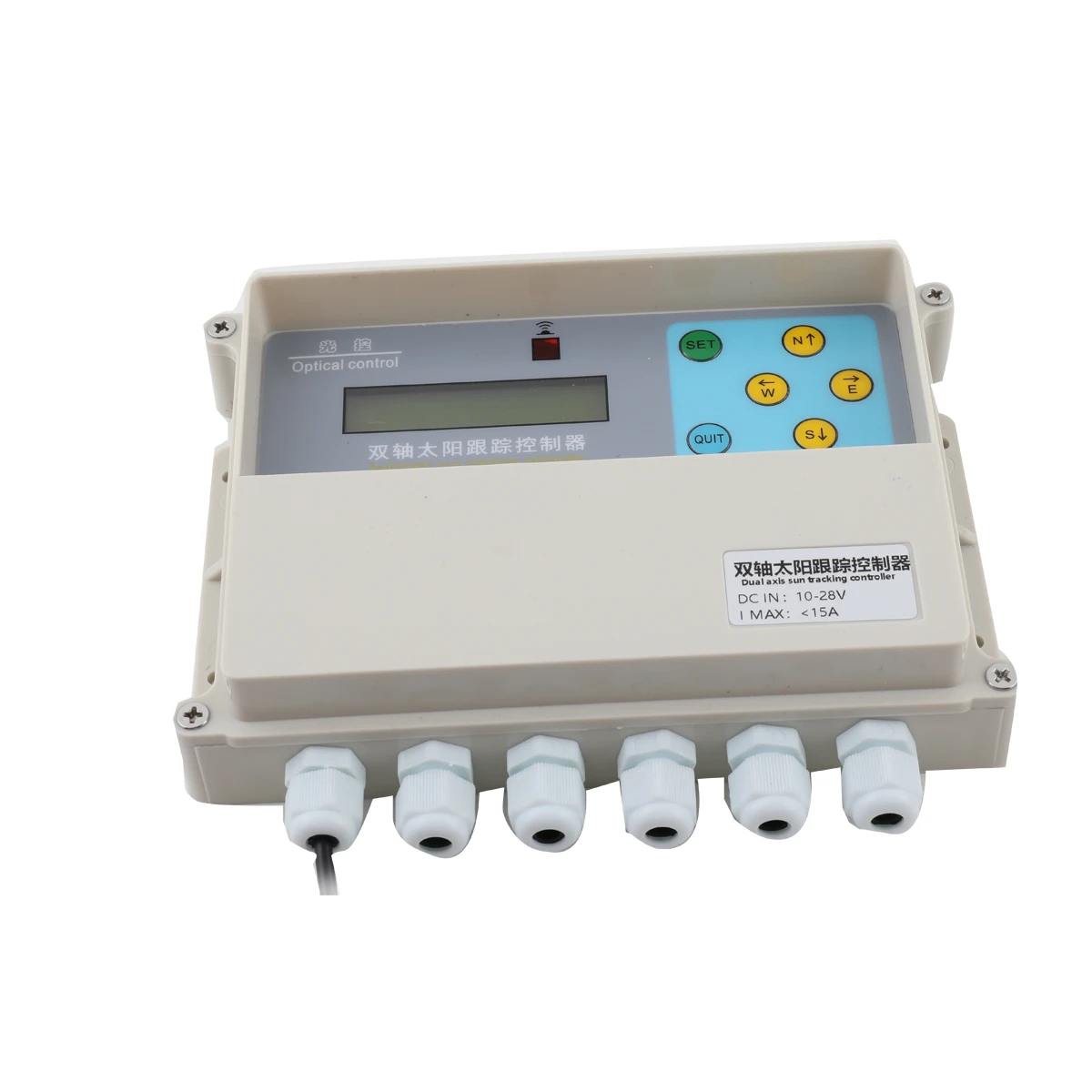

4. The product adopts a waterproof box as its outer shell, providing rainproof performance when vertically mounted. It has a maximum of 6 waterproof wire outlet connectors used for circuit connections. All circuit connections on the mainboard utilize a terminal wiring method. The top cover features a screen display and six operational buttons, enabling manual observation of parameters and processes, as well as parameter settings.
Product including:
1 * Solar Tracker Controller Set
1 * Wind Speed Sensor
1 * Infrared Remote Control
Specification
Sample | Available |
Color | White Black |
MOQ | 10 PCS |
Product name | LCD-Bildschirm Dual Axis Solar Tracker Controller |
Application | Solar Panel Solar Energy Systems |
Certificate | CE |
Dimension | 15X15X15 cm |
Weight | 2.5kg |
Packing & Delivery
Carton/Wooden Box
