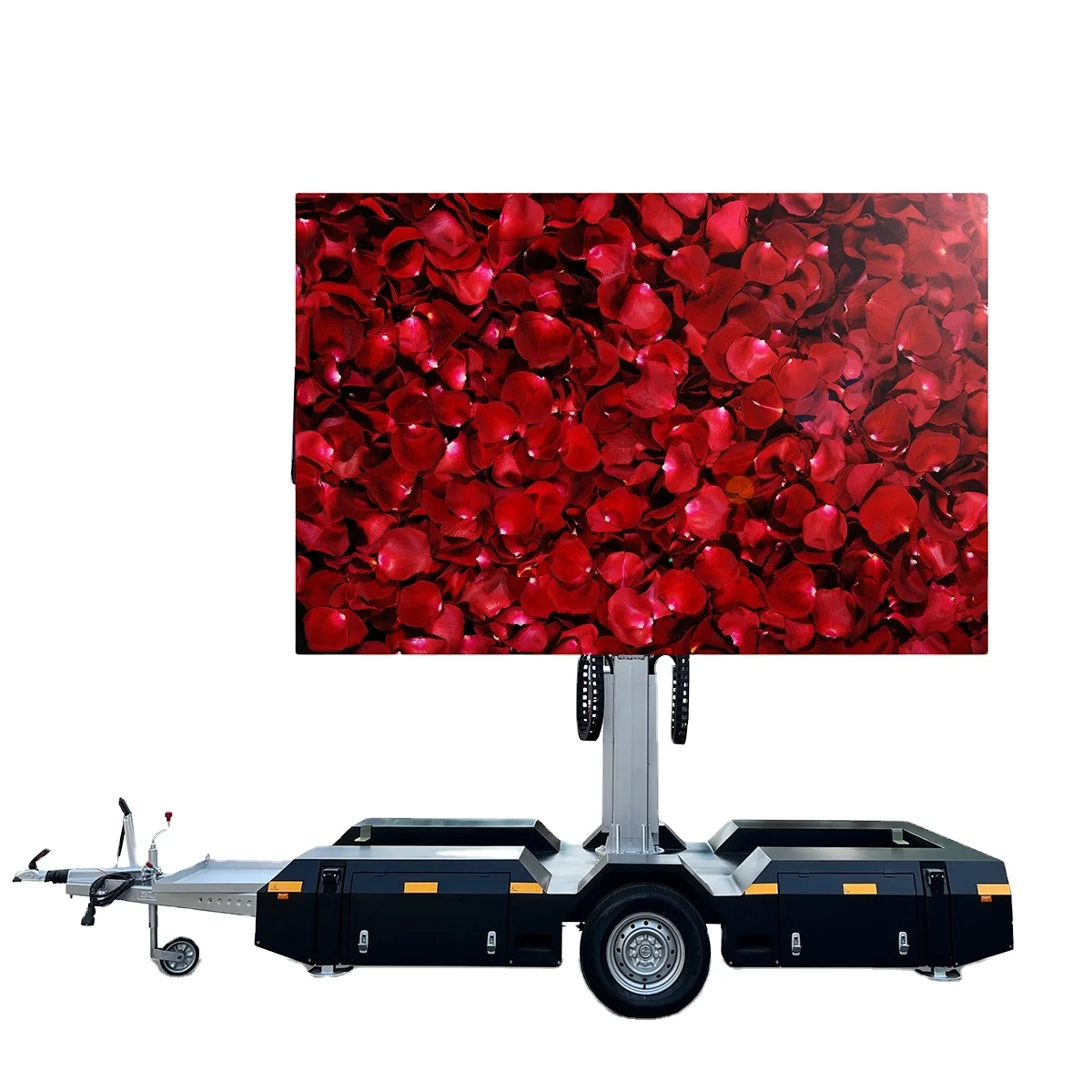

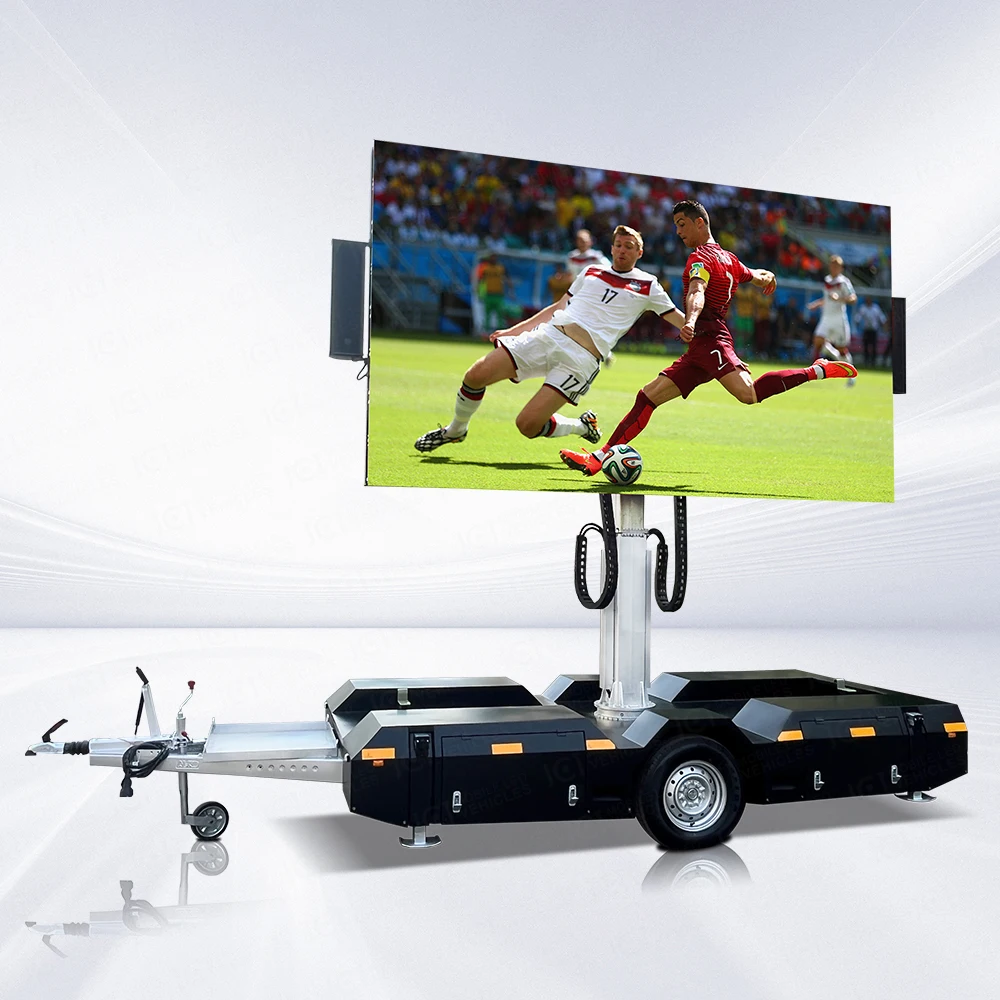

The E-F8 mobile trailer combines the advantages of many JCT products. E-F8 mobile LED propaganda trailer is a new system with integrated support, hydraulic lifting, and rotating functions. The rotating guide column independently developed by Jingchuan can achieve a 360° viewing range of the LED screen without dead ends, further improving the communication effect. The imported hydraulic lifting system is safe and stable, and the stroke can reach 1300mm.
Model | E-F8M | |||||
Chassis | ||||||
Brand | JCT | External Dimension | 5070mmx1900mmx2042mm | |||
Supporting legs | 4pcs | Tire | Solid rubber tires | |||
Gross Trailer Mass (GTM) | 1300KG | Brake | Hand brake | |||
LED Screen | ||||||
Screen Size | 3840mmx2240mm | Dot Pitch | 3/4/5mm | |||

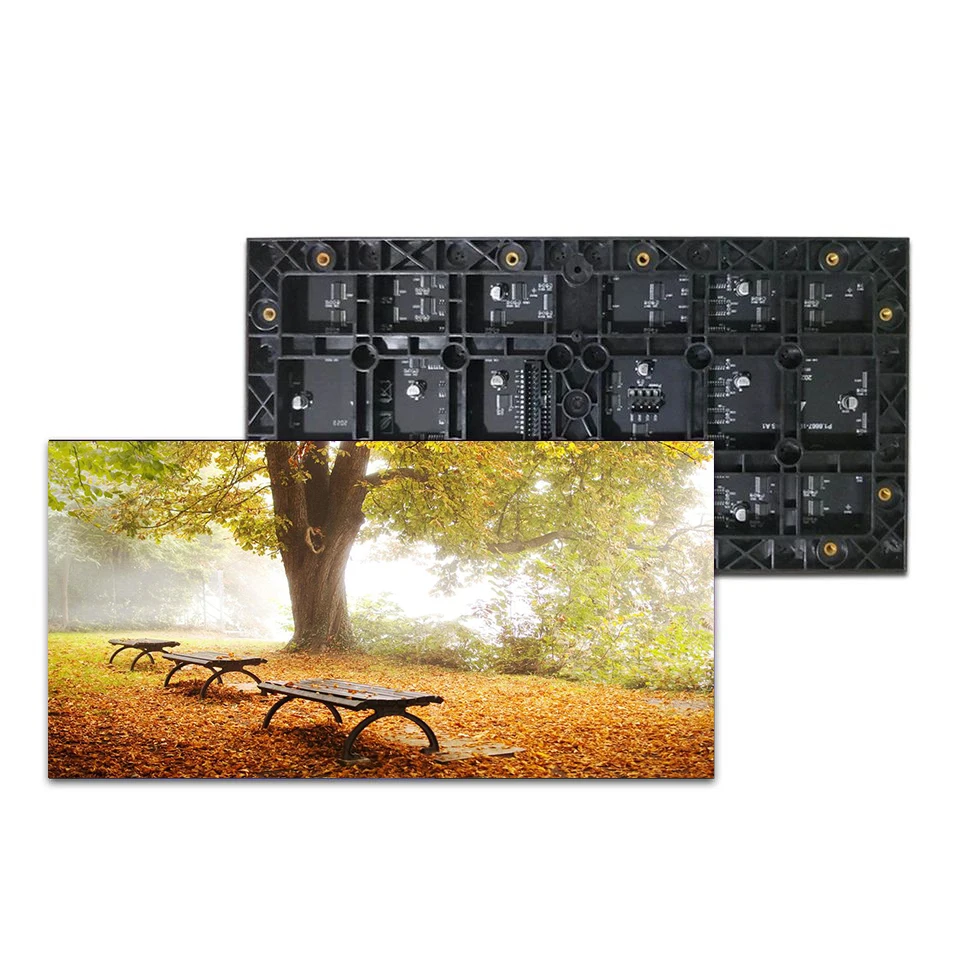

Module Size | 320mm(W)*160mm(H) | Brightness | ≥6500cd/㎡ | |||
Max Power Consumption | 750w/㎡ | Average Power Consumption | 250w/㎡ | |||
Lifespan | 100,000hours | |||||

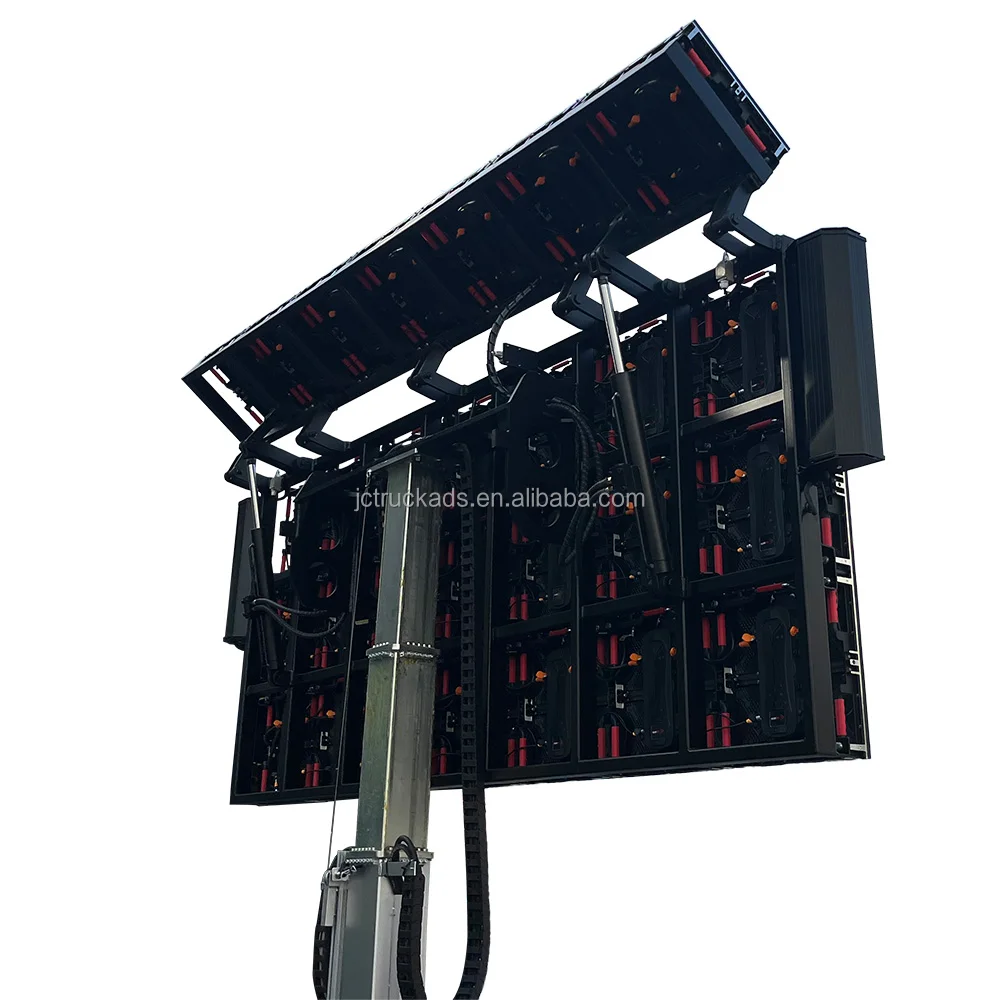

Hydraulic lifting System | ||||||
Hydraulic Lifting System | Lifting Range 1300mm | |||||
Hydraulic Rotating System | Screen can be rotated 330degrees | |||||
Wing-against Level | Against Level 8wind after screen lift up 1300mm | |||||
Power parameter | ||||||
Input Voltage | 220V | Output Voltage | 220V | |||
Current | 28A | Average power consumption | 0.3kwh/㎡ | |||

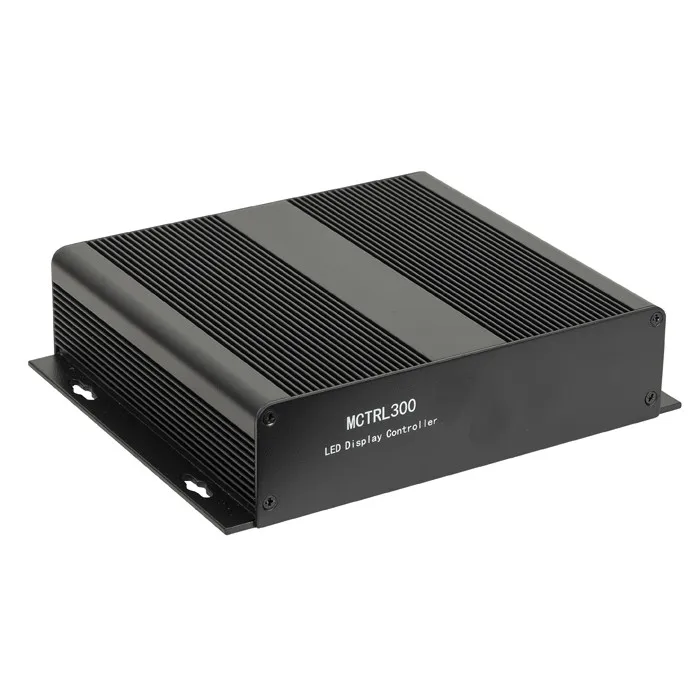

Multimedia Control System | ||||||
Optional configuration | LED Screen& Battery power & mechanical transmission is optional |
Taizhou Jingchuan Electronics Technology Co.,Ltd,which named Shanghai Jingxiang Advertisement Communication Co.,Ltd ,was founded in 2007.We are the first culture and technology company who specialized in the LED advertising vehicle R&D, production and sales,as well as on-board commercial operation.
Products involving mobile LED trucks,mobile LED trailers,mobile LED stage trucks,mobile LED container,mobile LED bus and other customization,total more than 30 models.
A: Speciality: We focused on developing and producing outdoor LED mobile vehicles since 2007. Already got more than 30 products patents;
B: High-end: We always use the good quality accessories and leading technologies for supporting the best quality;
C: Support best solution: We support customization according to your requirements, so that the vehicles will have high performance cost ratio and best advertising effect!
A: We support you original spare parts. Besides, we can give assistance in the following days by e-mail , telephone, video.
B: 24 months whole vehicle warranty
C: We are looking for the local service in overseas ,it is selected from our customers and developed as our dealers.
A: T/T 50% deposit paid in advance, 50% of the balance before delivery;
B: LC at sight;
A: We and our factory are in Linhai,Taizhou city,it is near from Shanghai/Hangzhou/Ningbo,it is convenient to visit us by train from these cities.
A: Yes. We have rich experience for exporting to different countries such as Europe , North & South America, African, Russia and others This helps you importing successfully.
