Прямая Продажа с завода правый Привод Dongfeng 9 куб. М 5 тонн сборщик мусора
1 966 918,80-2 026 522,40 ₽
Заводская распродажа ISUZU 9 CBM 4x2
- Категория: >>>
- Поставщик: Changfeng (hubei) Vehicle Co. Ltd.Changfeng Ltd.
Сохранить в закладки 1601061642535:
Описание и отзывы
Характеристики
Products Description
ISUZU( FAW SINOTRUK HOWO DONGFENG SHACMAN FOTON)14000 liters garbage compactor trucks
1. Garbage Bin with different size options of waste collection truck: 2cbm to 16cbm.
2. Hydraulic Control Loading & Unloading System.
3. Different shapes of roll on roll off waste truck bins such as trapzoid,boat-shape,square shape and so on and divided into
above-ground and under-ground type.
4. High-tensile steel chains: imported hydraulic oil cylinder and sealing material.
5. Lifting oil cylinder: double oil cylinder under garbage box,so garbage box can be lifted and self-dumped.
6. Double rear landing leg controlled by hydraulic multi-way valve to stablise truck.Main Technical Parameters
2. Hydraulic Control Loading & Unloading System.
3. Different shapes of roll on roll off waste truck bins such as trapzoid,boat-shape,square shape and so on and divided into
above-ground and under-ground type.
4. High-tensile steel chains: imported hydraulic oil cylinder and sealing material.
5. Lifting oil cylinder: double oil cylinder under garbage box,so garbage box can be lifted and self-dumped.
6. Double rear landing leg controlled by hydraulic multi-way valve to stablise truck.Main Technical Parameters
Main Technical Parameters | ||
Vehicle name | 4*2 LHD RHD 14cbm ISUZU Diesel Fuel Garbage Compactor Truck | |
Overall dimensions | 7600*2250*3200mm | |
GVW | 12000kg | |
Total net weight | 6800kgs | |
Loading capacity | 6000kgs ， 9 m3 | |
Max speed | 95Km/h | |
Chassis | ||
Chassis model | QL11200GT12 | |
Chassis brand | ISUZU | |
Cab type | Single | |
Allowable passengers in cab | 2 | |
Wheel base | 3800mm | |
F/R axle | 4200kgs/68000kgs | |
Tire specification | 8.25R16; 6+1pcs | |
Transmission | Manual | |
Traction system | 4*2 | |
Number of axles | 2 pcs | |
Engine | ||
Engine brand | ISUZU | |
Emission standard | Euro 4 5 6 | |
Power | 190 hp 205 HP | |
Exhaust | 5925ml | |
Garbage bin | ||
Dustbin capacity | 9000 liters (7 TO 9 CBM) | |
Dustbin material | High Quality Q345 manganese steel | |
Welding type | Dustbin full welding (automatic welding) | |
Thickness | Edge:5mm/Bottom: 5mm | |
hydraulic system | install famouts high quality hydraulic oil pump hydraulic cylinder hydraulic tube multitandem valve | |
hydraulic oil tank | 120L, customized hydraulic oil tank, lined with plastic, with level gauge, air filter, oil suction filter, oil return filter | |
Compression ratio | 3:1 , 4:1 | |
Control system | CAN-bus control system, Electrical control panel in the can and rear | |
Hydraulic system control mode | Double pump and double valve confluence technology | |
Hydraulic lift safety circuit | Install the bidirectional balancing valve euro brand | |
Garbage Lifting device | The tail is installed with a small garbage bucket, garbage can be poured into the garbage bucket, can also be lifted 240L,660L 1100L garbage can, hydraulic lifting. | |
Signal warning light | Two orange warning lights in the top of the rear garbage box | |
sewage tank capacity | side and rear sewage tank，300+600L | |
work light | one rear work light | |
plugger seal | High quality rubber pads are used to seal the whole between the plugger and the garbage box | |
Other configuration | Cross rubber sleeve, sewage tank sealing ring rubber slider, control button Chassis standard kit（Jack, tire wrench, jack rocker, trailer hook, warning triangle, reflective vest, fire extinguisher） | |
Cooperative partner
Customer visit

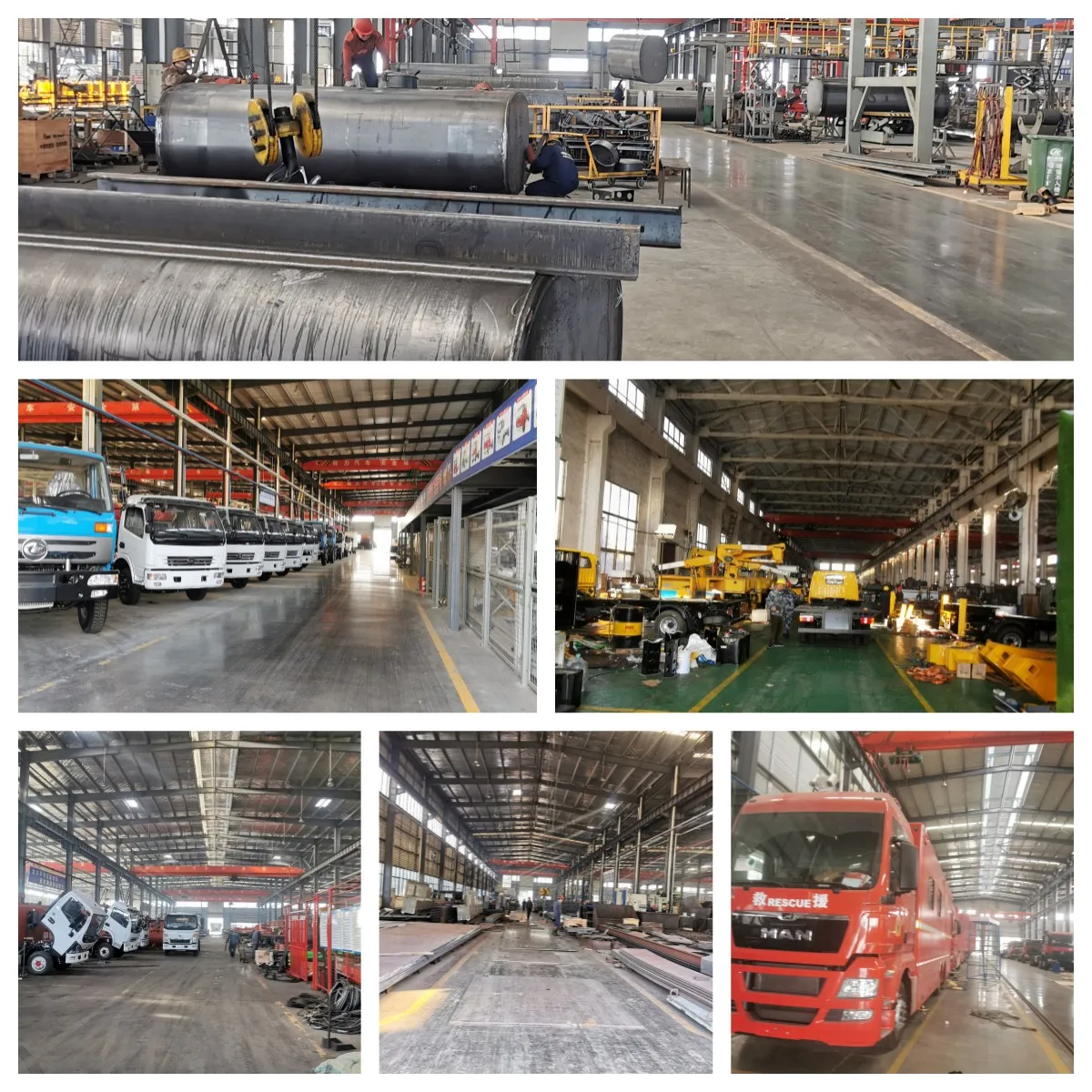

Workshop
Certifications
Product packaging and shipping
Company Profile
Changfeng (Hubei) Vehicle Co., LTD. is mainly engaged in the production of municipal sanitation vehicles, intelligent
environmental protection equipment and environmental protection engineering, special vehicles, lifting machinery, pressure vessels five series of more than 80 types products. Have 10 years of experience in manufacturing. the company began to build 30000 squares Changfeng Vehicle Industrial Park project , which is committed to the production and research and development of various high-end sanitation vehicles, intelligent sanitation equipment, and new energy electric special vehicles, comprehensively improve product quality and improve product structure, and form an annual production capacity of 10,000 units special purpose vehicles by 2025.
environmental protection equipment and environmental protection engineering, special vehicles, lifting machinery, pressure vessels five series of more than 80 types products. Have 10 years of experience in manufacturing. the company began to build 30000 squares Changfeng Vehicle Industrial Park project , which is committed to the production and research and development of various high-end sanitation vehicles, intelligent sanitation equipment, and new energy electric special vehicles, comprehensively improve product quality and improve product structure, and form an annual production capacity of 10,000 units special purpose vehicles by 2025.
FAQ
Q1. What is your terms of packing?
A: Generally, our cargo is suitable for naked or waxed packing, in container or bulk ship or RO-RO ship according to the size of
the cargo.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
A: Generally, our cargo is suitable for naked or waxed packing, in container or bulk ship or RO-RO ship according to the size of
the cargo.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
Похожие товары

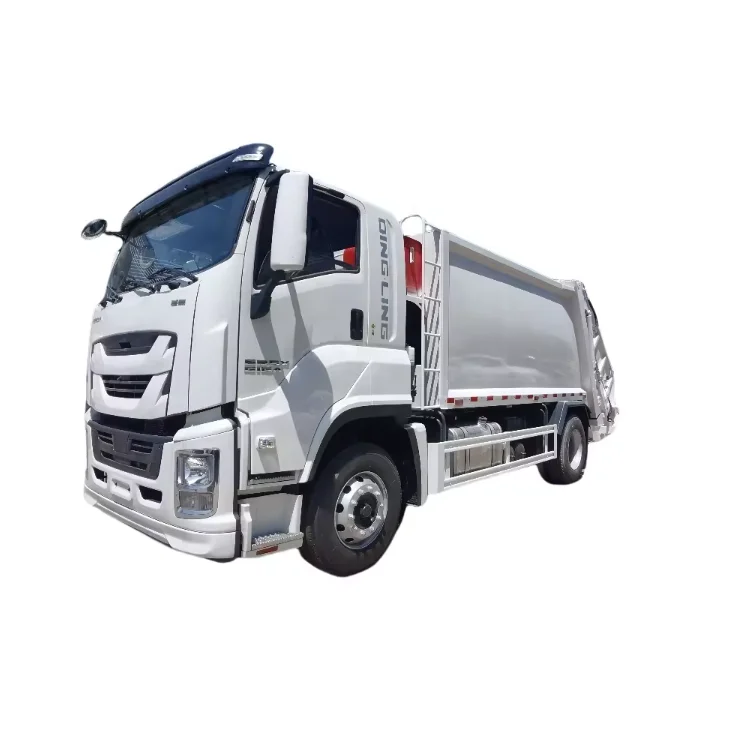

ISUZU GIGA 10 колес VC61 6*4 уплотнитель мусоровоз
7 092 828,40-7 212 035,60 ₽
ISUZU CHINA NPR 700P 4x2 грузовик фургон 18 м3 (Euro V)
2 384 144,00-3 576 216,00 ₽
Хорошее состояние 7 9 М3 цементный смеситель 8*4 для транспортировки цемента Sinotruck HOWO б/у Бетономешалка
870 093,36-929 696,96 ₽

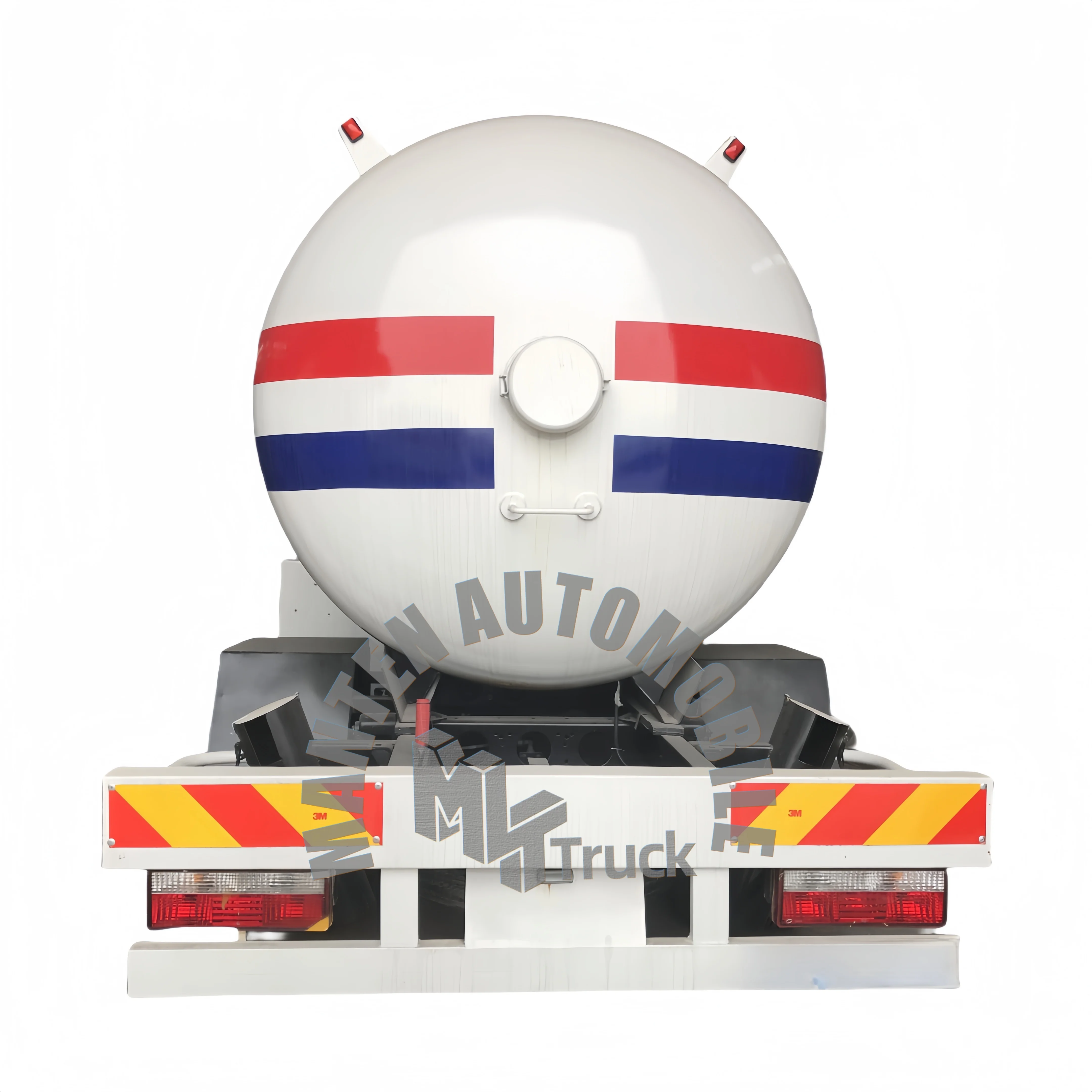

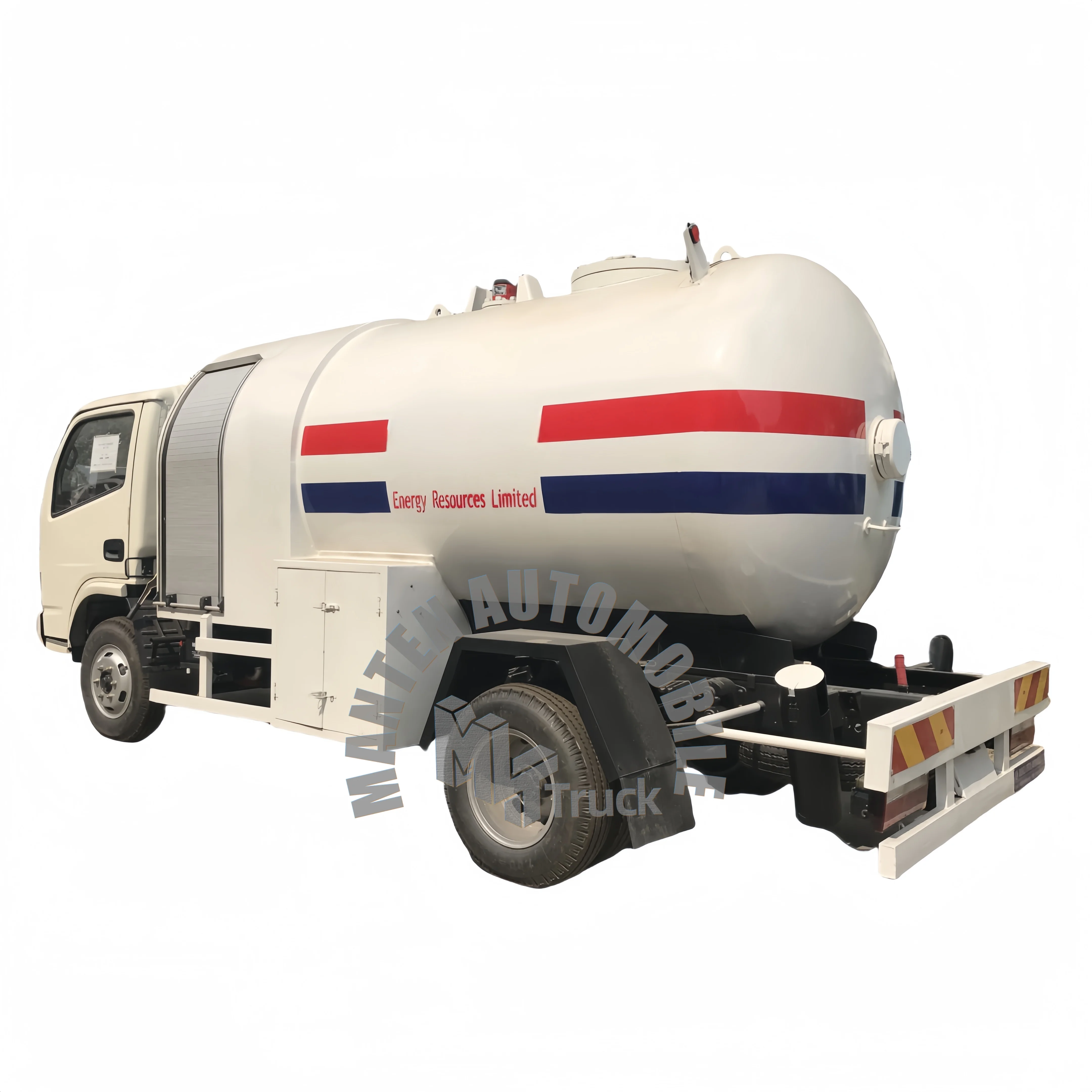

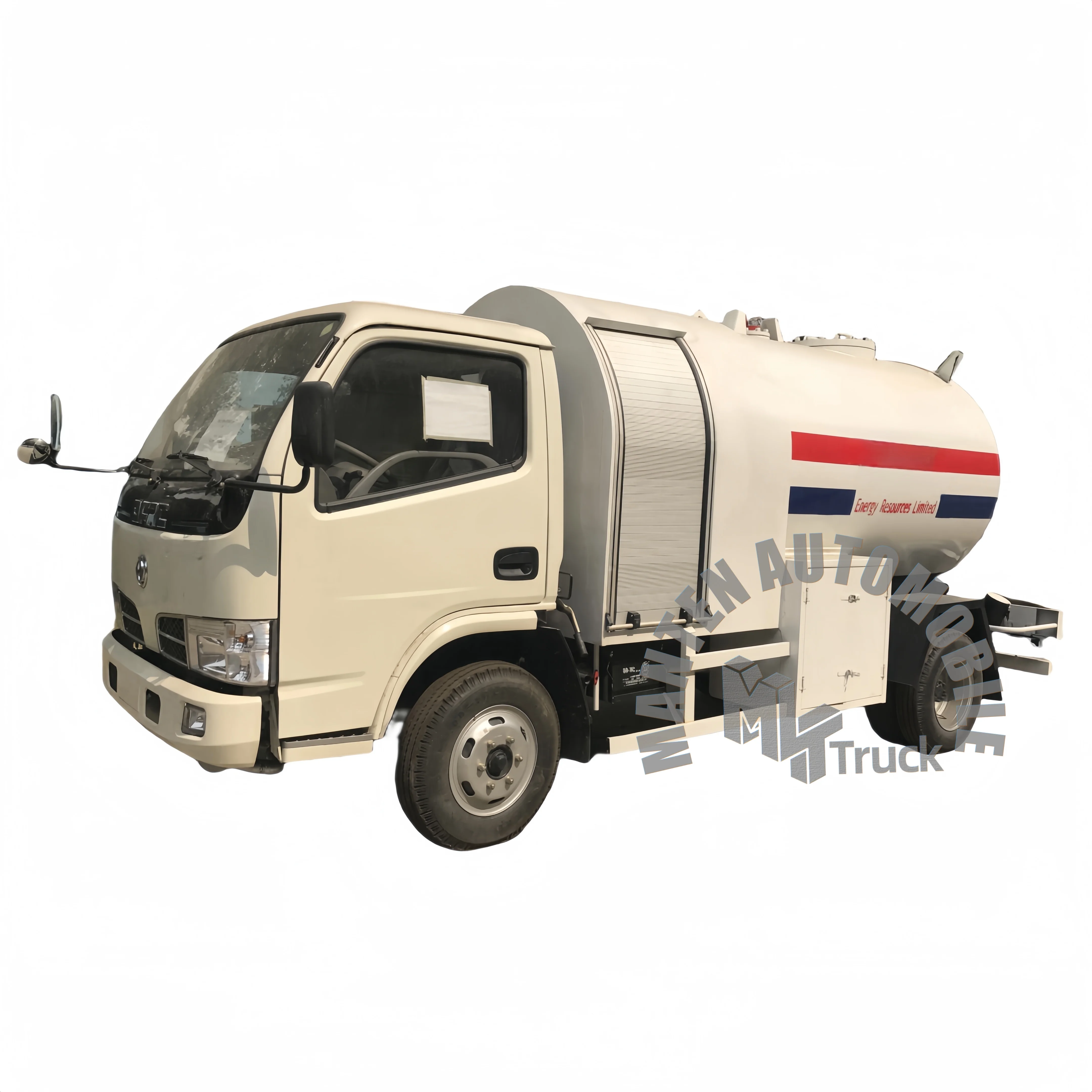

Dongfeng LHD RHD LPG транспортный автомобиль с пропановым двигателем 4*2 4x2 сжиженный газ чистым топливом
