Строительный подъемник с дистанционным управлением 32 м
28 000,00-34 000,00 $
Подъемное оборудование для грузовиков 36 м
- Категория: >>>
- Поставщик: Qingdao Jiuhe Heavy Industry Machinery Co. Ltd.Qingdao Ltd.
Сохранить в закладки 1601061852870:
Описание и отзывы
Характеристики
Product Overviews
Products Highlights
*Extremely light and flexible;
*Remote control out of the ladder arm, independent automatic tipping hopper;
*Fully hydraulic telescopic support legs and one click support car retractable function which can be individually adjustable;
*Equipped with large touch-control display screen, the vehicle can be directly operated; Electro-hydraulic proportional control system to achieve stepless speed regulation;
*Remote wireless remote control, up and down positioning system, easy and fast operation, safe loading and convenient unloading;
*Interlocking device for boom and below system, to prevent safety accidents caused by misoperation.
*Remote control out of the ladder arm, independent automatic tipping hopper;
*Fully hydraulic telescopic support legs and one click support car retractable function which can be individually adjustable;
*Equipped with large touch-control display screen, the vehicle can be directly operated; Electro-hydraulic proportional control system to achieve stepless speed regulation;
*Remote wireless remote control, up and down positioning system, easy and fast operation, safe loading and convenient unloading;
*Interlocking device for boom and below system, to prevent safety accidents caused by misoperation.
Products Description

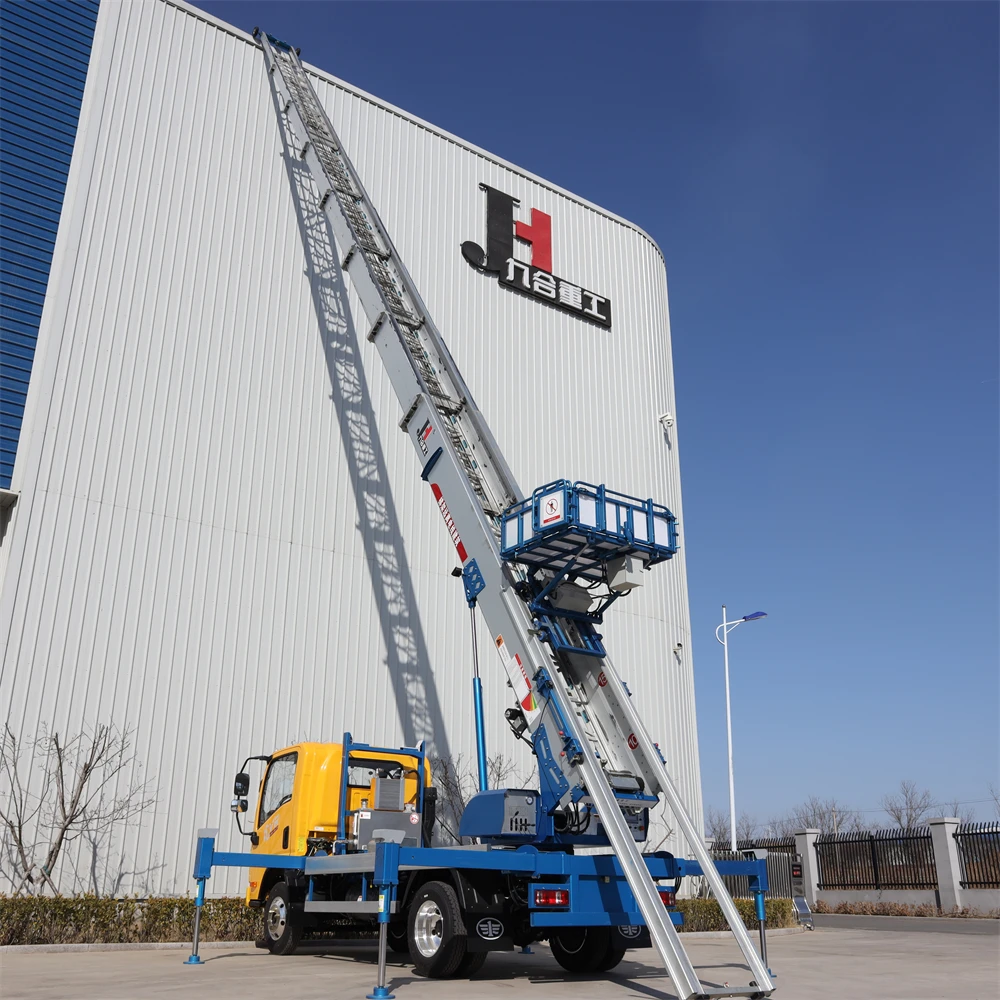

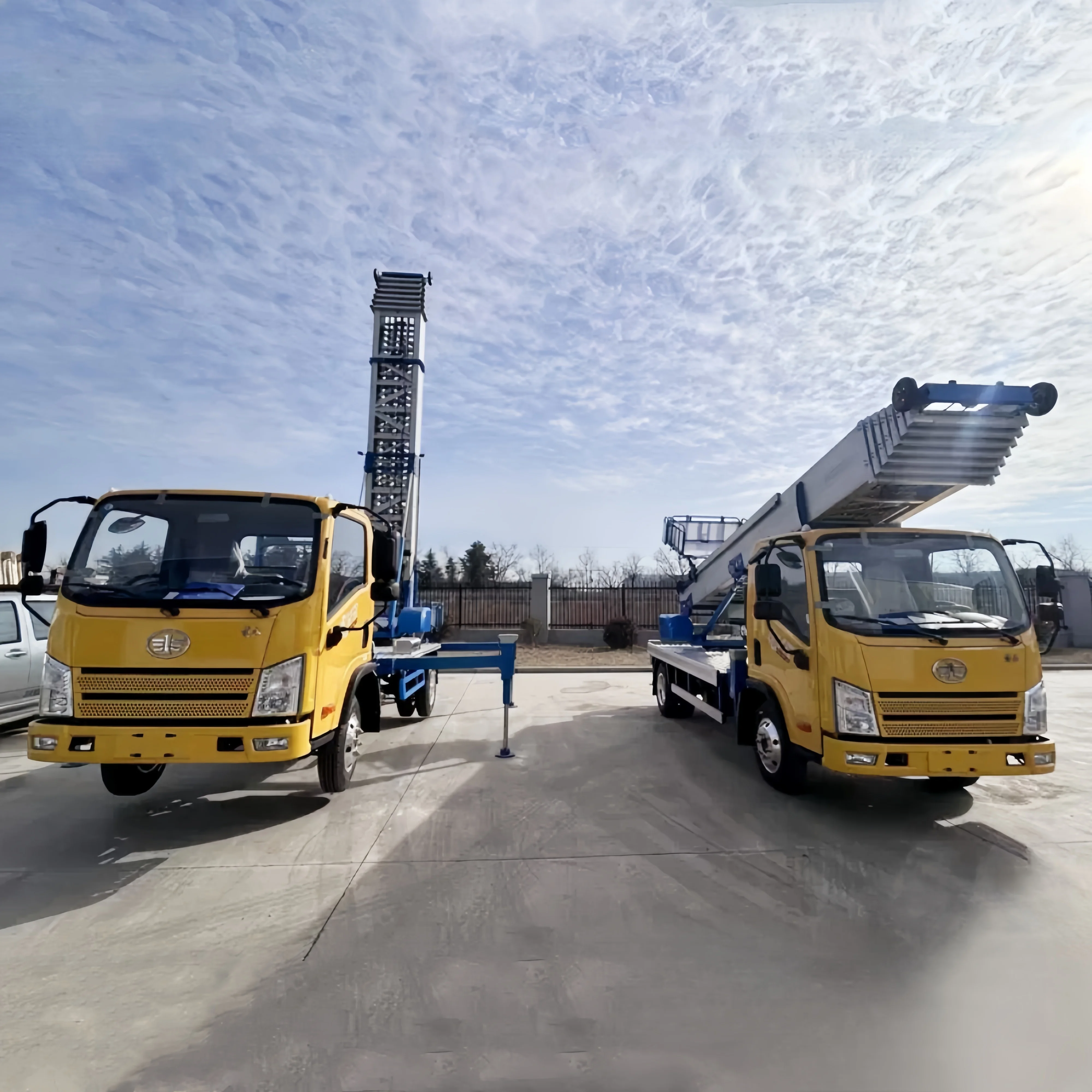

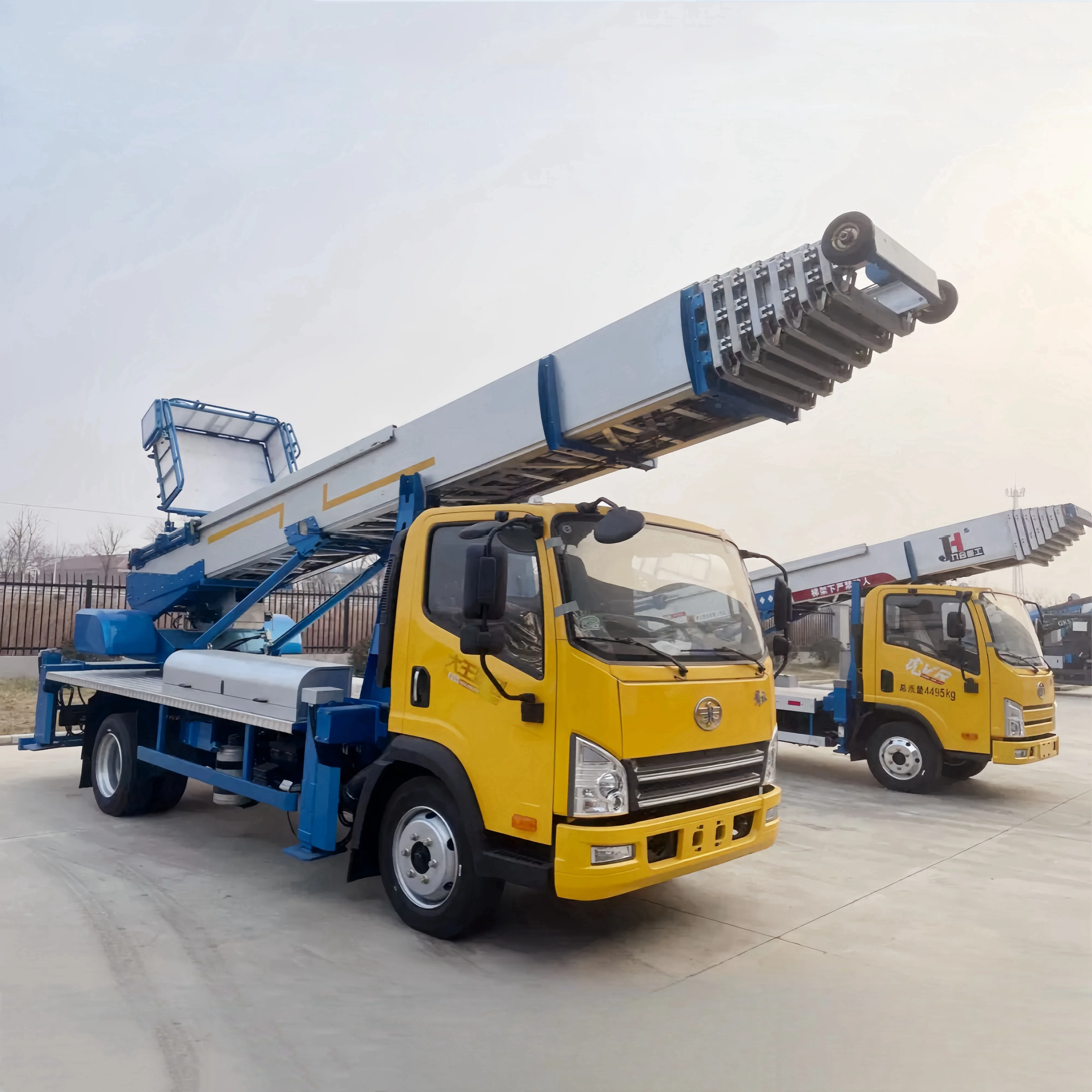

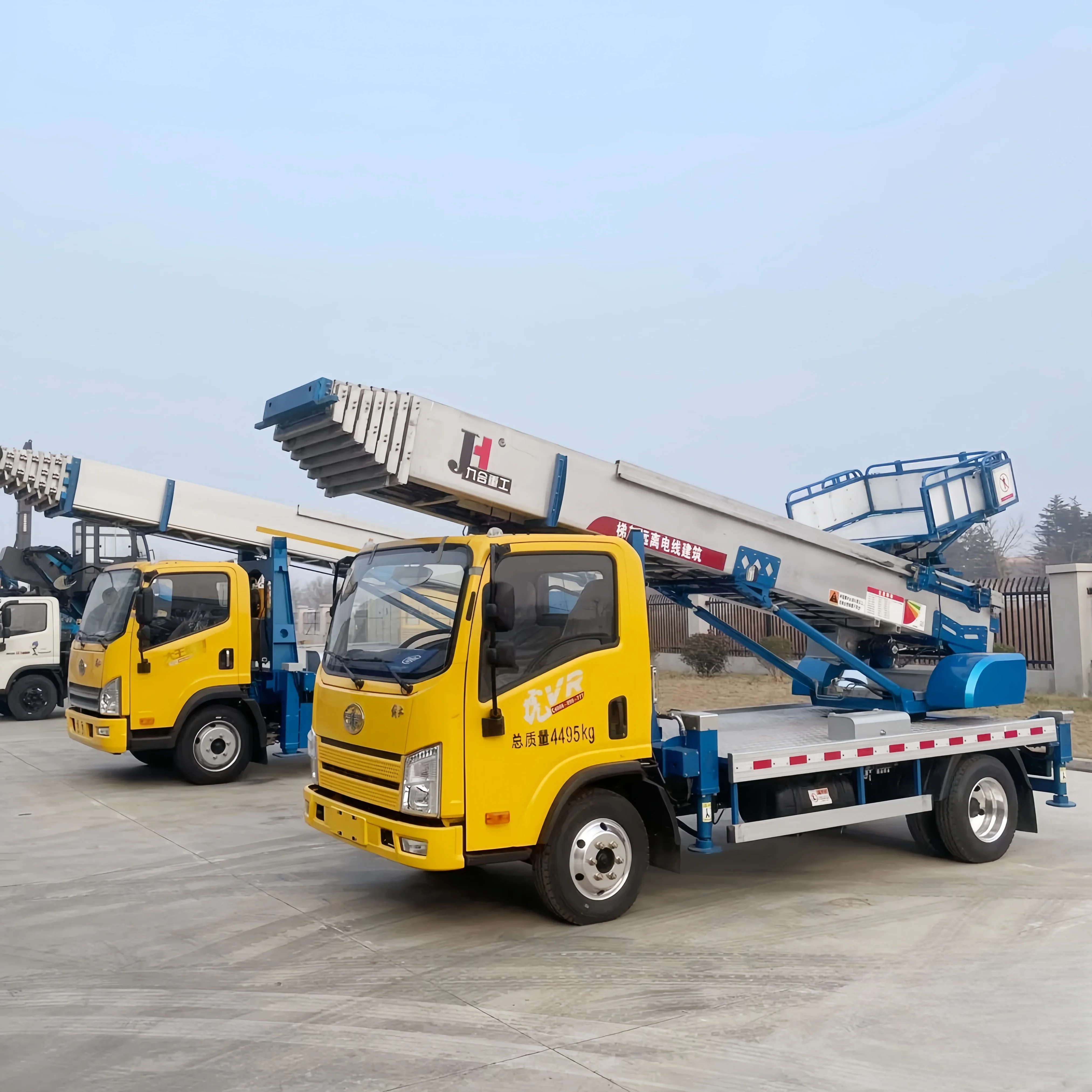

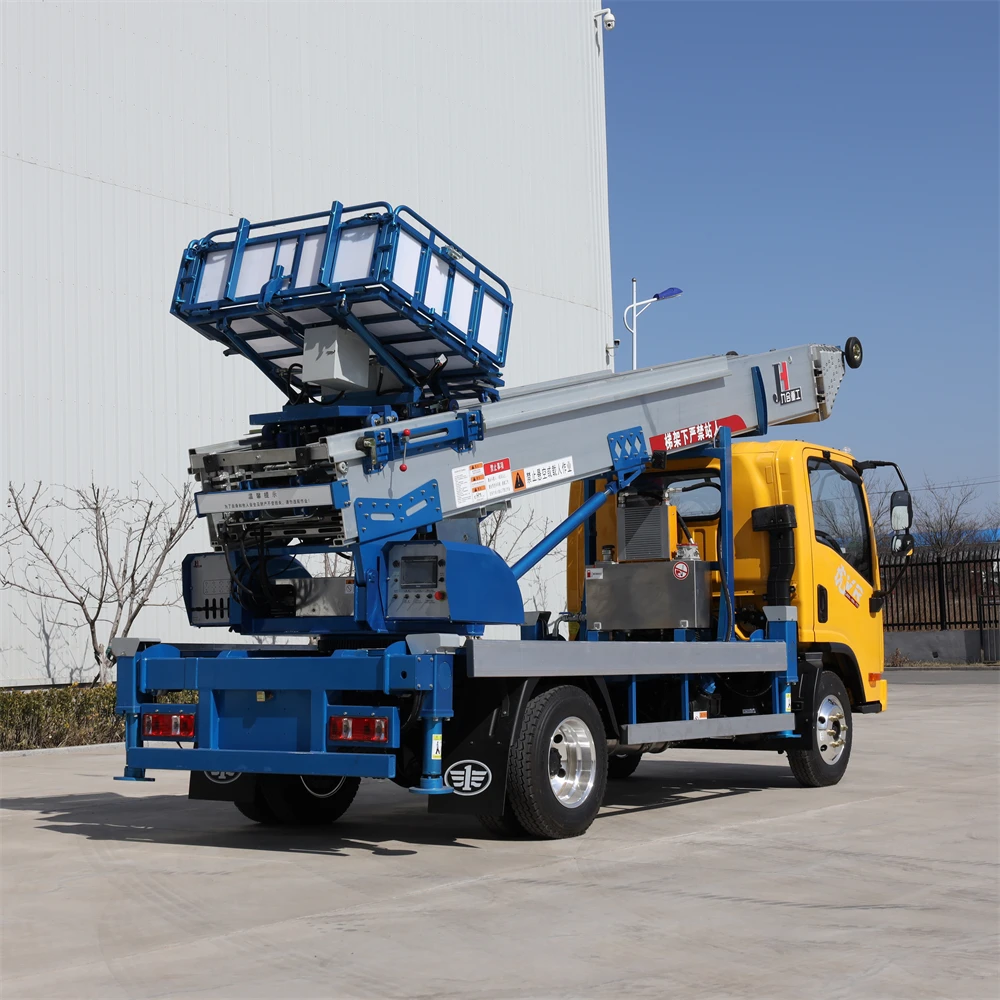

JIUHE Brand New 36m aerial ladder truck lifting equipment construction lifting machine ladder lift vehicle
Category | ltem | Unit | Data |
36m | |||
Size parameters | Total length | mm | 5995 |
Total width | mm | 1970 | |
Total height | mm | 3050 | |
Weight parameters | Total passengers | person | 2 |
Total weight | kg | 4495 | |
Curb weight | kg | 4365 | |
Configuration parameter | Max.working height | m | 36 |
Basket rated load | kg | 400 | |
Basket size(STD) L x W x H | mm | 1000x1200x435 | |
Basket size(EXT) L x W | mm | 1870×1635 | |
Ladder mode | 一 | Eight section synchronous telescopic | |
Rotation angle | ℃ | ±120 | |
Outriggers span (full extension) | mm | 4090 | |
mm | 3600 | ||
Driving parameters | Overhang Front/Rear | mm | 1150/1150 |
Wheel track Front/Rear | mm | 1520/1525 | |
Wheelbase | mm | 3300 | |
Max.driving speed | km/h | 110 | |
Min.ground clearance | mm | 190 | |
Approach/departure angle | 。 | 14/10 | |
Chassis | Chassis model | - | FAW |
Engine model | - | Q23-132E60 | |
Max. engine power | KW | 97 | |
Emission standard | - | GB17691-2018 National VI | |
Fuel type | - | Diesel | |
Brake system | - | Air brake |
Product Applications
Product packaging
Recommend Products
Company Profile
Qingdao Jiuhe Heavy Industry Machinery Co., Ltd
JIUHE is specialized in researching, manufacturing, and selling concrete machines such as concrete mixing machine, concrete pumping machine, concrete placing machine and other Heavy Industry machinery. We are New High-Tech Enterprise with more than 20 Patents. Choose us, you can absolutely feel free on after-sale service. Customer Satisfaction is our pursuit, Long-term cooperation is our goal, Mutual benefit and win-win result is our principle. Any products interest you, Kindly contact us, Quality machine together with Warm and attentive service are waiting for you!
JIUHE is specialized in researching, manufacturing, and selling concrete machines such as concrete mixing machine, concrete pumping machine, concrete placing machine and other Heavy Industry machinery. We are New High-Tech Enterprise with more than 20 Patents. Choose us, you can absolutely feel free on after-sale service. Customer Satisfaction is our pursuit, Long-term cooperation is our goal, Mutual benefit and win-win result is our principle. Any products interest you, Kindly contact us, Quality machine together with Warm and attentive service are waiting for you!
Main Products
FAQ
Q: OEM OR ODM IS AVAILABLE?
A: Yes, we can produce with your logo.
Q: HOW IS YOUR DELIVERY TIME?
A: If standard machine, the delivery time will be 7-15 days, if customized version, that depends on the customized configuration time.
Q: WHICH PAYMENT TERMS CAN YOU ACCEPT?
A: Normally we can work on TT or LC.
(1)T/T: 30% prepayment to start production and 70% balance shall be paid before shipment;
(2)L/C: 100% irrevocable LC at sight without "soft clauses" from an international recognized bank can be accepted.
Q: WHICH INCOTERMS 2010 TERMS CAN YOU DO?
A: As per client's requirement, we can handle all INCOTERMS 2010 terms, and we normally work on regular terms such as FOB.CFR.CIF.CIP.DAP.
Q: WHAT LOGISTICS WAYS YOU CAN WORK FOR SHIPMENT?
A: We can ship machinery by various transportation ways:
(1)Mostly, the machine will go by sea such as container ship (include special container flat rack) or Ro-Ro / Bulk ship;
(2)For inland neighborhood countries of China can send by road or railway;
(3)For the spare parts in urgent requirement we can send it by international courier service such as DHL. FEDEX, TNT Or UPS.
A: Yes, we can produce with your logo.
Q: HOW IS YOUR DELIVERY TIME?
A: If standard machine, the delivery time will be 7-15 days, if customized version, that depends on the customized configuration time.
Q: WHICH PAYMENT TERMS CAN YOU ACCEPT?
A: Normally we can work on TT or LC.
(1)T/T: 30% prepayment to start production and 70% balance shall be paid before shipment;
(2)L/C: 100% irrevocable LC at sight without "soft clauses" from an international recognized bank can be accepted.
Q: WHICH INCOTERMS 2010 TERMS CAN YOU DO?
A: As per client's requirement, we can handle all INCOTERMS 2010 terms, and we normally work on regular terms such as FOB.CFR.CIF.CIP.DAP.
Q: WHAT LOGISTICS WAYS YOU CAN WORK FOR SHIPMENT?
A: We can ship machinery by various transportation ways:
(1)Mostly, the machine will go by sea such as container ship (include special container flat rack) or Ro-Ro / Bulk ship;
(2)For inland neighborhood countries of China can send by road or railway;
(3)For the spare parts in urgent requirement we can send it by international courier service such as DHL. FEDEX, TNT Or UPS.
