Product Description

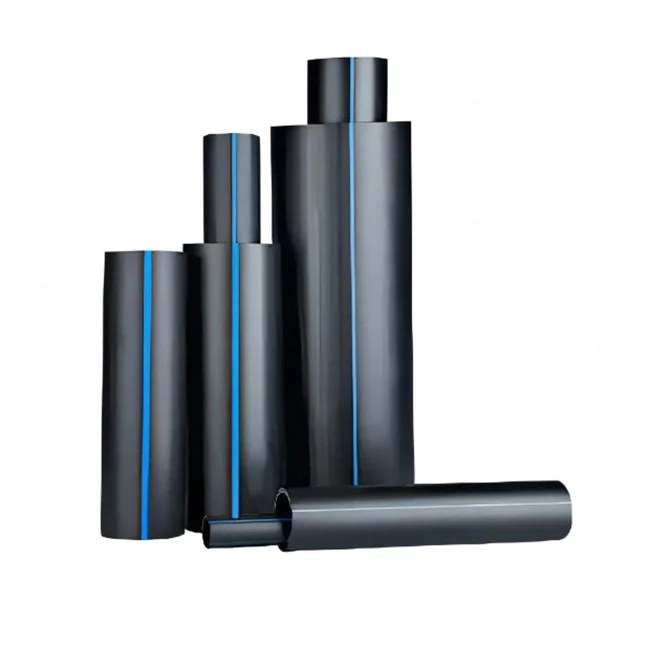

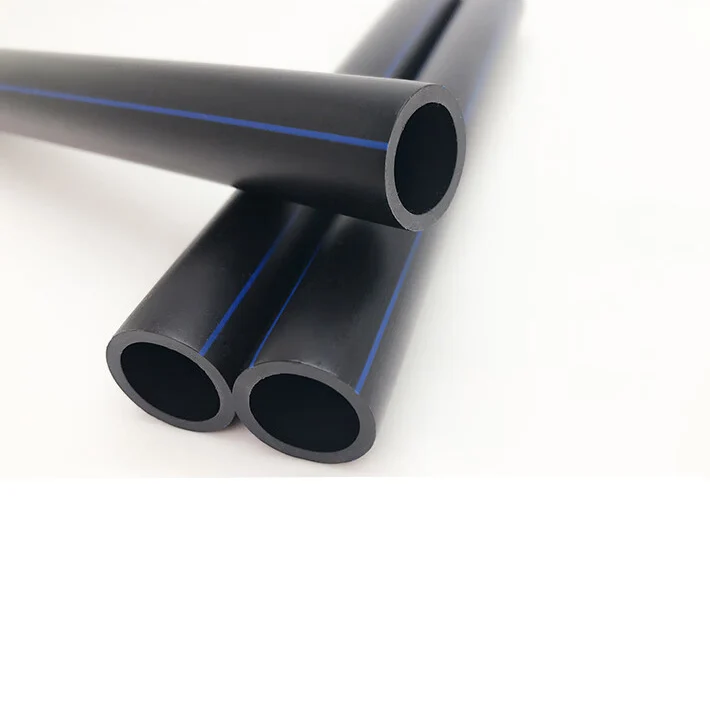

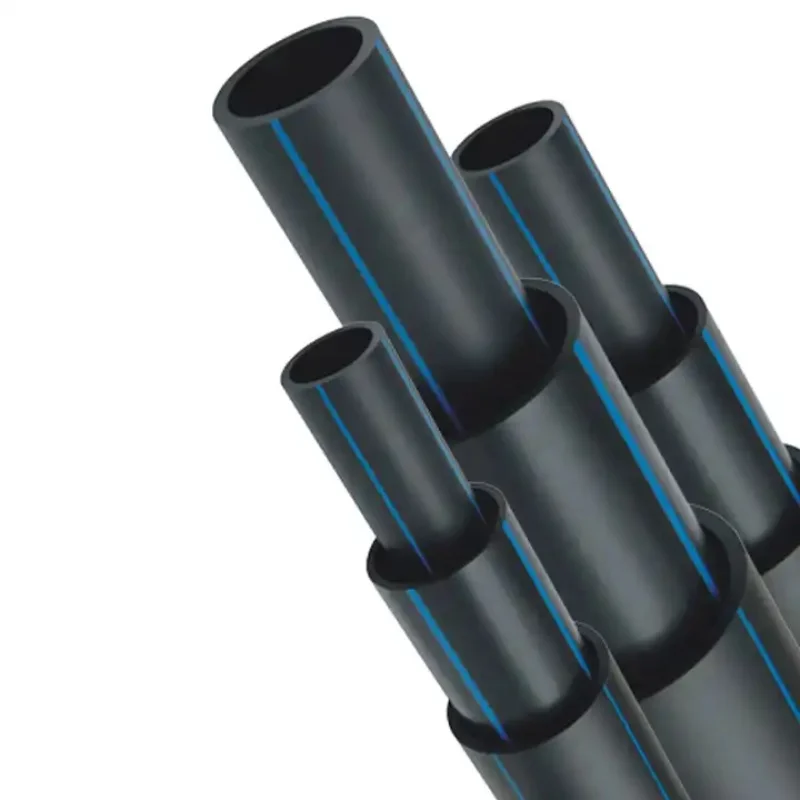

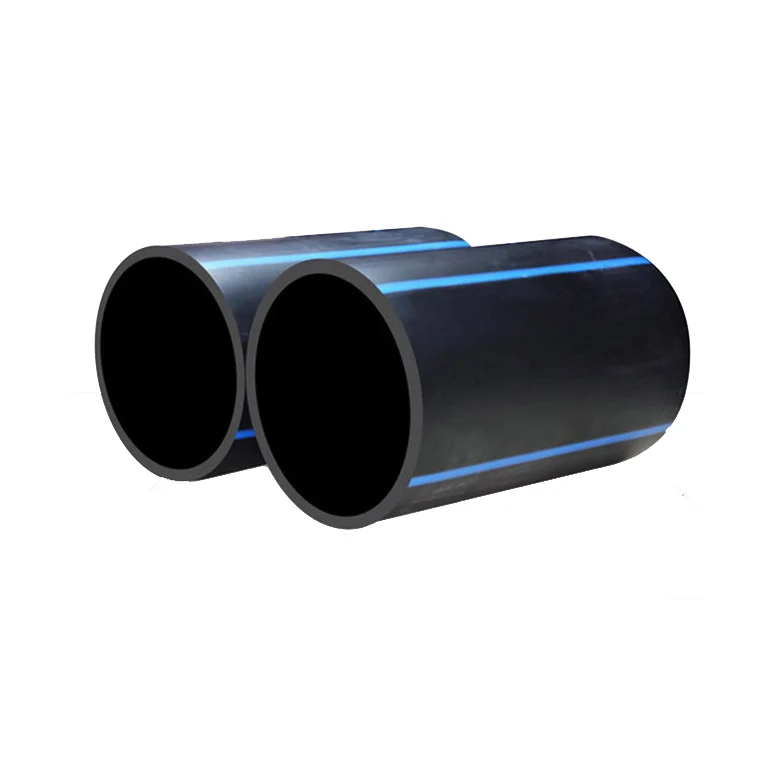

PE100 HDPE Water and Drainage Pipe


PE(polyethylene) materials are widely used in the field of water supply pipe manufacturing due to their high strength, corrosion resistance and non-toxicity. Because it does not rust, it is an ideal pipe to replace the ordinary iron water supply pipe. PE water supply pipe implementation product national standard: GB/T 13663-2000 "water supply polyethylene (PE) pipe".







Specification









































































































































































































































































































PE100 HDPE Pipe




Standard:GB/T 13663-2000,ISO4427-2007




Nominal


Diameter


(mm)




Standard Dimension Ratio




SDR26




SDR21




SDR17




SDR13.6




SDR11




Nominal Pressure (MPa)




0.6




0.8




1.0




1.25




1.6




Nominal Thickness(en,mm)




20




--




--




--




2.3




2.3




25




--




--




2.3




2.3




2.3




32




--




2.3




2.3




2.4




3.0




40




2.3




2.3




2.4




3.0




3.7




50




2.3




2.3




2.9




3.7




4.6




63




2.5




3.0




3.7




4.7




5.8




75




2.9




3.6




4.5




5.6




6.8




90




3.5




4.3




5.4




6.7




8.2




110




4.2




5.3




6.6




8.1




10.0




125




4.8




6.0




7.4




9.2




11.4




140




5.4




6.7




8.3




10.3




12.7




160




6.2




7.7




9.5




11.8




14.6




180




6.9




8.6




10.7




13.3




16.4




200




7.7




9.6




11.9




14.7




18.2




225




8.6




10.8




13.4




16.6




20.5




250




9.6




11.9




14.8




18.4




22.7




280




10.7




13.4




16.6




20.6




25.4




315




12.1




15.0




18.7




23.2




28.6




355




13.6




16.9




21.1




26.1




32.2




400




15.3




19.1




23.7




29.4




36.3




450




17.2




21.5




26.7




33.1




40.9




500




19.1




23.9




29.7




36.8




45.4




560




21.4




26.7




33.2




41.2




50.8




630




24.1




30.0




37.4




46.3




57.2




710




27.2




33.9




42.1




52.2




--




800




30.6




38.1




47.4




58.8




--




900




34.4




42.9




53.3




--




--




1000




38.2




47.7




59.3




--




--




1200




--




57.2




67.9




--




--







Company Profile





















Anhui Haojia Pipe Industry Co., Ltd was founded in 2016.The company located in Anhui Province.There are more than 500 employees,covering an area of 426 acres. The modern factory covers an area of 120,000 square meters, and the office, storage, and other supporting building areas cover an area of 24,000 square meters. The annual output value is 2 billion yuan, and the annual production of plastic pipes and fittings is over 80,000 tons. Until now,Haojia have owned various kinds of international advanced pipe automatic producing lines.The company has established a dedicated research and development center, combining theory with practice to seek breakthroughs, and has applied for multiple independent intellectual property rights, including 39 patents, 87 trademark registrations, and 2 copyrights.We handled over 1,000+ projects with government.We have extensive experience in pipeline project engineering.Haojia has various domestic qualifications and different types international standard,ISO, GB/T, European CE certification, and SGS testing reports.Main products of Haojia are HDPE pipes,PVC pipe,PPR pipes,HDPE steel wire mesh skelet pipes, MPP pipes,HDPE double wall corrugated pipes, HDPE carat pipes, steel strip reinforced PE spiral corrugated pipes, polypropylene (PPR) cold and hot water pipes, PVC pipes, PE-RT floor heating pipes, etc. It is a manufacturer with a complete product system in the field of municipal pipe networks, building materials and home furnishings in China.Since its establishment, Anhui Haojia insists on the philosophy of "Be a conscientious enterprise and create a national brand"









Application



































1.Urban water supply: PE pipeline has the comprehensive advantages of safety, sanitation and convenient construction.
2.Natural gas and gas transmission pipelines: Due to the reliable connection of PE pipelines, stable performance, easy construction and corrosion resistance, it is the only choice for low-pressure natural gas transmission pipelines. 3.Food chemical industry: PE pipe has unique chemical corrosion resistance, can be used for the transportation or discharge of various acid and alkali salt solutions, long service life, low cost and low maintenance cost.
4.Ore and mud transportation: PE pipe has 4 times of wear resistance, which can be widely used in conveying ore, power plant fly ash, river dredging mud, etc.
5.Rerouting of pipelines in the old city: replacement of old pipes, low construction cost and short construction time.
6.Landscaping pipe network: Landscaping requires a large number of water pipes, and PE pipes are low in cost and worthy of promotion.
7. PE water supply pipes can also be widely used in other fields: such as power, communication jackets, farm irrigation, siphon drainage, landfill, geothermal air conditioning, deep sea aquaculture, buried fire pipes, and so on.

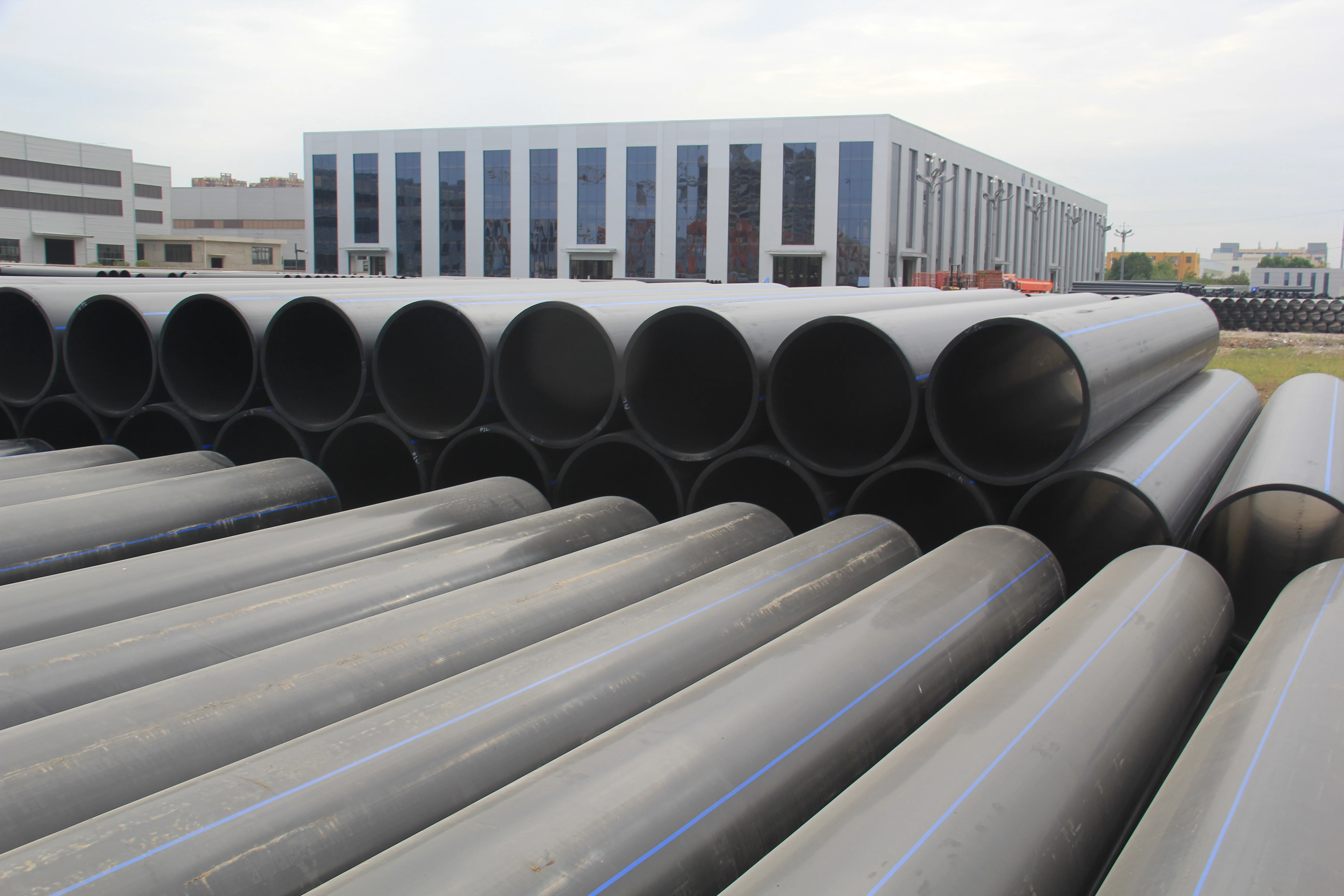

Workshop

























































Advantages












We understand that the raw materials used in a product can make all the difference between a mediocre product and a truly great one. That's why we use only the best quality raw materials in our products. From initial raw material selection to final packaging, every step of our production process is carefully designed to ensure the best results.











We guarantee use 100% pure raw material.Our products are produced using state-of-the-art processes that preserve the integrity and nutritional value of raw materials. We take great care during the manufacturing process to ensure that each product is of the highest quality.















We are proud to say that we have just acquired these new production lines this year and we have started creating some of the most advanced and innovative products for our valued customers.











Our company has our own laboratory, such as carbon black content tester, electronic tensile testing machine, pipe pressure rupture testing machine, drop hammer impact testing machine, etc. All shipping orders will be regularly sampled for testing







Other Advantages





* We accept OEM service * Product service life is 50 years long * Accept any test of the product * Free sample is acceptable * Our company have CE certificate,we can print CE number on the pipes * We have cooperated with the government for over 1,000+ project projects * We can handled Form E,CO certificates. * HDPE water and drainage pipe size can up to 1,200mm * Production visualization,we can video call directly to see sample room and production lines









Certifications





































Packing & Delivery


































FAQ







Q1 : Are you a Manufacturer or a trading company?
A : Manufacturer.Our factory specialized in pipes for 7 years in China ,not only target foreign market,we've handled over 1,000+ projects in domestic market with government.

Q2 : What’s the main products of your company?
A : We mainly produce HDPE/PVC/PPR/MPP pipe and fittings,Corrugated pipe etc.They generally can be used for electrical,drainage,water supply,gas supply etc.

Q3 : Which countries did your company ever export before?
A : Our product have exported to Nigeria,Fiji,Kenya,South Africa,Saudi Arabia,Zambia,France,Tanzania, Canada, Palau,India,Singapore, Belgium,Mongolia,Australia......

Q4 : How many years the products service?
A : About 50 years.We offer the installation way for you after selling if you need.

Q5: Will you offer free sample?

A : Yes,we are so glad to offer free sample for you to check.You will get the sample within 10 days around(Including air shipping days)

Q6 : What is your payment terms?
A : We accept 30% T/T down payment ,70 %T/T before delivery.

Q7:What certificates do you have?
A:We have ISO and CE standard,we also support third party to test products before export.For example,SGS.(We also have SGS test reports)

Q8 : What is the advantage of your products?
A : Production time fast,easy to install,wide range of uses,long service life.





Q9 : What is your leading time?
A : Our delivery time is normally 7 to 15 days after deposit.

Q10 : May I visit your factory?

A : Sure,China is open now,we are so glad to invite you come to visit our factory. If you want more details,pls contact Lori(Whatsapp:008618156293388),so I can send you more pictures and videos. Give both a chance to make your business more profitable!
