Полуавтоматическая сборочная машина горизонтального типа производства производственная линия H луча
- Категория: >>>
- Поставщик: Wuxi Zhouxiang Complete Set Of Welding Equipment Co. Ltd.
Сохранить в закладки 1601063682795:
Описание и отзывы
Характеристики
Products Description
Parameter

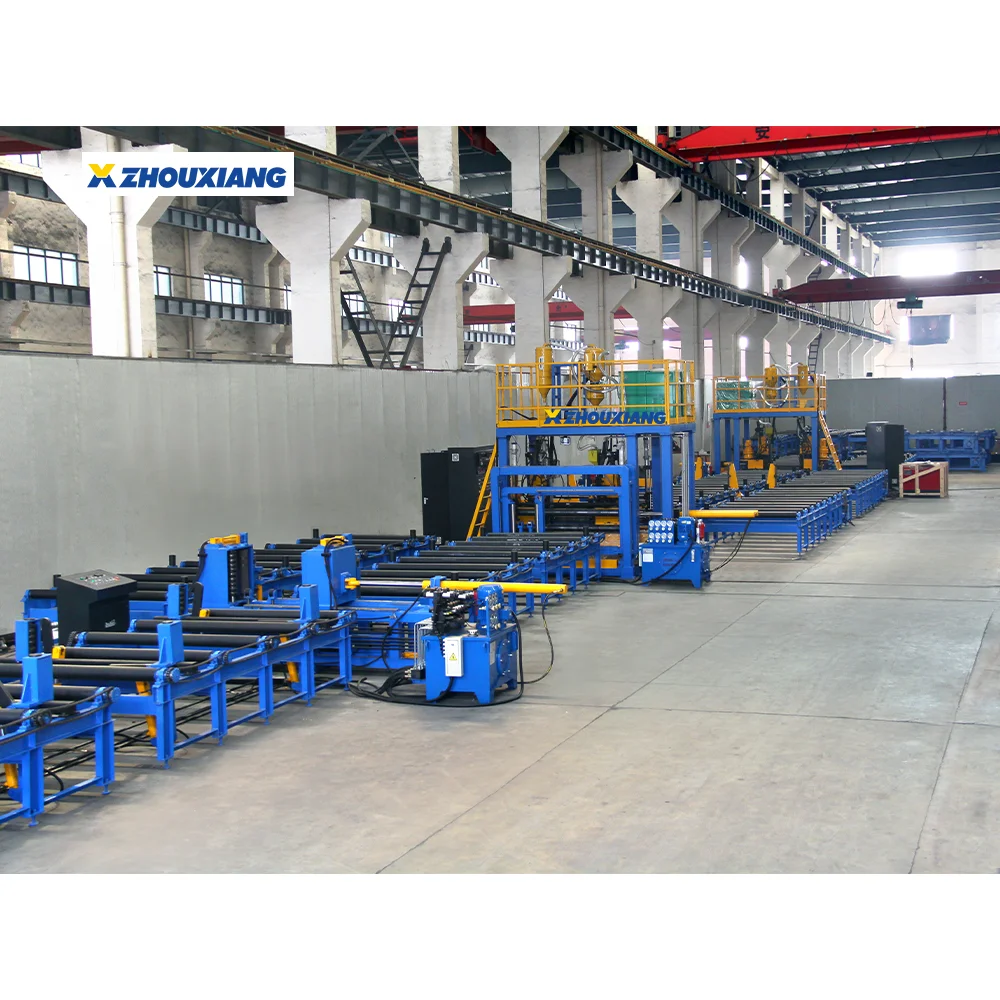

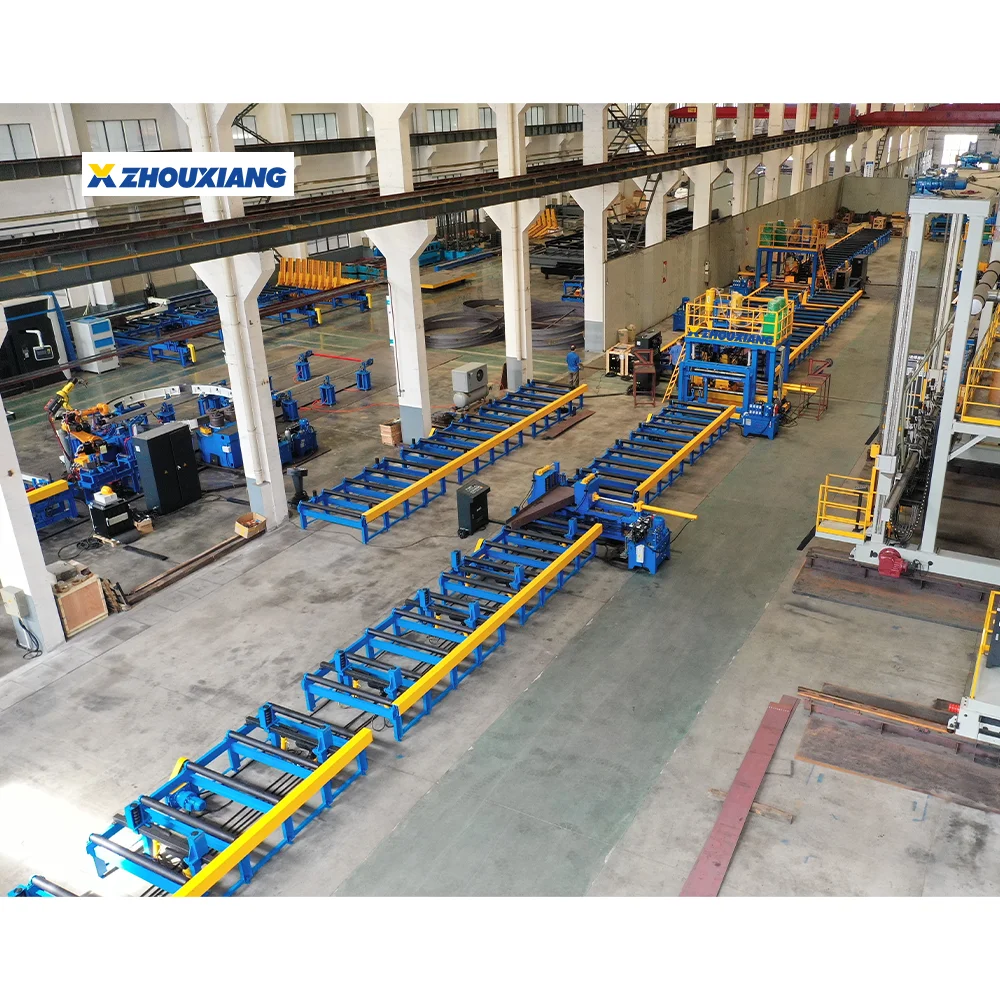

H-beam steel horizontal production line is a special welding production line that directly assembles steel plate into H type steel. Compared with the ordinary H-beam steel vertical welding production line (T type first,H type after), it has the characteristics of high production efficiency and low welding deformation, and is especially suitable for the welding production of light type. The production line consists of assembling machine, front welding machine, overturning machine, end welding machine and input/output conveyor , can achieve H type steel group, welding, turning, transportation and other work. H-beam steel horizontal production line can improve the working efficiency and reduce the operation cost, the efficiency is 1.5 times that of the ordinary steel.

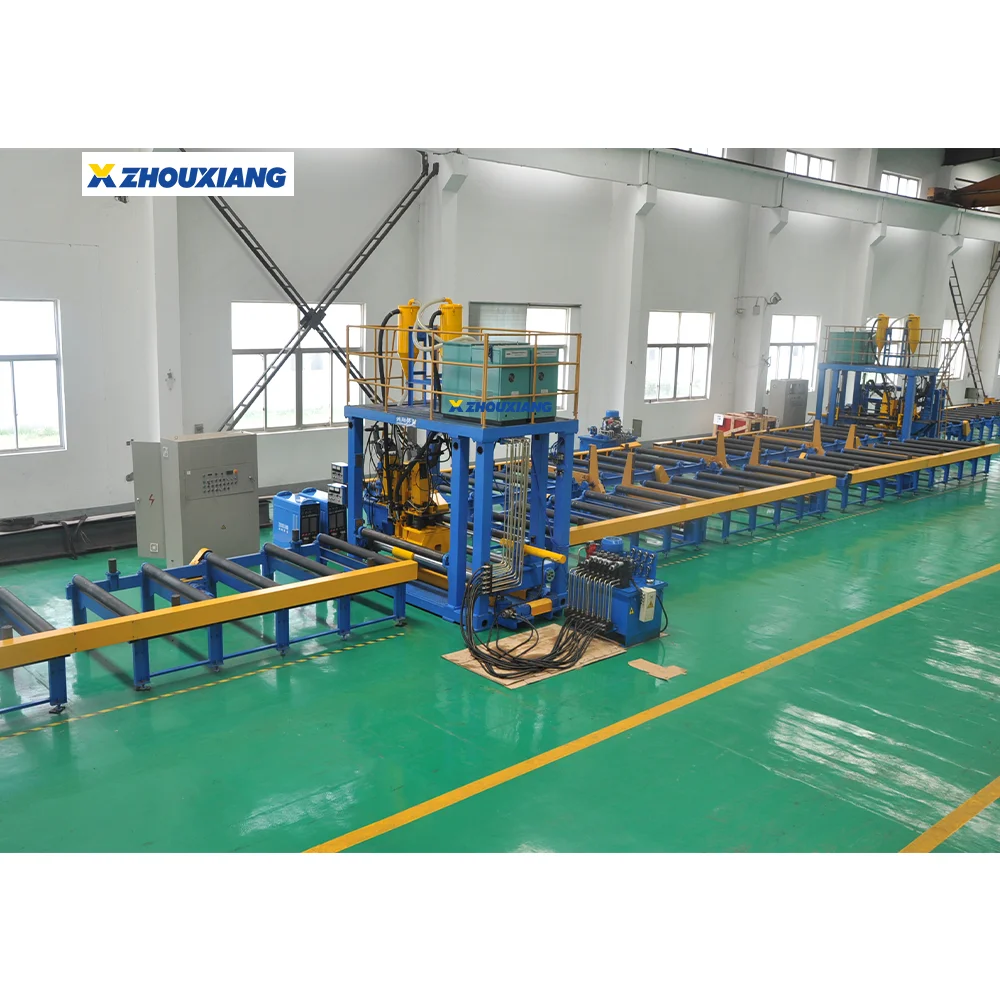

H beam Welding production line consists of assembling ,front and welding machine ,turn-over device.
H-beam steel horizontal production line
Metric units：
Web height | 200~1500mm |
Web thickness | 4~16mm |
Flange width | 150~500mm |
Flange thickness | 5~20mm |
Work-piece length | 4000~15000mm or as user’s request |
Assembly and welding speed | 0.3~1.9m/min |
Main machine power | 13.4kW |
Product Advantages
H beam Welding production line consists of assembling ,front and welding machine ,turn-over device.
When assemble, just needed to do spot welding of H beam end, then can go into the welding process, welding machine will re-position the three plate, thus increase assemble speed.
H beam Welding production line consists of assembling ,front and welding machine ,turn-over device.

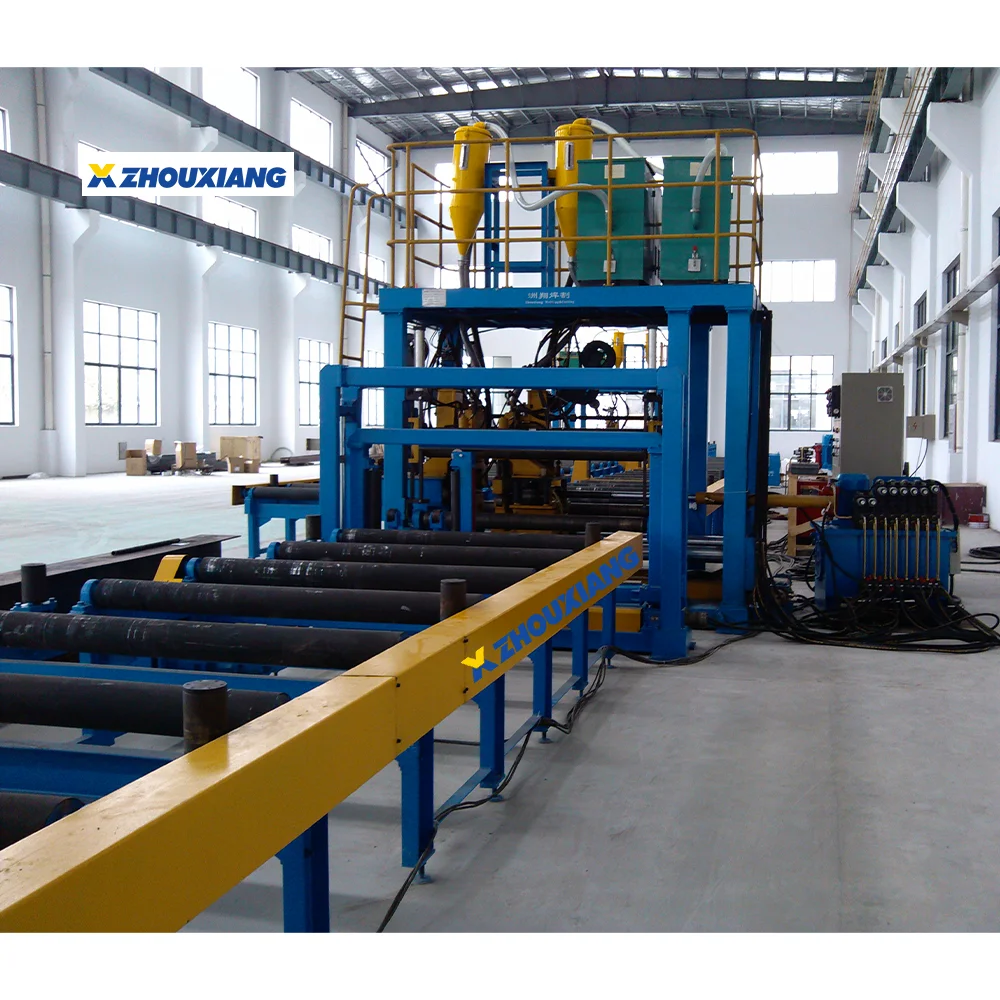

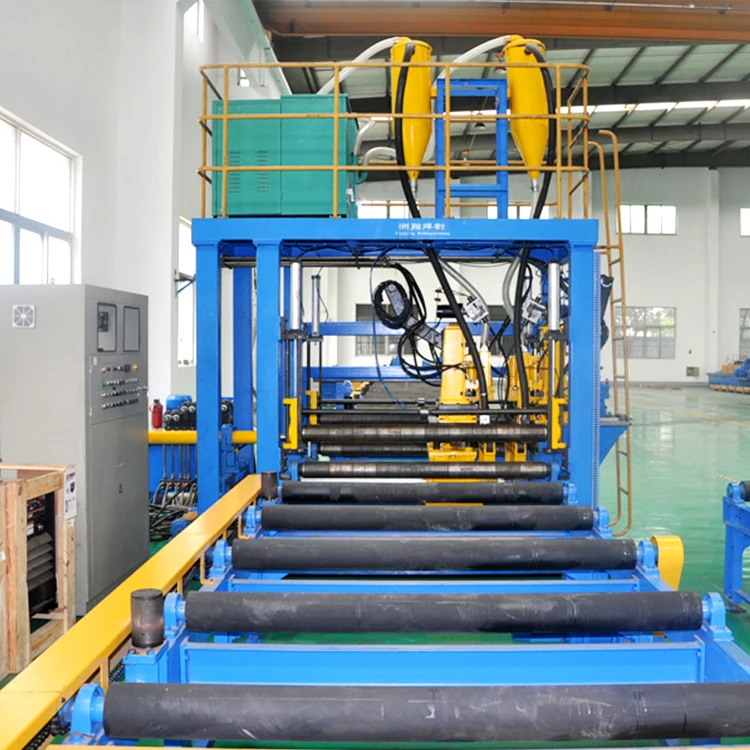

The workpiece is placed horizontally(web is horizontal and flange is vertical), and beam will move during welding, and can weld two seam at the same time to reduce deformation caused by welding heat.
Machine is equipped with Lincoln DC-1000 welders, which used single arc double wire welding mode, wire diameter is 1.6mm, and welding speed can reach 1200mm/min, the welding seams are well formed and look beautiful.
H beam Welding production line consists of assembling ,front and welding machine ,turn-over device.
This line is more automatic than traditional ones, so it can reduce the labor intensity of workers and operators, only need 4~5 operators for normal production.H beam Welding production line consists of assembling ,front and welding machine ,turn-over device.
Packing & Shipping
Why Choose Us
Wuxi Zhouxiang Complete Set of Welding Equipment Co.,Ltd,founded in 1991,located in Wuxi city, about 100km from Shanghai.We have fixed assets of 150 million yuan,cover an area of 160,000 m2, staff 500 people,including more than 100 engineering and technical personnel.Our company was certified to ISO9001 Quality System Certification firstly in the industry and many products were certified to China Compulsory Certification(CCC).Our products sell well at home and abroad,including Europe,America,Southeast Asia,Middle East and other countries.
Zhouxiang products mainly include cnc cutting machine,H beam production line,box beam production line, welding manipulator, welding rotator, welding positioner, milling machine, shot blasting machine, plate rolling machine, profile bending machine and fiber laser cutting machine etc.We have high sincerity to do business with customers all over the world and establish good friendships.
Zhouxiang products mainly include cnc cutting machine,H beam production line,box beam production line, welding manipulator, welding rotator, welding positioner, milling machine, shot blasting machine, plate rolling machine, profile bending machine and fiber laser cutting machine etc.We have high sincerity to do business with customers all over the world and establish good friendships.
We actively participate in and hold exhibitions, and reach friendly cooperation with foreign friends. Our cooperation is not only our progress but also the world's progress!
Our Service
FAQ
H beam Welding production line consists of assembling ,front and welding machine ,turn-over device.
1.Q: What is the minimum order quantity?
A: 1PCS.
H beam Welding production line consists of assembling ,front and welding machine ,turn-over device.
2.Q: What are the payment terms?
A: L/C; T/T.
H beam Welding production line consists of assembling ,front and welding machine ,turn-over device.
3.Q: How long is the delivery time?
A: 30 Days.
H beam Welding production line consists of assembling ,front and welding machine ,turn-over device.
4.Q:How long is the warranty period?
A: 1 Years.
A: 1PCS.
H beam Welding production line consists of assembling ,front and welding machine ,turn-over device.
2.Q: What are the payment terms?
A: L/C; T/T.
H beam Welding production line consists of assembling ,front and welding machine ,turn-over device.
3.Q: How long is the delivery time?
A: 30 Days.
H beam Welding production line consists of assembling ,front and welding machine ,turn-over device.
4.Q:How long is the warranty period?
A: 1 Years.
Похожие товары
Квадратные изолированные резервуары для воды из нержавеющей стали ежедневного и заводского использования
1 644,73 ₽ - 3 289,46 ₽
Заводская цена Aoliande формованное решеточное оборудование изготовленное на заказ OEM ODM FRP GRP производственная линия решетки
548 242,00 ₽ - 1 096 484,00 ₽

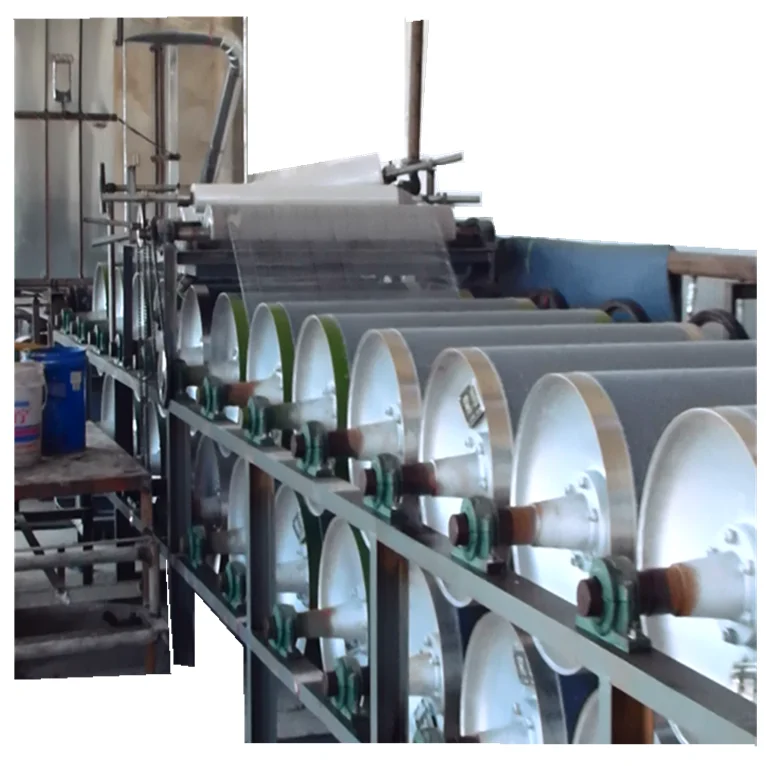

Нетканая производственная линия мембрана Стекловолоконная Водонепроницаемая композитная машина составной базовый Коврик machinerypound
Производитель Aoliande линия по производству стеклопластиковых решеток
548 242,00 ₽ - 1 096 484,00 ₽
Изготовленная на заказ Спецификация Frp формовочная решетчатая машина для производства стекловолоконной решетки производственная линия
548 242,00 ₽ - 1 096 484,00 ₽

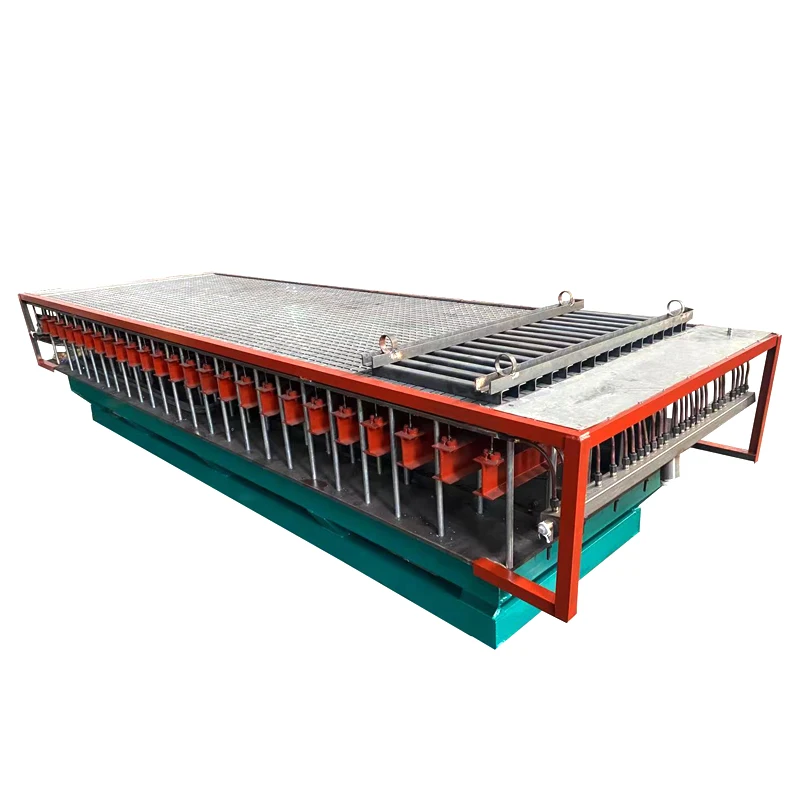

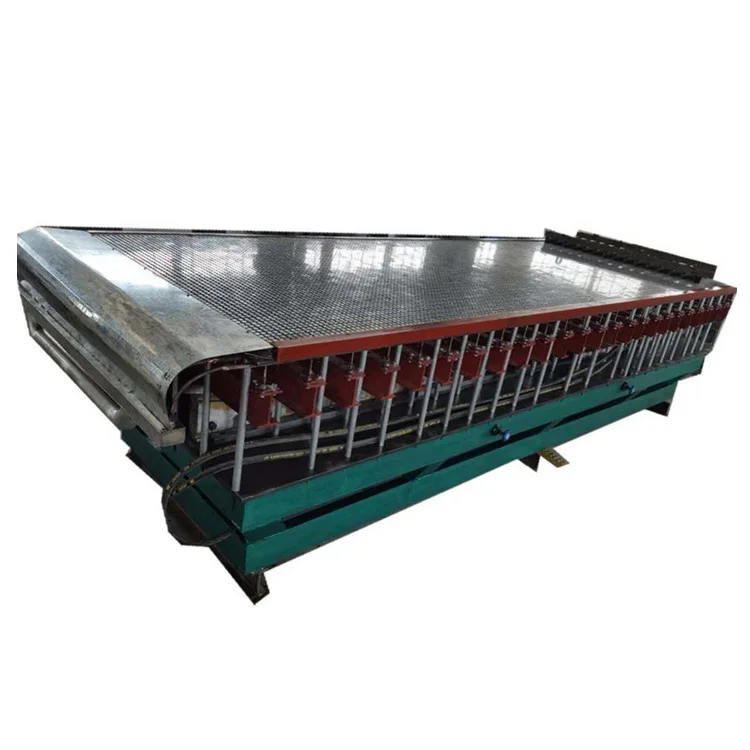

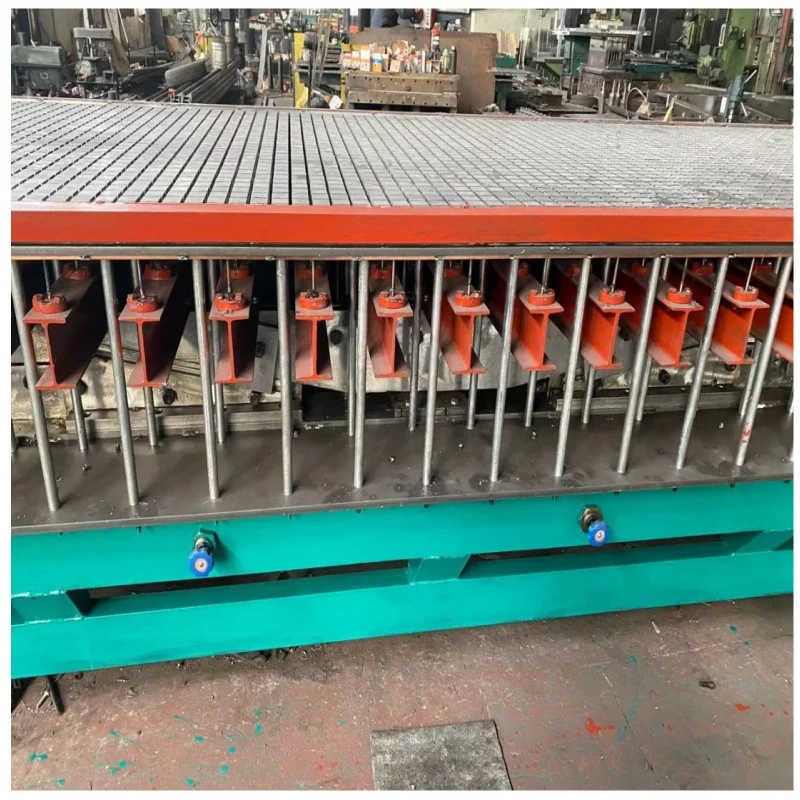

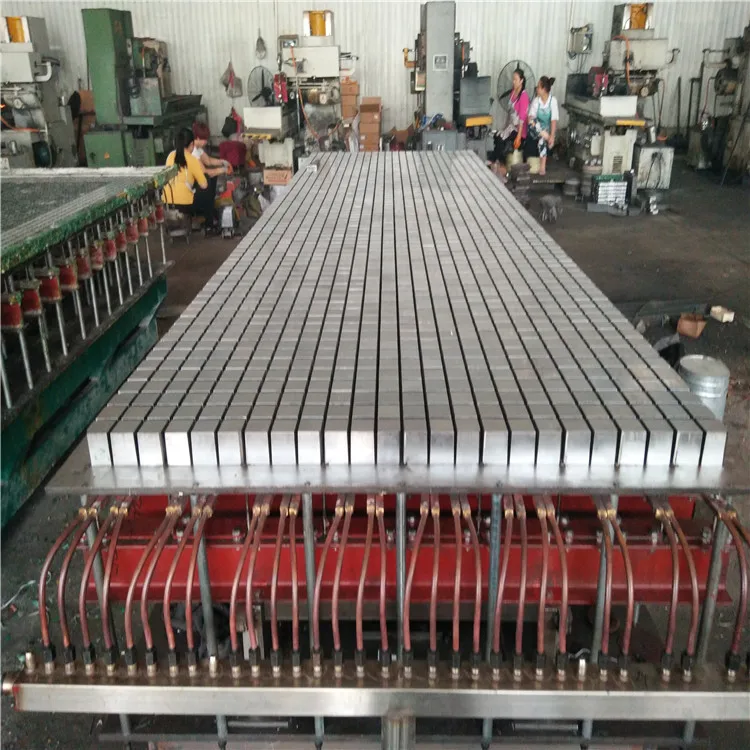

FRP GRP Стекловолоконная РЕШЕТОЧНАЯ машина формованное решеточное оборудование решетка производственная линия
