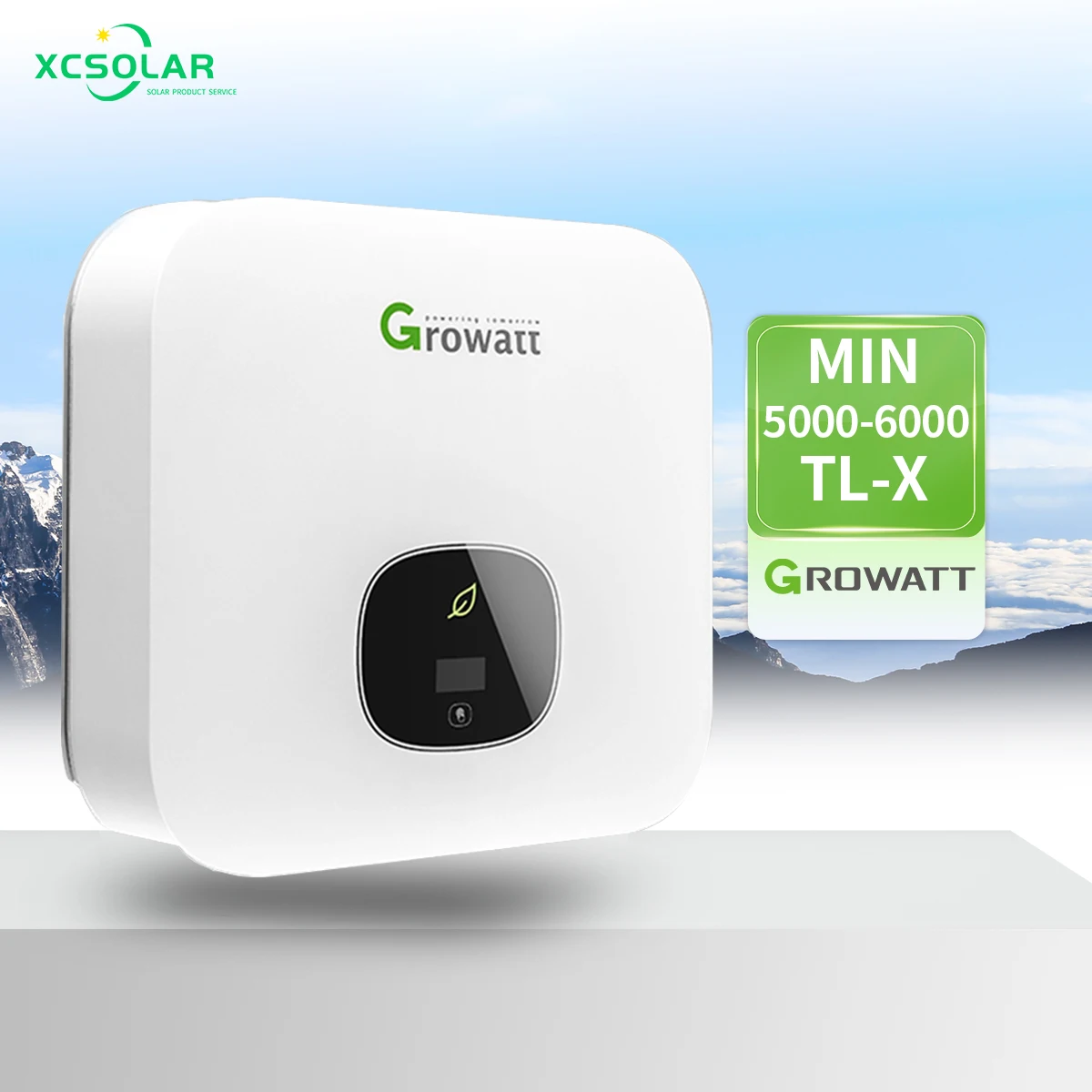

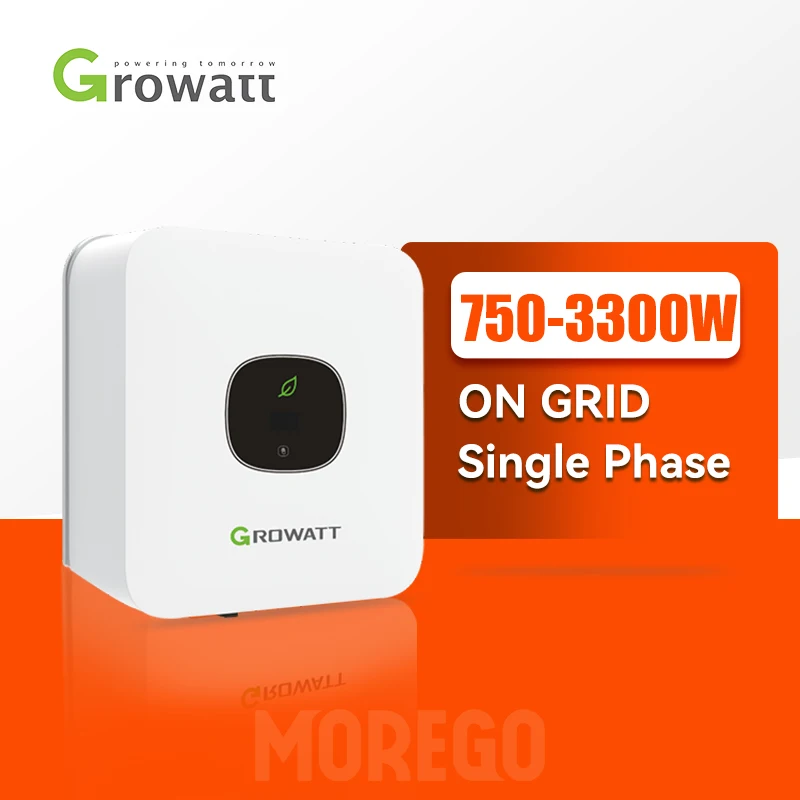

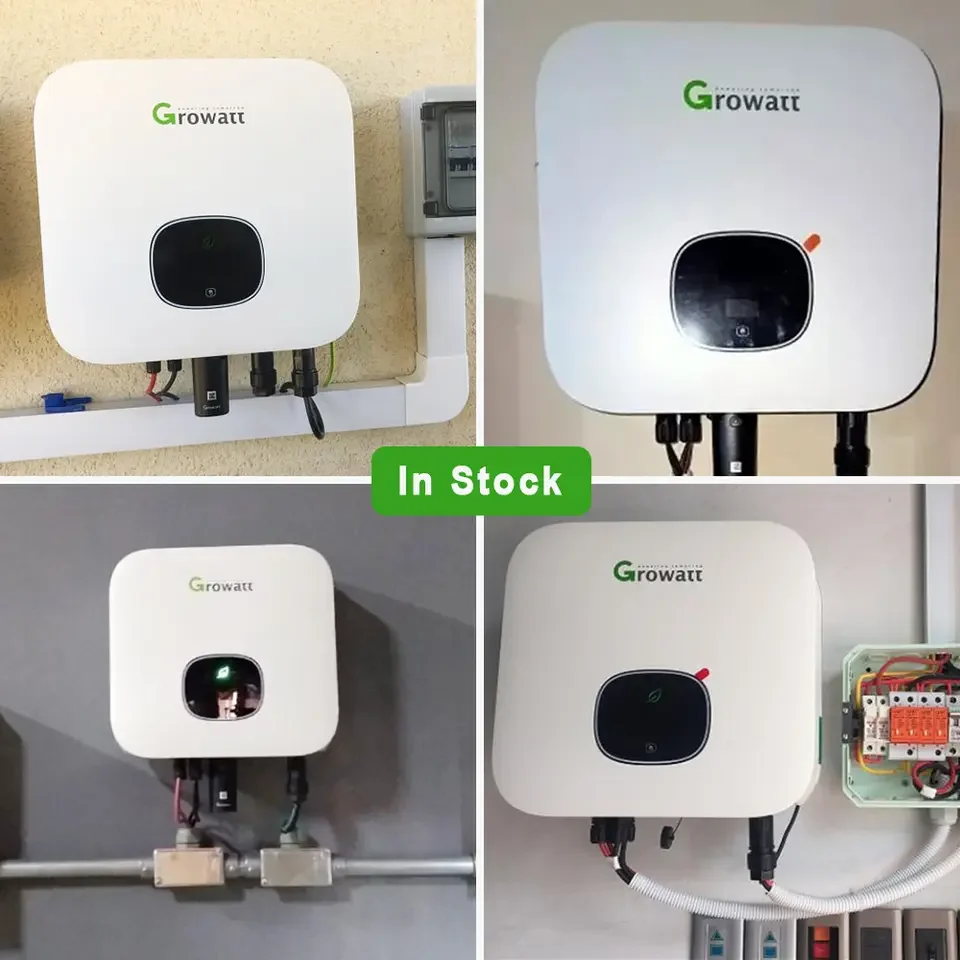

Growatt солнечные инверторы AC DC 750 Вт 1KW 1 5 W 2KW 2.5KW 3300 на сетке инвертор
28 103,89 ₽ - 36 700,37 ₽
Гроуатт 3 фазный инвертор Ip65 гибридный 1 кВт 10 солнечная энергетическая система чистая Синусоидальная волна 48 В постоянного тока 400 переменного
- Категория: >>>
- Поставщик: Xc Technology Co. Ltd.
Сохранить в закладки 1601064624102:
Описание и отзывы
Характеристики

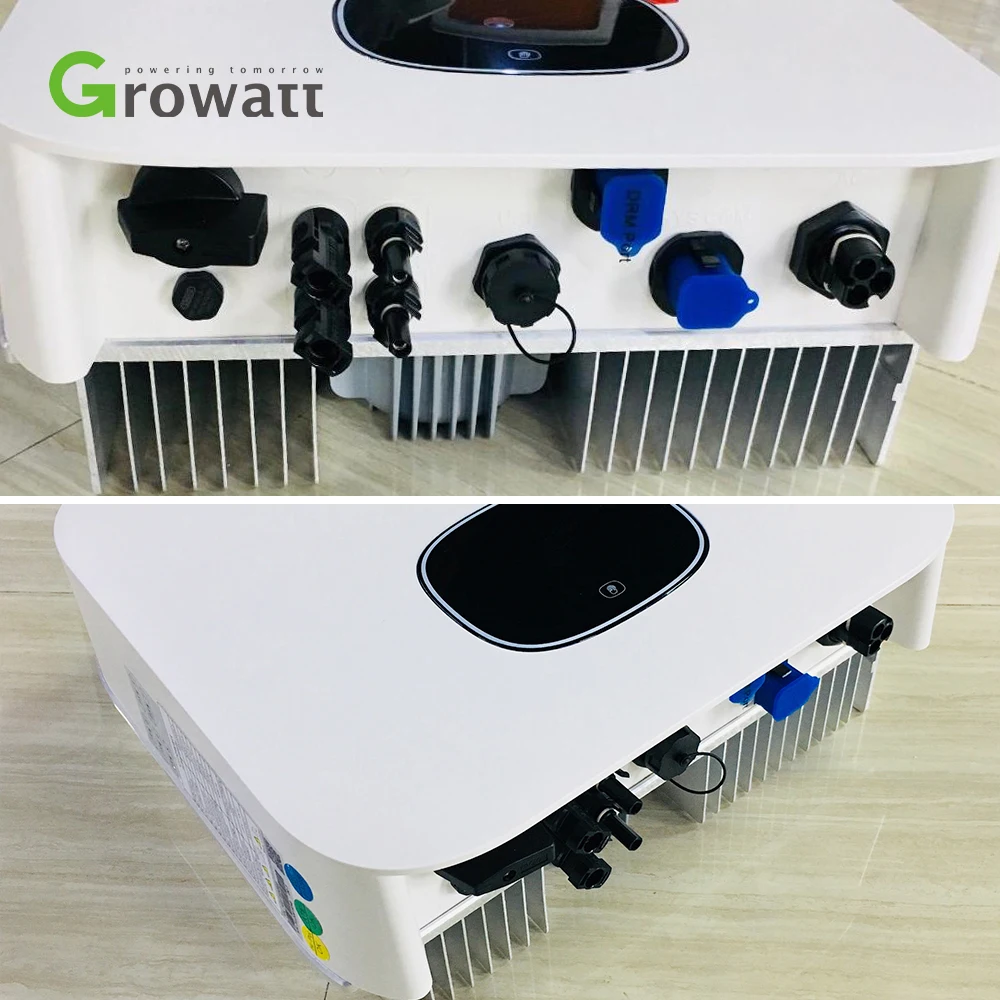

Product size detail display
Simple-efficient - safe - reliable
H.AC output terminal
B.DC switch
I. Breather valve
C.PV input terminal+
J. PV input terminal
D. LED display light
K.USB port
E. OLED screen
F. Touch keys
L.COM port
How the product works
Products Series
Datasheet | MIN 5000TL-X | MIN 6000TL-X | ||
Input Data | ||||
Max. recommended PV power (for module STC | 7000W | 8100W | ||
Max. DC voltage | 550V | |||
Start Voltage | 100V | |||
MPP work voltage range/ nominal voltage | 80V-550V /360V | |||
Max. input current | 12.5A/12.5A | |||
Max. short-circuit current | 16A/16A | |||
Number of independent MPP trackers/ strings per MPP tracker | 2/1 | |||
Output (AC) | ||||
Rated AC output power | 5000W | 6000W | ||
Max. AC apparent power | 5000VA | 6000VA | ||
Max. output current | 22.7A | 27.2A | ||
AC nominal voltage | 230V(160V-300V) | |||
AC grid frequency | 50 /60Hz ±5Hz | |||
Adjustable power factor | 0.8 leading - 0.8 lagging | |||
THDI | <3% | |||
AC connection | Single phase | |||
Efficiency | ||||
Max. efficiency | 98.40% | |||
Euro weighted efficiency | 97.50% | |||
MPPT efficiency | 99.90% | |||
Protection Devices | ||||
DC reverse polarity protection | yes | |||
DC Switch | yes | |||
DC Surge protection | Type II | |||
Output over current protection | yes | |||
AC surge protection | yes | |||
Ground fault monitoring | yes | |||
Grid monitoring | yes | |||
Integrated all - pole sensitive leakage current monitoring unit | yes | |||
General Data | ||||
Dimensions (W / H / D) in mm | 375/350/160 | |||
Weight | 10.8KG | |||
Operating temperature range | -25°C ... +60°C | |||
Noise emission (typical) | ≤35 dB(A) | |||
Attitude | 4000m | |||
Self-Consumption night | <1W | |||
Topology | Transformerless | |||
Cooling concept | Nature Convection | |||
Environmental Protection Rating | IP65 | |||
Relative Humidity | 100% | |||
Features | ||||
DC connection | H4/MC4(opt) | |||
AC connection | Connector | |||
Display | OLED+LED | |||
Interfaces:RS485/USB/WIFI/4G/RF | yes / yes / opt / opt / opt | |||
Warranty: 5 years / 10 years | yes / opt | |||
OLED display, touch button design, simple operation, using polymer aviation materials,the product weight is reduced by45%
◆Efficient power generation
The maximum efficiency is 98.4%, and the power generation is better. The DC is 1.4 times overmatched. The AC 1.1 times is overloaded.
◆Safe and reliable
IP65 protection grade, DC secondarylightning protection, separate design of inductor heat dissipation and main heat sink, natural cooling

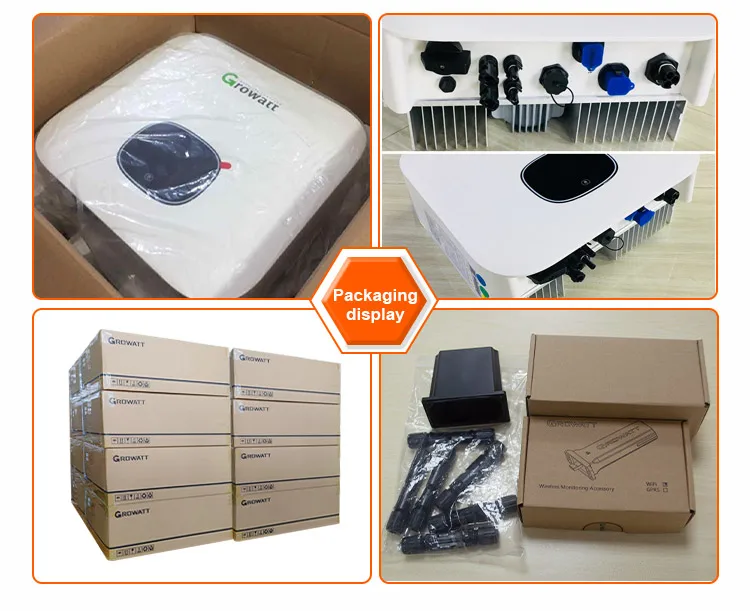

Product packaging
Our Projects
FAQ
Q: Which renowned manufacturers do you collaborate with for your solar PV components?
A: We have established deep collaborations with several renowned solar PV component manufacturers, including longi, ja, and jinko.
These partnerships ensure that we can provide high-quality PV components and benefit from the latest technology and innovation.
Q: What are the advantages of your own branded solar PV components?
A: We have our own branded component factory, which allows us to control product quality and the supply chain. With extensive
experience in research, development, and manufacturing of our branded components, we can offer high-quality and reliable PV
components while maintaining a competitive edge in pricing.
Q: what can you buy from us?
A: Solar Panel,Solar System,Battery,Inverter,Mobile power station, solar mounting system
Q: How do your solar PV components differ from those of other suppliers?
A:Our deep collaborations with renowned component manufacturers and our own branded components differentiate us from other
suppliers. We offer a combination of quality, competitive pricing, and excellent after-sales services. Our goal is to provide
customers with high-quality, cost-effective, and reliable PV components that contribute to their sustainable development and
investment returns.
Q: How do your solar PV components differ from those of other suppliers?
A:Our deep collaborations with renowned component manufacturers and our own branded components differentiate us from other
suppliers. We offer a combination of quality, competitive pricing, and excellent after-sales services. Our goal is to provide
customers with high-quality, cost-effective, and reliable PV components that contribute to their sustainable development and
investment returns.
Q: How to become your agent?
A: Contact us through Alibaba, we will give you the best price and look forward to your greetings.
A: We have established deep collaborations with several renowned solar PV component manufacturers, including longi, ja, and jinko.
These partnerships ensure that we can provide high-quality PV components and benefit from the latest technology and innovation.
Q: What are the advantages of your own branded solar PV components?
A: We have our own branded component factory, which allows us to control product quality and the supply chain. With extensive
experience in research, development, and manufacturing of our branded components, we can offer high-quality and reliable PV
components while maintaining a competitive edge in pricing.
Q: what can you buy from us?
A: Solar Panel,Solar System,Battery,Inverter,Mobile power station, solar mounting system
Q: How do your solar PV components differ from those of other suppliers?
A:Our deep collaborations with renowned component manufacturers and our own branded components differentiate us from other
suppliers. We offer a combination of quality, competitive pricing, and excellent after-sales services. Our goal is to provide
customers with high-quality, cost-effective, and reliable PV components that contribute to their sustainable development and
investment returns.
Q: How do your solar PV components differ from those of other suppliers?
A:Our deep collaborations with renowned component manufacturers and our own branded components differentiate us from other
suppliers. We offer a combination of quality, competitive pricing, and excellent after-sales services. Our goal is to provide
customers with high-quality, cost-effective, and reliable PV components that contribute to their sustainable development and
investment returns.
Q: How to become your agent?
A: Contact us through Alibaba, we will give you the best price and look forward to your greetings.
Похожие товары
Микро инвертор хорошего качества 2000 Вт 800 1 кВт 3 5 10 постоянного тока в переменный ток Гибридный солнечный генератор
12 674,30 ₽ - 16 531,70 ₽
1 кВт 3 5 24 В 48 постоянного тока до 230 переменного гибридный солнечный инвертор с встроенным контроллером MPPT 80 А
42 982,41 ₽ - 44 084,52 ₽
Бренд Sumry немодулированный синусоидальный инвертор 3 кВт гибридный солнечный
14 254,30 ₽ - 15 679,73 ₽
Высокочастотный автономный Гибридный солнечный инвертор Sunray MPS серии 48 В постоянного тока до 220 переменного 5 кВА/4000 Вт
36 183,98 ₽ - 37 280,46 ₽

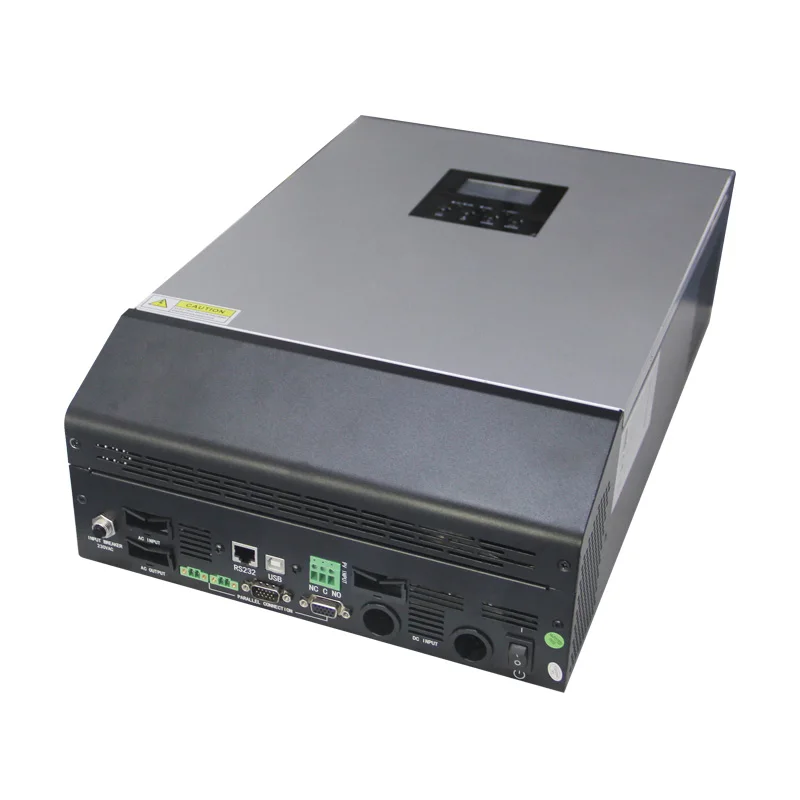

Axpert МКС KS 3KVA/2.4KW/24VDC Гибридный солнечный инвертор voltronic обратный преобразователь мощной печатной inverterwith PWM регулятором солнечного заряда контроллер
14 254,30 ₽

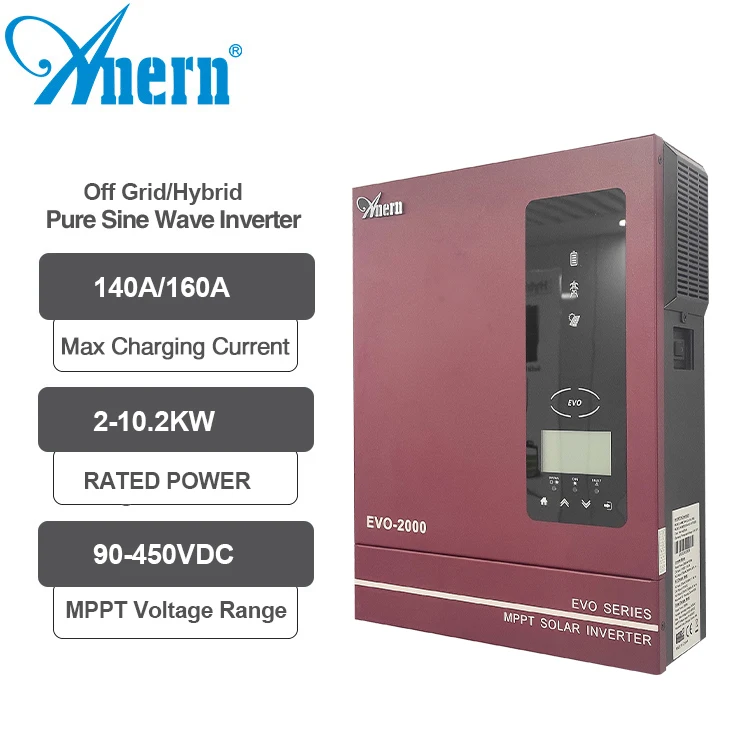

Anern все в одном 24 вольт солнечный инвертор контроллер запасные части зарядное устройство
40 021,67 ₽ - 41 118,15 ₽

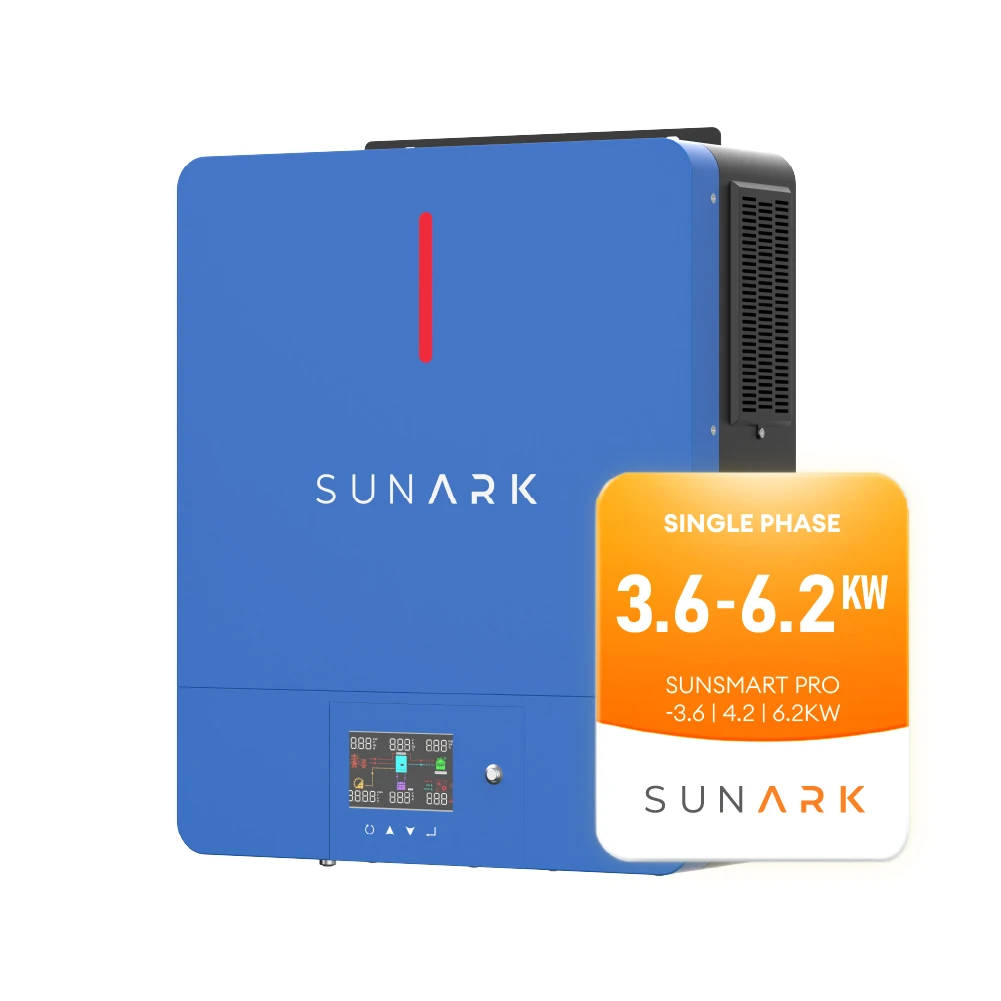

Синусоидальный солнечный инвертор SunArk 6 кВт 5 12 В 48 вольт гибридные Pv инверторы
