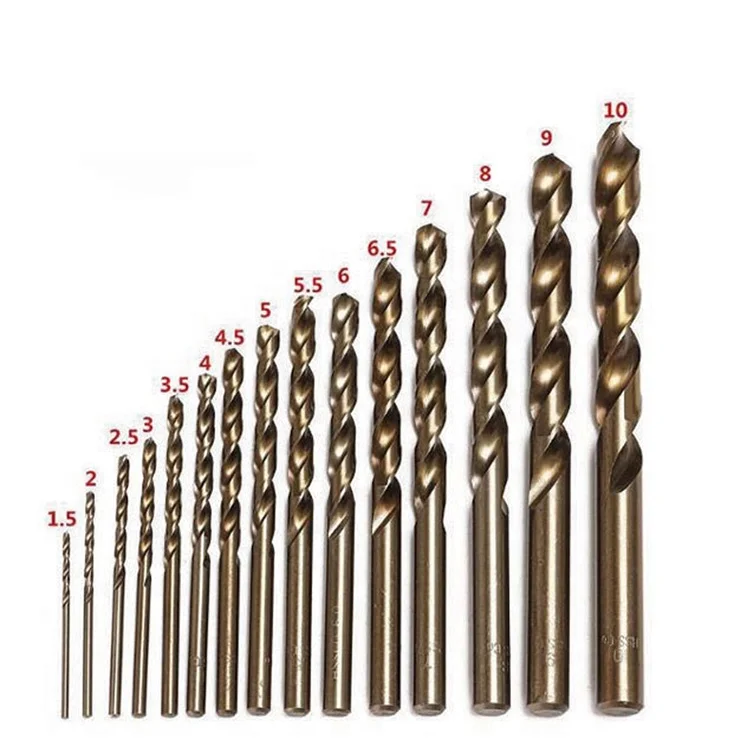

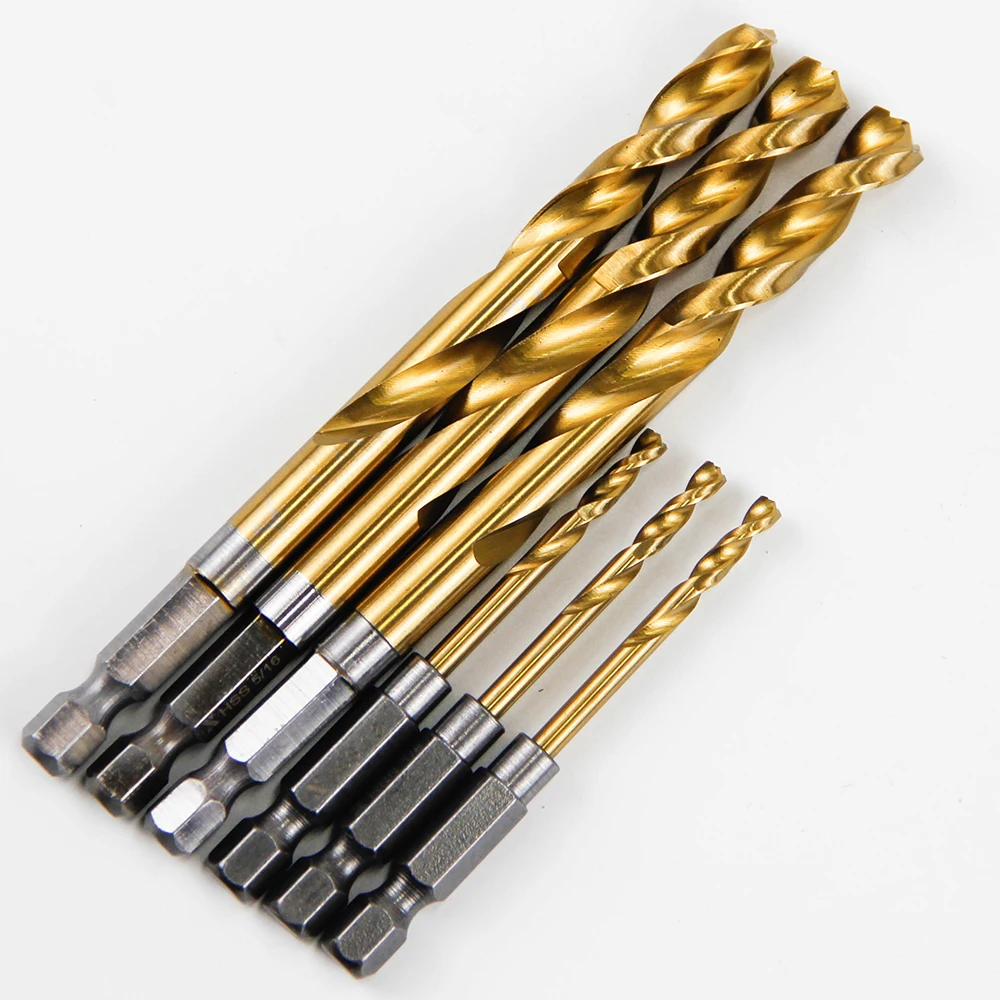

GOLDMOON High Speed Steel Titanium-plated Drill Set of 99pcs Twist Drills 1.5mm to 10mm Hole Pore Opener Drilling Bits
10,31-56,68 ₽

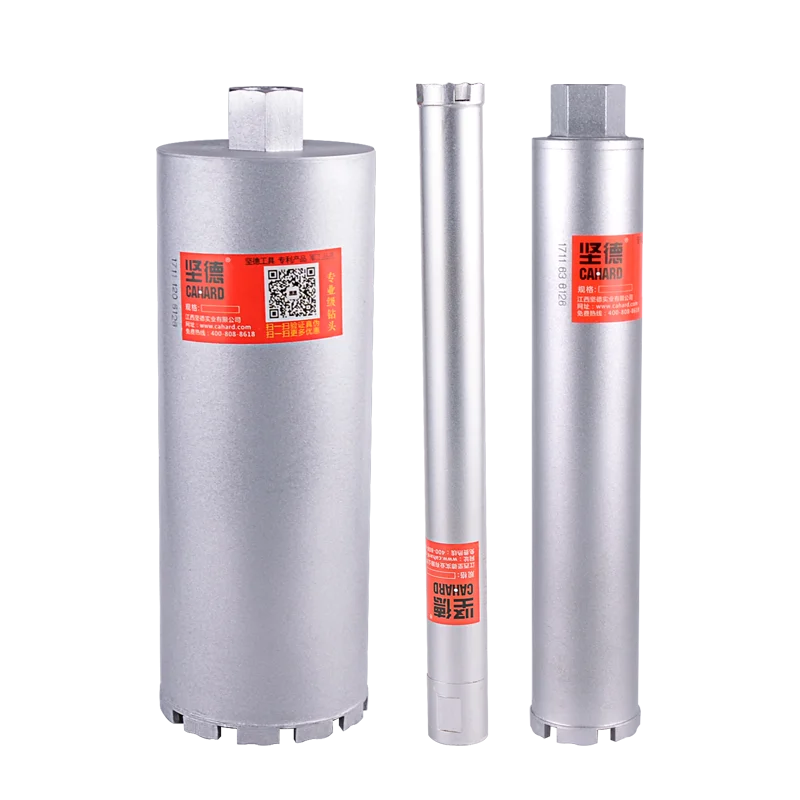

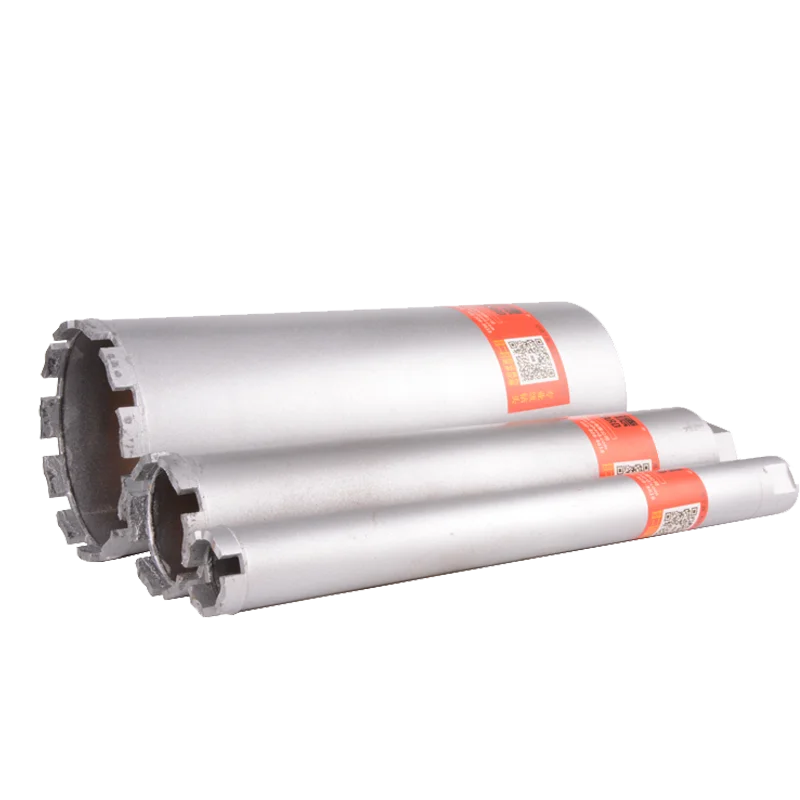

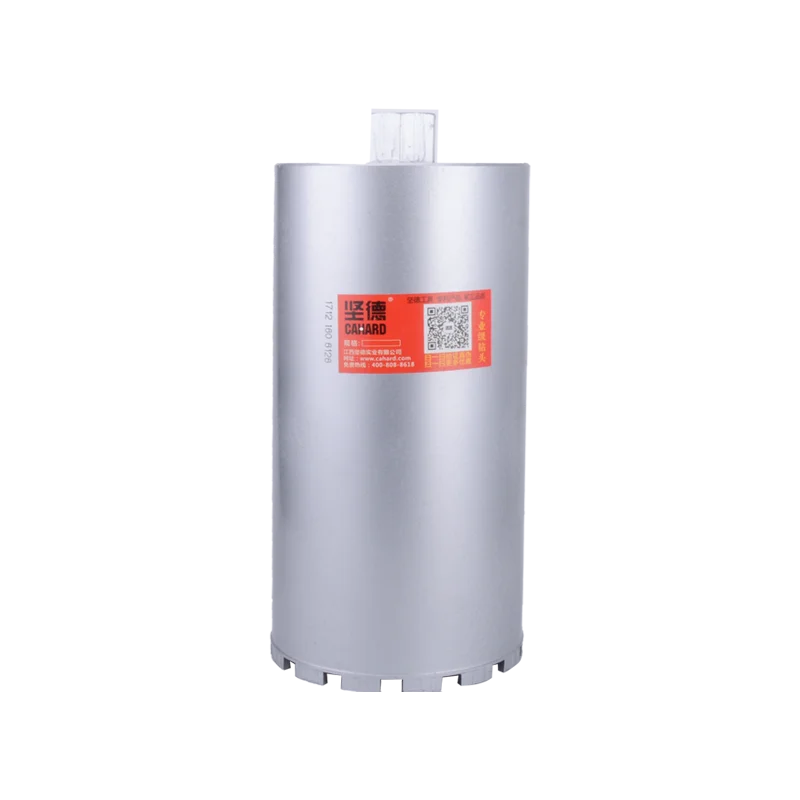

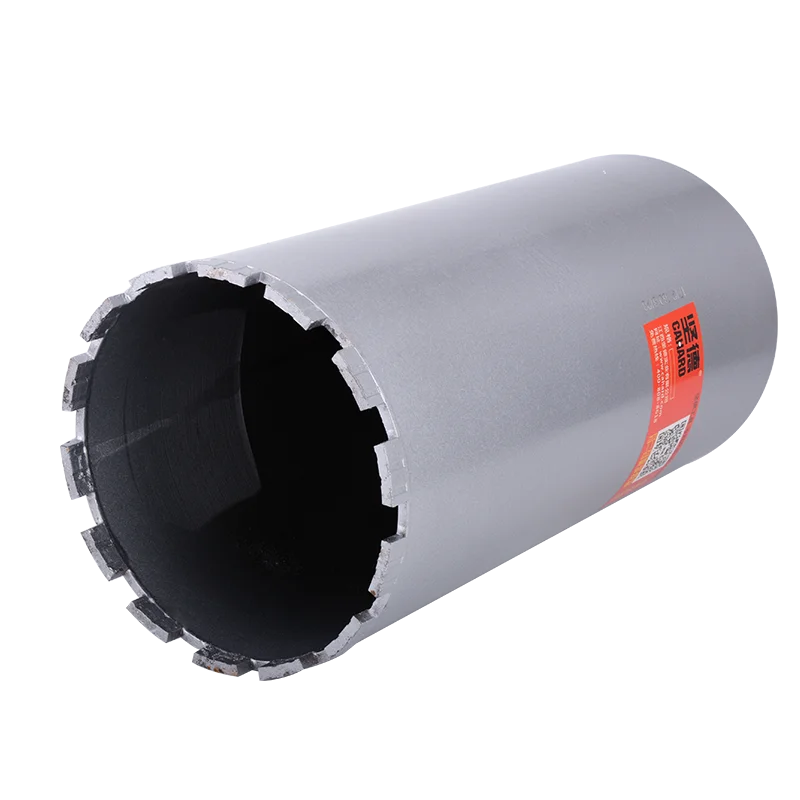

Fast Delivery Custom Different Diameter Diamond Dry Wet Core Drill Bit for Hard Stone Concrete Marble Granite Brick
- Категория: >>>
- Поставщик: Jiangxi Jiande Industrial Co. Ltd.Jiangxi Ltd.
Сохранить в закладки 1601067990077:
Описание и отзывы
Характеристики
Our Advantages
1.ONE OF THE LARGEST DIAMOND CORE DRILL BIT MANUFACTURERS IN CHINA.
2.MUCH SHARPER/HIGH WEAR-RESISTING/MORE DURABLE.
3. OEM&ODM ACCEPTABLE/LOW MOQ/COMPETITIVE PRICE IN THE MARKET.4. HIGH EFFICIENCY/CAPACITY COULD BE OVER 60 HOLES, NO BREAKING OF SEGMENTS.
5. THIN WALL CORE DRILL BIT WITH FAST SHARPNESS AND LONG DRILLING LIFE.
Product Description
Product name | Diamond core drill bit | ||||||
Brand | CAHARD or OEM ODM | ||||||
Compose | Segment + core bit matrix | ||||||
Diameter | 18mm-600mm is available for concrete core drill bit | ||||||
Length | 200/370/400/450/500mm, and other length is available upon request. | ||||||

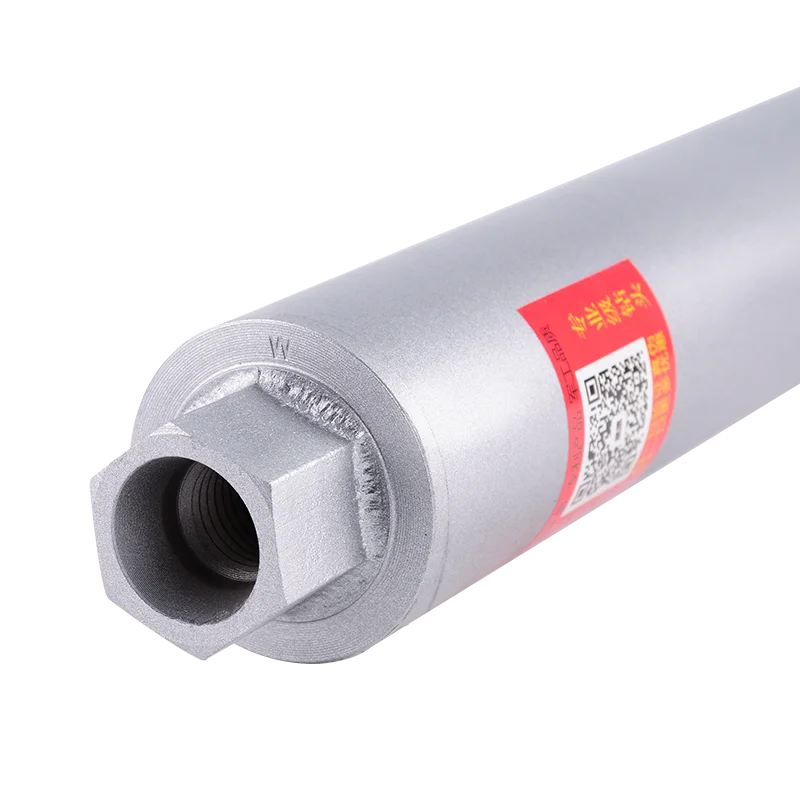

Thread | M14,1/2’’ GAS,1 1/4-UNC7,5/8-11’’ other thread is available upon request. | ||||||
Machine | Drilling machine | ||||||
Application | Drilling concrete, reinforced concrete, brick, etc. | ||||||
Quality Control | 1. Strict Raw material inspection 2. Professional formula 3. Production process control 4. Do some cutting testing to sure the using function 5. Products pass ISO9001 and SGS inspection | ||||||
Specification
Item No. | O.D of Drill | Valid Length(mm) | Specification of Drill Segment(mm） | Quantity of Drill Segment (pcs) | ||||||
1 | φ25mm | 1“ | 350~450 | 22*9*(3.5)4 | 3 | |||||
2 | φ32mm | 1-1/4" | 350~450 | 22*9*(3.5)4 | 3 | |||||
3 | φ36mm | 1-1/2" | 350~450 | 22*9*(3.5)4 | 3 | |||||
4 | φ38mm | 1-1/2" | 350~450 | 22*9*(3.5)4 | 4 | |||||
5 | φ40mm | 1-2/3" | 350~450 | 22*9*(3.5)4 | 4 | |||||
6 | φ44mm | 1-3/4" | 350~450 | 22*9*(3.5)4 | 4 | |||||
7 | φ46mm | 1-4/5" | 350~450 | 22*9*(3.5)4 | 4 | |||||
8 | φ51mm | 2” | 350~450 | 22*9*(3.5)4 | 5 | |||||
9 | φ56mm | 2-1/4" | 350~450 | 22*9*(3.5)4 | 5 | |||||
10 | φ58mm | 2-1/4" | 350~450 | 22*9*(3.5)4 | 5 | |||||
11 | φ63mm | 2-1/2" | 350~450 | 22*9*(3.5)4 | 6 | |||||
12 | φ76mm | 3" | 350~450 | 22*9*(3.5)4 | 7 | |||||
13 | φ83mm | 3-1/4" | 350~450 | 22*9*(3.5)4 | 8 | |||||
14 | φ89mm | 3-1/2" | 350~450 | 22*9*(3.5)4 | 8 | |||||
15 | φ102mm | 4" | 350~450 | 22*9*(3.5)4 | 9 | |||||
16 | φ108mm | 4-1/4" | 350~450 | 22*9*(3.5)4 | 10 | |||||
17 | φ114mm | 4-1/2" | 350~450 | 22*9*(3.5)4 | 10 | |||||
18 | φ120mm | 4-3/4" | 350~450 | 22*9*(3.5)4 | 11 | |||||
19 | φ127mm | 5“ | 350~450 | 22*9*(3.5)4 | 11 | |||||
20 | φ132mm | 5-1/4" | 350~450 | 22*9*(3.7)4.2 | 12 | |||||
21 | φ140mm | 5-1/2" | 350~450 | 22*9*(3.7)4.2 | 12 | |||||
22 | φ152mm | 6” | 350~450 | 22*9*(3.7)4.2 | 13 | |||||
23 | φ159mm | 6-1/4" | 350~450 | 22*9*(4)4.5 | 14 | |||||
24 | φ167mm | 6-1/2" | 350~450 | 22*9*(4)4.5 | 14 | |||||
25 | φ180mm | 7“ | 350~450 | 22*9*(4)4.5 | 15 | |||||
26 | φ202mm | 8” | 350~450 | 22*9*(4)4.5 | 16 | |||||
27 | φ230mm | 9“ | 350~450 | 22*9*(4)4.5 | 18 | |||||
28 | φ255mm | 10” | 350~450 | 22*9*(4)4.5 | 21 | |||||
29 | φ300mm | 12“ | 350~450 | 22*9*5 | 25 | |||||
30 | φ355mm | 14” | 350~450 | 22*9*5.5 | 29 | |||||
31 | φ400mm | 15-1/2" | 350~450 | 22*9*6 | 34 | |||||
Other specifications are available upon request. | ||||||||||
Solemn Commitment of CAHARD
Brand core value:
innovative products, innovative technologies, innovative business models.
Enterprise spirit：
Innovation, innovation, re-innovation.Corporate Mission:
Improve efficiency and reduce costs.
Business philosophy:
The cooperative customers benefit first.
innovative products, innovative technologies, innovative business models.
Enterprise spirit：
Innovation, innovation, re-innovation.Corporate Mission:
Improve efficiency and reduce costs.
Business philosophy:
The cooperative customers benefit first.
WITH CAHARD, CUTTING IS NOT DIFFICULT ANY MORE.
1.If it is found that the cutting speed of the CAHARD wire saw is slower than that of similar products, and the cutting life is less than that of similar products, it can be returned.
2.If it is found that the drilling speed of the CAHARD drill bit is slower than that of similar products, and the number of drilling hole is less than that of similar products, it can be returned.
3.If it is found that the cutting speed of the CAHARD saw blade is slower than that of similar products, and the meter of cutting is less than that of similar products, it can be returned.
4.If it is found that any beading, cutting from one-side, breaking rope of the CAHARD diamond wire, it can be returned.
5.If it is found that segment of core drill bit lost or swing, it can be returned.
6.If it is found that segment of saw blade lost or out of shape, it can be returned.
2.If it is found that the drilling speed of the CAHARD drill bit is slower than that of similar products, and the number of drilling hole is less than that of similar products, it can be returned.
3.If it is found that the cutting speed of the CAHARD saw blade is slower than that of similar products, and the meter of cutting is less than that of similar products, it can be returned.
4.If it is found that any beading, cutting from one-side, breaking rope of the CAHARD diamond wire, it can be returned.
5.If it is found that segment of core drill bit lost or swing, it can be returned.
6.If it is found that segment of saw blade lost or out of shape, it can be returned.
Certification
FAQ
Question1: There are many unqualified products in the market, how can you make sure your quality control?
Answer: We have a very seriously control system(PDCA principle and 7S) and set up a special qualified team to check all the products before packing and shipping out, and each of production process would be checked several times strictly. And we are willing to accept the sample order for quality checking.and we will full refund in case of any bad quality.
Question2. What we should do if your products can not run well?
Answer: If our products can not run well,
Answer: We have a very seriously control system(PDCA principle and 7S) and set up a special qualified team to check all the products before packing and shipping out, and each of production process would be checked several times strictly. And we are willing to accept the sample order for quality checking.and we will full refund in case of any bad quality.
Question2. What we should do if your products can not run well?
Answer: If our products can not run well,
Firstly, please check whether the installation is right?
Secondly, please check whether there is problem with the machine?
Thirdly, please check whether your workers they were operating the machine in wrong method.
After get rid of these possibility then it's the problem of our products. Under such situation, please ask your technical man to guide the running of machine. Otherwise continue the running according to your experience or uninstall our products and change to other manufacture's products temporarily.
For example, if our segment can not cut, first please open the segment again, use brick or sandstone, if it is hard to open please use concrete. If still can not cut, please replace it with other manufacture's products to continue the production line.
Please contact us directly if you get poor performance of our products, send us the detailed report. it is better if you send back those used products so that our technical department can check the problem. If we find the reason is at our end, we will make compensation for our customers or replacement will be done immediately.
Question3. Can I place one small order for first time to test the quality?
Answer: Small order are also welcomed. but we don't offer the free samples, according to our experience when people get the samples by paying they will cherish what they get. Although the quantity of sample is small however its cost is higher than normal production. But we are willing to give our potential customers a special discount which they are used to do a testing. It is very important to give us feedback, we appreciate it.
Question4. I want to be your agent, what is the conditions?
Answer: If you want to be our agent, the good capability of marketing is necessary, the other items we can settle down by
negotiation.
Question5.Can I visit your factory?
Answer: Your are welcomed to visit our factory，and we offer free hotel and free car
FOR MORE QUESTIONS,PLZ FEEL FREE TO CONTACT US. WE WILL TRY OUR BEST TO SOLVE ALL YOUR PROBLEMS.
Secondly, please check whether there is problem with the machine?
Thirdly, please check whether your workers they were operating the machine in wrong method.
After get rid of these possibility then it's the problem of our products. Under such situation, please ask your technical man to guide the running of machine. Otherwise continue the running according to your experience or uninstall our products and change to other manufacture's products temporarily.
For example, if our segment can not cut, first please open the segment again, use brick or sandstone, if it is hard to open please use concrete. If still can not cut, please replace it with other manufacture's products to continue the production line.
Please contact us directly if you get poor performance of our products, send us the detailed report. it is better if you send back those used products so that our technical department can check the problem. If we find the reason is at our end, we will make compensation for our customers or replacement will be done immediately.
Question3. Can I place one small order for first time to test the quality?
Answer: Small order are also welcomed. but we don't offer the free samples, according to our experience when people get the samples by paying they will cherish what they get. Although the quantity of sample is small however its cost is higher than normal production. But we are willing to give our potential customers a special discount which they are used to do a testing. It is very important to give us feedback, we appreciate it.
Question4. I want to be your agent, what is the conditions?
Answer: If you want to be our agent, the good capability of marketing is necessary, the other items we can settle down by
negotiation.
Question5.Can I visit your factory?
Answer: Your are welcomed to visit our factory，and we offer free hotel and free car
FOR MORE QUESTIONS,PLZ FEEL FREE TO CONTACT US. WE WILL TRY OUR BEST TO SOLVE ALL YOUR PROBLEMS.
Похожие товары
Royal Sino High Quality Metal Drilling Hss4241/4341 Twist Straight Shank Drill Bit for
0,02-0,05 $

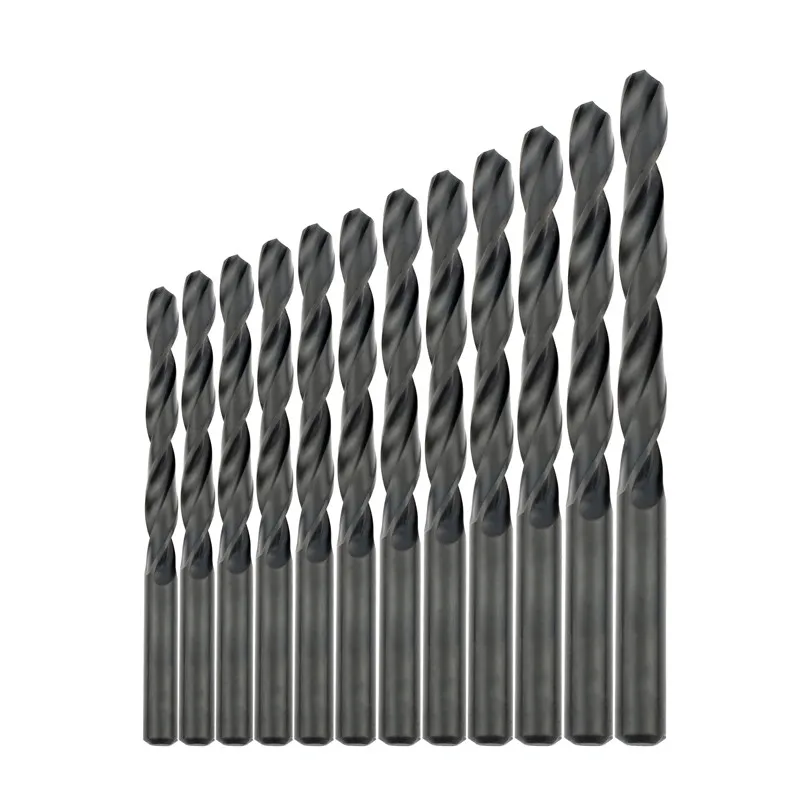

1MM-14MM High Speed Steel HSS Drill Bits Fully Ground Round Shank for Stainless Hot Sale
5 мм 6 8 10

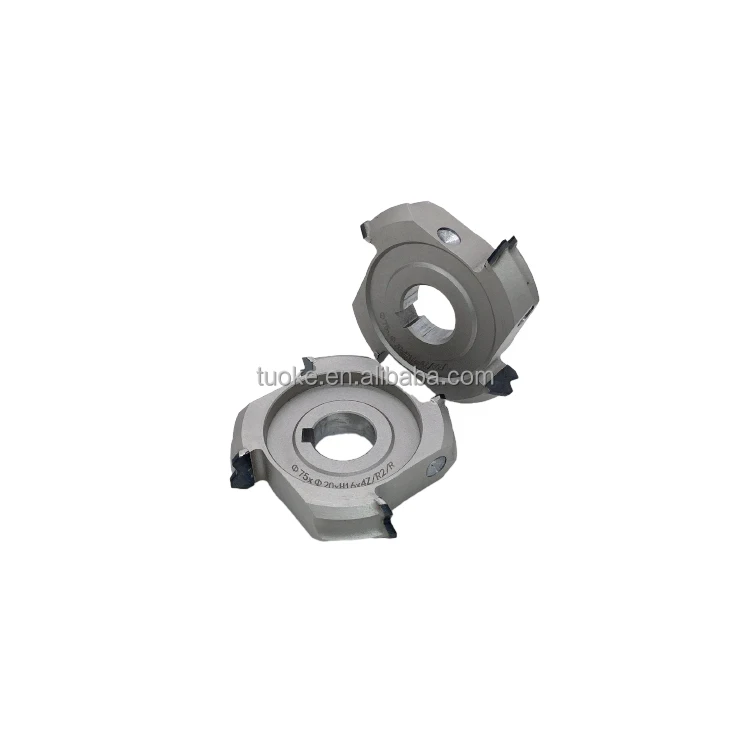

TUOKE TK881 D75xd20xH16x4Z PCD Woodworking Tool for Diamond Edge Cutter
25,00 $

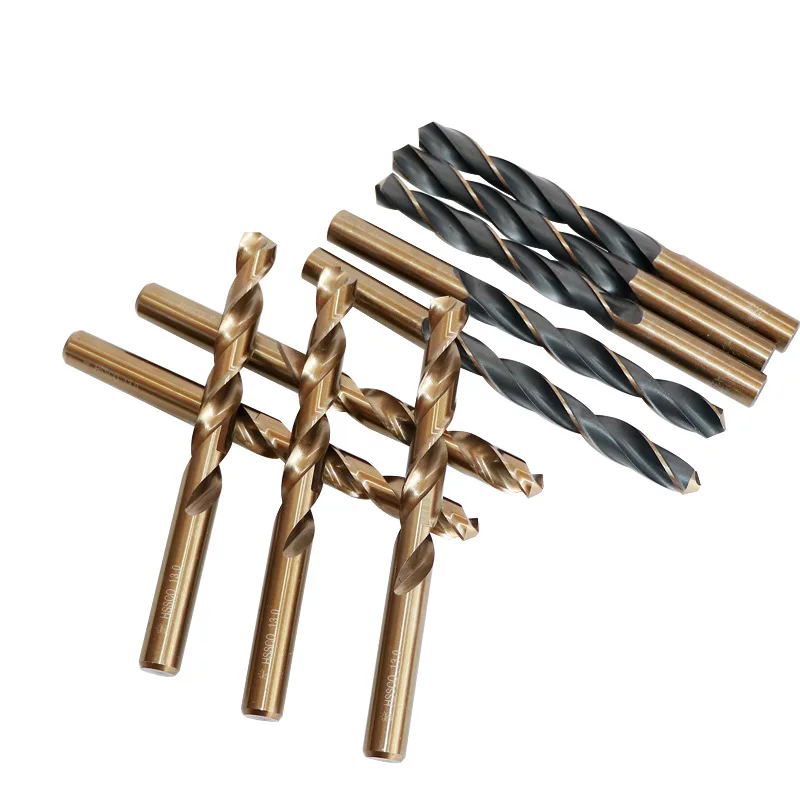

Wholesale HSS Fully Ground Straight Shank Twist Drill Bit for Precision Machining CNC DRILL TOOL Electric

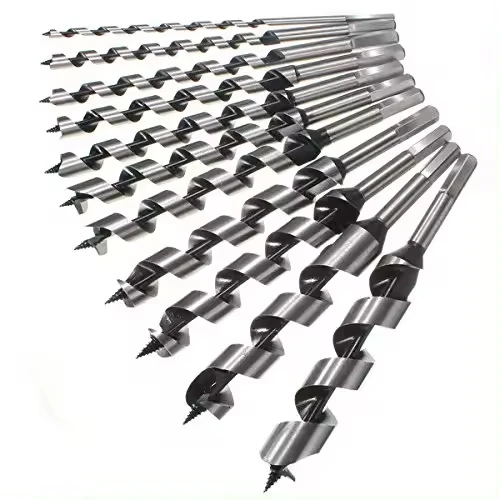

Tungsten Carbide Earth New Auger Bit Rock Fishtail pilot Point Drill Hand Pole Drilling Bits
