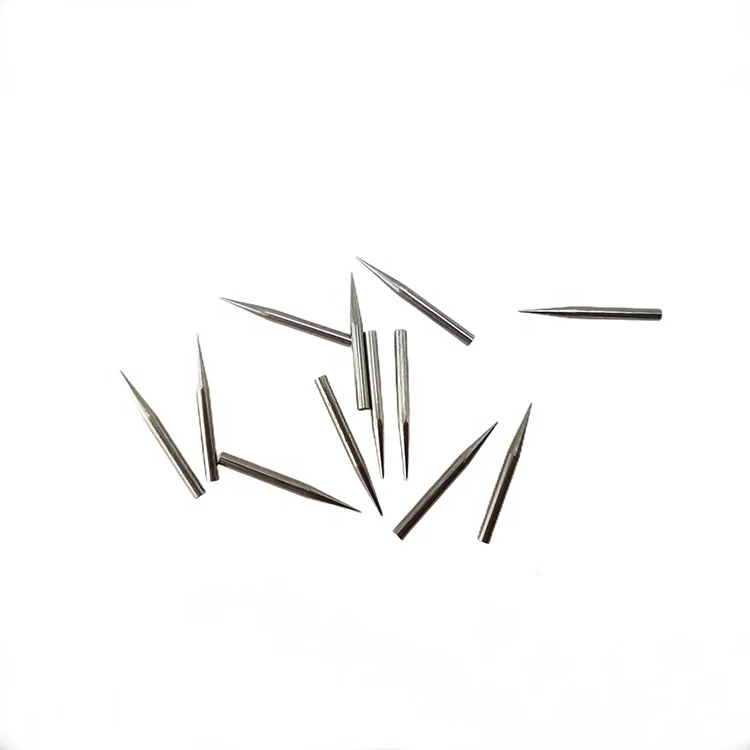

10 шт./коробка, профессиональные вольфрамовые электроды
341,31 ₽ - 425,55 ₽
Вольфрамовая электродная игла для анионной очистки воздуха и очистителя масляного дыма
- Категория: >>>
- Поставщик: Zhuzhou Jielong Nonferrous Metal Technology Co. Ltd
Сохранить в закладки 1601068652287:
Описание и отзывы
Характеристики
Specification
item | value |
Warranty | 1year |
Customized support | OEM |
Place of Origin | China |
Hunan | |
Brand Name | Jielong |
Model Number | JL-TIG-001 |
Material | TUNGSTEN |
Operating Current | 180 - 350 A (DC) |
Welding Current | 180 - 350 A (DC) |
Operating Temperature | Above 800 |
Application | TIG welder |
Application | TIG Welding |
Product Name | TIG Welding electrodes |
Usages | Tig |
Keyword | Tungsten Electrode Rod |
Advantage | The tungsten tip is sharp and pointed, ensuring a stable arc. |
Shape | pointed |
Length | 10-300mm |
Diameter | 1.0mm 1.6mm 2.0mm 2.4mm 3.2mm |
Color | silvery |
Type | Welding Elcetrode |
Product Description
TIG (Tungsten Inert Gas) welding, also known as GTAW (Gas Tungsten Arc Welding), primarily utilizes tungsten electrodes to produce a weld. Tungsten is a rare metallic element known for its robustness and high melting point, making it perfect for the production of an arc in welding without melting away. In the TIG welding process, the tungsten electrode delivers the current to the welding arc, and the tungsten's high melting point ensures it remains intact even under extreme temperatures.

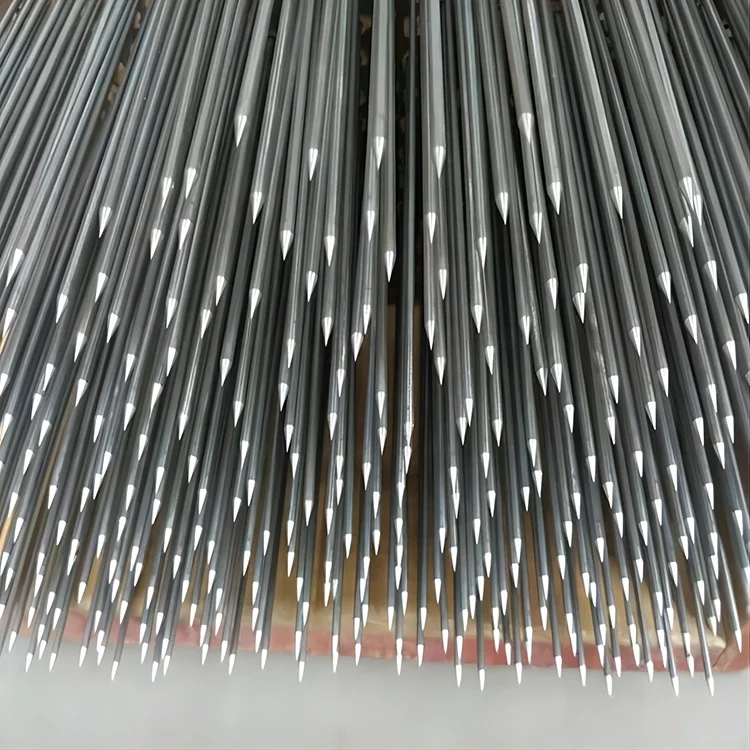

Why Sharpen the Tungsten Electrode?
The reason for sharpening one end of the tungsten electrode is multifaceted:
1. Focused Arc: A sharpened electrode provides a more focused arc, directing the heat more accurately on the weld joint.
2. Better Arc Starting: A pointed electrode facilitates easier arc initiation, reducing the chances of weld contamination at the start.
3. Improved Weld Quality: The consistency of the arc produced by a sharpened electrode ensures cleaner and higher-quality welds.
4. Enhanced Penetration: A sharper electrode offers better penetration into the metals being welded, ensuring a stronger bond.
Why Sharpen the Tungsten Electrode?
The reason for sharpening one end of the tungsten electrode is multifaceted:
1. Focused Arc: A sharpened electrode provides a more focused arc, directing the heat more accurately on the weld joint.
2. Better Arc Starting: A pointed electrode facilitates easier arc initiation, reducing the chances of weld contamination at the start.
3. Improved Weld Quality: The consistency of the arc produced by a sharpened electrode ensures cleaner and higher-quality welds.
4. Enhanced Penetration: A sharper electrode offers better penetration into the metals being welded, ensuring a stronger bond.
If you require customized Tungsten Electrodes Tips, please provide the following parameters:
1. Diameter: Specify the thickness of the electrode you need.
2. Length: The desired length of the electrode.
3. Material Type: Whether pure tungsten, thoriated, lanthanated, ceriated, etc.
4. Tip Shape: Pointed, rounded, truncated, etc.
5. Percentage of Alloying Element (if applicable): For example, 2% thoriated or 1.5% lanthanated.
6. Quantity: How many electrodes you wish to order.
7. Any Additional Specifications: Include any other specifications or features you require
2. Length: The desired length of the electrode.
3. Material Type: Whether pure tungsten, thoriated, lanthanated, ceriated, etc.
4. Tip Shape: Pointed, rounded, truncated, etc.
5. Percentage of Alloying Element (if applicable): For example, 2% thoriated or 1.5% lanthanated.
6. Quantity: How many electrodes you wish to order.
7. Any Additional Specifications: Include any other specifications or features you require
Type Number | D(mm) | L(mm) | Angle | Remark |
JL0550 | 0.5mm | 8-200 | 15º,30º,30ºwith a Blunt,60º | We can customize the dia meter,length,and angle, length of sharpen tip. |
JL0770 | 0.7mm | 8-200 | ||
JL1001 | 1.0mm | 8-200 | ||
JL1551 | 1.5mm | 8-200 | ||
JL1661 | 1.6mm | 8-200 | ||
JL1881 | 1.8mm | 8-200 | ||
JL0220 | 2.0mm | 8-200 | ||
JL2442 | 2.4mm | 8-200 | ||
JL2552 | 2.5mm | 8-200 | ||
JL3003 | 3.0mm | 8-200 | ||
JL3223 | 3.2mm | 8-200 | ||
JL4004 | 4.0mm | 8-200 | ||
..... | ..... | .... |

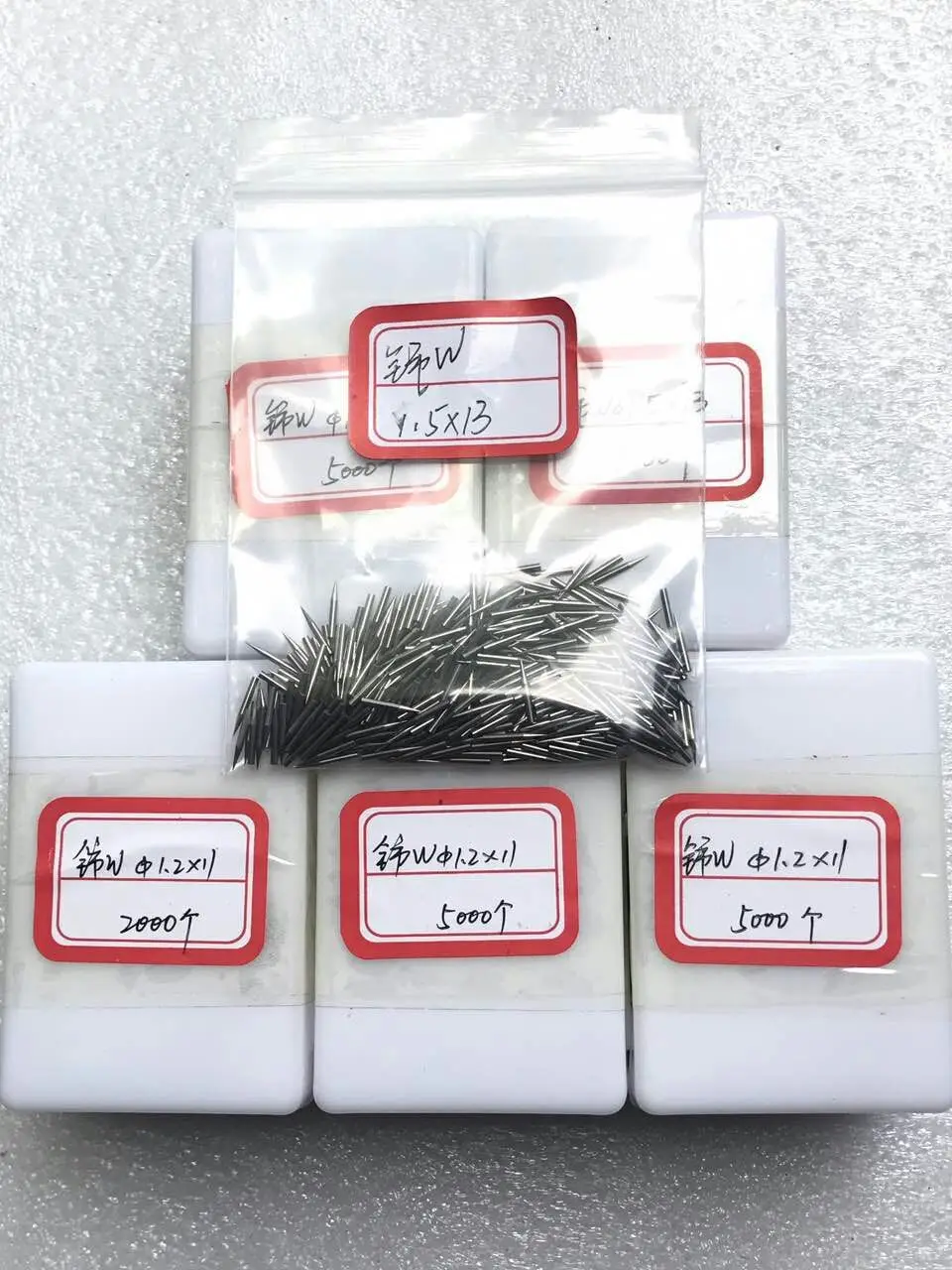

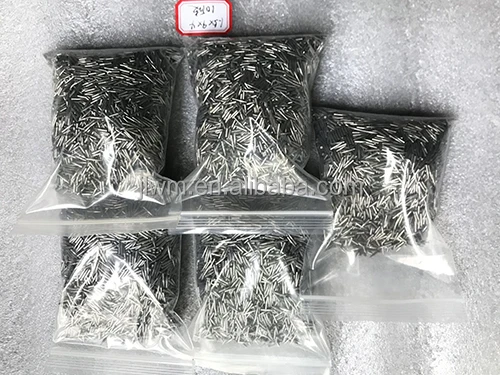

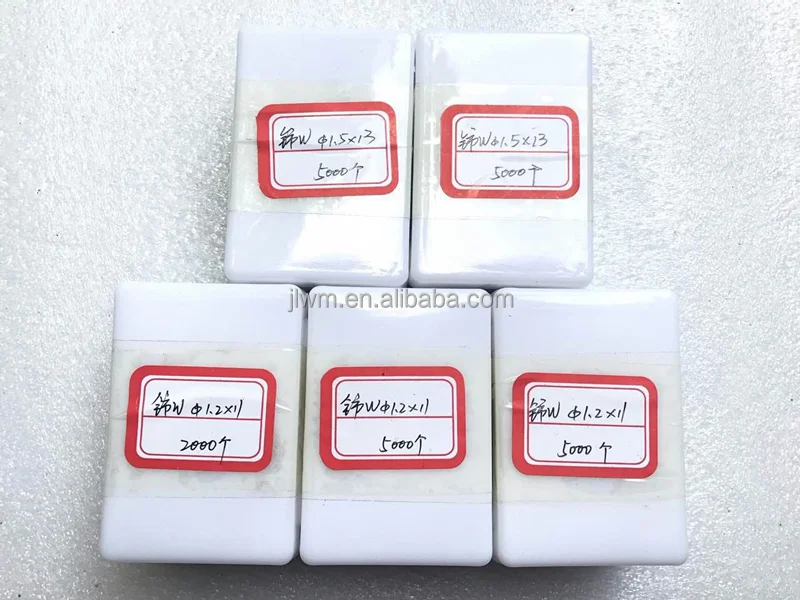

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Zhuzhou Jielong Nonferrous Metal Technology Co., Ltd. (JLYS) is a large-scale scientific and technological enterprise integrating scientific research, engineering design and technology industry with the research and development of non-ferrous metals, ferrous metals and rare metals. Its direct factory has been engaged in the research of materials and processes such as tungsten and molybdenum products and refractory products since the 1980s. also sold to the United States, Germany, Japan, South Korea, Thailand, India and other countries, and have been recognized and supported by domestic and foreign customers.
JLYS products are divided into three series: tungsten, molybdenum and hard alloy. Tungsten series include: tungsten powder, tungsten slab, tungsten sheet, tungsten rod, tungsten rod (electrode), tungsten needle, tungsten wire, vacuum coated tungsten heater, tungsten boat, tungsten crucible, etc. and custom-made tungsten products;
Molybdenum series include: molybdenum powder, molybdenum slab, molybdenum sheet, molybdenum rod, molybdenum rod (electrode), molybdenum wire, molybdenum boat, molybdenum crucible, etc. and custom-made heterogeneous molybdenum products; alloy series include: tungsten steel alloy, high specific gravity Alloy, TZM alloy, cemented carbide, etc.
JLYS products are divided into three series: tungsten, molybdenum and hard alloy. Tungsten series include: tungsten powder, tungsten slab, tungsten sheet, tungsten rod, tungsten rod (electrode), tungsten needle, tungsten wire, vacuum coated tungsten heater, tungsten boat, tungsten crucible, etc. and custom-made tungsten products;
Molybdenum series include: molybdenum powder, molybdenum slab, molybdenum sheet, molybdenum rod, molybdenum rod (electrode), molybdenum wire, molybdenum boat, molybdenum crucible, etc. and custom-made heterogeneous molybdenum products; alloy series include: tungsten steel alloy, high specific gravity Alloy, TZM alloy, cemented carbide, etc.
FAQ
Q: Do you make customized products based on our design drawings?
Q: What is the MOQ?
A: Yes, we are a professional metal fabrication factory with 20 experiences to make custom products according to clients' drawings.
Q: Will my drawing be safe after you get it?
A: Yes, we will not release your design to third party unless with your permission.
Q: What is the MOQ?
A: Our general practice is not to set a minimum order quantity. For standard sizes, we typically have stock on
hand. However, for custom products, the order quantity would be determined based on the specific dimensions you require.
Q:Whether some samples can be provided?
A: Yes, just need some sample cost and express cost,we will provide some material which we
have stock.
Q: How fast can my samples be finished?
A: Generally 5-7 Working days
Q: How to deal with the parts received when they are found to be in poor quality?
A: Under normal circumstances, our products should not present any quality issues as they undergorigorous inspection before shipment. Any damage is likely due to the transportation process. In such cases, we offer product exchanges or returns. If these solutions are not satisfactory, we stand by our commitment to refunding your purchase.
Our services.
1. Help customer analyze product project and provide solution.
2. Freely sample test.
3. Provide shipping/delivery information checking service.
4. One year guarantee, all life maintain promise.
5. 24 hours feedback speed by email or others.
2. Freely sample test.
3. Provide shipping/delivery information checking service.
4. One year guarantee, all life maintain promise.
5. 24 hours feedback speed by email or others.
