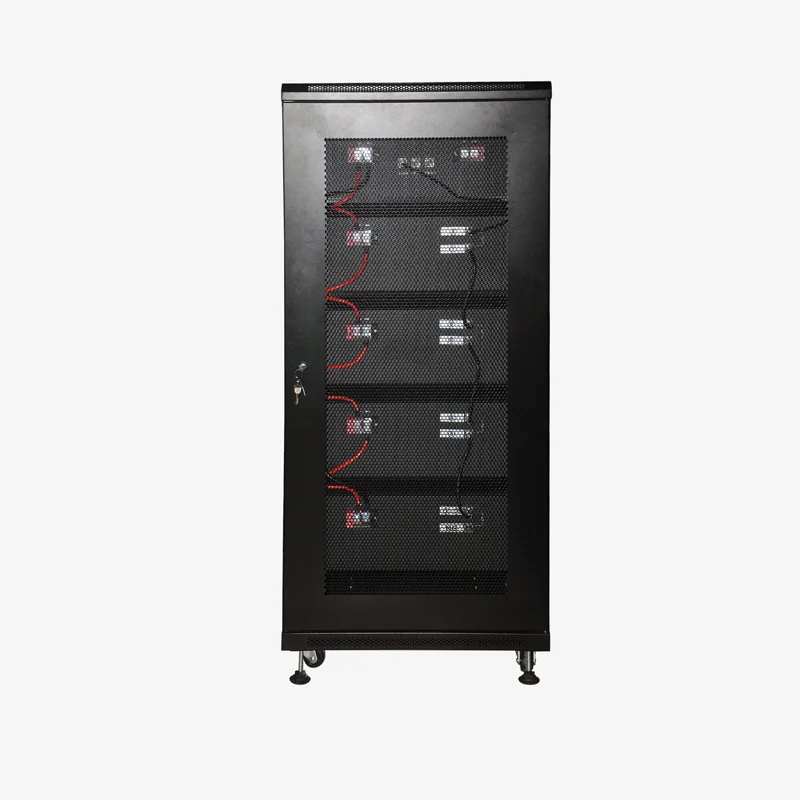

Промышленный литий-ионный аккумулятор Topak 224 В 30Ah, резервная система хранения энергии электростанции
190 738,95 ₽ - 226 813,02 ₽

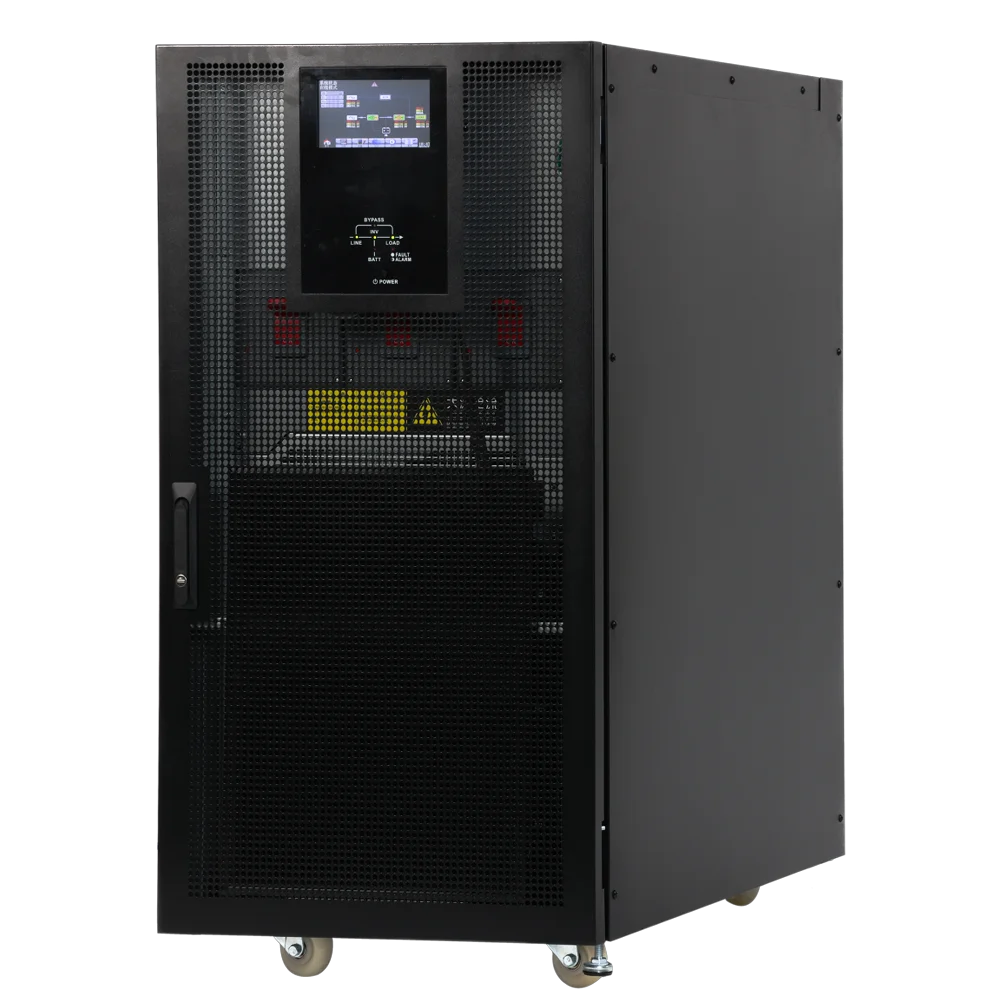

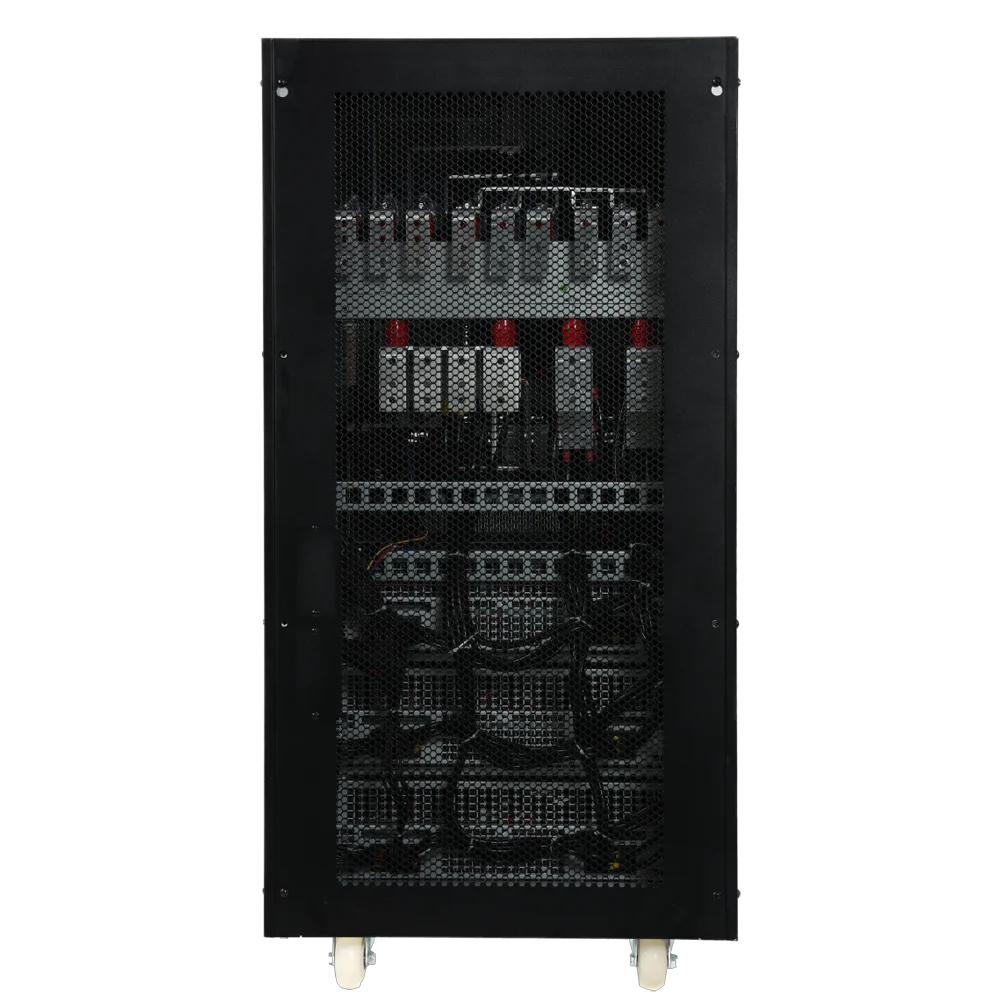

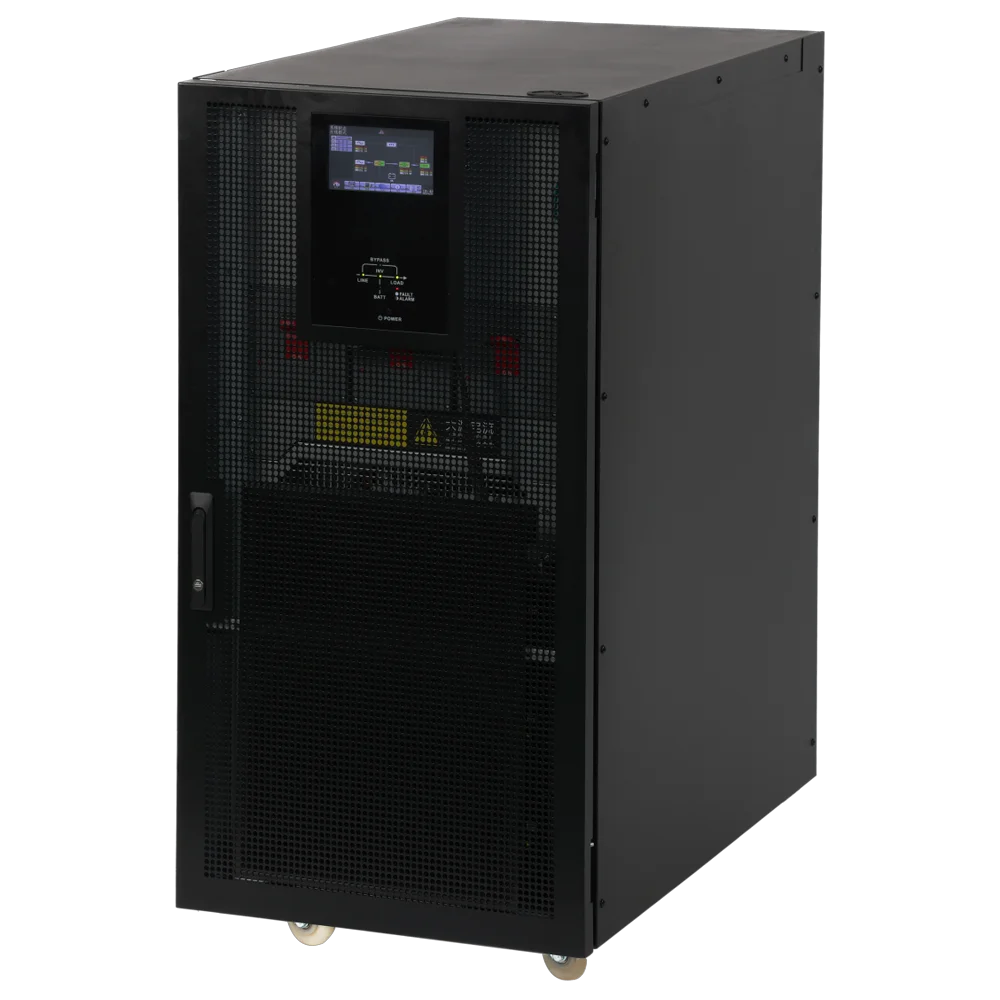

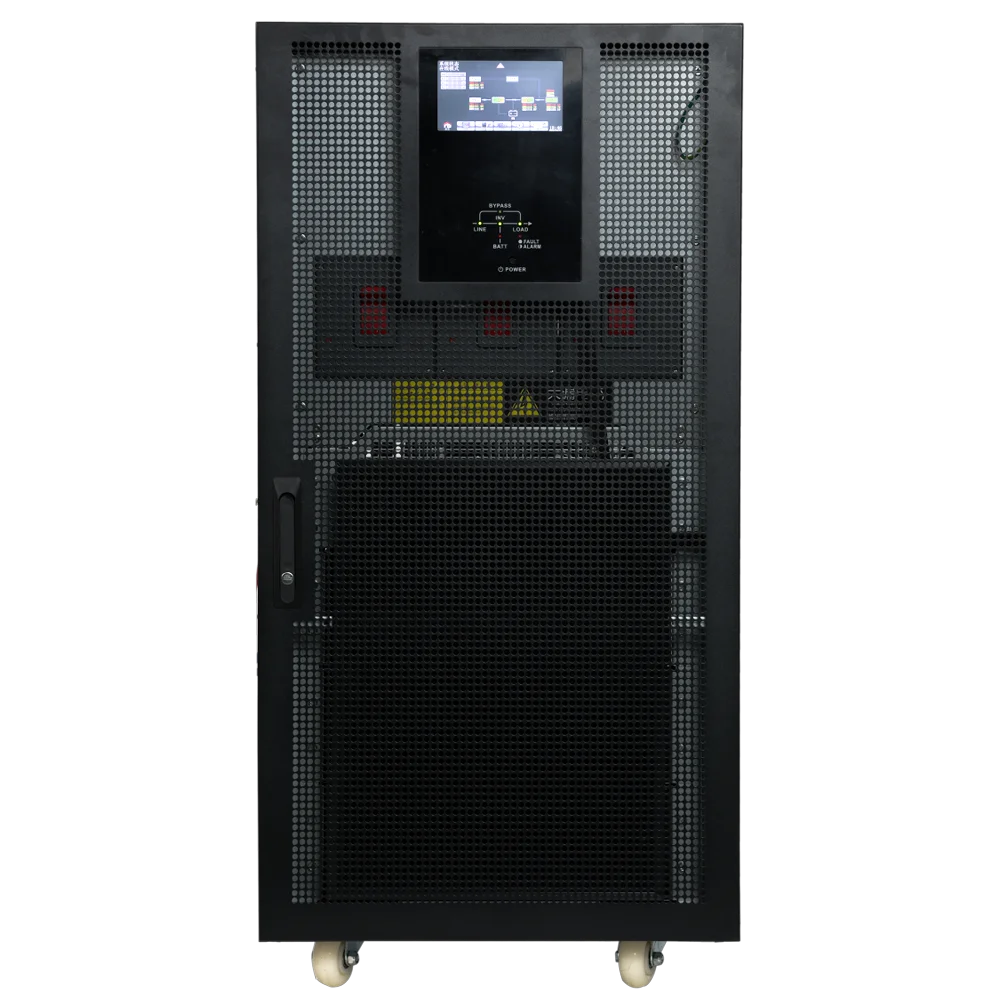

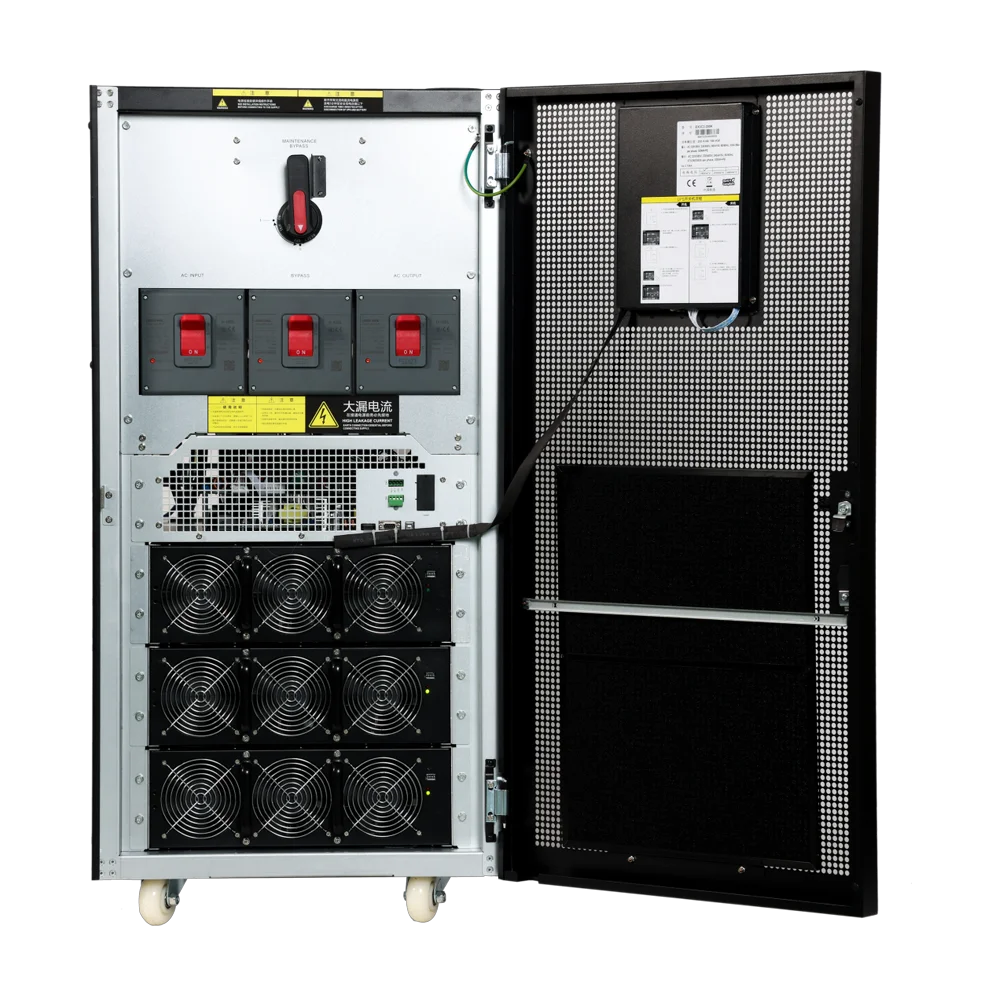

180kva 180kw 3 фазный чистый синусоидальный онлайн линии интерактивный источник бесперебойного питания (ИБП) для компьютера
- Категория: >>>
- Поставщик: Shenzhen Gitenno Technology Co. Ltd.
Сохранить в закладки 1601070750397:
Описание и отзывы
Характеристики
Details Images
Product Features
• True double-conversion
• DSP technology guarantees high performance
• Output power factor 1
• Active power factor correction in all phases
• 50Hz/60Hz frequency converter mode
• ECO mode operation for energy saving (ECO)
• Emergency power off function (EPO)
• Generator compatible
• SNMP+USB+RS-232 multiple communications
• 3-stage extendable charging design for optimized battery performance
• Adjustable battery numbers for long-run model
• Maintenance bypass available
• Parallel operation with common battery
• Power walk-in function
• Optional parallel operation
• Optional isolation transformer offers full isolation and complete common mode noise rejection
Product Paramenters
Model number | GTO-EX3C3-180KL | |
Phase | 3 phase input /3 phase output | |
Capacity | 180KVA/180KW | |
Paralley Capability | 6 | |
Input | ||
Nominal Voltage | 3x380/400/415VAC(3PH+N) | |
Voltage Range | 110-300VAC,50%load;176-276VAC,100%load | |
Frequency Range | 40～70Hz | |
Power Factor | ≥0.99 @100%load | |
THDi | Full linear load | |
Ouput | ||
Output voltage | 3x360*/380/400/415VAC(3PH+N) | |
AC Voltage Regulation(Batt. Mode) | ±1% | |
Frequency Range (Synchronized Range) | 46～54Hz or 56～64Hz | |
Frequency Range (Batt. Mode) | 50/60 Hz±1% | |
Current Crest Ratio | 3:1(max.) | |
Transfer Time Inverter to bypass | synchronous mode：0ms ,Asynchronous mode：10ms | |
Waveform (Batt. Mode) | pure sine wave | |
Overload Capability AC Mode | 100-110%60min，111-125%10min，126%-150%1min；>150%400ms | |
Overload Capability Battery Mode | 100-110%60min，111-125%10min，126%-150%1min；>150%400ms | |
Bypass | ||
Nominal Voltage | 3x380/400/415VAC(3PH+N) | |
Voltage Range | -30%~+20%(adjustable) | |
Frequency Range (Synchronized Range) | 46～54Hz or 56～64Hz | |
Overload Capability | >130%1min(default);Continuous operation until circuit breaker protection (optional) | |
Efficiency | ||
AC mode | 96.0% | |
ECO mode | 96.0% | |
Battery mode | 96.0% | |
Battery | ||
Standard Model Battery Type | Depends on external battery (32-40 knots adjustable) | |
Numbers | 3×400V(3 phase +N） | |
Charging Current (max.) | 3 A ～ 6 0 A , adjustable | |
Charging Voltage | +/-13.65V*N(N=16～20) | |
Indicators | ||
LCD Panel | UPS status, load level, battery level, input/output voltage, discharge timer and fault conditions | |
Physical | ||
Standard Model Dimension, D x Wx H (mm) | 1000mm×600mm×1200mm | |
Net Weight (kgs) | 265kg | |
Environment | ||
Operation Temperature | 0-40°℃ | |
Operation Humidity | ＜95%（Non-condensing) | |
Altitude | full load0～1500m | |
Noise Level | Less than 70dB @ 1 Meter | |
Management | ||
Smart RS-232/USB | Supports Windows°2000/2003/XP/Vista/2008,Windows07/8,Linux and MAC | |
Shenzhen Gitenno Technology Co., Ltd.
Shenzhen Gitenno Technology Co., Ltd. is a comprehensive company dedicated to the research and development, design, production and sales in UPS uninterruptible power supplies and new energy products such as photovoltaic inverters, batteries, energy storage and other products.Shenzhen Gitenno is based in Shenzhen, the core area of the Zhu River Delta Economic Zone and the center of China's R&D and manufacturing as well.
Shenzhen Gitenno Technology Co., Ltd.
We have a large-scale R&D team in the industry, with more than 60 R&D personnel, more than 95% of whom have bachelor's and master's degrees or above.
The company has a first-class sales service team. Each worker has more than five years of foreign trade experience. They are well versed in foreign trade processes and familiar with the cultures of various countries. We respect and understand every customer and do our best to satisfy our business partners from all over the world. All of Gitenno people promise that you will receive the most professional and considerate services when cooperating with us.
Product packaging
FAQ
Q: Are you a manufacturer of a trading company?
A: We are a manufacturer as well a trading company.
Q: What are your main products?
A: Our products range from inverter, battery, energy storage to UPS power supplies etc.
Q: Can you provide a sample?
A: Yes, we can provide a sample. But you will pay for it.
Q: What is the production time for a sample?
A: 10-15 days.
Q: What is the production time for mass order?
A: 18-45 days as per the ordering quantity and our production schedule.
Q: Can you accept customized order?
A: Yes, we can.
Q: Can you provide logo printing?
A: Yes, we can. We also can provide different color in logo printing.
Q: What’s your business terms?
A: FOB is common but other business terms is negotiable.
Q: What is your frequently-used payment terms?
A: 1) T.T. 2) Alipay 3) Irrevocable LC 4) Other mode negotiable
Q: What's the FOB port?
A: Tianjin port, Guangzhou Port or Shenzhen Port.
A: We are a manufacturer as well a trading company.
Q: What are your main products?
A: Our products range from inverter, battery, energy storage to UPS power supplies etc.
Q: Can you provide a sample?
A: Yes, we can provide a sample. But you will pay for it.
Q: What is the production time for a sample?
A: 10-15 days.
Q: What is the production time for mass order?
A: 18-45 days as per the ordering quantity and our production schedule.
Q: Can you accept customized order?
A: Yes, we can.
Q: Can you provide logo printing?
A: Yes, we can. We also can provide different color in logo printing.
Q: What’s your business terms?
A: FOB is common but other business terms is negotiable.
Q: What is your frequently-used payment terms?
A: 1) T.T. 2) Alipay 3) Irrevocable LC 4) Other mode negotiable
Q: What's the FOB port?
A: Tianjin port, Guangzhou Port or Shenzhen Port.
Похожие товары

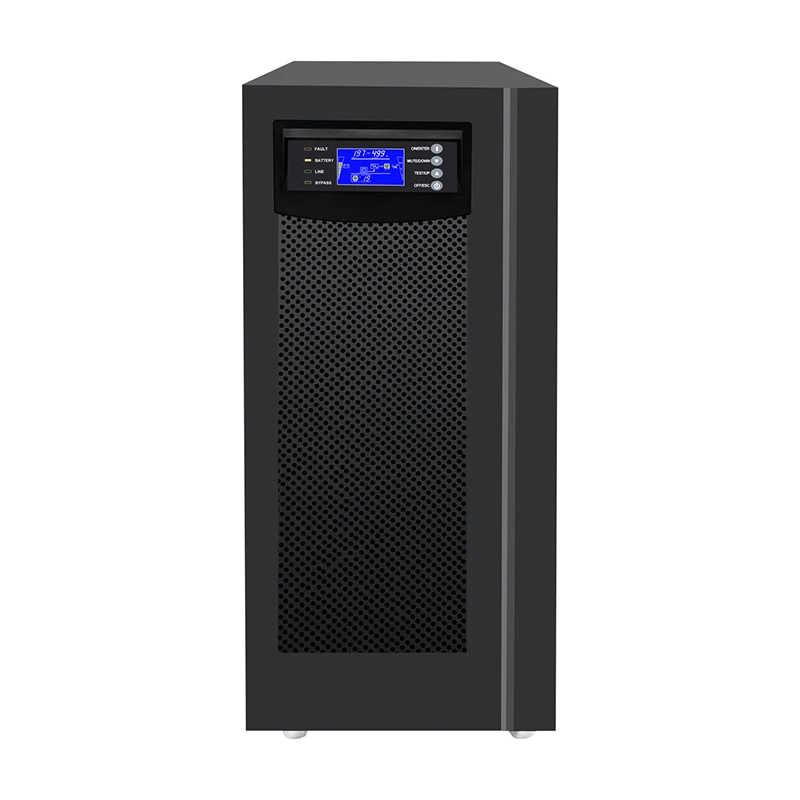

Energycreative трехфазный 380 400 415 ac UPS батарея ИБП источник питания 100KVA 8KW 12KW 16KW 24KW 36KW 48KW 64KW 80KW источник бесперебойного питания
20,53 ₽

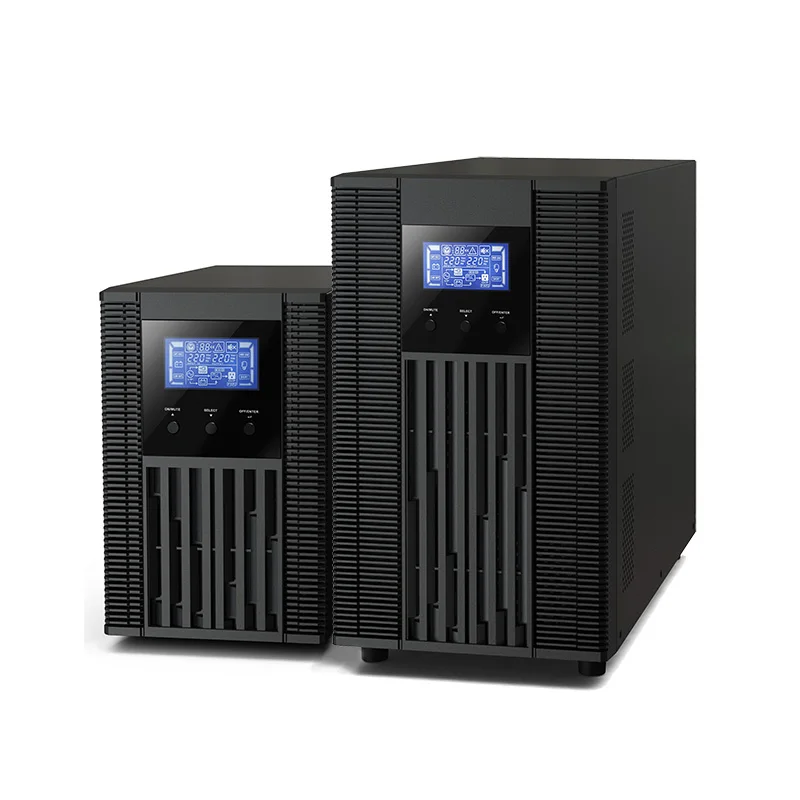

Высокочастотный online ups трехфазный 10 кВА/8 кВт Промышленный источник бесперебойного питания высокой мощности
39 098,25 ₽ - 41 042,36 ₽

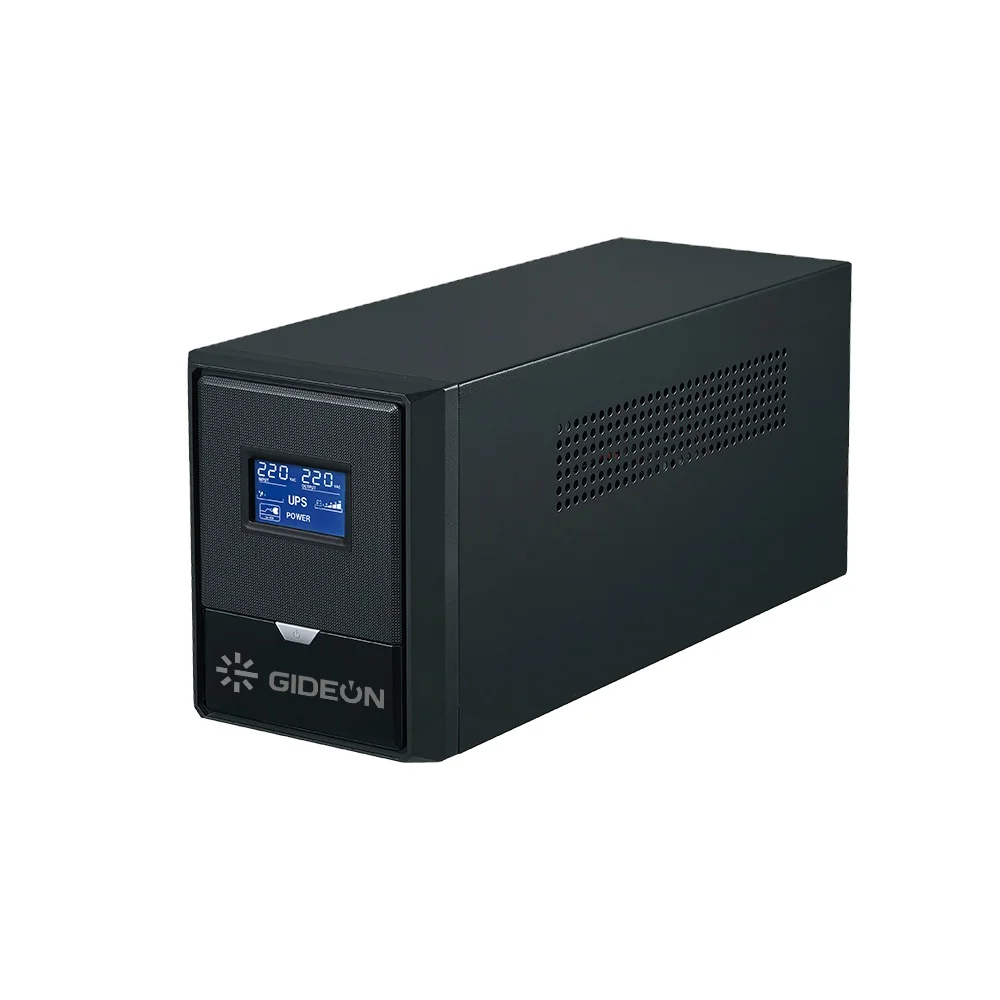

1000 ВА/800 Вт онлайн UPS для компьютеров и персональных компьютеров
14 580,84 ₽ - 16 740,97 ₽

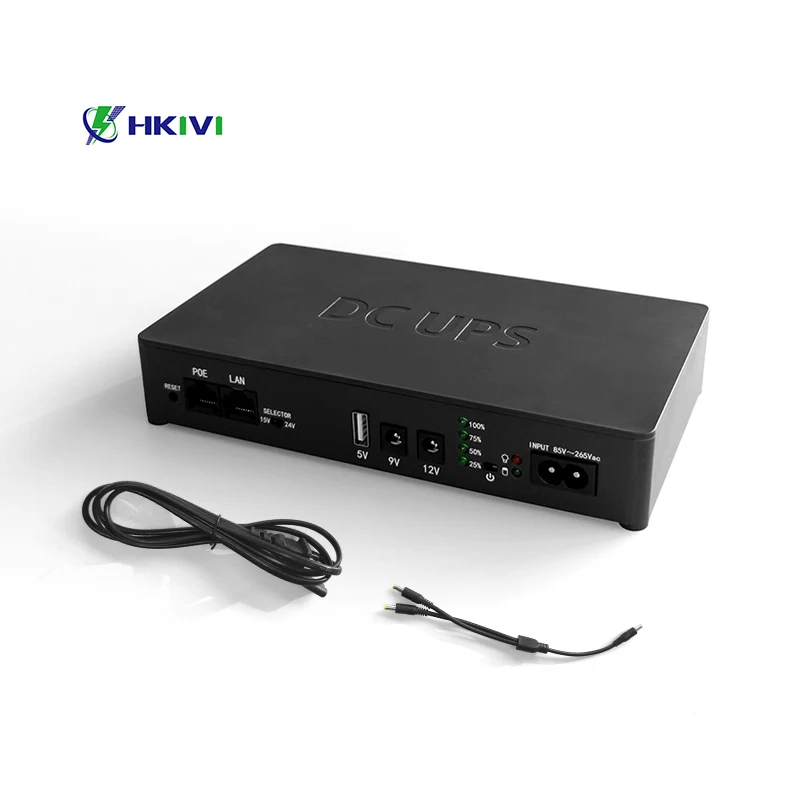

HKIVI mini dc ups 20000 мАч 12 В 9 В poe универсальный источник питания ups dc mini ups для Wi-Fi маршрутизатора и модемов
