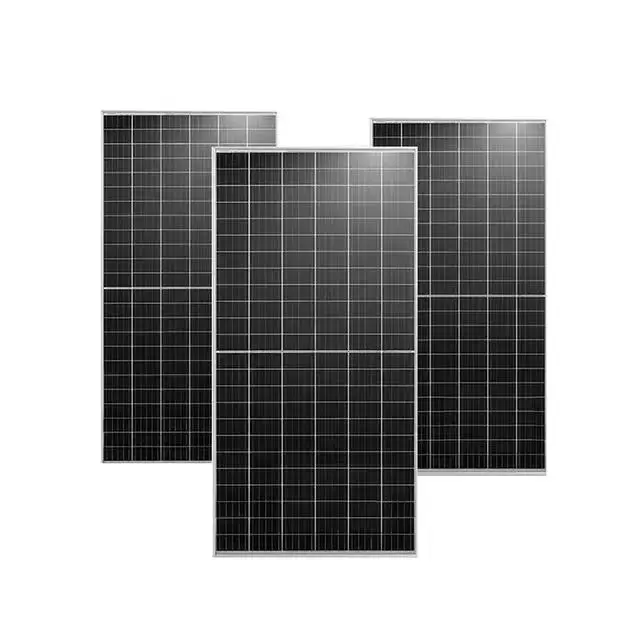

Covna высокое качество 9bb солнечные панели 405 Вт полуячейки 400 моно Ватт
13,16 ₽ - 14,26 ₽
36 В высокопроизводительная 400 Вт 450 700 650 655 660 670
- Категория: >>>
- Поставщик: Sunnal Solar Energy Co. Ltd.
Сохранить в закладки 1601071098158:
Описание и отзывы
Характеристики
Specification
Vertex(Backsheet) | DE18M(II) | DE19 | DE20 | ||||
Power range | 485W~510W | 530W-555W | 585W-605W | ||||
Power Tolerance-PMAX (W) | 0 ~ +5W | ||||||
Maximum Power Voltage-VMPP (V) | 42.2~43.2V | 30.8~31.8V | 33.8~34.6V | ||||
Maximum Power Current-IMPP (A) | 11.49~11.81A | 17.21~17.45A | 17.31~17.49A | ||||
Open Circuit Voltage-VOC (V) | 51.1~52.1V | 37.1~38.1V | 40.9~41.7V | ||||
Short Circuit Current-ISC (A) | 12.07~12.42A | 18.31~18.56A | 18.37~18.57A | ||||
Module Efficiency (%) | 20.1~21.2 | 20.3~21.2 | 20.7~21.4 | ||||
Vertex(Bifacial) | DEG18MC.20(II) | DEG19C.20 | DEG20C.20 | BEF21C.20 | |||
Power range | 480~505W | 525W~550W | 580W~600W | 685-710W | |||
Power Tolerance-PMAX (W) | 0 ~ +5W | ||||||
Maximum Power Voltage-VMPP (V) | 42.2~43.7V | 30.8~31.8V | 33.8~34.6V | 39.8~40.9V | |||
Maximum Power Current-IMPP (A) | 11.38~11.56A | 17.04~17.29A | 17.16~17.34A | 17.19~17.36A | |||
Open Circuit Voltage-VOC (V) | 50.7~51.7V | 37.1~38.1V | 40.9~41.7V | 47.7V~49.0V | |||
Short Circuit Current-ISC (A) | 11.97~12.17A | 18.14~18.39A | 18.21~18.42A | 18.21~18.4A | |||
Module Efficiency (%) | 20.1~21.2 | 20.1~21.0 | 20.5~21.2 | 22.1~22.9 | |||
NEG9RC
Power Range: 415-445W No. of Cells: 144 cells
Dimension: 1762×1134×30 mm
Weight: 21 kg
Modules per box: 36pcs
Modules per 40' container: 396pcs
Dimension: 1762×1134×30 mm
Weight: 21 kg
Modules per box: 36pcs
Modules per 40' container: 396pcs
NEG18R.28
Power Range: 475-505W
No. of Cells: 108 cells
Dimension: 1961×1134×30 mm
Weight: 23.5 kg
Modules per box: 36pcs
Modules per 40' container:864pcs
Dimension: 1961×1134×30 mm
Weight: 23.5 kg
Modules per box: 36pcs
Modules per 40' container:864pcs
DEG19RC.20
Power Range: 560-580W
No. of Cells: 132 cells
Dimension: 2384x1134x30 mm
Weight: 33.7kg
Modules per box: 36pcs
Modules per 40' container: 720pcs
Weight: 33.7kg
Modules per box: 36pcs
Modules per 40' container: 720pcs
NEG19RC.20
Power Range: 540-565WNo. of Cells: 144 cells
Dimension: 2382×1134×30mm
Weight:33.7 kg
Modules per box: 36pcs
Modules per 40' container: 720pcs
Dimension: 2382×1134×30mm
Weight:33.7 kg
Modules per box: 36pcs
Modules per 40' container: 720pcs
DEG21C.20
Power Range: 645-670W
No. of Cells: 144 cells
Dimension: 2384×1303×33mm
Weight: 38.3 kg
Modules per box: 33pcs
Modules per 40' container: 594pcs
Dimension: 2384×1303×33mm
Weight: 38.3 kg
Modules per box: 33pcs
Modules per 40' container: 594pcs
NEG21C.20
Power Range: 685-710W
No. of Cells: 132cells
Dimension: 2384×1303×33mm
Weight: 38.3 kg
Modules per box: 33pcs
Modules per 40' container: 594pcs
Dimension: 2384×1303×33mm
Weight: 38.3 kg
Modules per box: 33pcs
Modules per 40' container: 594pcs
Grade A Material

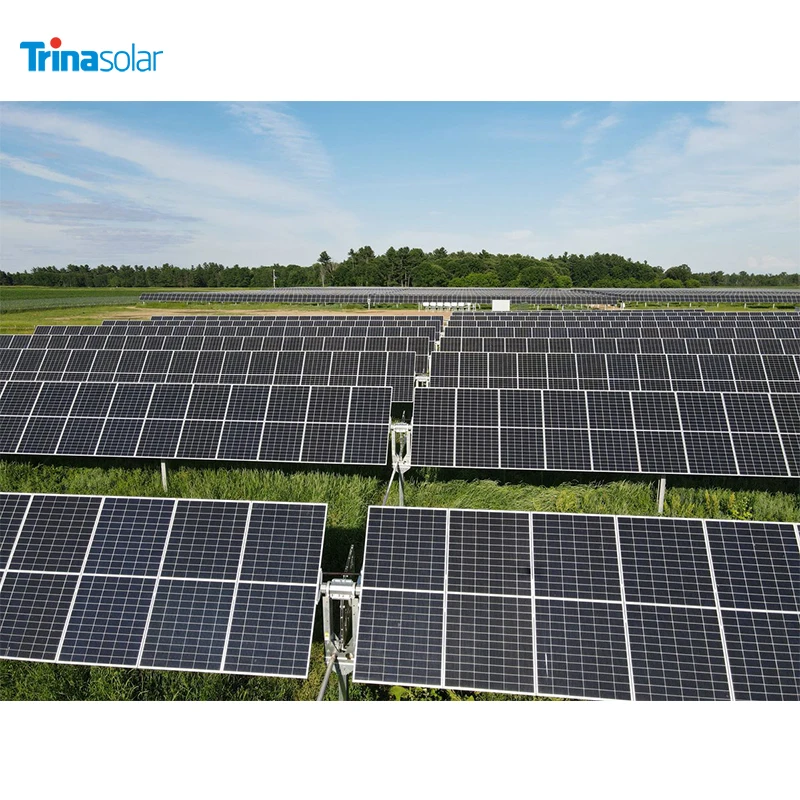

Global Projects
Company Profile
Exhibition

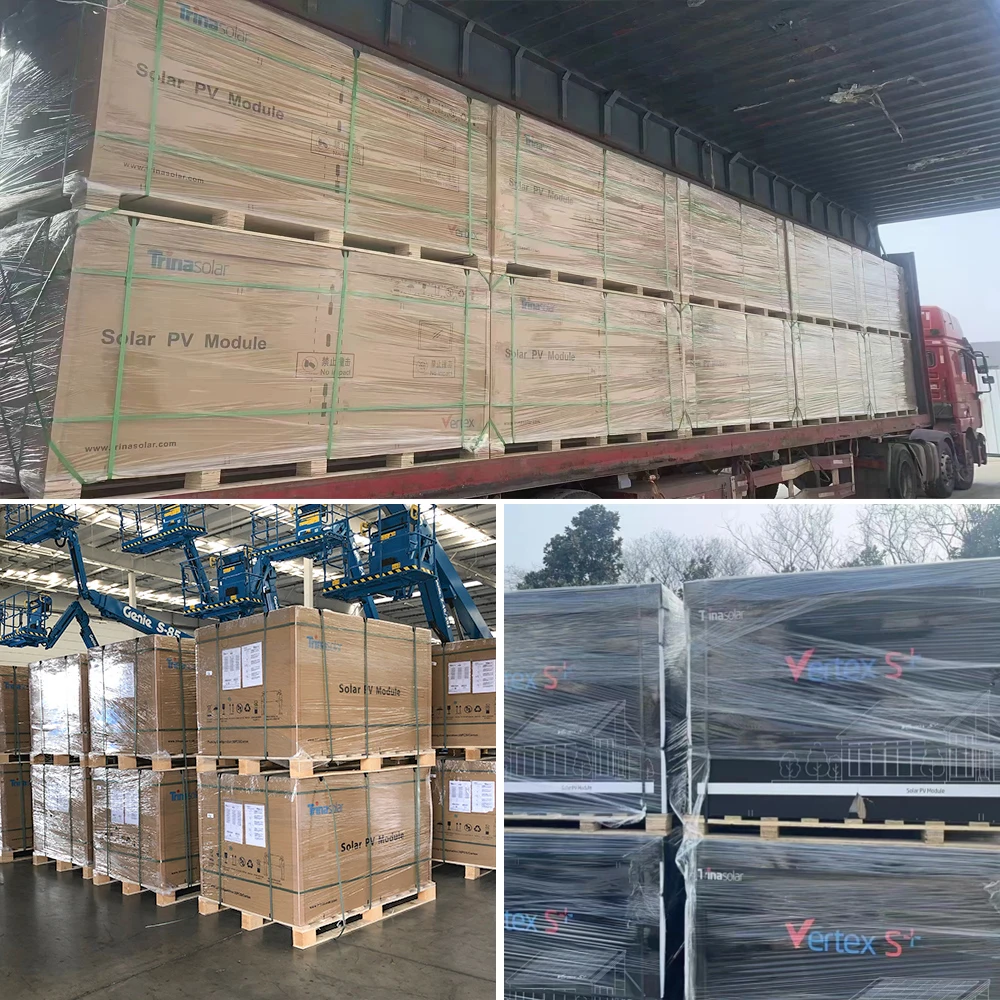

Packing & Delivery
FAQ
Q1. MOQ and delivery time ?
A: NO MOQ required, sample testing welcome.. Mixed samples are acceptable.
Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q2. What about the lead time?
A: Firstly,let us know your requirements or application.
Secondly,We quote according to your requirements or our suggestions.
Thirdly,customer confirms the samples and places deposit for formal order.
Fourthly,We arrange the production.
Q3. Can you do OEM?
A: Yes, we are 18 years factory,we have design team, engineer team, after-service team QC team etc.
Q4. How about the shipping method ?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.
Q6. How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to realsituation.
A: NO MOQ required, sample testing welcome.. Mixed samples are acceptable.
Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q2. What about the lead time?
A: Firstly,let us know your requirements or application.
Secondly,We quote according to your requirements or our suggestions.
Thirdly,customer confirms the samples and places deposit for formal order.
Fourthly,We arrange the production.
Q3. Can you do OEM?
A: Yes, we are 18 years factory,we have design team, engineer team, after-service team QC team etc.
Q4. How about the shipping method ?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.
Q6. How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to realsituation.
Похожие товары
Моно 9BB 144 элементы Trina солнечный модуль 400 Вт 410 415 420 450 500 520 540 550 580 солнечная панель для домашнего использования
17,55 ₽ - 19,74 ₽
Дешевые 350 Ватт 400w Китай уровня 1 солнечных батарей pv солнечные панели панелей для крыши
20,84 ₽ - 25,22 ₽
Цена от производителя длительный срок службы 400 Вт 450 500 класс pv 550 600 монокристаллические солнечные панели прайс-лист
16,45 ₽
Панели солнечных батарей Tier1 с сертификатом TUV CE ISO монокристаллические модули 410 Вт черной рамкой панель крыши склада в Европе
Двулицевые высокоэффективные солнечные панели Trina для домашнего использования 400 Вт 450 500 550 600
9,87 ₽ - 10,97 ₽
Рамка фотогальванического модуля ЕС placas de Энергия Солнечная 48 Вольт панели солнечных батарей зарядки 400 Вт 400wp
10,97 ₽

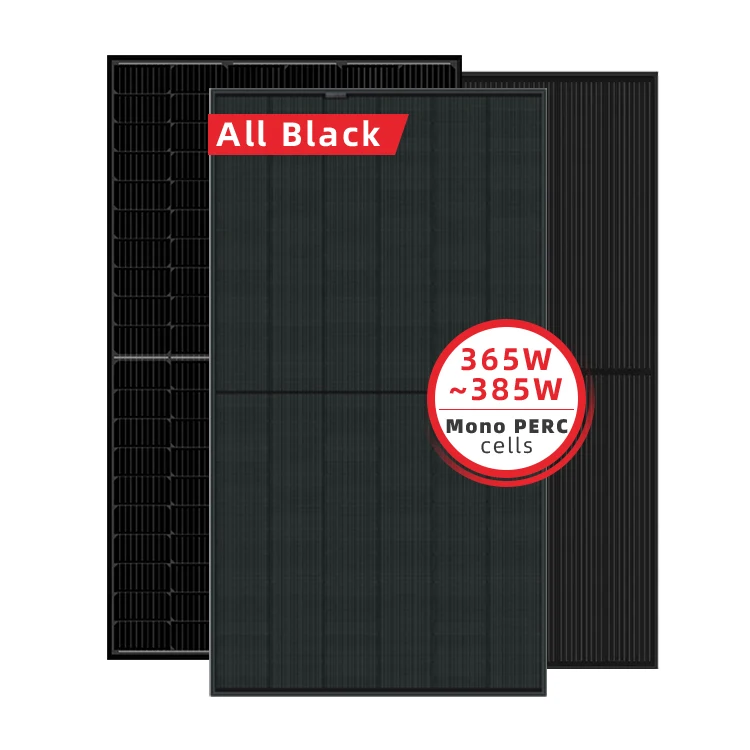

Новый дизайн черные солнечные панели 400 Вт 365 370 380 385 европейские ЕС
