Китайский производитель U13 U14 H15 H13 H14 ULPA HEPA фильтр для вентиляции системы кондиционирования воздуха
2 662,26 ₽ - 3 105,97 ₽
Оборудование для очистки воздуха
- Категория: >>>
- Поставщик: Dongguan Yaning Purification Equipment Co. Ltd.
Сохранить в закладки 1601072006855:
Описание и отзывы
Характеристики
FFU
Product Description

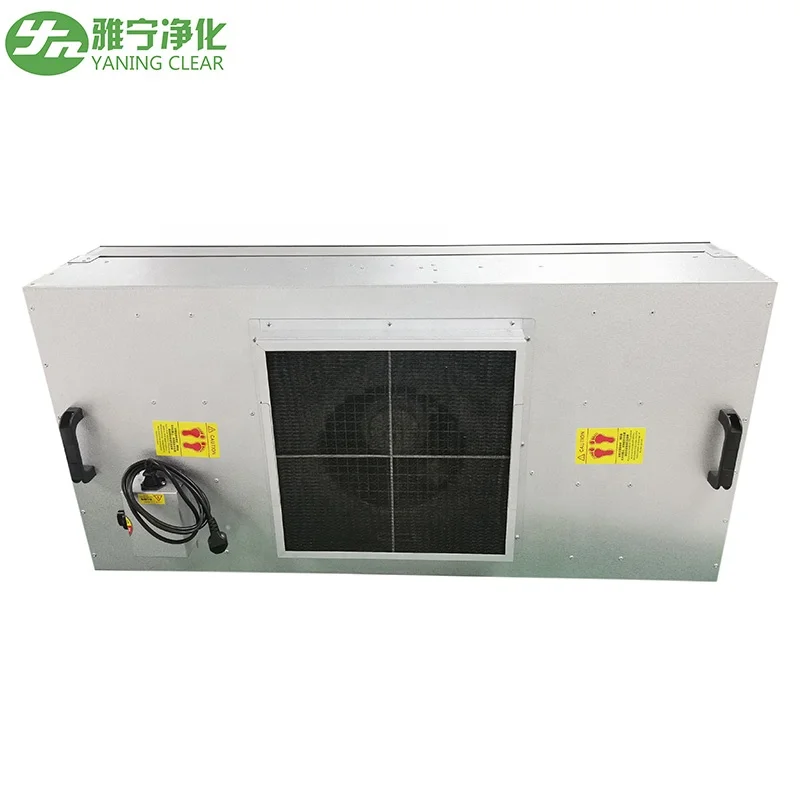

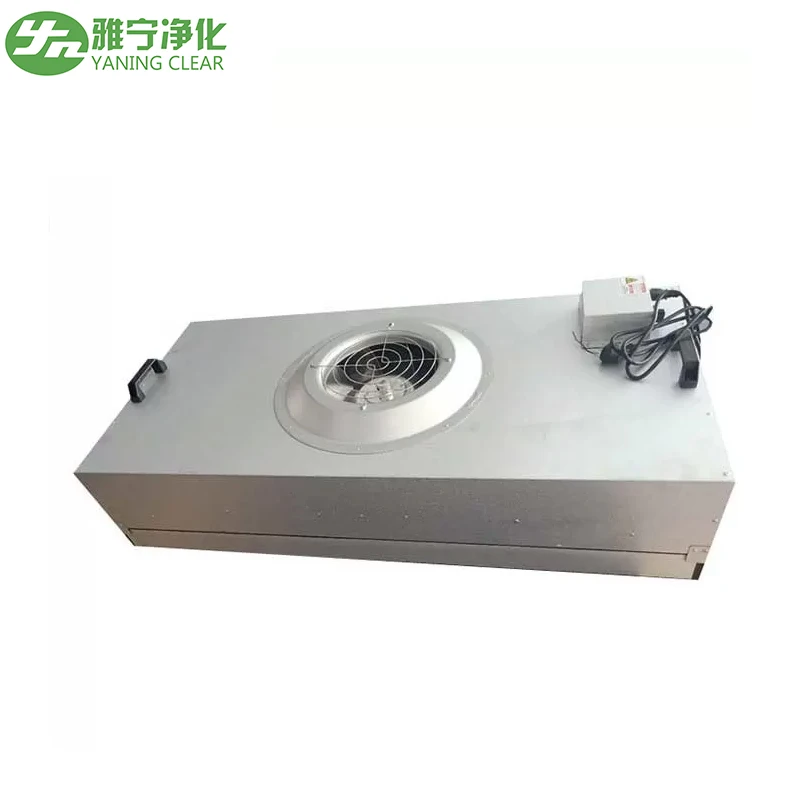

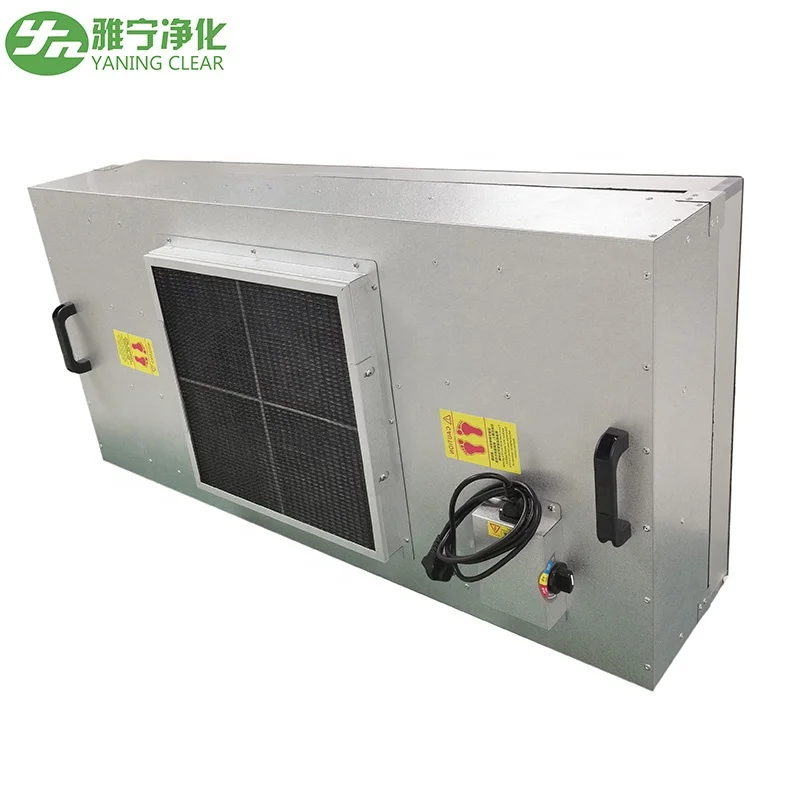

FFU is abbreviation of Fan Filter Unit. It is a modular terminal air supply device with its own power and filtering effect. Its main function is to inhale the air from the top of the FFU by the fan and filter it by HEPA, and the filtered clean air is evenly sent out at the air velocity of 0.45m/s+20% on the entire air outlet surface to meet the cleanliness requirements of the clean environment. It is mainly installed on ceiling keels and equipment machines in clean areas and working areas. It is widely used in semiconductors, optical electronics, precision instruments, biopharmaceuticals, aerospace, and automobiles, hospitals, food, spraying, printing and other fields.
FFU Features
Negative pressure ventilation
Because of its ability to provide static pressure, the clean room is positive pressure relative to the outside world. Therefore,
external particles are not subject to leakage into the clean area, makes sealing easy and safe.
external particles are not subject to leakage into the clean area, makes sealing easy and safe.
Save space
Compared to other systems,
FFU system occupies less floor
height in the supply air plenum.
And basically does not occupy
the clean room space.
Shorten construction period
Using FFU saves the production and installation of air ducts.
Shorten the construction period.
Shorten the construction period.
Reduce operating costs
Although when choosing FFU, the
initial investment is higher than
using duct ventilation. However,
in the later operation, it prominently
shows the characteristics of energy
saving and maintenance-free.
initial investment is higher than
using duct ventilation. However,
in the later operation, it prominently
shows the characteristics of energy
saving and maintenance-free.
Convenient and fast control
Remote and precise control of
single or group FFU, And it is not
affected by other pipe network
systems.
single or group FFU, And it is not
affected by other pipe network
systems.
It is flexible and easy to replace, install and move
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Material Classification | ||
Aluminium zinc plate | Stainless steel plate | |
Aluminum alloy plate | Powder coating steel | |
Rotor Classification | ||
Internal rotor fan | External rotor fan | |
Current Classification | ||
AC fan | EC fan | |
DC fan | ||
System Classification | ||
AC in-situ control | AC PC control system | |
EC PC control system | DC PC control system | |
Filter Level Classificat | ||
99.95%@0.3μm（H13） | 99.995%@0.3μm（H14） | |
99.9995%@0.12μm（U15） | 99.99995%@0.12μm（U16） | |
Group Control Features
The system is easy to operate, can monitor the FFU on the computer and touch screen, has strong anti-interference and low construction cost. The system is designed based on 485 bus and adopts hierarchical control. The system can control up to 64516 units, which can be precisely controlled according to the customer's on-site FFU layout.
The FFU can work independently during PC and PLC standby
Supply Power: AC 1N 110,220V/50,60Hz
Control Function: Can control single or group FFU A. Start B. Stop C.Regulation
Monitoring Function: Can monitor single or group FFU A. Working Status B. Error Alarm
Control Function: Can control single or group FFU A. Start B. Stop C.Regulation
Monitoring Function: Can monitor single or group FFU A. Working Status B. Error Alarm
Product Name | AC FFU | ||||||
Product Model | YN-FFU-A01 | YN-FFU-A02 | YN-FFU-A03 | YN-FFU-A04 | |||
Dimension(mm) | 575x575x220 | 575x1175x220 | 875x1175x275 | 1175x1175x295 | |||
Filter Dimension(mm) | 570x570x69 | 570x1170x69 | 870x1170x69 | 1170x1170x69 | |||
Air Volume | 500m³/h | 1000m³/h | 1500m³/h | 2000m³/h | |||
Noise | 52~62dB(A) | 52~62dB(A) | 52~62dB(A) | 52~62dB(A) | |||
Air Pressure | 200PA | 200PA | 260PA | 290PA | |||
Power | 170W | 170W | 200W | 240W | |||
Weight | 28Kg | 35Kg | 47Kg | 55Kg | |||
Material | Galvanized/powder coated/SUS 304 plate | ||||||
Supply Power | AC 1N 110, 220V/50,60Hz | ||||||
Control System | 3 stage regulation, group reguation | ||||||
Filter Efficiency | 99.95%MPPS above H13-U16@EN1822 | ||||||
Pre Filter | G3/G4 Filter, nylon filter | ||||||
Work Status | power Indicator, work indicator, Error indicator | ||||||
Connection Type | 3 Pin Aviation Male Female socket, terminat blocks | ||||||
Overload Protection | Overload protect of motor and controller | ||||||
Monitor Contact Communication Method | port of reserve and Erro | ||||||
Product Name | EC FFU | ||||||
Product Model | YN-FFU-E01 | YN-FFU-E02 | YN-FFU-E03 | YN-FFU-E04 | |||
Dimension(mm) | 575x575x225 | 575x1175x275 | 875x1175x305 | 1175x1175x305 | |||
Filter Dimension(mm) | 570x570x69 | 570x1170x69 | 870x1170x69 | 1170x1170x69 | |||
Air Volume | 500m³/h | 1000m³/h | 1500m³/h | 2000m³/h | |||
Noise | 48~54dB(A) | 48~54dB(A) | 52~58dB(A) | 52~58dB(A) | |||
Air Pressure | 210PA | 210PA | 280PA | 280PA | |||
Power | 60W | 90W | 140W | 160W | |||
Weight | 28Kg | 35Kg | 47Kg | 55Kg | |||
Material | Galvanized/powder coated/SUS 304 plate | ||||||
Supply Power | AC 1N 110, 220V/50,60Hz | ||||||
Control System | Manual stepless regulation; PC group regulation | ||||||
Filter Efficiency | 99.95%MPPS above H13-U16@EN1822 | ||||||
Pre Filter | G3/G4 Filter, nylon filter | ||||||
Work Status | Work indication; Error indication | ||||||
Connection Type | Terminal Bolcks | ||||||
Overload Protection | Overload protect of motor and controller | ||||||
Monitor Contact Communication Method | R485 TCP | ||||||
Pressure deviation range:±5%
FFU test standard base on; IEST-CCO0361-2014, GB/T388-2012, GB/T1236-20000, GB9068-1988
Noise value is 1.5m below the air outlet of the filter
Above data is laboratory test value,deviation value depend on site situation
can customized acording to client's requierements
FFU test standard base on; IEST-CCO0361-2014, GB/T388-2012, GB/T1236-20000, GB9068-1988
Noise value is 1.5m below the air outlet of the filter
Above data is laboratory test value,deviation value depend on site situation
can customized acording to client's requierements
Product Parameter
Success case show
Our Factory
Dongguan Yaning Purification Equipment Co.,Ltd is located in Dongguan, the advanced manufacturing center of the Guangdong-Hong Kong-Macao Greater Bay Area. It is an integrated supplier of clean technology solutions integrating technology, research and development, design, manufacturing, sales and installation. The company has more than 200 employees, a plant area of more than
30,000 square meters, and an annual output value of more than 300 million RMB.
30,000 square meters, and an annual output value of more than 300 million RMB.
Province,With more than ten years of independent R&D and innovation, YANING Purification has obtained more than 30 technical patents and has become a national high-tech enterprise. It has passed the ISO9001:2015 quality management system certification and
ISO14001:2015 environmental management system certification, and won the title Guangdong "Abide by contracts and keep promises"
Enterprise, Famous Brand Enterprise in Guangdong
ISO14001:2015 environmental management system certification, and won the title Guangdong "Abide by contracts and keep promises"
Enterprise, Famous Brand Enterprise in Guangdong
Packaging & Delivery
Exhibition
FAQ
1. Who are we?
We are based in Guangdong, China, start from 2011,sell to Domestic Market(60.00%),Southeast Asia(15.00%),North
America(10.00%),Western Europe(5.00%),Southern Europe(5.00%),Northern Europe(5.00%). There are total about 101-200 people in our
office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
Air Shower, Fast Roll Doors, FFU, Operating Room, HEPA Filter,Clean Bench,Scrub Sink.etc.
4. Why should you buy from us not from other suppliers?
YANING brand clean room equipment:air shower pass box,clean bench,FFU,softwall clean room YANING brand Air
filters:HEPA,prefilter,pocket filter,V type filter Matched ISO14001,ISO9001,TUV,ROHS.CE,UL Best price and service,each products
strict facty test.
5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,Express Delivery；
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish
We are based in Guangdong, China, start from 2011,sell to Domestic Market(60.00%),Southeast Asia(15.00%),North
America(10.00%),Western Europe(5.00%),Southern Europe(5.00%),Northern Europe(5.00%). There are total about 101-200 people in our
office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
Air Shower, Fast Roll Doors, FFU, Operating Room, HEPA Filter,Clean Bench,Scrub Sink.etc.
4. Why should you buy from us not from other suppliers?
YANING brand clean room equipment:air shower pass box,clean bench,FFU,softwall clean room YANING brand Air
filters:HEPA,prefilter,pocket filter,V type filter Matched ISO14001,ISO9001,TUV,ROHS.CE,UL Best price and service,each products
strict facty test.
5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,Express Delivery；
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish
Похожие товары

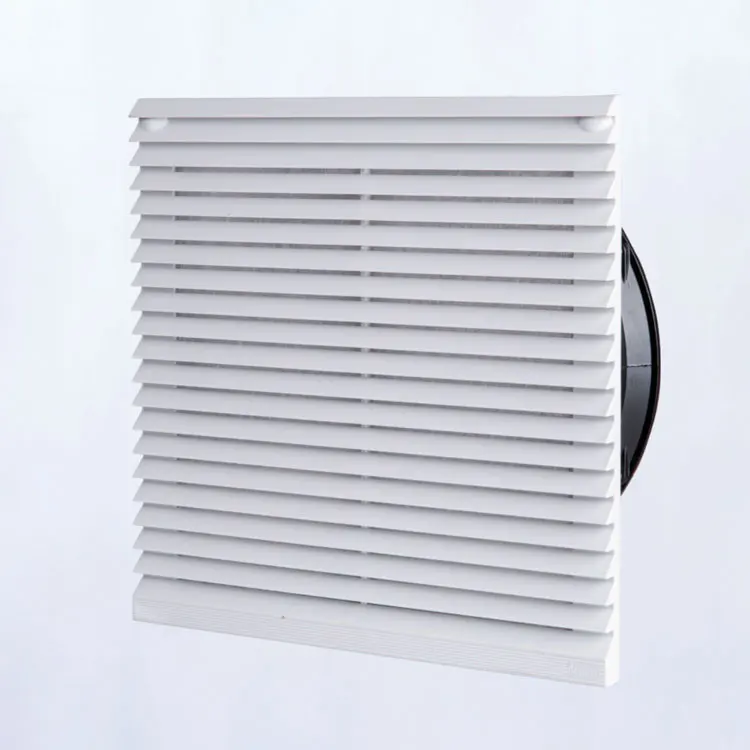

Demma бренд FB9806 крышка фильтра вентиляционный вентилятор
2 322,83 ₽ - 3 422,12 ₽

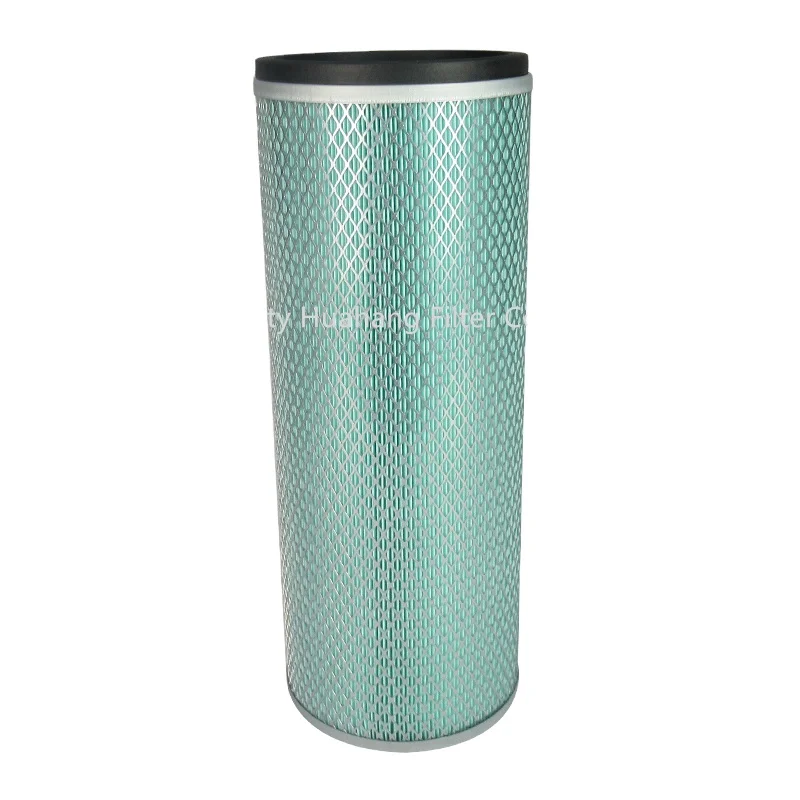

Промышленный коллекционный цилиндрический полиэфирный пылезащитный картридж элемент воздушного фильтра гофрированный фильтр для сбора пыли
3 327,83 ₽ - 4 270,71 ₽

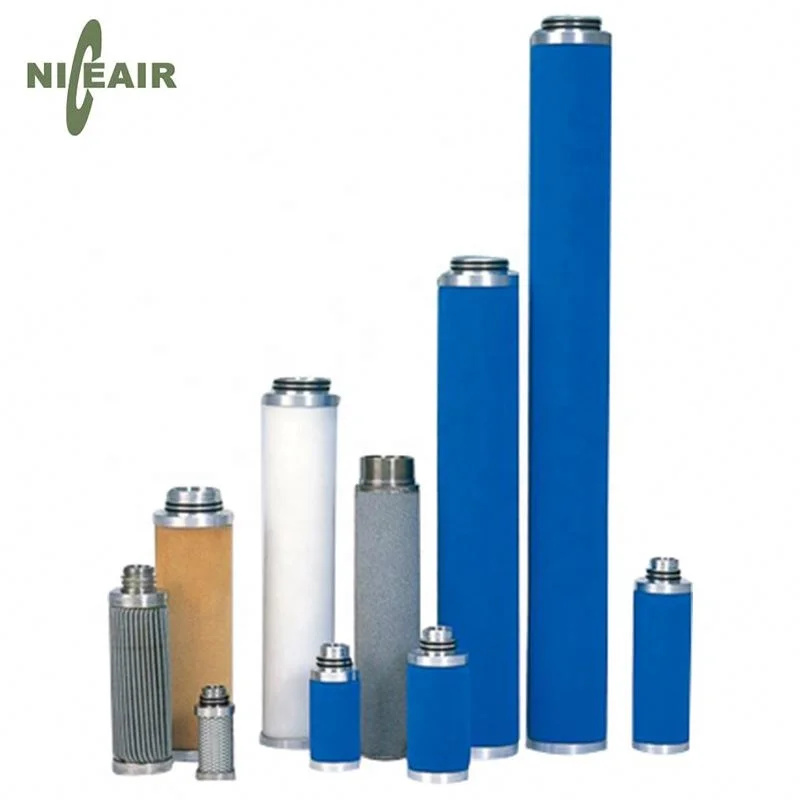

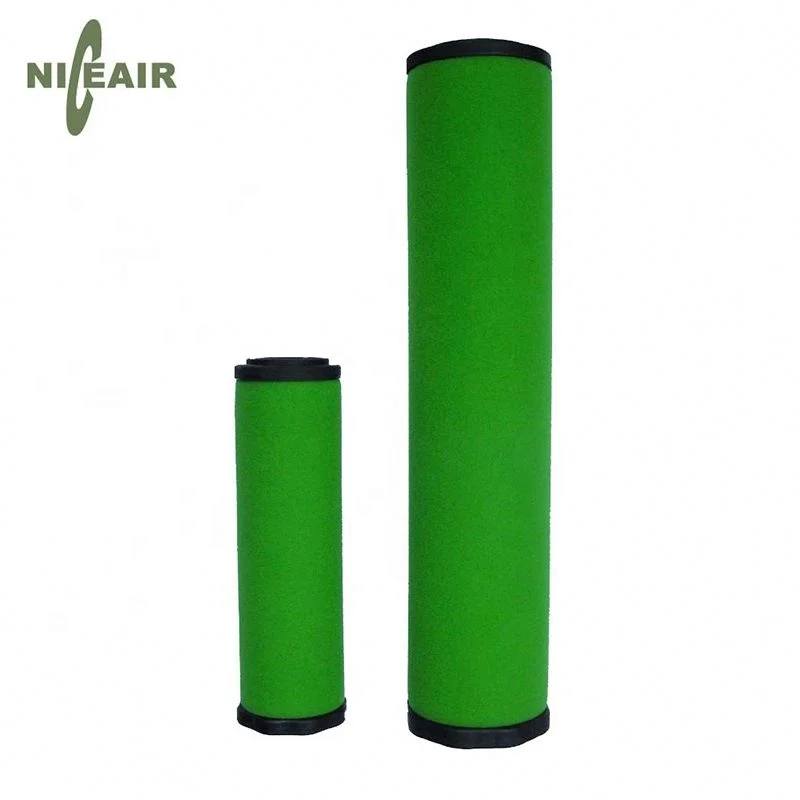

CHINA-NICEAIR лучшая производственная компания из compressedair фильтрующих элементов
CHINA-NICEAIR лучшая производственная компания из compressedair фильтрующих элементов

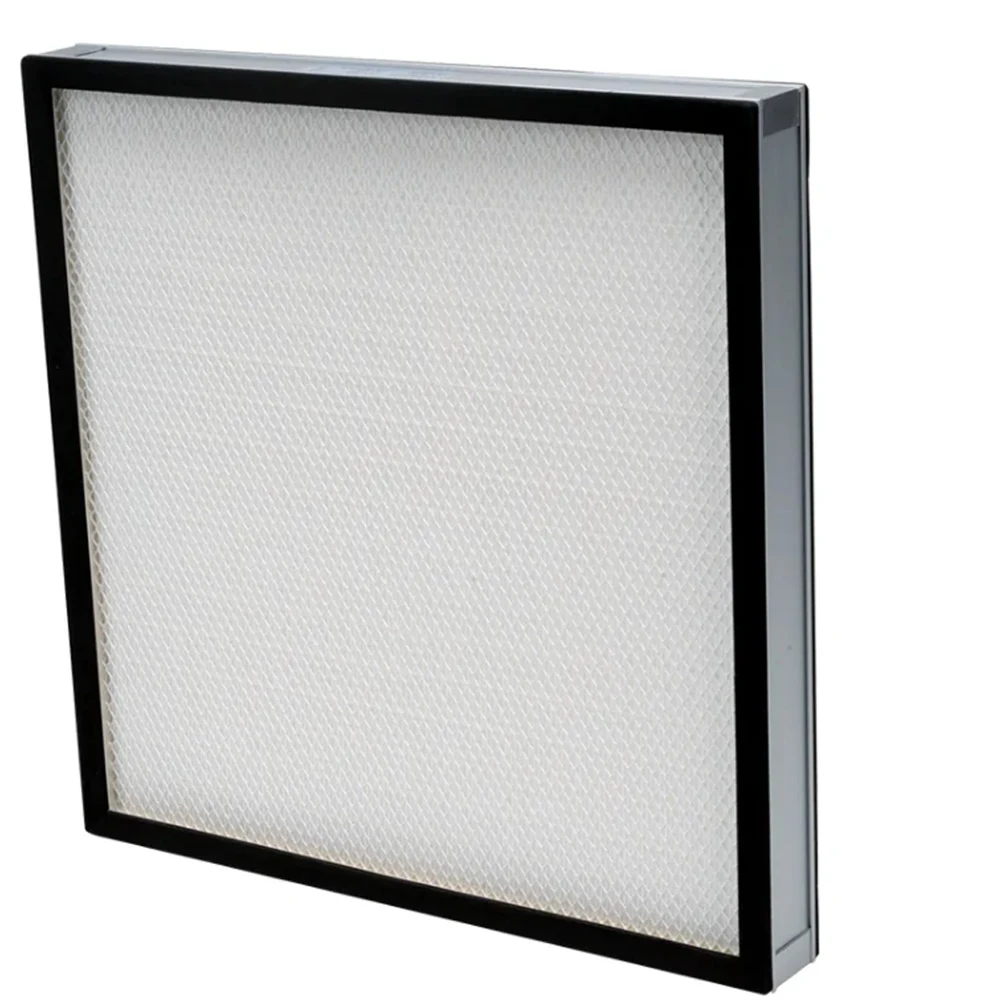

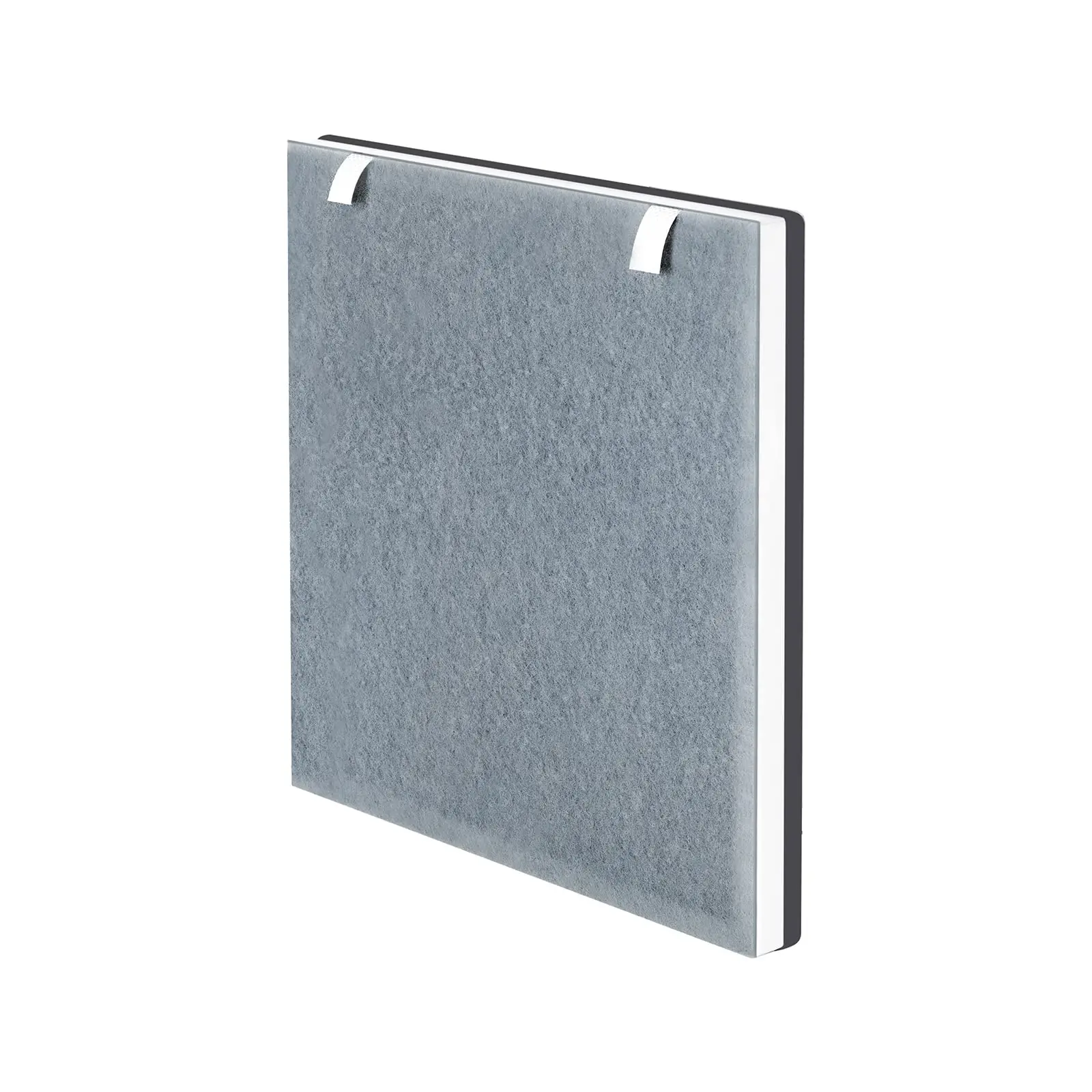

Фильтр True HEPA для очистителя воздуха Levoit жизненно важный Сменный фильтр 100 РФ
765,40 ₽ - 1 098,19 ₽
OEM Hepa фильтр с распылительной будкой воздушный алюминиевая фольга СМИ
2 218,55 ₽ - 7 210,29 ₽

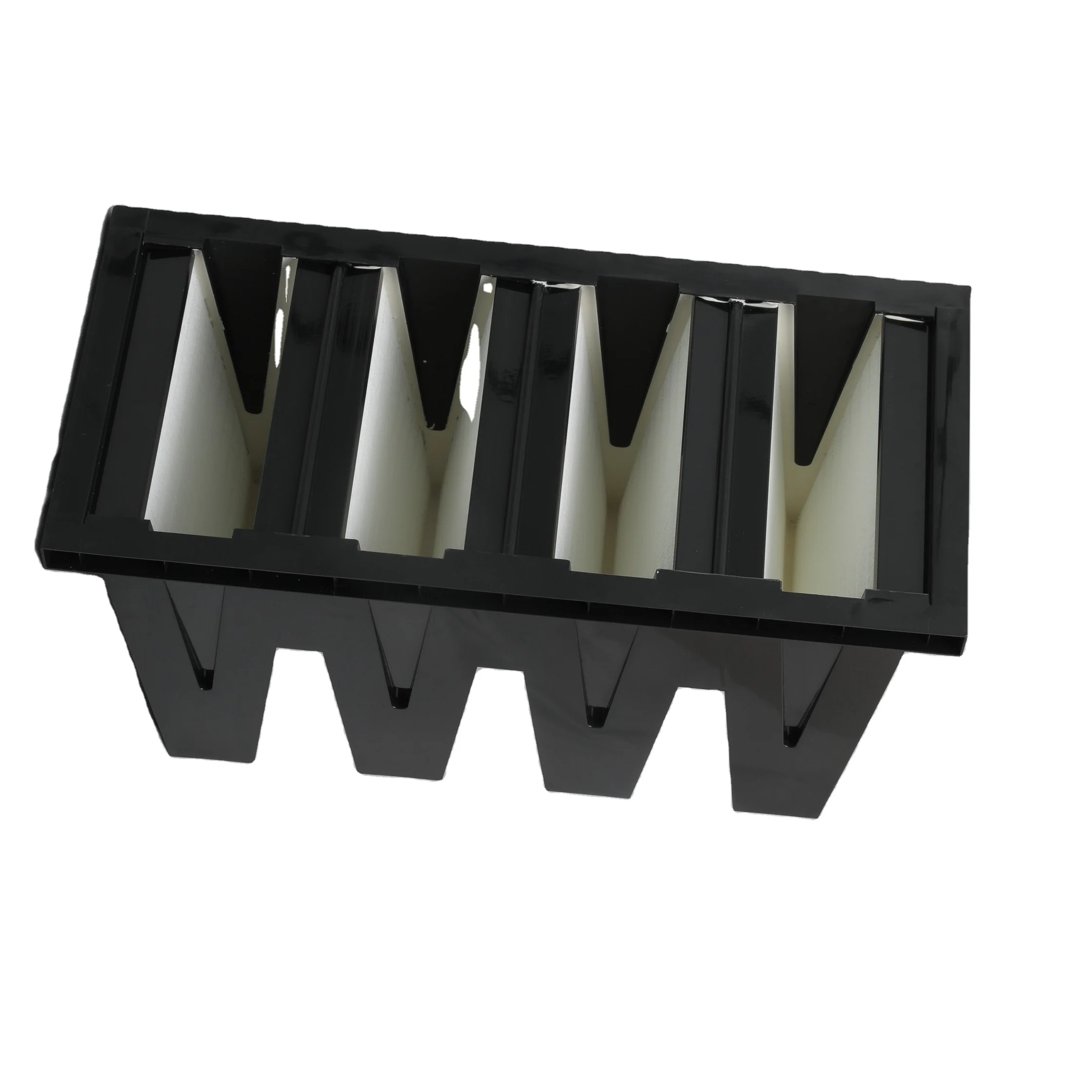

V-образный Стекловолоконный очиститель воздуха с Hepa-фильтром сделано в Китае
