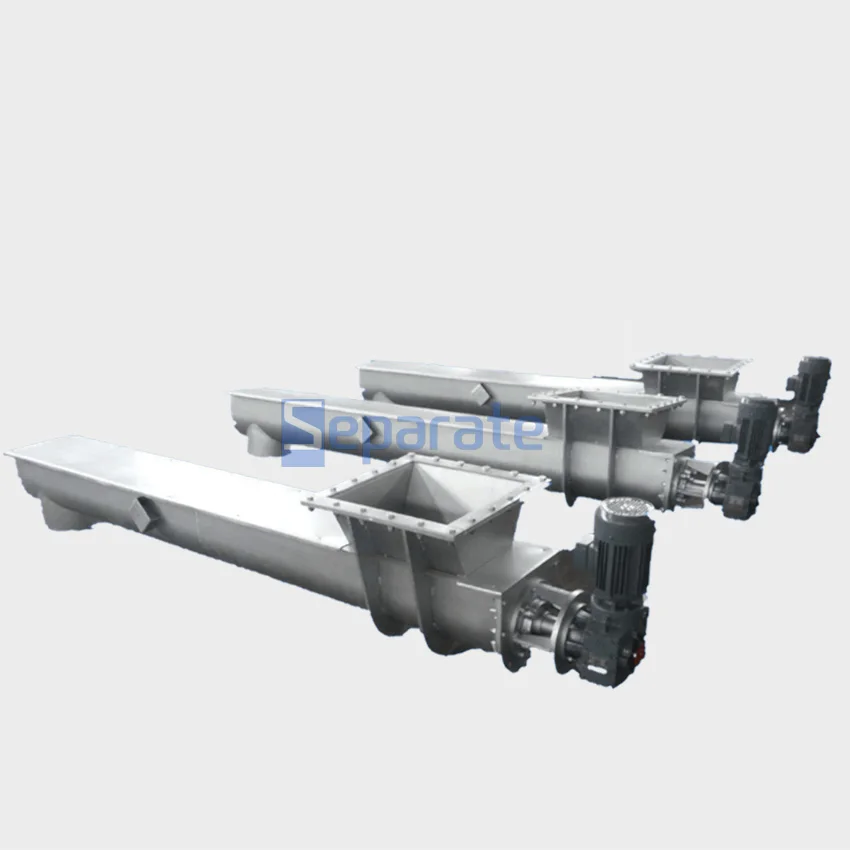

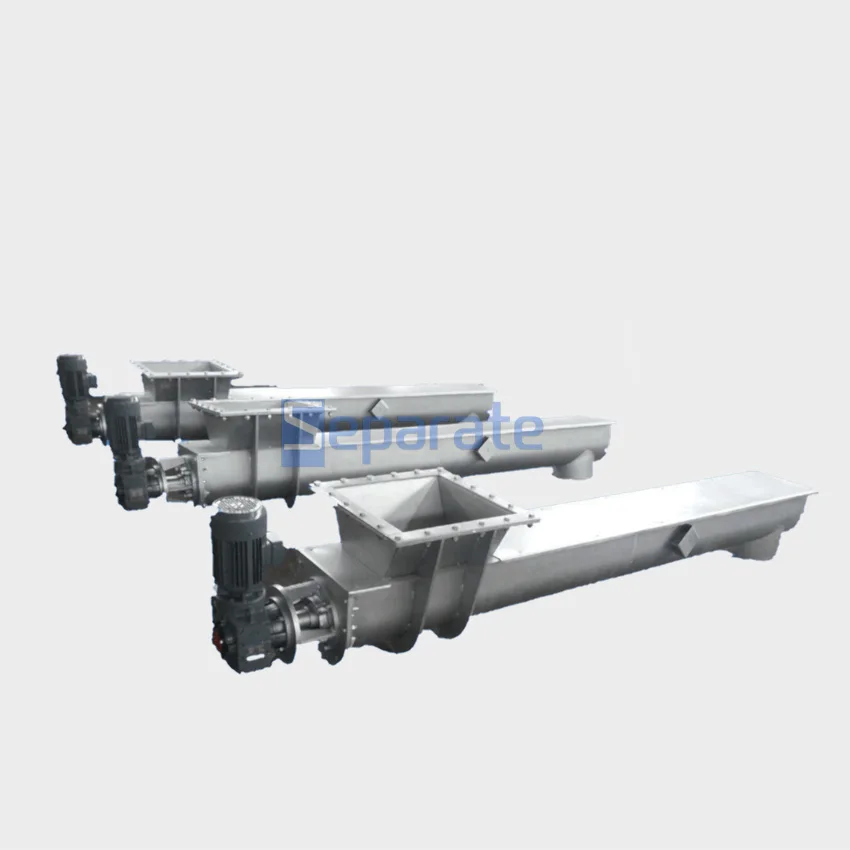

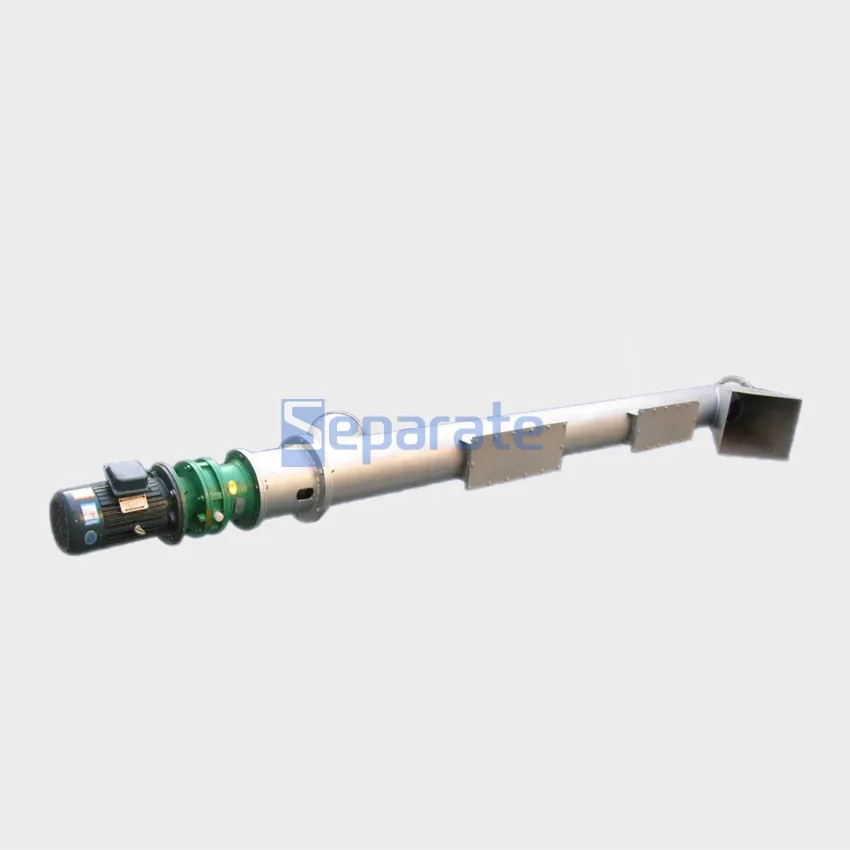

Model | Diameter (mm) | Length (m) | Capacity (t/h) | Motor Power (kw) | Speed (rpm) | Weight (kgs) | Dimension (mm) | |||||||
SPLSU300-08 | 300 | 8 | 20 | 5.5 | 80 | 1426 | 9150x450x600 | |||||||
SPLSU400-08 | 400 | 8 | 42 | 11 | 60 | 1668 | 9200x545x680 | |||||||
SPLSU400-15 | 400 | 15 | 42 | 18.5 | 60 | 3344 | 16950x545x680 | |||||||
SPLSU400-5 | 400 | 5 | 42 | 7.5 | 60 | 1200 | 6550x545x680 | |||||||
SPLSG250-5 | 250 | 5 | 48 | 7.5 | 60 | 1000 | 6350x273x273 | |||||||
SPLSG300-8 | 300 | 8 | 60 | 11 | 60 | 1500 | 9100x325x325 | |||||||
Remark: 1.The Capacity is based on 0°conveying angle & speed 60rpm; 2.The max.conveying angle for U-shaped conveyor is 15°,the capacity will decrease with the increase of the angle and length; 3.The max.conveying angle for G-shaped conveyor is 60°,the capacity will decrease with the increase of the angle and length; 4. Customized service can be provided. | ||||||||||||||
