Малая Емкость 2 тонны золотодобывающая шаровая мельница шлифовальная машина с дизельным двигателем
- Категория: >>>
- Поставщик: Gongyi Hengchang Metallurgical Building Material Equipments PlantGongyi Plant
Сохранить в закладки 1601072802081:
Описание и отзывы
Характеристики
Product Display

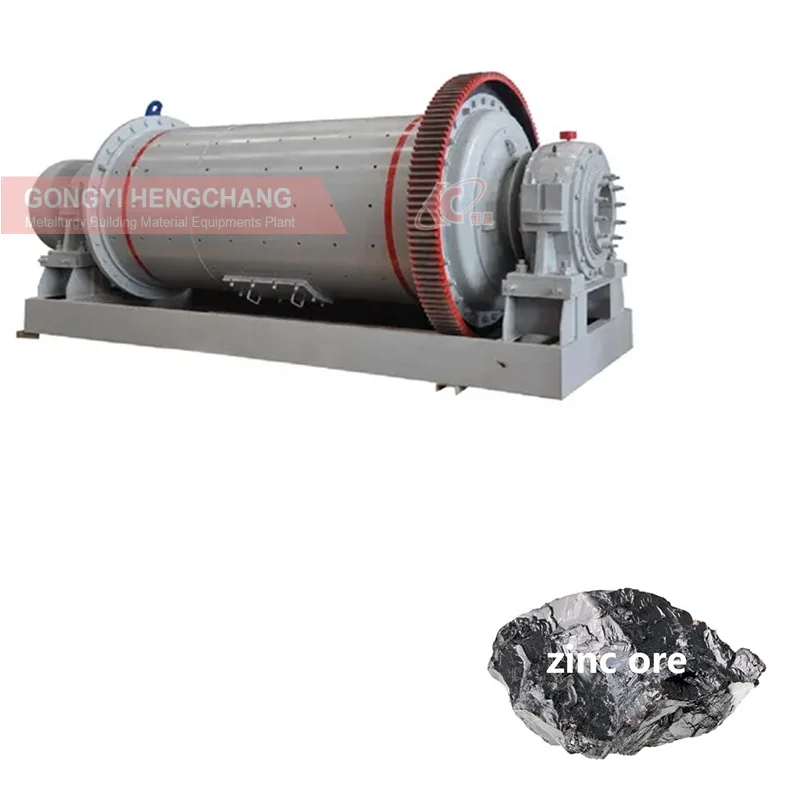

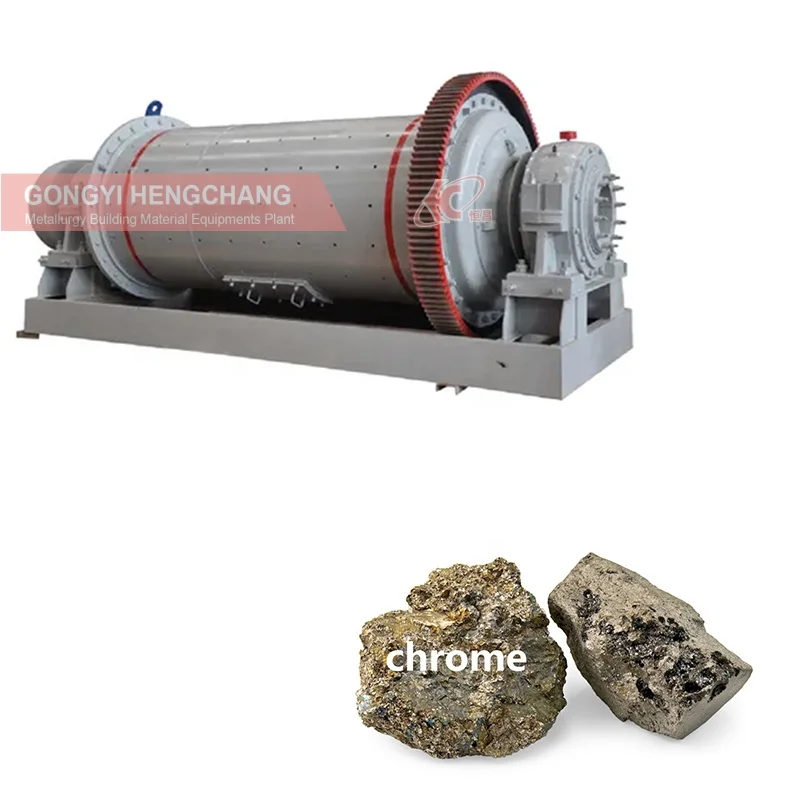

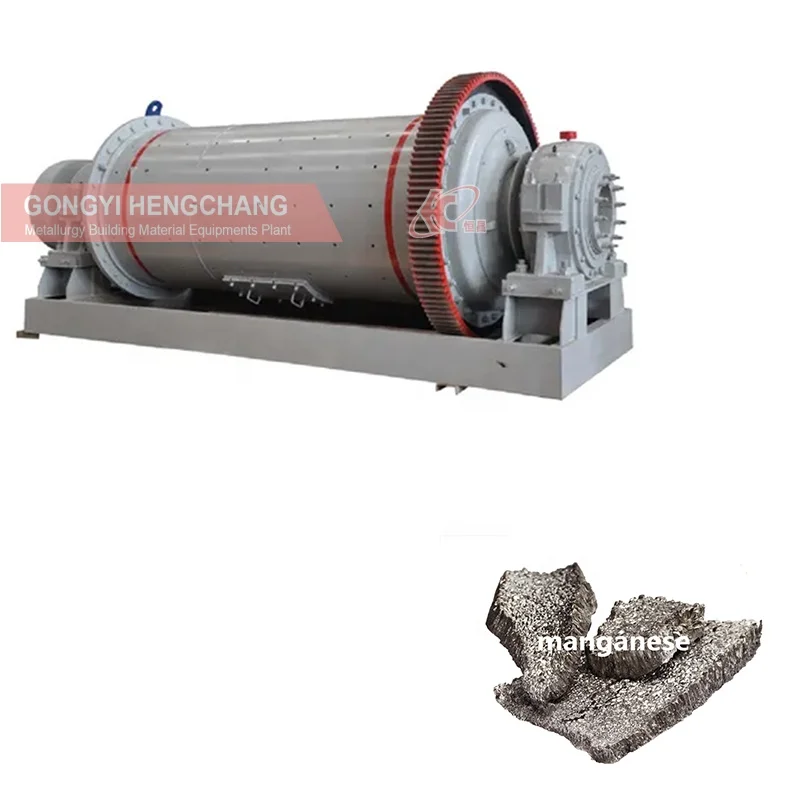

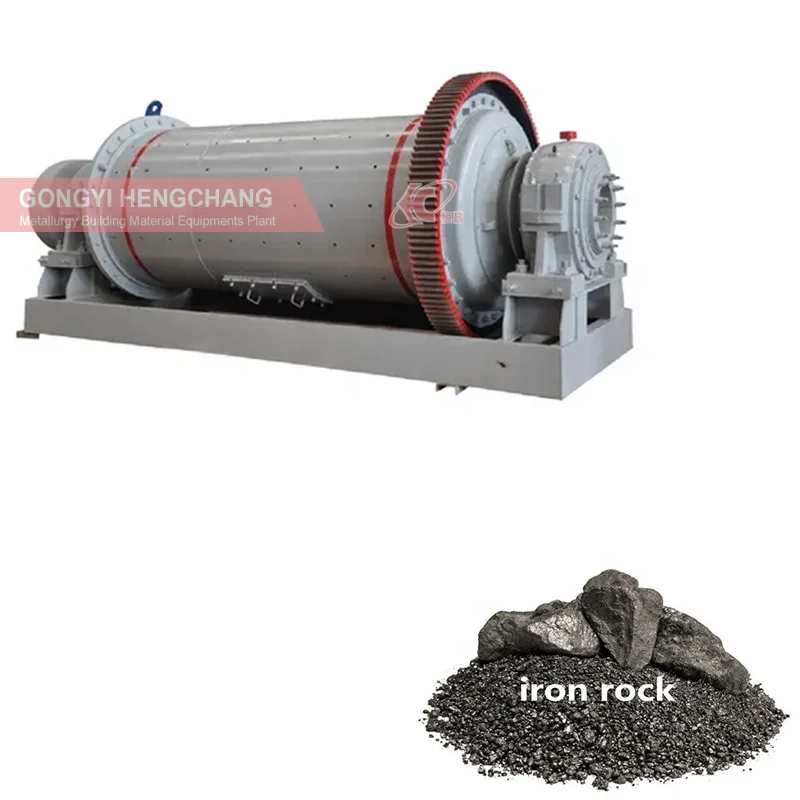

small capacity 2 ton gold mining ball mill grinding machine with diesel engine
And the ball mill can grind various ores and other materials with dry type and wet type.
Product Application
Energy saving mining ball mill is a key equipment in beneficiation plant.It is widely used in ore dressing production line such as Gold ore, Cooper ore, Magnetite ore, Antimony, Calcite, Kaolin, Mica, Clay, Bentonite etc Ferrou metal or Nonferrous metal materials.
Detailed Images
1.Large application range, simple structure and convenient maintenance;
2.Large capacity and continuous work are very obvious Capacity range from 1-130 tph, final product can be 30- 500 mesh;
3.Barrel lining and grinding media can apply various abrasive materials;
4.Installation and adjustment are very convenient and easy to be operated.
2.Large capacity and continuous work are very obvious Capacity range from 1-130 tph, final product can be 30- 500 mesh;
3.Barrel lining and grinding media can apply various abrasive materials;
4.Installation and adjustment are very convenient and easy to be operated.
Working principle
When the materials processing, they are transferred to the grinding chamber through the quill shaft uniformly.
Firstly the centrifugal force caused by rotation of barrel brings the steel balls to a certain height, then the steel balls impact and grind the materials into fine powder over a period of several hours.
The ground materials are discharged through the discharging board ,lastly the grinding process is finished.
Model | Cylinder Rotating Speed (r/min) | Ball weight (t) | Feeding Size (mm) | Discharging Size (mm) | Capacity (t/h) | Power (kw) |
900×1800 | 38 | 1.5 | ≤20 | 0.075-0.89 | 0.65-2 | 18.5 |
900×3000 | 38 | 2.7 | ≤20 | 0.075-0.89 | 1.1-3.5 | 22 |
1200×2400 | 35 | 4.6 | ≤25 | 0.075-0.6 | 37 | |
1200×4500 | 35 | 5.5 | ≤25 | 0.074-0.4 | 1.6-5.8 | 55 |
1500×3000 | 29 | 9 | ≤25 | 0.074-0.4 | 2-7 | 75 |
1500×5700 | 29 | 17 | ≤25 | 0.074-0.4 | 3.5-6 | 110-130 |
1830×4500 | 25.4 | 15 | ≤25 | 0.074-0.4 | 4.5-12 | 155 |
1830×6400 | 24.1 | 21 | ≤25 | 0.074-0.4 | 6.5-15 | 210 |
1830×7000 | 24.1 | 23 | ≤25 | 0.074-0.4 | 7.5-17 | 245 |
2100×4500 | 23.7 | 24 | ≤25 | 0.074-0.4 | 8-43 | 245 |
2100×7000 | 23.7 | 26 | ≤25 | 0.074-0.4 | 8-48 | 280 |
2200×4500 | 21.5 | 27 | ≤25 | 0.074-0.4 | 9-45 | 280 |
2200×6500 | 21.7 | 35 | ≤25 | 0.074-0.4 | 14-26 | 380 |
2200×7000 | 21.7 | 35 | ≤25 | 0.074-0.4 | 15-28 | 380 |
2400×3000 | 21 | 23 | ≤25 | 0.074-0.4 | 30-50 | 245 |
2400×4500 | 21 | 30 | ≤25 | 0.074-0.4 | 40-60 | 320 |
2700×3600 | 20.7 | 40 | ≤25 | 0.074-0.4 | 45-80 | 430 |
2700×4500 | 20.7 | 48 | ≤25 | 0.074-0.4 | 50-90 | 430 |
2700×13000 | 20.7 | 60 | ≤25 | 0.074-0.4 | 50-90 | 630 |
3200×4500 | 18 | 65 | ≤25 | 0.074-0.4 | -- | 800 |
Company Profile
Hengchang headquarters is located in the industrial park in Gongyi City. It covers a total area of 150,000 square meters,including 100,000 square meters of standarized workshop. There are more than 200 sets of various large and medium-sized metal processing lathe, riveting machine, welding equipment and assembly equipment. We have more than 300 workers, including more than 20 middle and senior technicians. Hengchang is mainly focus on 4 series products: stone crusher machines, sand making equipment,powder grinding mills, mineral processing equipment and their spare parts. Every year, Hengchang can turn out 1,000 sets of crushers and10,000 tons of crusher parts.
Customer Visit & Our Service
(A) Pre-sale services:
Act as a good adviser and assistant of clients, enable them to get rich and generous returns on their
investments.
investments.
1.Select equipment model;
2.Design and manufacture products according to clients' special requirement;
3.Train technical personnel for clients;
4.Services during the sale;
(B)Provide considerate services to minimize clients' worries:
1.Assist clients to prepare for the first construction scheme;
2.Install and debug the equipment;
2.Install and debug the equipment;
3.Train the first-line operators;
4.Examine the equipment;
5.Take initiative to eliminate
the troubles rapidly;
the troubles rapidly;
6.Provide perfect service;
7.Provide technical exchanges...
(C).After-sale services:Provide considerate services to minimize clients' worries:
1.Assist clients to prepare for the first construction scheme;
2.Install and debug the equipment;
3.Train the first-line operators;
4.Examine the equipment;
5.Take initiative to eliminate
the troubles rapidly;
6.Provide perfect service;
7.Provide technical exchanges..
1.Assist clients to prepare for the first construction scheme;
2.Install and debug the equipment;
3.Train the first-line operators;
4.Examine the equipment;
5.Take initiative to eliminate
the troubles rapidly;
6.Provide perfect service;
7.Provide technical exchanges..
Packing and delivery
Packaging Details:We will make different packaging according to different machine sizes standard international export packing,container, wooden box.
Delivery Time:We will customize according to the actual needs of customers. Senior designers start to design the plan. After receiving the deposit, we will complete the delivery within 15 to 25working days.
Delivery Time:We will customize according to the actual needs of customers. Senior designers start to design the plan. After receiving the deposit, we will complete the delivery within 15 to 25working days.
Q:Why we believe in Gongyi Hengchang company?
A: 1.More than 28 years’ experience.
2.Hengchang is the leading professional supplier of solution, equipment’s and service for crushing and grinding industry.
3.Products achieved ISO9001:2000 quality management certificate and EU CE certificate.
Q: Delivery time ?
A: The lead time is 10-20 days, delivery time will vary depending on the type of the machine, shipping method selected and part availability.
Q: Payment terms ?
A: Accepted Payment Type: T/T, L/C, Western Union, Cash and so on.
2.Hengchang is the leading professional supplier of solution, equipment’s and service for crushing and grinding industry.
3.Products achieved ISO9001:2000 quality management certificate and EU CE certificate.
Q: Delivery time ?
A: The lead time is 10-20 days, delivery time will vary depending on the type of the machine, shipping method selected and part availability.
Q: Payment terms ?
A: Accepted Payment Type: T/T, L/C, Western Union, Cash and so on.
After sign the contract, pay the 10%-30% deposit of total purchase price and pay the full payment before delivery.
Q:What will you do if the machine is broken down?
A: The Products warranty is one year. We will provide the technical advice and find the solution immediately for you when the machine is in trouble. For those wear parts, we guarantee the high quality parts for long-term supply.
Q:What should i do if i want to get a best quotation?
A:If you want a suitable type for you, please let us know your material and capacity.
Q:What will you do if the machine is broken down?
A: The Products warranty is one year. We will provide the technical advice and find the solution immediately for you when the machine is in trouble. For those wear parts, we guarantee the high quality parts for long-term supply.
Q:What should i do if i want to get a best quotation?
A:If you want a suitable type for you, please let us know your material and capacity.
Похожие товары

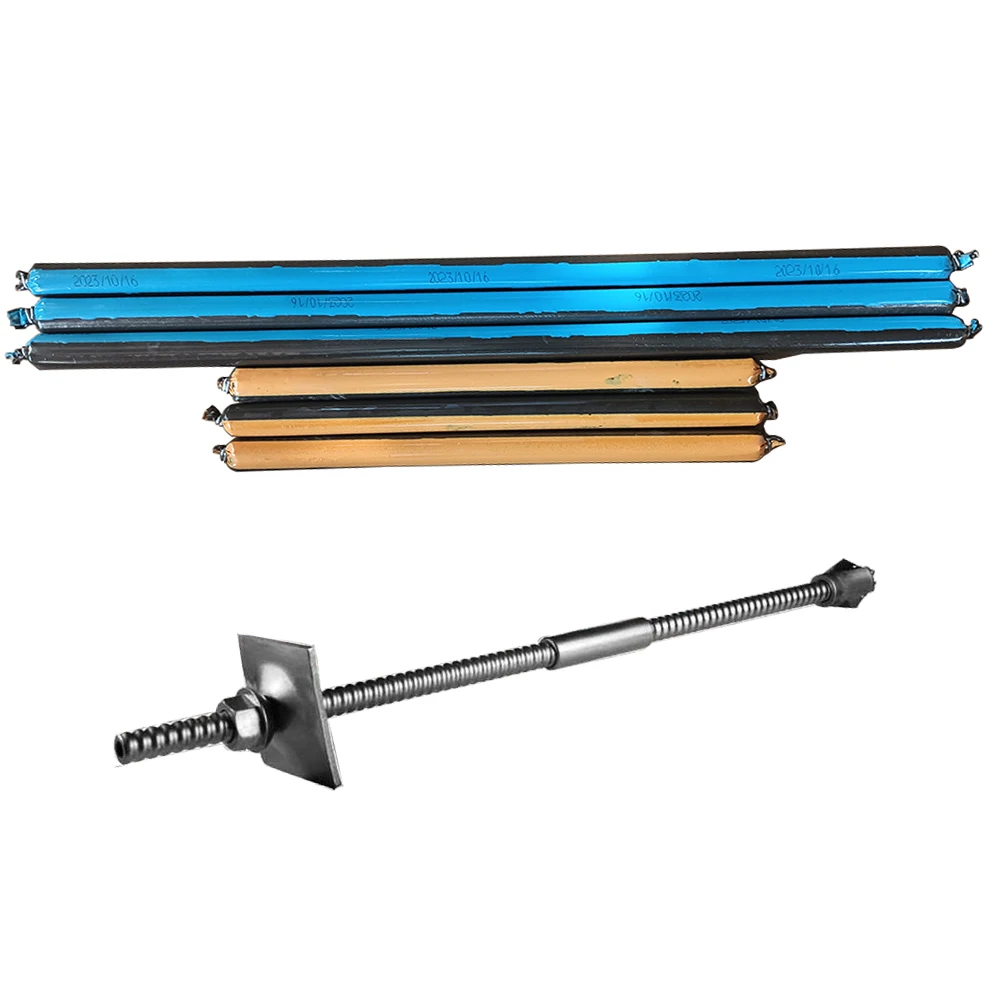

Заводская поставка MSM горная смола анкерный агент тоннель инжиниринг поддержка типа таблетки
70,87-141,73 ₽
Черные полипропиленовые золотые кастрюли для мытья 14 96 дюйма Пластиковая Золотая кастрюля хранения золота
259,83-354,32 ₽

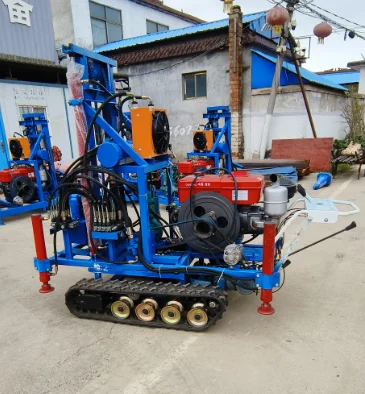

120 метров стальная гусеничная вращающаяся водяная буровая установка/шахтное буровое оборудование
128 542,45-385 978,23 ₽

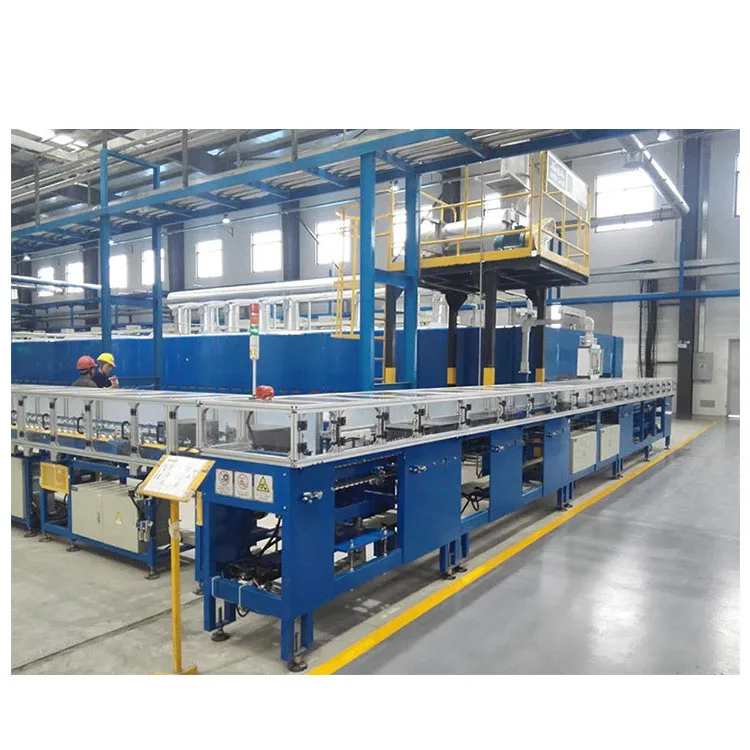

Высокоэффективная туннельная печь для карбонизации катодного материала спекания печи литиевых батарей
30 410 406,00 ₽
Машина для замены вкладышей шаровой мельницы Стабильная производительность GPS адаптивный круиз-контроль
57 194 955,90-58 481 550,00 ₽
Дешевые индивидуальные уличные зимние кемпинговые палатки Карп Рыбалка Bivvy палатка с полом
64 329,71-91 231,22 ₽

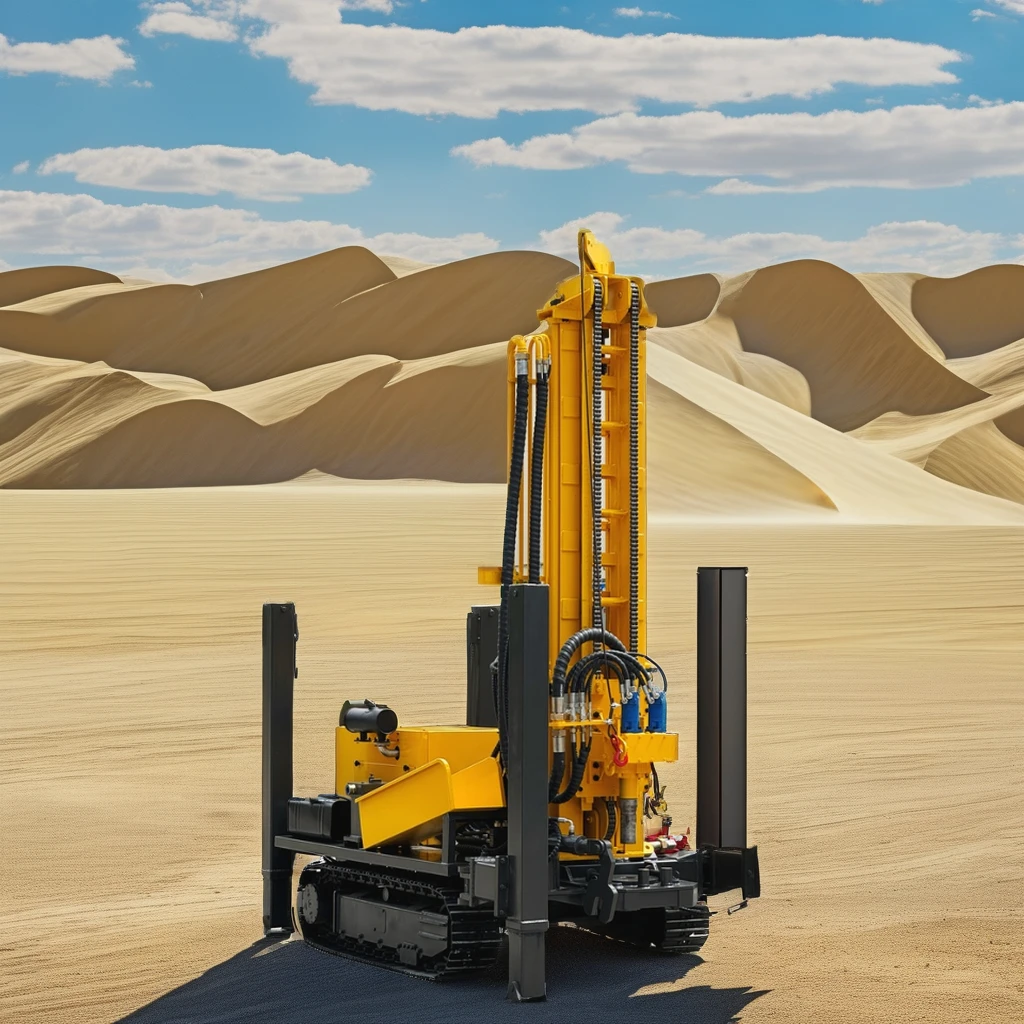

25 л.с. мини-гусеничный насос для дизельной буровой установки Портативный 150-метр гидравлический роторный сердечник буровая установка скважин
