Стальная арматура полностью автоматическая электрическая сварная машина для производства проволочной сетки завод в Китае
5 811 365,20 ₽ - 6 030 662,00 ₽
Автоматическая машина для сварки и пайки конденсатора из проволочной сетки
- Категория: >>>
- Поставщик: Bobo Machine Co. Ltd.
Сохранить в закладки 1601073440701:
Описание и отзывы
Характеристики
Product Description

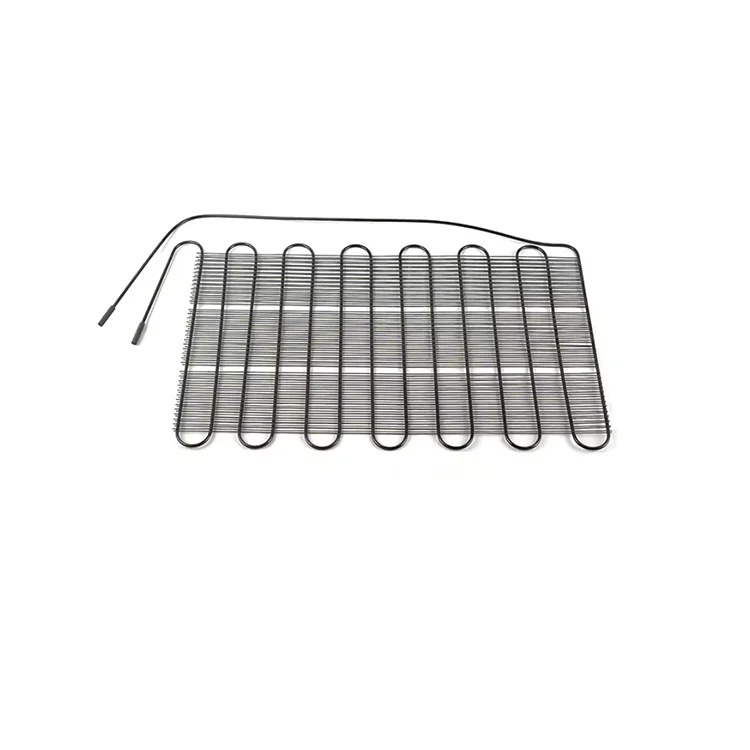

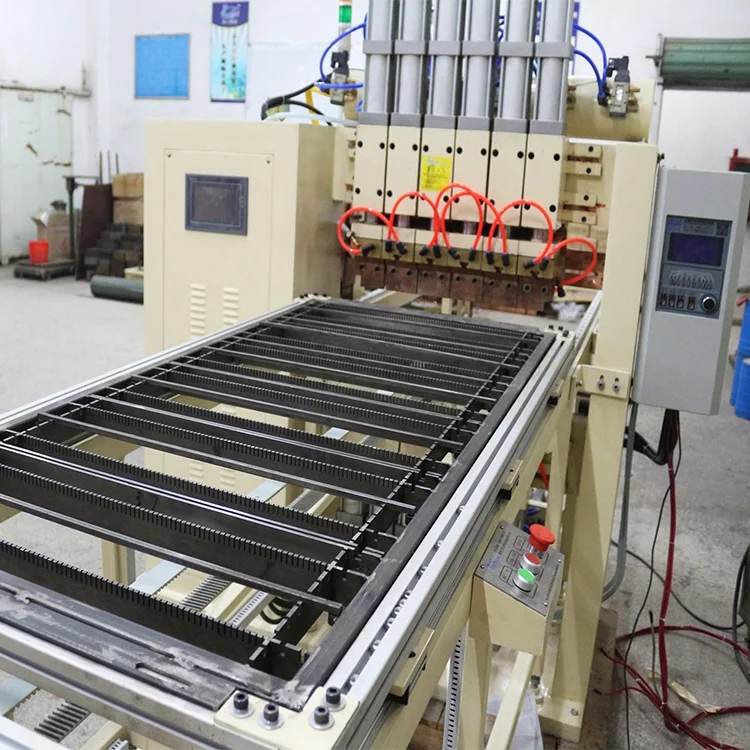

Wire on Tube Condenser Welding Machine
This H-type spot welding machine adopts 6 welding heads and automatic feeding system. The operator only needs to put the material onto the feeder and pressthe start button, then the machine will conduct welding automatically. It is designed with single way double layer feeding system. The welding position could be set at random. The feeder will move front and back for welding. It is suitable for batch production of wire condenser. The effective welding width is 600mm while the effective welding length is 1270mm. The machine is equipped with double layer single side feeder and automatic ejection system.
Details Images

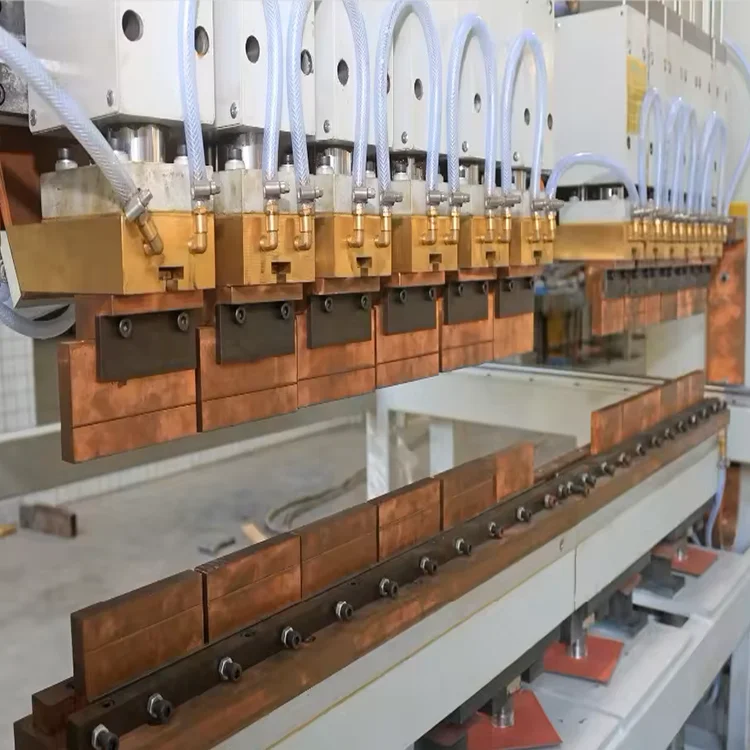

Multi-head Electrode-Easy to adjust the distance
Features
1.The Welding spots are good in looking, firm, and stable and reliable.Well consistency of welding spots.
2.Wide application. The machine, electricity and other mechanism could be reasonably assembled. It could be used to weld other similar
products after relevant modification of microcomputer data program.One machine could serve several purposes.
3.Design Working Life: 8-10 years
2.Wide application. The machine, electricity and other mechanism could be reasonably assembled. It could be used to weld other similar
products after relevant modification of microcomputer data program.One machine could serve several purposes.
3.Design Working Life: 8-10 years
Specification
Model | Date | |||||
Input Power | Three-phase four-wire 380V±10% 50HZ | |||||
Rated Capacity | 160KVA | |||||
Rated Duty-cycle | 50% | |||||
Adjustable Steps of Secondary Voltage | 2 Steps | |||||
Maximum Secondary Short- circuit Current | 40KA | |||||
Transformer Insulation Grade | Grade F | |||||
Network Voltage Floating Compensation | When the rated value of network voltage fluctuates within±10%, The secondary voltage will be ≤±3% | |||||
Welder Pressurized Curves | 3 types | |||||
Storage of Welding Models | 101 types | |||||
Effective Welding Length | 1270mm | |||||
Effective Welding Width | 600mm | |||||
Upper Electrode Stroke | 80mm | |||||
Lower Electrode Adjustable Stroke | 30mm | |||||
Size of Row Welding | 20x100mm | |||||
Recommend Products
Packing and Shipping
Packaging:
Stable wooden package protects machine from strike and damage.
Wound plastic film keeps machine out of damp and corrosion.
Fumigation-free package helps the smooth customs clearance.
The big size machine will be fixed in container without package.
Wound plastic film keeps machine out of damp and corrosion.
Fumigation-free package helps the smooth customs clearance.
The big size machine will be fixed in container without package.
Shipping:
For LCL, we cooperated with reputable logistics team to send machine to sea port speedily and safely.
For FCL, we get the container and do container loading by our skillful workers carefully.
For forwarders, we have professional and long-term cooperated forwarders who can handle the shipment smoothly. Also we would like to have seamless cooperation with your forwarder at your convenience.
For FCL, we get the container and do container loading by our skillful workers carefully.
For forwarders, we have professional and long-term cooperated forwarders who can handle the shipment smoothly. Also we would like to have seamless cooperation with your forwarder at your convenience.
