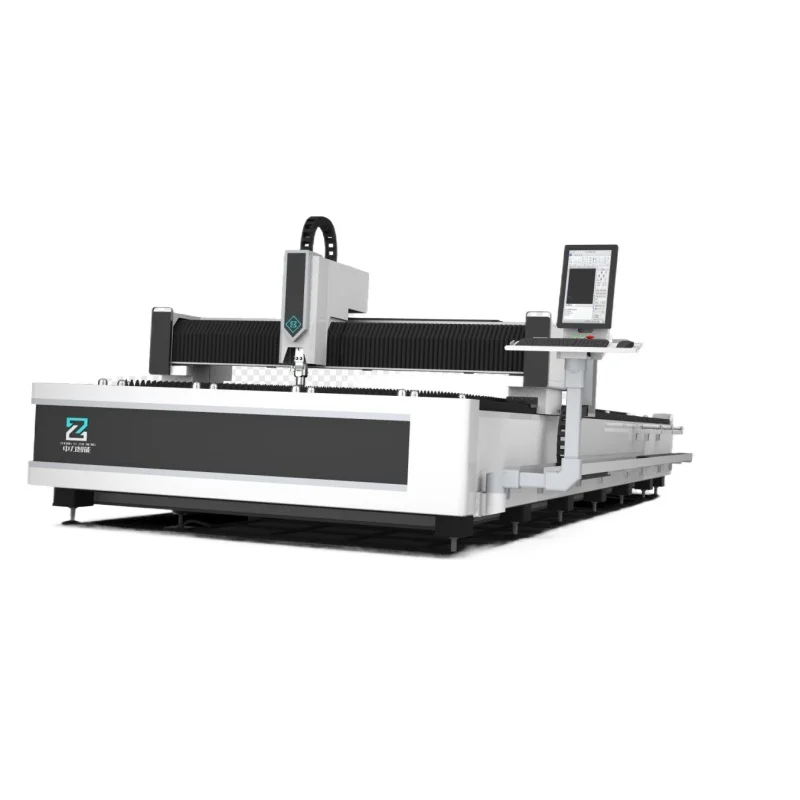

Высокоточный станок для лазерной резки нержавеющей стали с ЧПУ автозапчастей верфи строительство из
1 096 484,00 ₽ - 1 425 429,20 ₽
2024 новый бренд заказной размер волоконно лазерной резки 6000 Вт Au3tech/Ncstudio/cypcut система управления
- Категория: >>>
- Поставщик: Jinan Zhanfeng Laser Equipment Co. Ltd.
Сохранить в закладки 1601074430010:
Описание и отзывы
Характеристики
Products Description

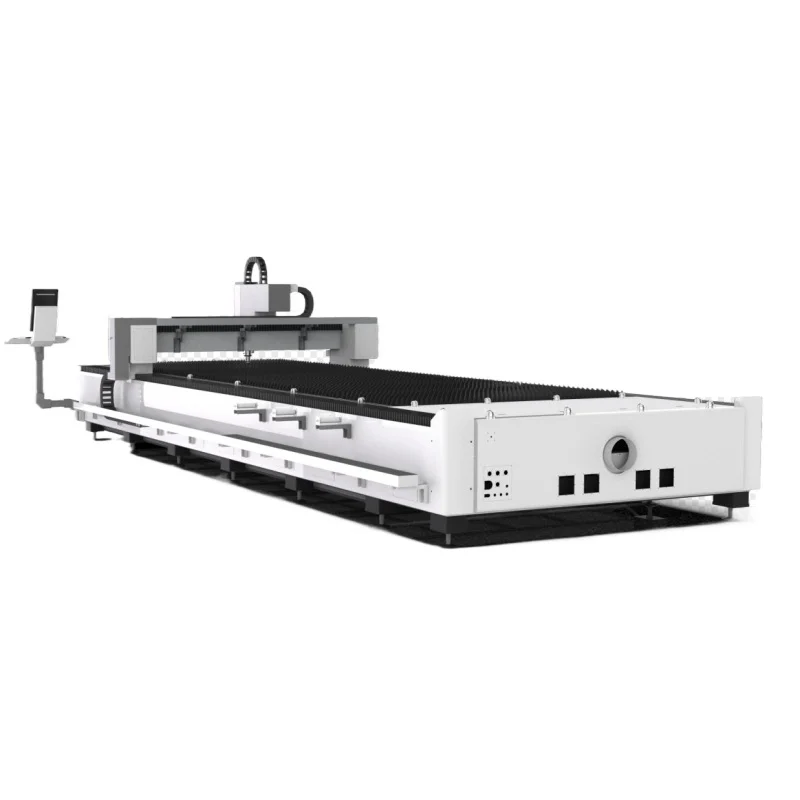

Sheet Metal Fiber Laser Cutting Machine
This is one table sheet laser cutting machine. open structure, easy to load and unload.
Our advantage of fiber laser cutting machine:
-- High precision, fast speed, smooth cutting edge, no burrs.
--The laser head will not touch the surface of the material and will not scratch the workpiece.
--It has the narrowest cutting seam, the smallest heat affected zone, the least local deformation of the workpiece, no mechanical deformation.
--Good processing flexibility, it can cut any graphics, such as pipes and other special-shaped materials.
--The laser head will not touch the surface of the material and will not scratch the workpiece.
--It has the narrowest cutting seam, the smallest heat affected zone, the least local deformation of the workpiece, no mechanical deformation.
--Good processing flexibility, it can cut any graphics, such as pipes and other special-shaped materials.
Different cutting thickness requires different laser power, please tell us your material, size and thickness, therefore we can recommend you the suitable laser cutting machine.

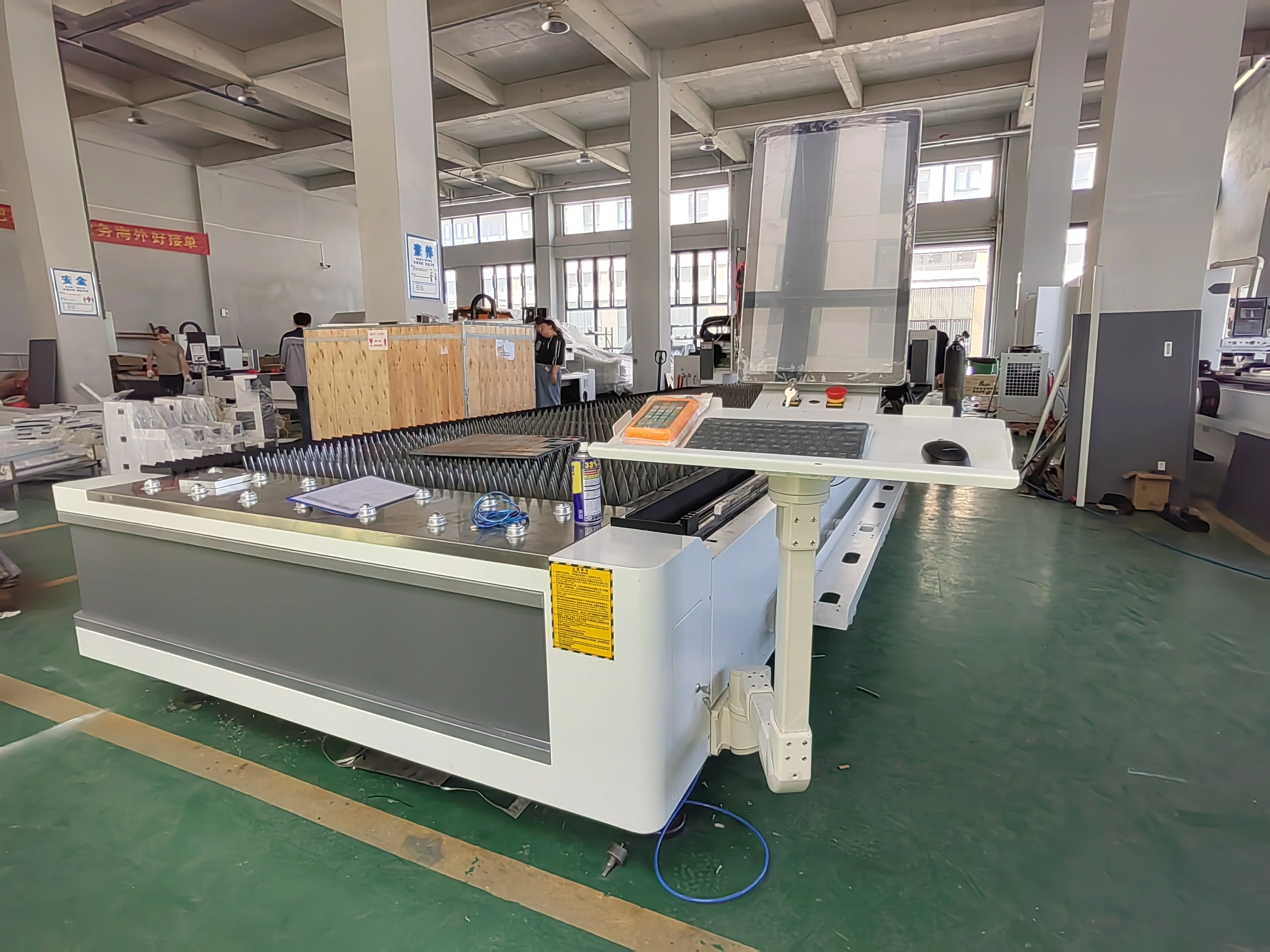

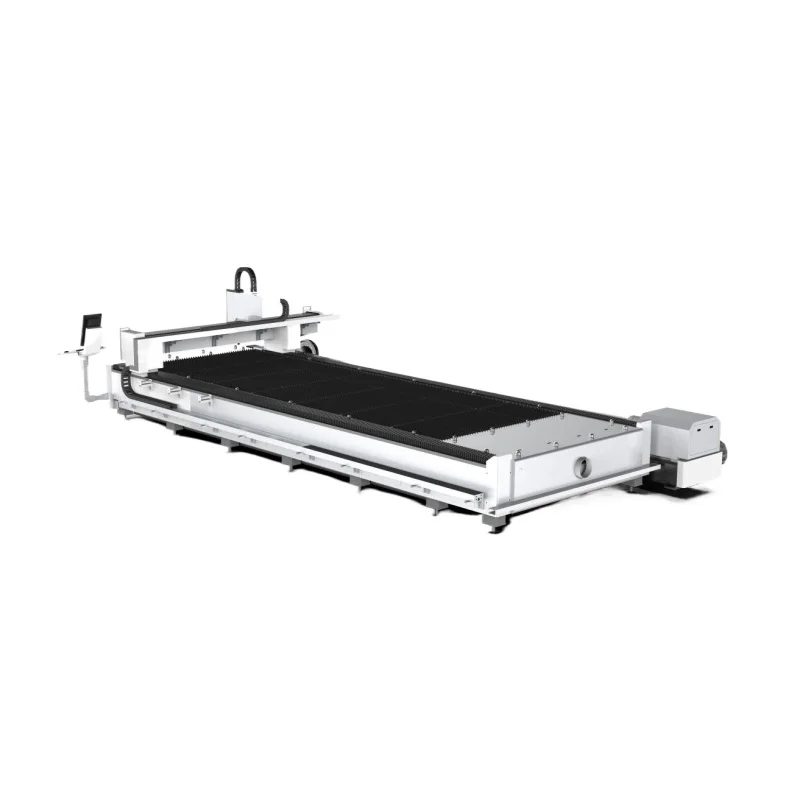

Machine Display
Application Sample
Product Paramenters
Machine Model | ZL3015AC | ZL-4015AC | ZL-6015AC | ZL-4020/6020AC | ZL6025AC | ||||
Effective Round Tube Cutting Diameter | Φ20- Φ210mm | ||||||||
Effective Square Tube Cutting Diameter | □20-□150mm | ||||||||
Tube Length | 3000mm/6000mm/9000mm/12000mm(customized) | ||||||||
Laser Power | 1000w-20000w | ||||||||
Repeat Position Accuracy | ±0.02mm | ||||||||
Maximum Speed | 120m/min | ||||||||
Chuck | BEUT pneumatic chuck | ||||||||
Power Consumption | ＜10kw | ||||||||
Motor and Drivers | Japan Fuji/Japan Yaskawa/Taiwan Delta/INOVANCE | ||||||||
Transmit System | Dual Rack & Pinion Type | ||||||||
Control System | FSCUT/Au3Tech/Raytools/Weihong | ||||||||
Cutting Head | Raytools/Au3Tech/FSCUT/Ospi/WSX/PRECITEC | ||||||||
Reducer | Japan Shimpo/France Motovario/Germany Lead-motion | ||||||||
Linear Guider System | Taiwan HIWIN/Taiwan PMI/Italy PEK | ||||||||
Gear Rack | Taiwan YYC/Germany HERION | ||||||||
Electrical Components | France Schneider/Honeywell | ||||||||
Water Chiller | Hanli/DVT/S&A | ||||||||
Optional | Rotary/Exchange Table/Protective Cover | ||||||||
Cutting materials shape | Square pipe, round pipe, L-shaped pipe, channel steel pipe and other shaped pipe | ||||||||
Detailed Machine Configuration
Fast Transmission and Super Precision
Adopts Japan Yaskawa motor, Japan Fuji motor or Taiwan Delta motor, with high precision, no step losing, high torque and low noise；Taiwan YYC / Germany HERION gears and Japan Shimpo / France MOTOVARIO / Germany Lead-motion reducers, which can make the machine position accuracy reach to 0.02mm
Aviation Cast Aluminum Beam
Machine adopts aviation cast aluminum beam, which is manufactured according to the aerospace standards and extruded with 4300 tons pressure; The beam is processed by T6 heat treatment which can make the beam obtain the highest strength and strong deformation resistance; Using ultra-high pressure tensile technology and light weight design, the beam weight is reduced by 30% compared with cast aluminum beam and the strength and rigidity are increased by more than 20%.
Super heavy Steel Welding Machine Bed
The bed is welded with big thickness square tubes, which has stiffeners inside to increase the structure strength and tensile strength; With high temperature annealing and natural aging, the welding stress is eliminated, which can prevent the deformation of the bed , reduce vibration and guarantee a good cutting accuracy.
Auto Focus Cutting Head
Laser head with automatic focus function, which can adjust the focus automatically, no need to adjust it by hand. The software can change the focusing lenses automatically according to the different thickness of the materials. It can shorten the perforation time, improve the perforation quality and cutting speed. It’s simple, convenient and fast; Long life span; Full-circle water cooling around the focusing component, which can realize no heat, no fog with high power cutting, small volume cutting and long term cutting, the lifetime of the cutting head is improved greatly.
Independent Control Cabinet
Dust-proof We put all electrical components and laser source into the independent control box, it is dust proof which can guarantee the life span of the components; Automatic Thermostat The control cabinet is equipped with air conditioner which can keep the constant temperature automatically. It can prevent the high temperature damage for the components in summer.
Intelligent operation software
Adopts high definition toughened glass, intelligent touch, fast response and smoother operation. Ultra low power consumption and high resolution; The new intelligent alarm system is pushed to the interface through the control center to find abnormalities in advance, quickly eliminate and feed back, reduce hidden dangers, and there is no danger in remote alarm operation; Cypcut is one professional software for fiber laser cutting, easy operation and its is suitable for many different processing occasions.
Package and Shipping
We provide the most professional package service to ensure the safety of the goods.
Our Advantages
Lower Shipping Cost
We have abundant exporting experience and cooperate with professional forwarders, every steps from buying to shipping will be smooth and successfully, save your time and money.
Flexible Component Options
Various of brands of laser source, control system, laser head, water chiller, drive system...according to your request and budget, making the machine that just perfect for you.
Strict Quality Control System
Quality always priority, we pursue sustainable development together with our customers. Good faith is our label, let customers own the most cost-effective machines is our tenet.
From the very beginning manufacturing process, welding, fine milling, shot blasting, annealing, anti-corrosion. Every steps use real stuff, accurate measurements, only for giving you the best performance products.
Recommended for you
Company Profile
Jinan Zhanfeng Laser Equipment Company is mainly engaged in the research and development, production and sales of laser cutting equipment and laser welding equipment.
Adhering to the professional philosophy of quality oriented, leading technology, rapid response, high quality and efficient, the company has the dream of equipment the world and applying science and technology to create value for customers.
Adhering to the professional philosophy of quality oriented, leading technology, rapid response, high quality and efficient, the company has the dream of equipment the world and applying science and technology to create value for customers.
Certifications
FQA
We are a factory of laser cutting and welding machine, where located in Licheng District, Jinan City, Shandong Province.
Q2. Do you offer after-sales service?
We established professional technical team since the foundation of our company, to solve any possible technical
We have our own professional R&D team, therefore we are able to accept OEM and ODM cases.
Q2. Do you offer after-sales service?
We established professional technical team since the foundation of our company, to solve any possible technical
issues, guiding and training customers to use the machines properly.
Our warranty is 3 years, if any parts broken during warranty, we will send you parts free of charge. Also our engineers
will provide you support online or on site.
Q3. Which model should I choose?
We need to know your specific working content, such as the materials, thickness, size and the cutting objects (plates, tubes, etc) then we will recommend you the most suitable machines.
Q4. How about the shipping cost?
Sea transportation, we choose 20-foot container or 40-foot container according to the size you buy. We have a shipping company that has cooperated for many years, which can help you save costs.
Q6. Do I need the gas for my fiber laser cutting machine?
Yes. The compressed air, O2 or N2 are necessary for one fiber laser cutter. For different materials, it will require different
gas. Please feel free to contact our sales to get professional suggestion.
will provide you support online or on site.
Q3. Which model should I choose?
We need to know your specific working content, such as the materials, thickness, size and the cutting objects (plates, tubes, etc) then we will recommend you the most suitable machines.
Q4. How about the shipping cost?
Sea transportation, we choose 20-foot container or 40-foot container according to the size you buy. We have a shipping company that has cooperated for many years, which can help you save costs.
Q6. Do I need the gas for my fiber laser cutting machine?
Yes. The compressed air, O2 or N2 are necessary for one fiber laser cutter. For different materials, it will require different
gas. Please feel free to contact our sales to get professional suggestion.
Похожие товары
Станок с ЧПУ для лазерной резки металла 1000W/1500w/2000w/3000w/4000w/6000w800 0w/12000w углеродистой стали алюминиевая нержавеющая сталь
3 410 065,24 ₽ - 3 418 837,12 ₽
Лазермены СО2 лазерная гравировальная машина для резки 1390 неметаллических материалов
252 191,32 ₽ - 274 121,00 ₽
Нержавеющая сталь/Углеродистые пластины/алюминий/ЧПУ Волоконно-Лазерная резка машина Заводская цена продажи
2 653 491,28 ₽ - 2 719 280,32 ₽

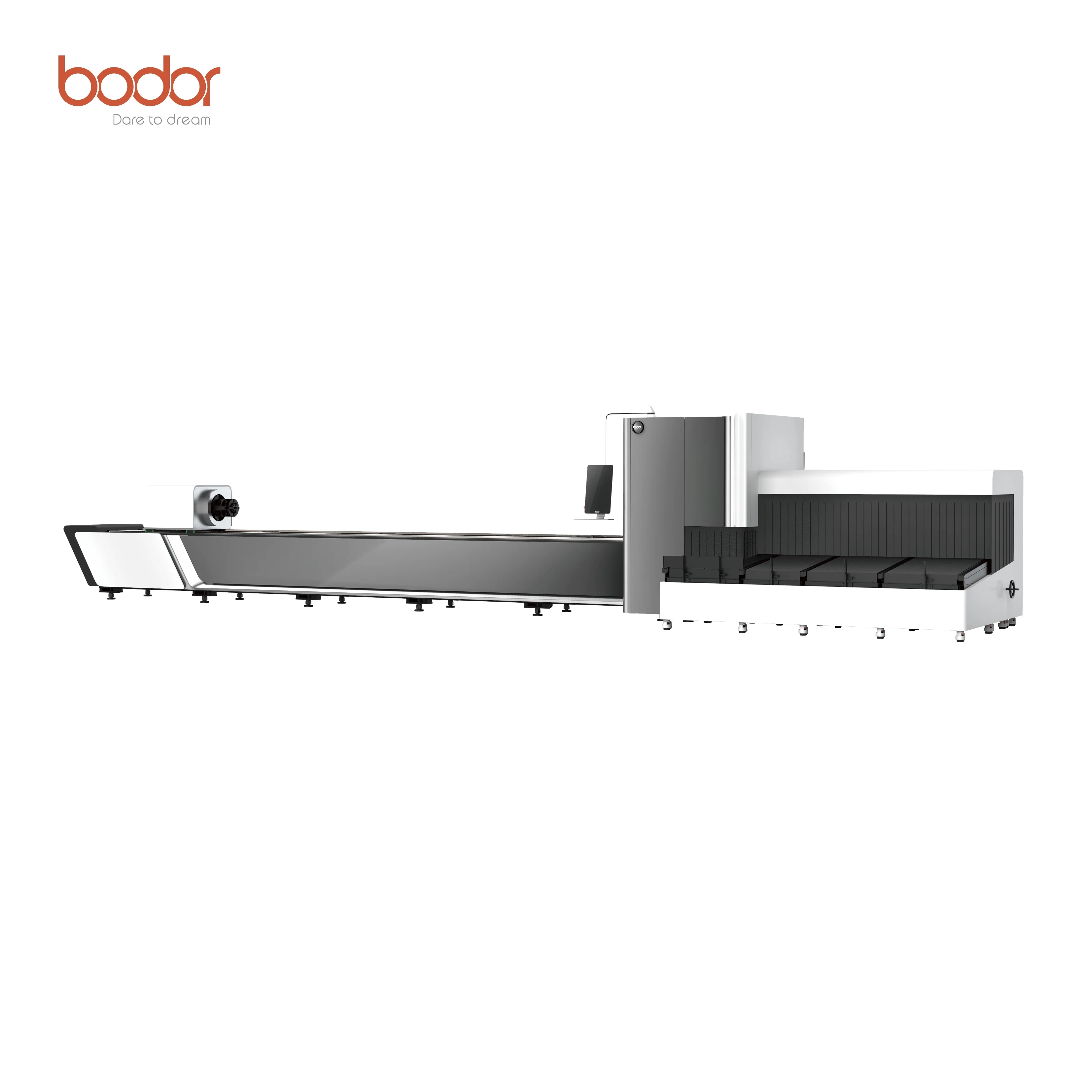

Высокопроизводительный лазерный резак для металлических трубок 6000 Вт
